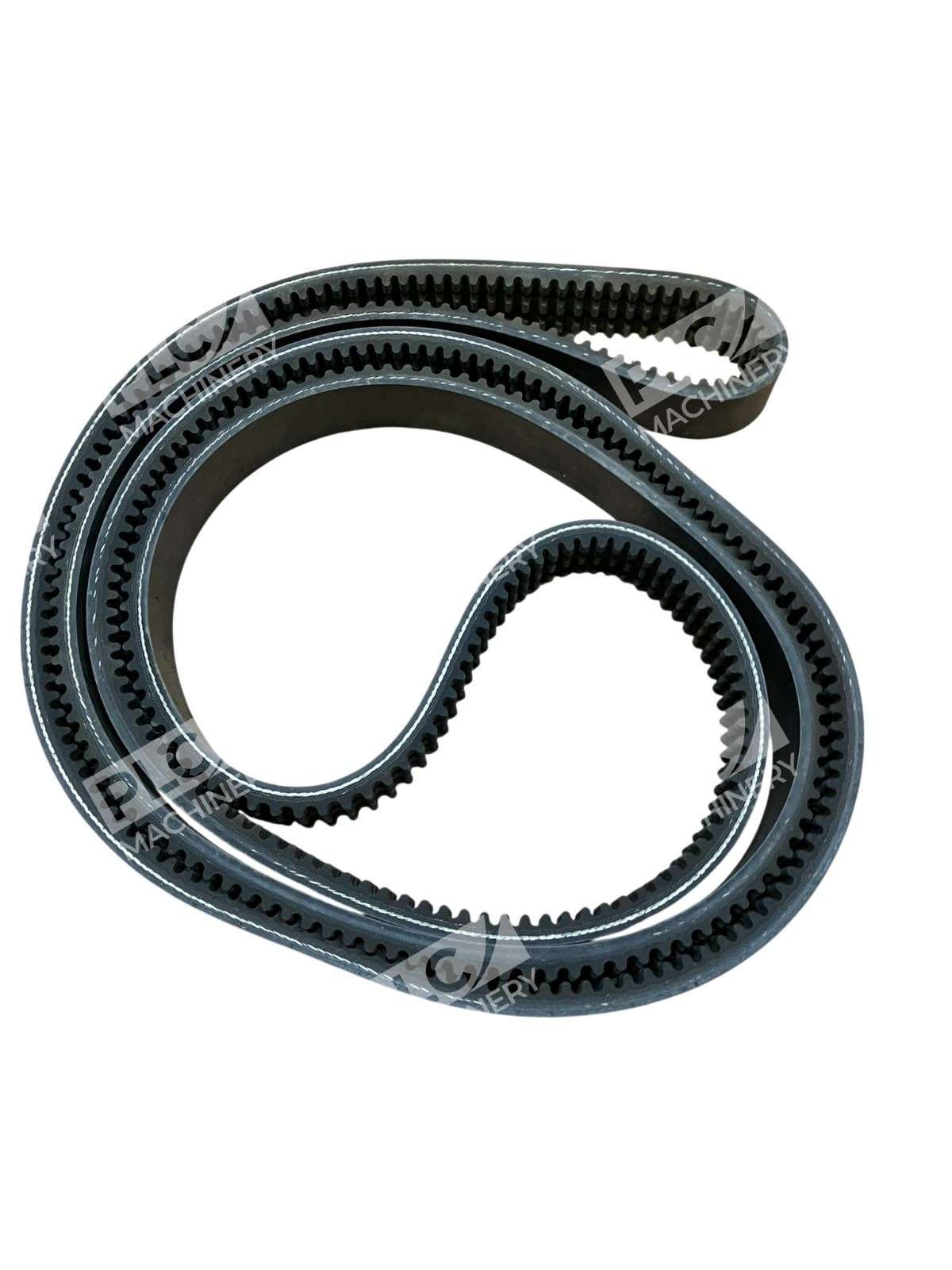

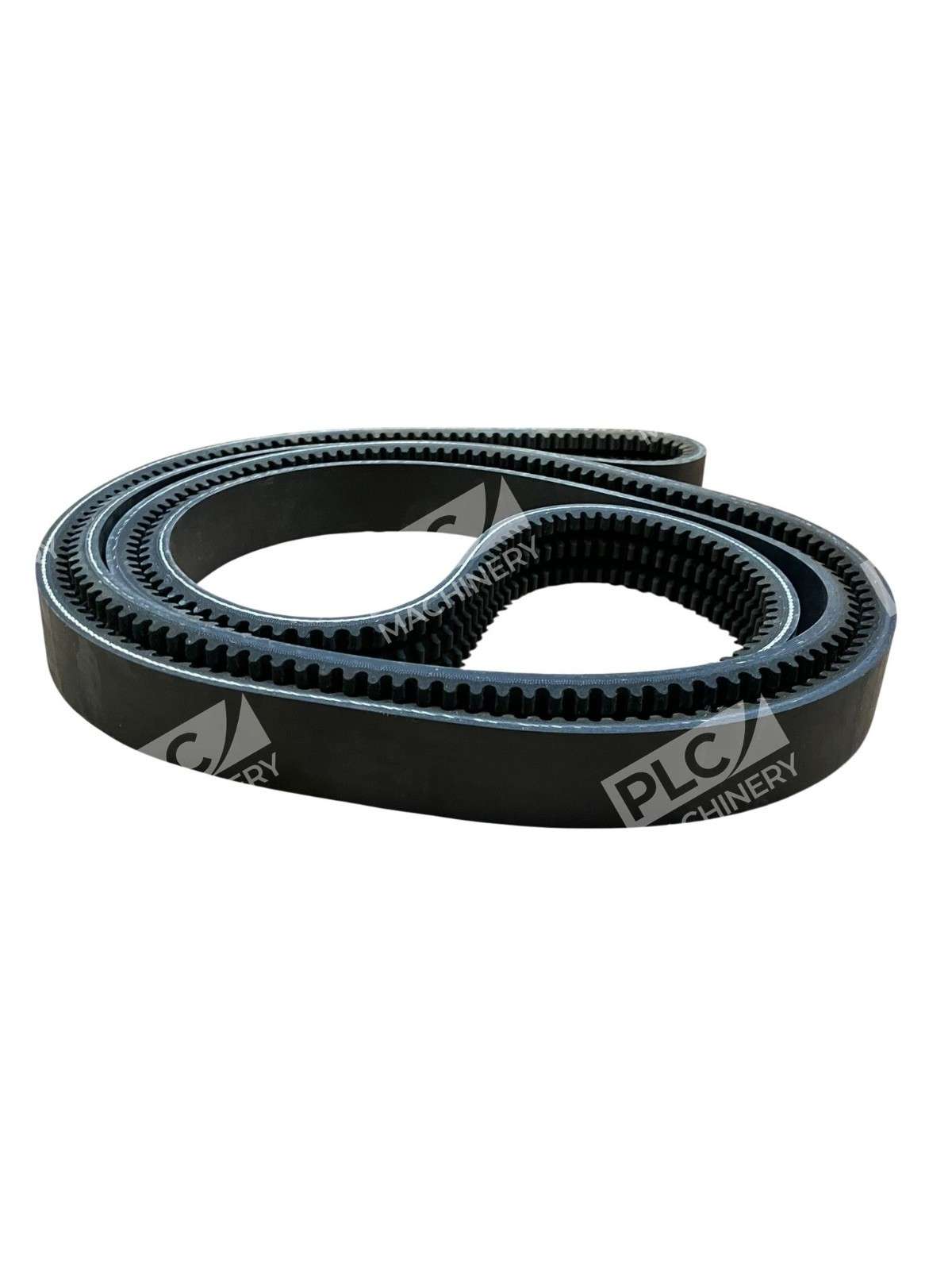

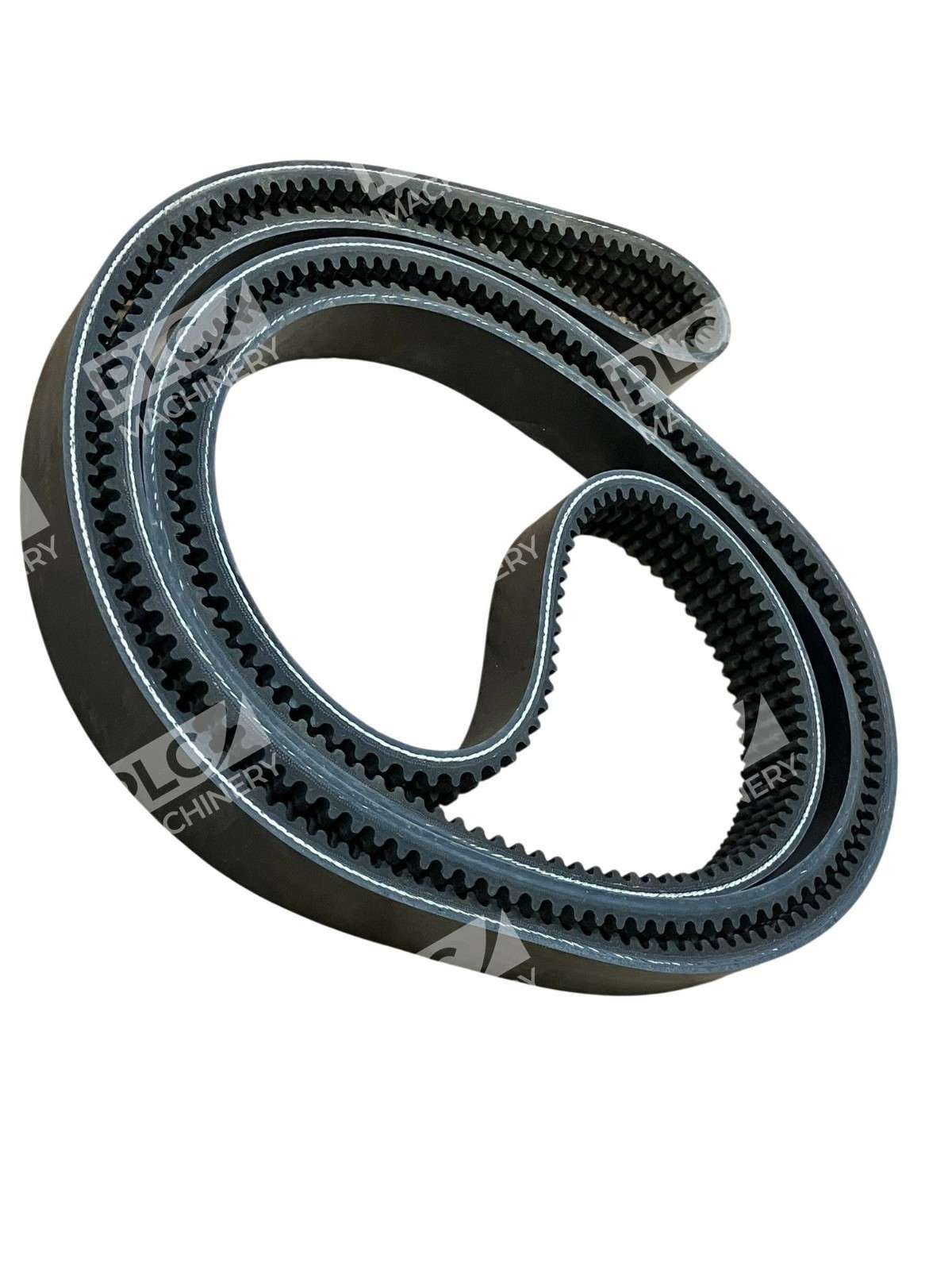

<h2>Overview</h2>

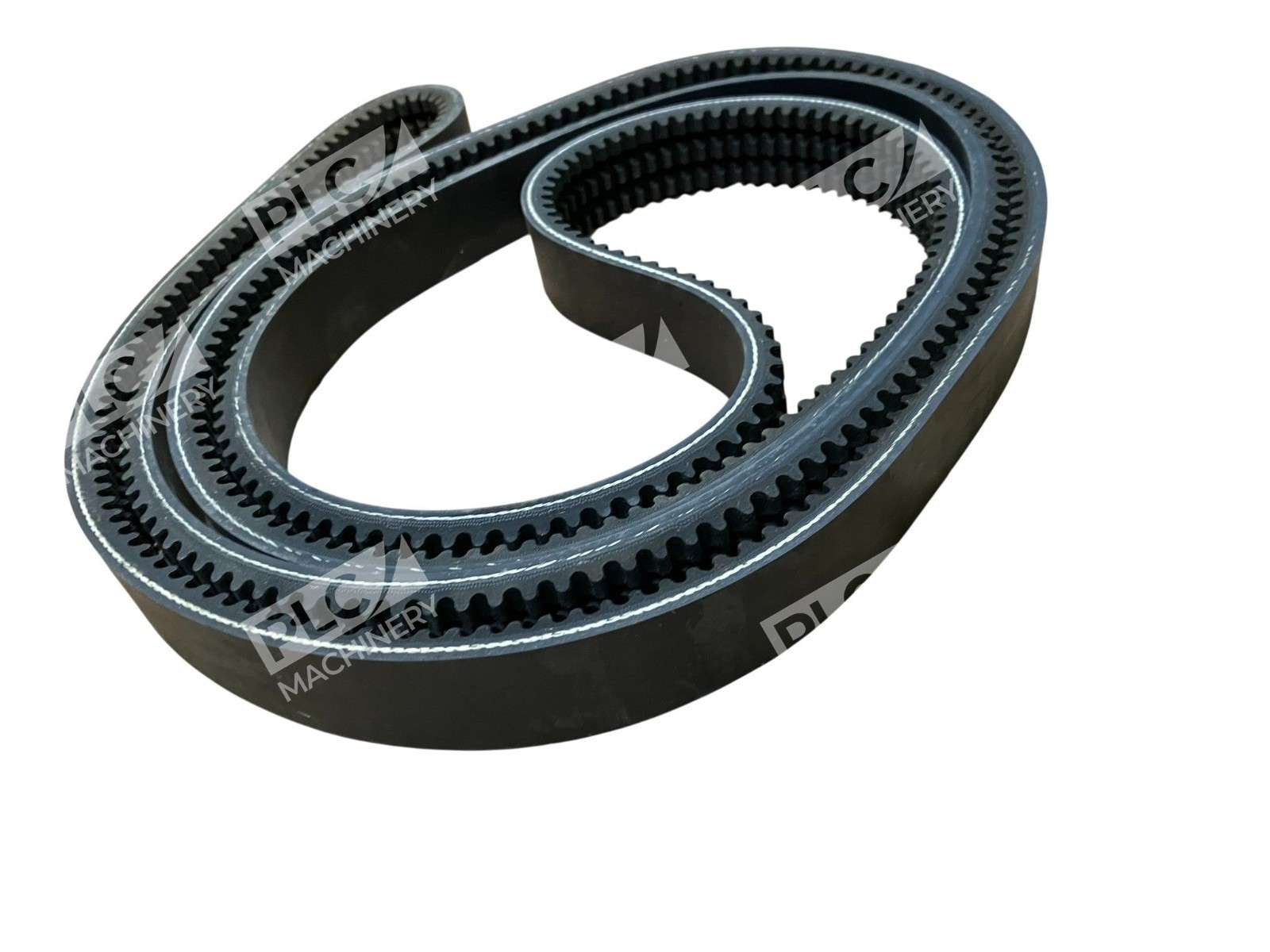

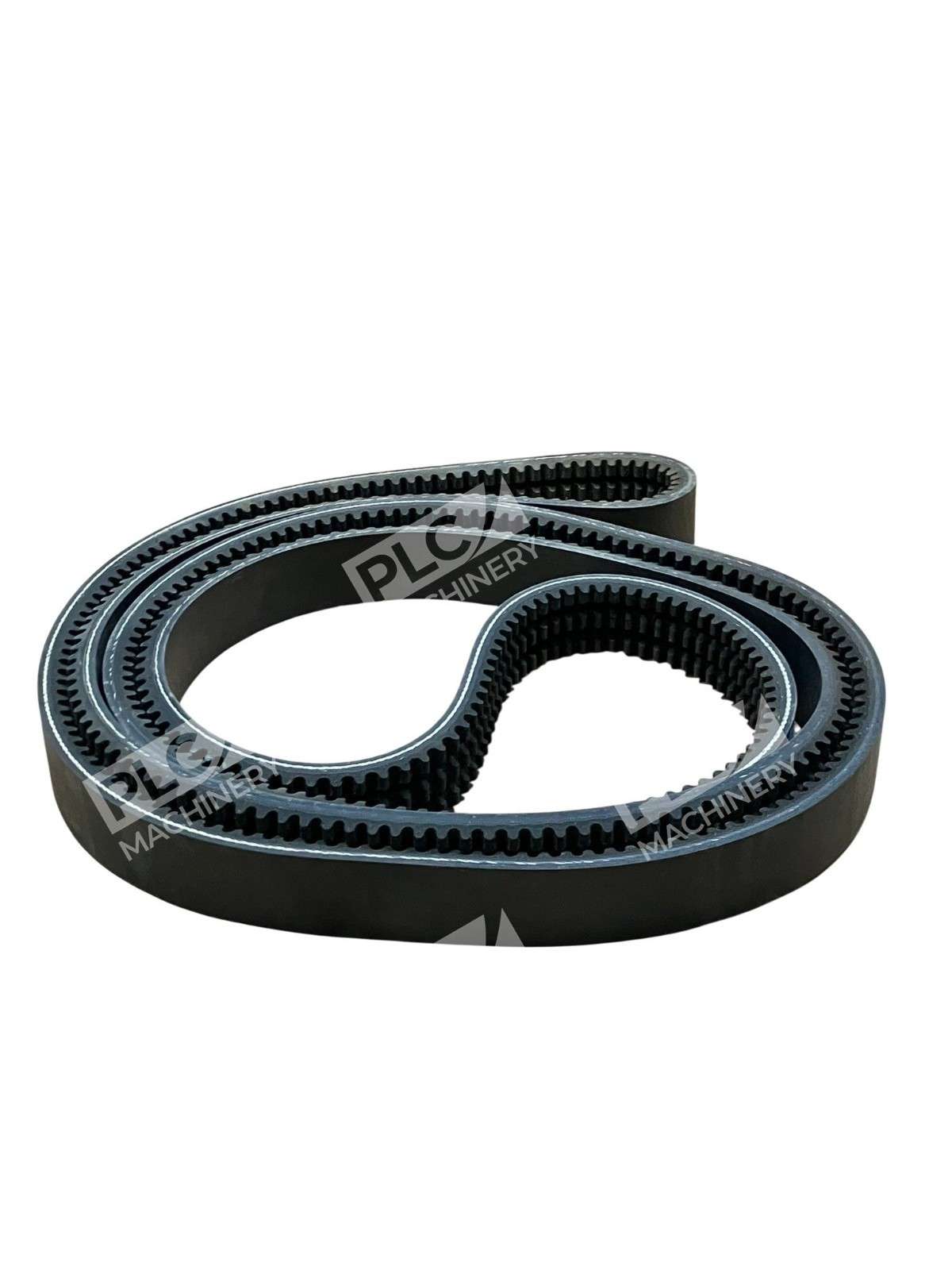

<p>The <strong>Gates 3/3VX1060 Super HC PowerBand</strong> is a premium power transmission V-belt designed for industrial drives subject to pulsating loads, shock vibrations, and extreme operating conditions. This 3-strand banded unit combines <cite index=”1-1″>notched design to reduce bending stress as the belt wraps around small diameter pulleys</cite>, making it ideal for high-horsepower applications in tight mounting spaces.</p>
<h2>Key Features</h2>
<ul>
<li><strong>3-Strand PowerBand Construction</strong> — <cite index=”9-8″>Multiple V-belts joined together by a permanent, high strength tie band, providing more powerful, tougher performance than all the belts taken separately</cite></li>
<li><strong>Flex-Bonded Cords</strong> — <cite index=”9-9″>Strongly bonded to the belt body resulting in equal load distribution and absorption of bending stress without cord deterioration</cite></li>
<li><strong>Molded Notch Design</strong> — <cite index=”1-4″>Notches molded into the underside create the flexibility needed to fit smaller diameter sheaves while maintaining strength and traction</cite></li>
<li><strong>EPDM Rubber Compound</strong> — <cite index=”1-2″>Made of EPDM (ethylene propylene diene monomer) rubber for resistance to weathering, oils, water, and some solvents</cite></li>
<li><strong>Flex-Weave Cover</strong> — <cite index=”9-10″>Patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat</cite></li>
<li><strong>Service-Free Operation</strong> — No run-in period or re-tensioning required; operates as a single stabilized unit</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Belt Section</strong> — 3VX (3V Wedge)</li>
<li><strong>Number of Strands</strong> — 3</li>
<li><strong>Outside Circumference</strong> — 106.0″</li>
<li><strong>Top Width</strong> — 3/8″</li>
<li><strong>Overall Width</strong> — 1-1/8″</li>
<li><strong>Height</strong> — 21/64″</li>
<li><strong>Belt Type</strong> — Super HC Molded Notch PowerBand</li>
<li><strong>Material</strong> — EPDM Rubber</li>
<li><strong>Operating Temperature Range</strong> — -70°F to +250°F (-57°C to +121°C)</li>
<li><strong>Standards Compliance</strong> — ARPM/RMA IP-3-2 oil and heat resistance; IP-3-3 static conductivity; REACH and RoHS 2 compliant</li>
<li><strong>Series Designation</strong> — V80 Series</li>
<li><strong>Gates Part Number</strong> — 9388-3106</li>
</ul>
<h2>Typical Applications</h2>
<p><cite index=”1-15″>V-belts are found in drive systems in the automotive, agricultural, textile, printing, mining, and office equipment industries, among others.</cite> The 3/3VX1060 Super HC PowerBand is specifically engineered for:</p>
<ul>
<li>Multi-belt drives subject to pulsating or heavy shock loads</li>
<li>Compact industrial automation systems with space constraints</li>
<li>High-stability power transmission requiring minimal maintenance</li>
<li>Extreme temperature environments (HVAC, cold storage, furnace equipment)</li>
<li>Drives where single belts vibrate, turn over, or jump off pulleys</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>3V wedge-groove sheaves and pulleys</li>
<li>Industrial multi-belt drive systems</li>
<li>Heavy-duty power transmission applications</li>
<li>Systems requiring EPDM material and static conductivity compliance</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The Gates 3/3VX1060 (Series 9388-3106) replaces other 3-strand, 3VX, 106″ circumference V-belts in banded or molded notch configurations. Verify your existing belt specifications (circumference, section, strand count) with your OEM documentation before ordering to ensure direct compatibility.</p>
<h3>Works With</h3>
<ul>
<li>Gates V80 matching system for precision load distribution</li>
<li>3V (9J) section sheaves and pulleys</li>
<li>Standard RMA and ISO-compliant drive architectures</li>
<li>Oil, heat, and static-sensitive industrial environments</li>
</ul>
