Overview

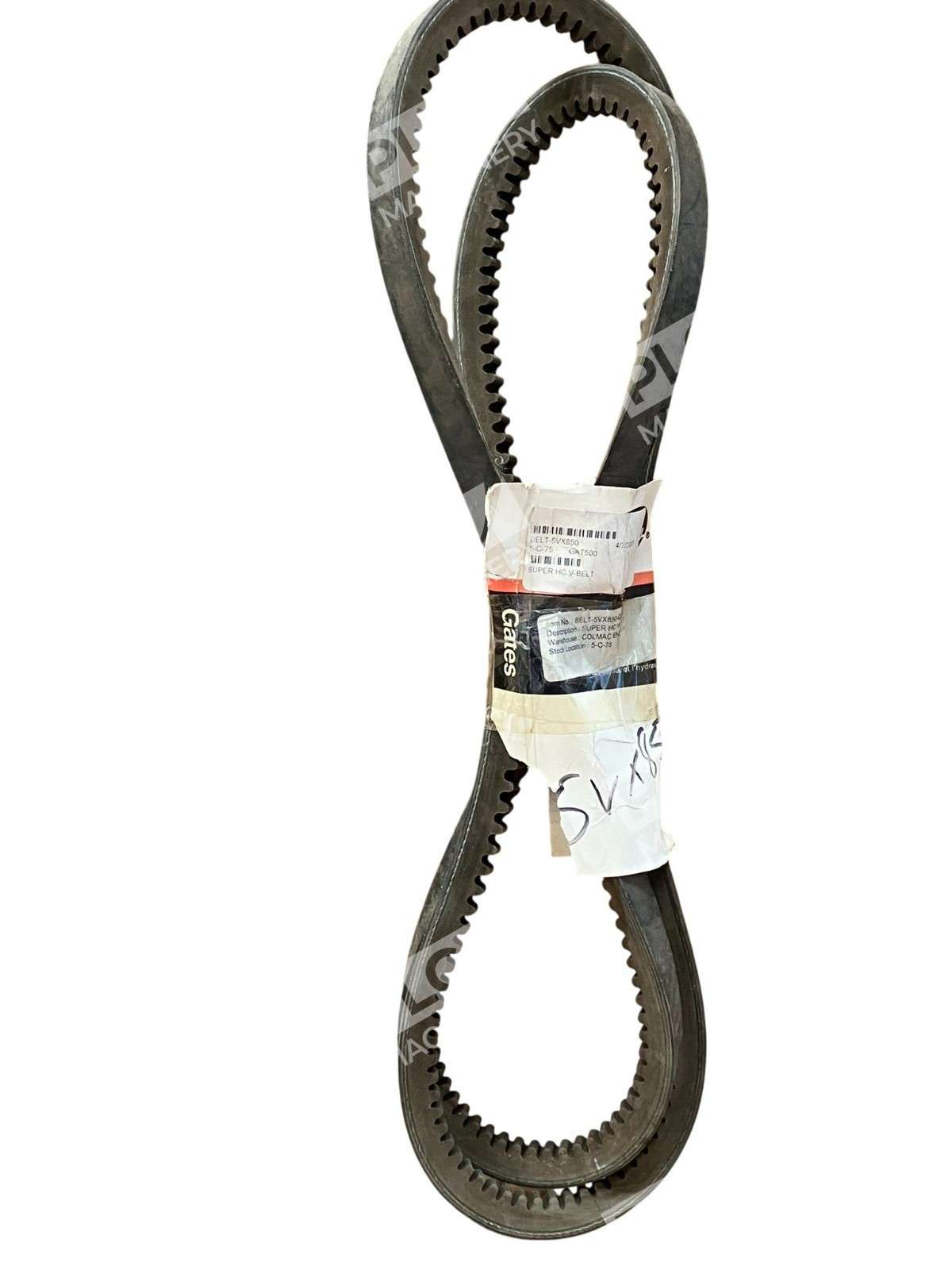

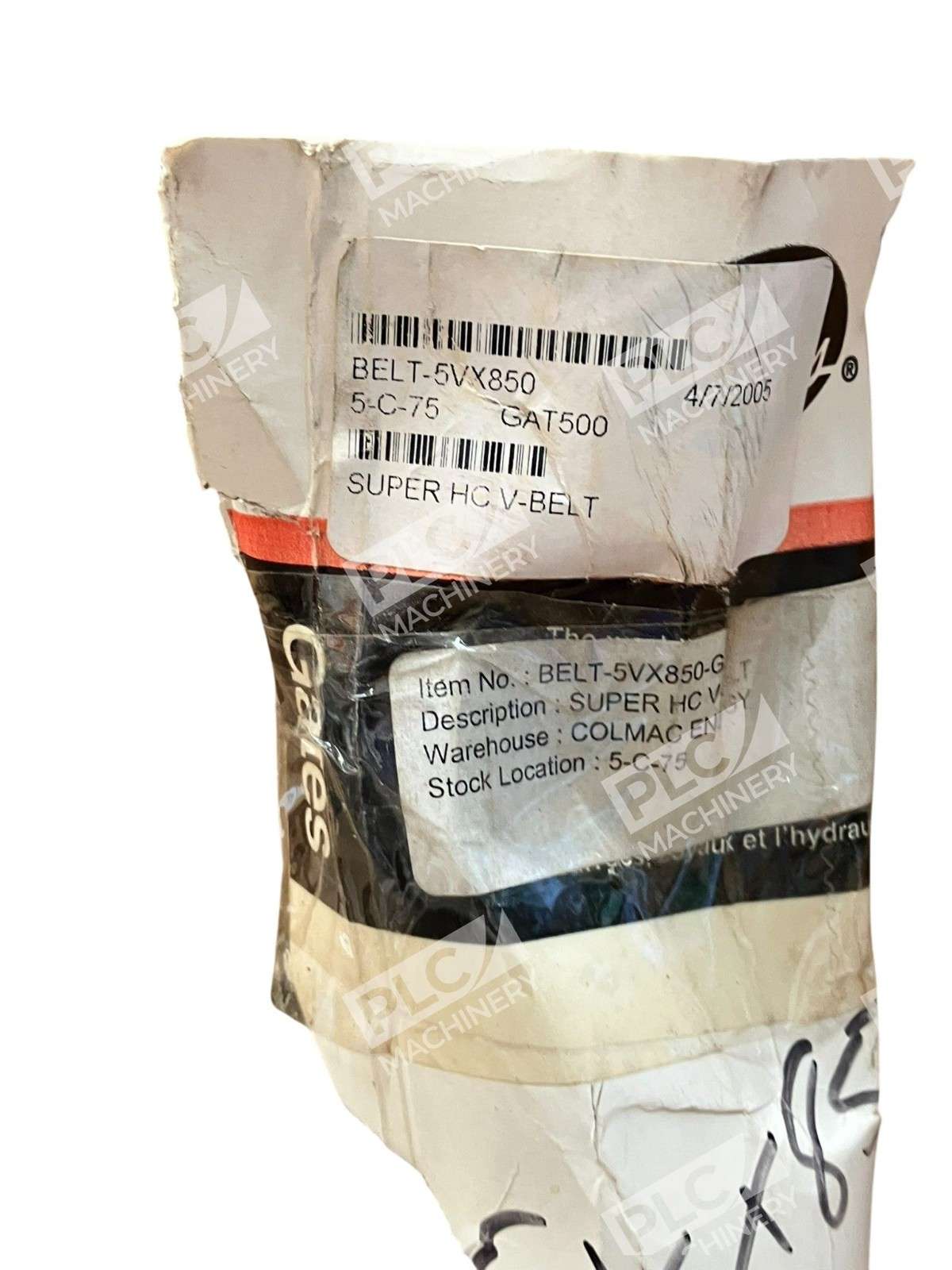

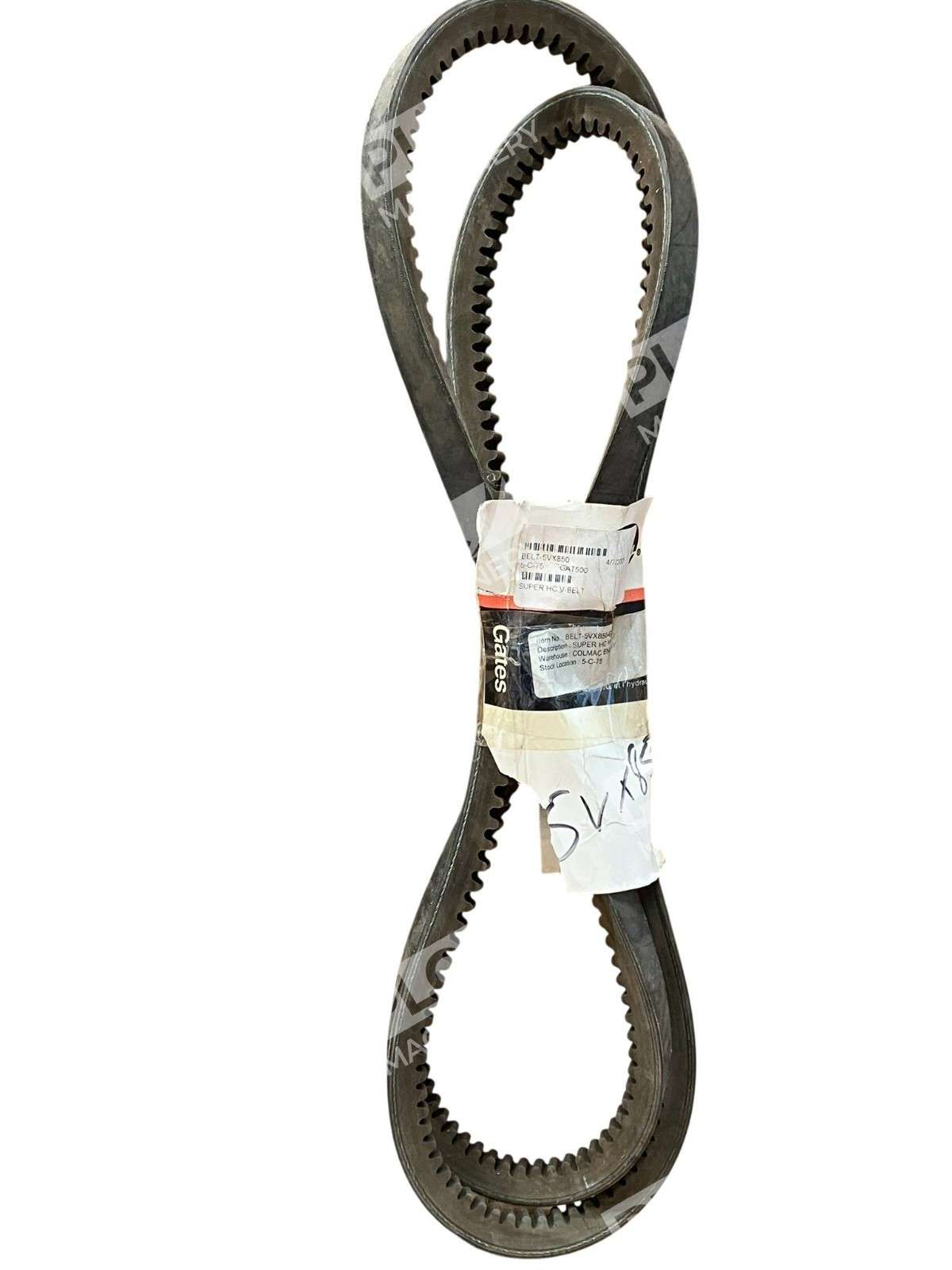

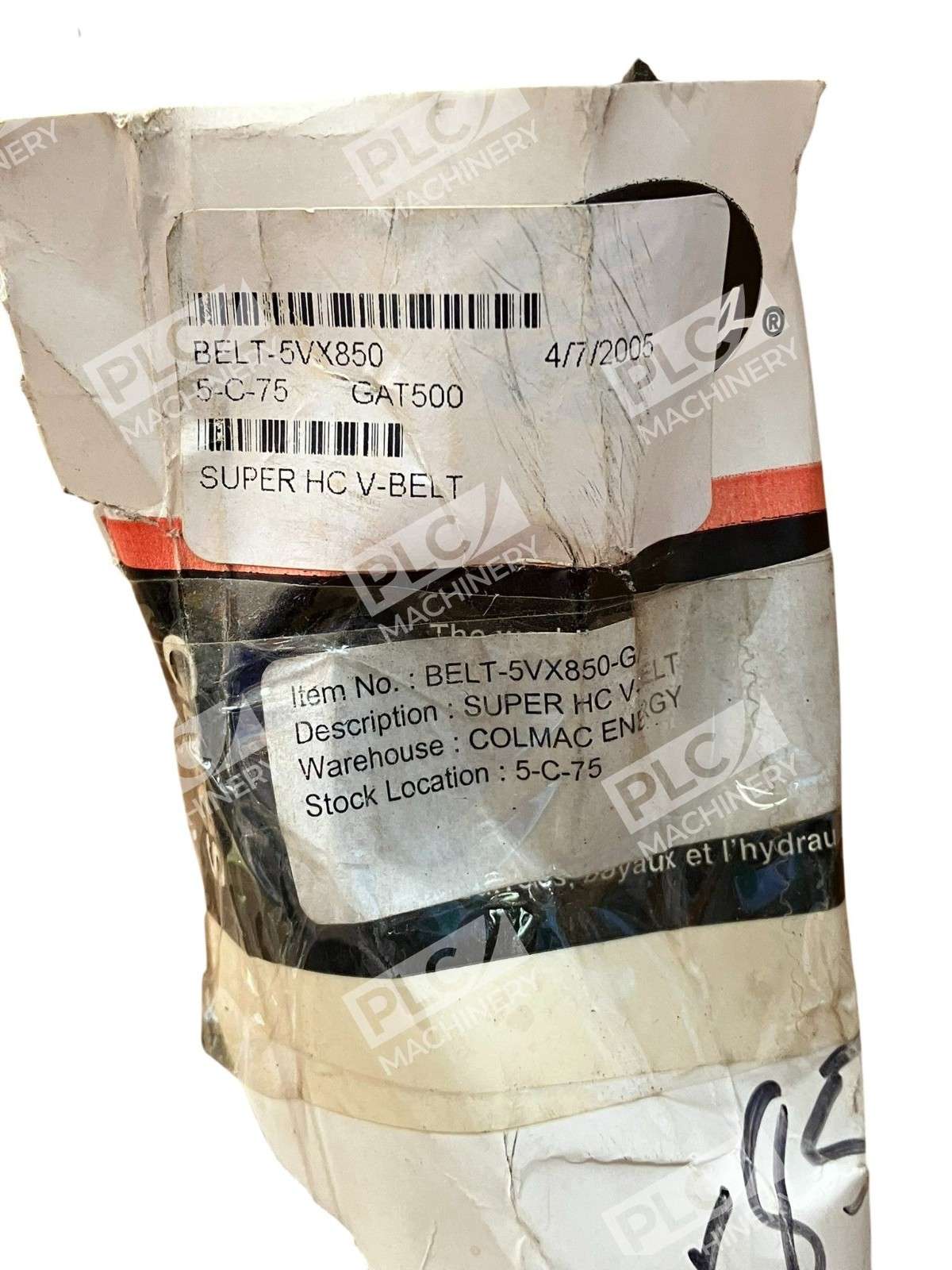

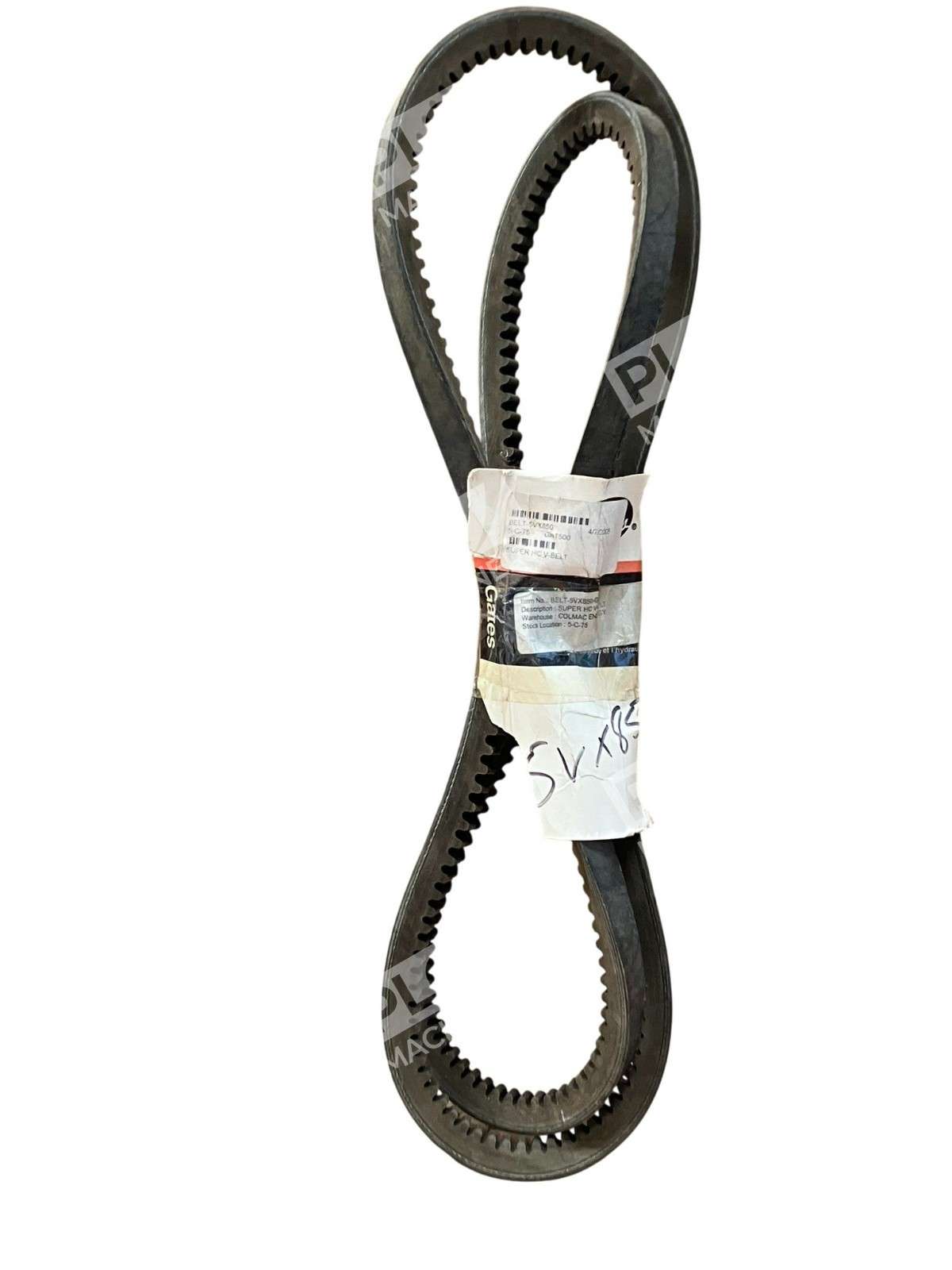

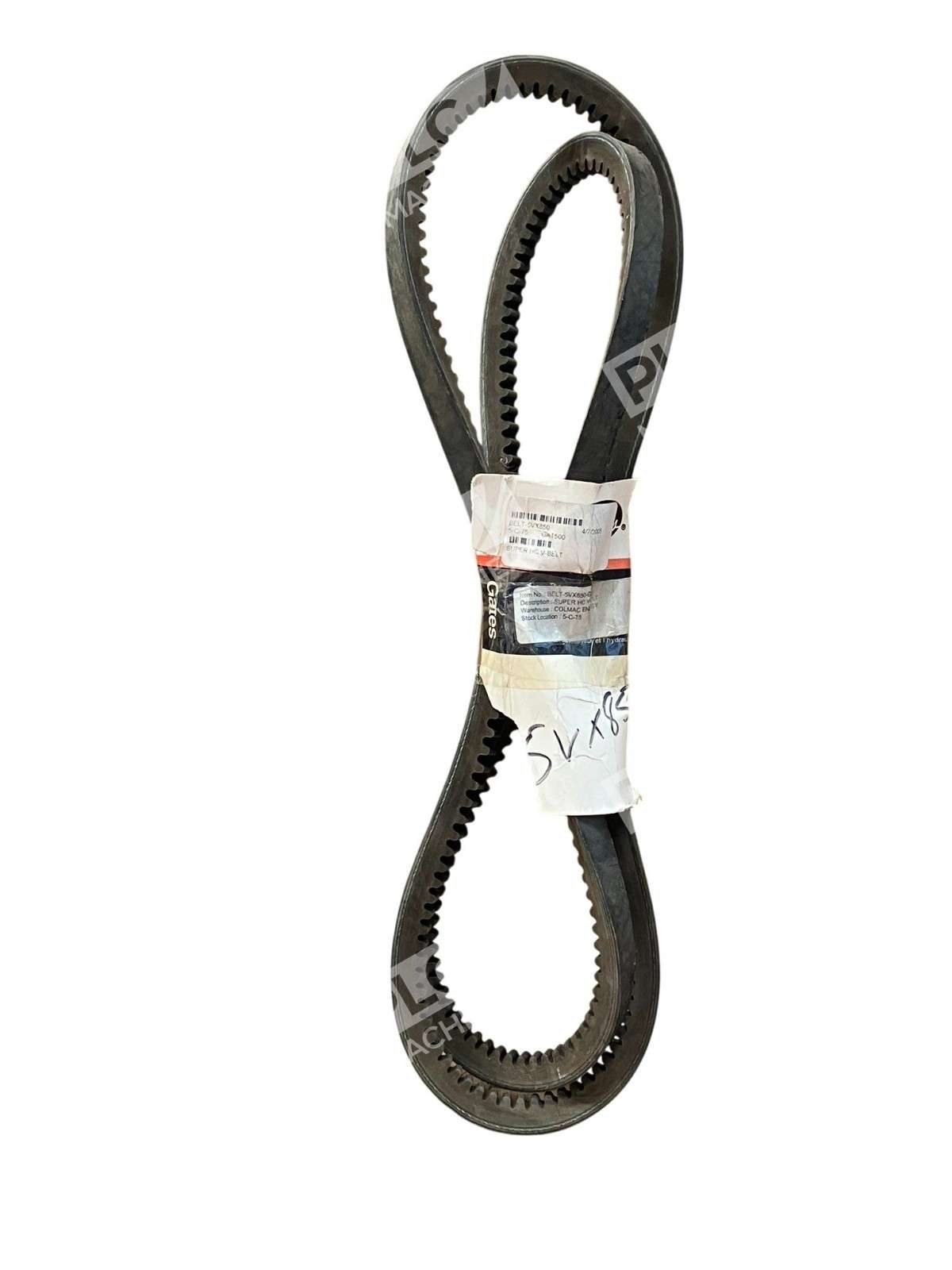

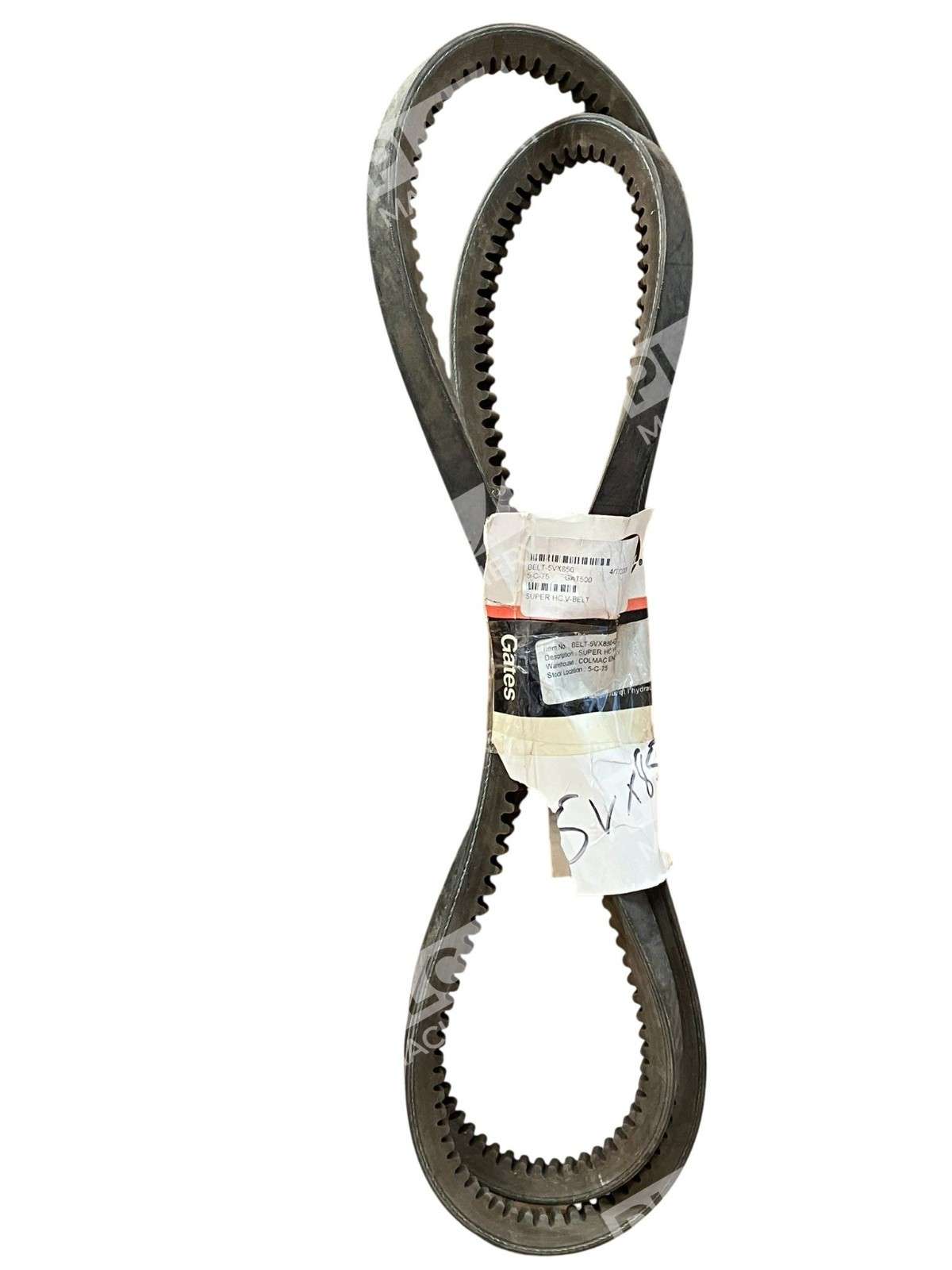

The Gates 5VX850 Super HC Molded Notch Belt is a premium industrial-grade power transmission belt engineered for heavy-duty applications requiring compact drive design and high horsepower transmission. This cogged V-belt features narrow 5VX dimensions, making it ideal for machinery with space constraints or high-speed requirements.
Key Features
- Notched (cogged) construction for improved flexibility, better heat dissipation, and higher efficiency on smaller pulleys
- Proprietary construction provides superior combination of flex and load-carrying capacity, transmitting up to three times the horsepower versus comparably sized belts
- Constructed from patented ethylene material that provides high-temperature tolerance and exceptional strength
- Made of EPDM (ethylene propylene diene monomer) rubber for resistance to weathering, oils, water, and some solvents
- Edge is machined for even sheave groove contact resulting in less slip and wear
- Part of Gates’ V80 matching system, guaranteeing belts of the same type and size are more precisely matched than RMA and ISO standards require
Technical Specifications
- Belt Section: 5VX (Narrow notched cogged V-belt)
- Top Width: 5/8 inches (0.625″)
- Outside Length: 85 inches (O.C.)
- Nominal Thickness: 0.55 inches (35/64″)
- Material: EPDM with Flex-Bonded Polyester Reinforcement
- Minimum Pulley Diameter: 7.958 inches
- Operating Temperature Range: -65 to +250 degrees F
- Weight: 0.85 lbs
- Number of Ribs: 1 (single belt configuration)
- Reinforcement: Flex-Bonded Polyester Cord
- Standards Compliance: Meets RMA oil and heat resistance standards and static conductivity requirements
Typical Applications
- Compact industrial drive systems with space constraints
- High-speed machinery requiring efficient power transmission
- Applications with high speeds, high-speed ratios or small pulley diameters
- Industrial manufacturing equipment and field power transmission
- Conveyor systems and material handling machinery
- HVAC and ventilation fan drives
Compatibility & Replacements
Compatible With
- All standard 5VX sheave/pulley configurations
- Industrial machinery with minimum pulley diameter of 7.958 inches or larger
- Multi-belt drive systems
- Fixed and adjustable pulley assemblies
Replaces / Drop-In Replacement For
- Alternate part number 07205329071, 072053290714
- Supplier part number 94140850
- Other standard 5VX section 85-inch industrial V-belts
Works With
- All 5VX narrow section pulley systems
- Industrial power transmission and drive assemblies
- Fixed and variable speed drives
- Standard belt tensioning and maintenance tools
