Overview

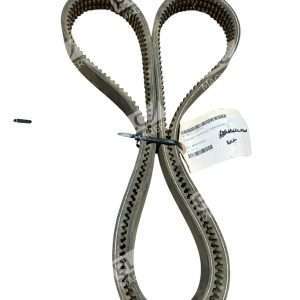

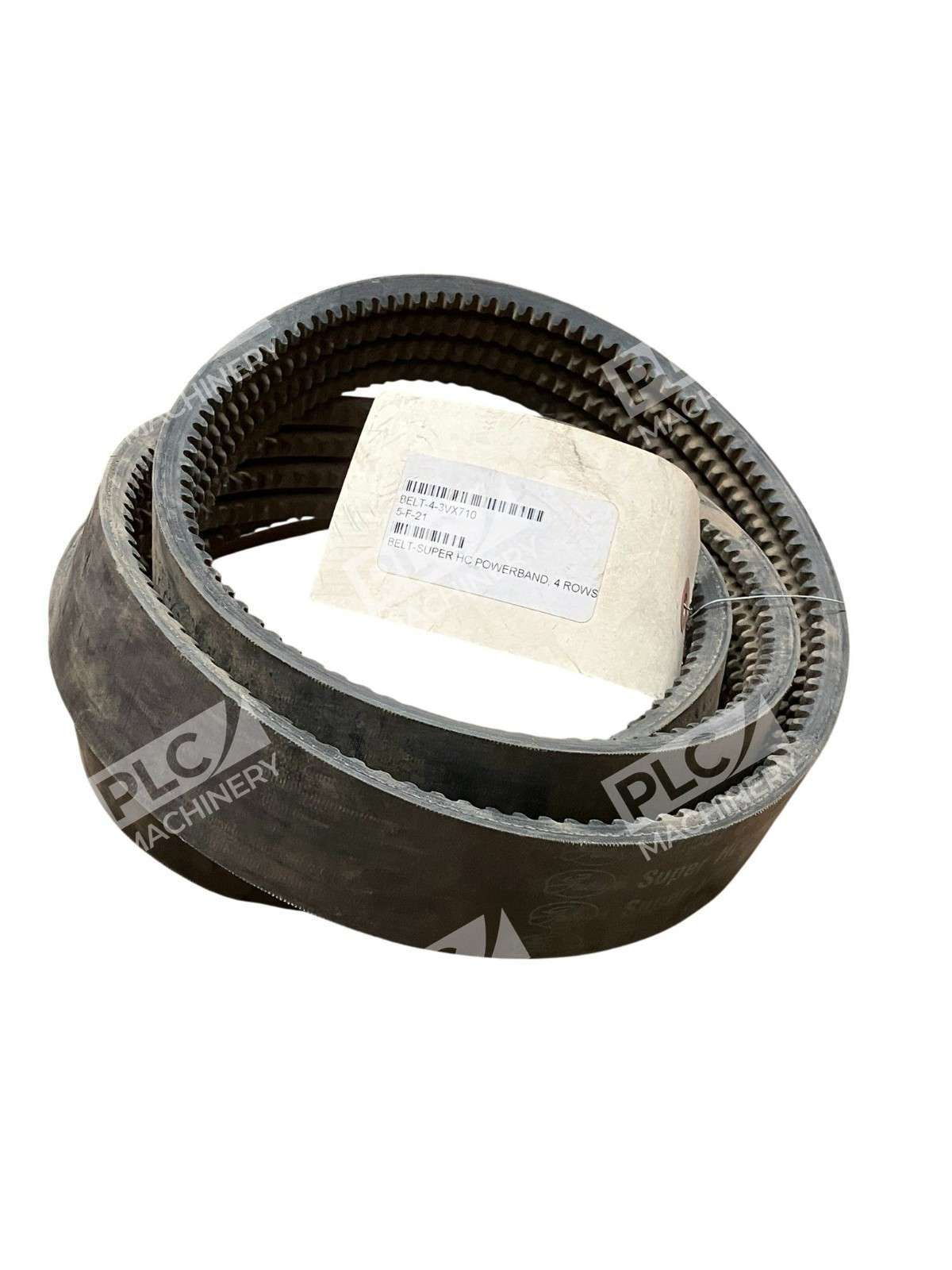

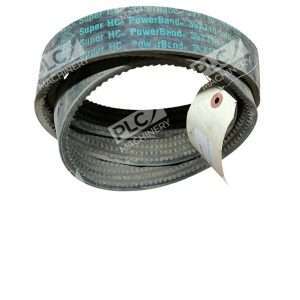

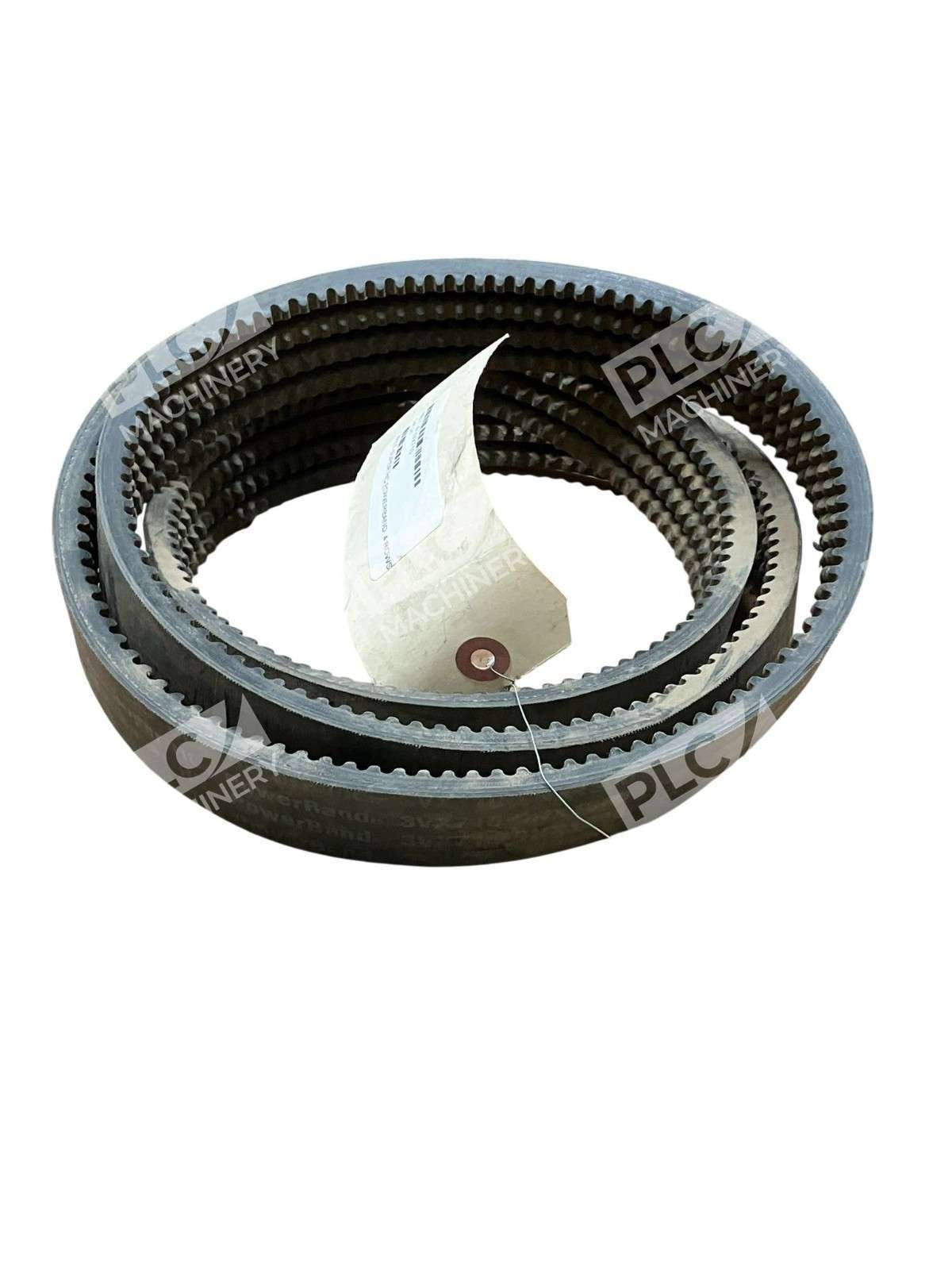

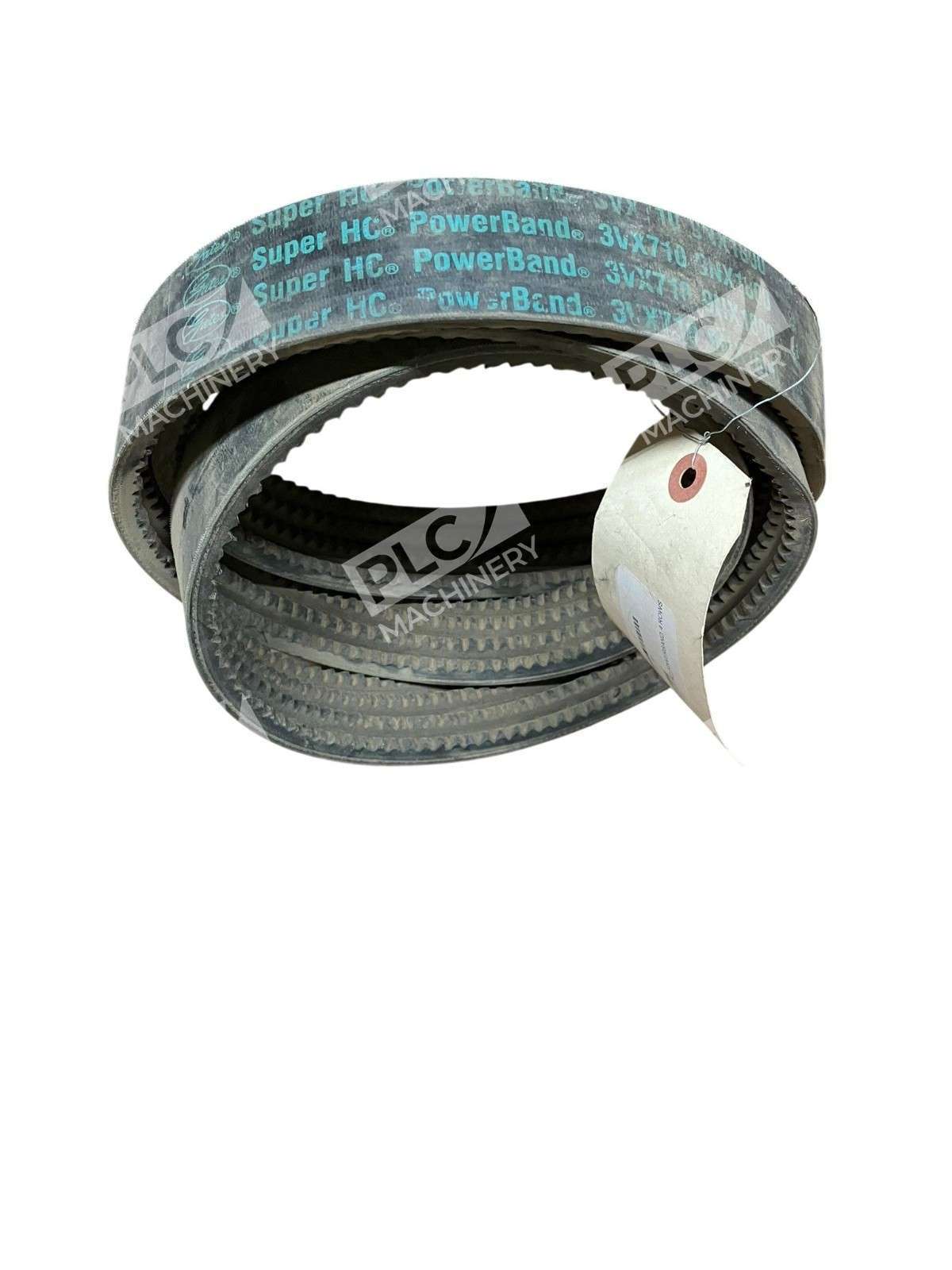

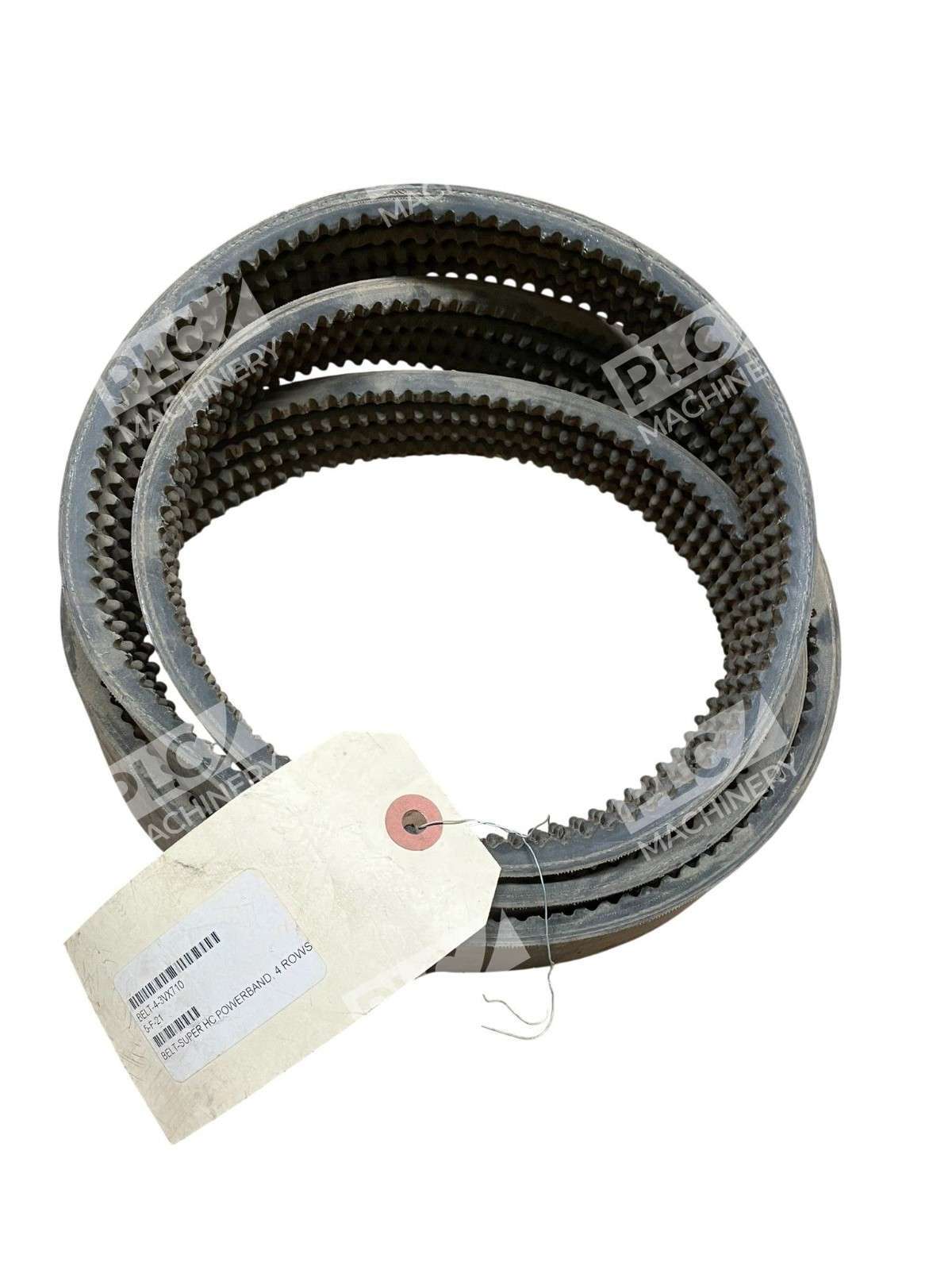

The Gates 3VX710 Super HC PowerBand is a molded notch, banded cogged V-belt engineered for demanding industrial power transmission applications. This 4-row banded configuration combines flex-bonded polyester reinforced cords with PowerBand® tie-band construction, enabling multiple belts to function as a single unit with even load distribution. The Gates 3VX710 features a 71-inch outside circumference and 3VX narrow-wedge section profile, making it ideal for compact, high-performance drives.
Key Features
- 4-Row PowerBand® Construction: Banded tie band joins multiple belts for lateral rigidity, preventing belt whip, turn-over, and slippage on multiple-belt drives.
- Molded Notch Design: Notches reduce bending stress and improve flexibility around small-diameter sheaves while maintaining load-carrying capacity.
- EPDM Rubber Compound: Ethylene propylene diene monomer construction provides superior resistance to weathering, oils, water, and selected solvents.
- Flex-Bonded Cord Technology: Polyester reinforcement cords are strongly bonded to belt body, ensuring equal load distribution and absorption of bending stress without cord deterioration.
- Extended Temperature Range: Operates reliably from -60°F to +250°F, resistant to cracking and exceeding RMA and ISO standards.
- V80® Matching System: Precisely manufactured tolerances exceed Rubber Manufacturers Association (RMA) and International Standards Organization (ISO) requirements, ensuring consistent performance across multi-belt installations.
Technical Specifications
- Section: 3VX (Narrow Wedge)
- Number of Rows: 4 (Banded)
- Outside Circumference: 71.0 inches
- Top Width per Strand: 3/8 inch
- Overall Height (Depth): 21/64 inch (0.3281 inch)
- Minimum Pulley Diameter: 3.82 inches
- Material: EPDM (Ethylene Propylene Diene Monomer)
- Reinforcement: Flex-Bonded Polyester
- Operating Temperature Range: -60°F to +250°F (-51°C to +121°C)
- Belt Style: Super HC® Molded Notch PowerBand®
- Cogged Profile: Yes (Molded Notches)
- Standards Compliance: RMA IP-3-2 (oil and heat resistant), RMA IP-3-3 (static conductivity), REACH and RoHS 2 compliant
Typical Applications
The Gates 3VX710 Super HC PowerBand is recommended for:
- Multiple V-belt drive systems subject to pulsating or heavy shock loads
- Industrial compressors, pumps, and fan drives
- Material handling conveyors and transfer equipment
- HVAC systems and climate control applications
- Manufacturing equipment requiring compact, high-flex power transmission
- Drives where belt vibration, turning over, or jumping off pulleys is a concern
Compatibility & Replacements
Compatible With
- Multiple V-belt drive systems using 3VX section sheaves
- Industrial automation and motion control equipment
- Drives with 3.82-inch minimum pulley diameter or larger
- Applications requiring banded tie-band belt construction for lateral stability
Replaces / Drop-In Replacement For
- Other 4-row 3VX710 cogged V-belts (71-inch circumference)
- Equivalent Bando, Carlisle, Jason Industrial, and TB Woods 4-row 3VX710 belts
- Gates Series 9388 replacement belts (Series code for 3VX applications)
Works With
- 3VX section sheave grooves (narrow-wedge profile)
- Gates PowerBand® banded belt systems and accessories
- Gates V80® precision matching system for consistent multi-belt performance
- RMA-standard drive systems and equipment utilizing wedge-type belt profiles
