Overview

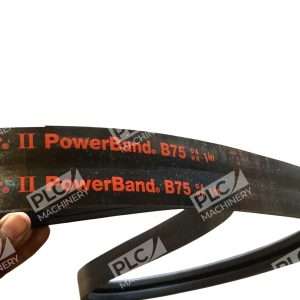

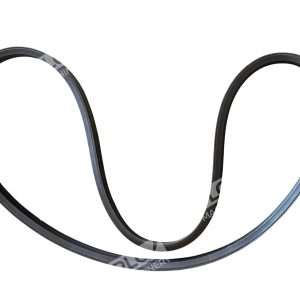

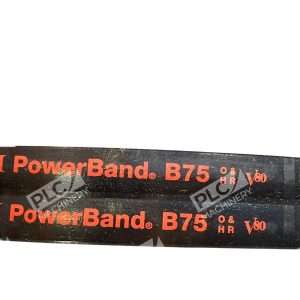

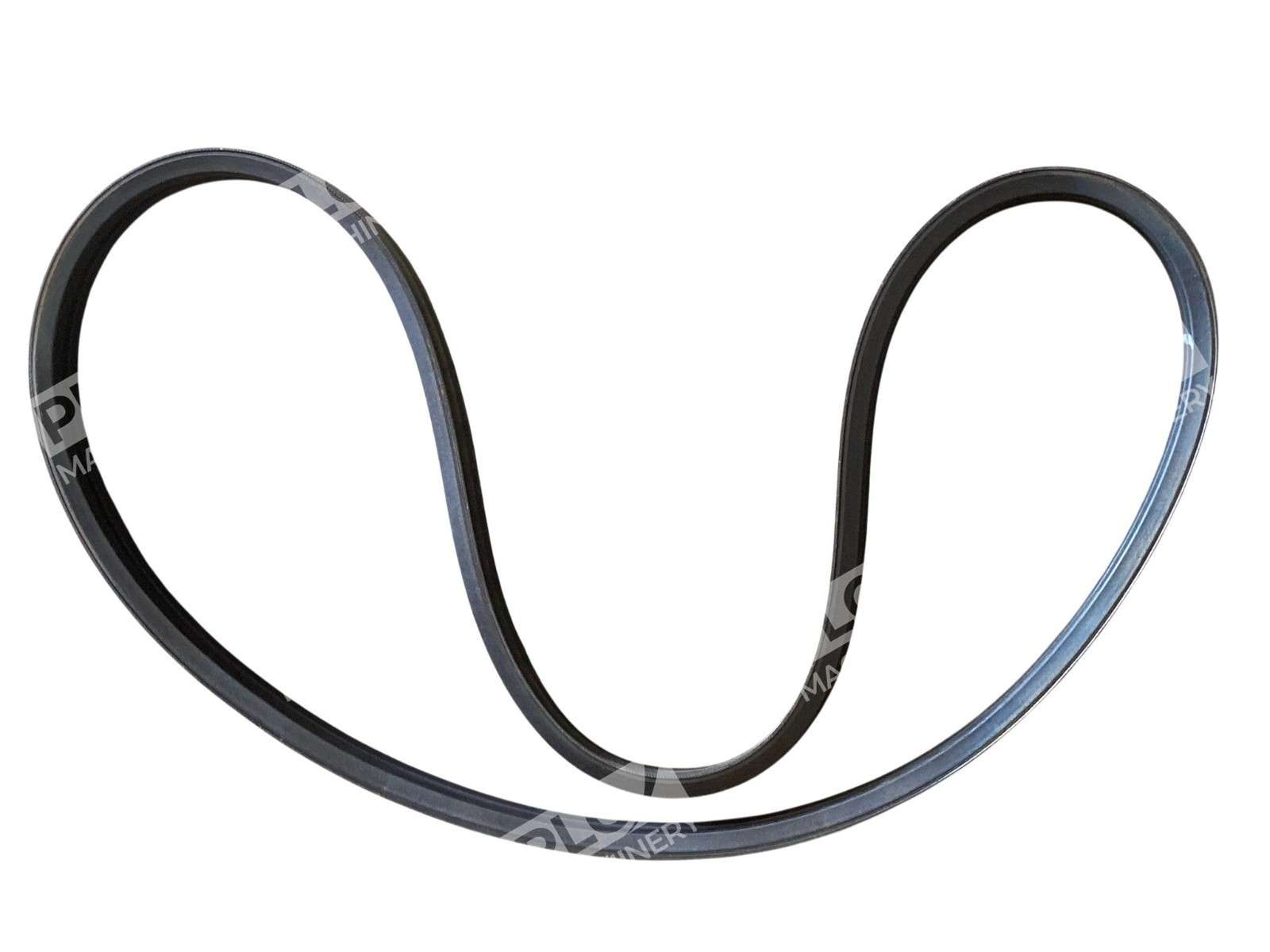

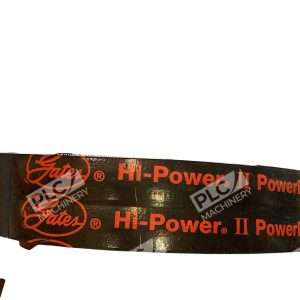

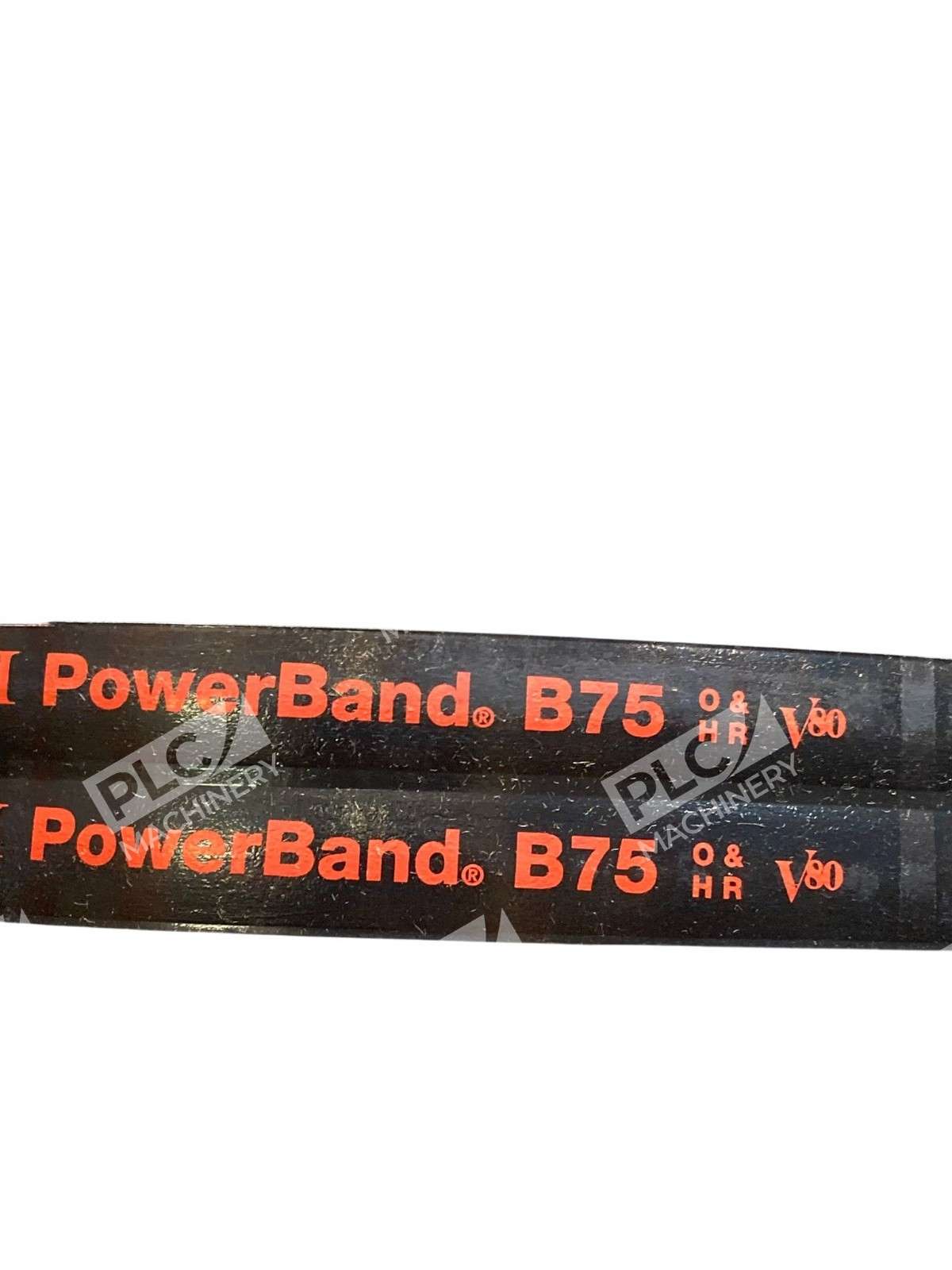

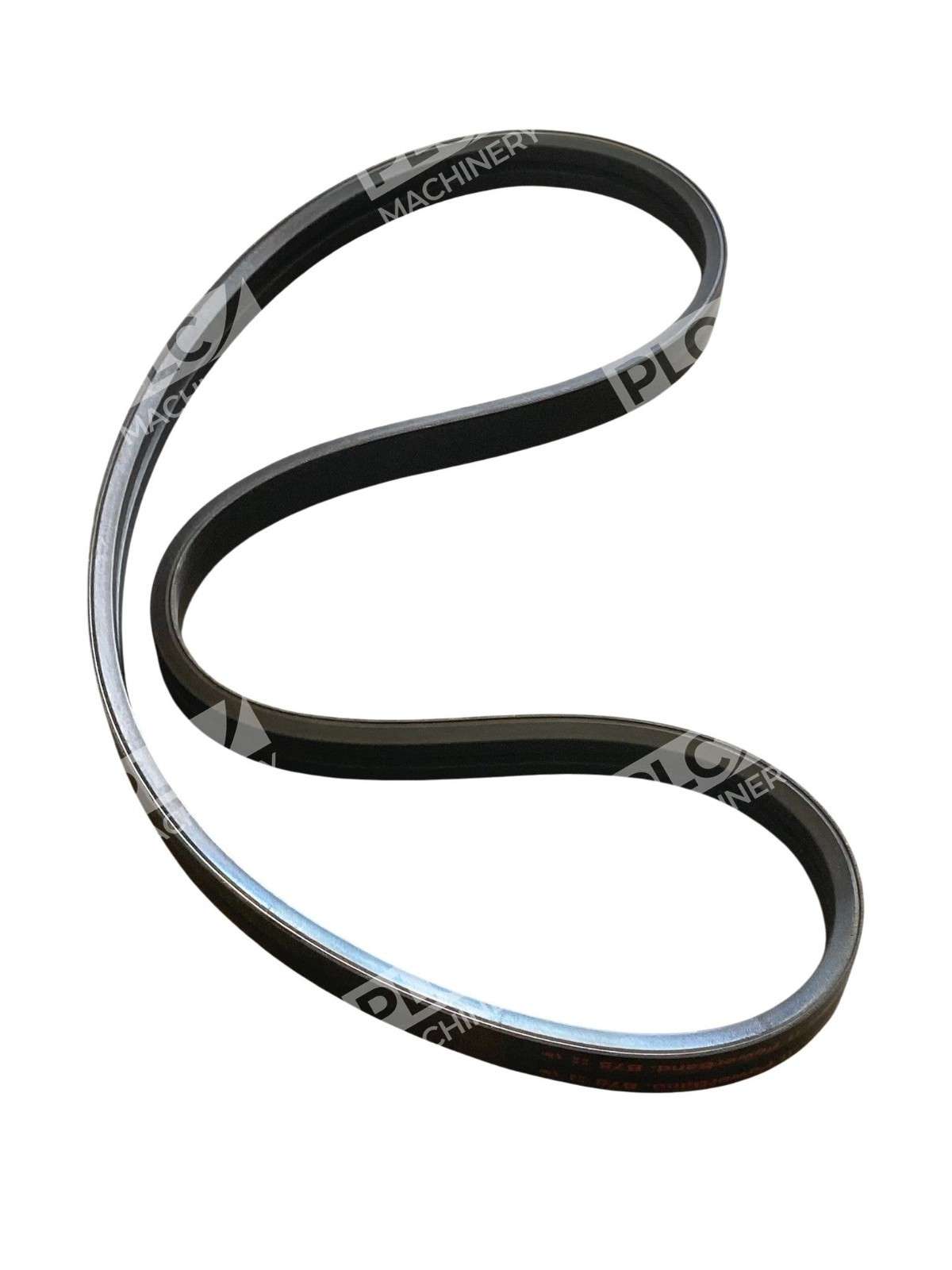

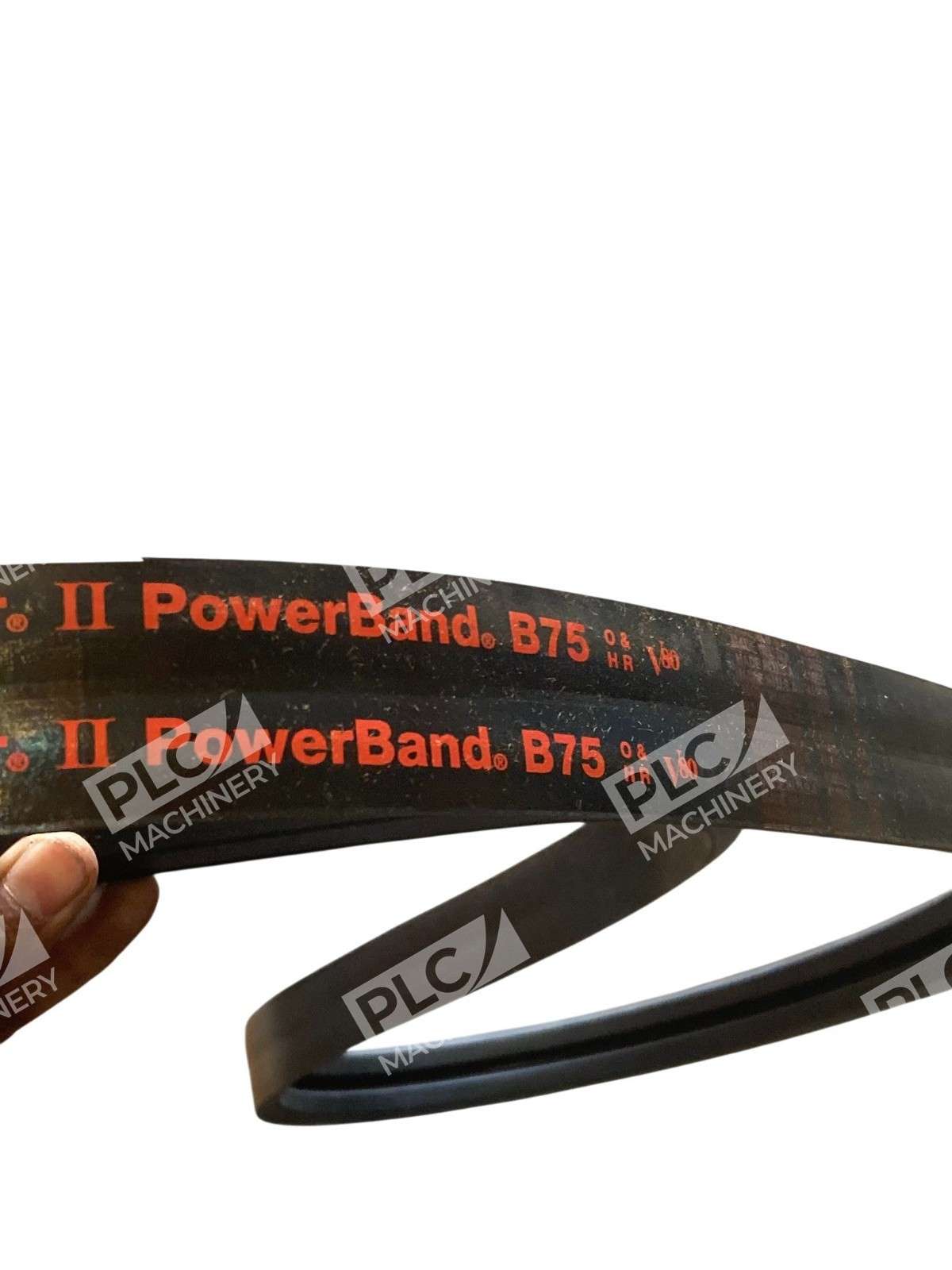

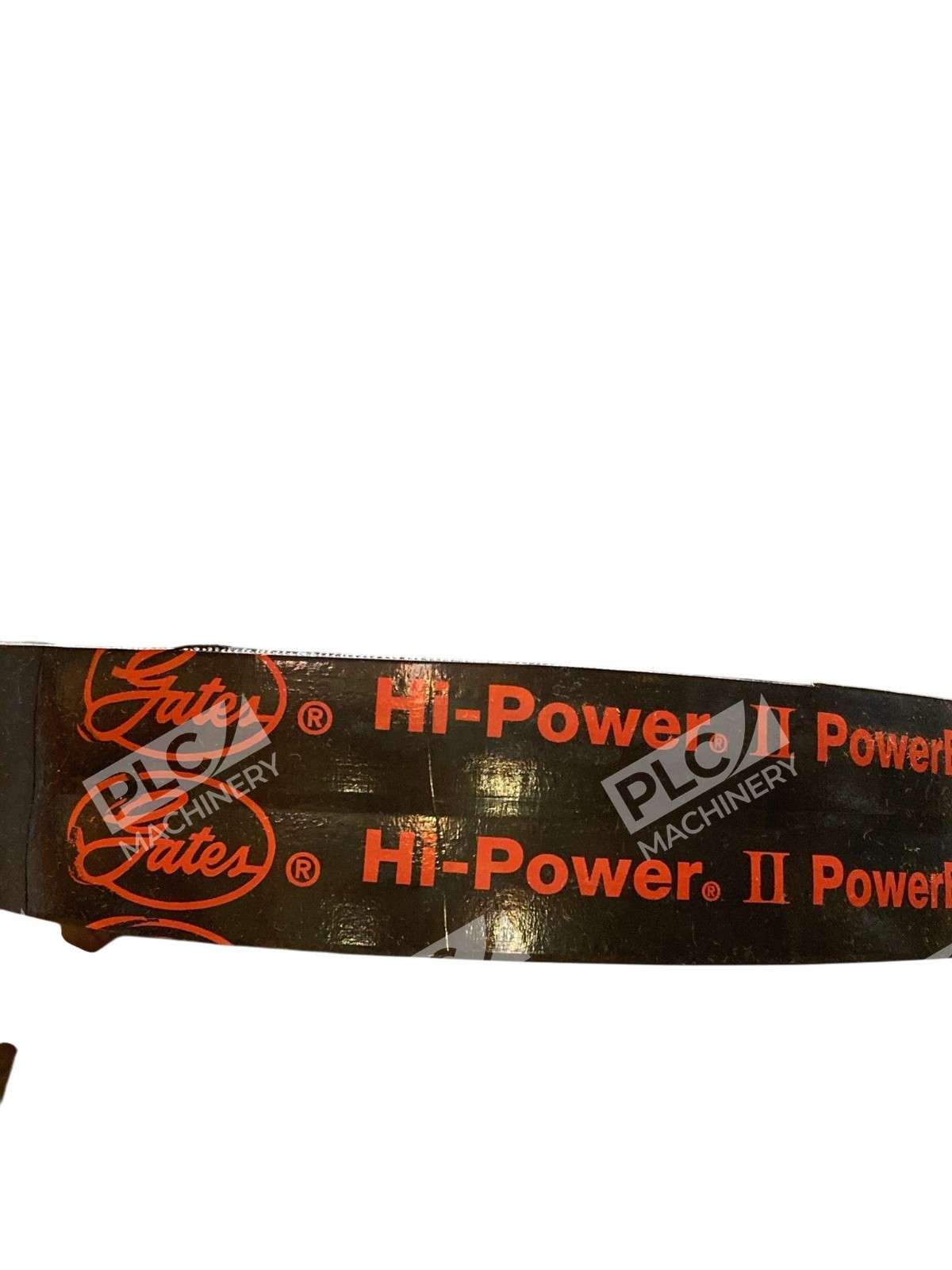

The Gates 2/B75 Hi-Power II PowerBand V-Belt is a banded heavy-duty V-belt engineered for industrial power transmission applications requiring high torque and pulsating load handling. Hi-Power II PowerBand belts are especially developed for high-power drives subjected to pulsating loads, with PowerBand technology consisting of several V-belts joined together by a permanent, high strength tie band, thus providing more powerful, tougher performance than the sum of the belts measured separately. This 2-strand configuration (2/B75) combines the load-carrying capacity of multiple V-belts into a single stable unit.
Key Features
- PowerBand Technology: Multiple belts function as a single unit, with even load distribution and each strand fitting securely in the sheave groove. It offers a solution for drives where single belts vibrate, turn over or jump off the pulleys, consisting of several V-belts joined by a permanent, high-strength tie band.
- Flex-Bonded Construction: Flex-bonded tensile cords are vulcanized as one solid unit making the belt highly resistant to tensile and flexing forces, fatigue and shock loads.
- Environmental Durability: Elastomeric compound protects the belt against heat, ozone, and sunlight, with composite, multi-purpose construction resisting oil and heat, ozone, sunlight, weather, and aging.
- Lateral Stability: Strong band controls belt-to-belt distance and prevents sideways bending.
- Heat & Fire Safety: EPDM belt material is engineered to combat self-igniting, meaning your belt won’t catch fire from heat build-up, even with severe slippage.
Technical Specifications
- Belt Type: Banded V-Belt (2-band)
- Section: B (Classic V-Belt)
- Top Width: 21/32 inch per rib
- Thickness: 13/32 inch
- Outside Length (O.C.): 78 inches
- Inside Circumference: 75 inches
- Number of Ribs: 2
- Minimum Pulley Diameter: 5.73 inches
- Core Material: EPDM (Ethylene Propylene Diene Monomer)
- Reinforcement: Flex-Bonded Polyester
- Temperature Range: -30°C to +60°C (-22°F to +140°F)

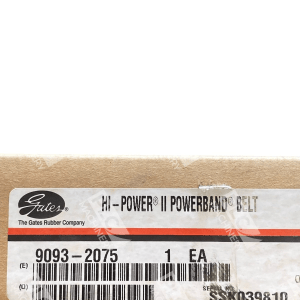

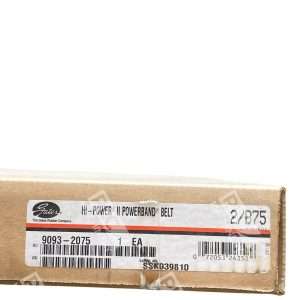

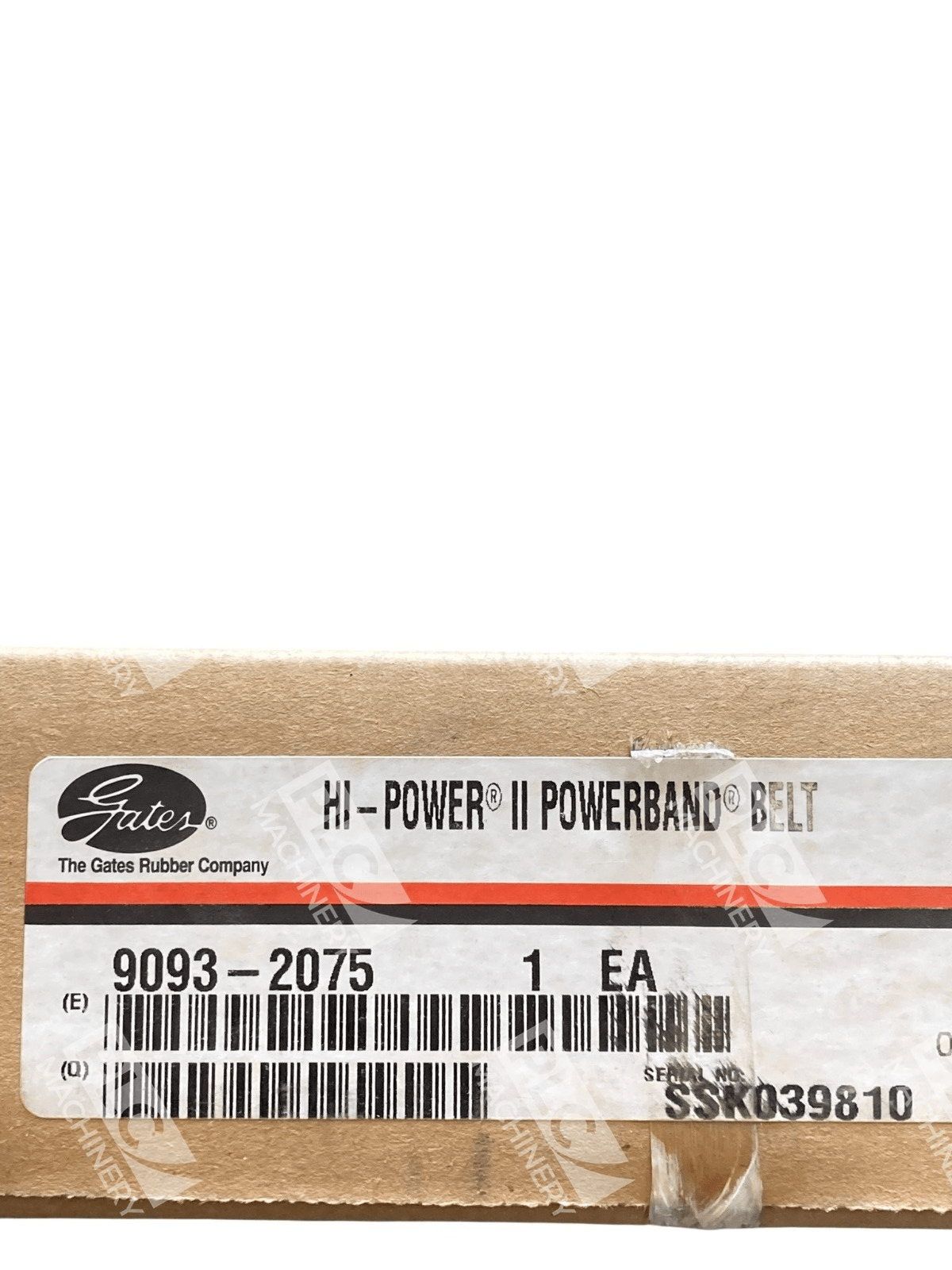

- Series: 9093 (Hi-Power II)
- Standards Compliance: ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements
- Certifications: REACH and RoHS 2 compliant
Typical Applications

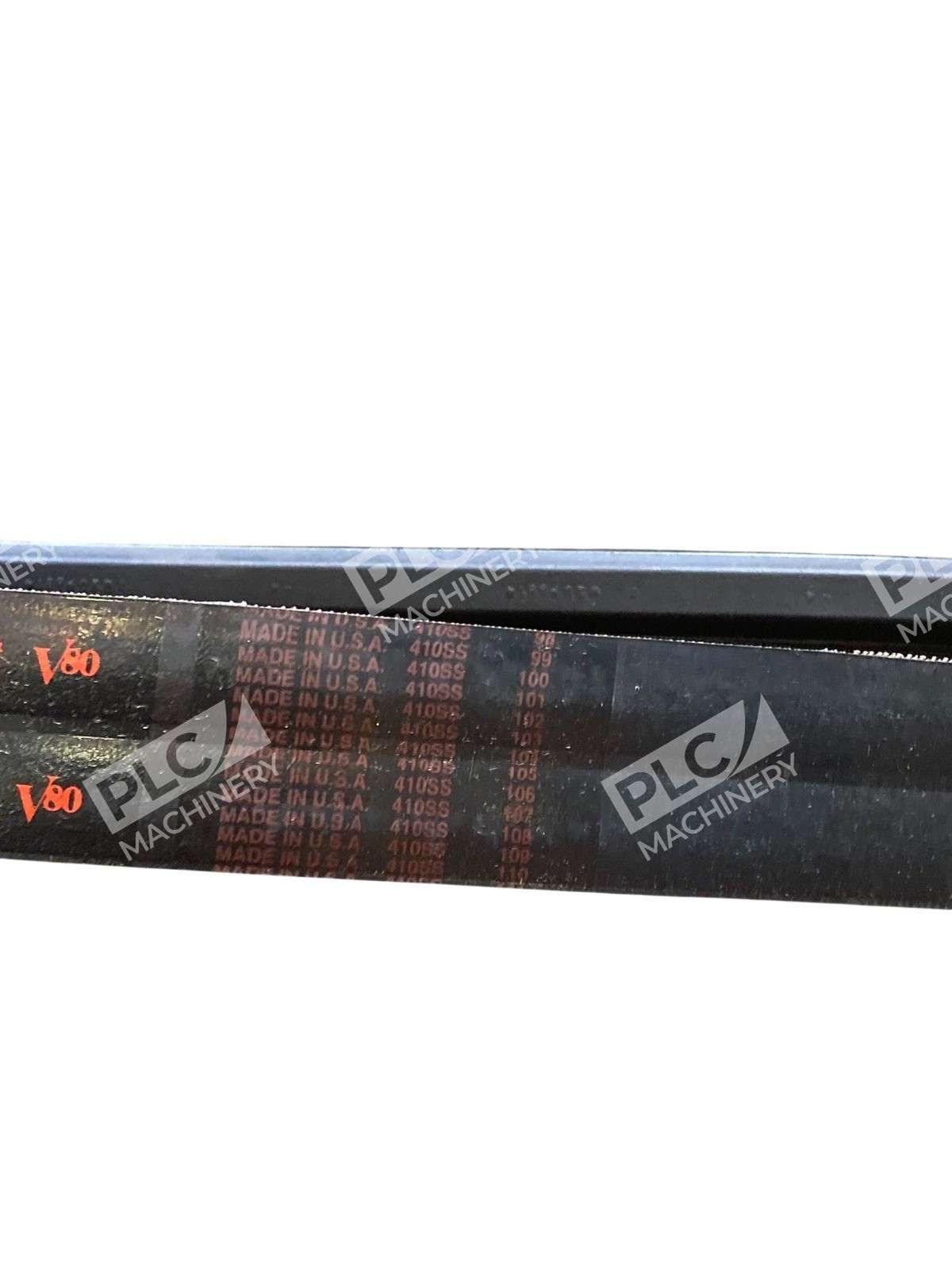

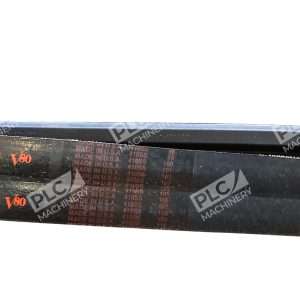

Gates B75 Hi-Power II belts are suitable for all industrial applications, including v-flat drives. This belt is ideal for: high-power compressor drives, pump systems, fan drives, sawmill equipment, conveyor systems, and other heavy-duty industrial machinery where stability and load distribution are critical. All sizes meet Gates V80 system matching tolerances.
Compatibility & Replacements
Compatible With
- B-section V-belt sheaves and pulleys with multi-groove configuration
- Gates V80 Matching System drives
- Multi-Duty sheaves
- Industrial power transmission systems rated for B-section belts
Replaces / Drop-In Replacement For
- Other 2-band B75 V-belt configurations with 78″ O.C. length
- Standard B75 single belts used in matched sets (this banded unit replaces 2 individual B75 belts)
- Comparable PowerBand 2/B75 belts from competing manufacturers
Works With
- Gates® Hi-Power II belt drive systems
- V-belt drive assemblies with multi-groove pulleys
- Static-conductive capable drives (ISO 1813 compliant)
- ATEX-regulated environments (per Directive 2014/34/EU)
