Overview

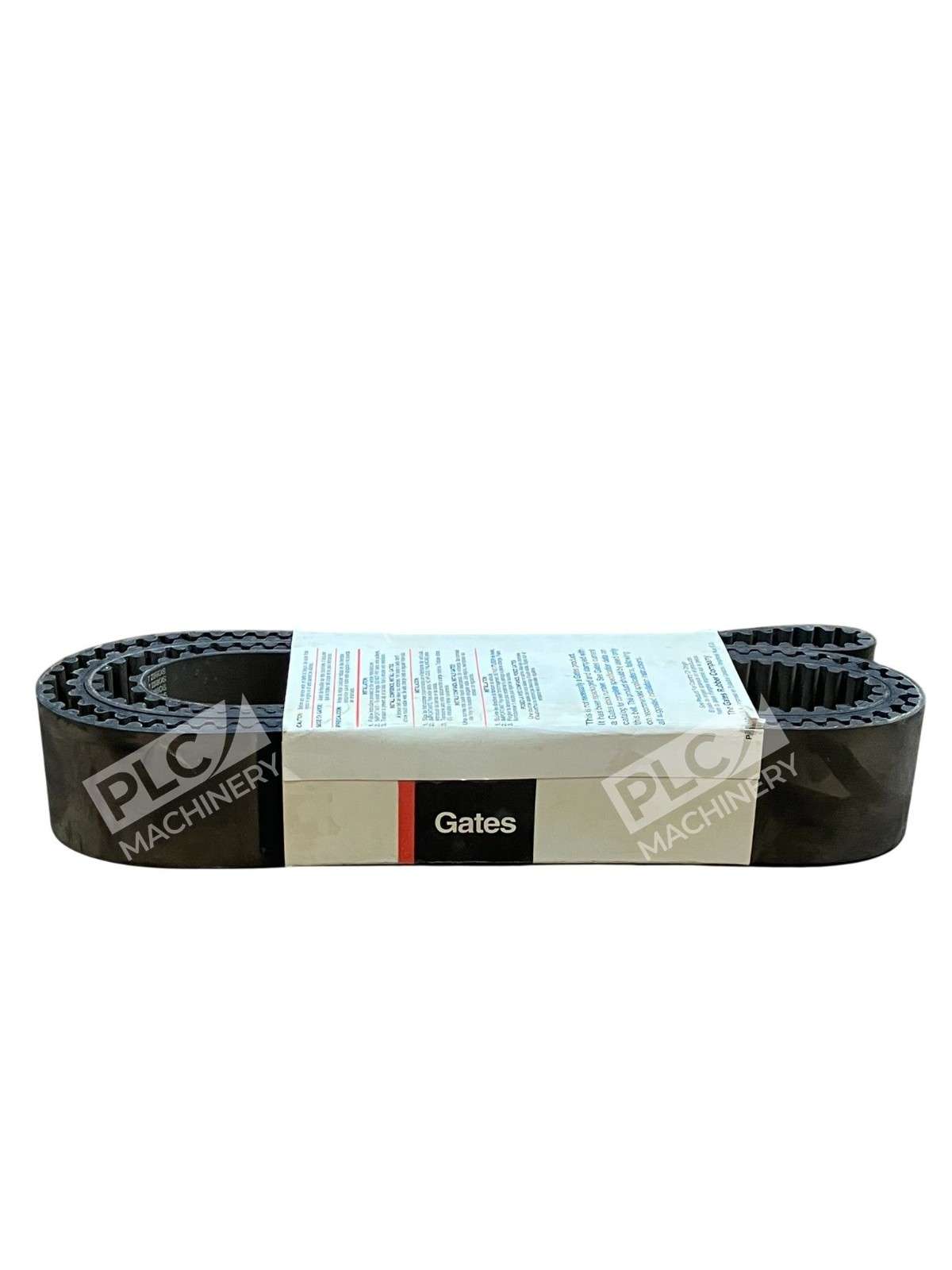

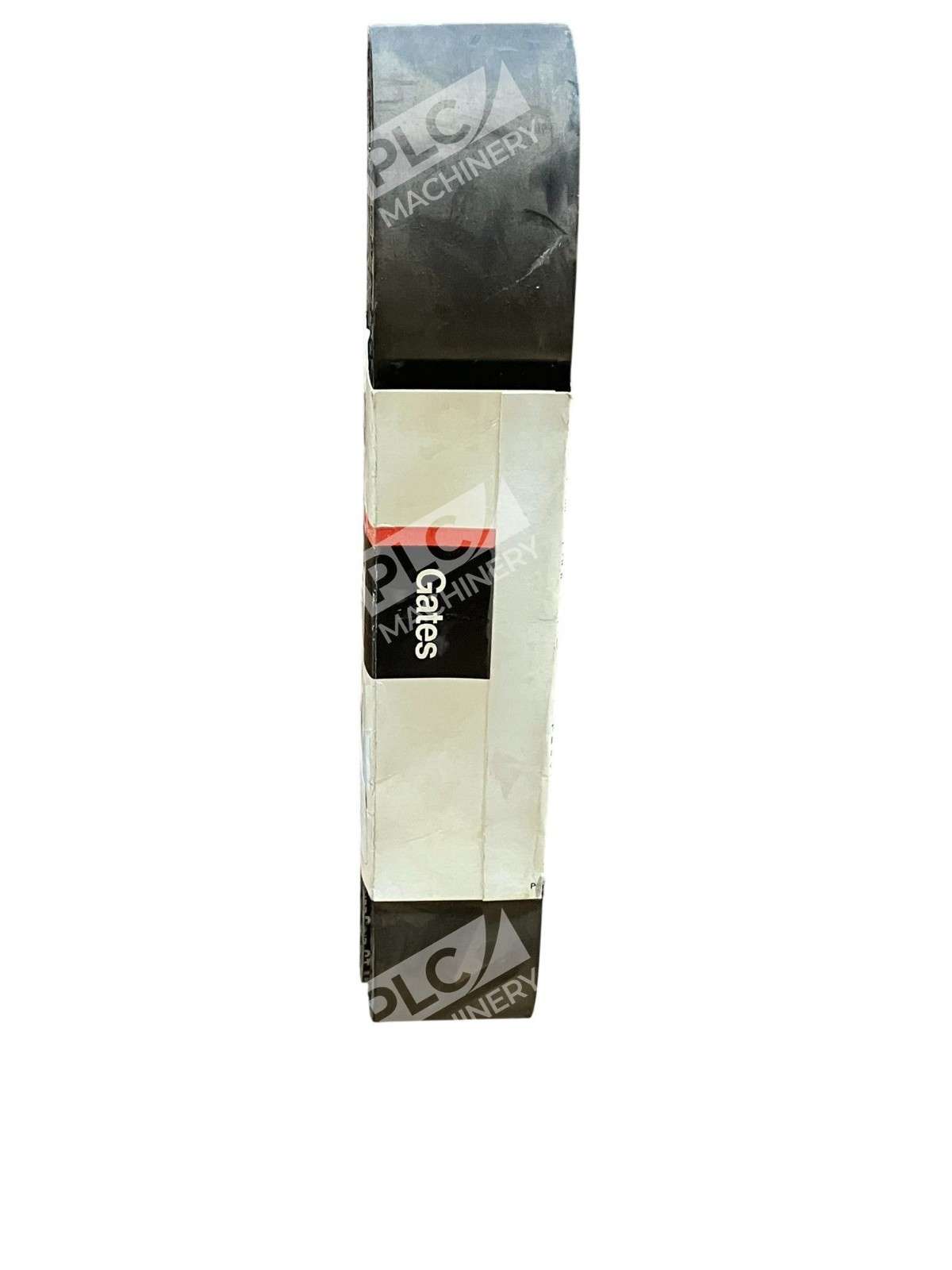

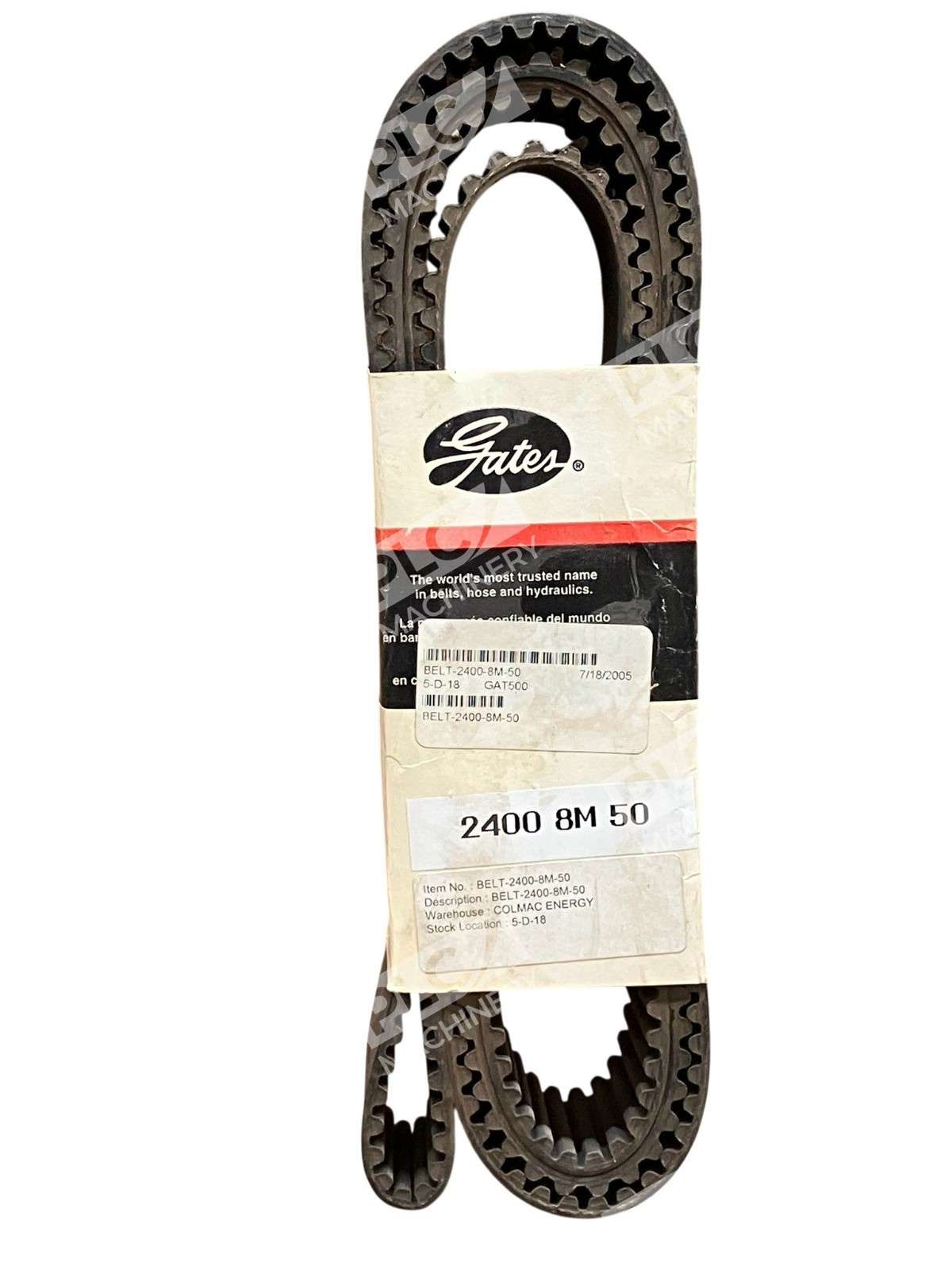

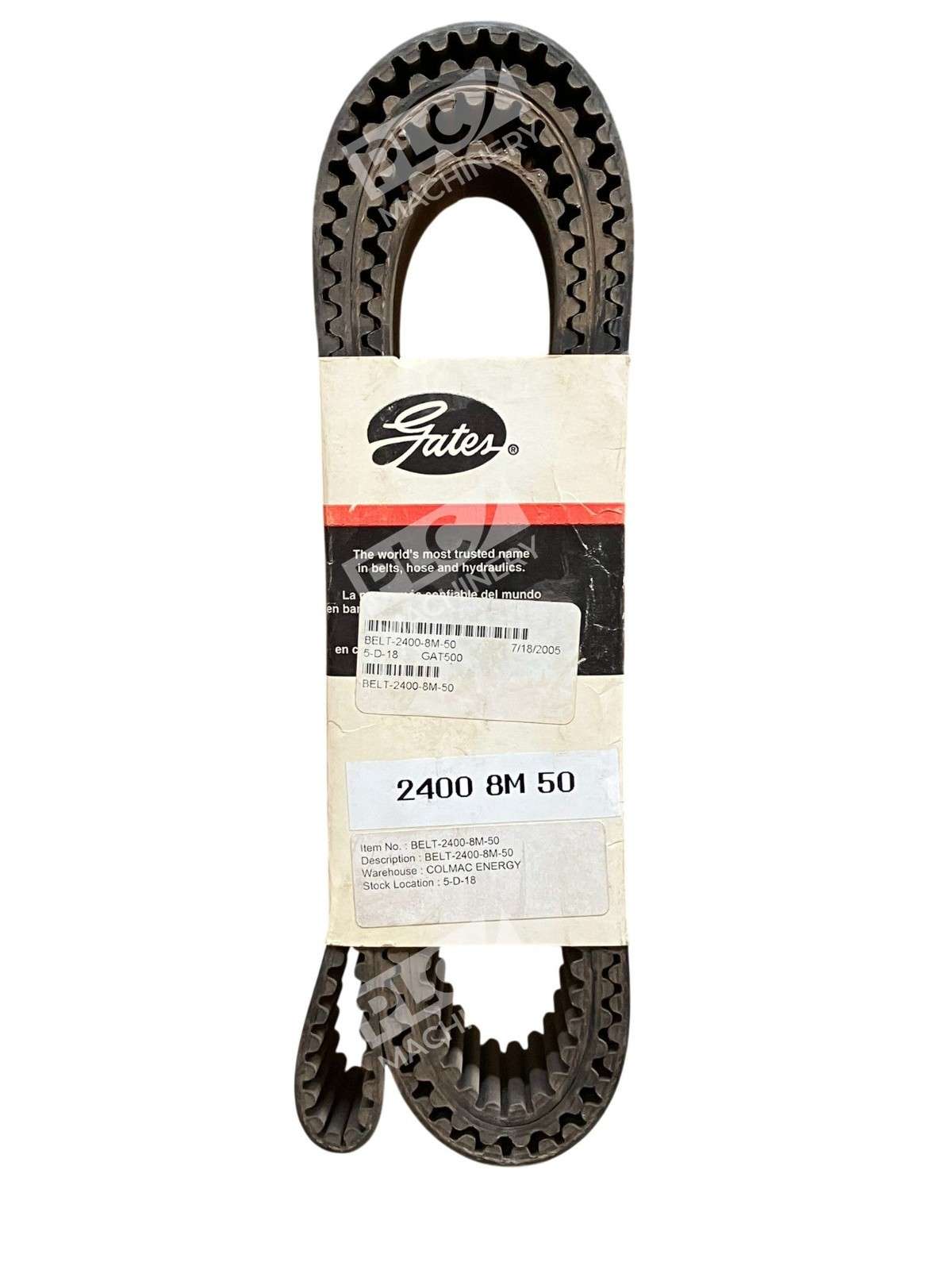

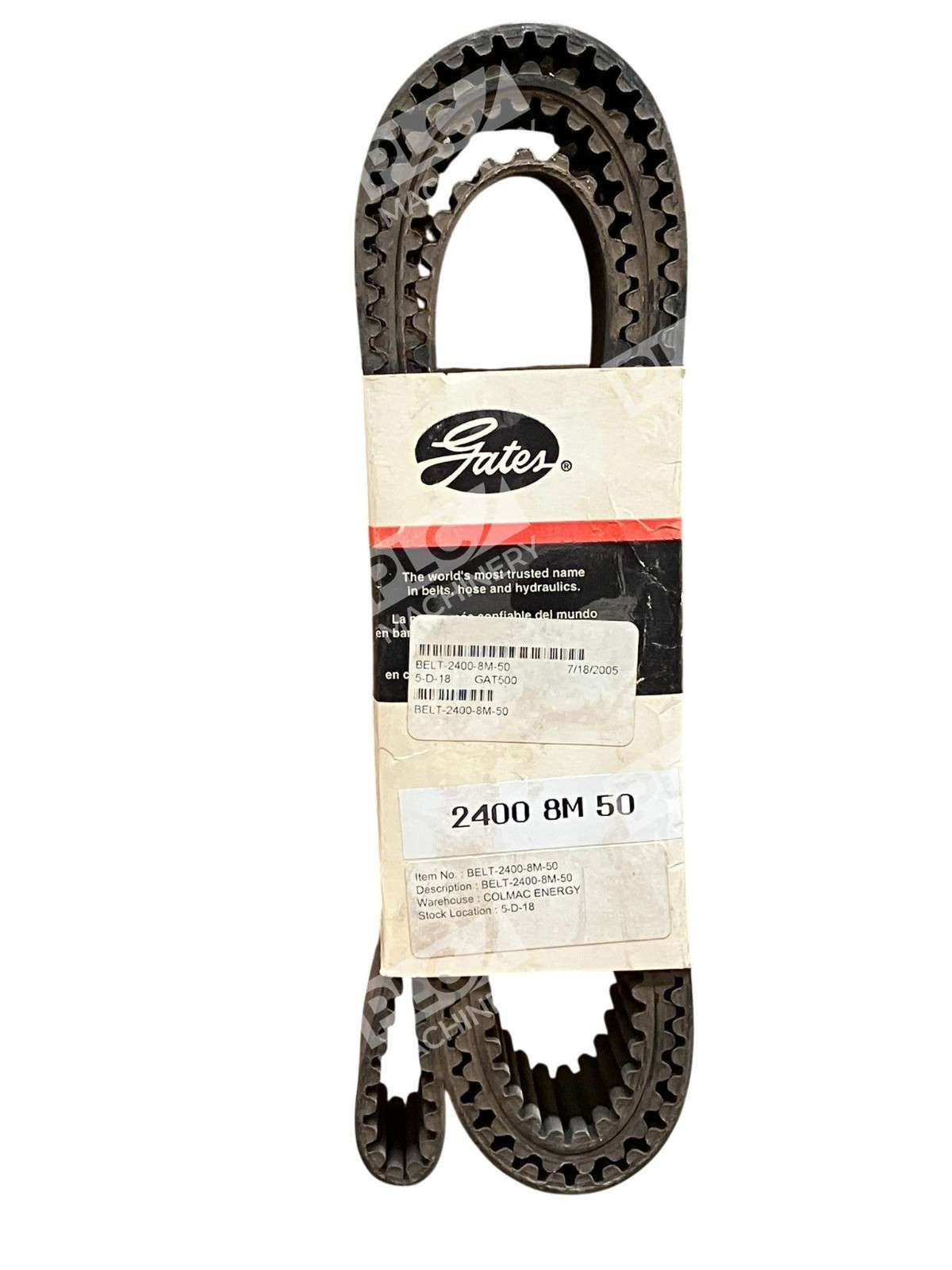

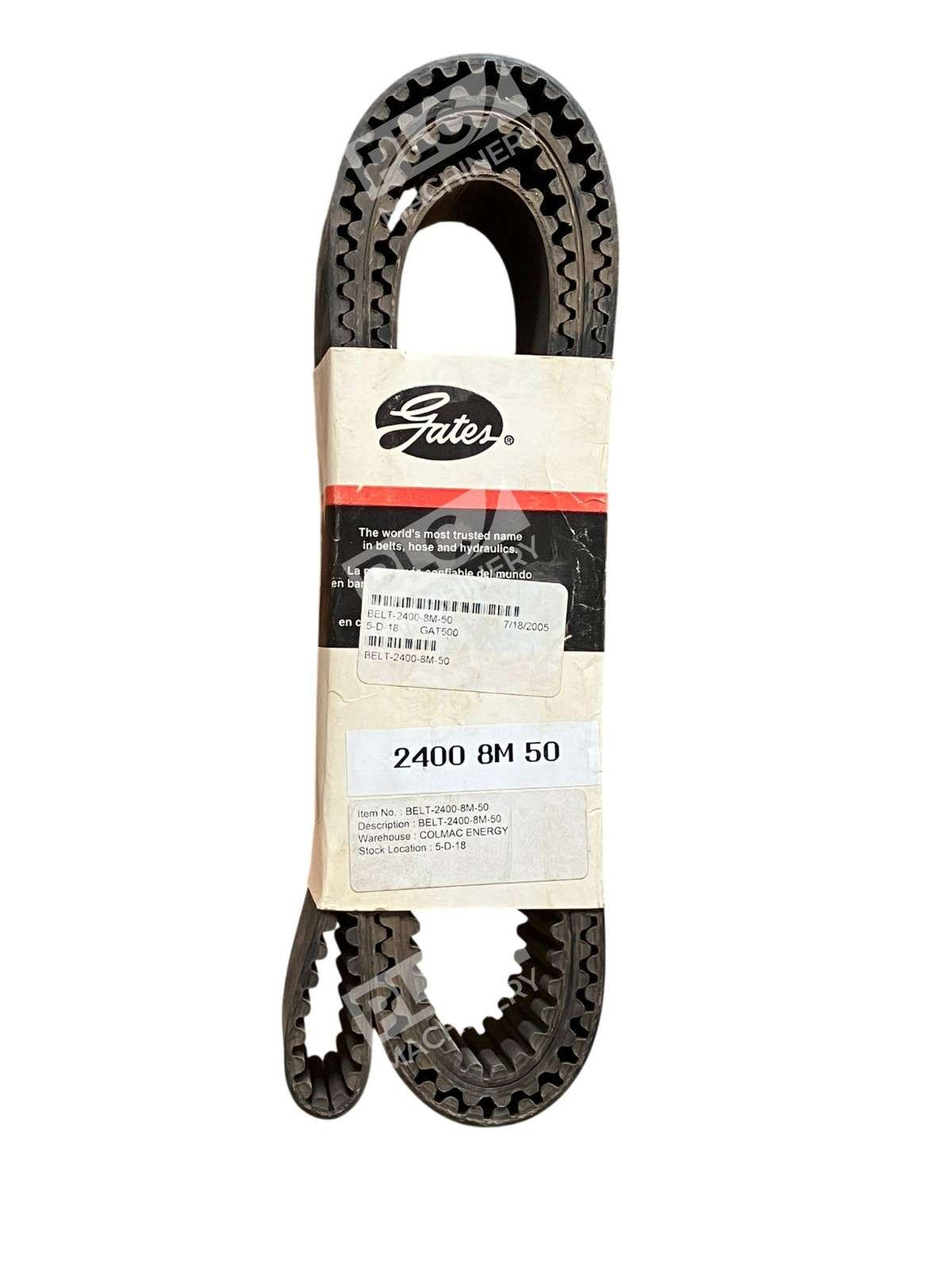

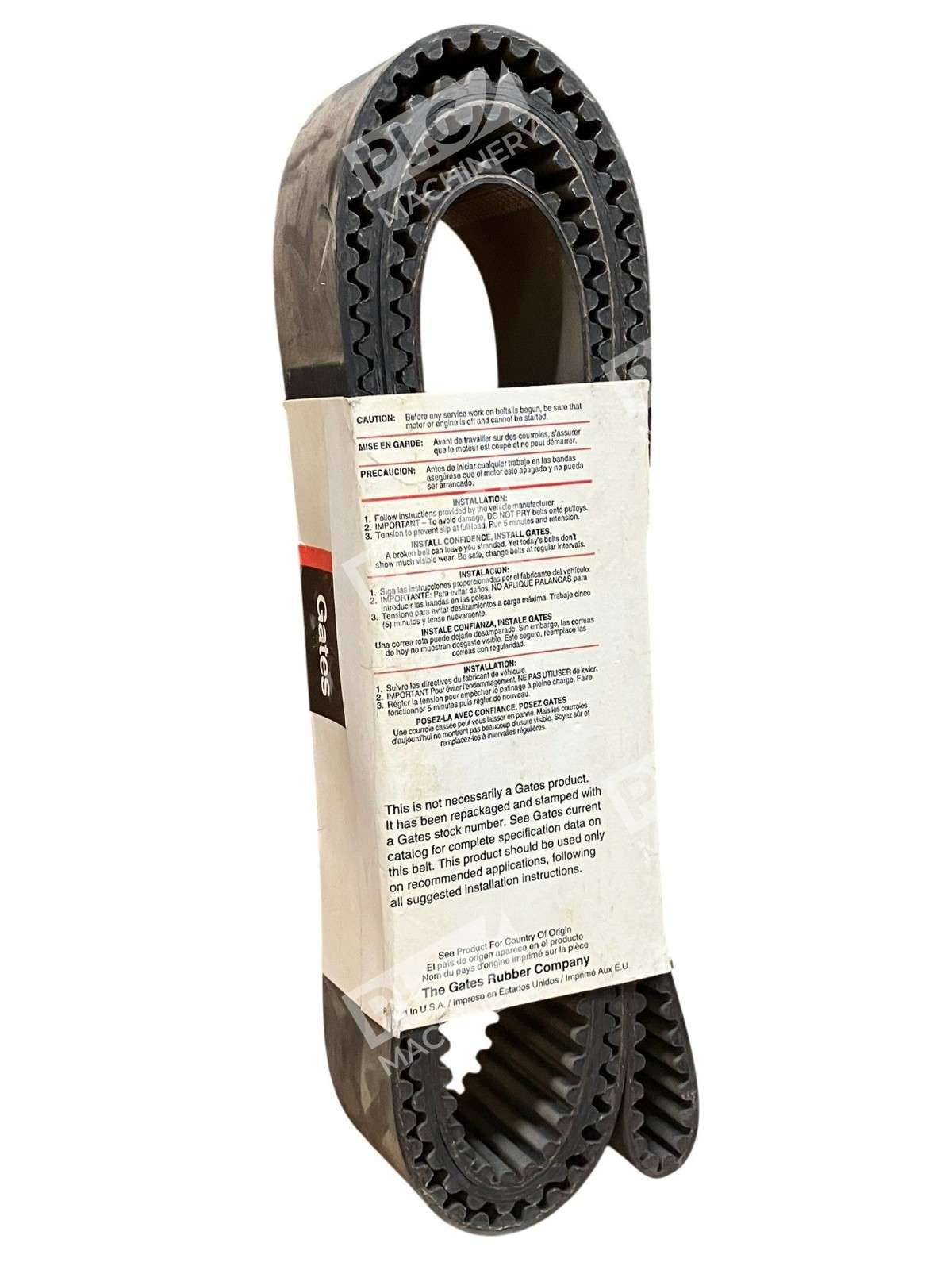

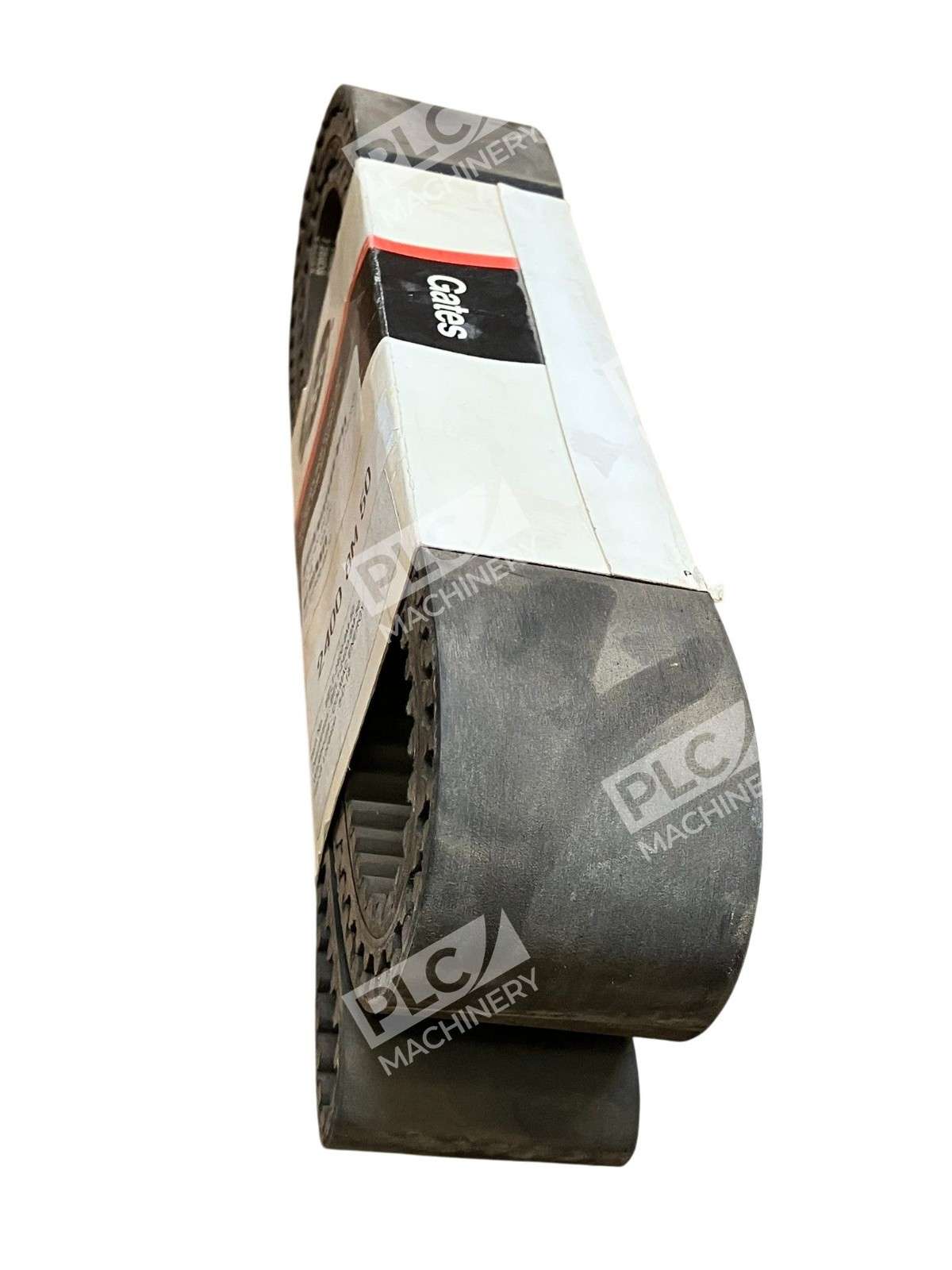

The Gates 2400-8M-50 is a professional-grade PowerGrip HTD timing belt engineered for precision synchronous power transmission in industrial machinery. With an 8M metric pitch and 50mm width, this belt combines curvilinear tooth geometry with robust elastomeric construction to deliver long-lasting performance in high-capacity drive systems. Gates PowerGrip HTD belts are preferred by manufacturers in machine tool, paper, and textile industries where reliability and low maintenance are critical.
Key Features
- Curvilinear HTD Tooth Profile: Stress-relieved tooth geometry eliminates concentrated stress at tooth roots, enabling higher power capacity and extended service life with reduced backlash
- Neoprene Body & Fiberglass Cord: Robust construction provides protection against grime, grease, oil, and moisture while maintaining excellent flex life and elongation resistance
- Nylon Tooth Facing: Durable wear surface ensures consistent mesh engagement with pulley grooves, reducing speed variation and preventing belt slippage
- Maintenance-Free Operation: No lubrication or re-tensioning required, simplifying drive maintenance and reducing labor costs
- Precise Synchronous Performance: Perfect fit on standard HTD profile pulleys for repeatable, low-slip power transmission in timing-critical applications
Technical Specifications
- Belt Pitch: 8M (8mm)
- Belt Width: 50mm
- Tooth Profile: HTD (Curvilinear)
- Body Material: Neoprene (Polychloroprene)
- Reinforcement: Fiberglass tensile cord
- Tooth Facing: Nylon
- Tooth Location: Single-sided
- Operating Temperature Range: -30°F to 185°F (-34°C to 85°C)
- Color: Black
- Synchronous Belt Type: PowerGrip HTD
Typical Applications
The Gates 2400-8M-50 is ideal for demanding synchronous drive applications including:
- Machine tool spindle and feed drives requiring precision timing and high torque capacity
- Paper processing equipment and textile machinery where durability is essential
- Industrial motion control systems requiring low maintenance and reliable speed control
- High-performance conveyor and material handling systems
- OEM machinery where drop-in replacement of HTD 8M belts is required
Compatibility & Replacements
Compatible With
- Standard HTD 8M profile pulleys and sprockets
- Timing belt drive systems with HTD tooth engagement
- Industrial automation equipment using 8M pitch synchronous belts
- Machine tool spindle drives and textile machinery
Replaces / Drop-In Replacement For
The Gates 2400-8M-50 serves as a direct replacement for any OEM-equivalent HTD 8M-50 timing belt. Verify compatibility with your system integrator before ordering to ensure proper pulley profile and drive configuration match your equipment specifications.
Works With
- HTD profile timing belt pulleys (8M pitch)
- Taper-lock and QD-style bushing systems
- Industrial synchronous drive systems and machinery
- OEM machine designs using HTD 8M belt drives
