Overview

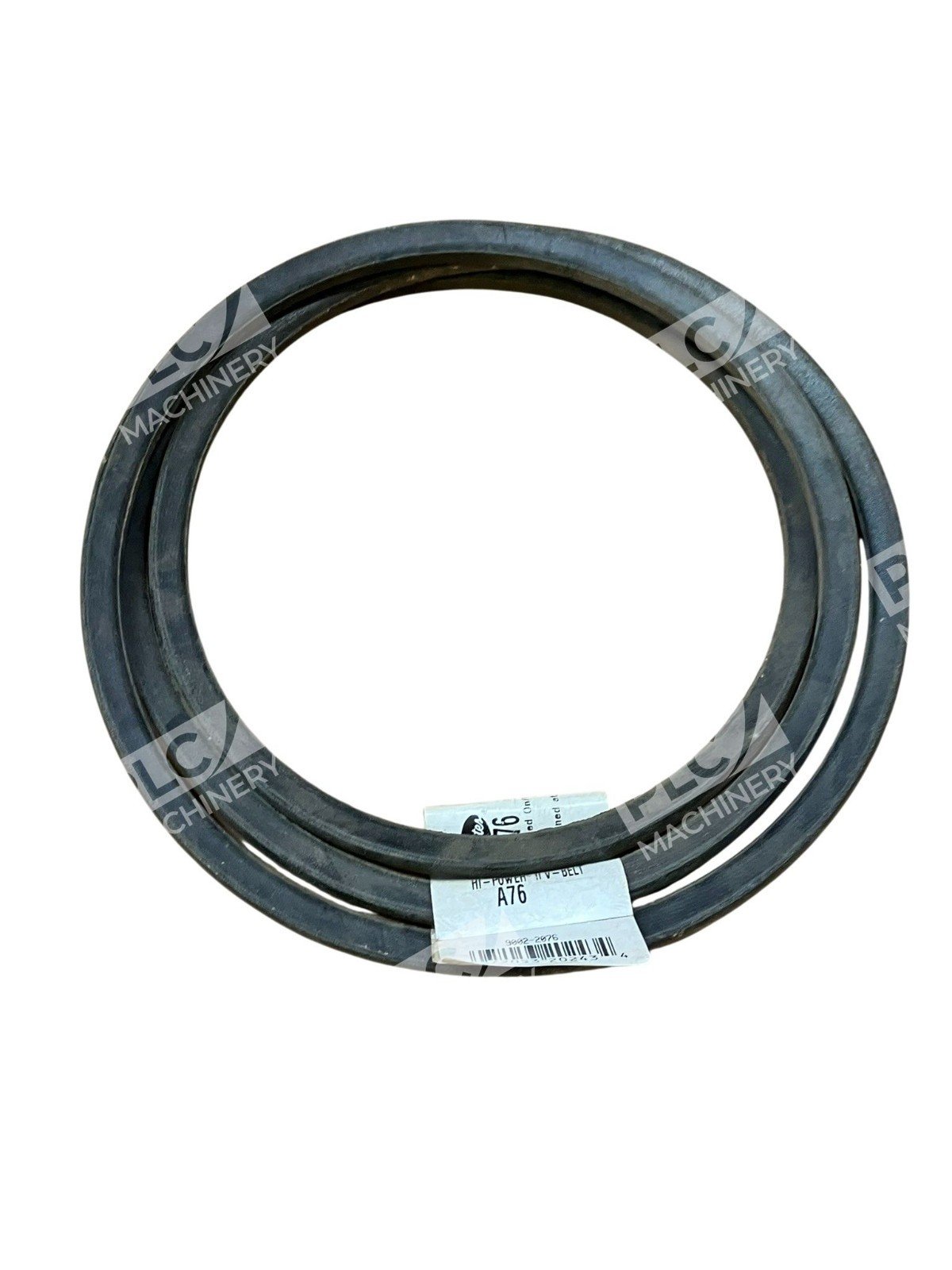

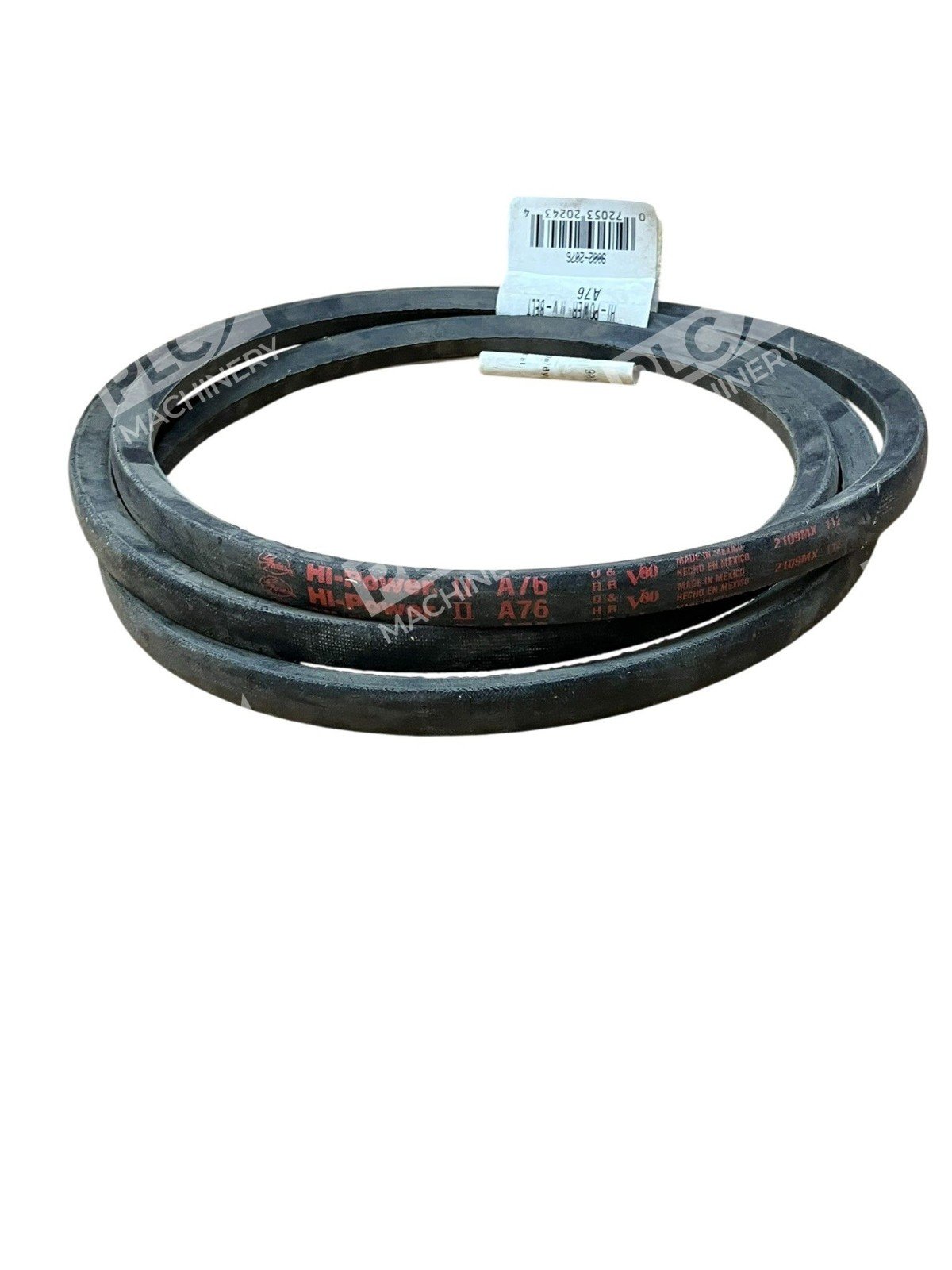

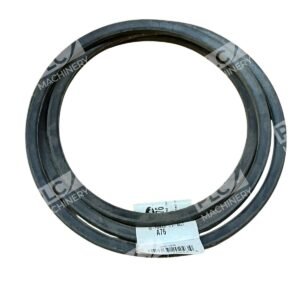

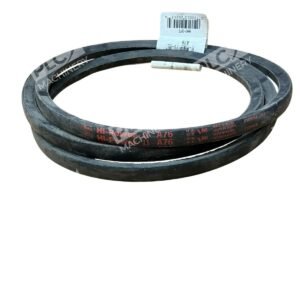

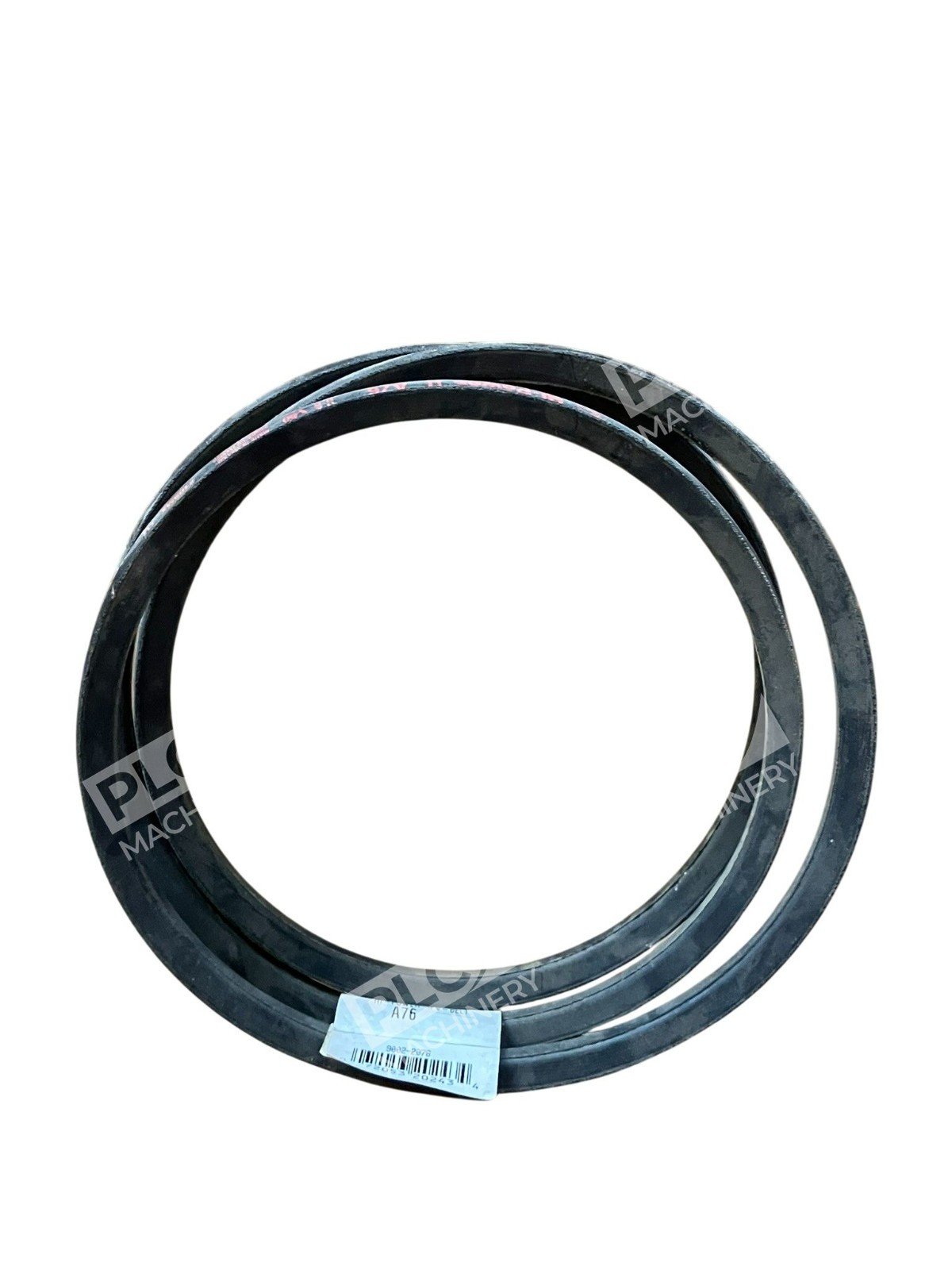

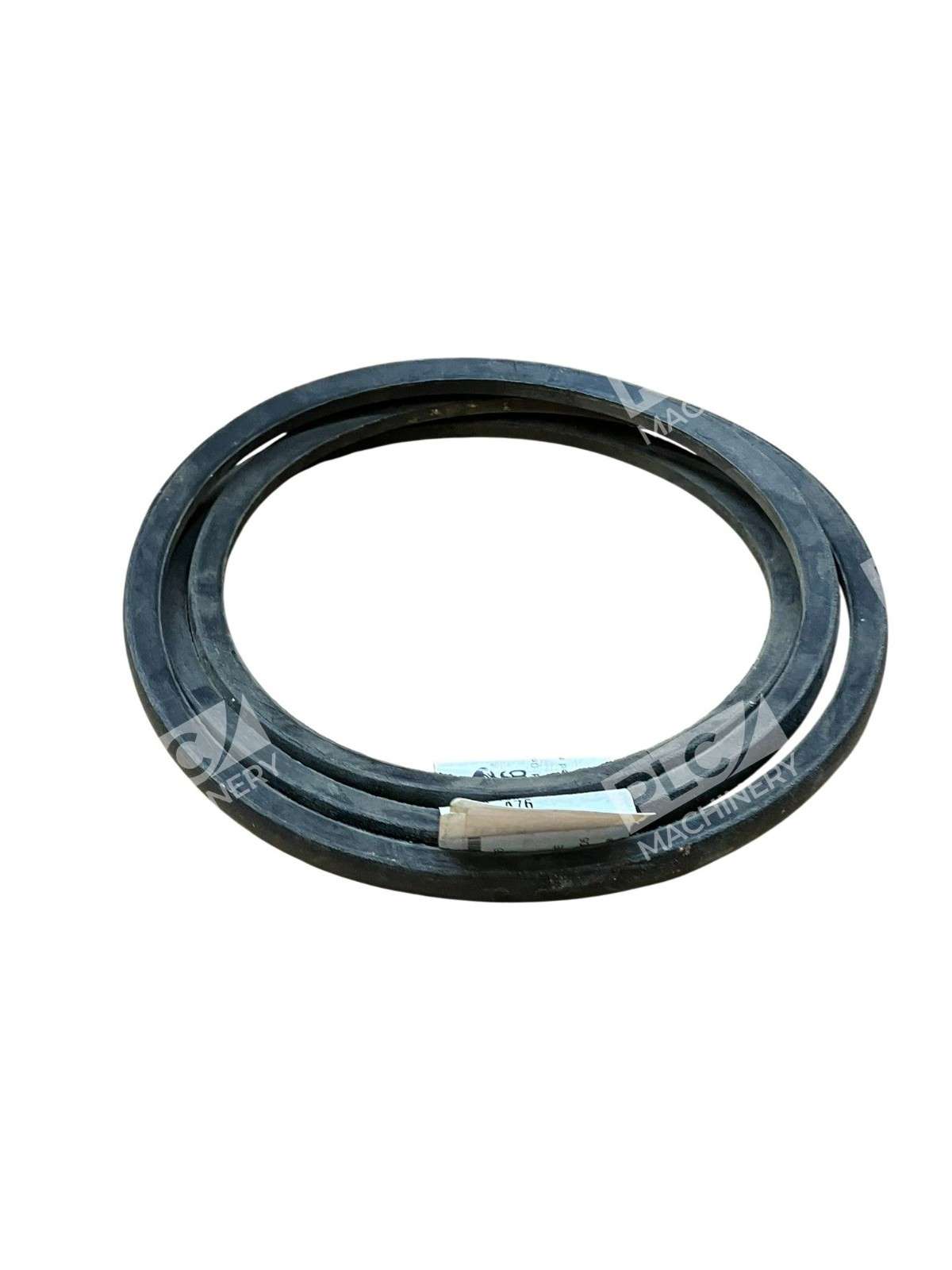

The Gates A76 Hi-Power II V-Belt is a classical wrapped A-section V-belt engineered for dependable power transmission across industrial and agricultural applications. With part number 9002-2076, this belt combines proven design with modern material science to deliver consistent performance, reduced maintenance costs, and extended belt life.
Key Features
- EPDM Material: Made of EPDM (ethylene propylene diene monomer) rubber for resistance to weathering, oils, water, and some solvents
- Flex-Bonded Construction: Proprietary core material blend that strongly bonds the polyester cords to the body of the belt, resulting in uniform load distribution and absorption of bending stress without cord deterioration
- Flex-Weave Cover: Patented single layer fabric construction for longer cover life, protecting the belt core from oil, dirt, and heat
- Arched Top Design: Arched top of the Hi-Power belt provides superior strength to prevent “dishing” and distortion of the tensile section
- Gates Curves: Belt cross-section has been optimized to provide proper cord support and full contact with the pulley to provide uniform loading, uniform wear, and increased belt life
- V80 Matching System: All belts of the same type and size will be more precisely matched than the Rubber Manufacturers Association (RMA) and International Standards Organization (ISO) standards require
Technical Specifications
- Belt Section: A-Section (Classical Wrapped)

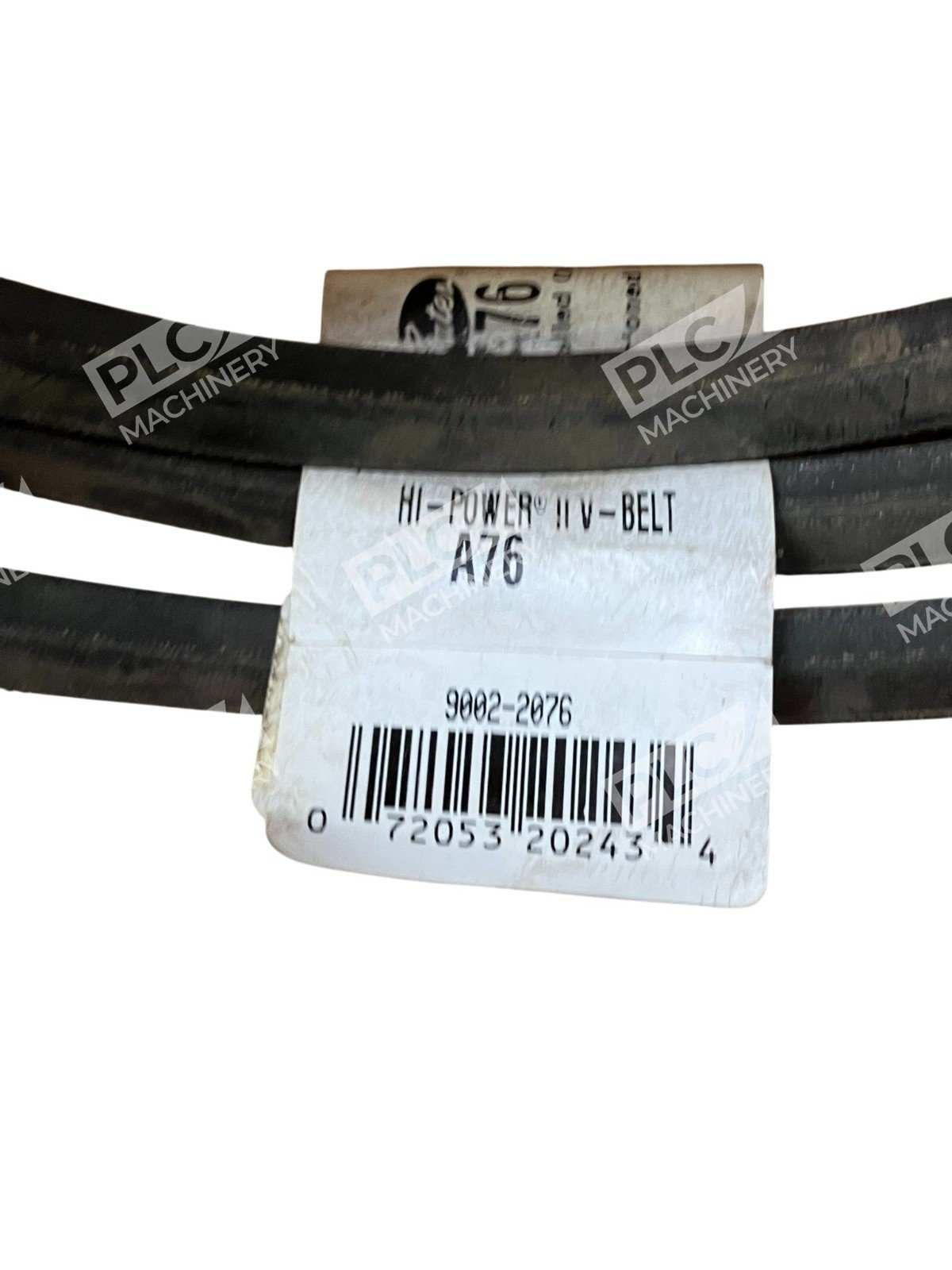

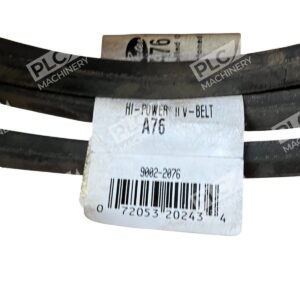

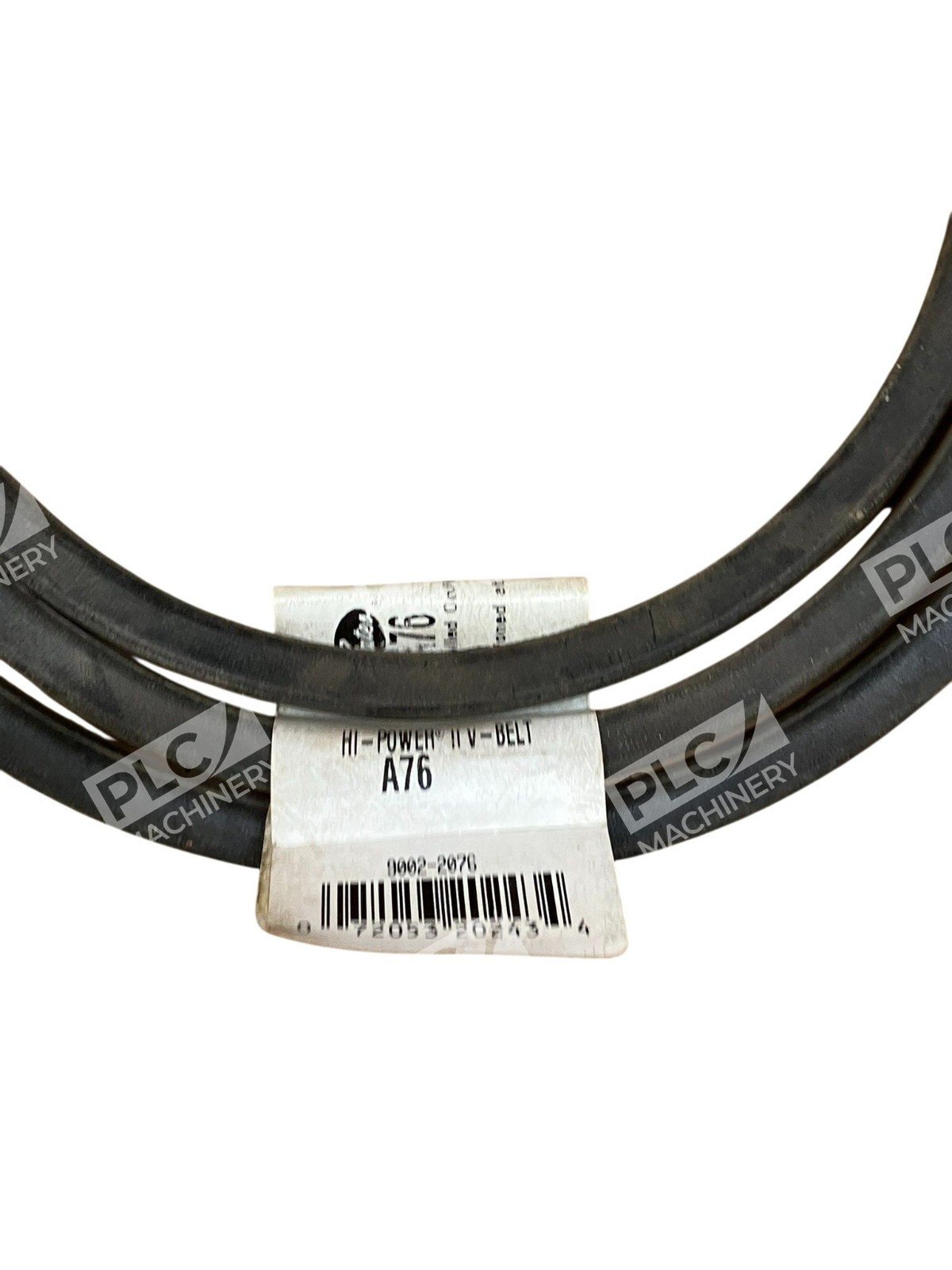

- Model Number: 9002-2076
- Top Width: 1/2 inch (0.5 inches)
- Outside Circumference (OC): 78 inches
- Inside Circumference (IC): 76 inches
- Nominal Thickness: 0.31 inches (5/16 inch)
- Weight: 0.52 lbs
- Material: EPDM rubber with polyester reinforcement
- Minimum Pulley Diameter: 4.138 inches
- Operating Temperature Range: -30°C to +60°C (-22°F to +140°F)
- Standards Compliance: Meets RMA oil and heat resistant standards and static conductivity requirements
- Certifications: REACH and RoHS 2 compliant; Static conductive (ISO 1813)
Typical Applications
Hi-Power II A76 v-belts are high quality, heavy duty belts that can be used in a variety of industrial and agricultural power transmission applications. These belts are used in HVAC applications, conveyor systems, centrifugal pumps, air compressors, crushers, and more. These belts can be used individually in a single v-belt drive or can be used in sets of 2 or more belts for higher horsepower applications.
Compatibility & Replacements
Compatible With
- A-section pulley systems and sheaves
- Industrial conveyor drives
- HVAC systems
- Pump and compressor drives
- Agricultural machinery
Replaces / Drop-In Replacement For
- Previous generation Gates Hi-Power belts (A76)
- Standard industrial A76 V-belts requiring EPDM construction
Works With
- Multi-belt drive systems (V80 matching system compatible)
- Classical A-section groove pulleys
- Standard industrial power transmission systems
- Static-conductive equipment (ATEX Directive 2014/34/EU compliant)
