Overview

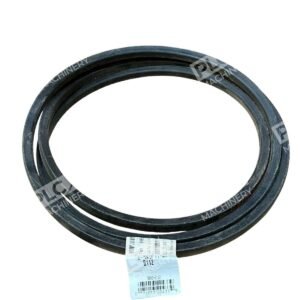

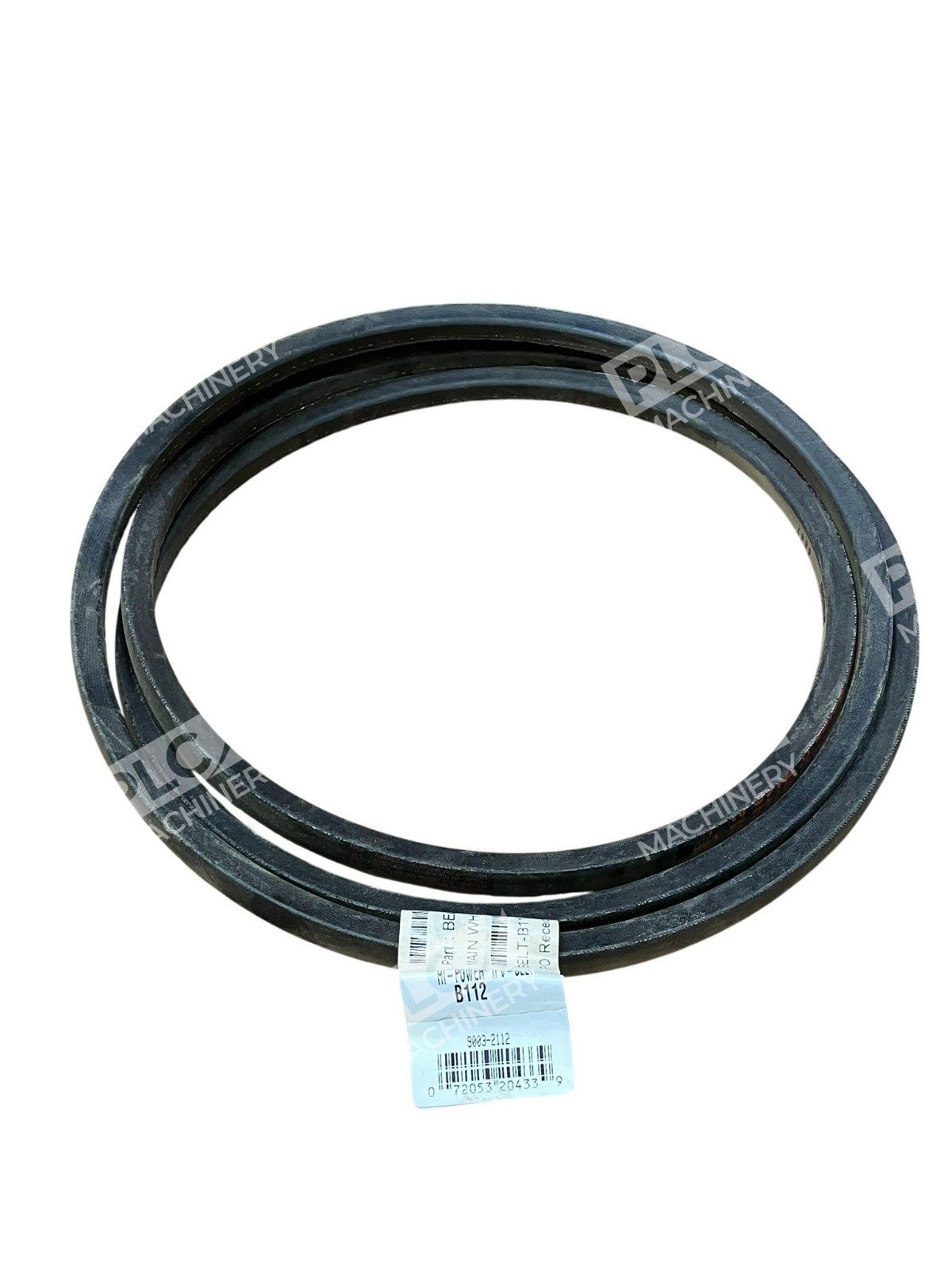

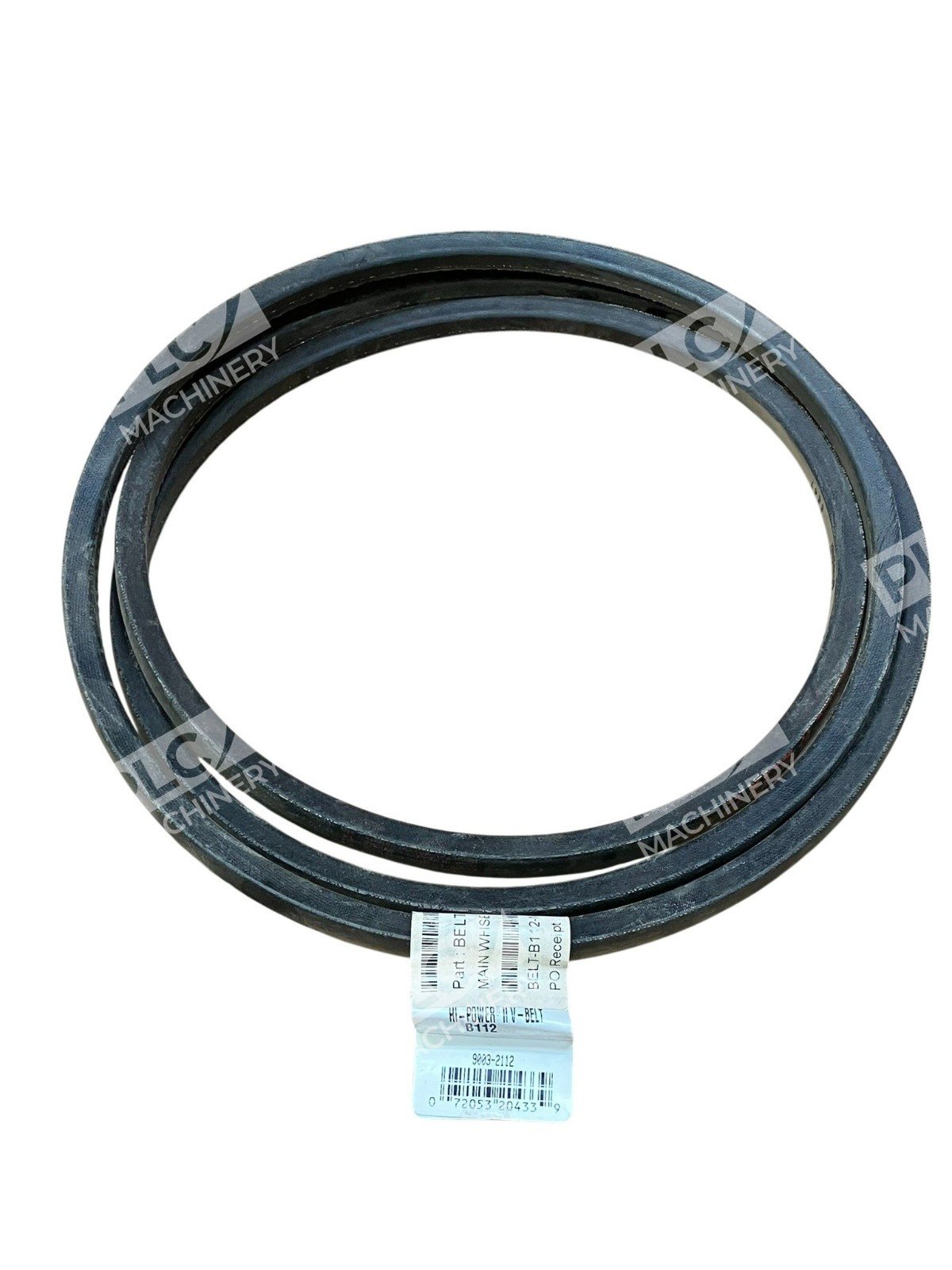

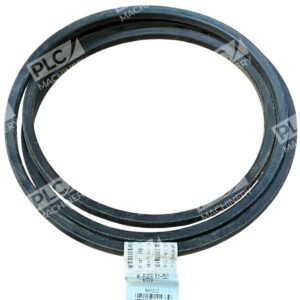

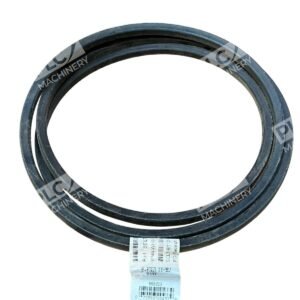

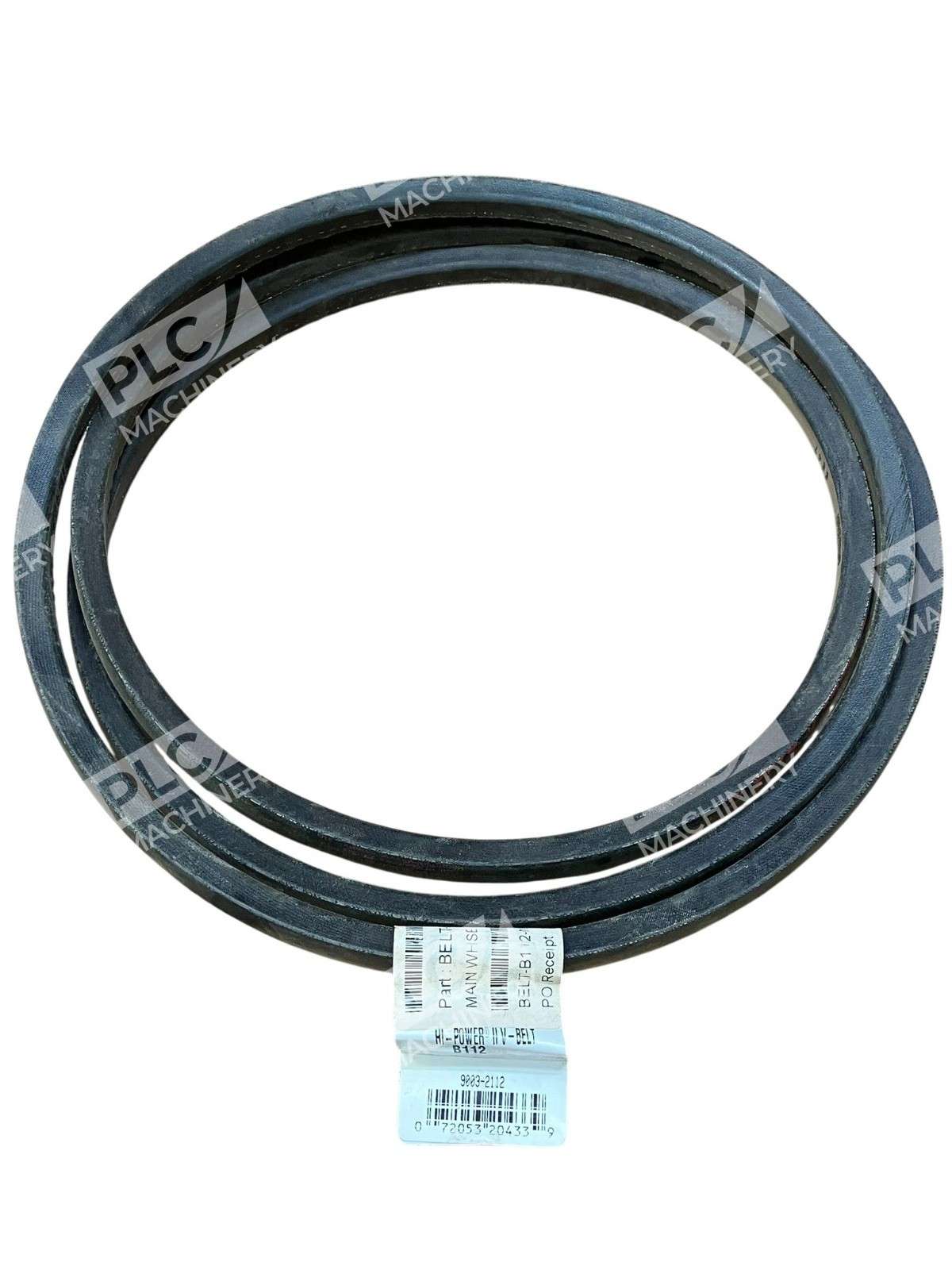

The Gates B112 Hi-Power II V-belt is a composite, multi-purpose power transmission belt engineered for reliable operation in industrial and agricultural machinery. Featuring composite, multi-purpose construction, Gates® Hi-Power II® B112 Belt resists oil, heat, ozone, sunlight, weather, and aging. Gates B112 Hi-Power II® belts are suitable for all industrial applications, including v-flat drives. The B112 designation indicates a classical B-section belt with a 115-inch outside circumference.
Key Features
- EPDM belt material engineered to combat self-igniting, meaning your belt won’t catch fire from heat buildup even with severe slippage.
- Flex-Bonded Cords are strongly bound to the body of the belt, resulting in equal load distribution and absorption of bending stress without cord deterioration.
- Gates® Curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear, and increased belt life.
- Flex-Weave® Cover is constructed for longer cover life, providing extended protection to the belt core with built-in static connectivity to protect from the toughest operating environments.
- V80 matching system that ensures that every B112 belt can be used in a matched set, regardless of batch or lot.
- RMA oil and heat resistant standards compliant.
Technical Specifications
- Belt Designation: B Section (classical section)
- Outside Circumference: 115 inches (292.1 mm)
- Top Width: 0.66 inches (17 mm / 5/8 inch)
- Nominal Thickness: 0.41 inches (10.4 mm)
- Weight: 1.22 lbs per belt
- Material: EPDM composite rubber with Flex-Weave cover
- Operating Temperature Range: -30°C to +60°C (-22°F to +140°F)
- Certifications: RMA oil/heat resistant, REACH and RoHS 2 compliant

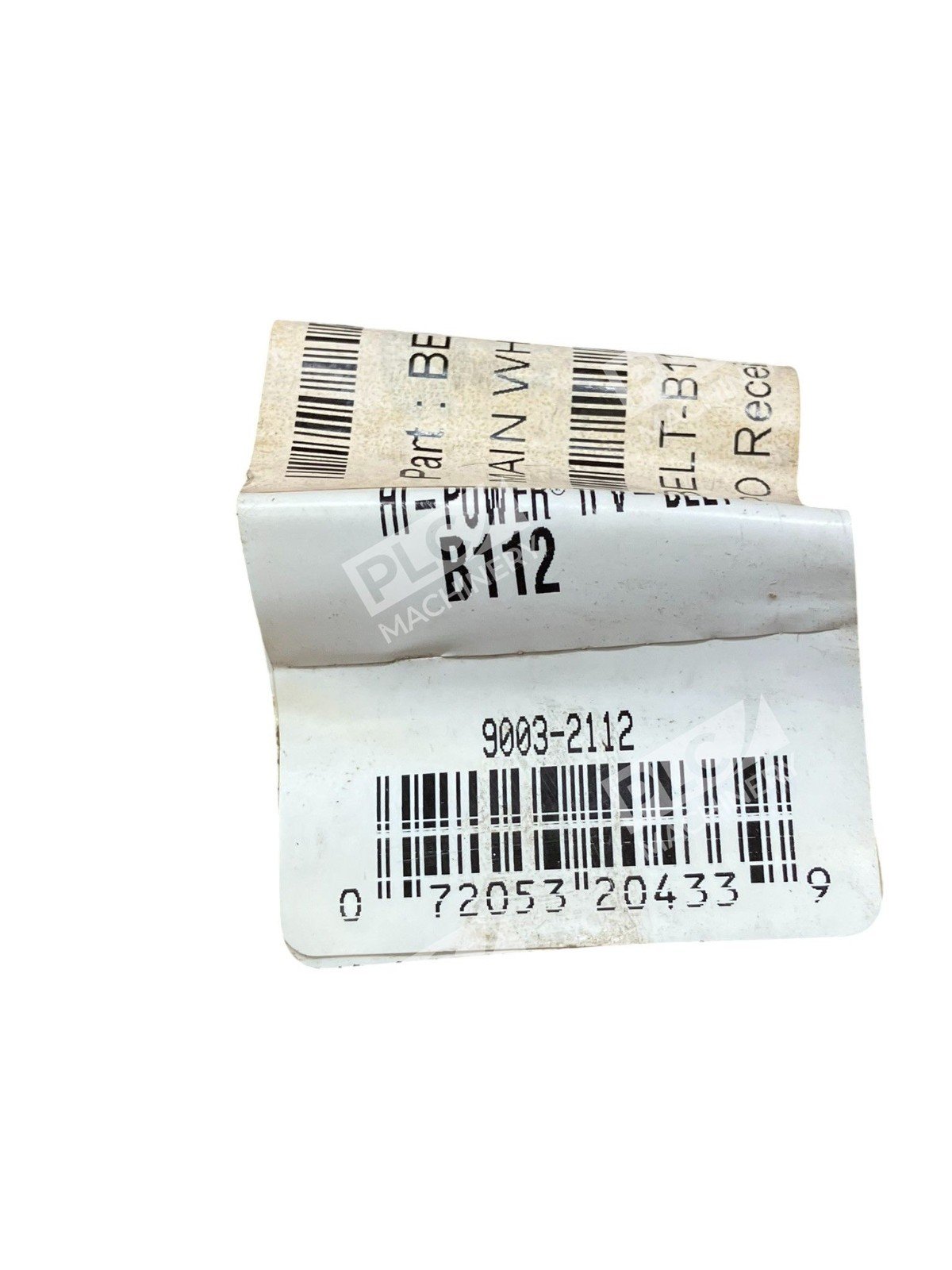

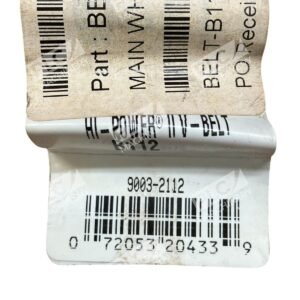

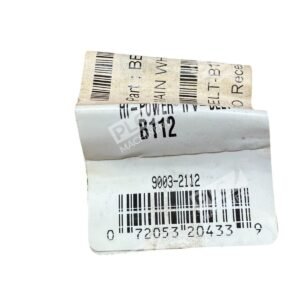

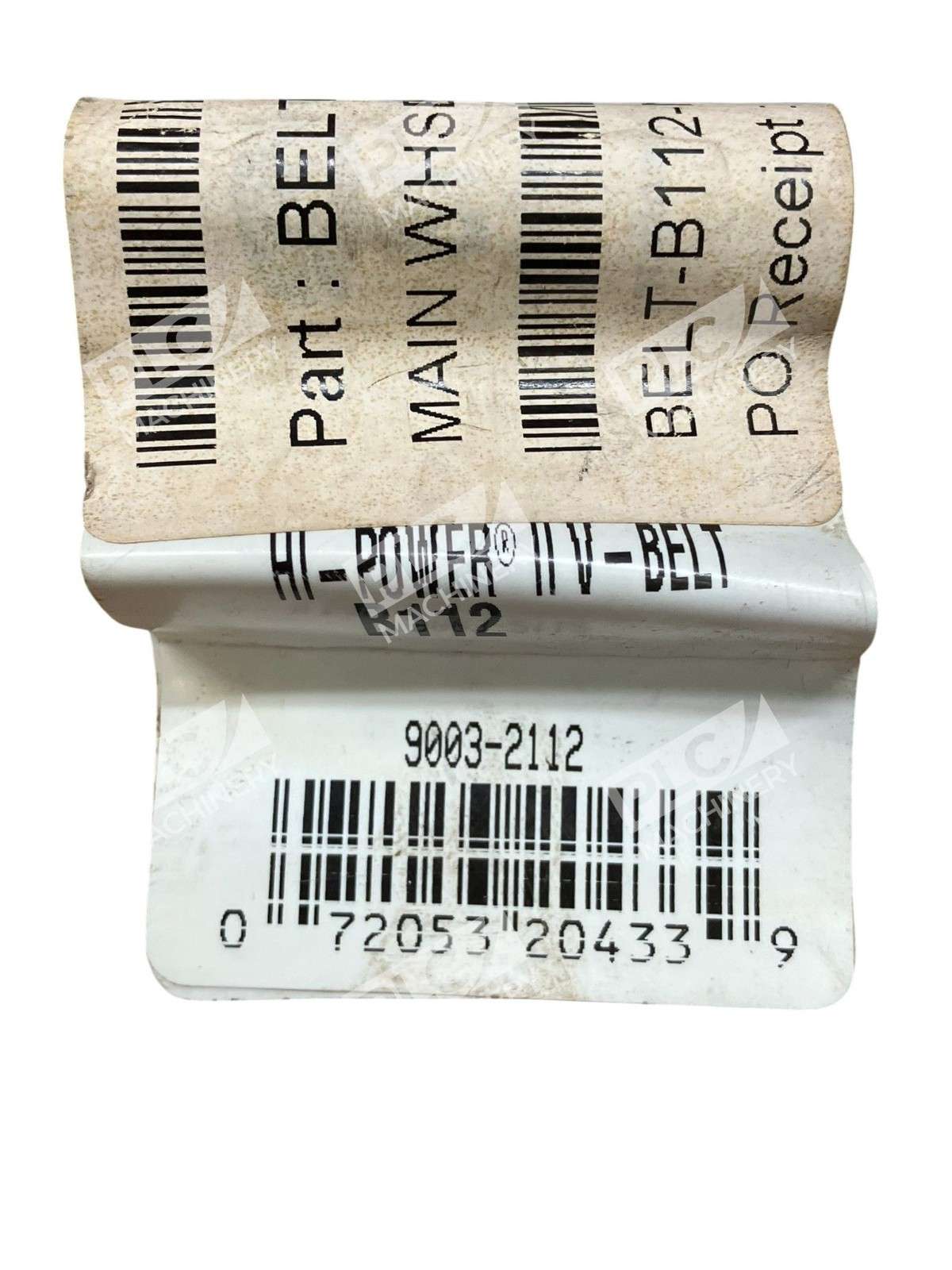

- Product Number: 9003-2112
- Matching System: V80 matched belt system
Typical Applications
The Gates B112 belt is used across a wide range of industrial and agricultural power transmission systems including:
- Agricultural machinery and equipment drives
- Industrial fan and blower systems
- Pump and compressor drives
- Textile and printing machinery
- Mining equipment applications
- Single or multi-belt drive systems for increased horsepower
- V-flat pulley configurations
Compatibility & Replacements
Compatible With
- All standard B-section sheave and pulley grooves
- Multi-Duty® Sheaves (recommended)
- V-flat drive configurations
- Both single-belt and multi-belt drive systems
- Gates V80 matched belt systems
Replaces / Drop-In Replacement For
- Substitute for any equivalent B-section belt rated for 115-inch circumference
- Compatible sizing: Adjacent Gates sizes are B111 (114 inch length) and B113 (116 inch length)
- Direct replacement for OEM Gates B112 Hi-Power belts
Works With
- Standard industrial V-belt drive systems
- Both wrapped and PowerBand configurations
- RMA-compliant drive systems
- Static conductive drive applications (ISO 1813 compliant)
- Multi-belt matched sets using Gates V80 system
