Overview

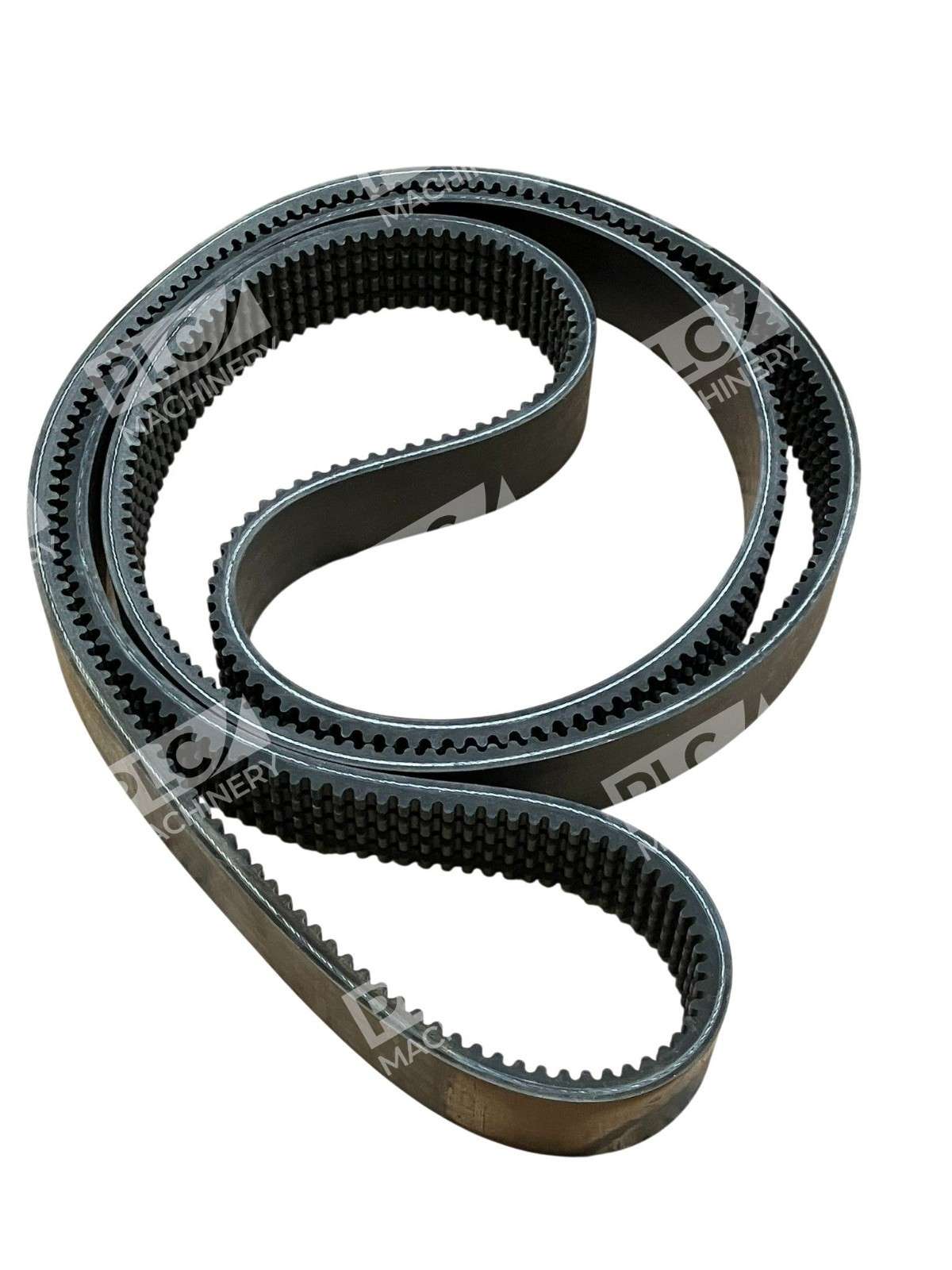

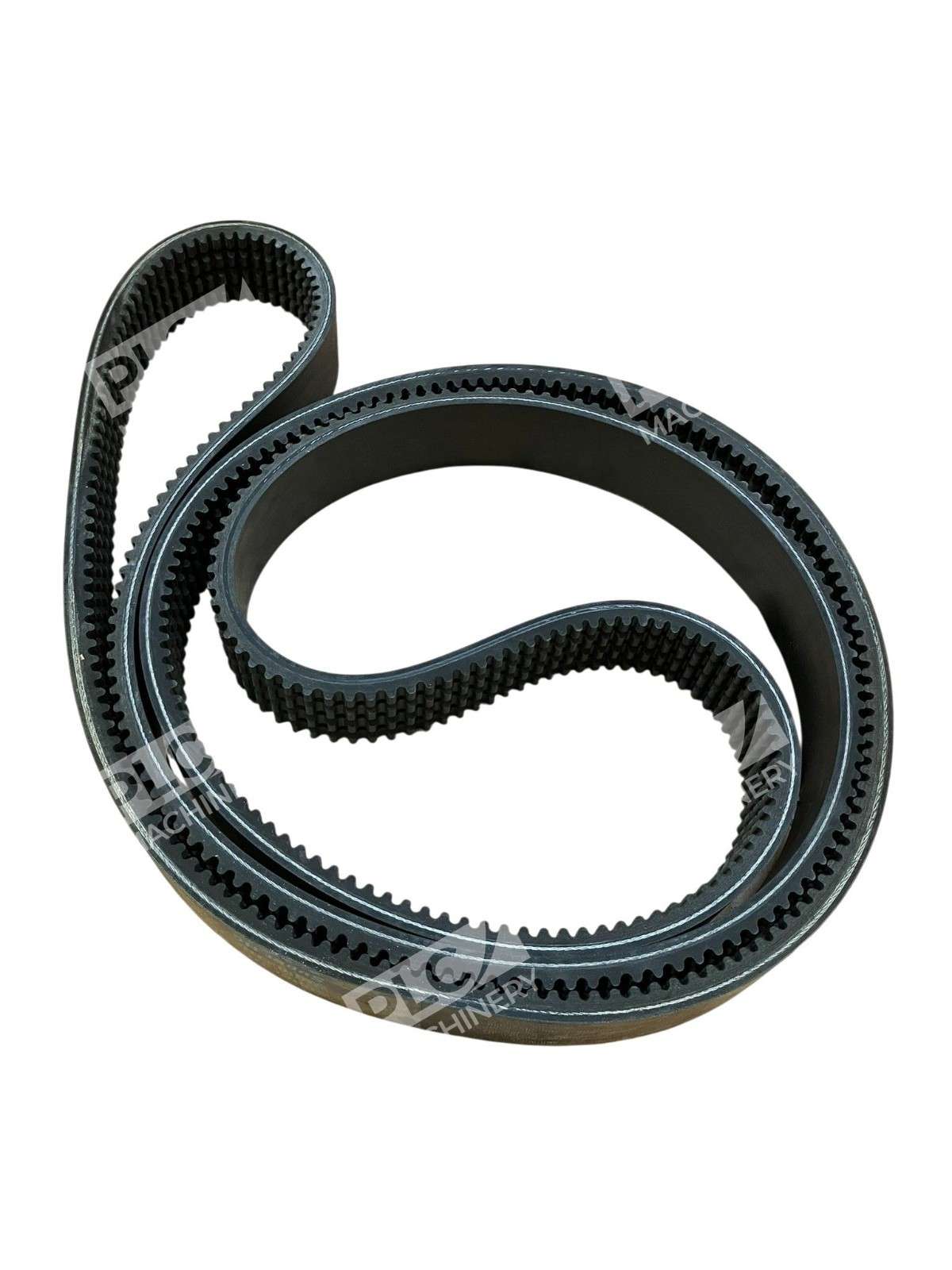

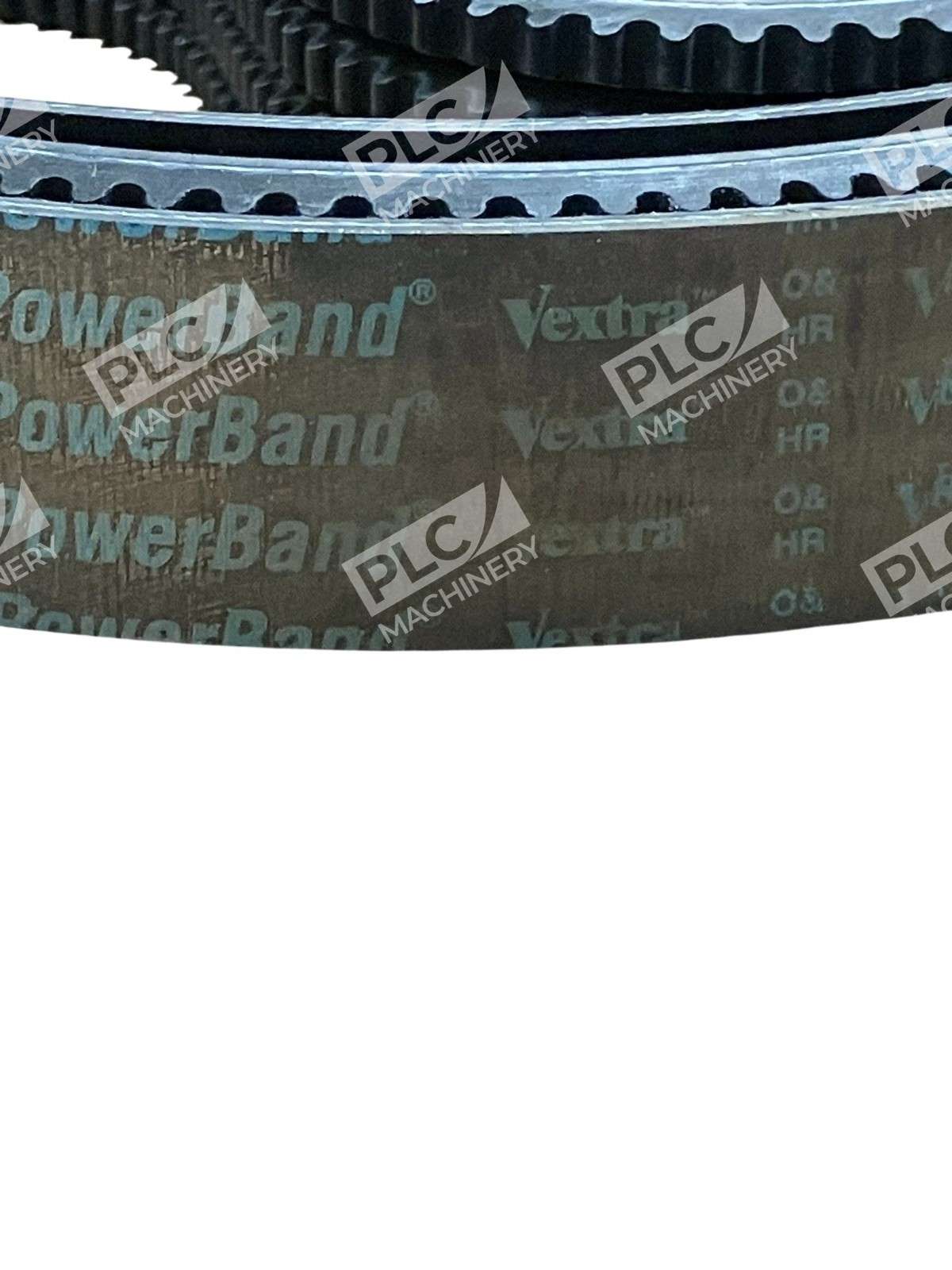

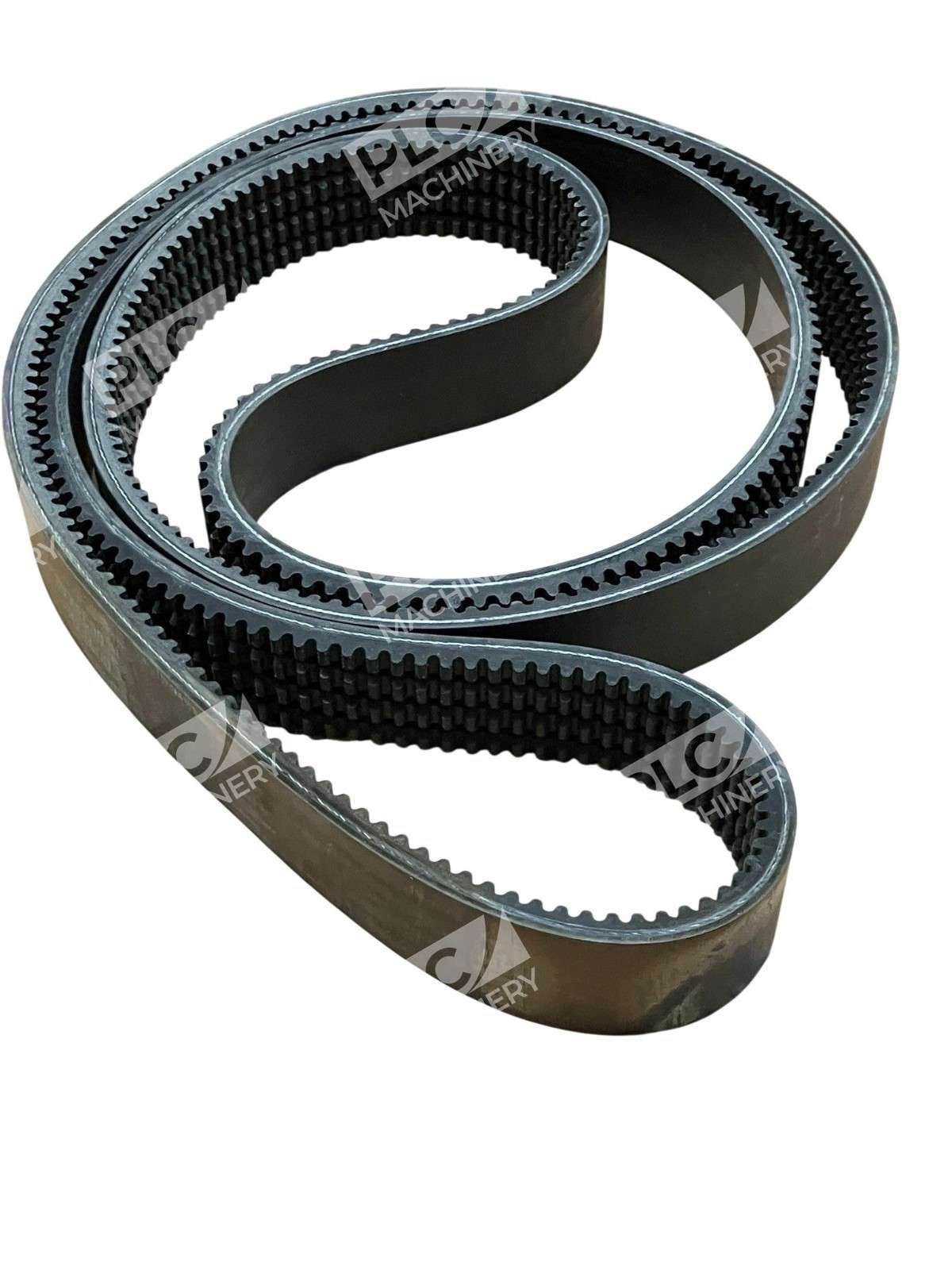

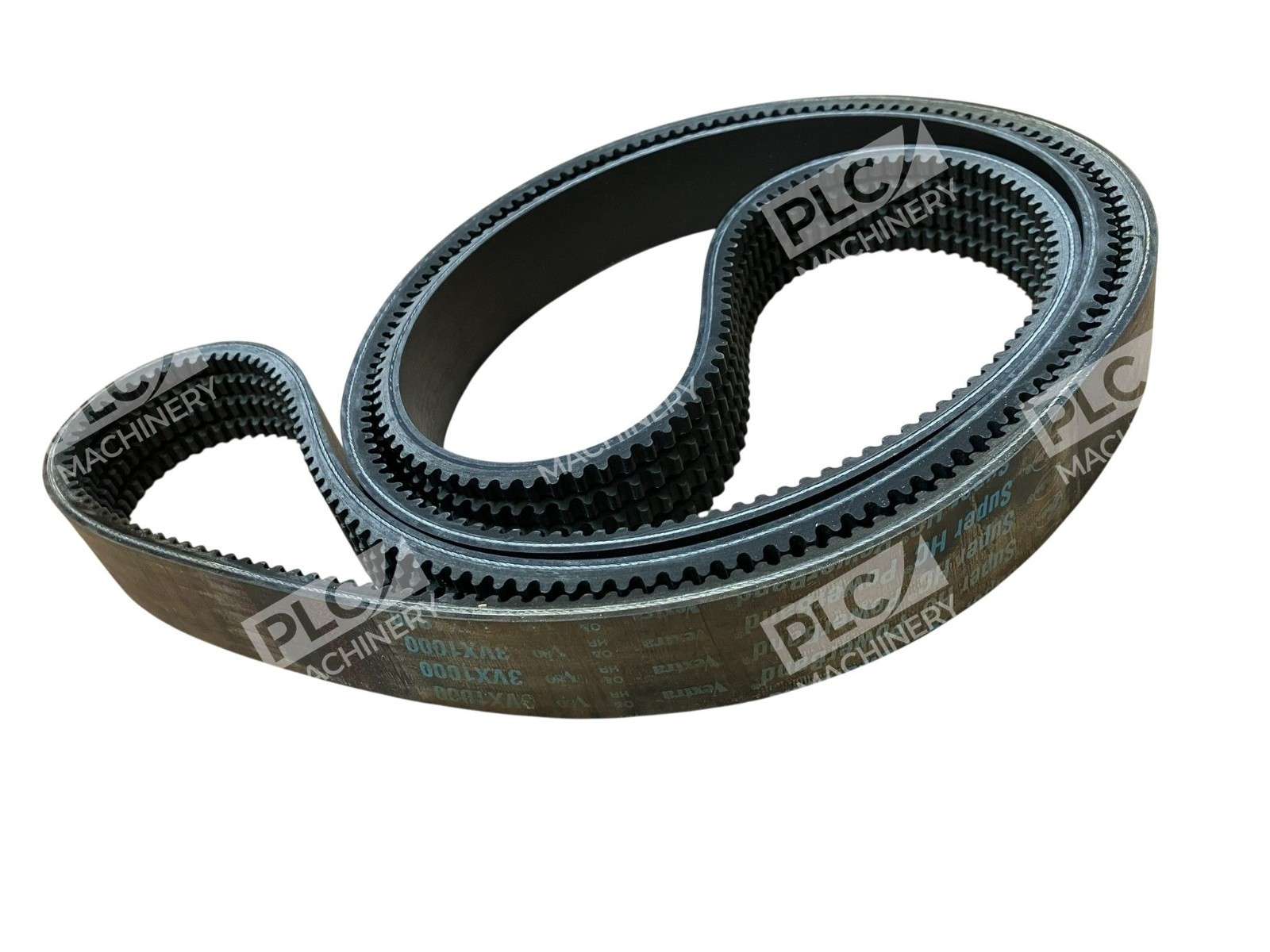

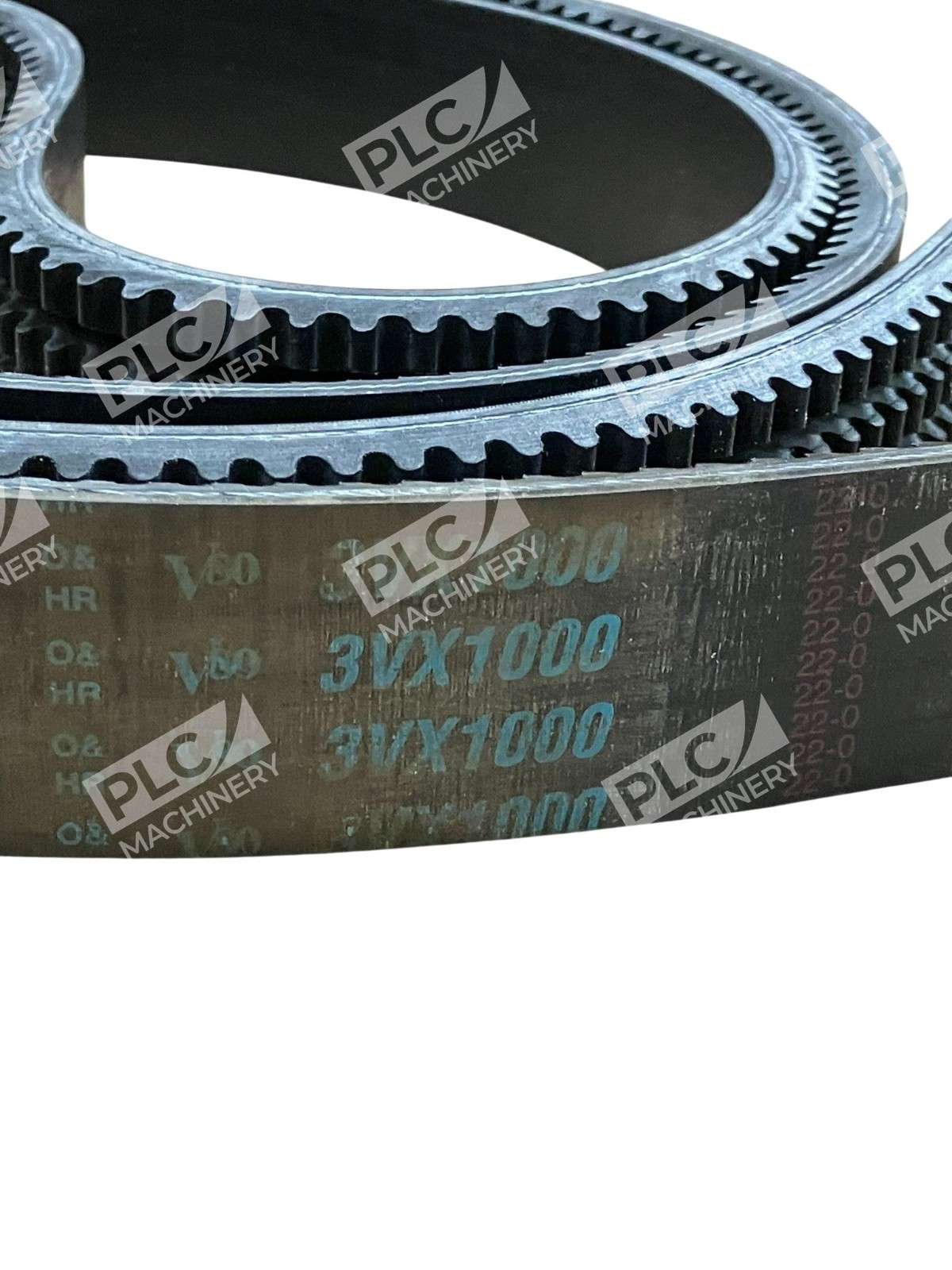

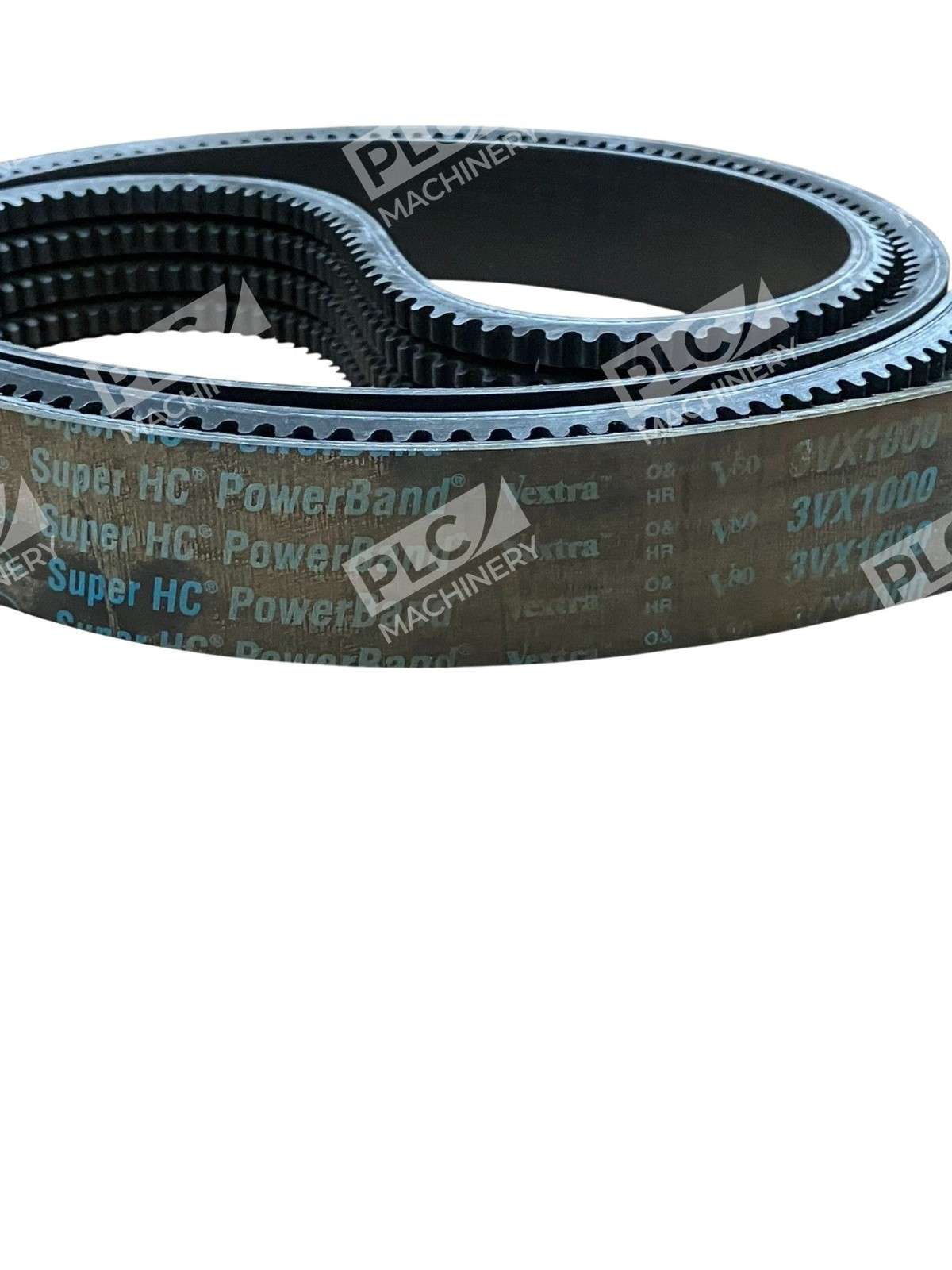

The Gates 4/3VX1000 Super HC PowerBand V-Belt (SKU 9388-4100) is a precision-engineered molded notch belt engineered for demanding multi-belt power transmission systems. This four-strand configuration combines a fabric banded cover with molded notches to deliver high horsepower capacity while minimizing bending stress on small-diameter pulleys. The integral tie band keeps multiple belts operating as a single unit with uniform load distribution.
Key Features
- Super HC Molded Notch Design — Reduces bending stress on smaller pulleys; notches enable tight wraps without sacrificing strength or traction
- PowerBand Tie Band — Permanently bonds belts together for lateral rigidity, preventing lateral shift and belt whip on multi-strand drives
- EPDM Rubber Construction — Weather, oil, water, and solvent resistant; meets RMA oil and heat resistance standards
- Wide Operating Range — Works reliably from −65 °F to +250 °F, protecting against cracking and material degradation
- V80 Matching System — Exceeds RMA and ISO belt tolerance standards for more precise matching, even load distribution, and longer belt life
- Heavy-Duty Banded Cover — Fabric outer wrap provides superior abrasion and wear resistance in harsh industrial environments
Technical Specifications
| Belt Profile | 3VX Section (Molded Notch) |
| Configuration | 4-Strand Super HC PowerBand |
| Outside Circumference | 100.0 inches |
| Overall Width | 1.5 inches (3/8″ per strand × 4 strands) |
| Belt Height | 21/64 inches |
| Material | EPDM Rubber with Fabric Banded Cover |
| Operating Temperature Range | −65 °F to +250 °F |
| Cord Bonding | Strongly bonded to belt body for load distribution |
| Standards Compliance | RMA oil and heat resistance; Static conductivity requirements |
| Series | Gates V80 / Series 9388 |
| Manufacturer Part Number | 9388-4100 |
Typical Applications
The Gates 4/3VX1000 is ideal for:
- Multi-belt industrial drives exposed to pulsating or heavy shock loads
- Compact drive systems requiring high power transmission in confined spaces
- Applications where belt whip, turnover, or lateral drift must be minimized
- Agricultural, mining, and manufacturing equipment with demanding duty cycles
- HVAC, compressor, and fan drive systems requiring reliable long-term performance
Compatibility & Replacements
Compatible With
- Any 3VX-section V-belt pulley or sheave system
- Multi-strand banded belt drives requiring Super HC performance
- Industrial equipment specifying Gates V80 matching tolerance belts
- Drives operating within −65 °F to +250 °F temperature envelope
Replaces / Drop-In Replacement For
This unit is an OEM Gates product (Series 9388). Verify compatibility with your drive system specifications or consult Gates technical data for equivalent cross-references. Always confirm belt profile (3VX), circumference (100″), and strand count (4) before replacing an existing belt.
Works With
- Standard 3VX-section pulley grooves and V-belt sheave drives
- Gates industrial power transmission systems and OEM equipment
- Any equipment requiring molded-notch, banded Super HC V-belts per Gates specifications
