Overview

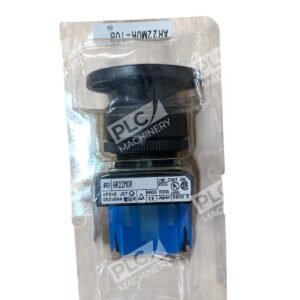

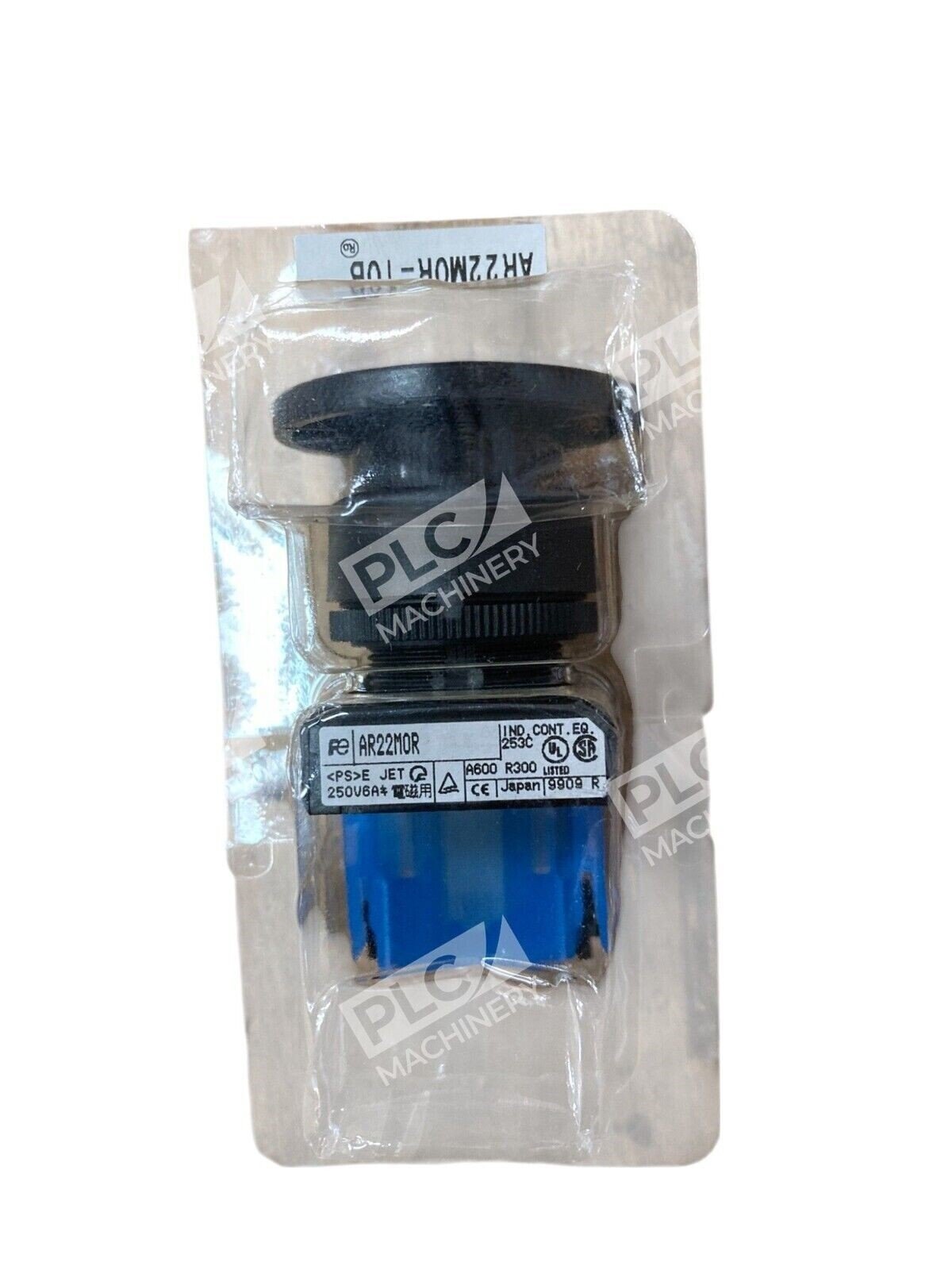

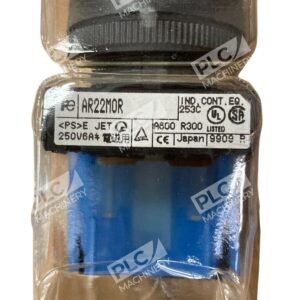

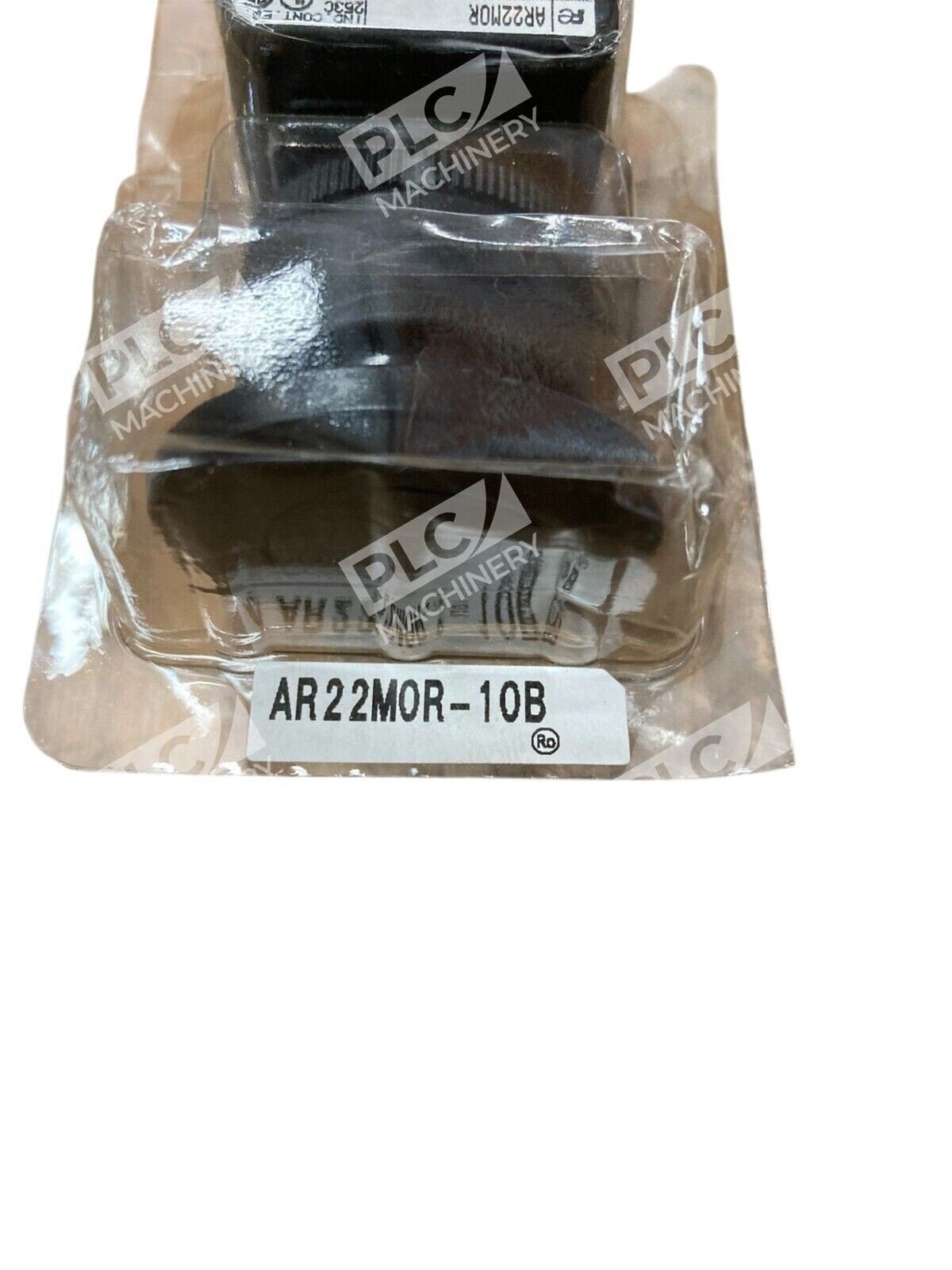

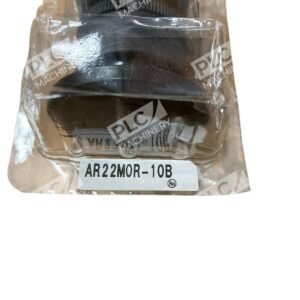

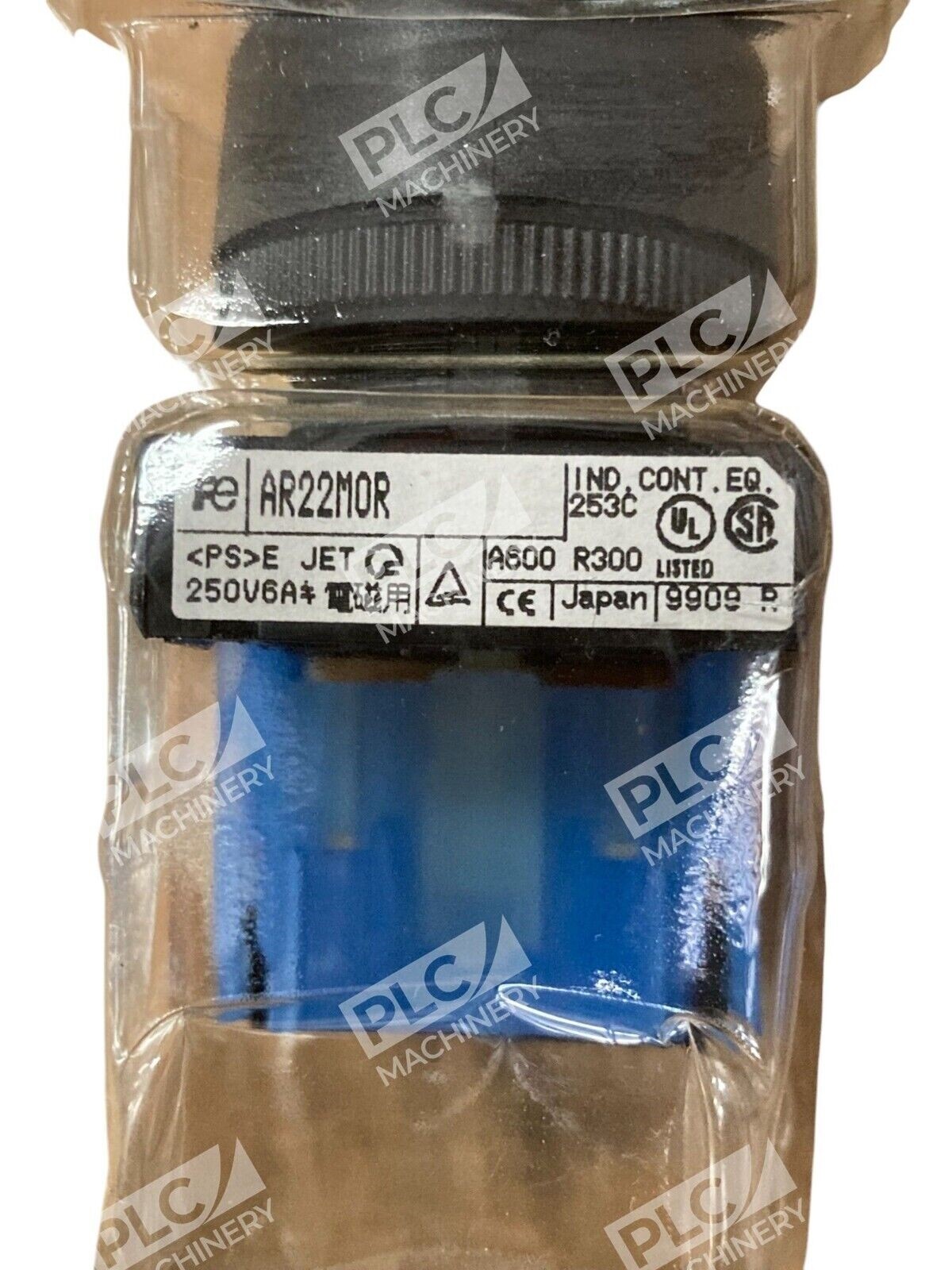

The Fuji Electric AR22M0R is a 22mm-diameter pushbutton switch engineered for demanding industrial environments. This black mushroom-head operator combines robust construction with field-proven reliability, making it ideal for control panels, machine tools, and instrumentation applications. The AR22 Series features a 22mm diameter illuminated pushbutton with emergency stop capability.
Key Features
- Toolless Mounting: The AR22 Series uses a release arm with a wedge mechanism that enables you to mount or remove the operator and contact block without using any tools.
- Dual Panel Cutout Compatibility: The improved locking nut is capable of mounting the operator in both 22.3mm and 25.5mm diameter panel cutout holes.
- Panel-Agnostic Installation: When fitting to a panel, you can ignore the thickness.

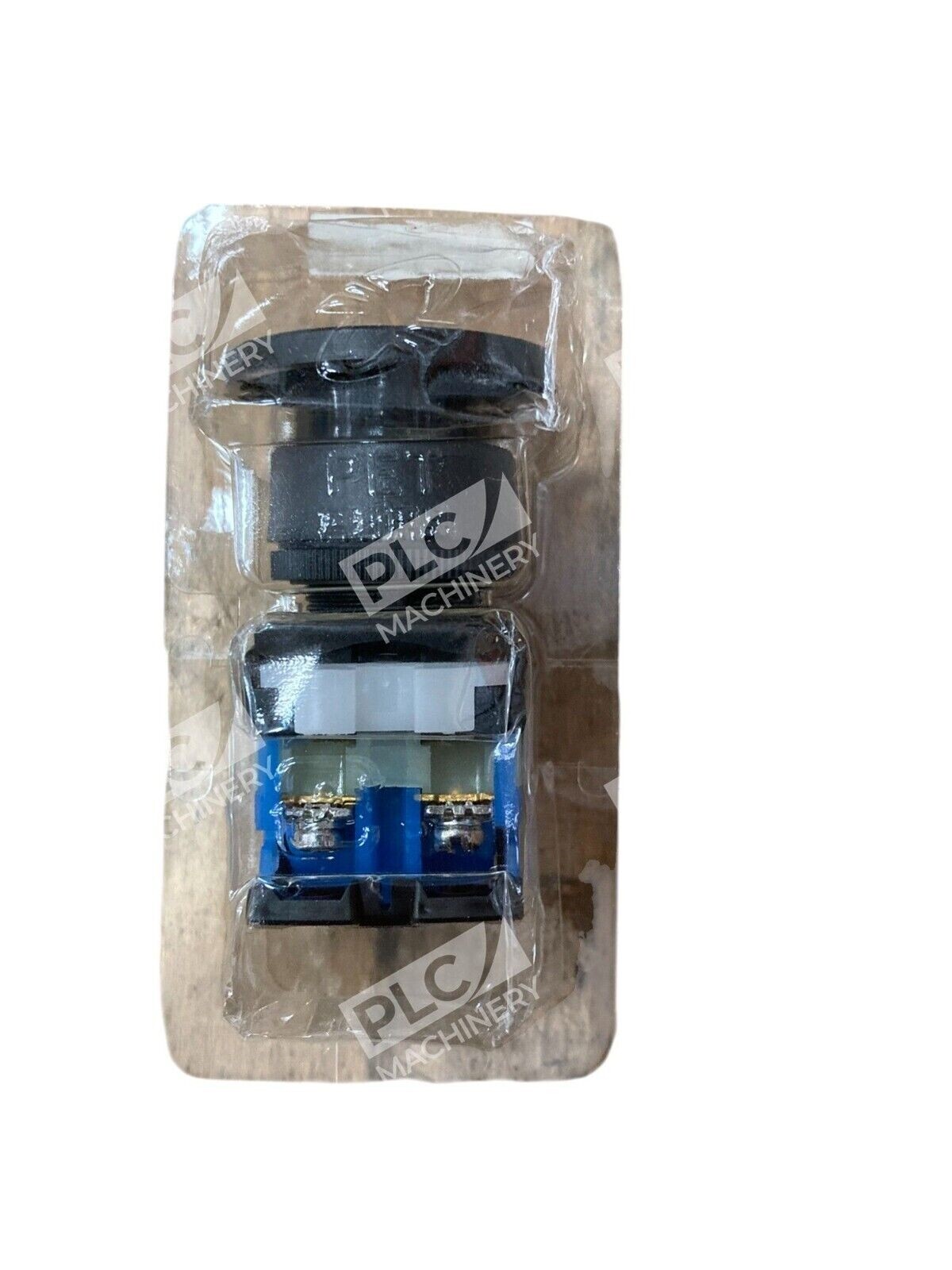

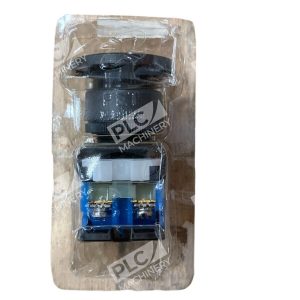

- Modular Contact Block Design: Snap-on mounting allows replacement of the contact block and transformer unit with simple screwdriver access, without special tools.
- Global Certifications: The AR22 series is rated for UL, CSA, CE, CCC and TUV.
Technical Specifications
- Series: AR22 (22mm diameter)
- Operator Type: Mushroom head, black
- Button Style: Momentary or latching (configurable)
- Contact Arrangements: 1NO, 1NC, 1NO+1NC, 2NO, 2NC, 2NO+2NC
- Panel Cutout Diameter: 22.3mm or 25.5mm
- Certifications: UL 508, CSA C22.2 No. 14, EN 60947-5-1, EN 60947-5-5, CCC GB14048.5
- Mounting Method: Snap-on wedge mechanism with locking nut
- Contact Block: Interchangeable, color-coded for easy wiring
Typical Applications
The Fuji Electric AR22 Series pushbutton switches are used in machine tools, industrial machines, control panels, distribution panels, and instrumentation panels. These switches excel in environments demanding frequent operator interaction and reliable emergency-stop integration.
Compatibility & Replacements
The AR22M0R base model is available in multiple electrical configurations (contact block variants ending in -10, -01, -11, -20, -02, -22 indicating 1NO, 1NC, 1NO+1NC, 2NO, 2NC, or 2NO+2NC respectively). The contact block is interchangeable across the AR22 family, allowing field upgrades without operator replacement. Related mushroom-head variants include AR22M5R (40mm dia.) and AR22M4R/M9R (29mm dia.). Color options and fixture combinations expand the base AR22M0R platform for diverse control panel aesthetics and functional requirements.
