Overview

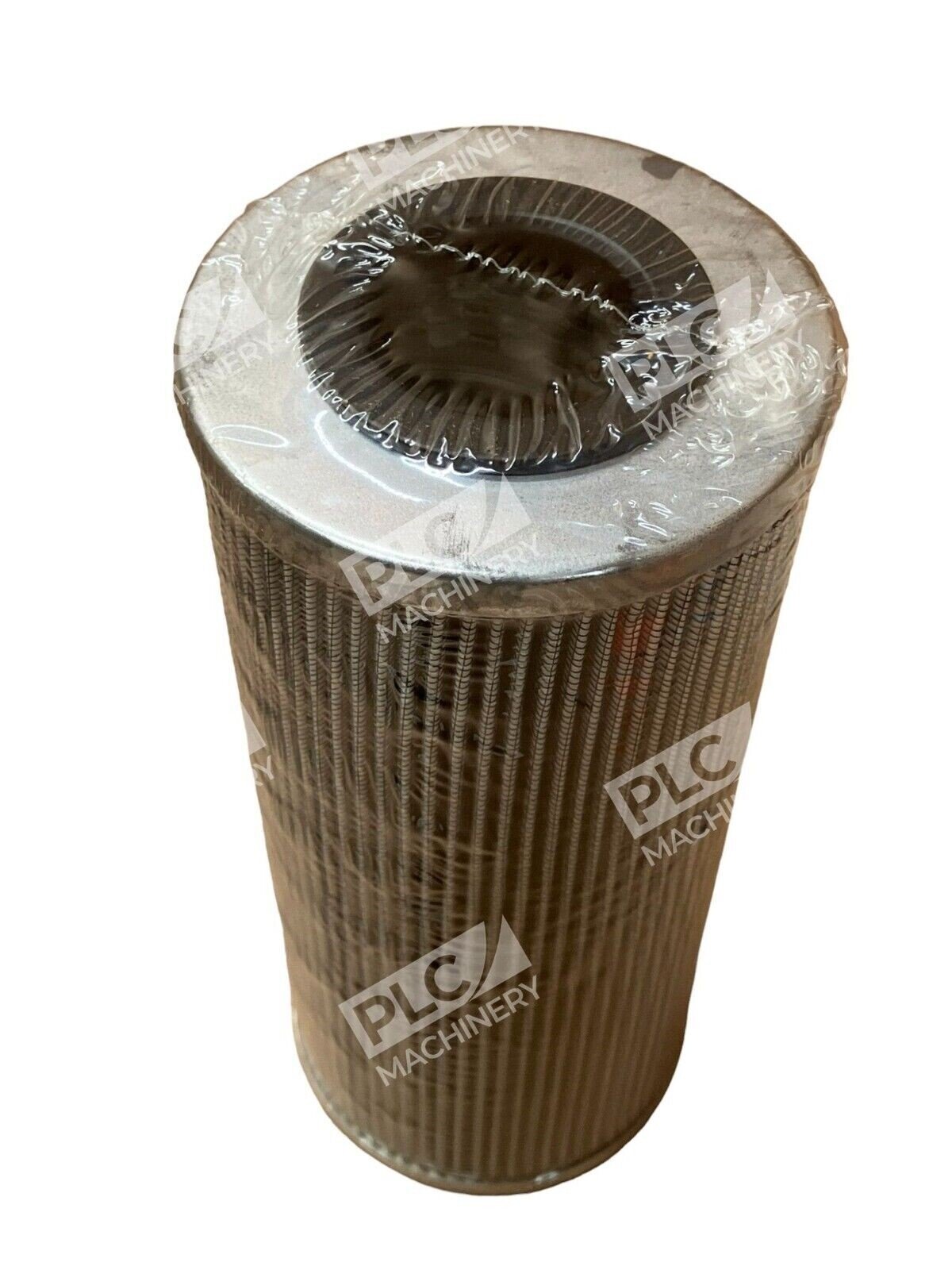

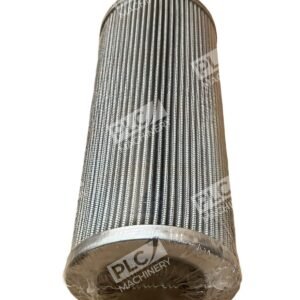

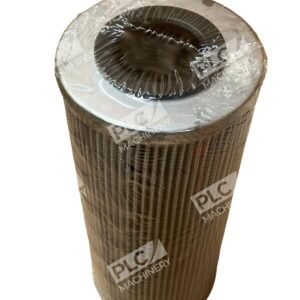

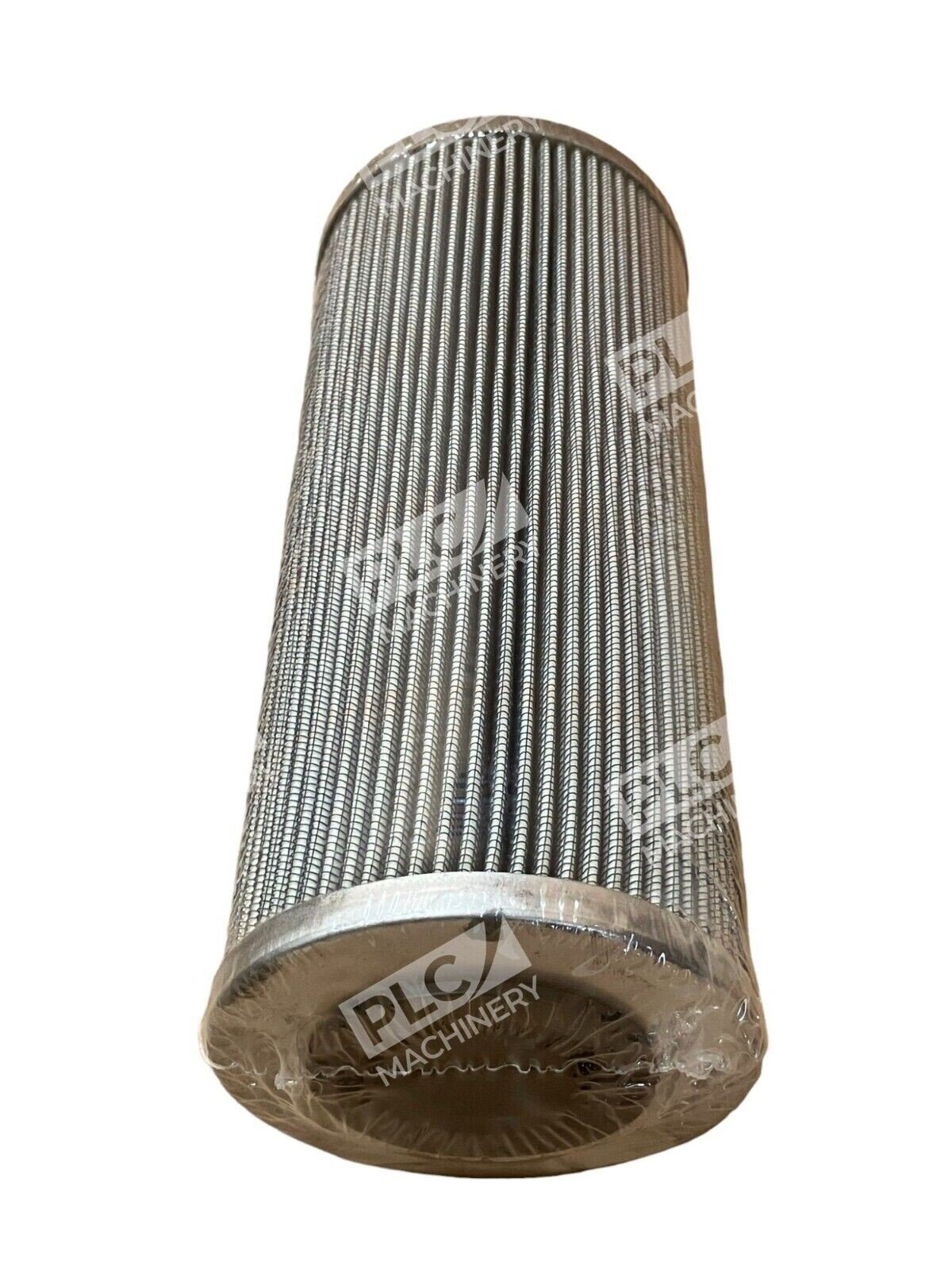

The Fluitek P 039093-3U7B is a high-performance hydraulic filtration element engineered to remove contaminants from hydraulic systems. Built with pleated synthetic media, this cartridge meets or exceeds OEM specifications for HYDAC, Fleetguard, and FRAM filter housings. Fluitek Pleated Synthetic Elements filters are manufactured to meet or exceed the specifications of the original equipment manufacturer.
Key Features
- 3 MICRON BETA 200 absolute filtration rating
- Pleated synthetic element construction for extended service life
- 70 GPM flow rate capacity
- Rated to 275°F maximum operating temperature
- 4.2 PSID differential pressure rating
- Steel end caps with buna grommet seals
Technical Specifications
- Dimensions: 9.3 inches height × 3.9 inches diameter × 1.6 inches thick
- Weight: 2.2 pounds
- Element Type: Pleated Synthetic
- Micron Rating: 3 MICRON BETA 200
- Flow Capacity: 70 GPM
- Temperature Range: 15–275°F
- Differential Pressure: 4.2 PSID
- Seal Material: Buna grommet
- End Cap Material: Steel
Typical Applications
The Fluitek P 039093-3U7B is suitable for:
- Industrial hydraulic systems requiring fine filtration
- Mobile equipment and construction machinery
- Manufacturing and processing equipment with closed-loop hydraulic circuits
- Systems requiring replacement of HYDAC, Fleetguard, or equivalent cartridges
Compatibility & Replacements
Compatible With
- HYDAC filter housings (50309D05BN, HJ005BN, 2060943, 2060529)
- Fleetguard HF7332 and HF0733100 filter bowls
- FRAM FD650G06A housings
- ISO 4572 standard hydraulic filter configurations
- Industrial and mobile hydraulic systems rated for 70 GPM
Replaces / Drop-In Replacement For
- HYDAC 50309D05BN
- HYDAC HJ005BN
- HYDAC 2060943
- HYDAC 2060529
- Fleetguard HF7332
- Fleetguard HF0733100
- FRAM FD650G06A
Works With
- ISO VG 32, VG 46, and VG 68 hydraulic fluids
- Mineral oil–based hydraulic systems
- Closed-loop hydraulic circuits
- Industrial filtration standards and protocols
