Overview

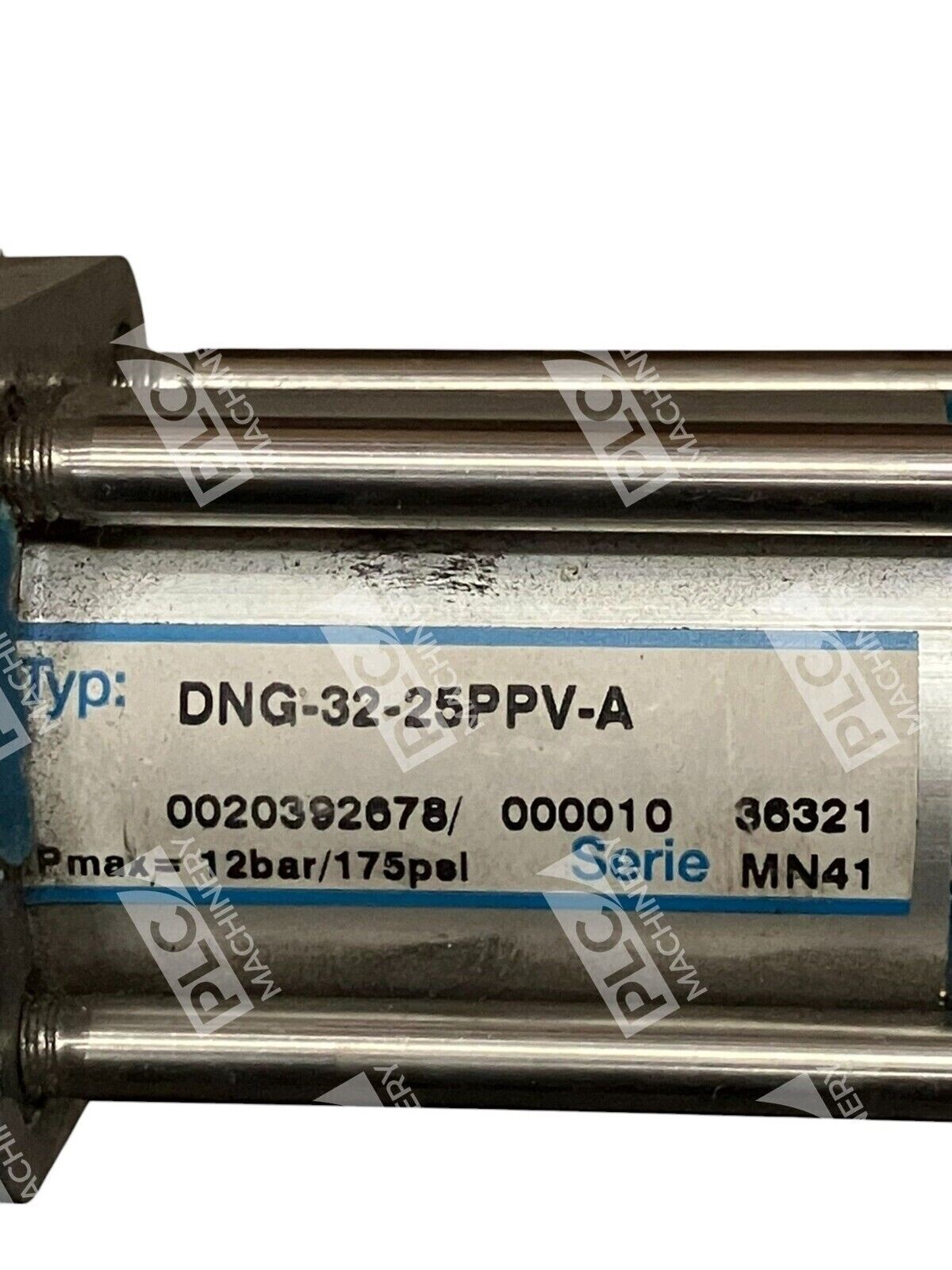

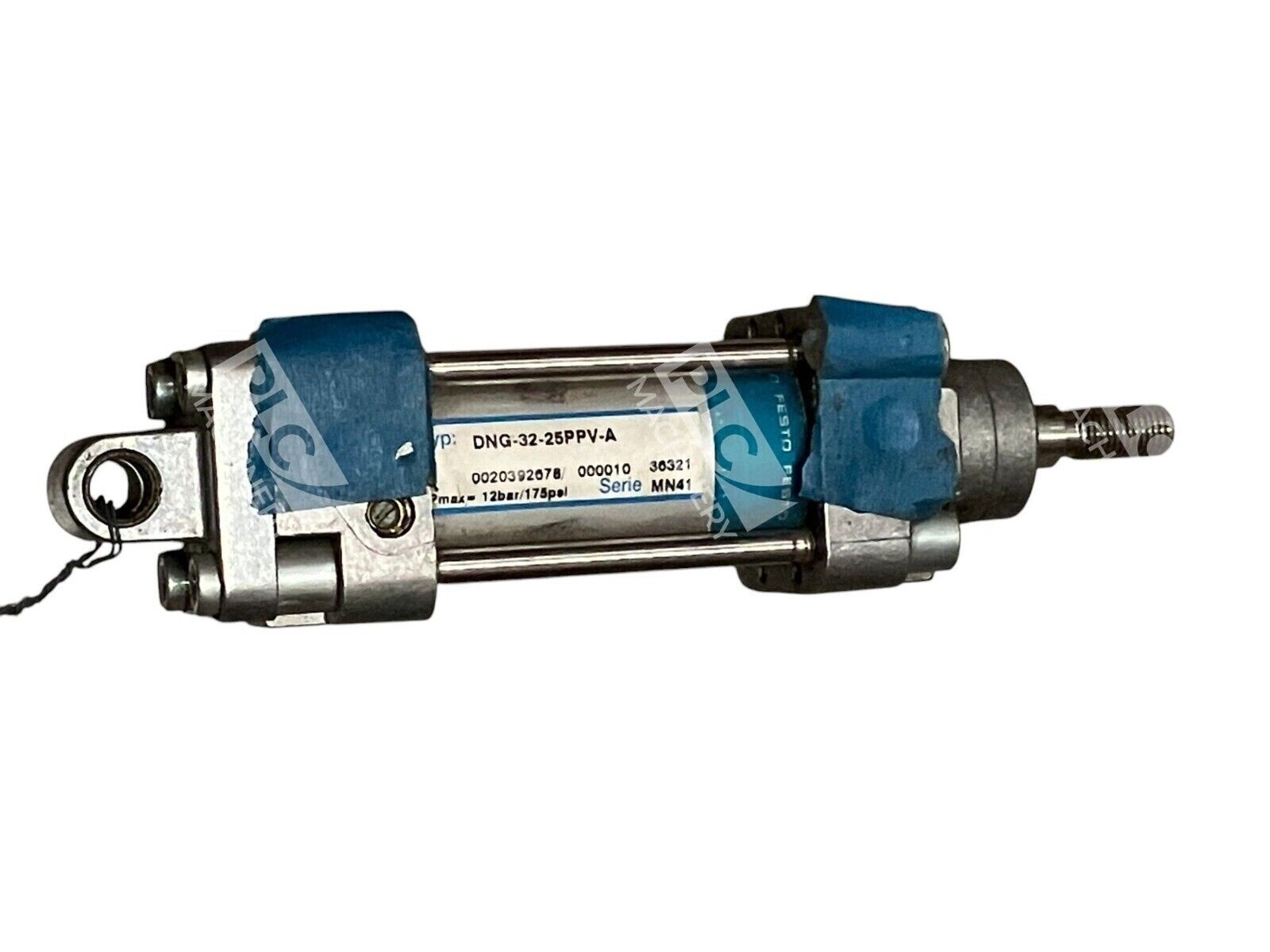

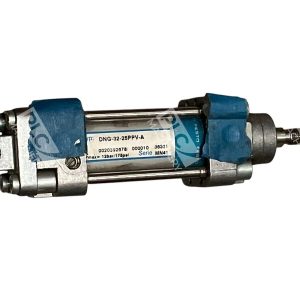

The Festo DNC-32-25-PPV-A is a standards-based pneumatic cylinder designed to deliver precise, efficient linear motion in industrial automation systems. With a 32mm bore and 25mm stroke, this double-acting cylinder operates at a maximum pressure of 12 bar (174 psi) and meets ISO 15552 specifications for interchangeability and reliability. Its compact profile and adjustable pneumatic cushioning at both ends make it well-suited for space-constrained applications requiring consistent performance.
Key Features
- Double-acting operation with positive forward and reverse motion
- 32mm bore diameter with 25mm stroke length for compact deployment
- Maximum operating pressure: 12 bar / 174 psi
- ISO 15552 compliant profile barrel design
- Adjustable pneumatic cushioning at both ends for smooth operation
- M10x1.25 male threaded piston rod
- G1/8 BSPP pneumatic port connections
- Elastic cushioning rings/pads for impact absorption
Technical Specifications
The cylinder features a square profile design with ±0.65° maximum torsional backlash in the piston rod, ensuring precision in positioning tasks. The pneumatic cushioning length is 20mm, allowing smooth deceleration at the end of stroke. Construction includes a durable profile barrel with integrated rod guides for lateral stability.
Typical Applications
The DNC-32-25-PPV-A performs reliably in manufacturing environments, including component assembly, material handling, clamping fixtures, and packaging machinery. Its compact 32mm bore fits into tight mounting spaces while delivering adequate force for light-to-medium load applications. Common uses include pneumatic pressing, part ejection, and automated positioning in production lines.
Compatibility & Replacements
Compatible With
- Festo standard pneumatic tubing and push-in connectors
- ISO 15552 mounting accessories and rod clevis mounts
- G1/8 BSPP threaded port pneumatic networks
- Festo proportional and directional control valves
- Standard industrial air preparation units (FRL, regulators, filters)
Replaces / Drop-In Replacement For
- DNC-32-25-PPV equivalent cylinders meeting ISO 15552
- DN-32-25-PPV (Series 0591R) legacy models
Works With
- Pneumatic control systems and logic circuits
- Programmable logic controllers (PLCs) via solenoid valve interfaces
- Manual and automated directional control valve systems
- Standard pneumatic tubing (6mm, 8mm O.D.)
- Festo position sensor kits for feedback applications
