Overview

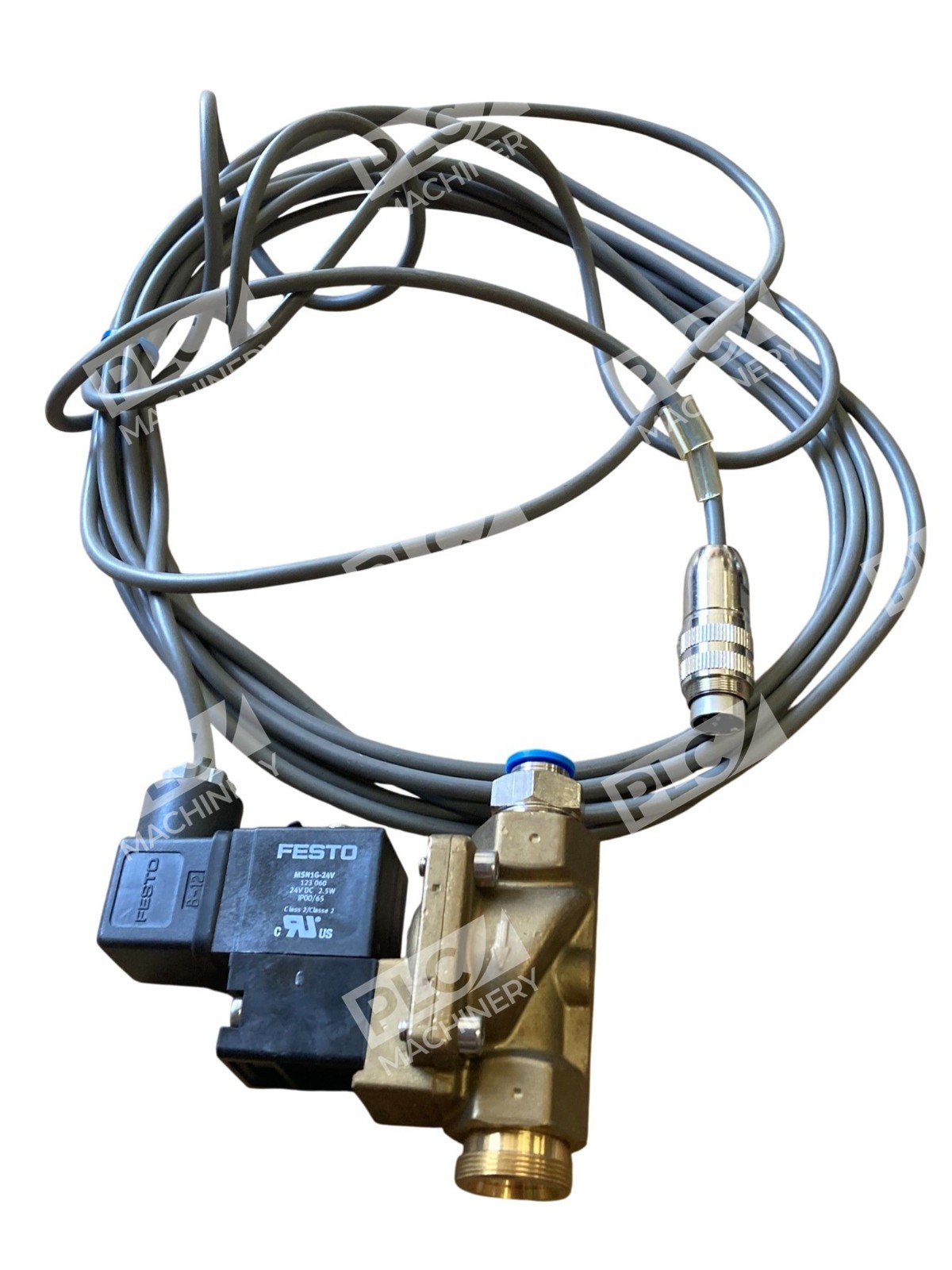

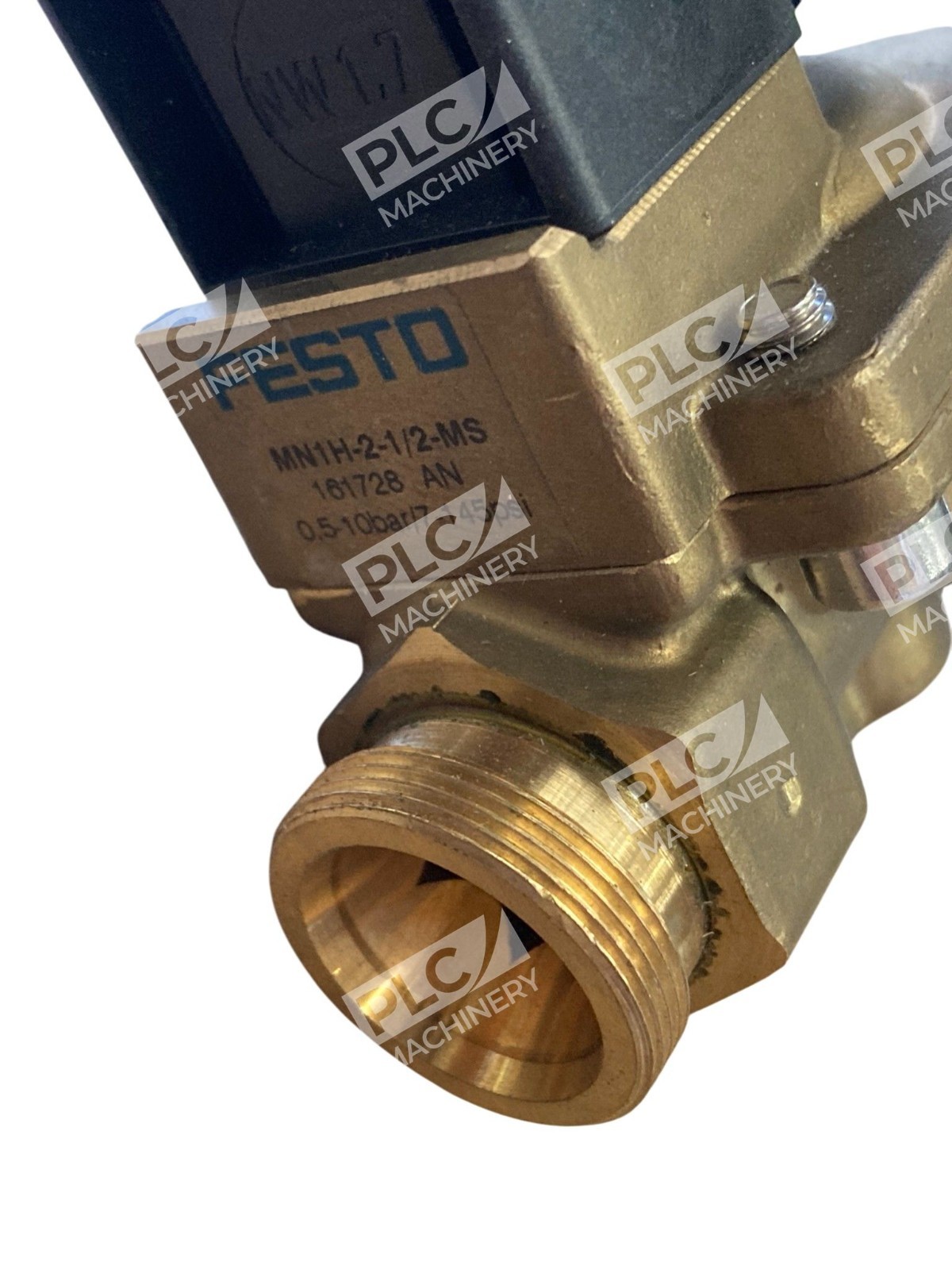

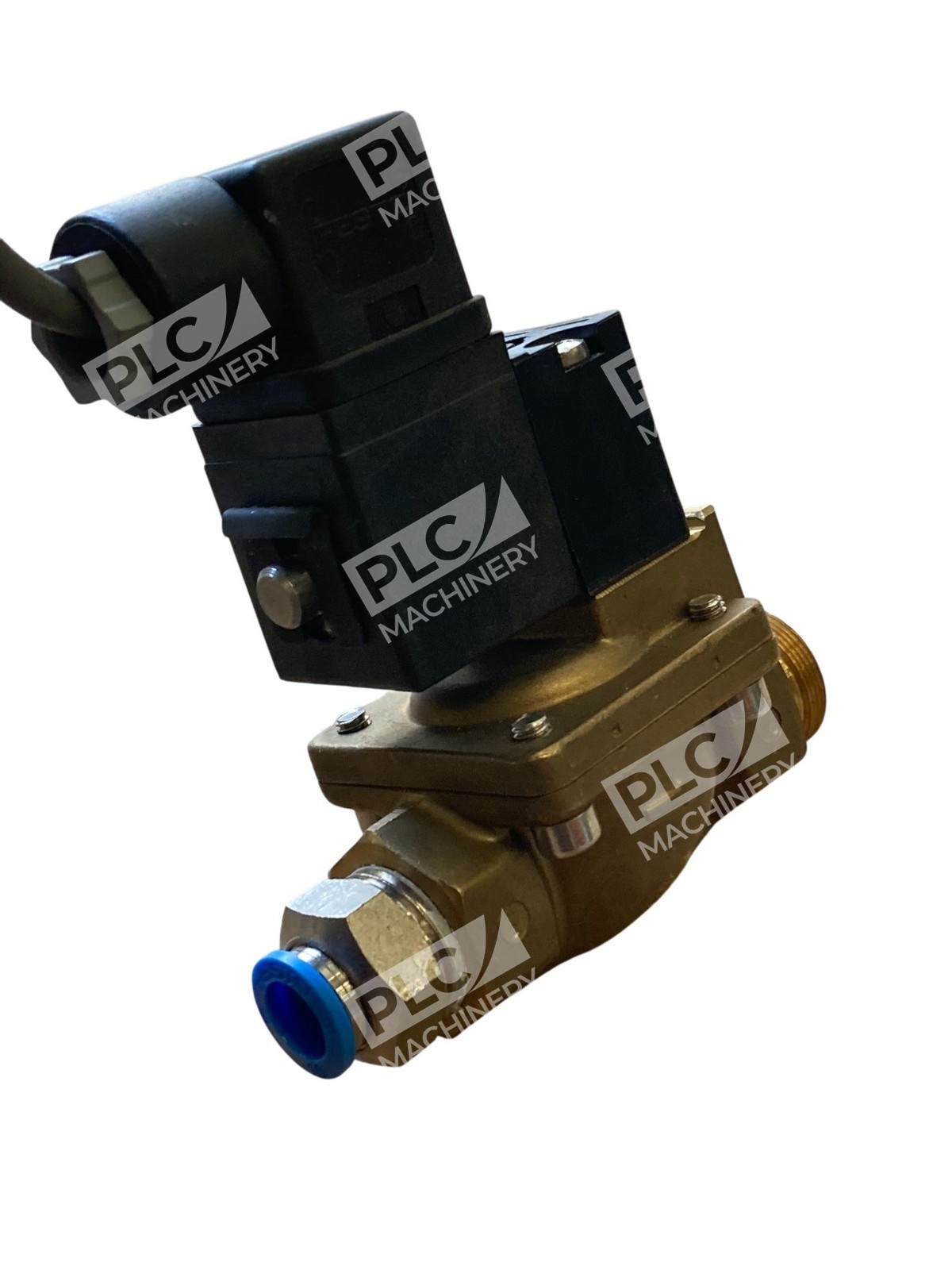

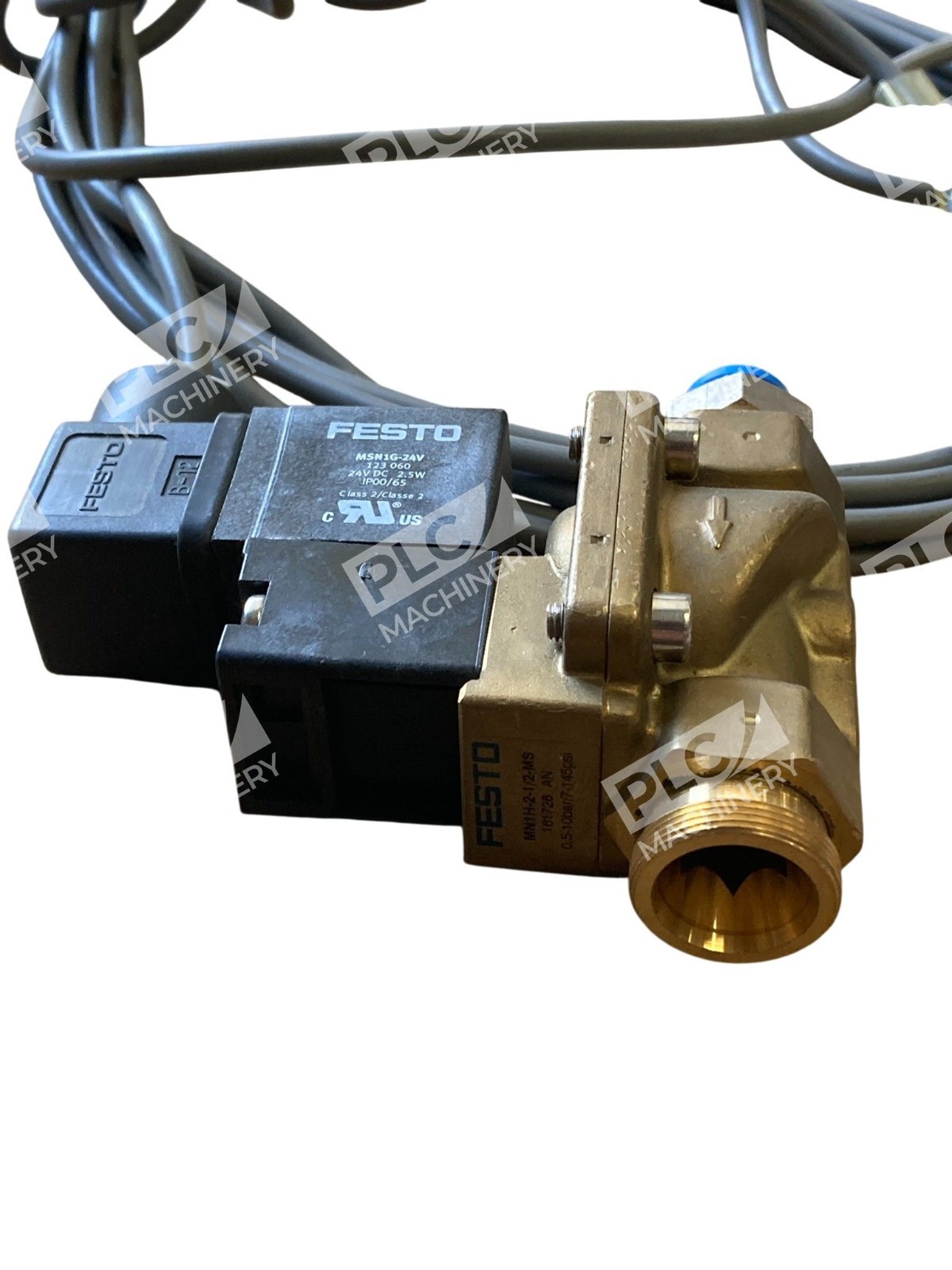

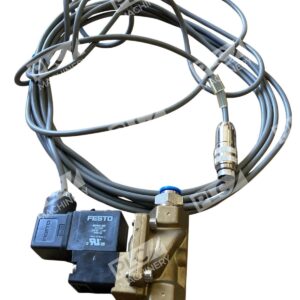

The Festo MN1H-2-1/2-MS 161728 is a compact, electrically actuated solenoid valve designed for direct control of filtered compressed air in process automation and industrial pneumatic systems. This 2/2-way valve features a brass body, G1/2 connection, and is designed for single solenoid coil actuation. The monostable design with manual override provides both automatic and manual control capability in confined mounting spaces.
Key Features
- Diaphragm valve design — Soft sealing principle with minimal leakage
- 2/2-way, closed monostable function — Normally closed until energized; spring-returns when de-energized
- Brass construction — Corrosion-resistant housing with high-alloy steel trim
- Manual override — Non-detenting manual push for emergency or manual operation
- DIN EN 175301-803 electrical plug connector — Type A plug pattern, industry-standard interface
- Optional mounting position — Flexible installation orientation; in-line piping installation
Technical Specifications
- Valve Function: 2/2-way valve
- Connection: G1/2 (ISO 228/1)
- Nominal Size: 13 mm
- Pressure Range: 0.5 to 10 bar
- Media: Filtered compressed air, degree of filtration 200 µm
- Operating Temperature: −10 to 60 °C
- Flow Rate: 3100 Lpm
- Actuator Type: Electric type of actuation
- Coil Voltage (Standard): 110 V AC (50 Hz / 60 Hz)
- Coil Power (110V AC): Pick-up: 5 VA; Holding: 3.7 VA
- Body Material: Brass
- Dimensions: 67 mm L × 48 mm W
- Part Number: 161728
- Model: MN1H-2-1/2-MS
Typical Applications
The Festo MN1H-2-1/2-MS 161728 is widely used in:
- Pneumatic automation systems and control circuits
- Process valve manifolds and directional control banks
- Machine tool and assembly line air switching
- Industrial robotics and material handling systems
- Production line on/off switching and safety interlocks
- HVAC and industrial compressed air distribution networks
Compatibility & Replacements
Compatible With
- Festo CETONI compressed-air systems
- Standard pneumatic manifold blocks and cavity systems
- Industrial PLCs and electronic control modules supporting 110V AC solenoid coils
- Pneumatic tubing systems with ISO 6149 / G1/2 ports
- DIN EN 175301-803 electrical connector ecosystems
Replaces / Drop-In Replacement For
The Festo MN1H-2-1/2-MS 161728 is the standard part number for this 2/2-way solenoid valve configuration. Verify exact compatibility with Festo technical documentation when substituting from other series or vendors. Always confirm manual override type, electrical connection pin pattern, and voltage ratings before installing as a replacement.
Works With
- Electrical Control: 110V AC 50/60 Hz solenoid coil driver circuits
- Protocols & Systems: Standard industrial PLC I/O, relay logic, or direct 110V AC switching
- Coil Types: Festo N1 solenoid coil assemblies (standard for MN1H series)
- Manual Operation: Hand-operated manual override for emergency use or system testing
