Overview

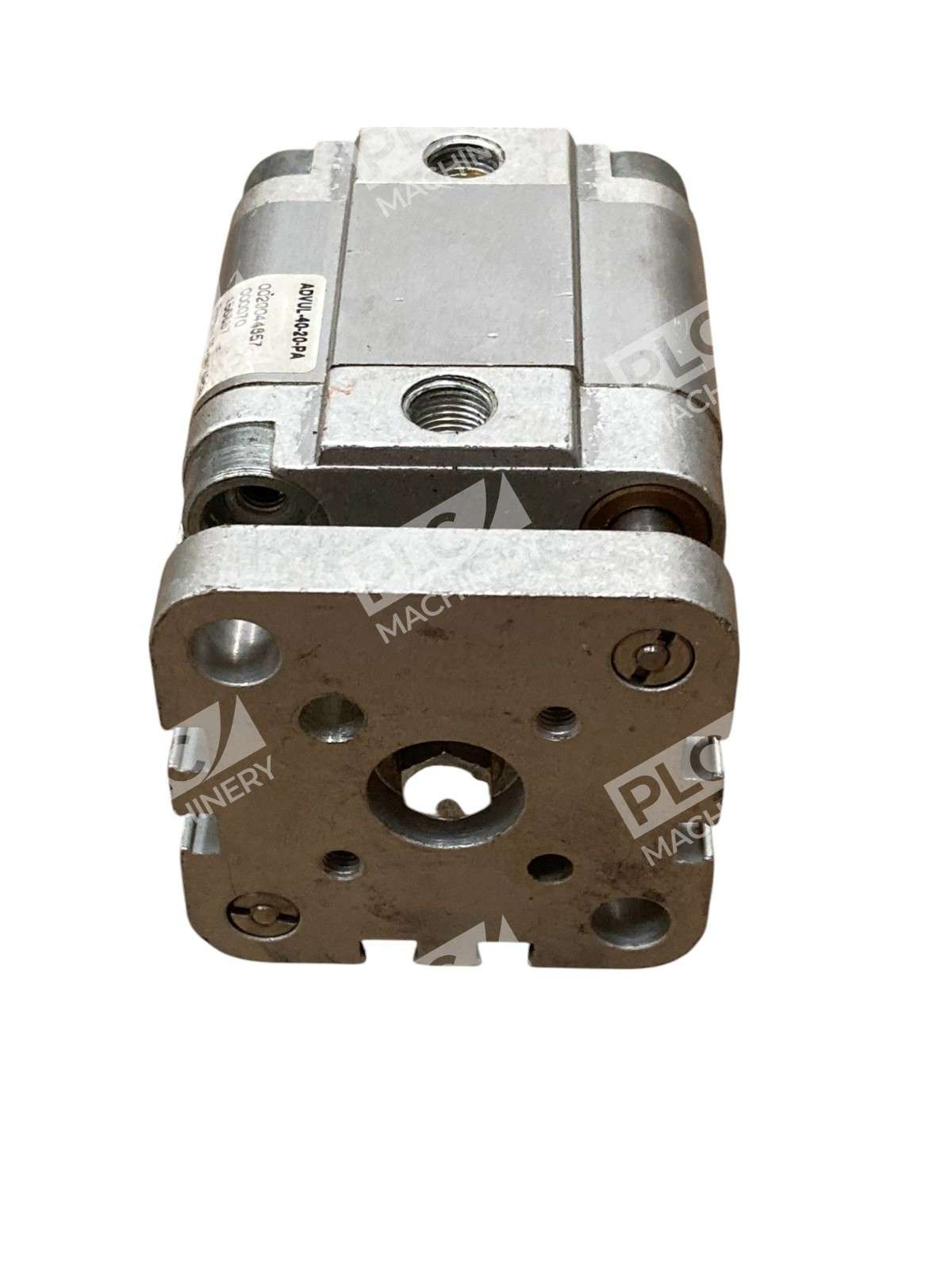

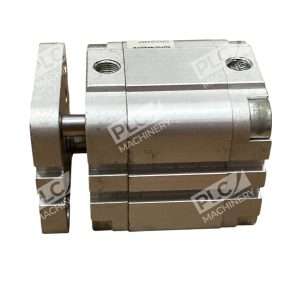

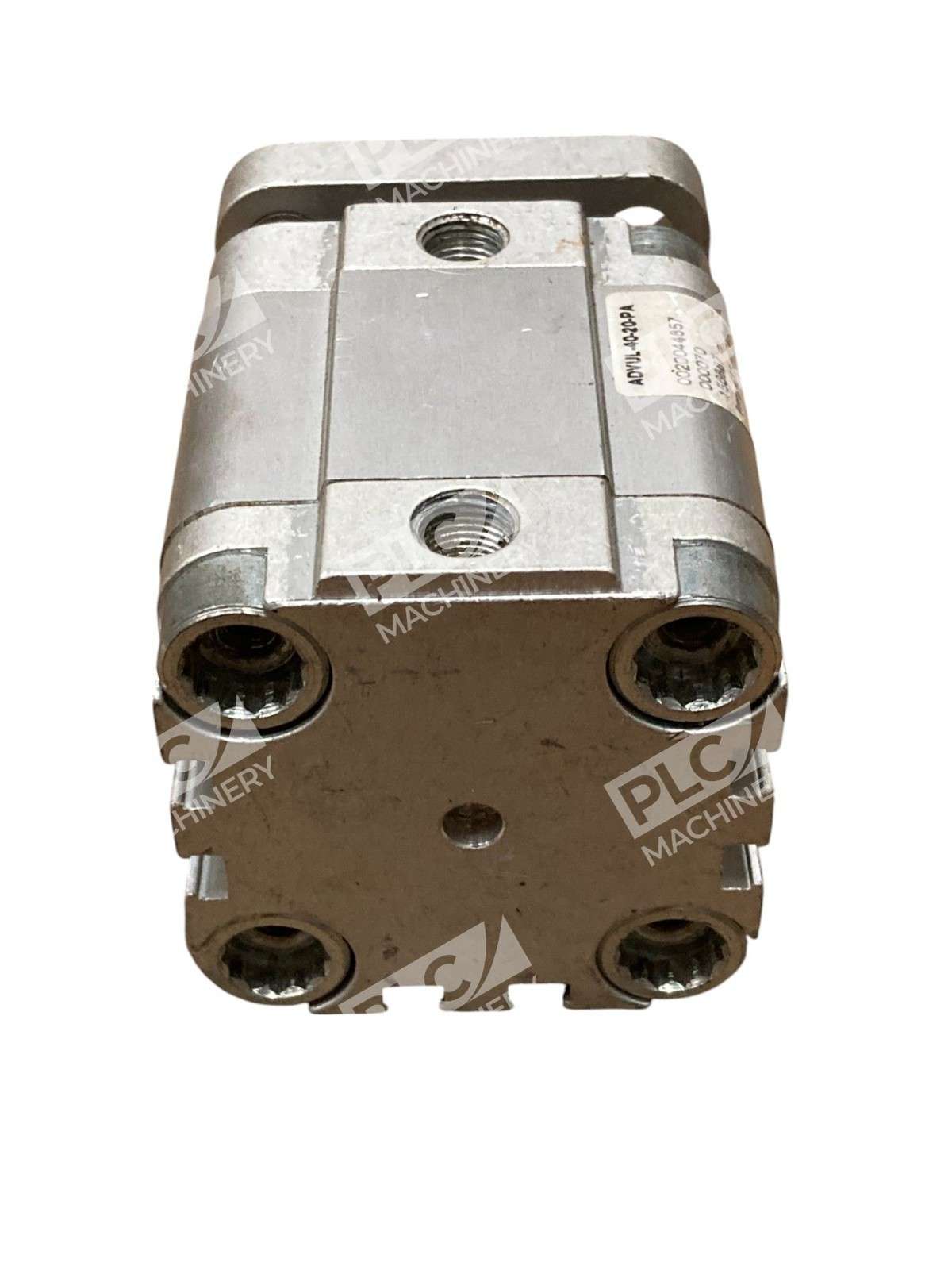

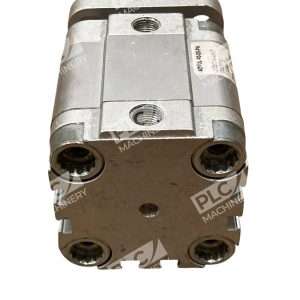

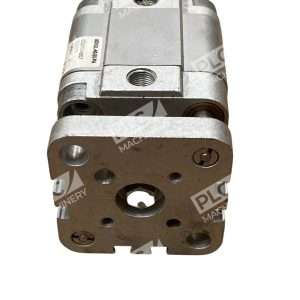

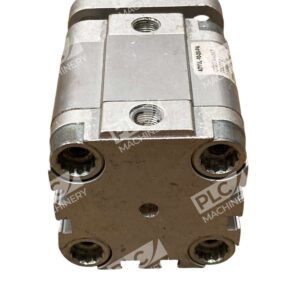

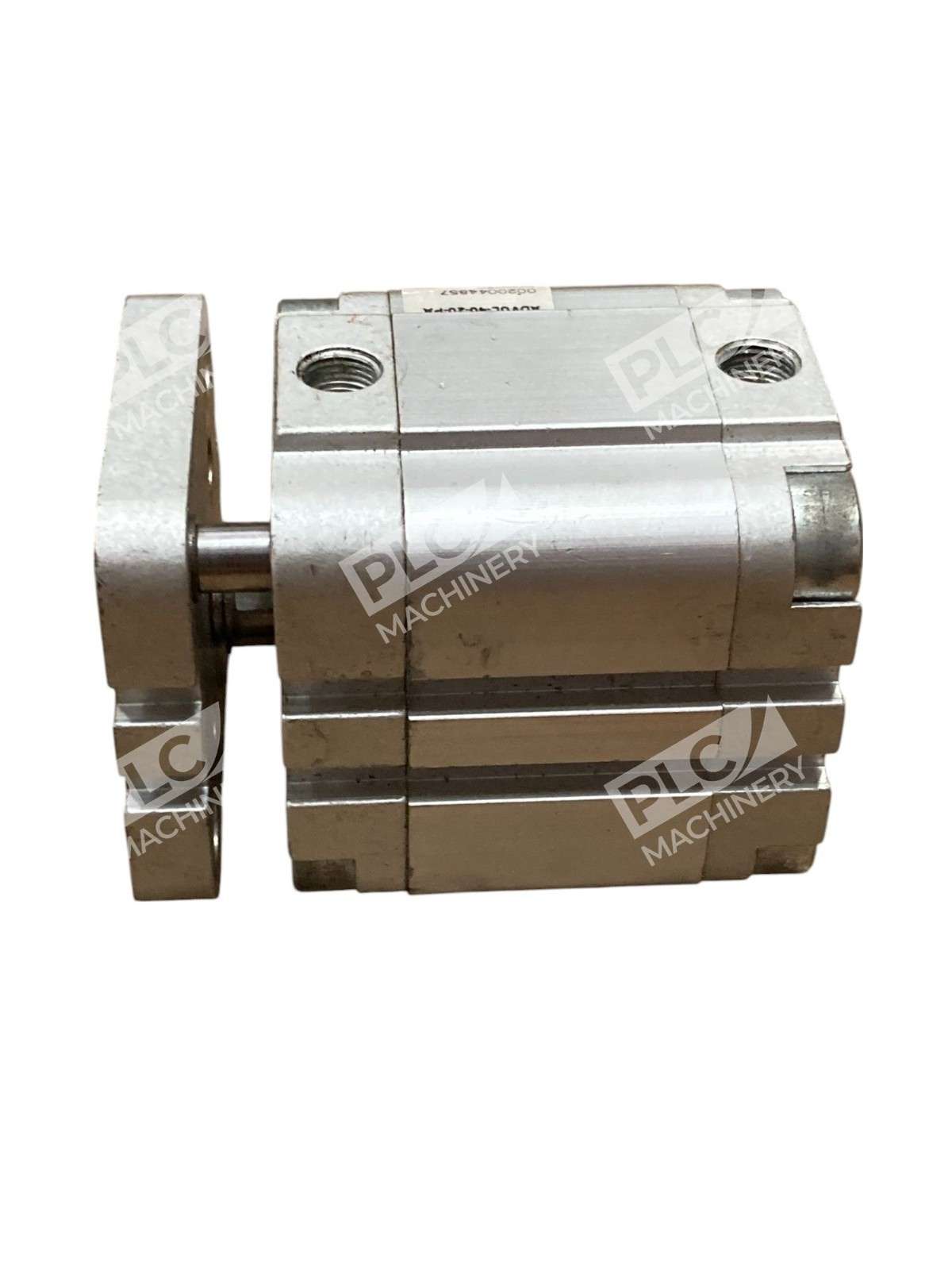

The Festo ADVUL-50-25-P-A (part number 156897) is a compact pneumatic cylinder designed for reliable double-acting operation in demanding industrial environments. With a 25mm bore diameter and 50mm stroke, this cylinder delivers consistent performance for automation systems requiring precise pneumatic motion control. The integrated guide rod and yoke plate protect the piston rod against rotation, making it ideal for applications where directional stability is critical.
Key Features
- Double-acting design with single-ended piston rod
- Torsion-resistant piston rod via guide rod and yoke plate
- Elastic cushioning rings/pads at both ends for smooth end-of-stroke operation
- Compact profile suitable for space-constrained installations
- Wide range of mounting options for flexible system integration
- Built-in magnet for proximity sensor positioning
Technical Specifications
The ADVUL-50-25-P-A delivers reliable performance across a wide operating range. The compact footprint combined with its robust construction makes it suitable for repetitive positioning and linear motion tasks in industrial applications.
Typical Applications
- Material handling and part transfer systems
- Assembly line automation and part positioning
- Machine tool clamping and workpiece movement
- Packaging machinery and conveyor systems
- Industrial robotics and automation platforms
Compatibility & Replacements
Compatible With
- Standard 24VDC solenoid valve systems
- ISO 4401 directional control valves
- Festo modular pneumatic circuit building blocks
- Proximity sensors (inductive and capacitive)
- Industrial compressed air systems (0–10 bar typical)
Replaces / Drop-In Replacement For
The ADVUL-50-25-P-A replaces previous generations of compact Festo cylinders in the ADVUL series when 50mm stroke with 25mm bore is required. Verify mounting footprint and valve interface compatibility with your system integrator before ordering to ensure drop-in compatibility.
Works With
- Festo DGCI, YFDA, and MS solenoid valve systems
- PROFIBUS-DA and CANopen fieldbus modules
- Analog and digital position feedback sensors
- PLC and motion control systems via standard pneumatic logic
