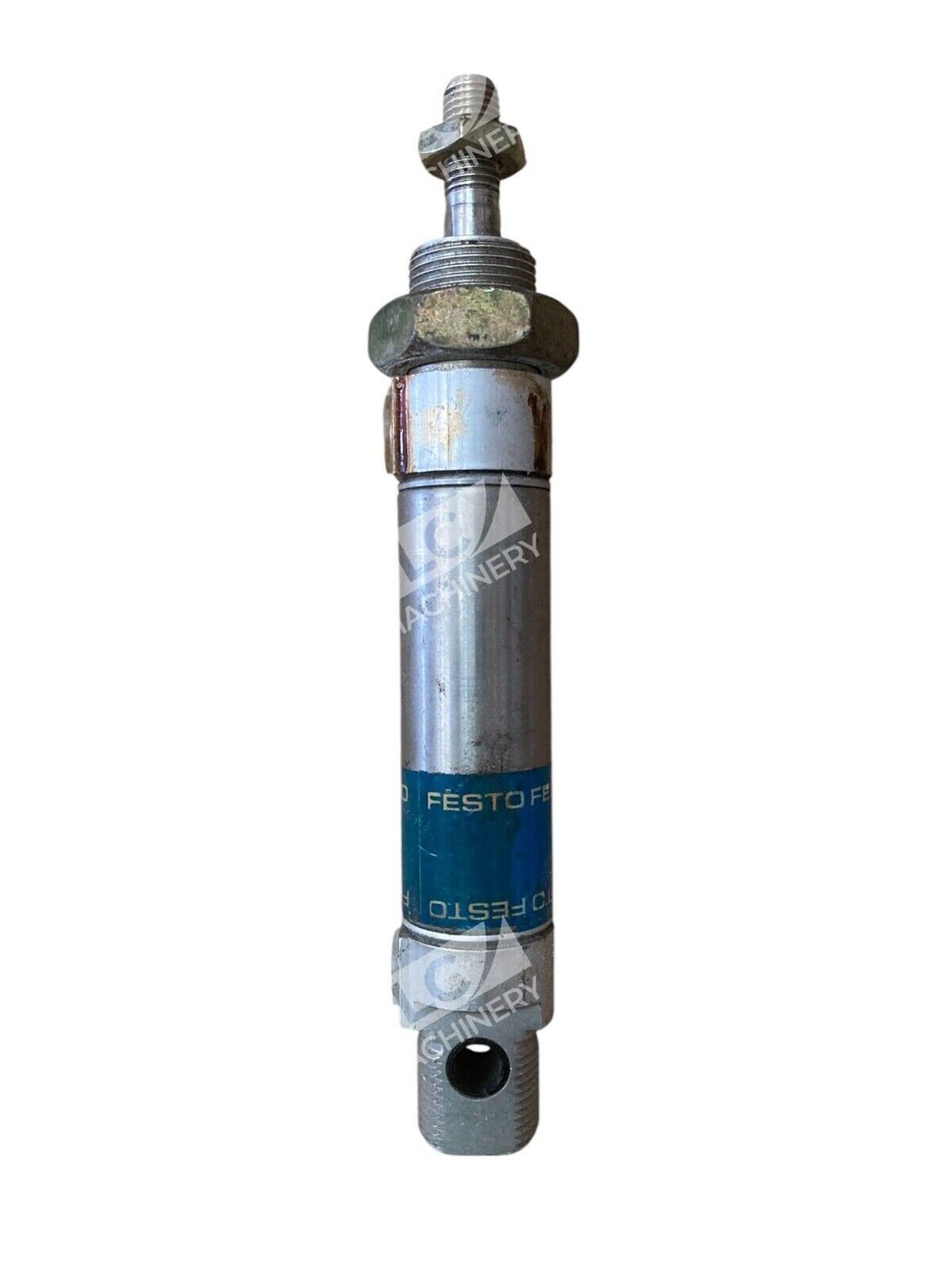

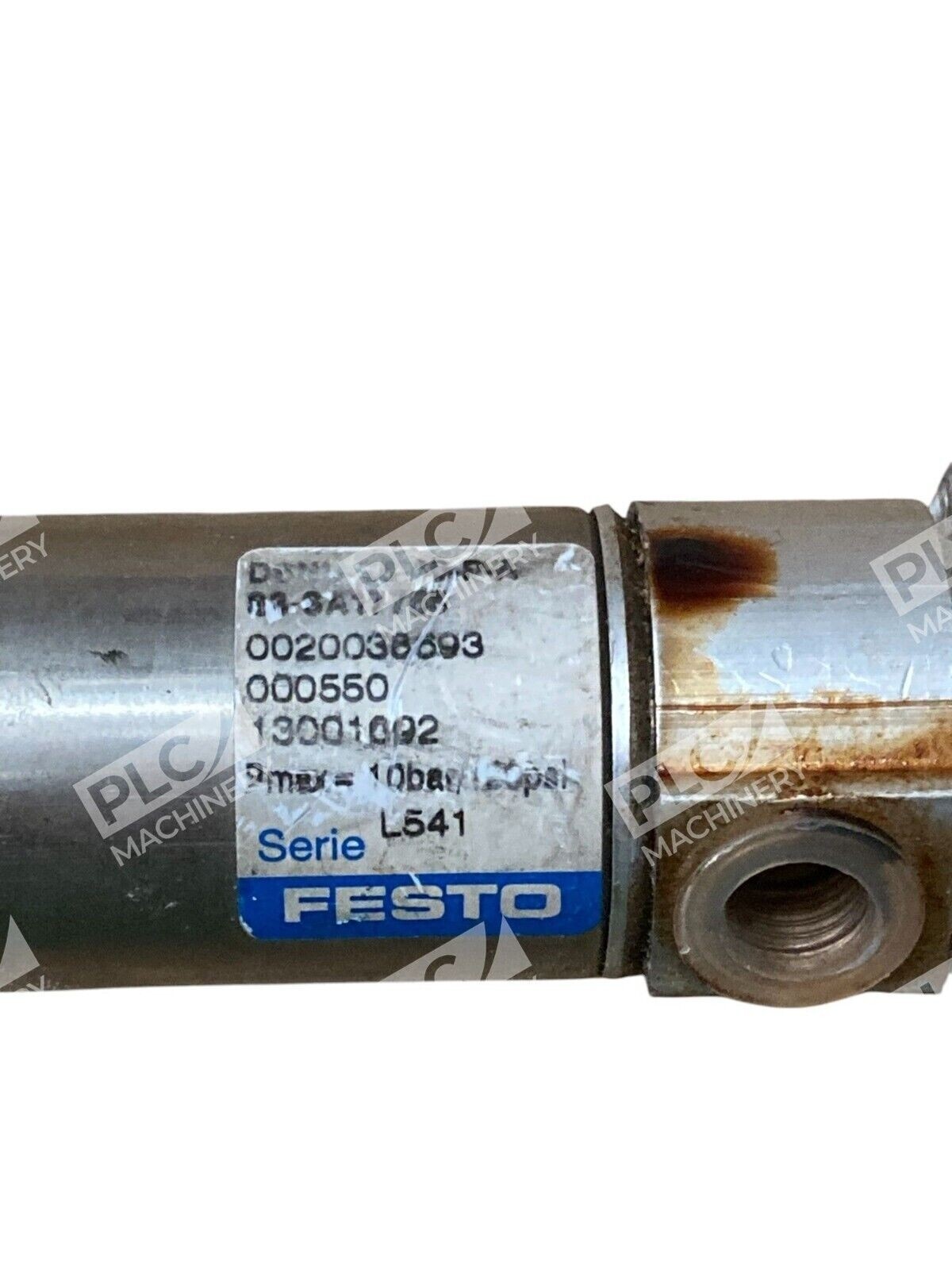

The Festo DSNU-25-80-P-A pneumatic cylinder is a compact, industry-standard ISO 6432–compliant double-acting pneumatic linear actuator designed for consistent motion control across manufacturing automation, assembly machinery, and material handling systems. Built to exacting standards with durable materials and precise engineering, this unit delivers reliable, repeatable performance in demanding industrial environments.
Overview
The DSNU-25-80-P-A is part of Festo’s established DSNU series of pneumatic cylinders. This Festo DSNU-25-80-P-A model features a 25mm bore, 80mm stroke, and operates across a 1–10 bar (0.1–1 MPa) pressure range, making it suitable for light to medium-duty applications. The round-body design with elastic cushioning on both the piston rod and cylinder barrel minimizes impact shock and extends component life. Male-threaded rod end (M10×1.25) provides secure mechanical attachment options for linkages, load cells, or custom fixtures.
Key Features
- ISO 6432 certification — global interchangeability and performance standards
- Double-acting design — extends and retracts under controlled pneumatic pressure
- Elastic cushioning — integrated cushioning rings on piston rod and cylinder barrel reduce impact and vibration
- M10×1.25 male-threaded rod end — drop-in mechanical interface for mounting rods, linkages, or external fixtures
- G1/8 pneumatic connection — standard metric threaded port for quick-connect or push-in tubing
- Stainless steel and aluminum construction — corrosion-resistant barrel and high-strength structural integrity
Technical Specifications
- Bore diameter: 25 mm
- Stroke length: 80 mm
- Operating pressure range: 0.1–1 MPa (1–10 bar)
- Piston rod thread: M10×1.25 male thread
- Pneumatic port: G1/8 (1/8″ BSPP threaded connection)
- Cushioning type: Elastic cushioning (adjustable on piston rod and cylinder barrel)
- Mounting position: Any — flexible orientation
- Ambient operating temperature: −20°C to +80°C
- Cylinder barrel material: High-alloy stainless steel
- Piston rod material: Hard-anodized wrought aluminum alloy
- Static seal material: Nitrile rubber (NBR) / thermoplastic polyurethane (TPE-U)
- Mode of operation: Double-acting
- Compliance: CETOP RP 52 P, ISO 6432, RoHS
- Weight: Approximately 325 g (0.72 lbs)
- Manufacturer part number: 19222
Typical Applications
The DSNU-25-80-P-A is widely used in:
- Pick-and-place automation and material transfer
- Pneumatic press fixtures and clamping assemblies
- Machine tool indexing and workpiece positioning
- Assembly line motion control and actuator linkages
- Proximity-sensing cylinder installations (magnetized piston option)
- Food processing, packaging, and light industrial machinery
Compatibility & Replacements
Compatible With
- Festo pneumatic control valves and directional controls (4/2, 5/3 solenoid and manual valve configurations)
- Standard ISO pneumatic circuit designs and manifold systems
- Industrial PLC systems with 24 VDC solenoid valve logic
- Proximity switch mounting systems for cylinder position feedback
- Compressed air supply systems rated 1–10 bar (ISO 8573-1:2010 [7:4:4] minimum)
Replaces / Drop-In Replacement For
- DSN-25-80-P — earlier generation variant (DSNU is the updated series)
- Other ISO 6432–compliant 25×80 double-acting cylinders with M10×1.25 rod thread and G1/8 ports
Works With
- Festo DGCI, DGCE, and NADI solenoid directional control valves
- Manual handle, pneumatic, or electrical control interfaces
- Magnetized piston sensors and proximity switches for position detection
- Lubricated or non-lubricated compressed air supply systems
- Standard metric tubing and push-in connector systems (6×1 mm and larger)
