Overview

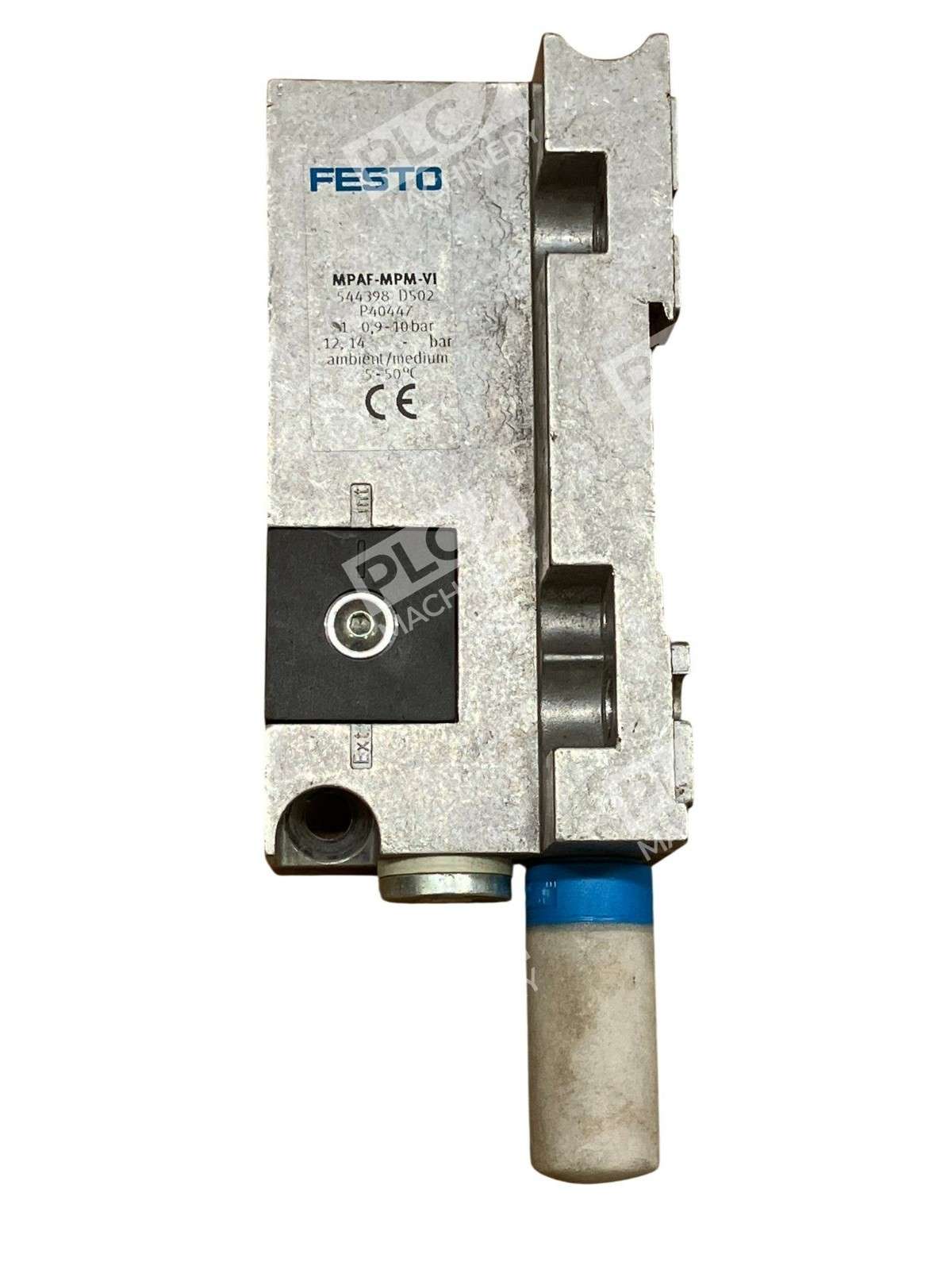

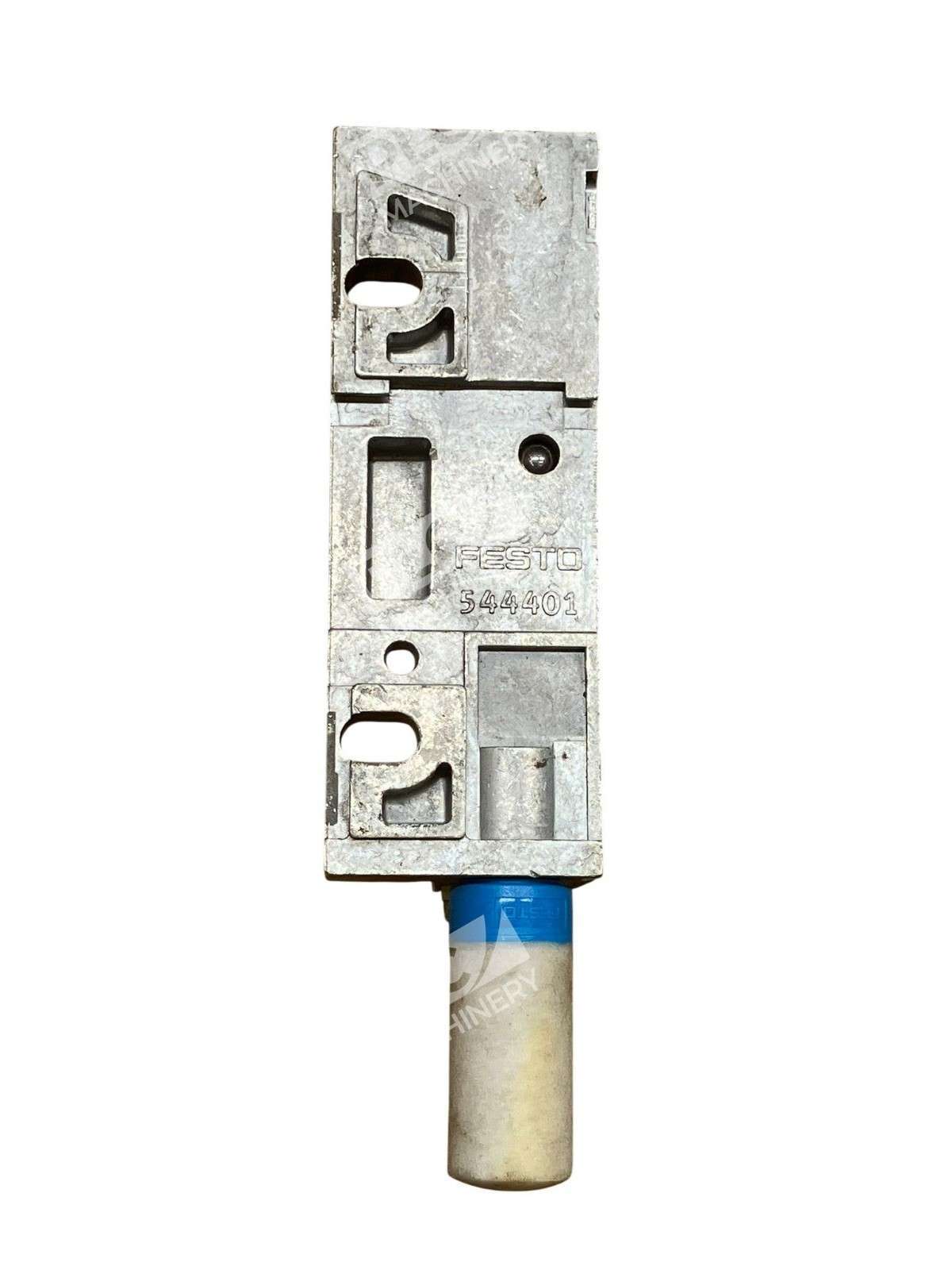

The Festo MPA-MPM-VI valve manifold is a multi-pin pneumatic manifold designed for flexible control of fluid flow in industrial automation applications. With a working pressure range of 0.9–10 bar, this manifold provides adaptable performance across light to medium-duty pneumatic systems. The MPA-MPM-VI combines modular construction with compact integration, making it suitable for machine automation, process control, and general pneumatic circuit applications where space and performance are critical.
Key Features
- Operating pressure range: 0.9–10 bar
- Multi-pin manifold platform for flexible valve integration
- Compact, modular design suitable for integrated control systems
- Durable pneumatic construction for industrial environments
- Direct-mount valve interface for simplified installation
- Compatible with standard Festo solenoid valve cartridges
Technical Specifications

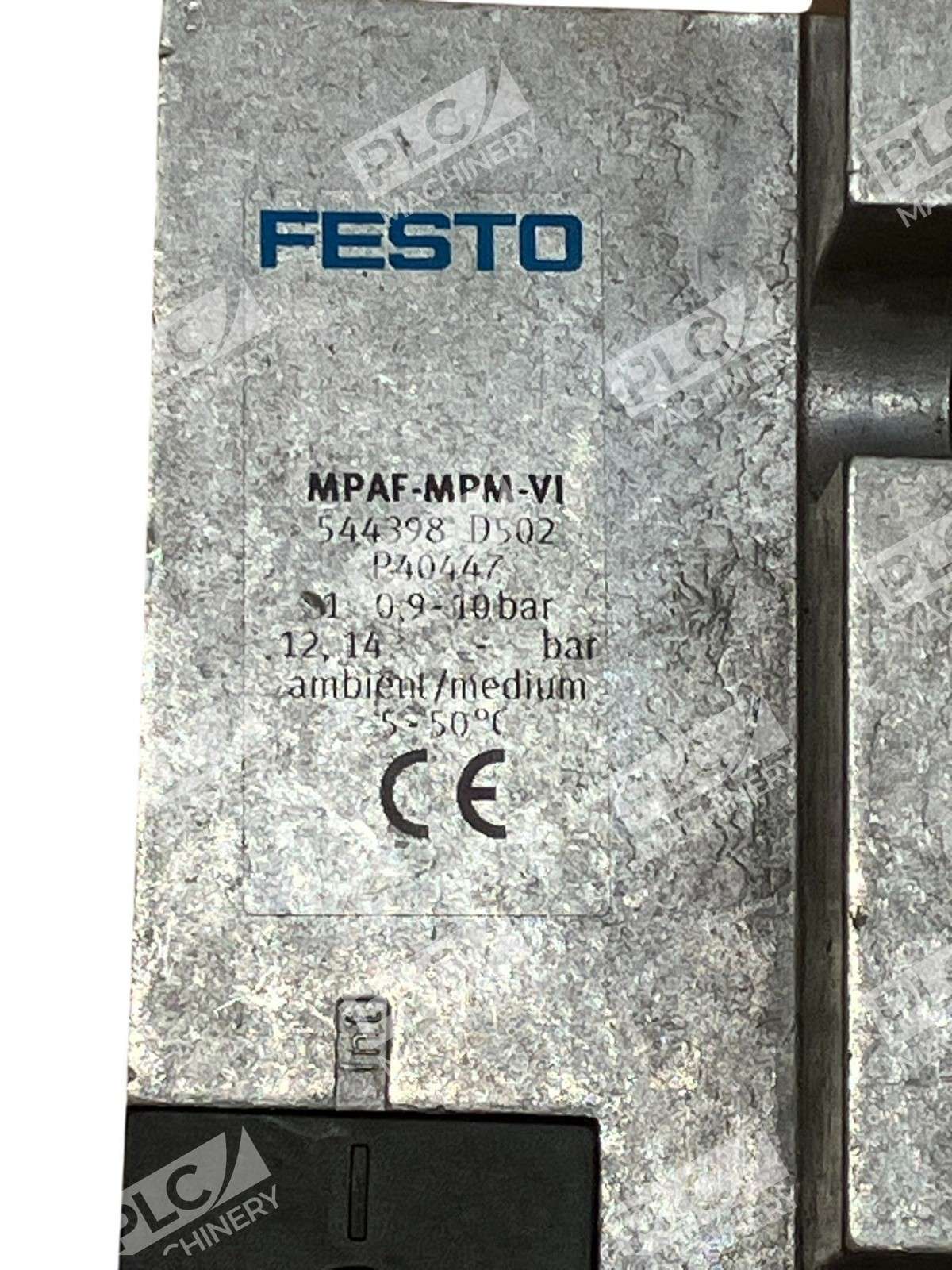

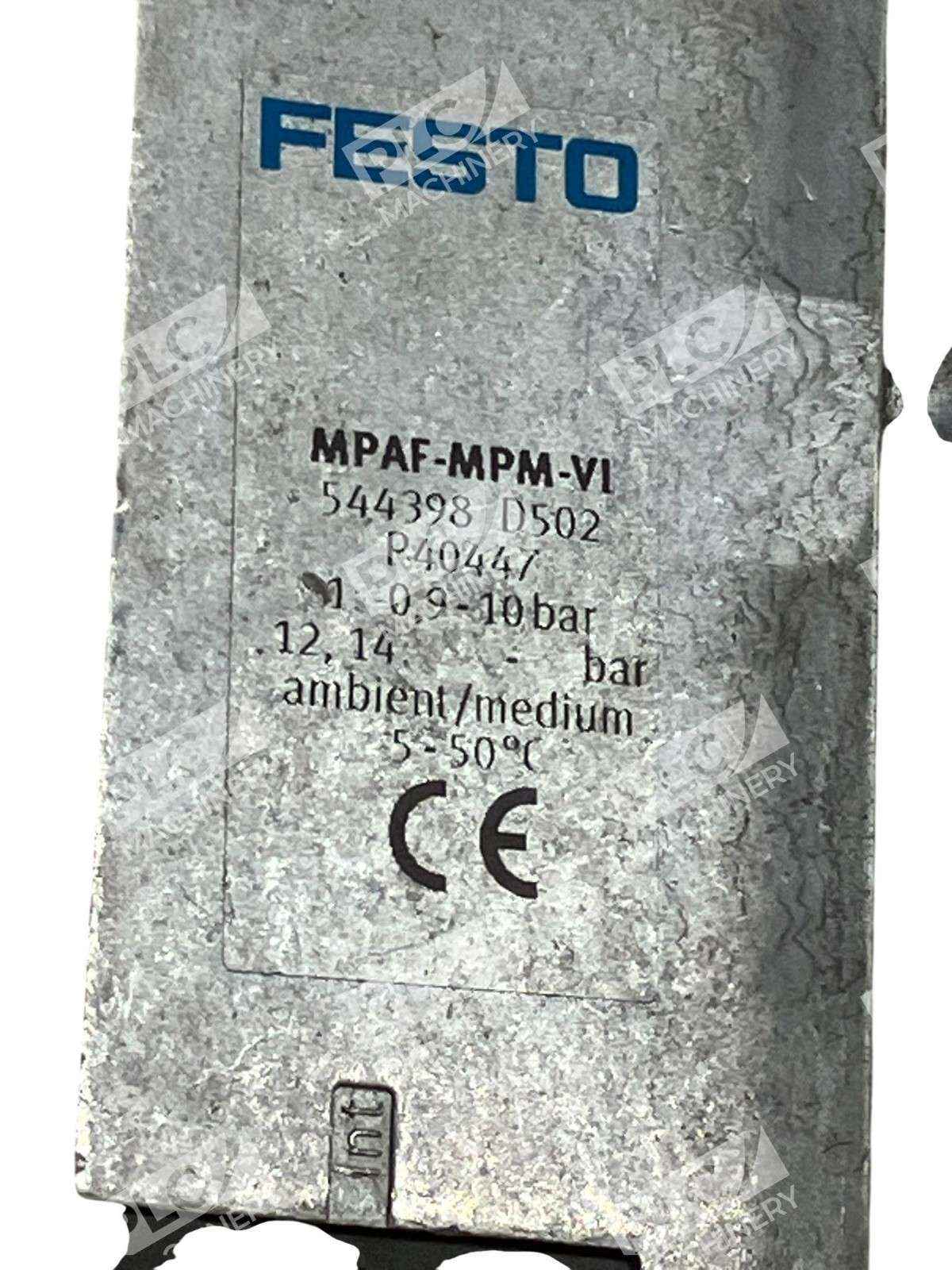

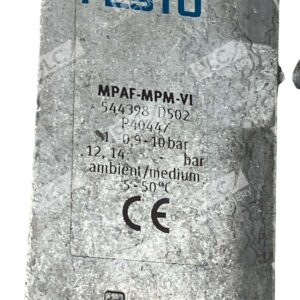

- Manufacturer: Festo AG

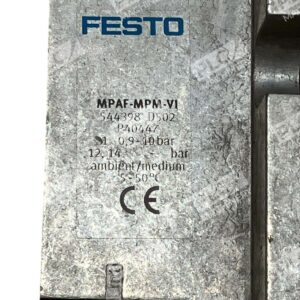

- Model: MPA-MPM-VI
- Part Numbers: 544398 / 539105 (variants)
- Operating Pressure: 0.9–10 bar
- Manifold Type: Multi-pin pneumatic manifold
- Connection Type: Multi-pin electrical interface
- Medium: Compressed air
- Valve Position: 32 valve positions (standard configuration)
- Temperature Range: Ambient temperature dependent (verify with documentation)
Typical Applications
- Industrial machine automation and control systems
- Pneumatic valve actuation and switching
- Process automation with multiple solenoid valve circuits
- Compact integrated pneumatic control panels
- Light to medium-duty fluid distribution networks
Compatibility & Replacements
Compatible With
- Festo solenoid valve cartridges and proportional valve systems
- Standard pneumatic systems with 0.9–10 bar operating range
- Multi-pin electrical control interfaces
- Industrial PLC and pneumatic automation platforms
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. The MPA-MPM-VI is a specialized manifold component; confirm part number and electrical interface compatibility with your existing equipment.
Works With
- Festo PROFINET, CANopen, and proprietary pneumatic valve control networks
- Standard 24 VDC solenoid valve control circuits
- Pneumatic system design tools and Festo configuration software
- Industrial automation control systems and PLC platforms
