Overview

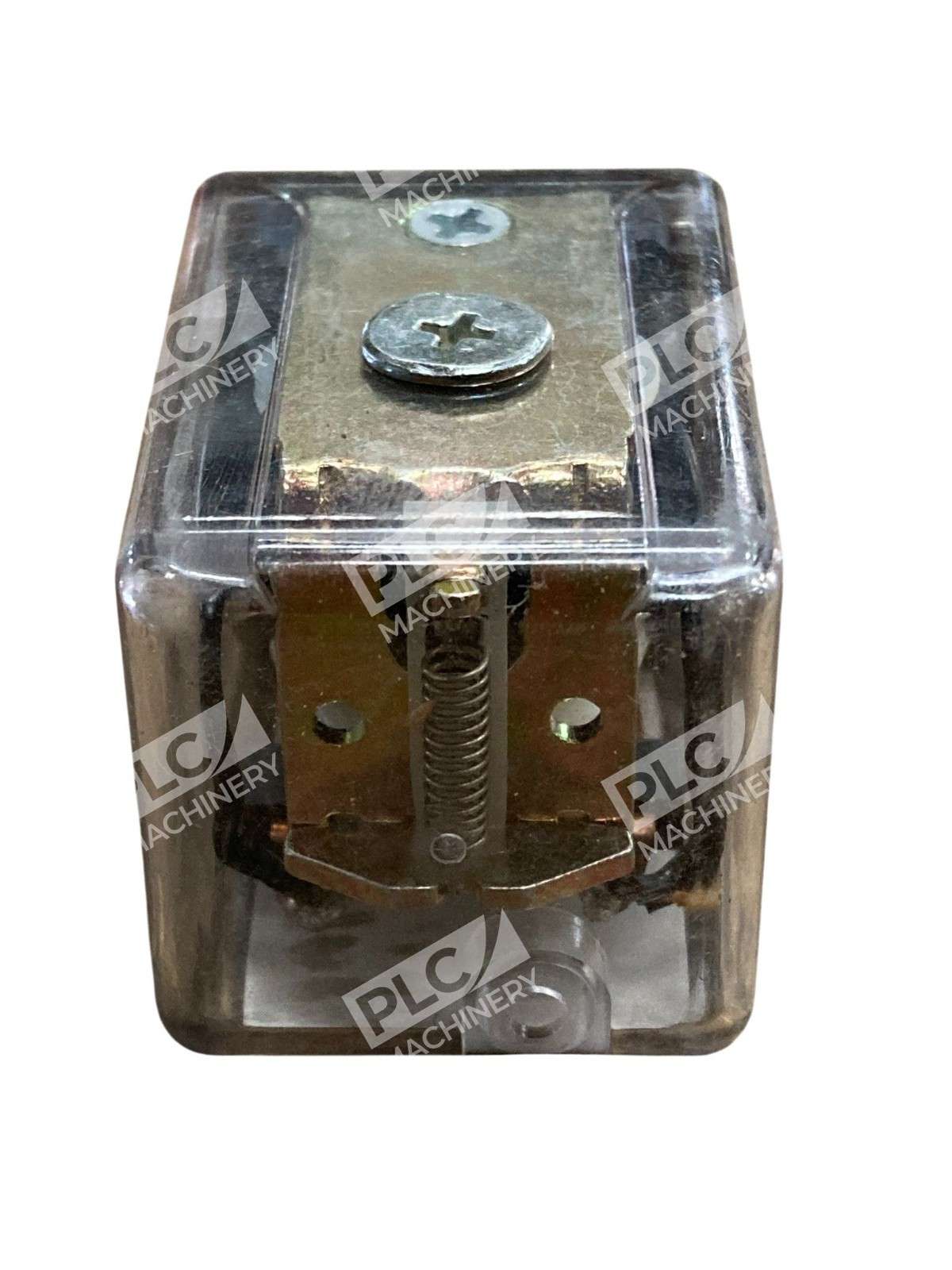

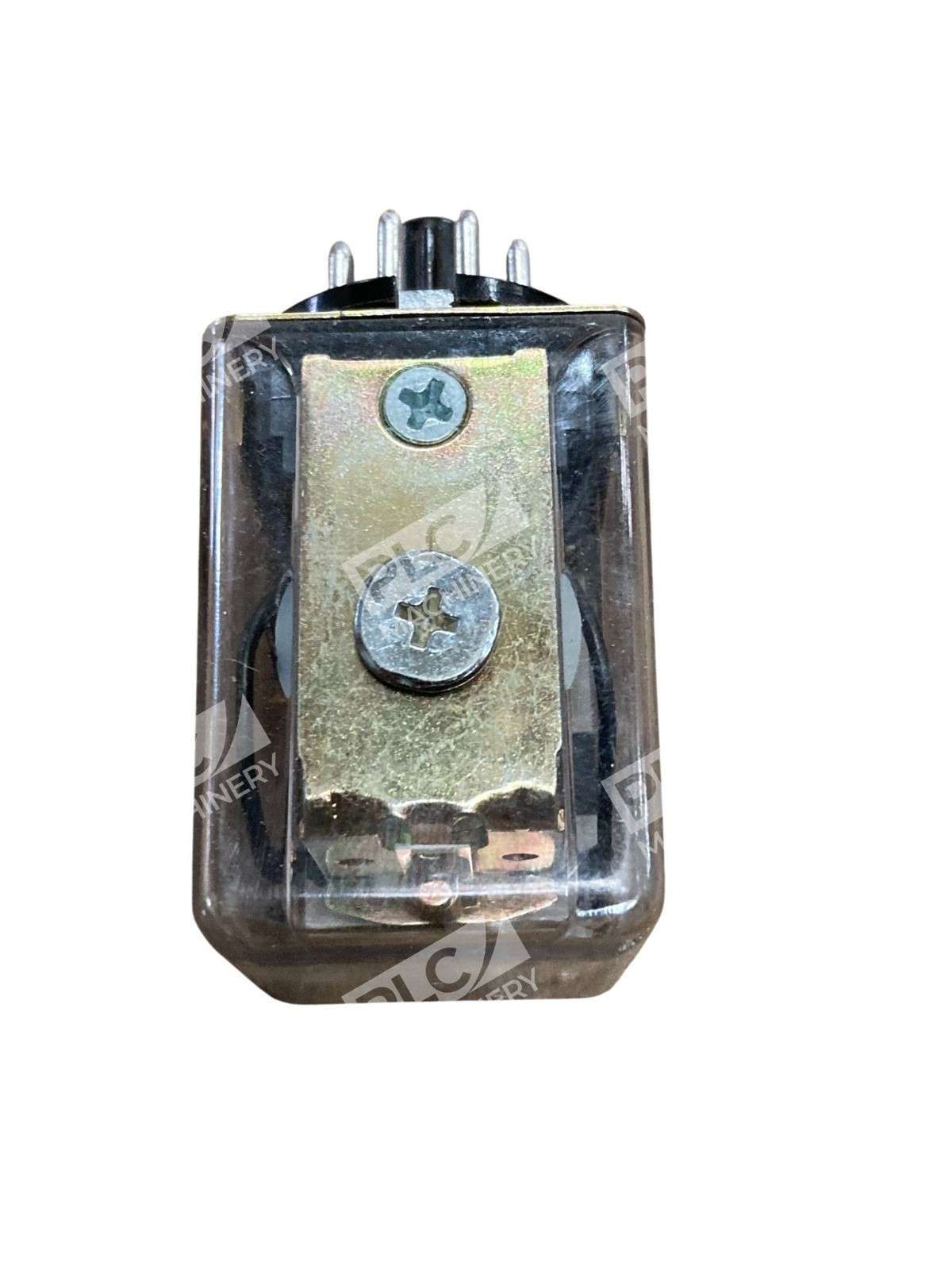

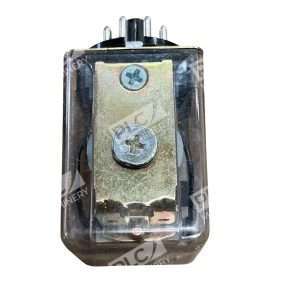

The Eagle Signal Controls 22Q2CA120 is a general-purpose DPDT (Double Pole, Double Throw) relay designed for industrial and commercial control applications. With a 120VAC coil and 10-amp contact rating at 250VAC, this relay provides dependable two-pole switching in a compact 8-pin octal plug-in package. The 22 Series construction ensures consistent performance across 50/60 Hz power systems, making it a trusted choice for control circuits, pilot-duty applications, and switching loads in equipment and panel installations.
Key Features
- DPDT Configuration: Two poles with changeover contacts for flexible switching logic
- 10 Amp Rating: Handles switching loads up to 10A at 250VAC or 28VDC
- 120VAC Coil: Direct 120VAC supply compatibility for standard AC-powered systems

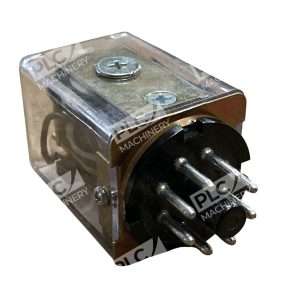

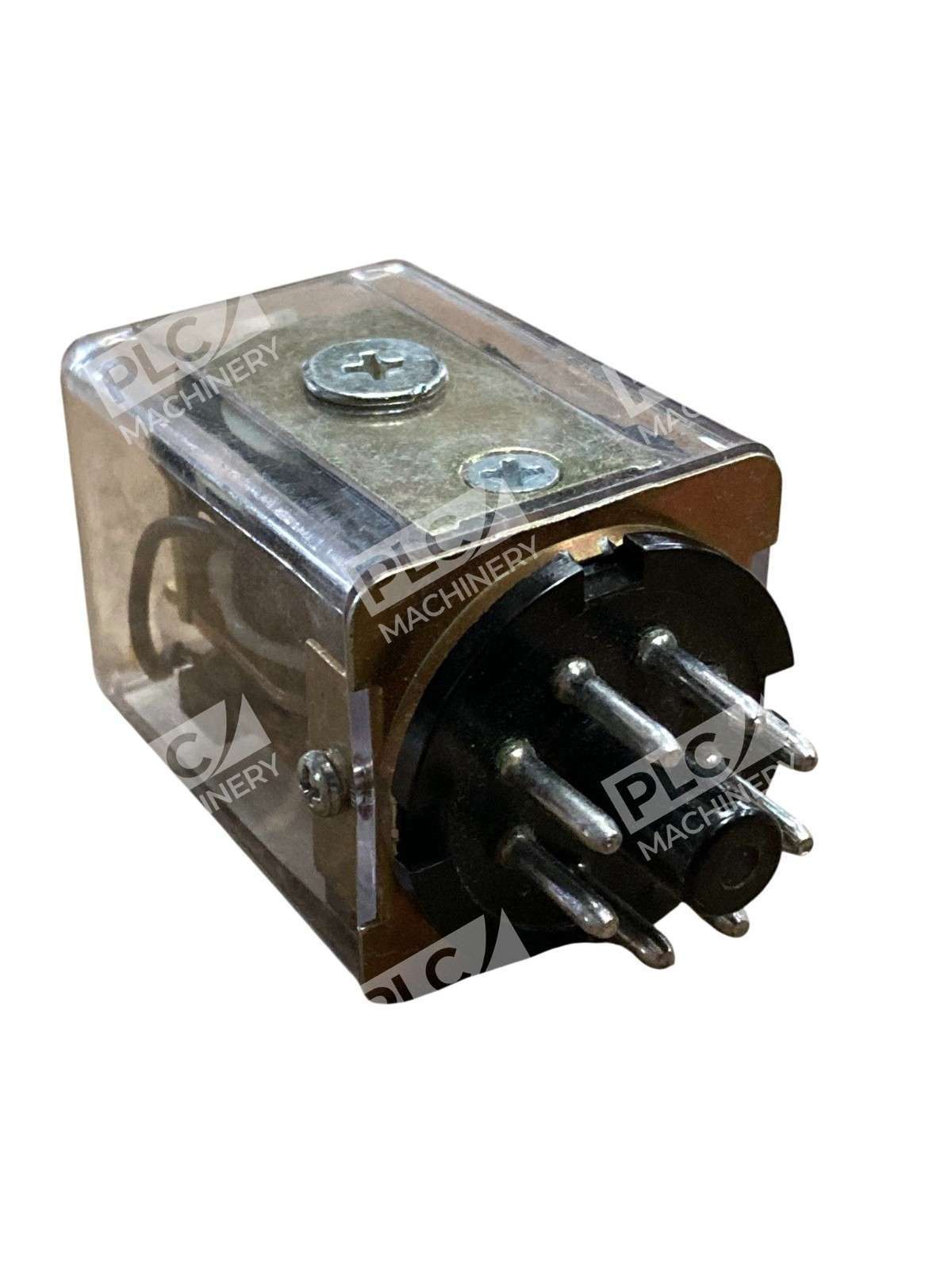

- 8-Pin Octal Base: Standard plug-in socket mount for easy installation and replacement
- 50/60 Hz Operation: Universal frequency compatibility for global industrial use
- Polycarbonate Dust Cover: Available options feature low moisture absorption and high impact strength
Technical Specifications

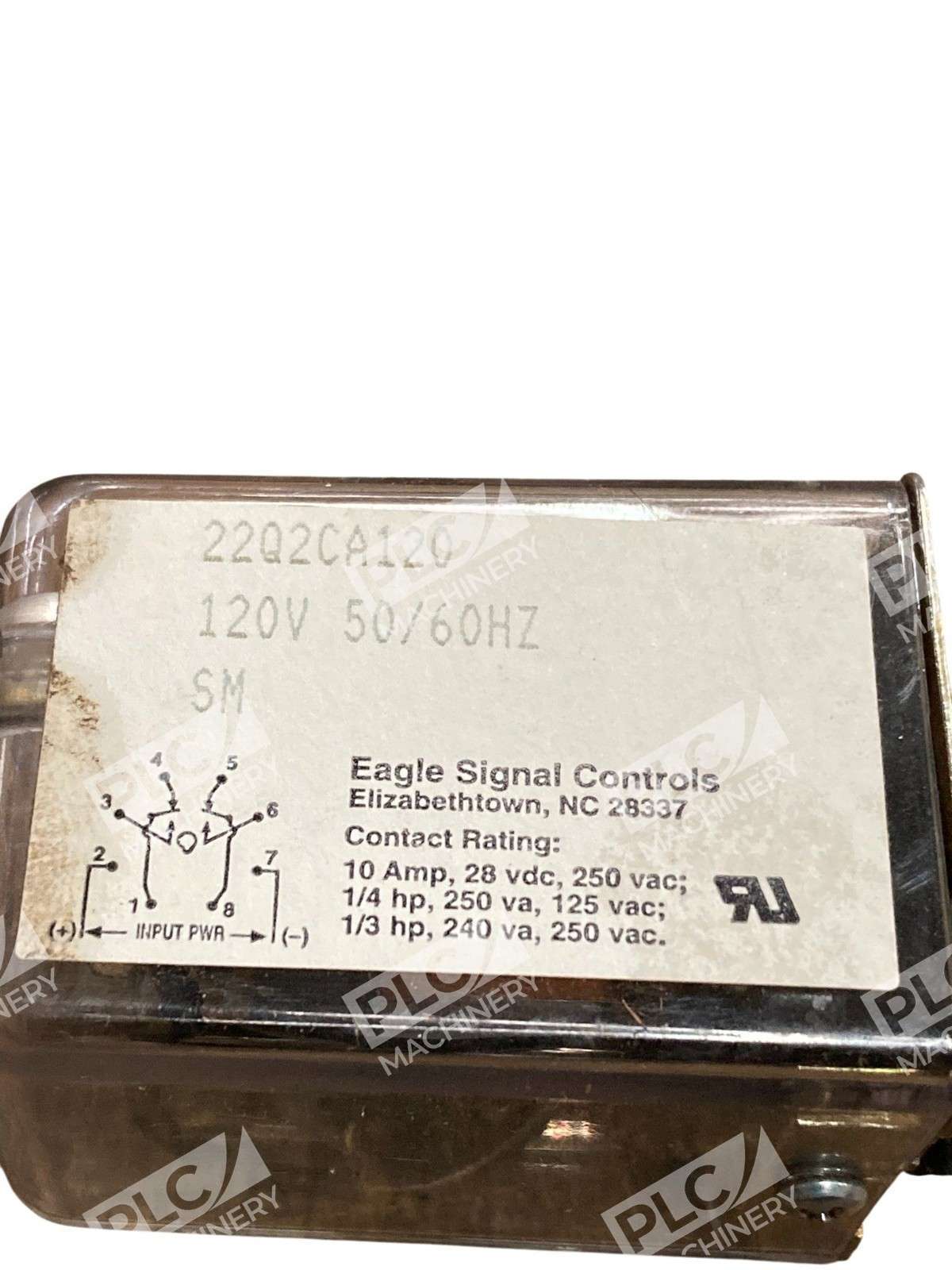

Contact ratings: 10A @ 250VAC, 1/4 HP @ 250VAC, 1/3 HP @ 125VAC, 10A @ 28VDC, 250VA @ 250VAC. Coil voltage: 120VAC. Frequency: 50/60 Hz. Configuration: DPDT. Mounting: 8-pin octal plug-in base. Series: Eagle Signal 22. Manufacturer: Danaher Controls / Eagle Signal.
Typical Applications
- Industrial control panels and switchboards
- HVAC and motor control circuits
- Lighting and load switching
- Pilot-duty and general-purpose automation
- Machinery startup and shutdown sequences
- Equipment interlocking and safety circuits
Compatibility & Replacements
Compatible With
- Standard 8-pin octal relay sockets
- Industrial control panel layouts and DIN rail systems
- 120VAC power supplies and single-phase AC circuits
- Pilot-duty switching and general automation equipment
Replaces / Drop-In Replacement For
- IDEC RR2P series relays (RR2P-U-AC120, RR2P-UL-AC120, RR2P-ULC-AC120)
- Deltrol Controls 20108-84 relay
- Schneider Electric W88ACPX-4 relay
- Other equivalent 8-pin DPDT 120VAC pilot-duty relays
Works With
- Standard relay sockets and panel-mounted enclosures
- AC control circuits and logic systems
- General industrial automation and control platforms
- No specialized software or network interface required
