Overview

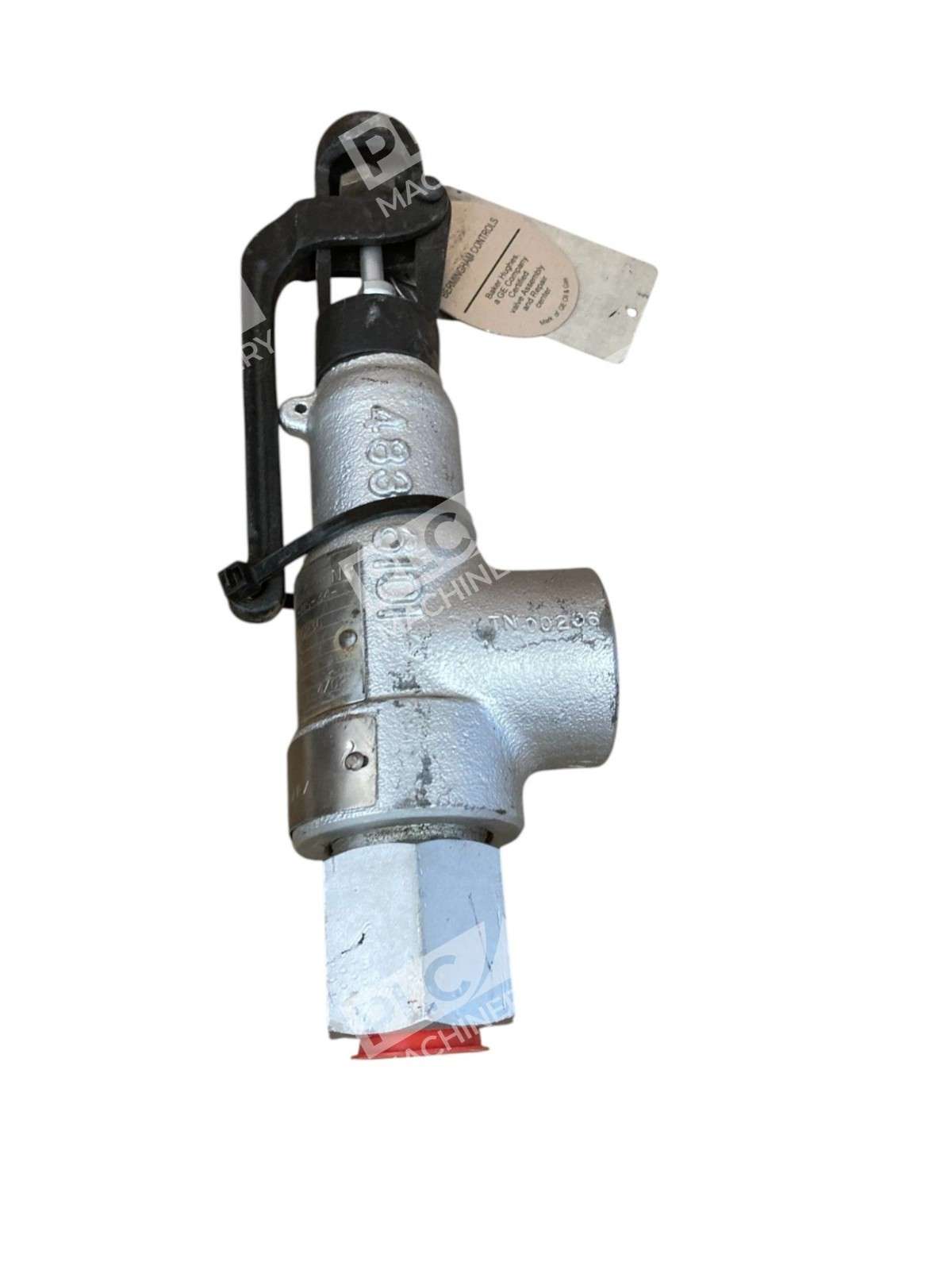

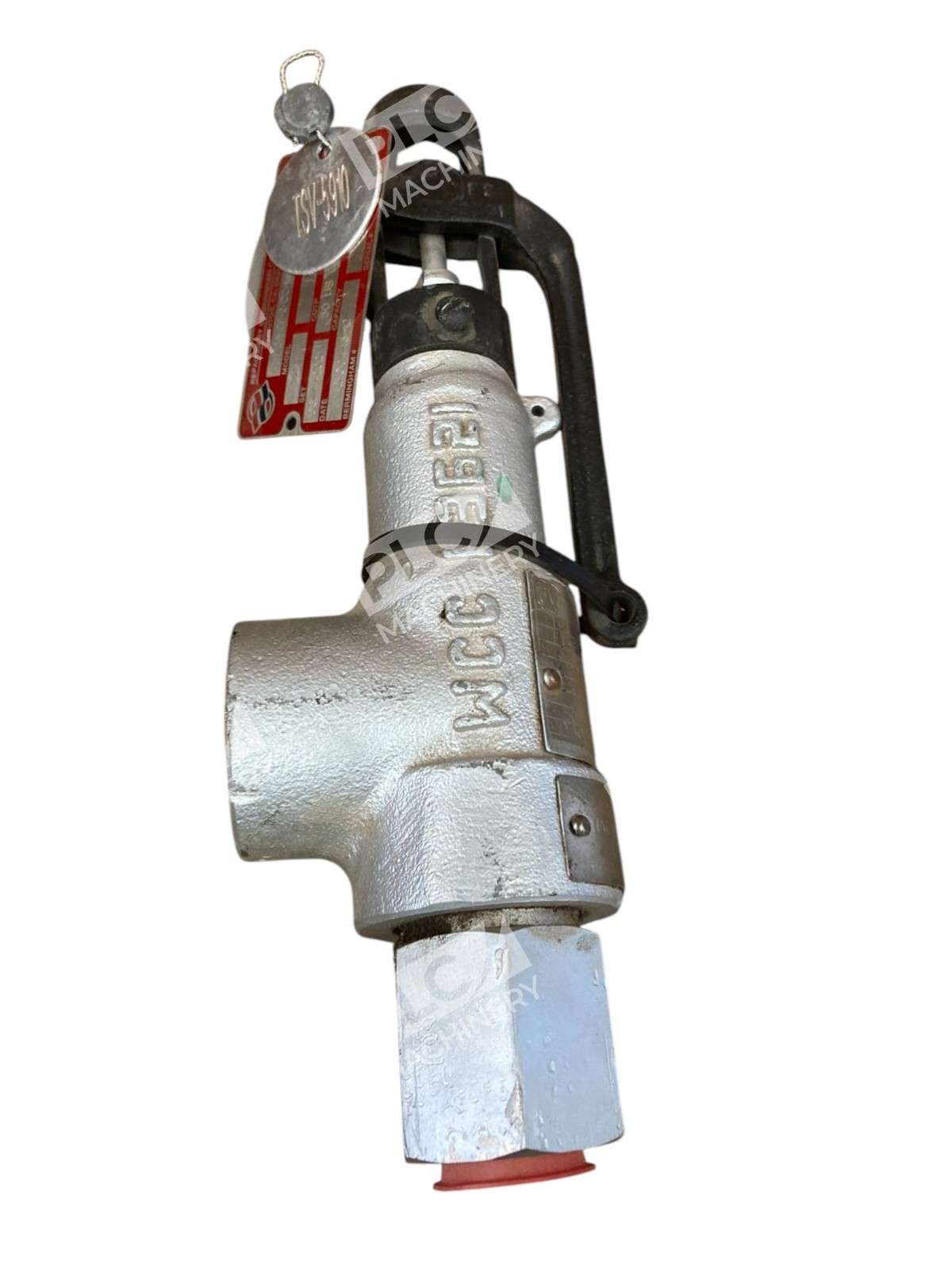

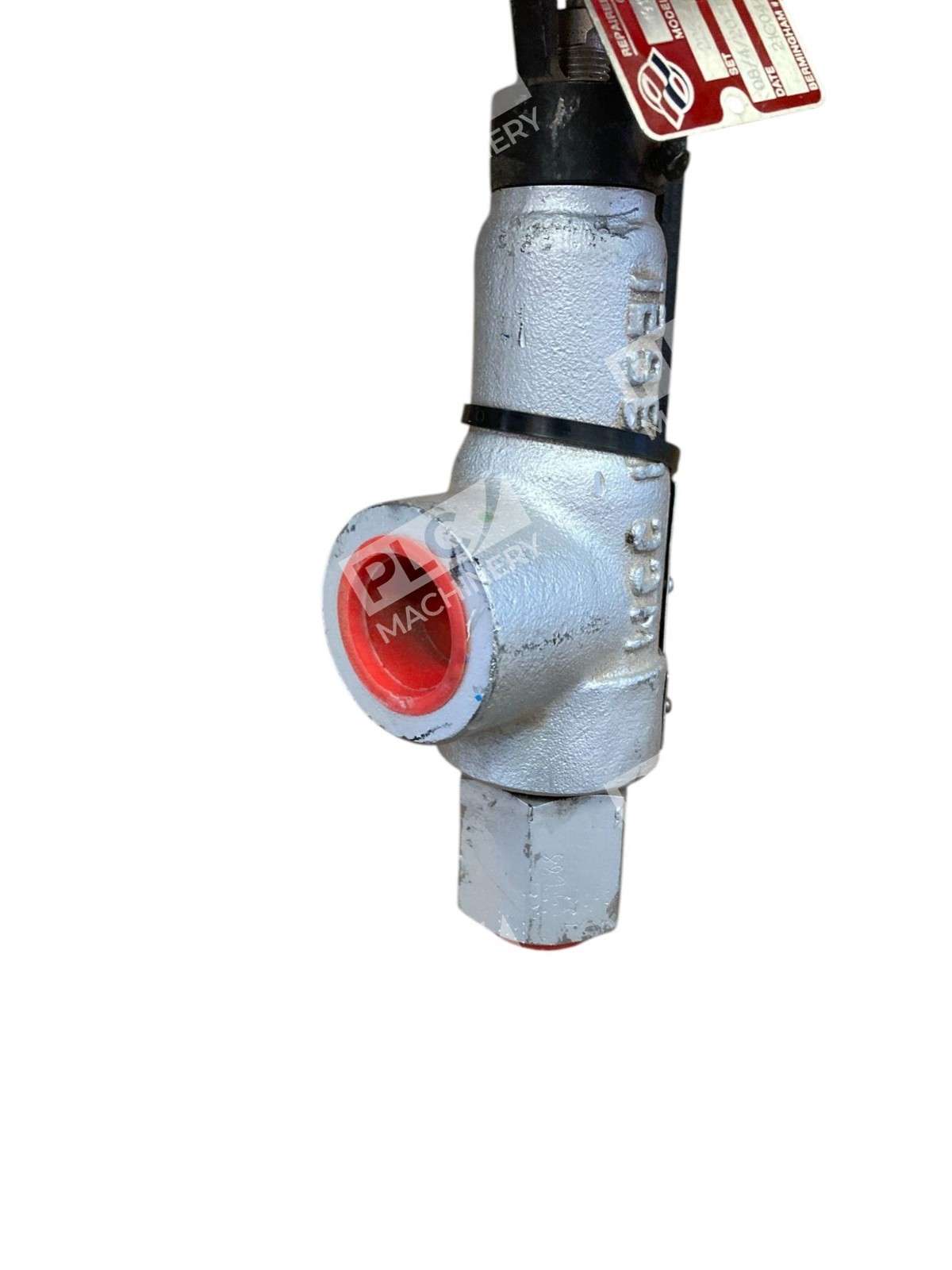

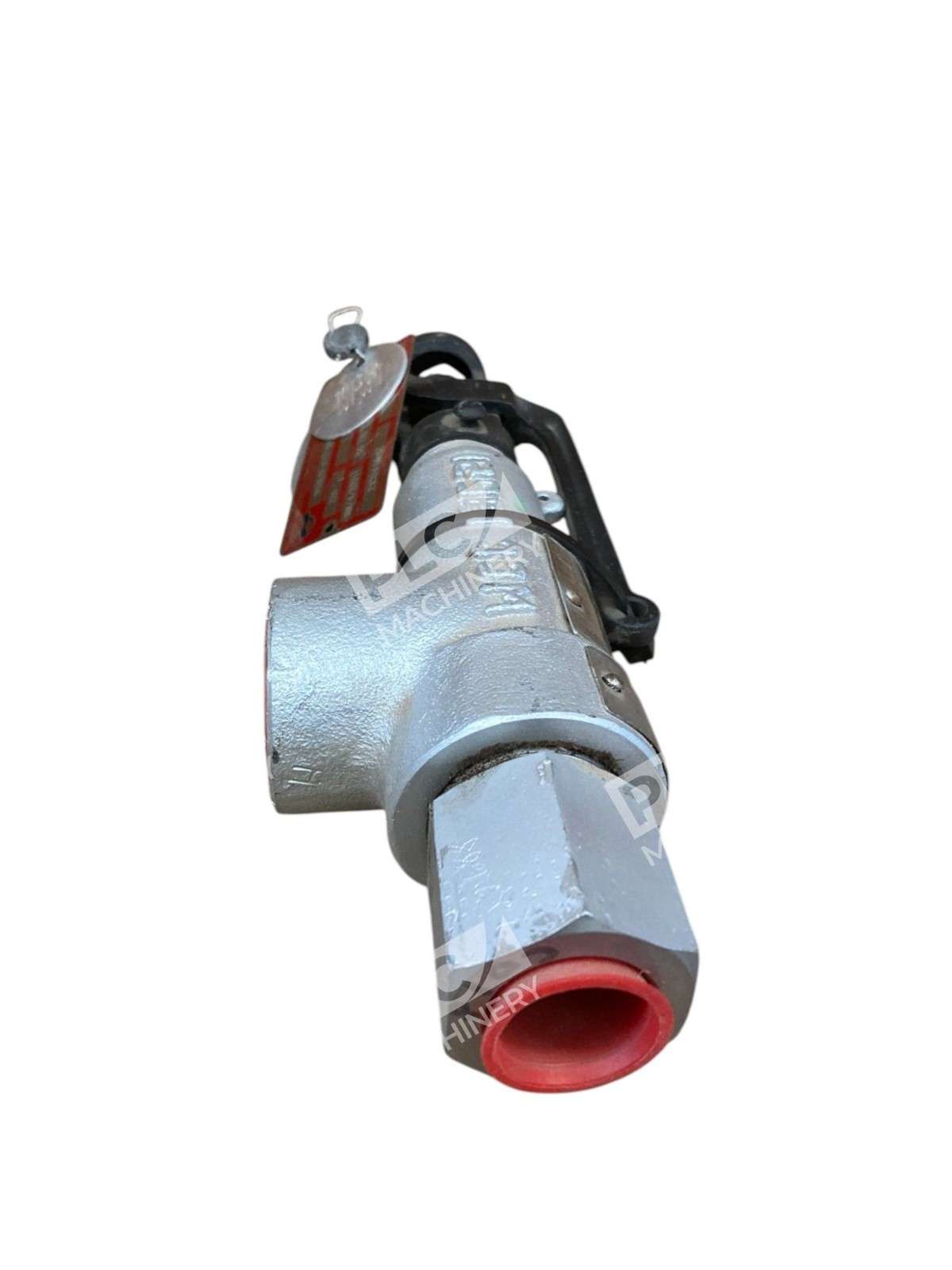

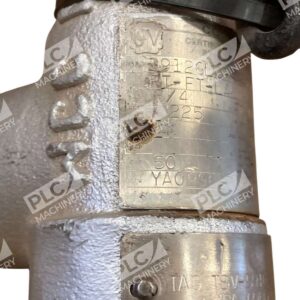

The Consolidated 19126LCF-2-CC-MS-34-FT-FT-LA safety relief valve is a precision-engineered component manufactured by Consolidated (part of the Dresser/Baker Hughes portfolio). This 3/4″ NPT port safety relief valve delivers reliable overpressure protection in hydraulic, pneumatic, and industrial fluid systems. Built to ISO standards and proven in demanding applications, the 19126LCF model maintains bubble-tight sealing and consistent blowdown performance across its operating range.
Key Features
- 3/4″ NPT (female) inlet and outlet ports for direct mounting on hydraulic manifolds and pressure vessels
- 150 PSI rated pressure setting with factory calibration verification available
- Direct-acting poppet design for fast response to overpressure conditions
- Compact footprint suitable for mobile and stationary equipment

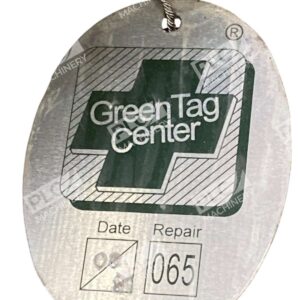

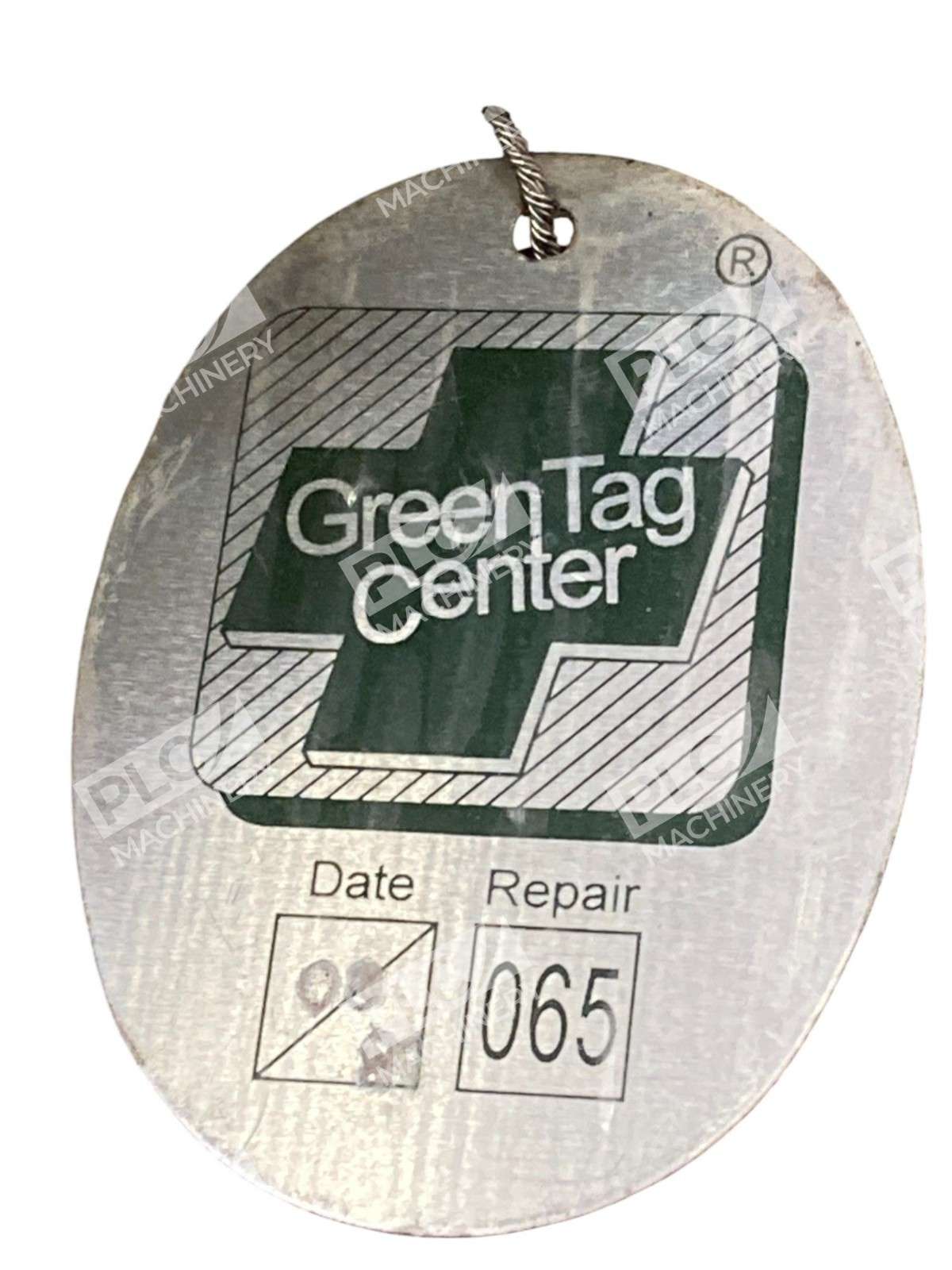

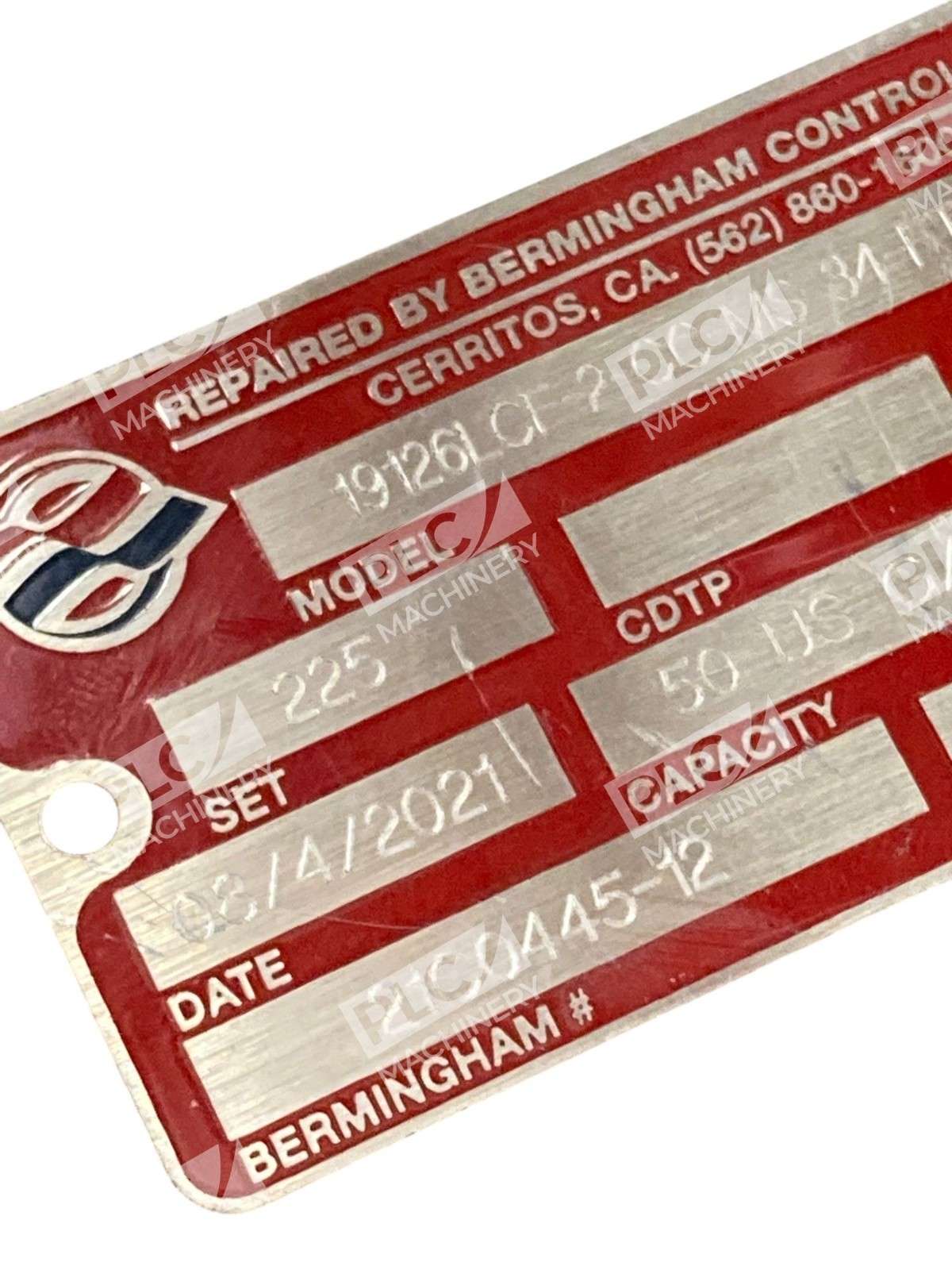

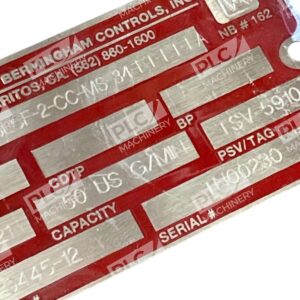

- Remanufactured condition: inspected, tested, and restored to functional specifications
- Industry-standard configuration code: LCF-2-CC-MS-34-FT-FT-LA per Consolidated naming convention
Technical Specifications
- Manufacturer: Consolidated/Dresser (Baker Hughes)

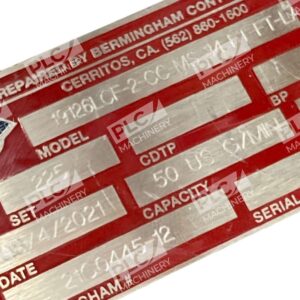

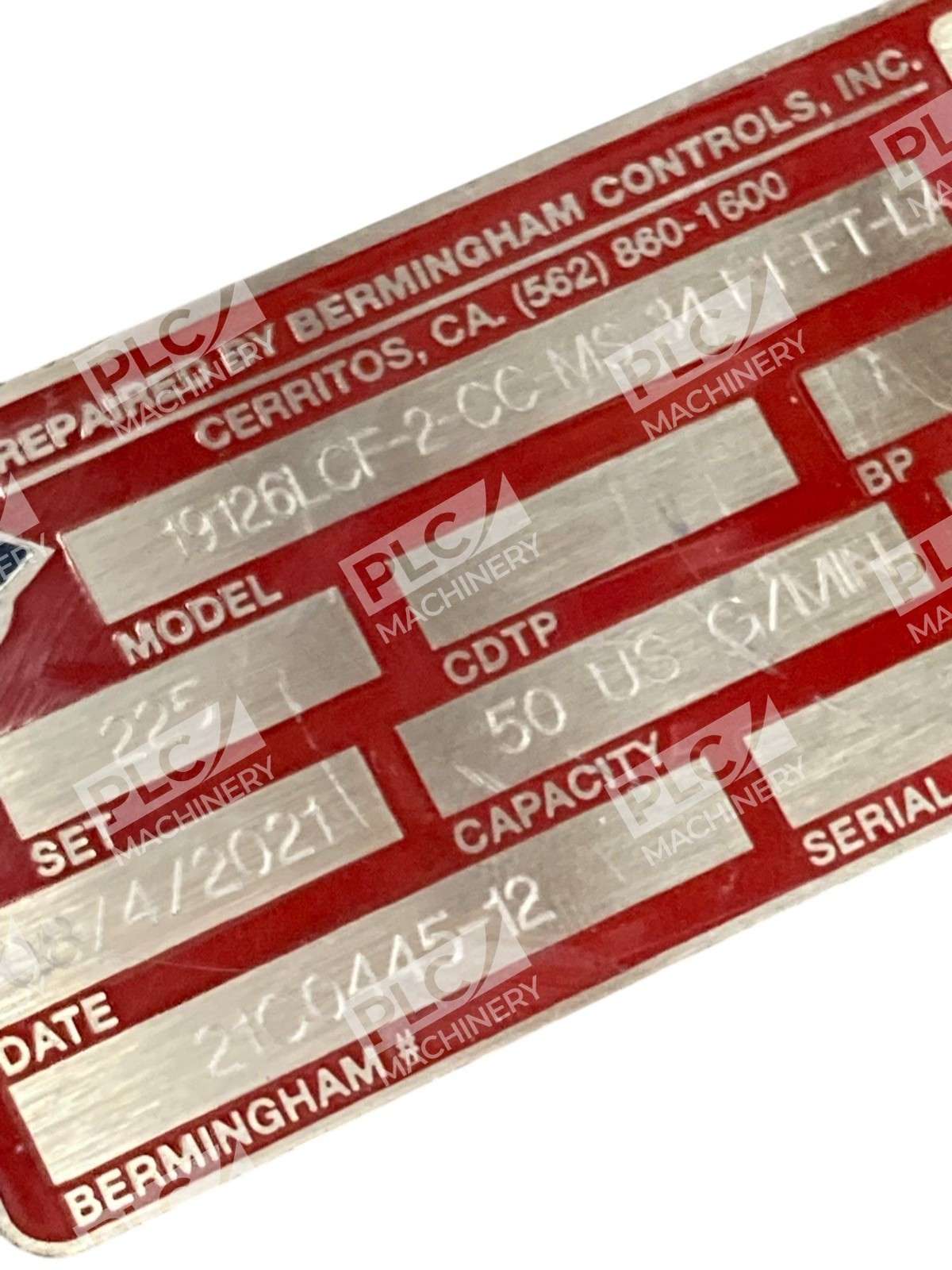

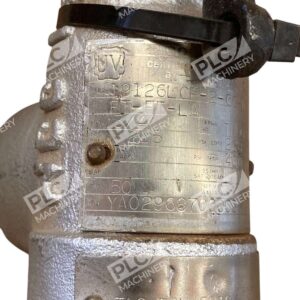

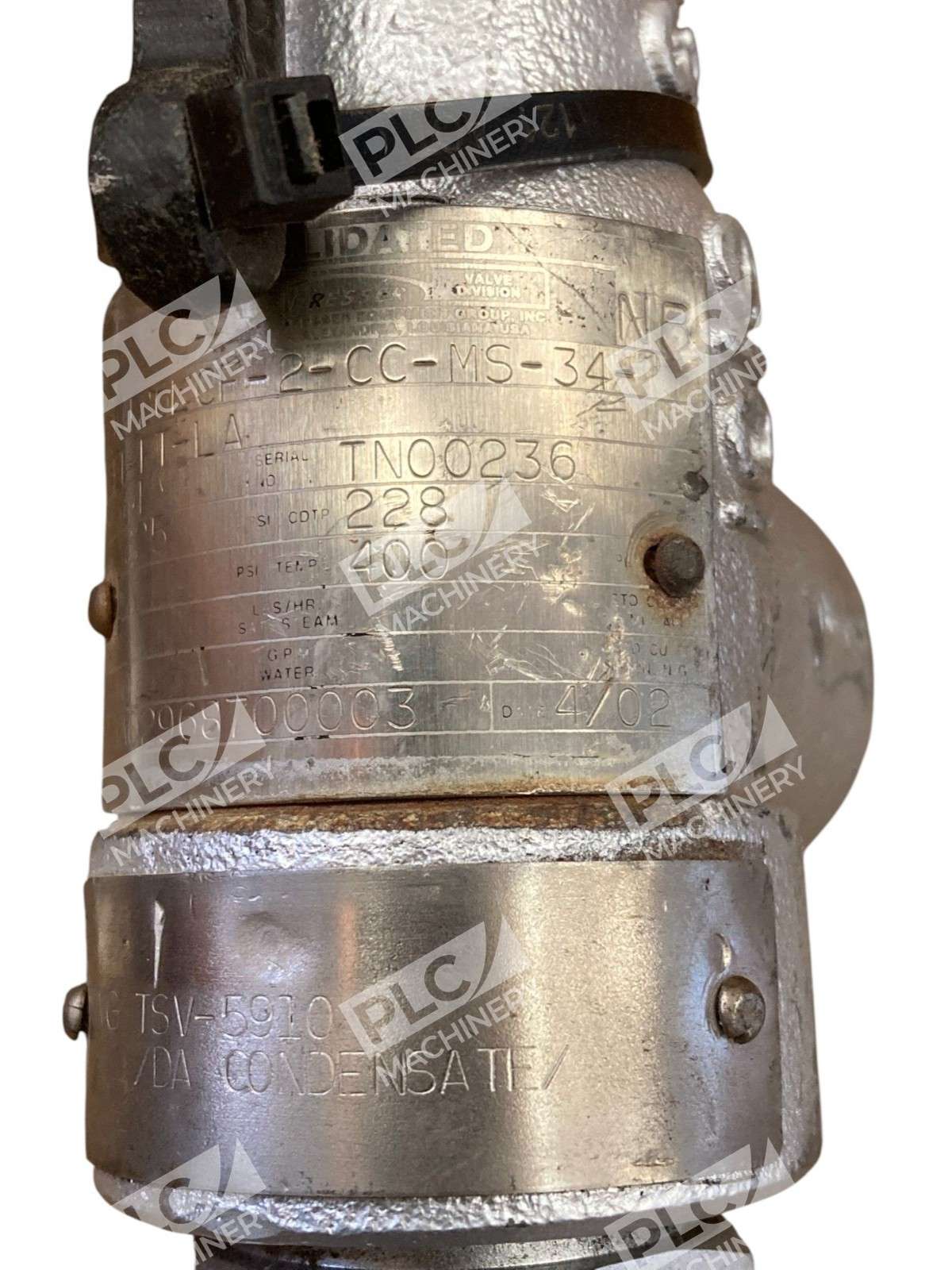

- Model Number: 19126LCF-2-CC-MS-34-FT-FT-LA
- Rated Pressure: 150 PSI
- Port Size: 3/4″ NPT
- Connection Type: Female NPT (FT-FT)
- Valve Type: Direct-acting safety relief
- Series: 19000 (Consolidated safety relief valve family)
- Body Material: Ductile iron (standard construction)
- Installation: Vertical mounting (±1° tolerance required)
- Cavity Type: MS (Manifold/sandwich cavity)
Typical Applications
- Hydraulic system overpressure protection on industrial machinery
- Pneumatic circuit relief on compressor discharge lines
- Mobile equipment (excavators, loaders, agricultural machinery)
- Pump protection in circulation and cooling systems
- Pressure vessel venting in manufacturing and process applications
Compatibility & Replacements
Compatible With
- Consolidated 19000 Series manifold cavity systems (sandwich/subplate mounting)
- Standard 3/4″ NPT ported hydraulic and pneumatic manifolds
- Dresser/Baker Hughes integrated relief systems
- ISO 4401-05 cavity dimensions
Replaces / Drop-In Replacement For
- Consolidated 19126 series relief valves with matching cavity codes (MS-34)
- Direct replacement for equivalent Consolidated Model 150 units with 3/4″ NPT ports
- Compatible with prior-generation Dresser safety relief cartridges (verify cavity specifications)
Works With
- Manifold-mounted sandwich cavity systems
- ISO 4401 standardized hydraulic power supplies
- Conventional pilot-operated pressure relief systems
- Integrated pressure measurement and monitoring systems
