Overview

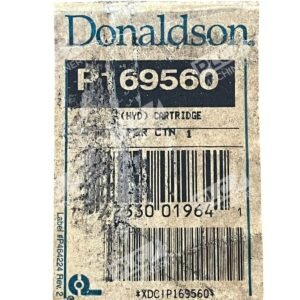

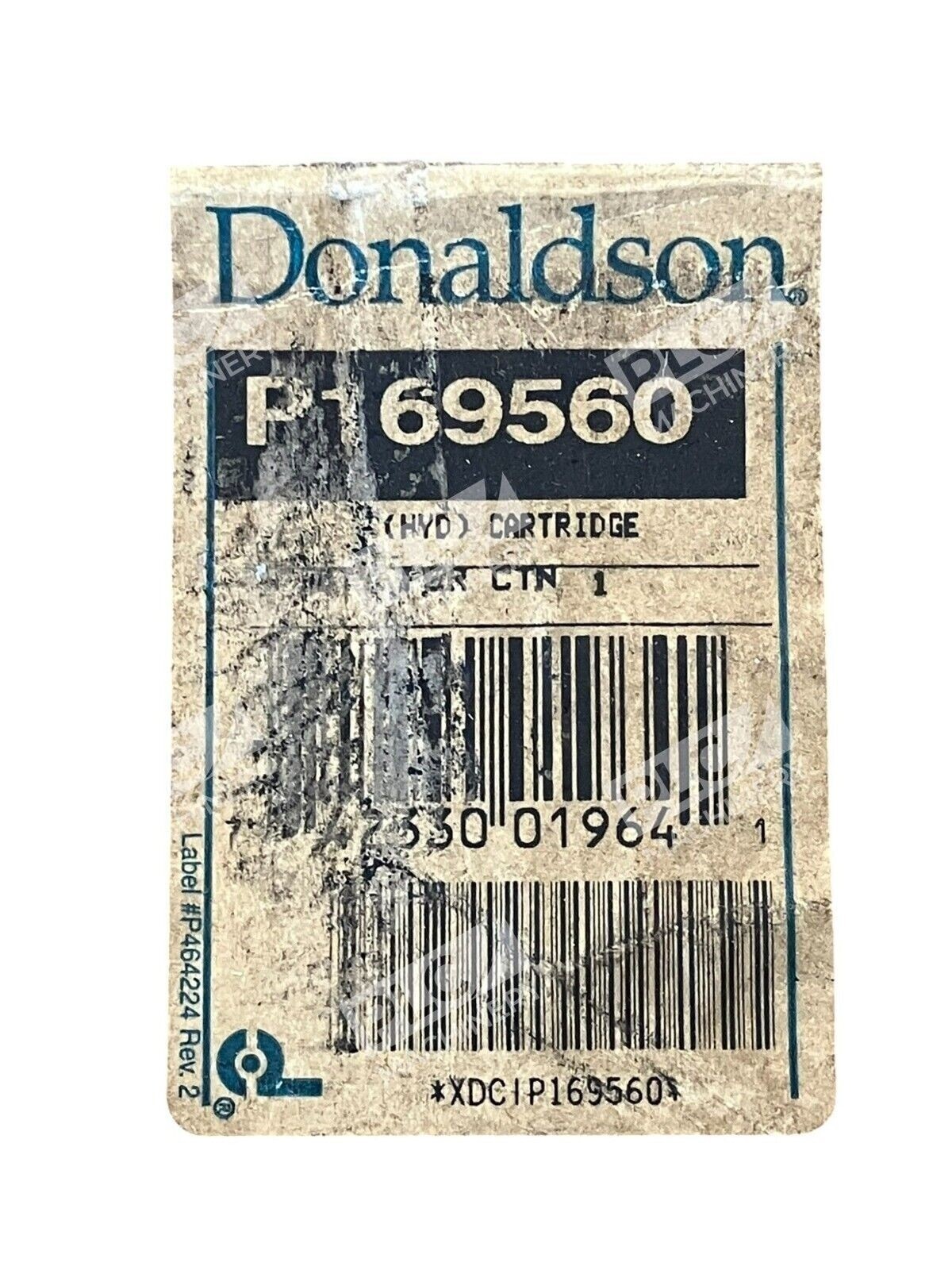

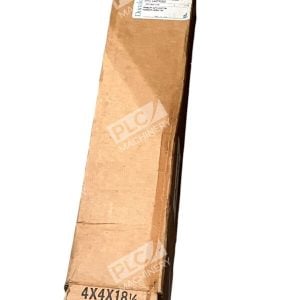

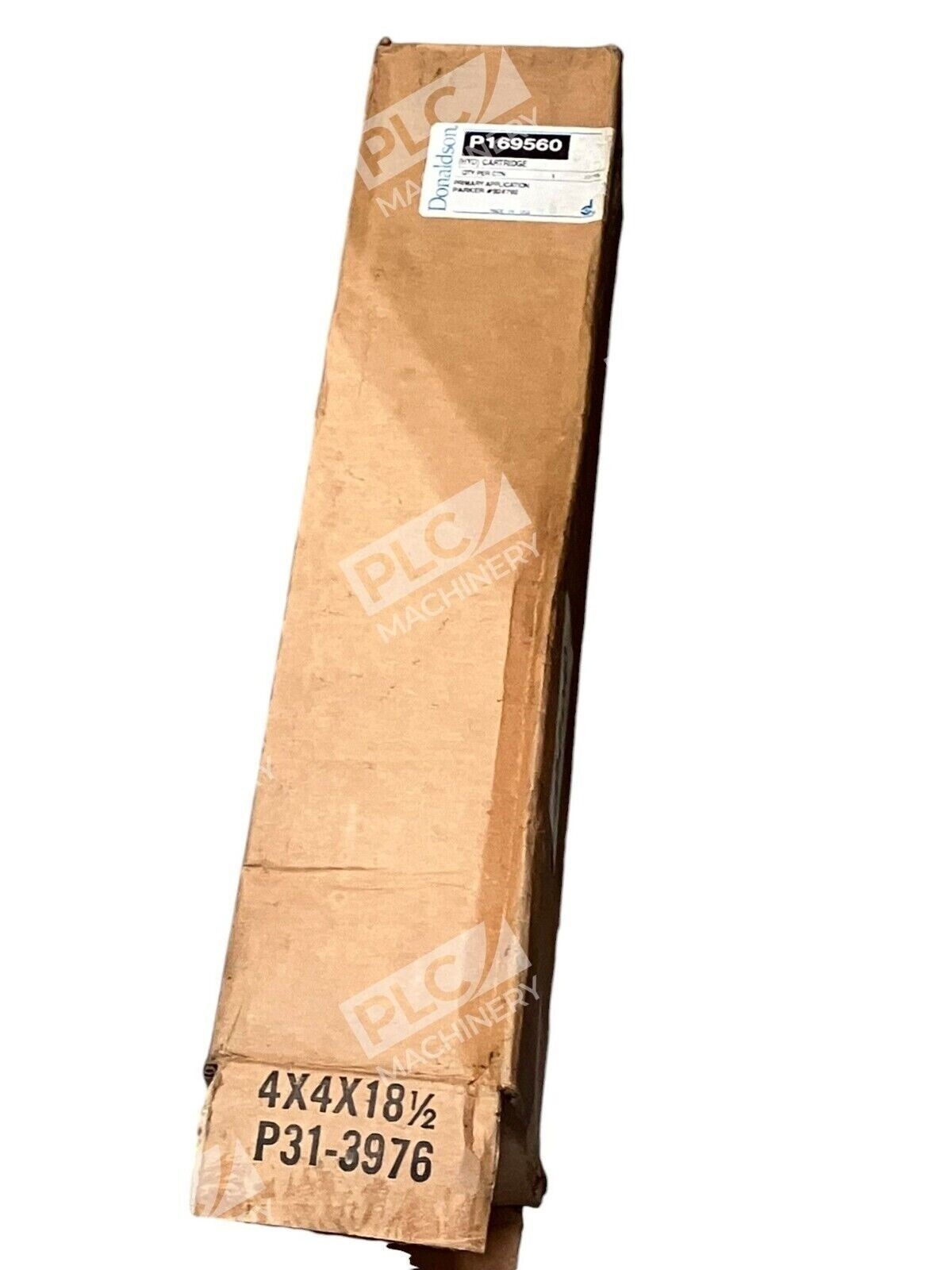

The Donaldson P169560 is a robust hydraulic filter cartridge engineered for reliability in demanding industrial applications. Built with cellulose media and rated for 75 psi maximum collapse pressure, this cartridge delivers consistent fluid conditioning across hydraulic systems including compaction equipment, construction machinery, and fluid power circuits. The new-in-box condition ensures original performance characteristics and full service life.
Key Features
- Cellulose media construction for proven hydraulic fluid compatibility
- 7 micron efficiency rating (Beta 2) captures fine particulate contamination
- 23 micron Beta 1000 rating ensures efficiency data for system design
- Inside-out flow direction optimizes element life and bypass performance
- Buna seal material compatible with standard hydraulic fluids
- 75 psi maximum collapse pressure rated for reliable containment
Technical Specifications
- Outer Diameter: 3.68 inches (93.47 mm)
- Inner Diameter: 1.75 inches (44.45 mm)
- Length: 18.31 inches (465.1 mm)
- Media Type: Cellulose
- Flow Direction: Inside-Out
- Efficiency Beta 2: 7 microns
- Efficiency Beta 1000: 23 microns
- Collapse Pressure: 75 psi
- Seal Material: Buna
- Operating Temperature Range: -13°F to 250°F (-25°C to 121°C)
- Style: Cartridge
- Part Number: P169560
Typical Applications
The Donaldson P169560 is widely specified in heavy equipment hydraulic systems, including Bomag compactors and similar machinery requiring industrial-grade fluid conditioning. Common applications include:
- Road and soil compaction equipment
- Construction and earthmoving hydraulics
- Industrial fluid power circuits
- Mobile equipment hydraulic filtration
- OEM replacement on Caterpillar, Ford, Parker, and other major manufacturer systems
Compatibility & Replacements
Compatible With
- Bomag compaction equipment and rollers
- Caterpillar hydraulic systems
- Parker hydraulic circuits
- Ford OEM hydraulic applications
- Standard 75 psi rated hydraulic filter housings with 1.75″ ID ports
- ISO VG 32, 46, and 68 hydraulic fluids
Replaces / Drop-In Replacement For
- Baldwin PT8489
- Caterpillar 3I1542
- Fleetguard HF7781
- Parker G00981 and 924792
- WIX 57413 and 557413
- NAPA 7413
- VMC HF169560
Works With
- All standard hydraulic filter housings (spin-on and cartridge bowls) with matching port sizing
- Hydraulic systems rated for ISO 17/15/12 cleanliness or better
- Mineral-based hydraulic fluids and anti-wear (AW) fluids
- Systems requiring 7 to 10 micron rated filtration
