Overview
The Baldor Dodge 025632 DBSC-V motor brake is a field-proven spring-set brake designed for reliable load holding and emergency stopping in industrial motion control systems. Baldor Dodge 025632 brakes are engineered to provide consistent performance in conveyor, packaging, wrapping, and material handling applications where safe load control is critical. When power is applied to the brake coil, the friction disc hub assembly and load are free to rotate. Power loss immediately engages the brake spring, halting motion and securing the load.
Key Features
- Single non-asbestos friction disc for extended life and fewer adjustments
- Spring-set brake mechanism provides fail-safe load holding
- Compact DBSC-V design fits standard industrial mounting provisions
- Reduced replacement parts and simplified maintenance
- Rated for 208–230/460V AC three-phase operation
- Low coil current (.14 Amps) minimizes electrical load on control circuits
Technical Specifications

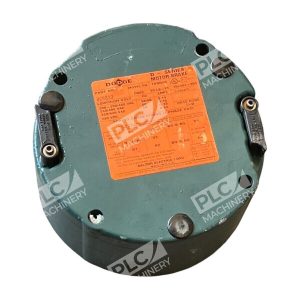

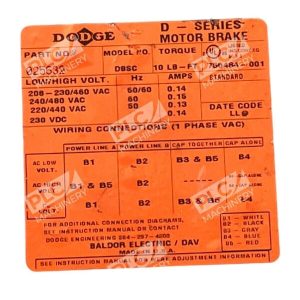

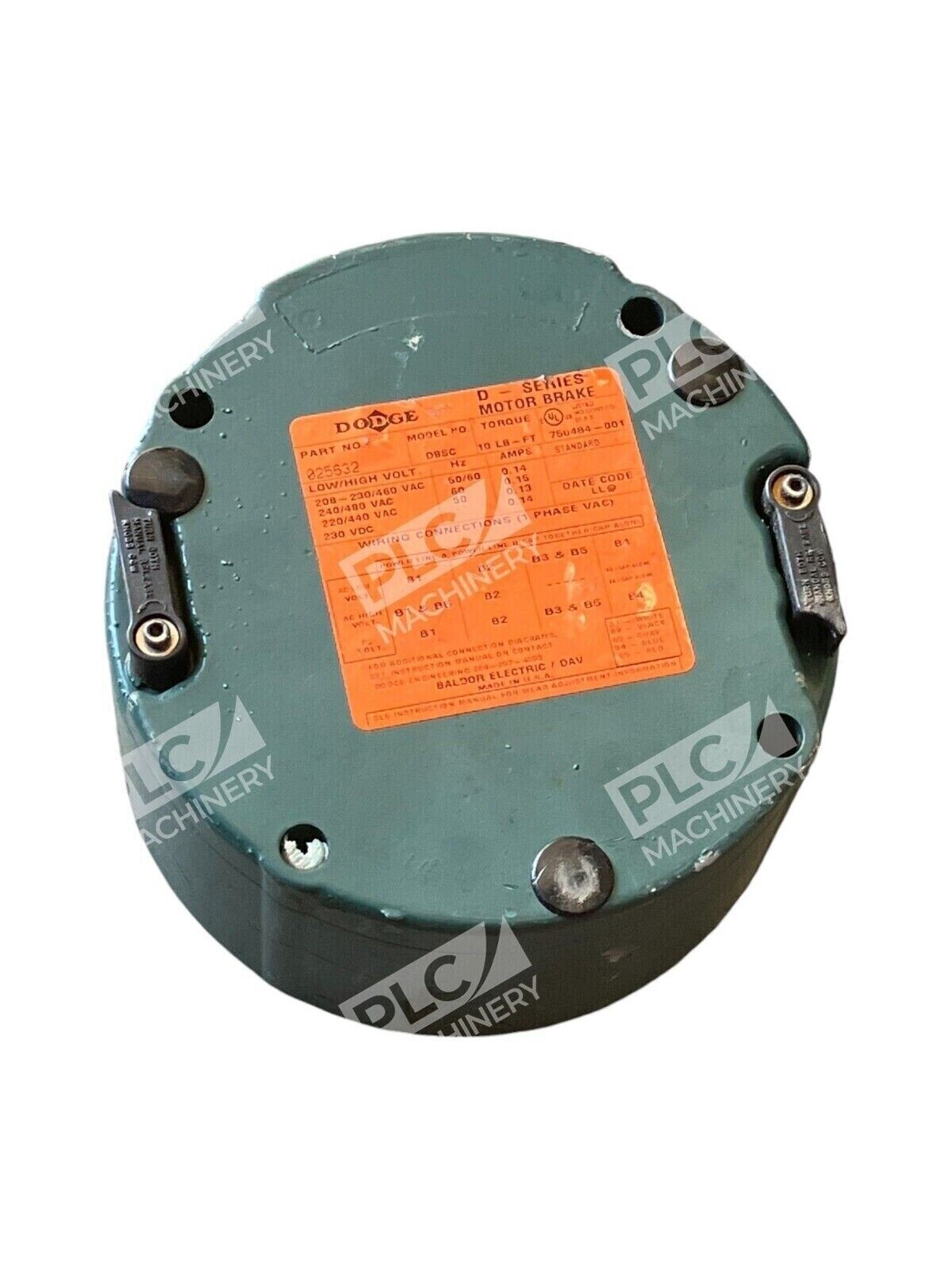

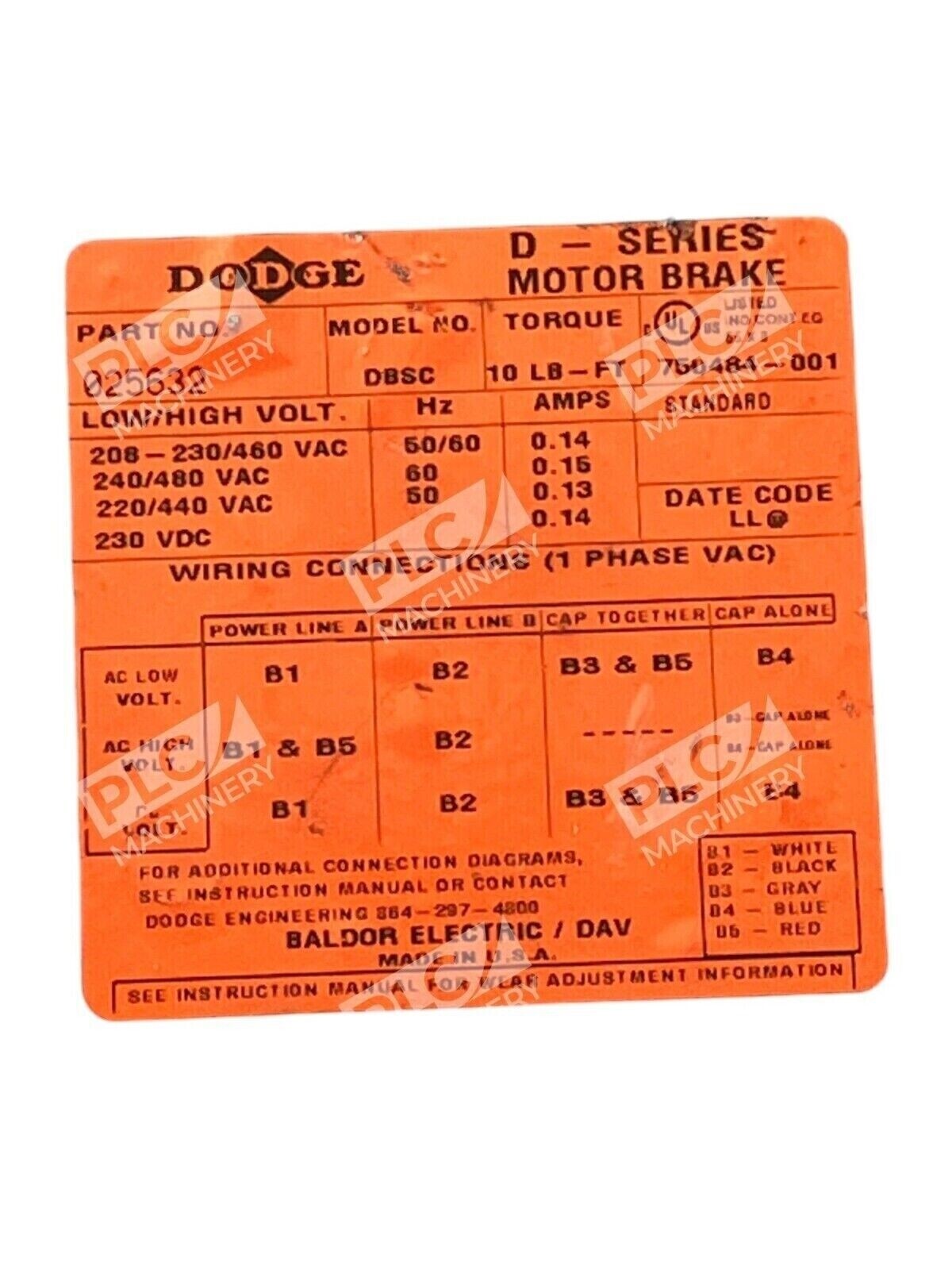

| Model | Baldor Dodge 025632 (DBSC-V) |
| Torque Rating | 10 lb-ft |
| Input Voltage | 208–230/460 VAC, 50/60 Hz |
| Coil Current | 0.14 Amps |
| Friction Material | Non-asbestos disc |
| Brake Type | Spring-set, fail-safe |
| Mounting | Standard NEMA-compatible face mounting |
| Manufacturer | Baldor Electric Company (now ABB Motors and Mechanical Inc.) |
Typical Applications
- Conveyor belt drive systems requiring fail-safe stopping
- Packaging and wrapping machinery
- Palletizing equipment
- Material handling and transfer systems
- Industrial hoists and lifting mechanisms
- Any motor-driven load requiring emergency holding and safety shutdown
Compatibility & Replacements
Compatible With
- Baldor-Reliance AC motors with brake mounting provisions
- NEMA-standard flanged motor mounts and adapters
- Industrial control circuits and variable speed drives
- Standard three-phase AC power distribution systems
- Conveyor and packaging equipment utilizing motor-driven loads
Replaces / Drop-In Replacement For
- Earlier Dodge DBSC friction-disc brake models in same torque class
- Verify specific model compatibility with equipment documentation before ordering
Works With
- Baldor brake motors with spring-set brake mounts
- Standard industrial AC motor control contactors and relays
- Variable frequency drives (VFDs) with separate brake coil circuits
- Emergency stop (E-stop) safety circuits
- Electrical interlocking and motion control systems
