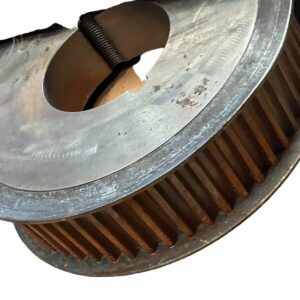

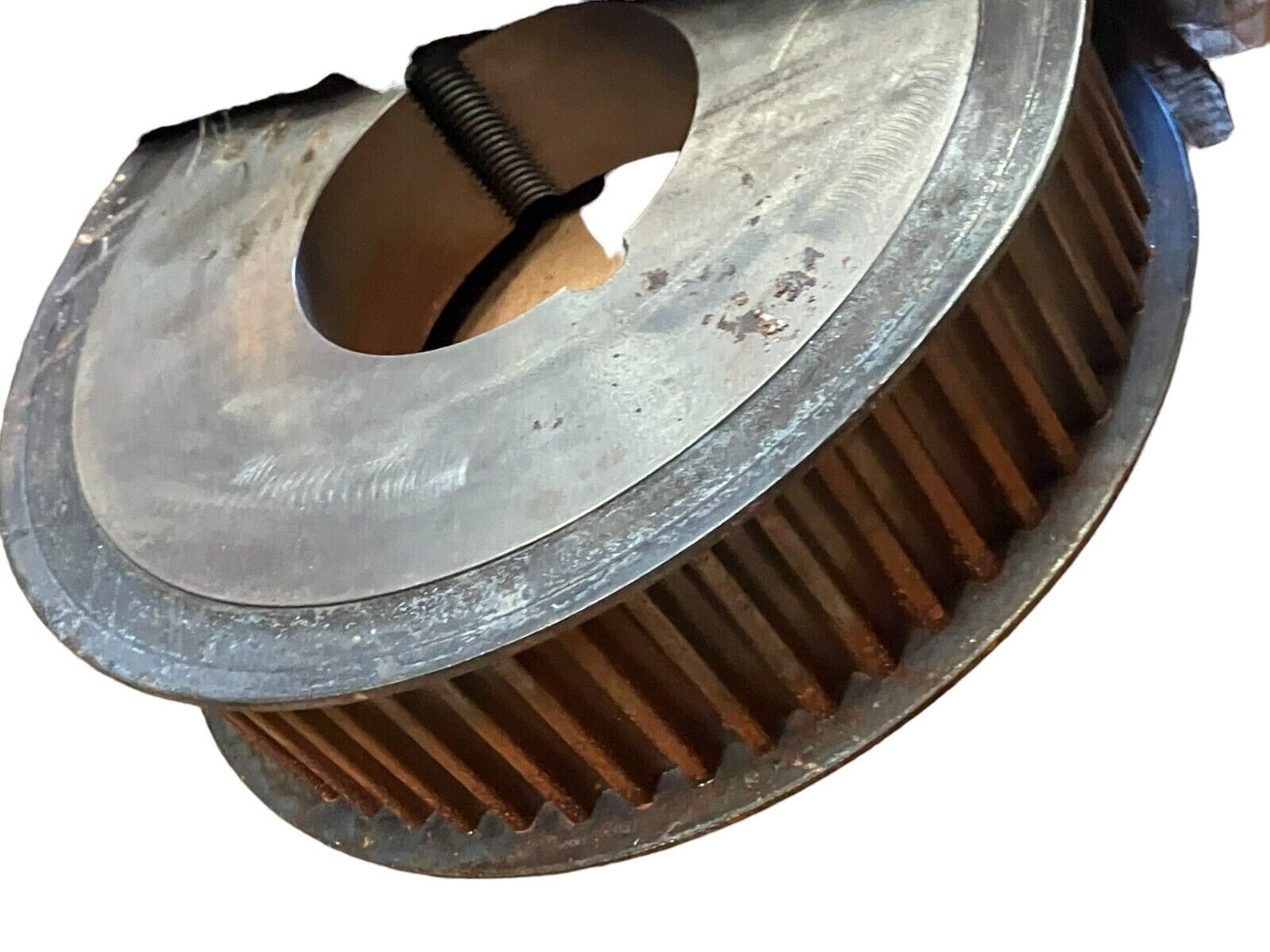

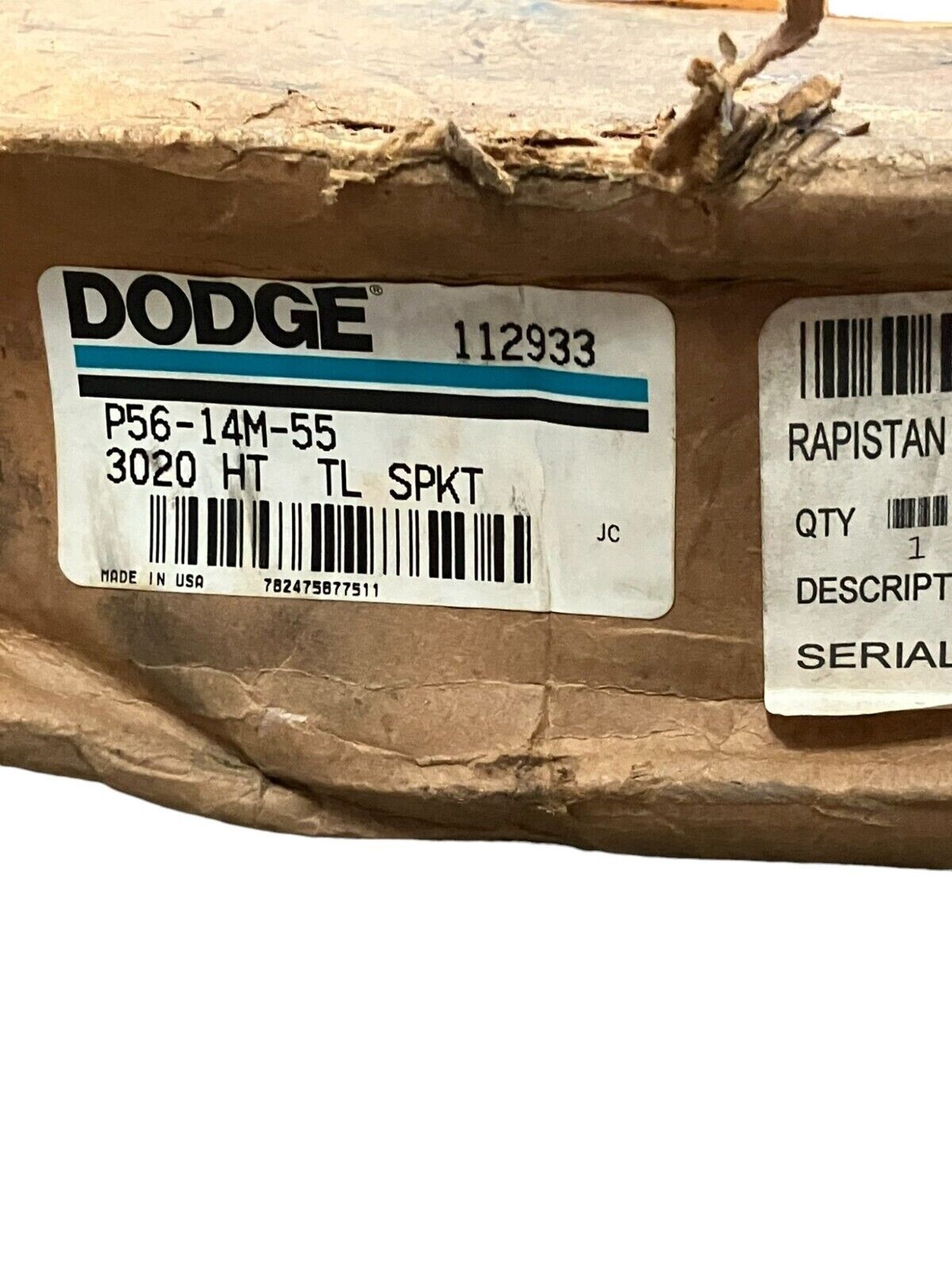

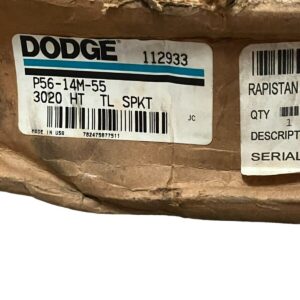

Dodge 112933 Taper Lock Sprocket P56-14M-55 3020 HT TL

The Dodge® 112933 Taper-Lock Sprocket, model P56-14M-55 3020 HT TL, is engineered for high-torque power transmission applications. This sprocket features a Taper-Lock bore design, accommodating bore diameters ranging from 7/8 to 3-1/4 inches, ensuring a secure and precise fit.

**Key Specifications:**

– **Outside Diameter:** 9.715 inches
– **Pitch Diameter:** 9.825 inches
– **Number of Grooves:** 56
– **Pitch:** 14 mm
– **Face Width:** 2-3/4 inches
– **Flange Diameter:** 10-3/8 inches
– **Bushing Type:** 3020

**Features:**

– **Positive and Non-Slip Drive:** Ensures reliable power transmission without slippage.
– **No Lubrication Required:** Designed for maintenance-free operation.
– **Non-Stretch and Corrosion Resistant:** Maintains performance over time, even in challenging environments.
– **Abrasion Resistant:** Withstands wear, extending the sprocket’s lifespan.
– **Virtually No Backlash:** Provides precise motion control.
– **Long Life and Low Maintenance:** Engineered for durability and reduced upkeep.

This sprocket is compatible with 55 mm wide HT200 belts, making it suitable for various industrial applications requiring robust and efficient power transmission solutions.
