Overview

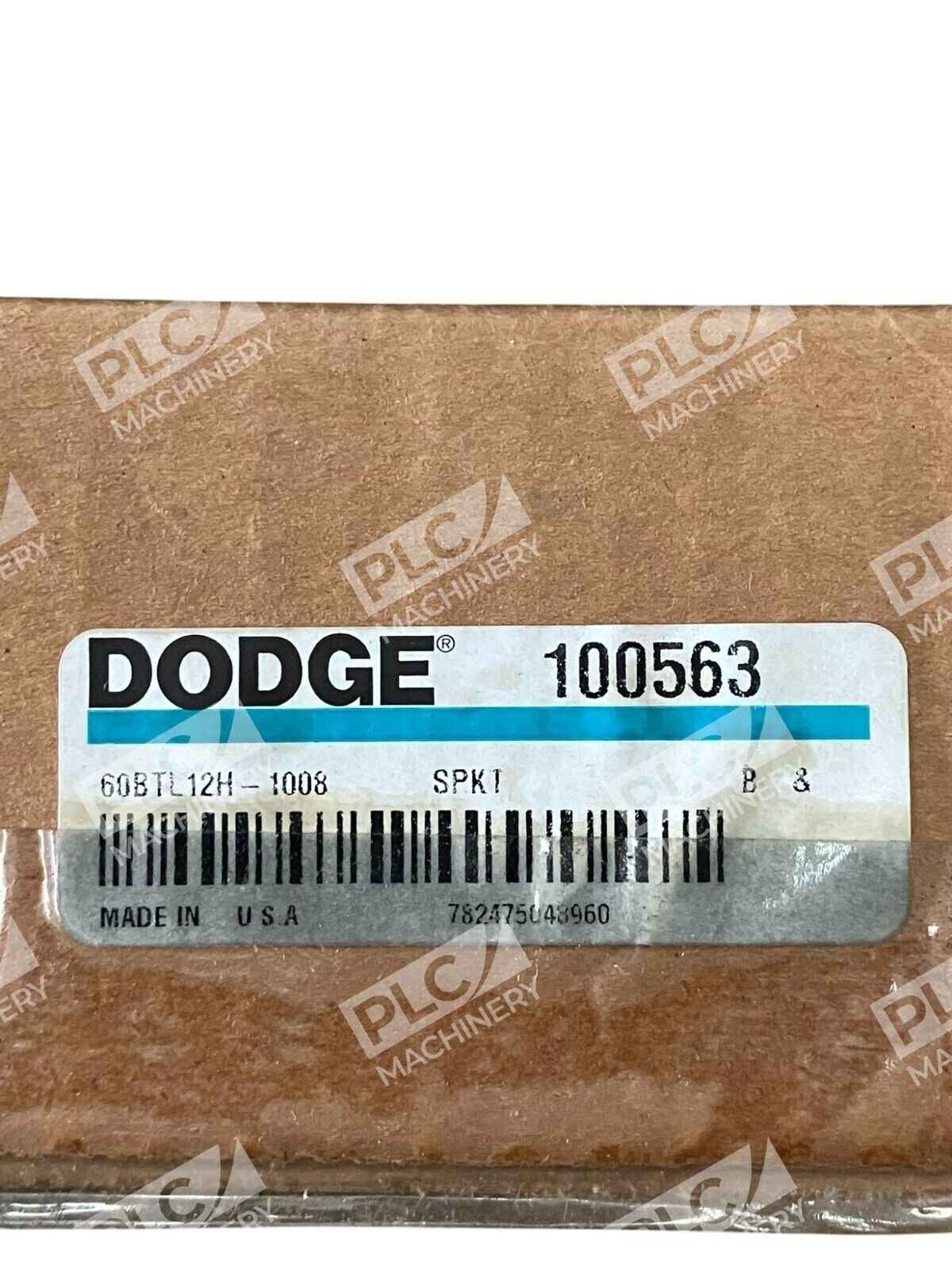

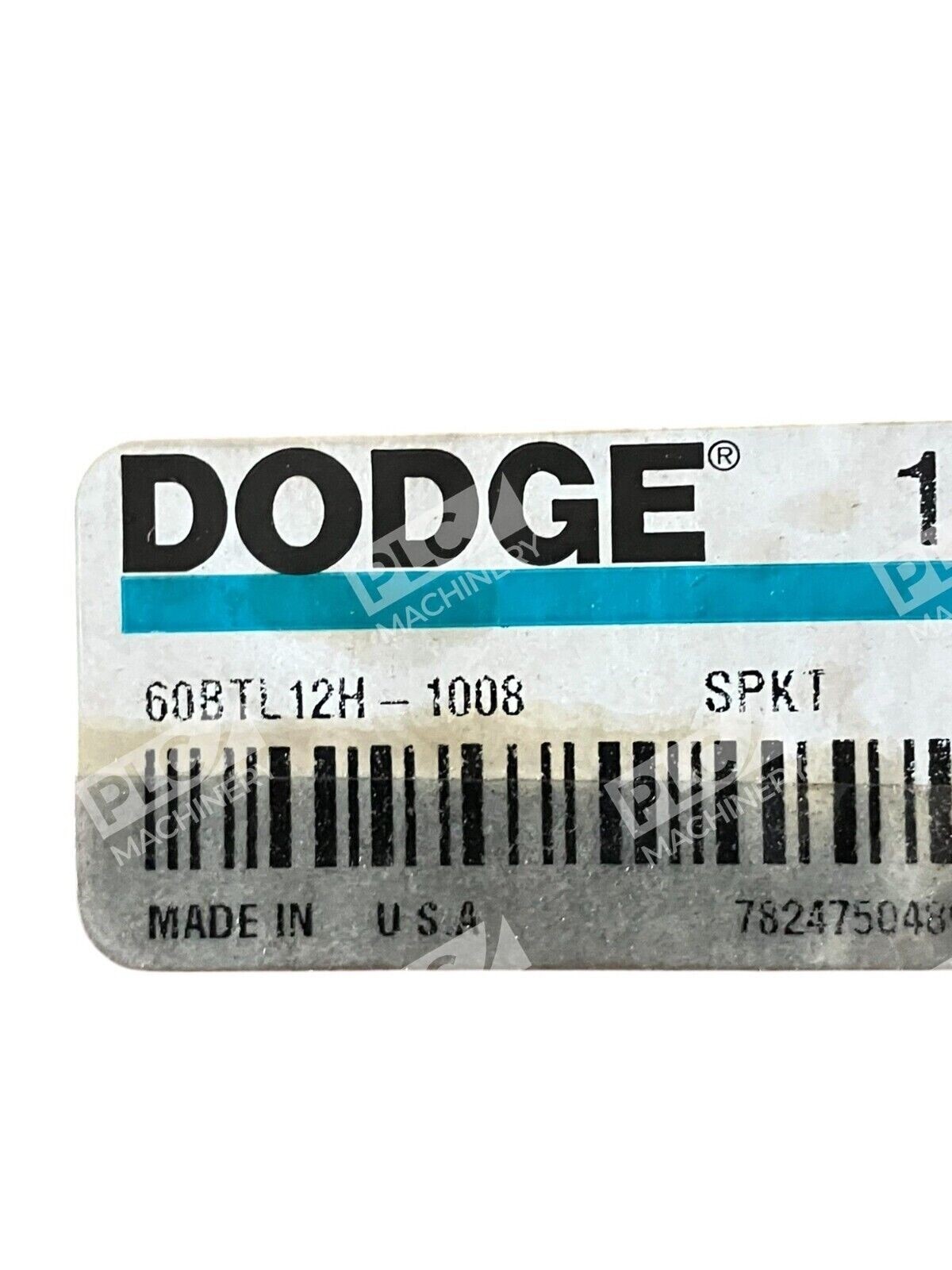

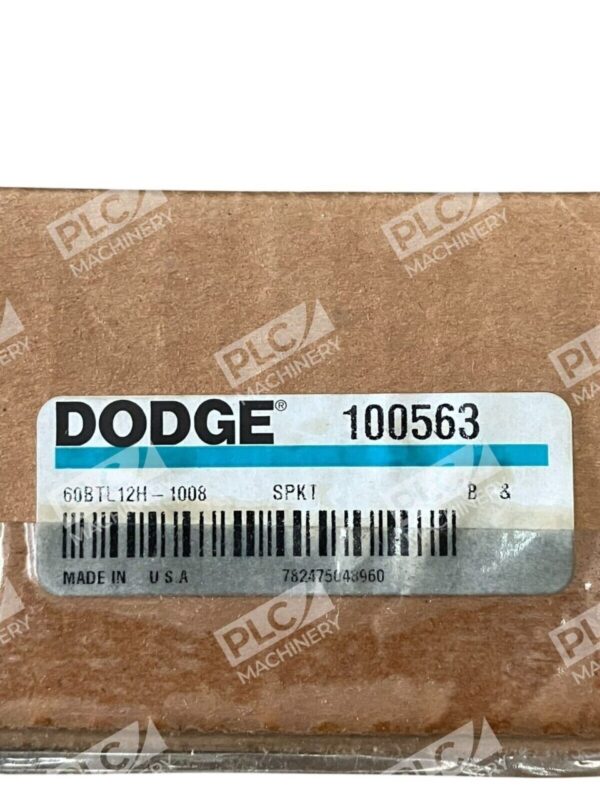

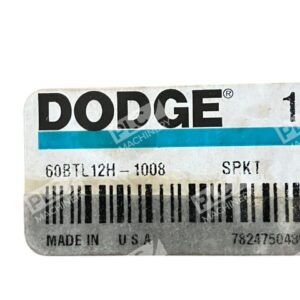

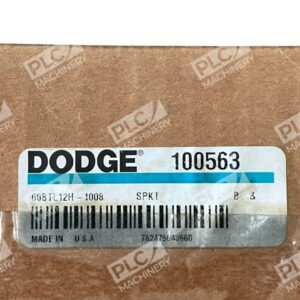

The Dodge 60BTL12H-1008 sprocket (model 100563) is a bushed roller chain sprocket engineered for reliable performance in mechanical power transmission systems. This new-in-box unit features hardened tooth construction and is configured for #60 roller chain applications, making it suitable for a wide range of industrial machinery and equipment.
Key Features
- 21 teeth with hardened, durable construction
- Bushing size 2012 for secure mounting
- Outer diameter of 5.426 inches
- Variable bore compatibility accommodates multiple motor shaft sizes

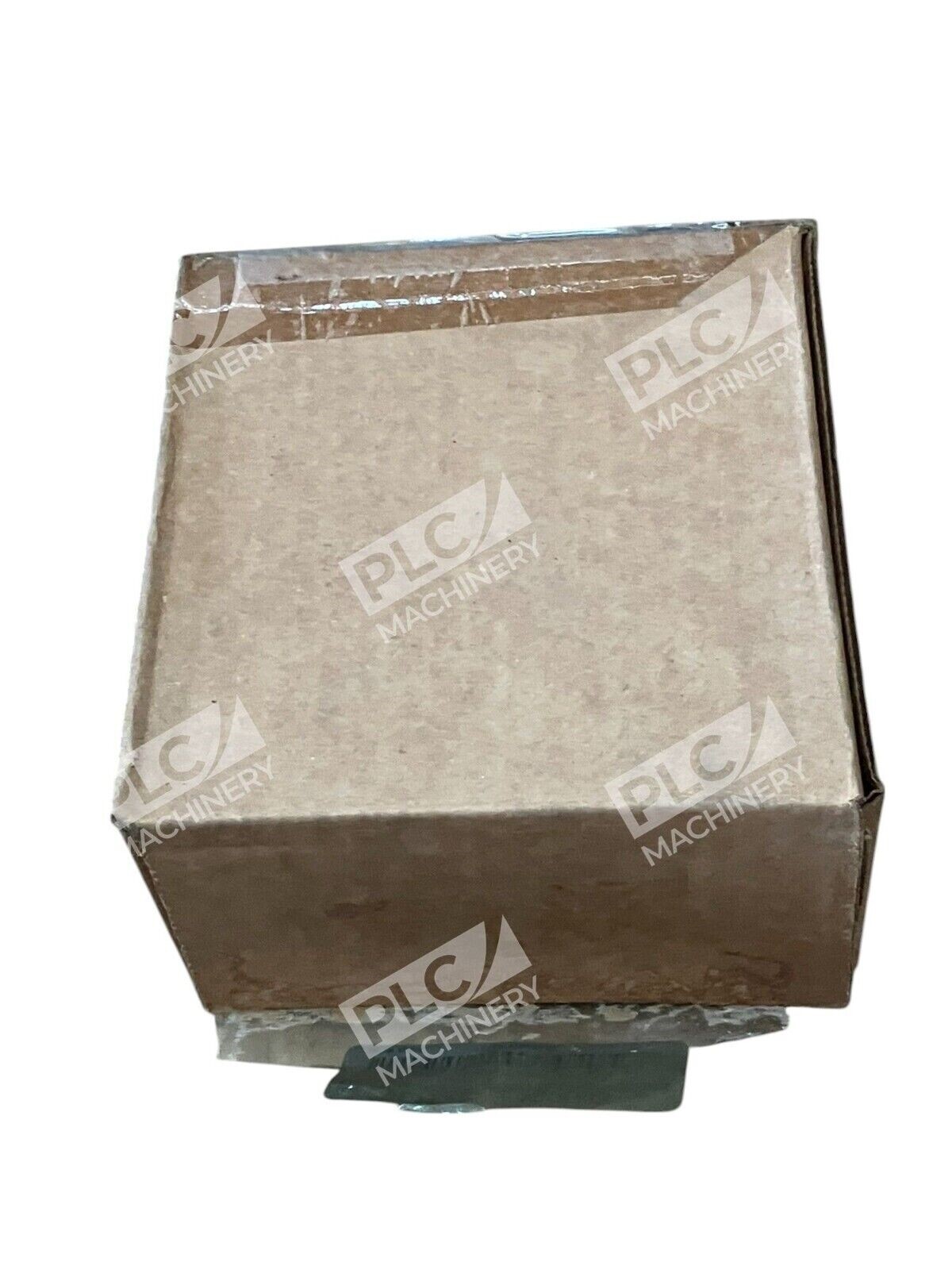

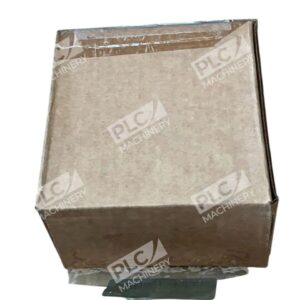

- Sealed and new in original factory box
- Standard #60 roller chain pitch for common industrial applications
Technical Specifications
- Tooth Count: 21
- Chain Pitch: #60
- Outer Diameter: 5.426 inches
- Bushing Size: 2012
- Bushing Bore Range: 1/2″ to 2-1/8″
- Hub Style: Bushed (taper-lock compatible)
- Tooth Material: Hardened steel
- Condition: New in Box
- UPC: 782475049059
Typical Applications
The Dodge 60BTL12H-1008 is commonly used in:
- Conveyor systems and material handling equipment
- Industrial mixers and agitators
- Packaging and automation machinery
- Heavy-duty drive systems requiring reliable chain synchronization
- Retrofit and replacement projects in manufacturing facilities
Compatibility & Replacements
Compatible With
- #60 roller chain systems (1/2″ pitch roller chain)
- Dodge taper-lock bushings (2012 size)
- Standard industrial motor shafts sized 1/2″ to 2-1/8″ bore
- Power transmission drive systems in manufacturing and equipment
Replaces / Drop-In Replacement For
The Dodge 100563 (60BTL12H-1008) is a direct replacement for equivalent 21-tooth #60 bushed sprockets in the same size class. Always verify bore and bushing compatibility with your specific application before ordering.
Works With
- Dodge tapered bushings and standard bore adaptors
- Industrial conveyor and machinery OEM systems
- Custom power transmission assemblies
- Variable-bore mounting configurations
