Overview

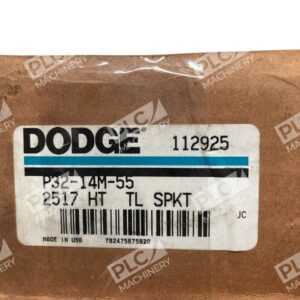

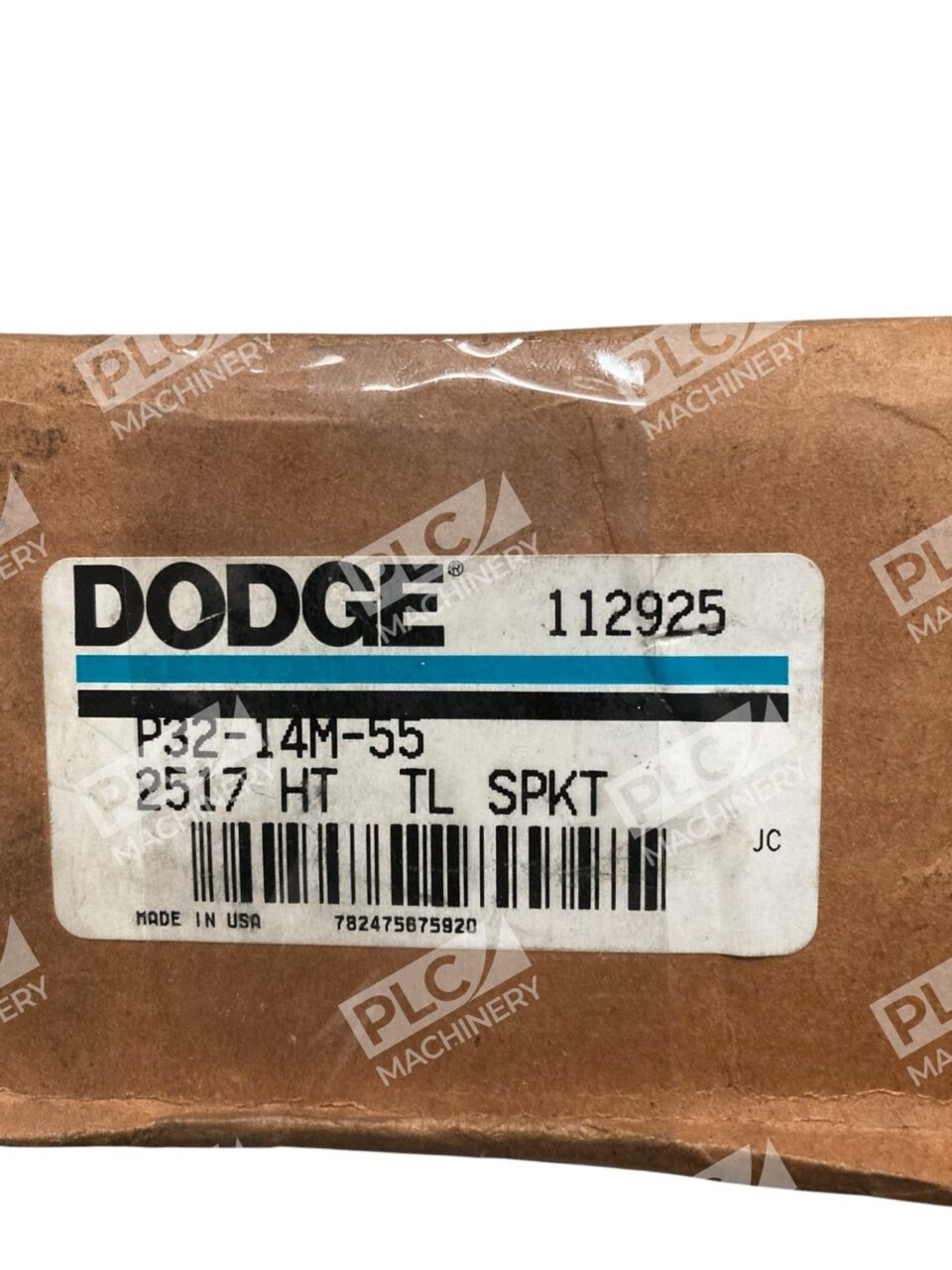

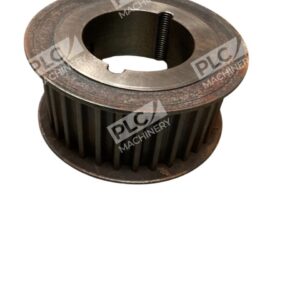

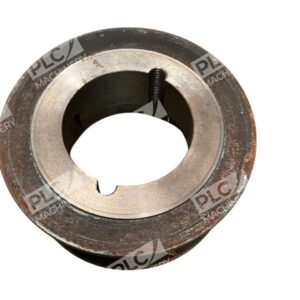

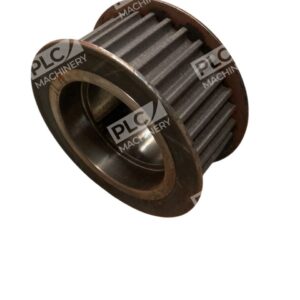

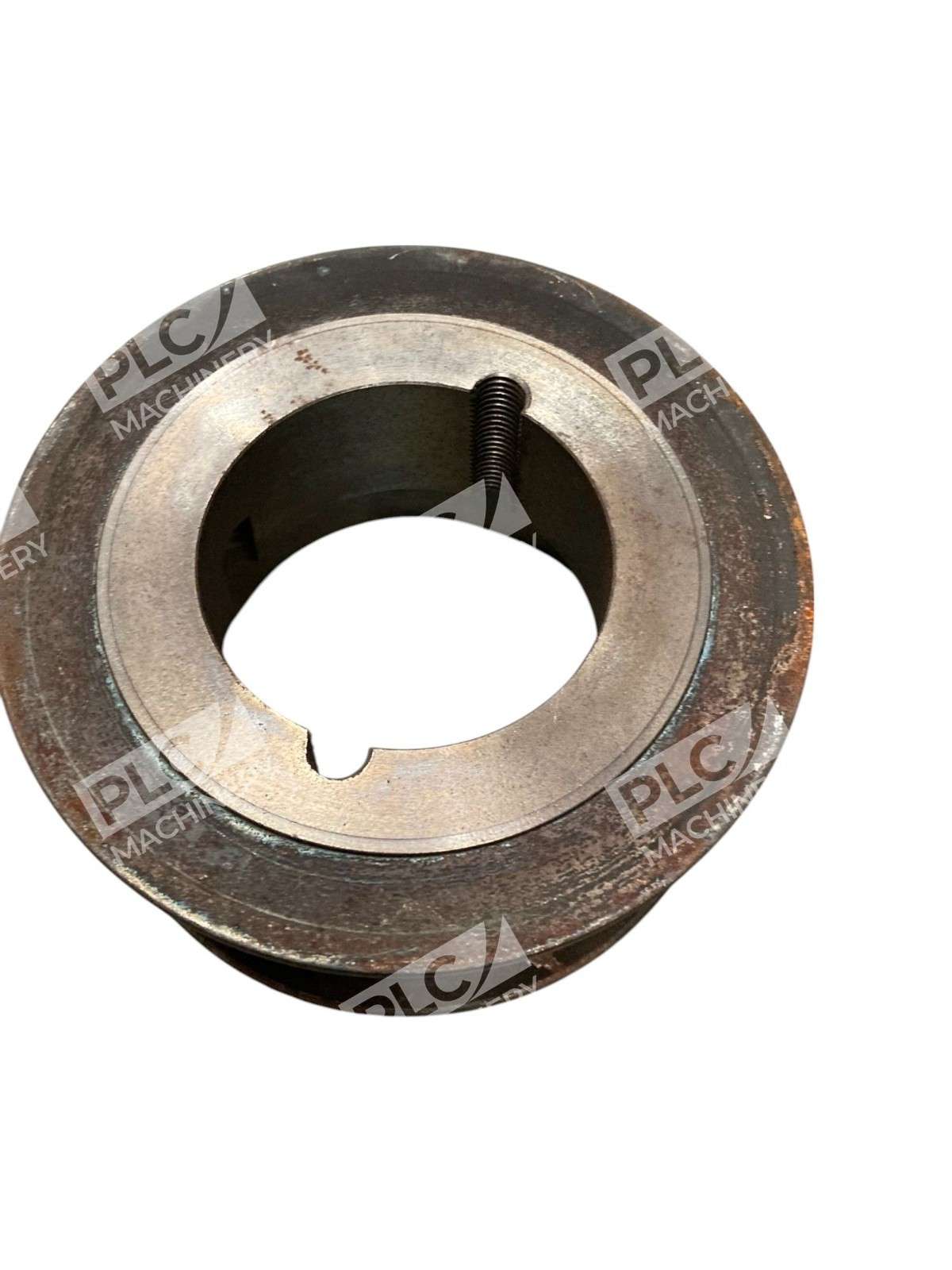

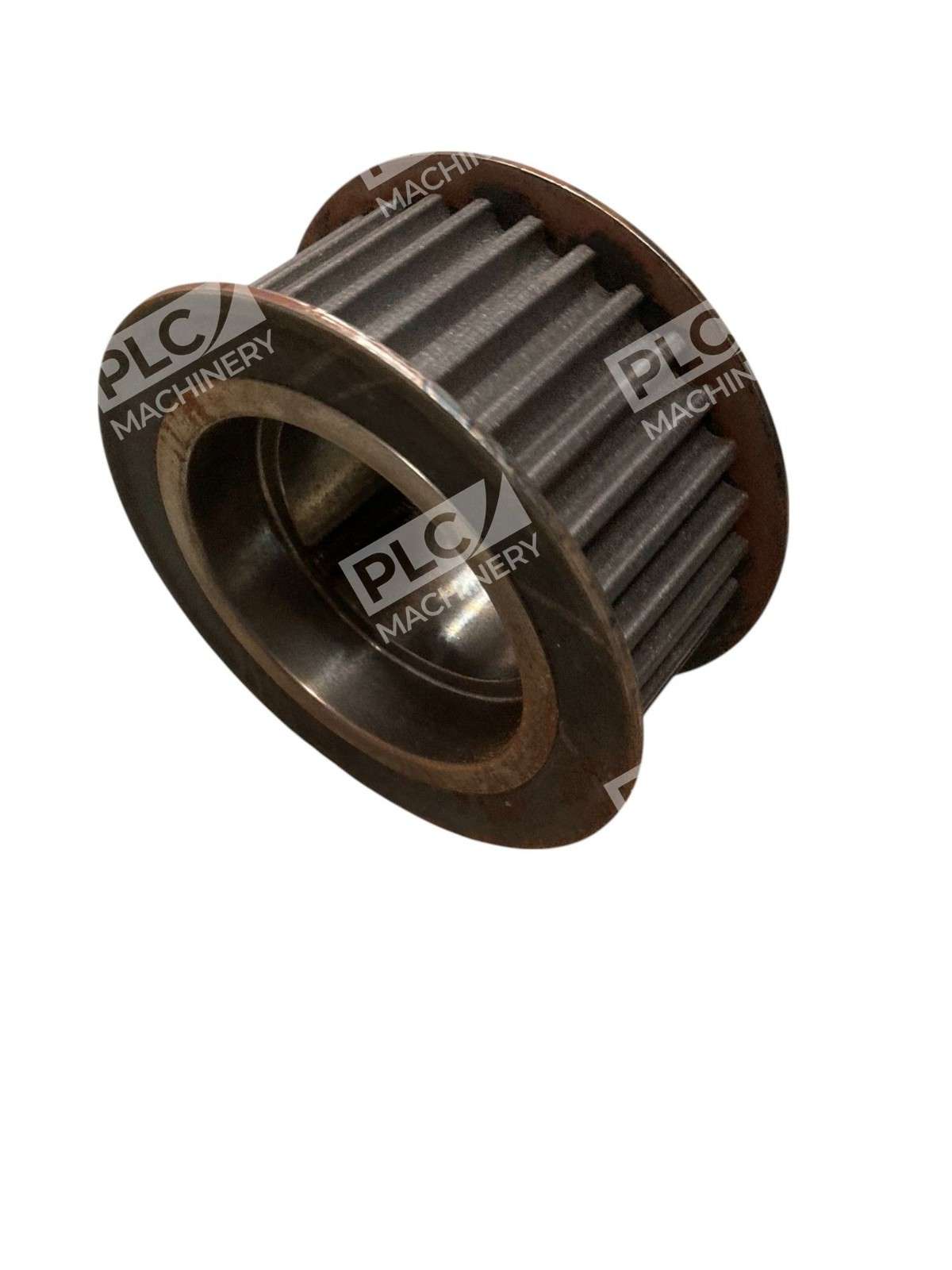

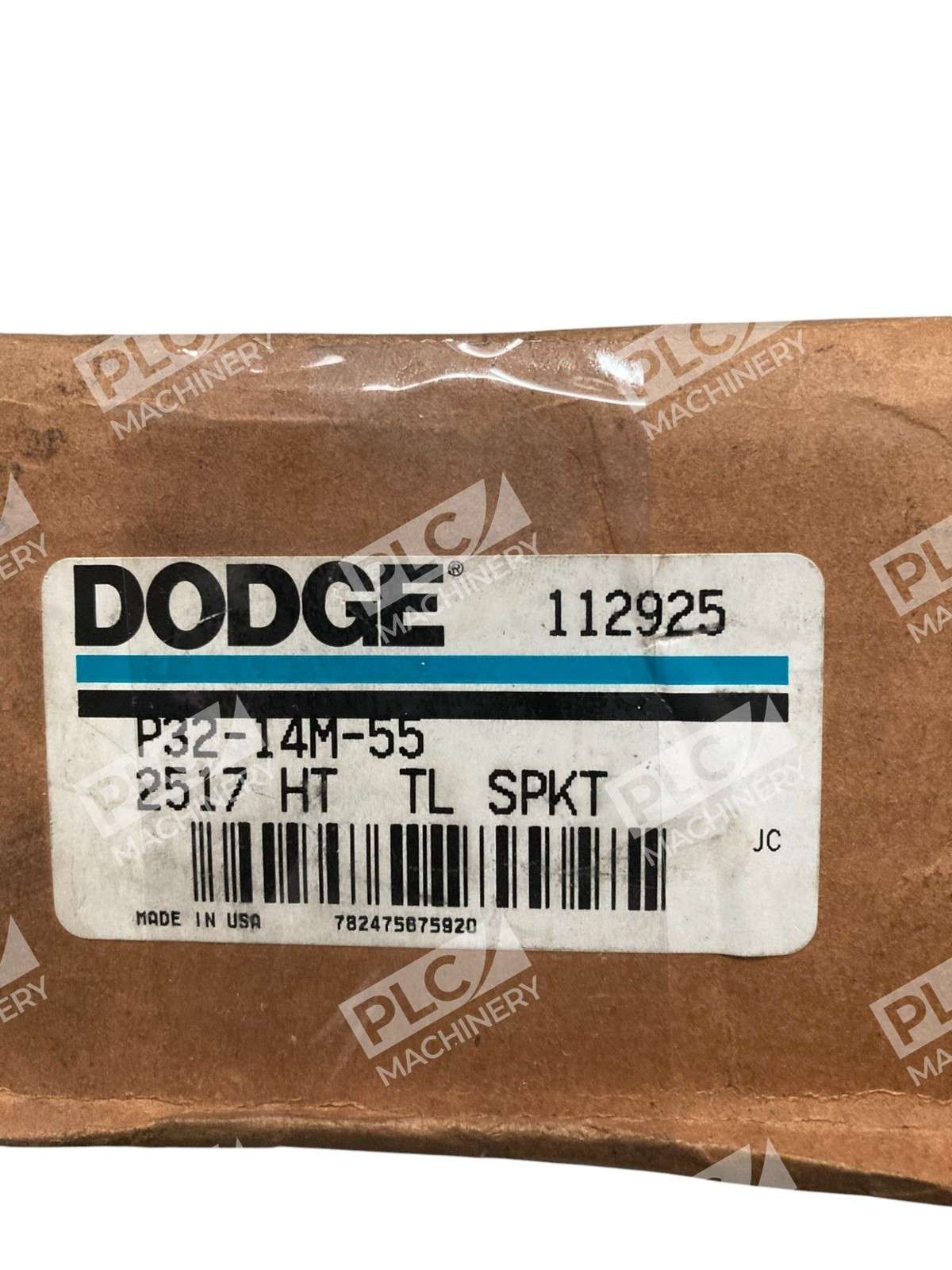

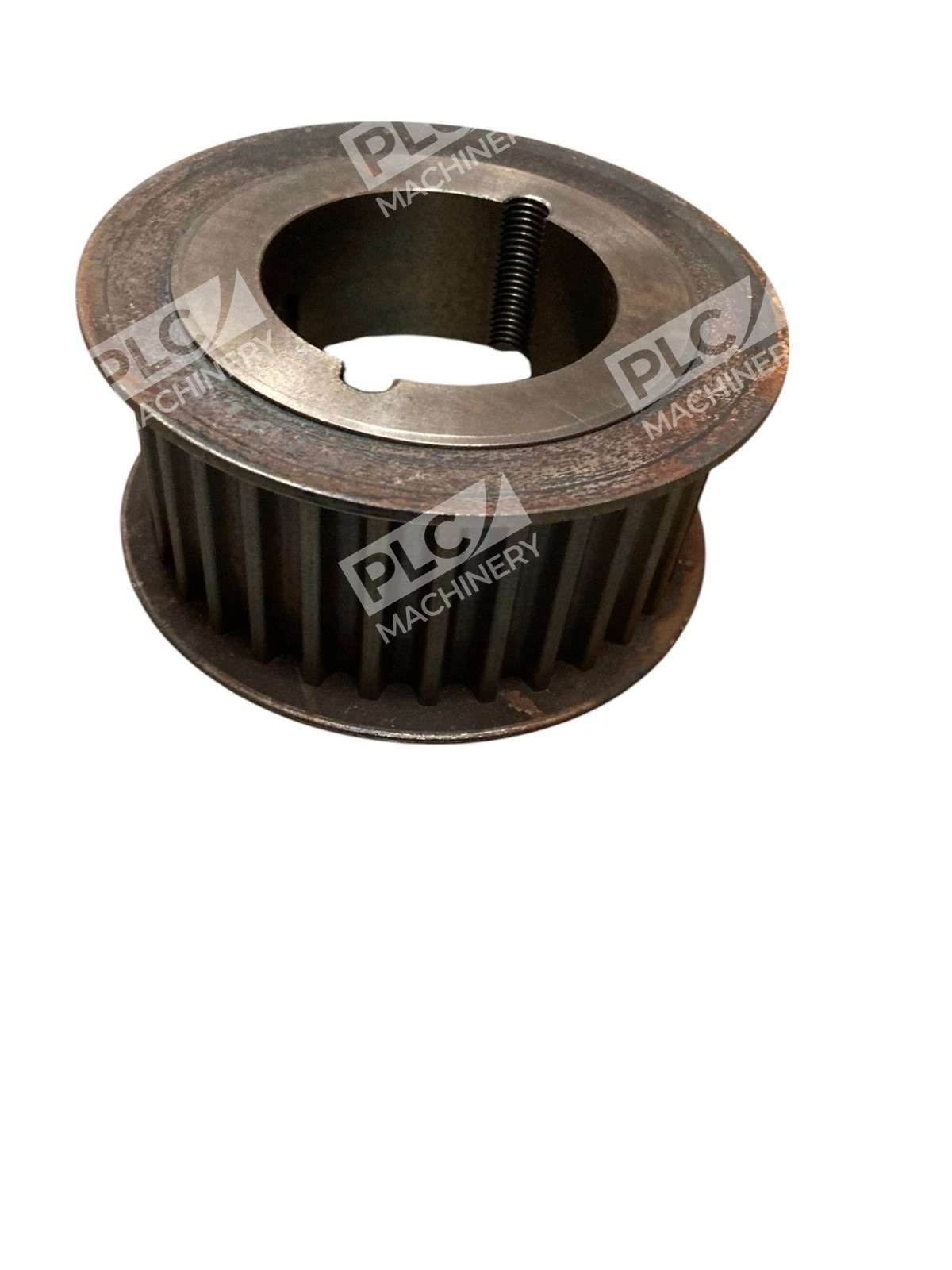

The Dodge P32-14M-55 sprocket is a high-performance HTD (synchronous) belt sprocket engineered for industrial automation, material handling, and precision drive applications. This 32-tooth sprocket with 14mm pitch and 55mm belt width delivers consistent, slip-free power transmission with no lubrication required. Built with cast iron construction and sealed flanges, the Dodge 112925 meets the durability standards expected in demanding industrial environments.
Key Features
- 32 teeth with 14mm HTD pitch for precise synchronization and minimal timing drift
- 55mm belt width accommodates standard HTD 14M timing belts
- No lubrication required—reduces maintenance and extends component life
- Positive, non-slip drive transmission—ideal for conveyor and automation systems
- Cast iron construction with dual flanges for rigid support and alignment
- Corrosion and abrasion resistant coating for extended service life
Technical Specifications
This sprocket features a 5.507 inch outside diameter with a 5.614 inch pitch diameter. The QD (Quick Disconnect) or Taper-Lock bushing accommodates bore diameters from 1/2 to 2-5/8 inches (standard shaft sizes). Face width is 2-3/4 inches with a flange outside diameter of 6.114 inches, providing ample support for belt tracking and alignment. Maximum RPM is rated at 4,550 in typical industrial applications.
Typical Applications
- Conveyor systems—smooth, synchronized power transfer without slip
- Packaging machinery—precise timing for filled and sealed product lines
- Material handling equipment—reliable operation in high-speed transfer systems
- Robotics and automation—repeatable, low-backlash motion control
- Food and beverage processing—hygienic, low-maintenance belt drive systems
- Industrial pump and fan drives—dependable long-term performance
Compatibility & Replacements
Compatible With
- HTD 14M timing belts with 55mm width
- Quick Disconnect (QD) or Taper-Lock bushings (SK or 2517 series)
- Standard industrial electric motors (via appropriate bushing adapter)
- Conveyor drive systems and material handling equipment
- Industrial automation platforms requiring synchronized motion
Replaces / Drop-In Replacement For
- Dodge 110808 (P32-14M-55-SK QD Bushed version)
- Dodge P32-14M-55-2517 (Taper-Lock Bushed version)
- TB Woods P3214M55 HTD synchronous sprockets
Works With
- HTD 14M timing belt technology—industry standard in synchronous drive systems
- Common industrial automation platforms and conveyor control systems
- Both AC and DC motor configurations with appropriate motor couplings
- Dodge and third-party QD/Taper-Lock bushing systems for rapid shaft coupling
