Overview

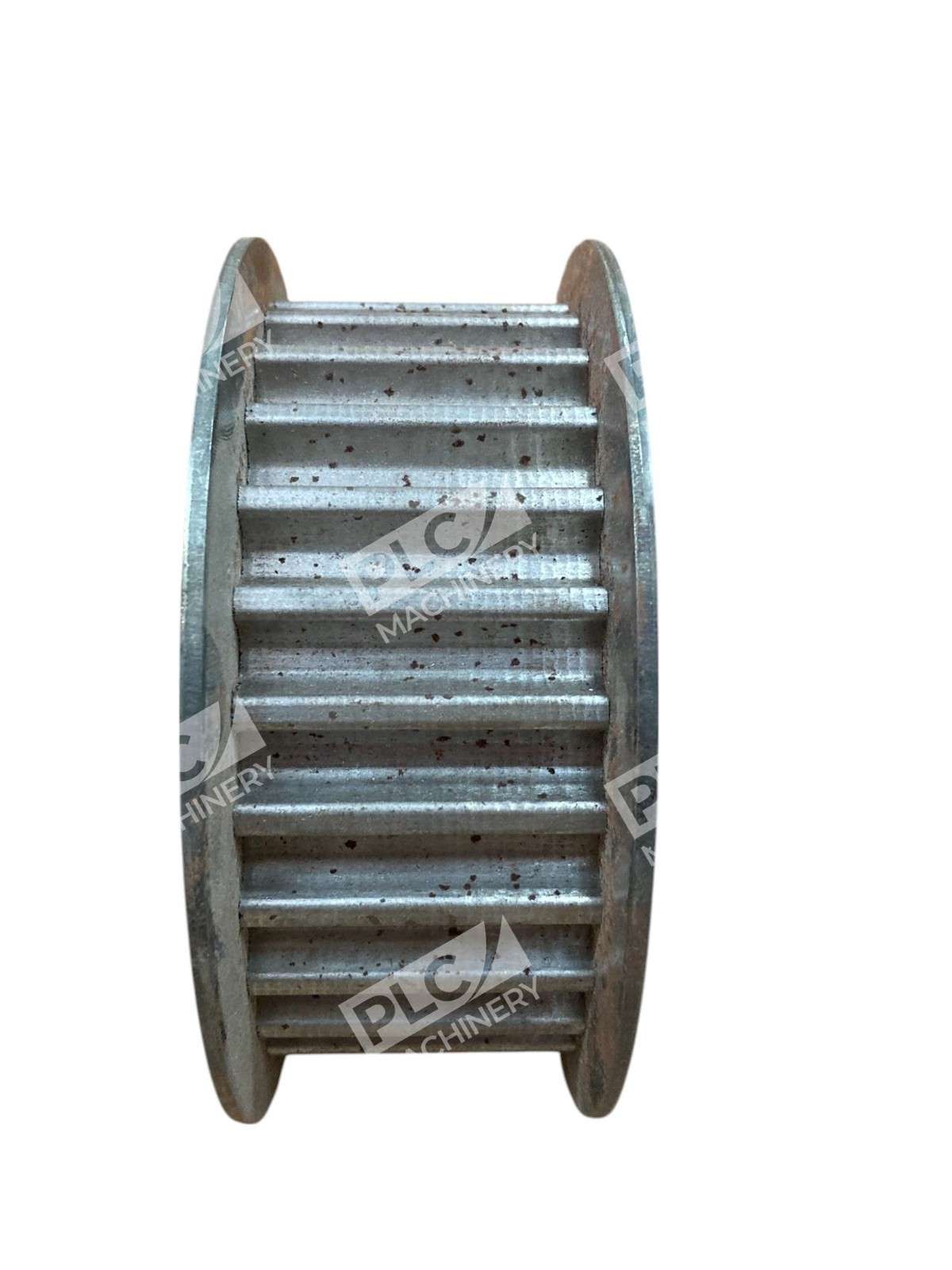

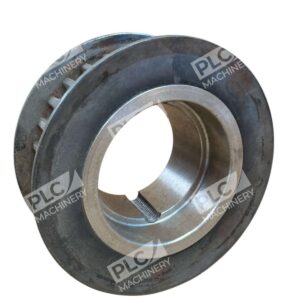

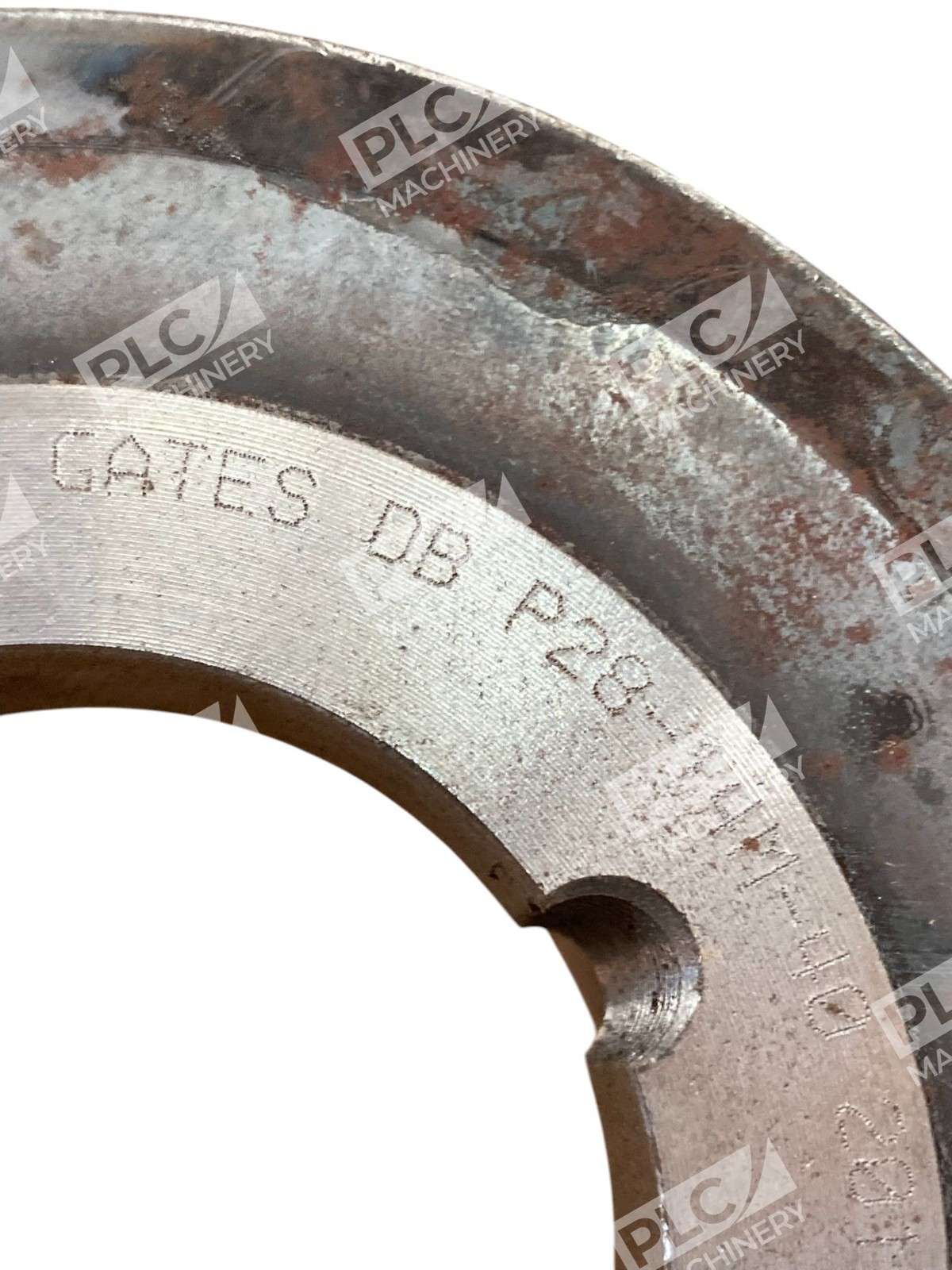

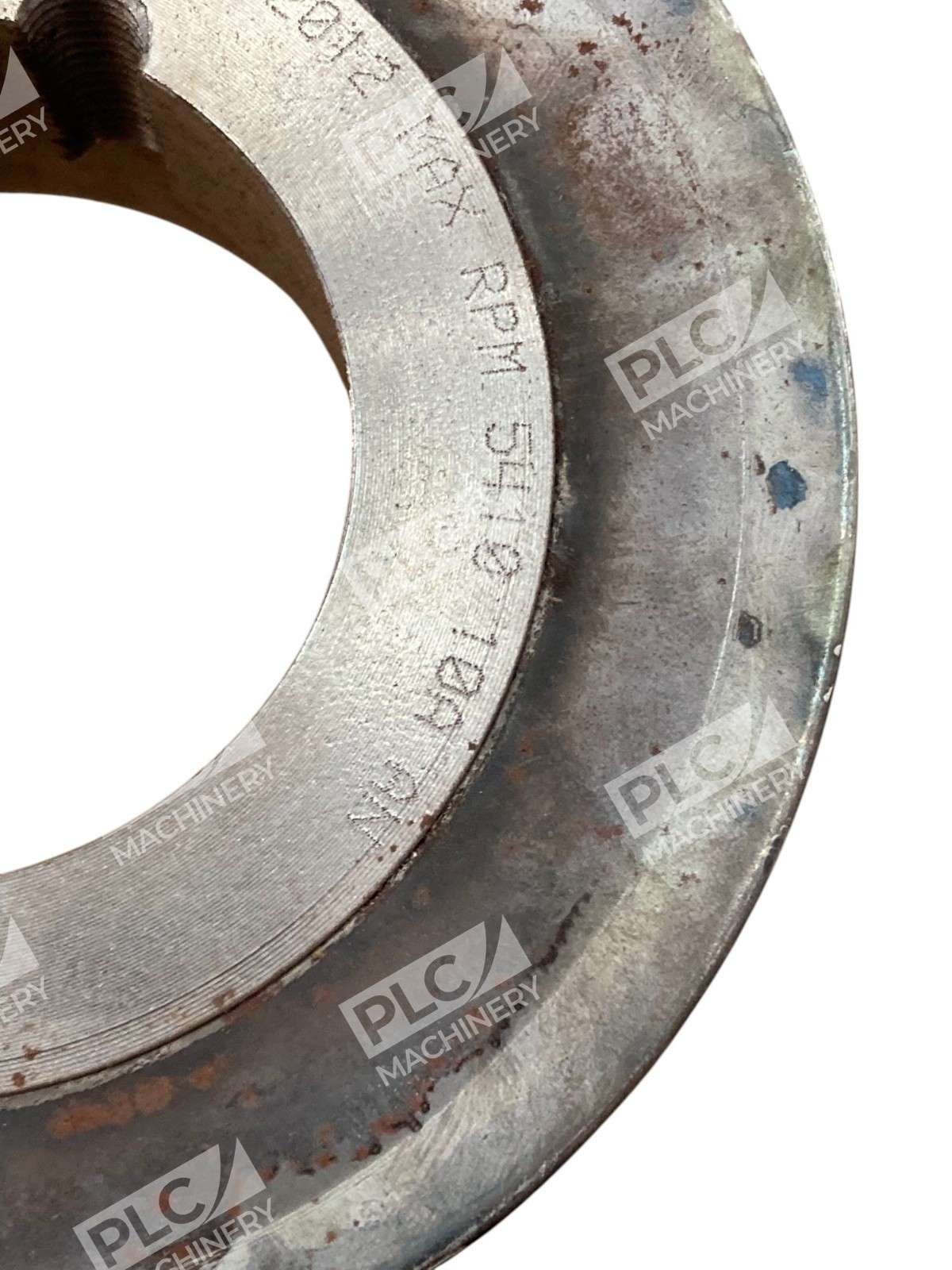

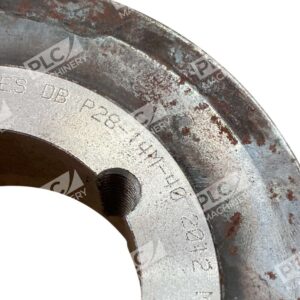

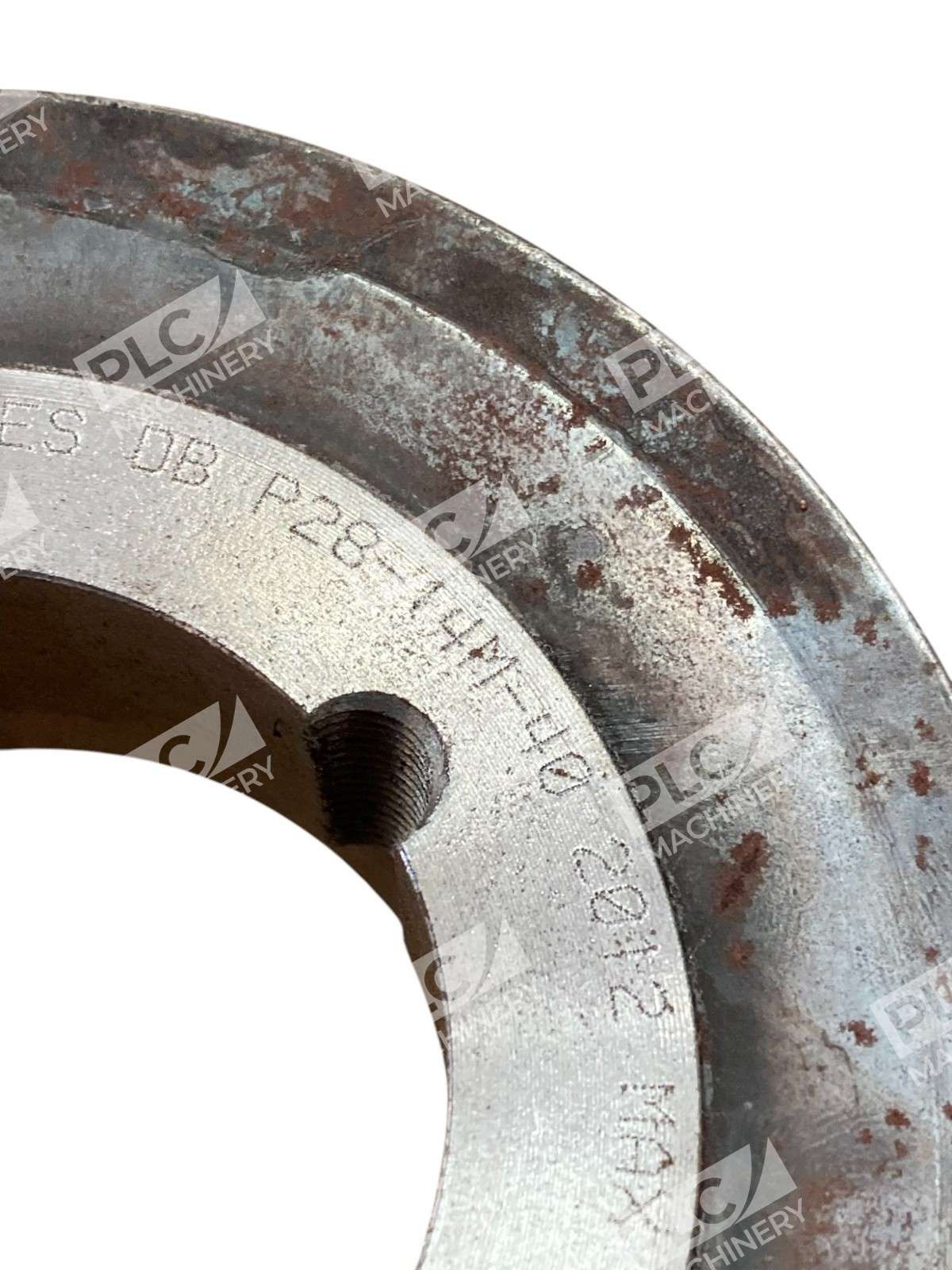

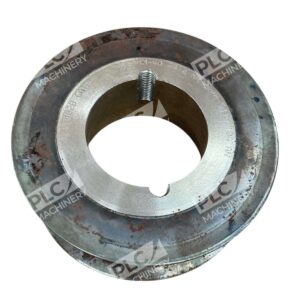

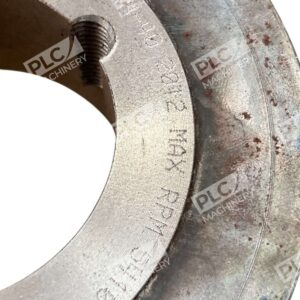

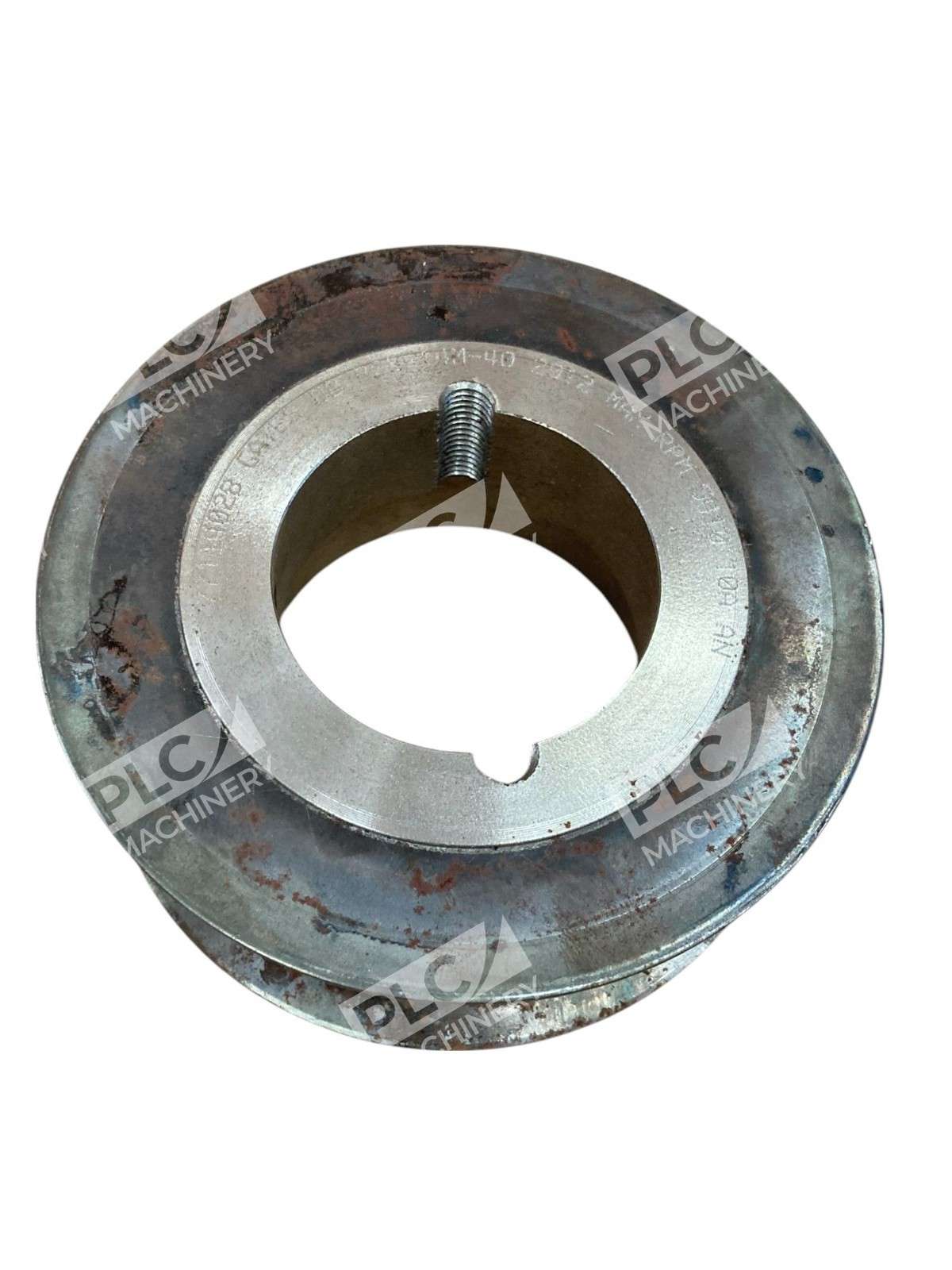

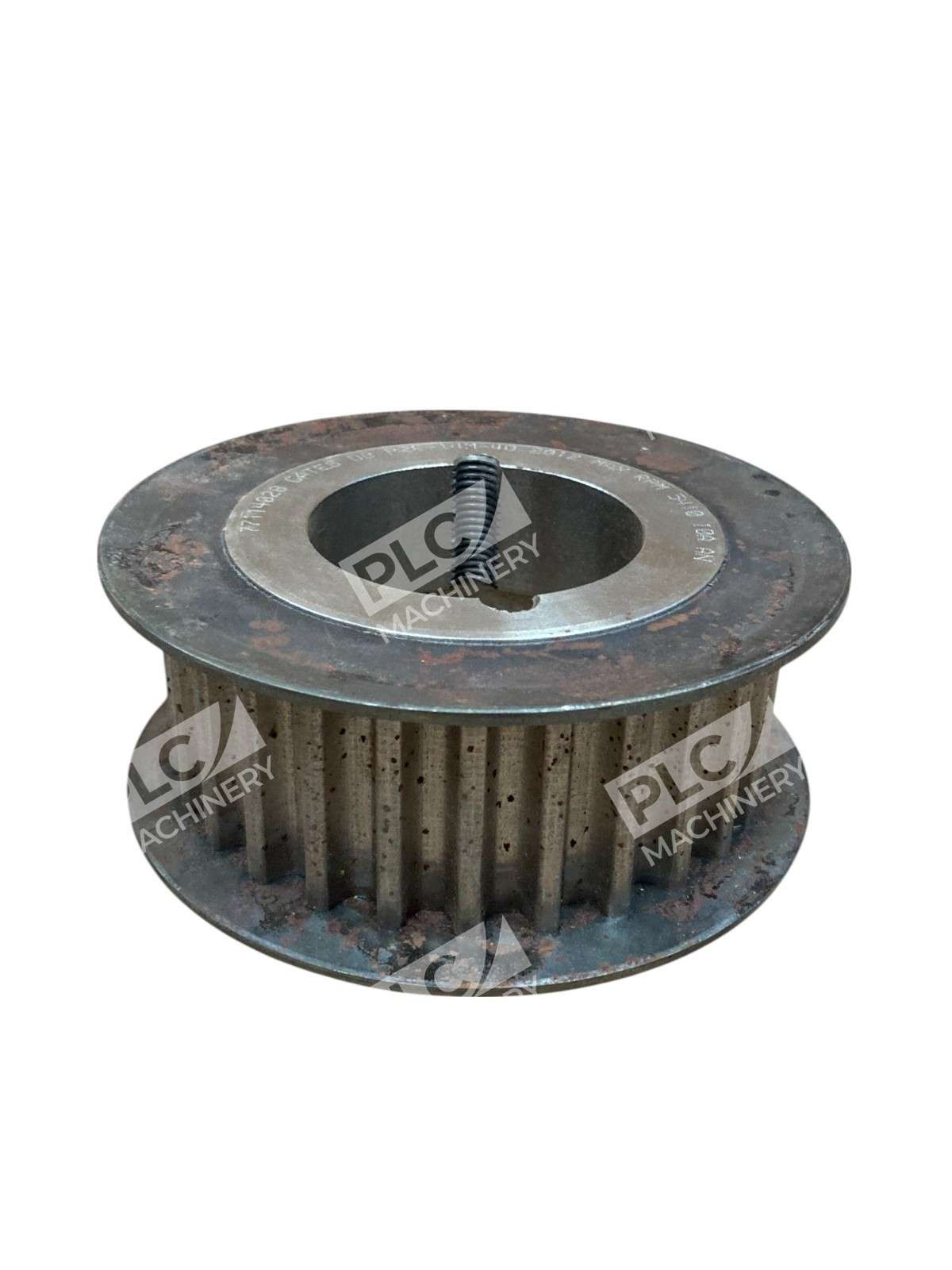

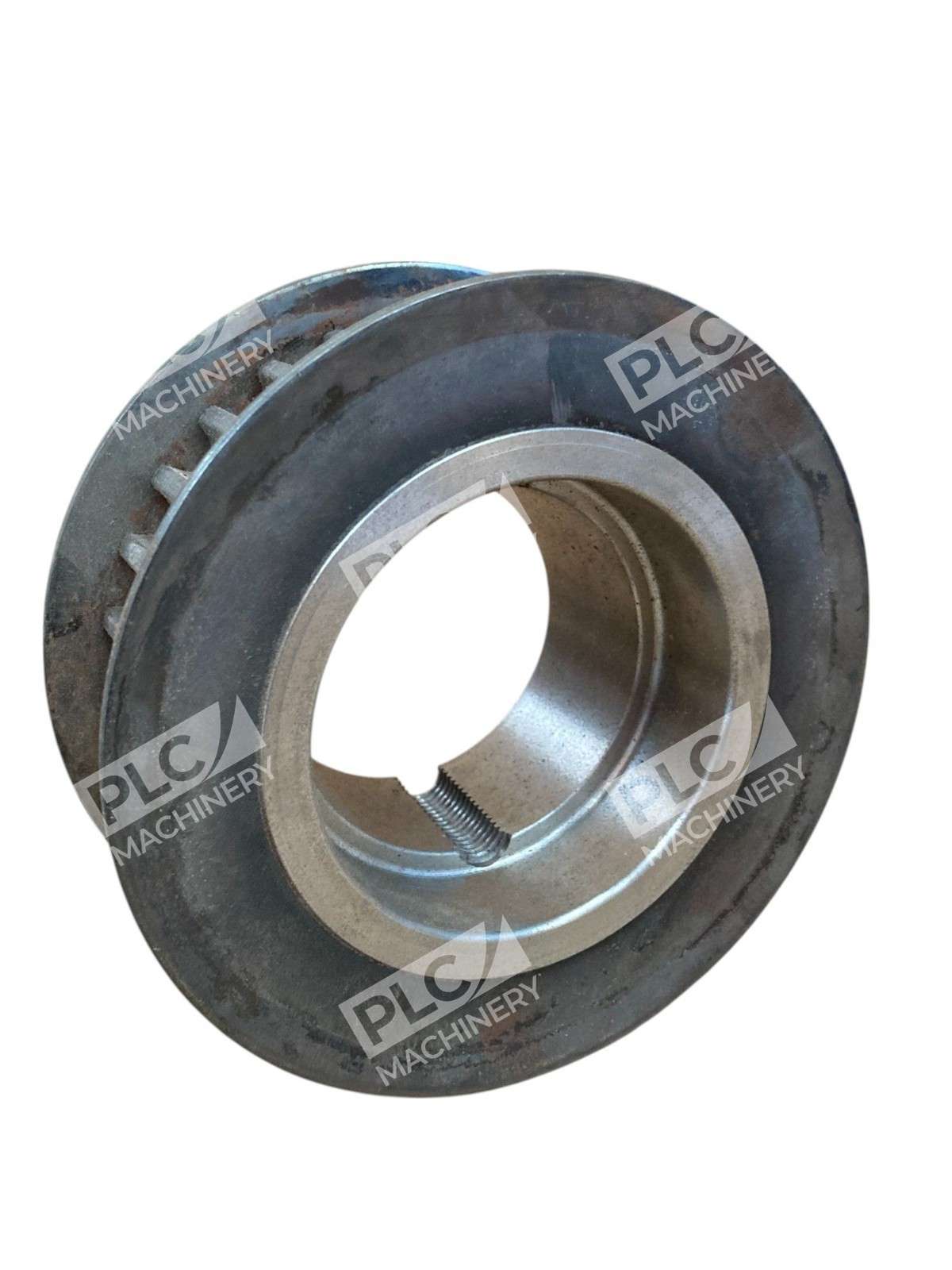

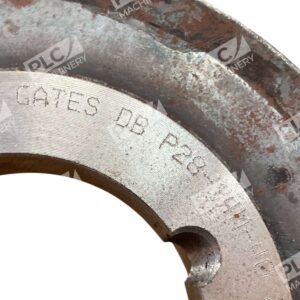

The Gates P28-14MGT-40 is a high-performance PowerGrip GT2 synchronous sprocket engineered for demanding industrial power transmission applications. With 28 grooves, 14mm pitch, and a 2.22 inch face width, this cast iron sprocket accepts a 2012 bushing for flexible shaft mounting. Specially designed for high-torque power transmission applications, the P28-14MGT-40 delivers precise timing and long service life in machinery and automation equipment.
Key Features
- Precision manufactured and static balanced to eliminate sprocket wobble
- Full split in bushing allows easy installation and removal
- Designed to keep the load closer to the bearing and extend reducer life
- Space-saving design reduces shaft space requirements
- Manufactured from high-quality cast iron and machined to exacting specifications to reduce wear and provide maximum reliability
- Precise sprocket design produces positive, press fit to shaft
Technical Specifications
- Number of Teeth: 28
- Belt Pitch: 14mm
- Belt Width: 40mm
- Pitch Diameter: 4.912 inch
- Outside Diameter: 4.808 inch

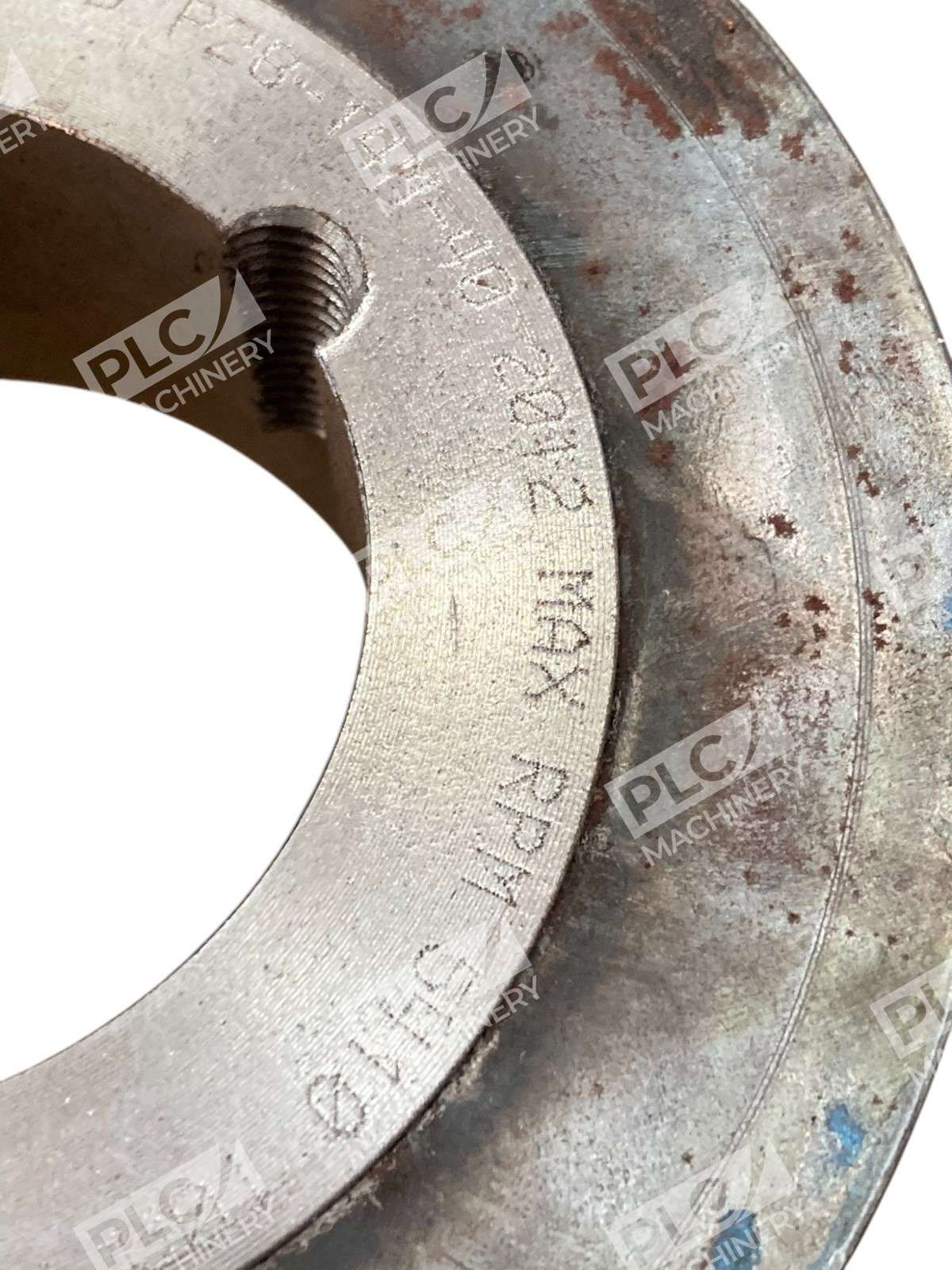

- Bushing Series: 2012
- Bore Range: 1/2 to 2-1/8 inch
- Material: Cast Iron
- Compatible with PowerGrip GT2 and PowerGrip GT belts
Typical Applications
The Gates P28-14MGT-40 is used in a wide range of industrial machinery requiring reliable synchronous belt drive systems. Common applications include packaging equipment, conveyor systems, manufacturing machinery, material handling systems, and precision automation equipment where accurate power transmission and load distribution are critical to continuous operation.
Compatibility & Replacements
Compatible With
- PowerGrip GT2 and PowerGrip GT synchronous belts (40mm width)
- 2012 taper-lock bushings
- Standard industrial shaft mounting applications
- Machinery requiring 14mm pitch synchronous sprockets
Replaces / Drop-In Replacement For

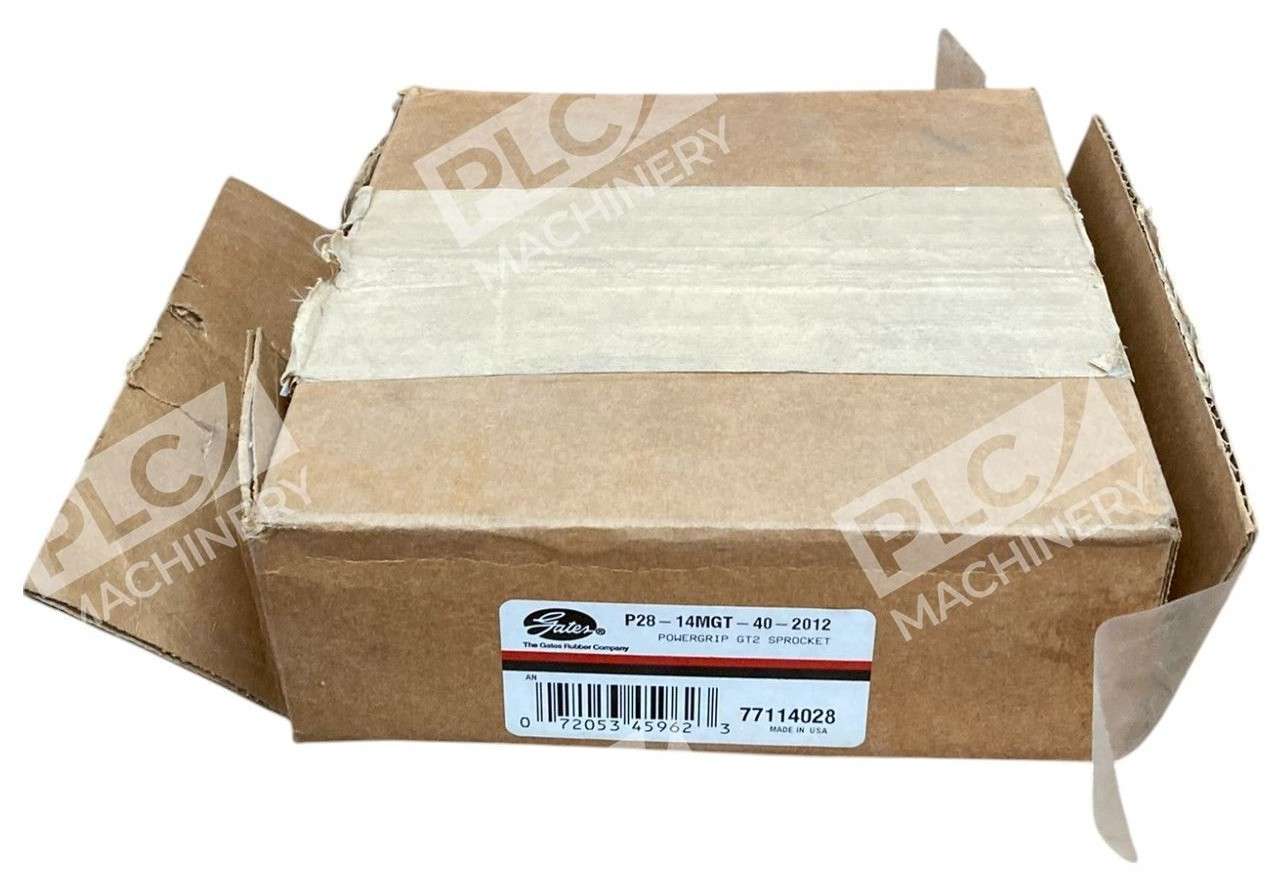

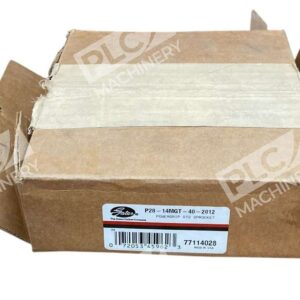

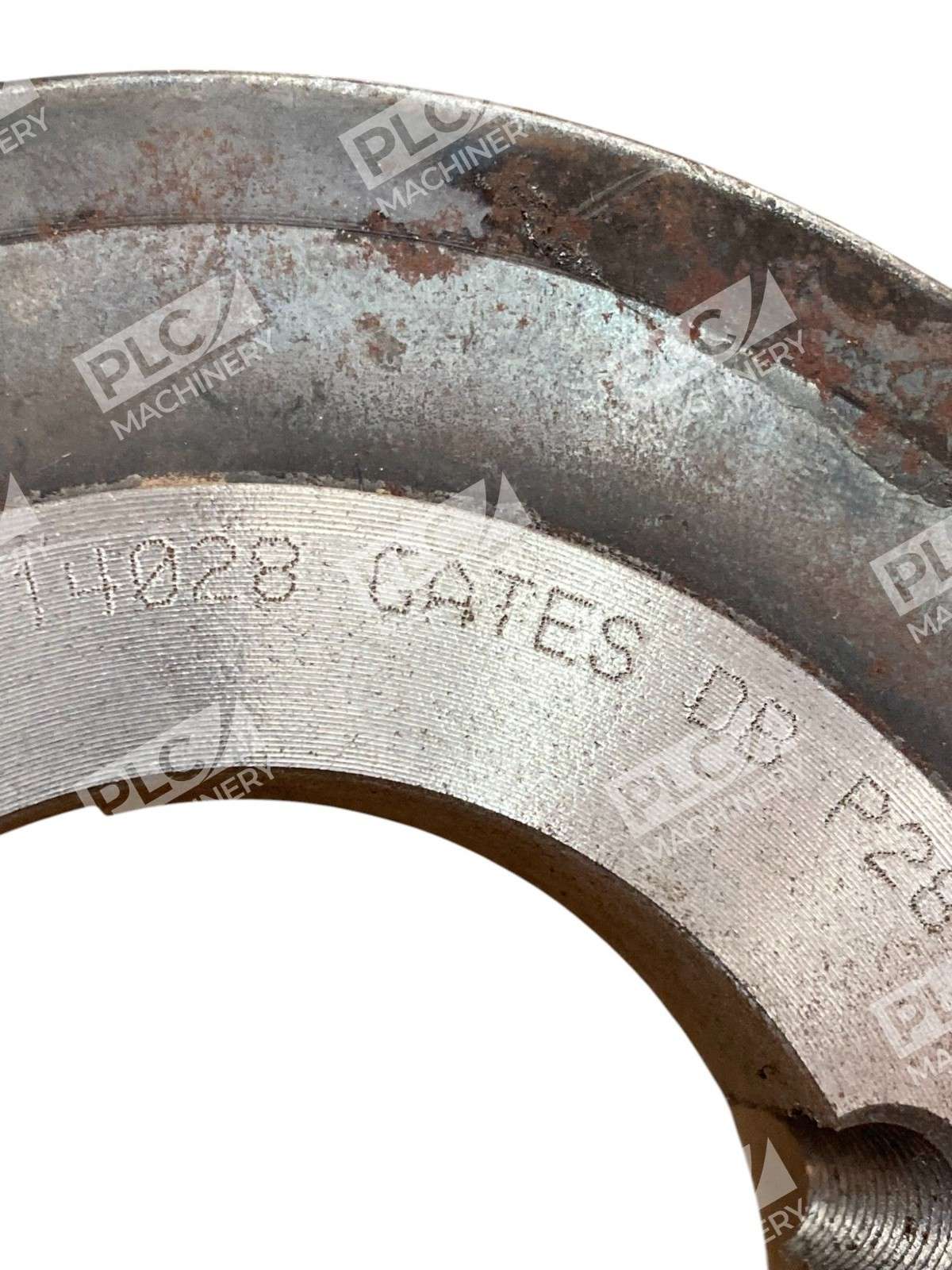

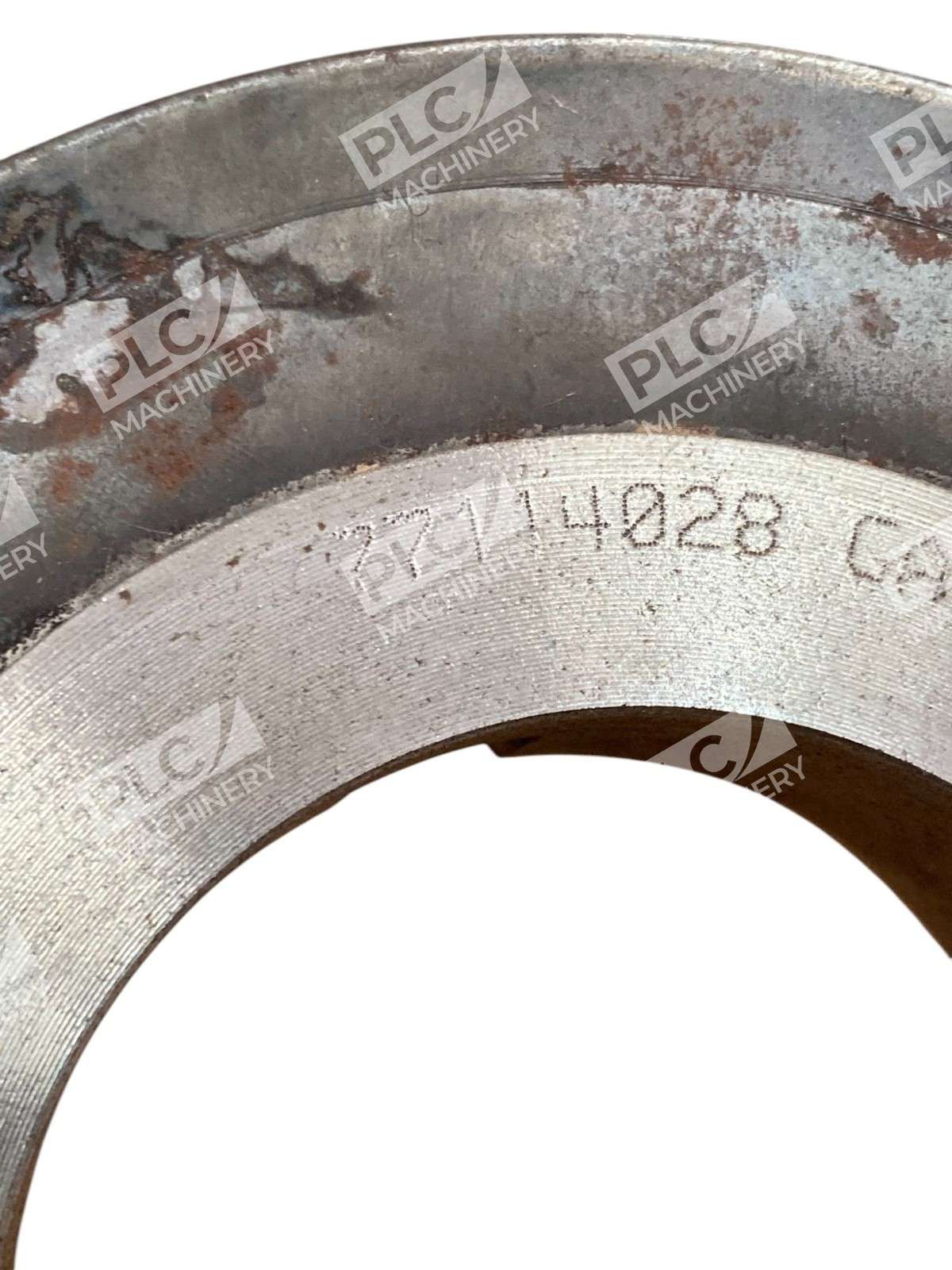

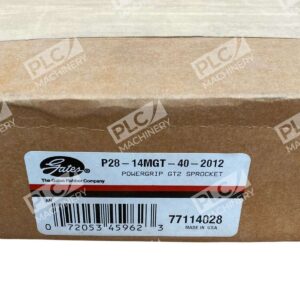

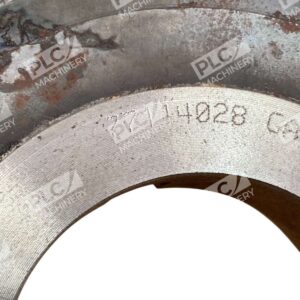

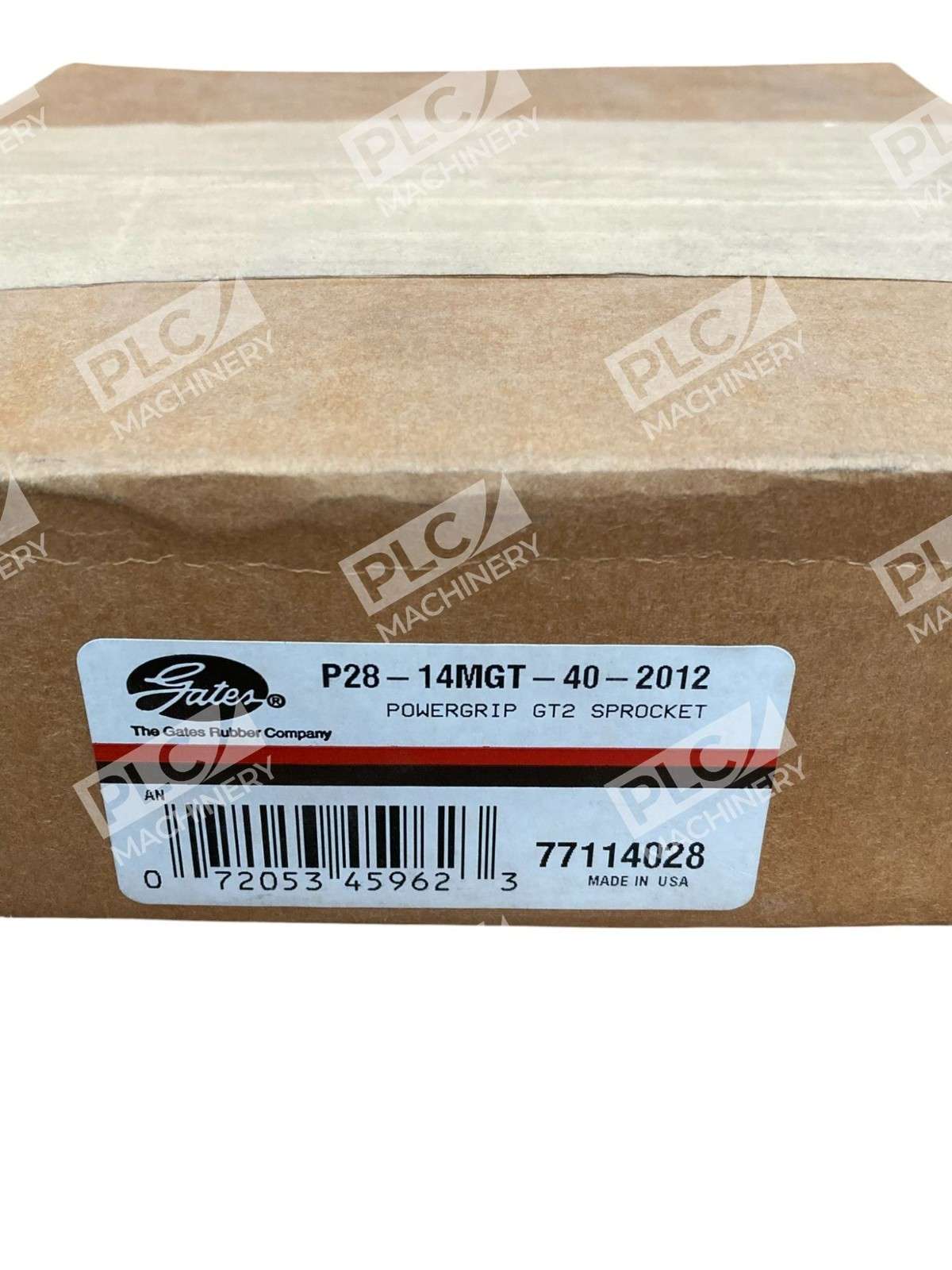

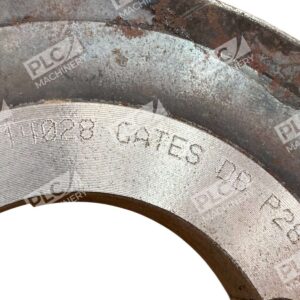

- Gates product ID 77114028 (alternate reference number)
- Other 28-tooth, 14mm pitch PowerGrip GT2 sprockets with 2012 bushing compatibility
Works With
- PowerGrip GT2 belt systems
- 40mm width synchronous belt drives
- Industrial taper-lock bushing mounting systems
- Standard industrial power transmission networks
