Overview

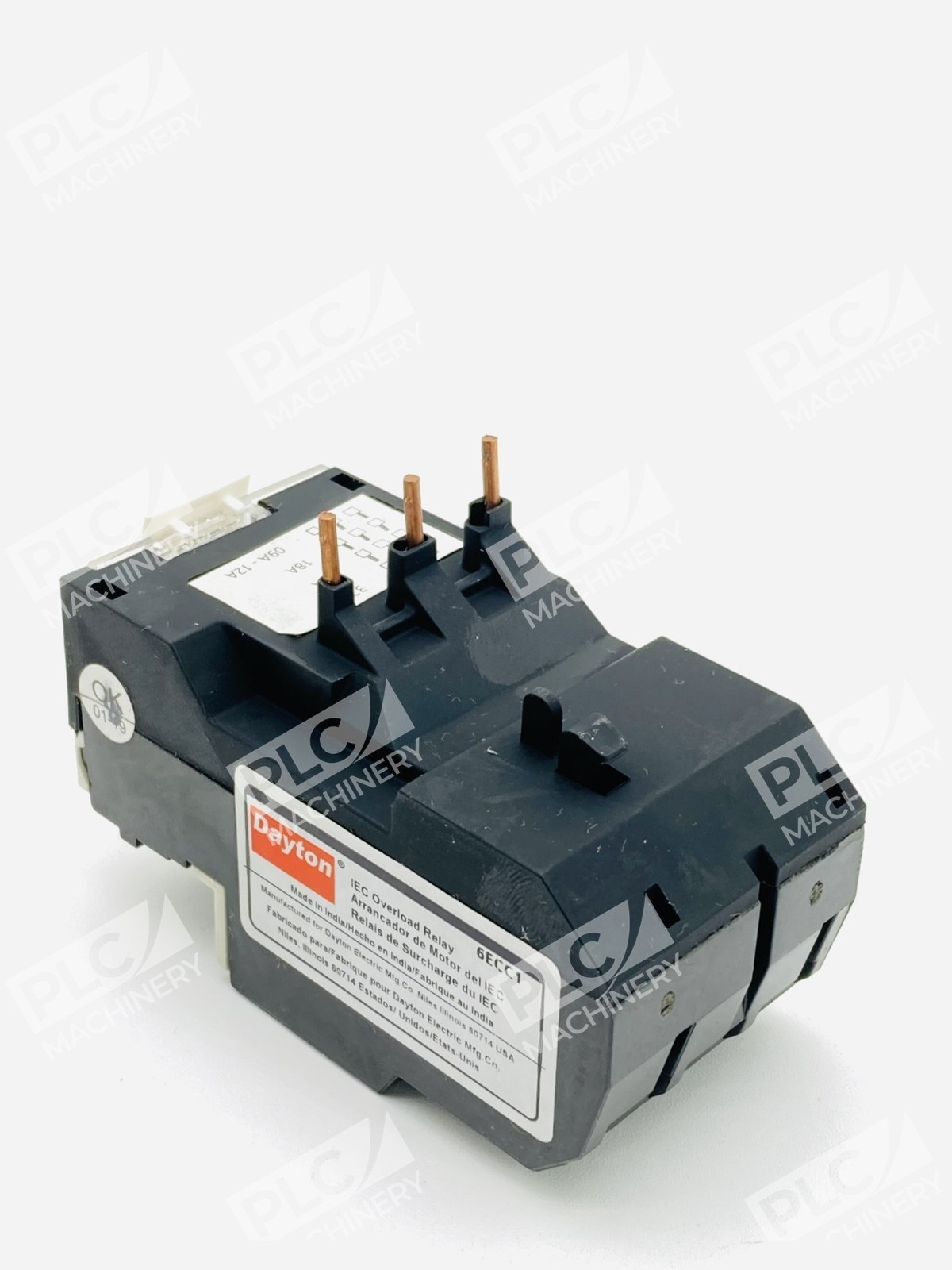

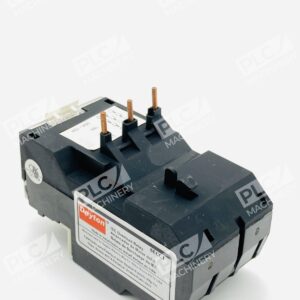

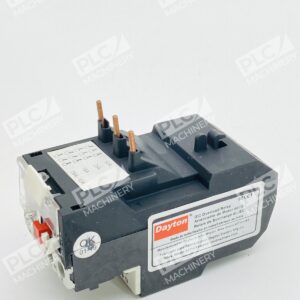

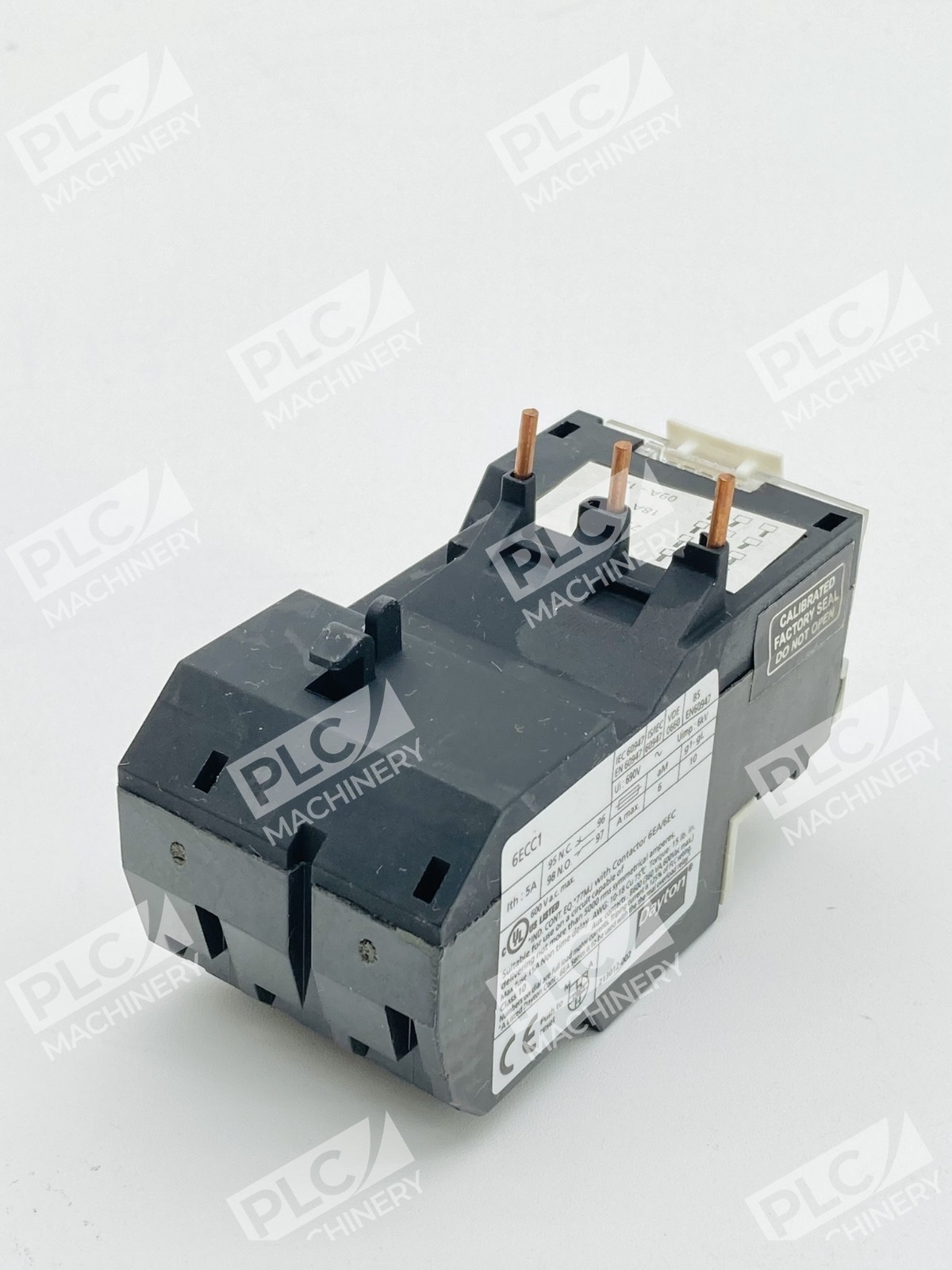

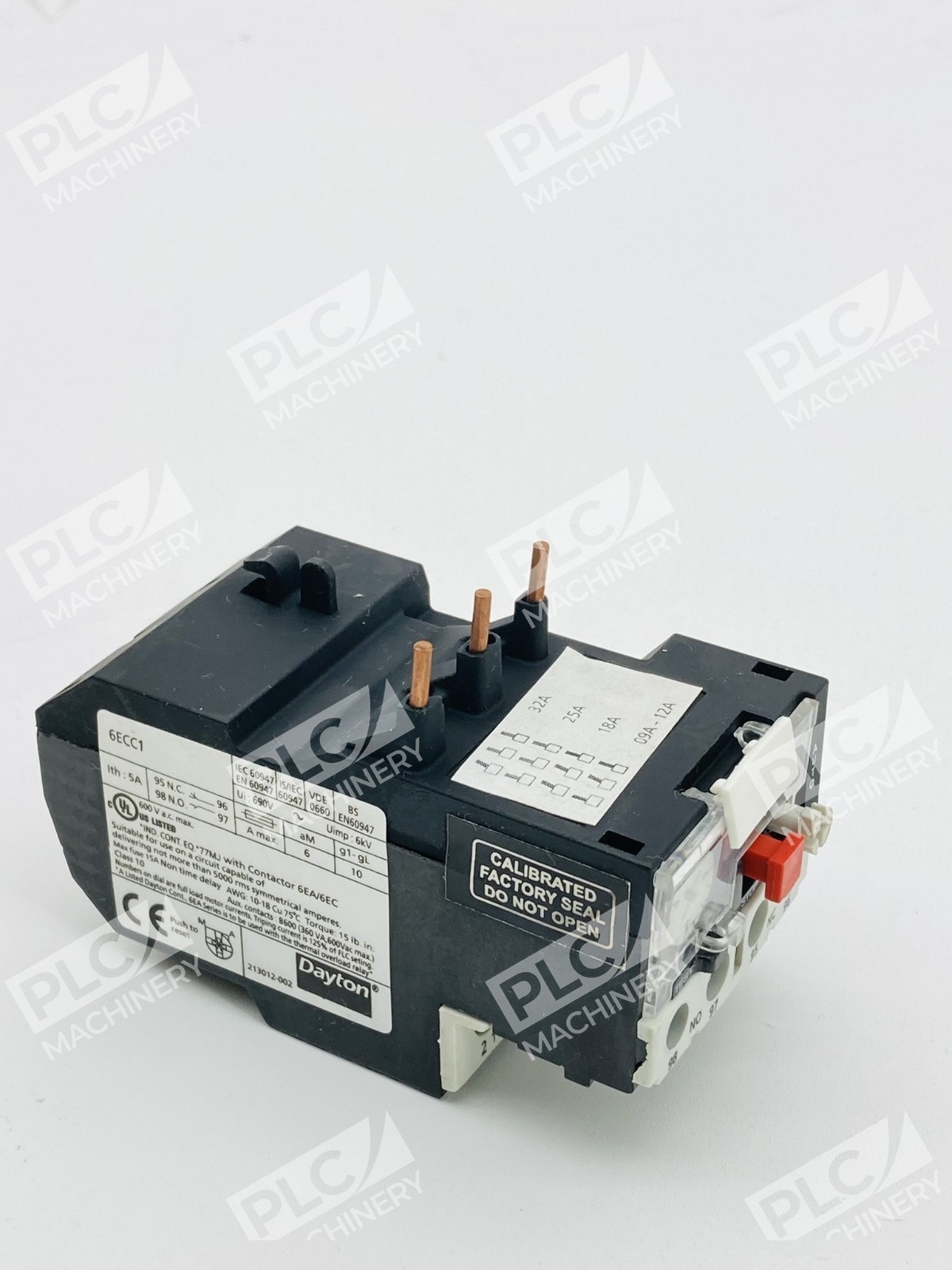

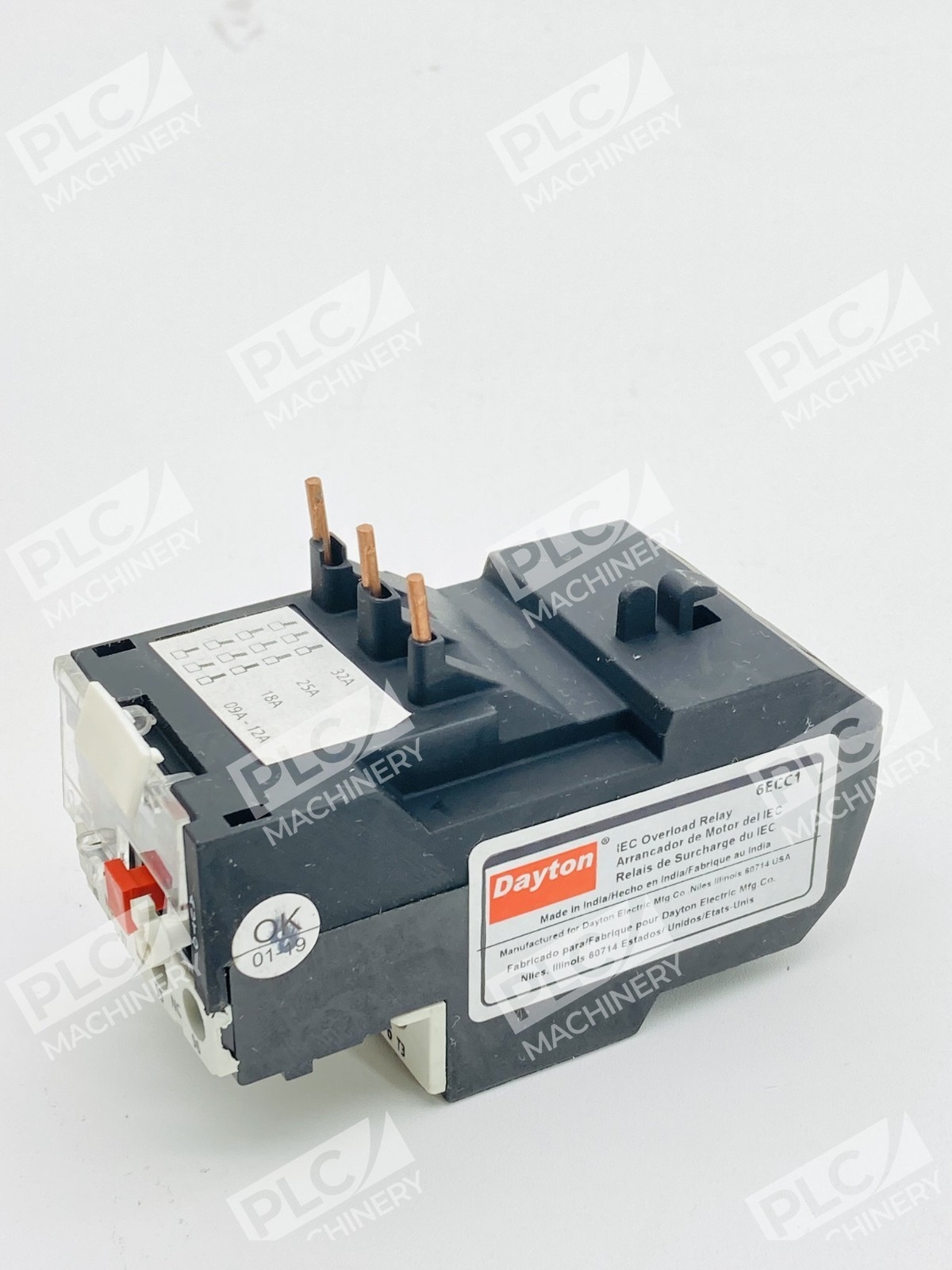

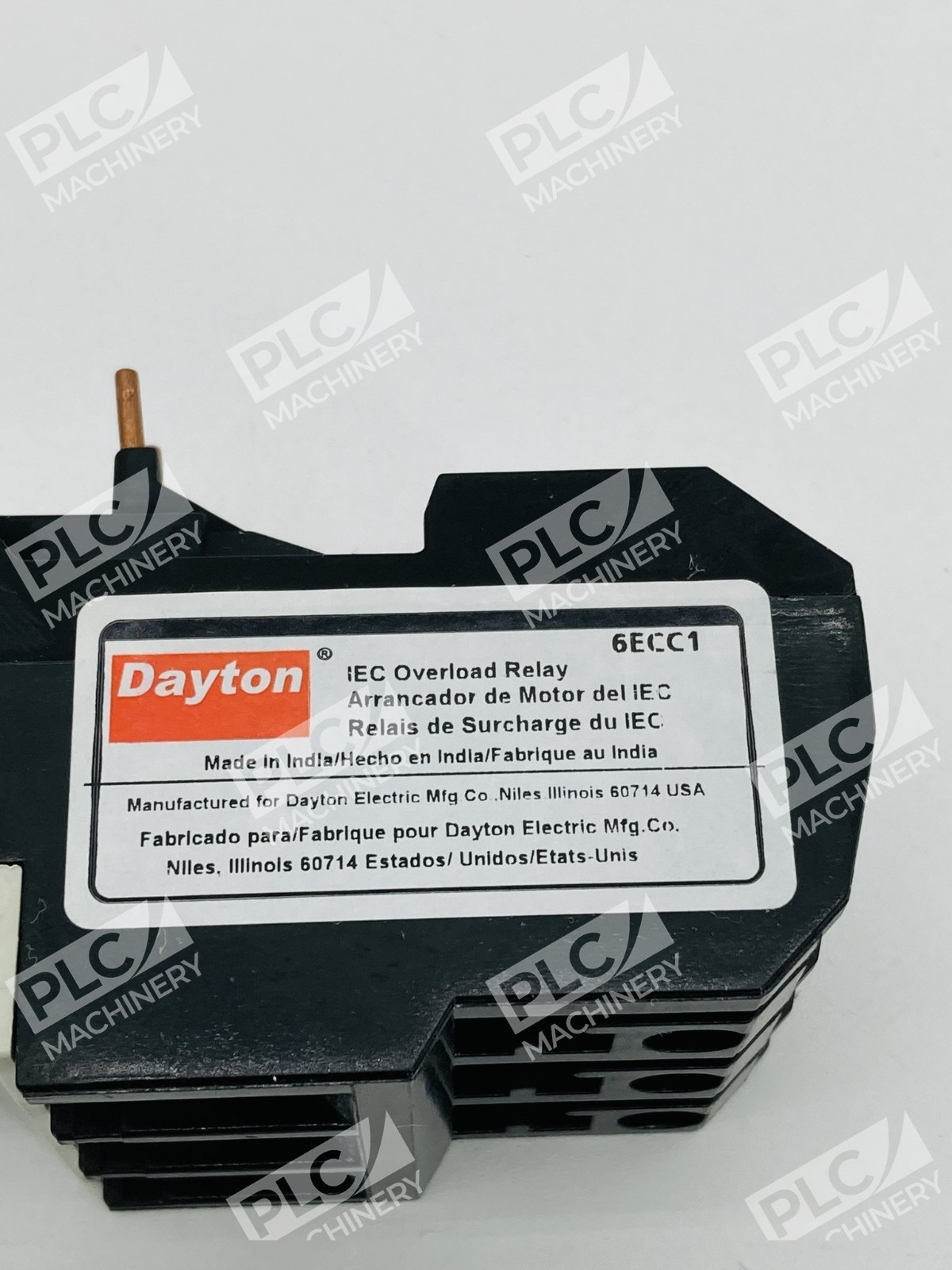

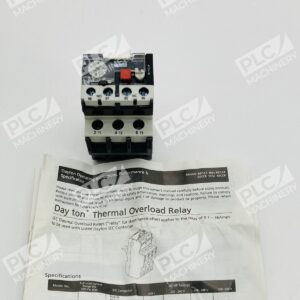

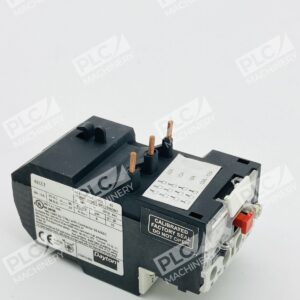

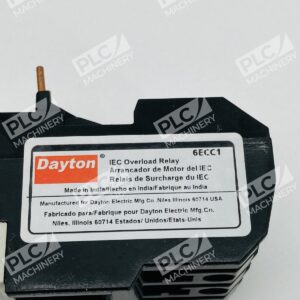

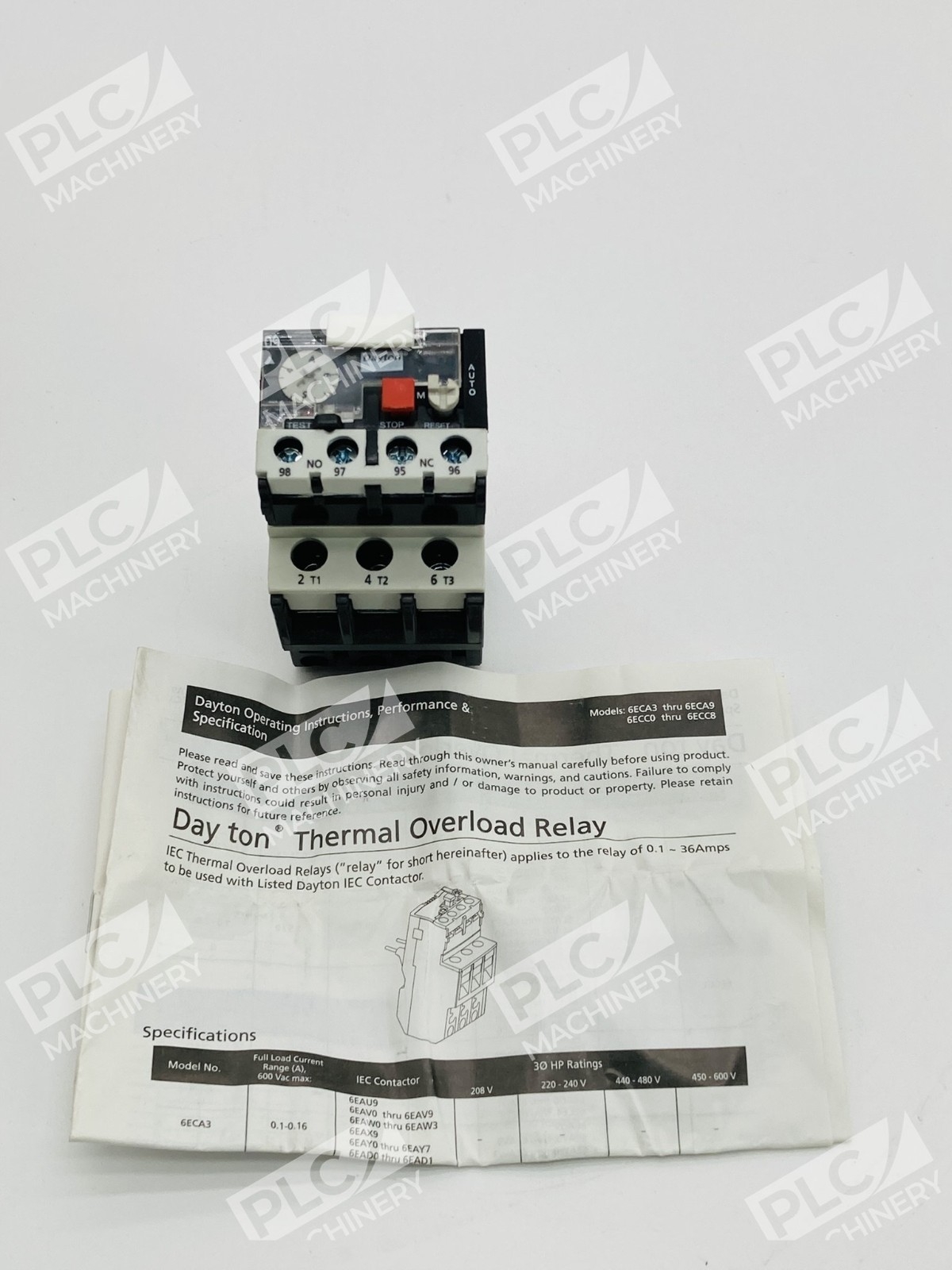

The Dayton 6ECC1 is an IEC-style thermal overload relay designed for three-phase motor protection. With a current range of 4.0–6.0A and Class 10 trip rating, this relay detects motor overload conditions and signals the contactor to break power before damage occurs. It features adjustable current settings, making it suitable for drop-in replacement in existing automation systems.
Key Features
- Bimetallic sensing element — Contains bimetallic strips that bend when current exceeds threshold, breaking the circuit
- Dual reset modes — Manual and automatic reset buttons for flexible operation
- Temperature compensation — Built-in temperature compensation for consistent protection across ambient conditions
- IEC-compatible design — Works with Dayton IEC contactors rated 9 to 18 Amps

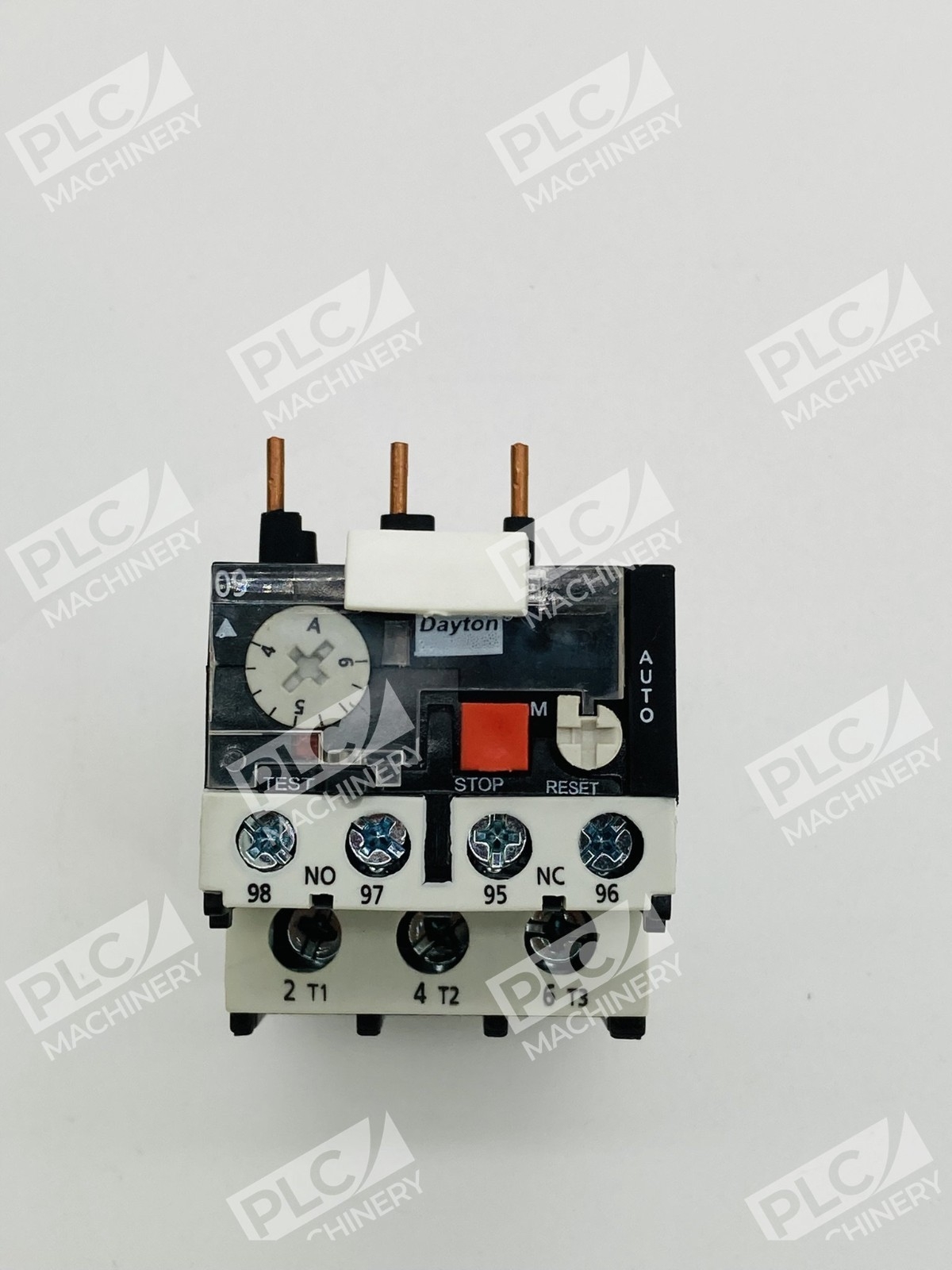

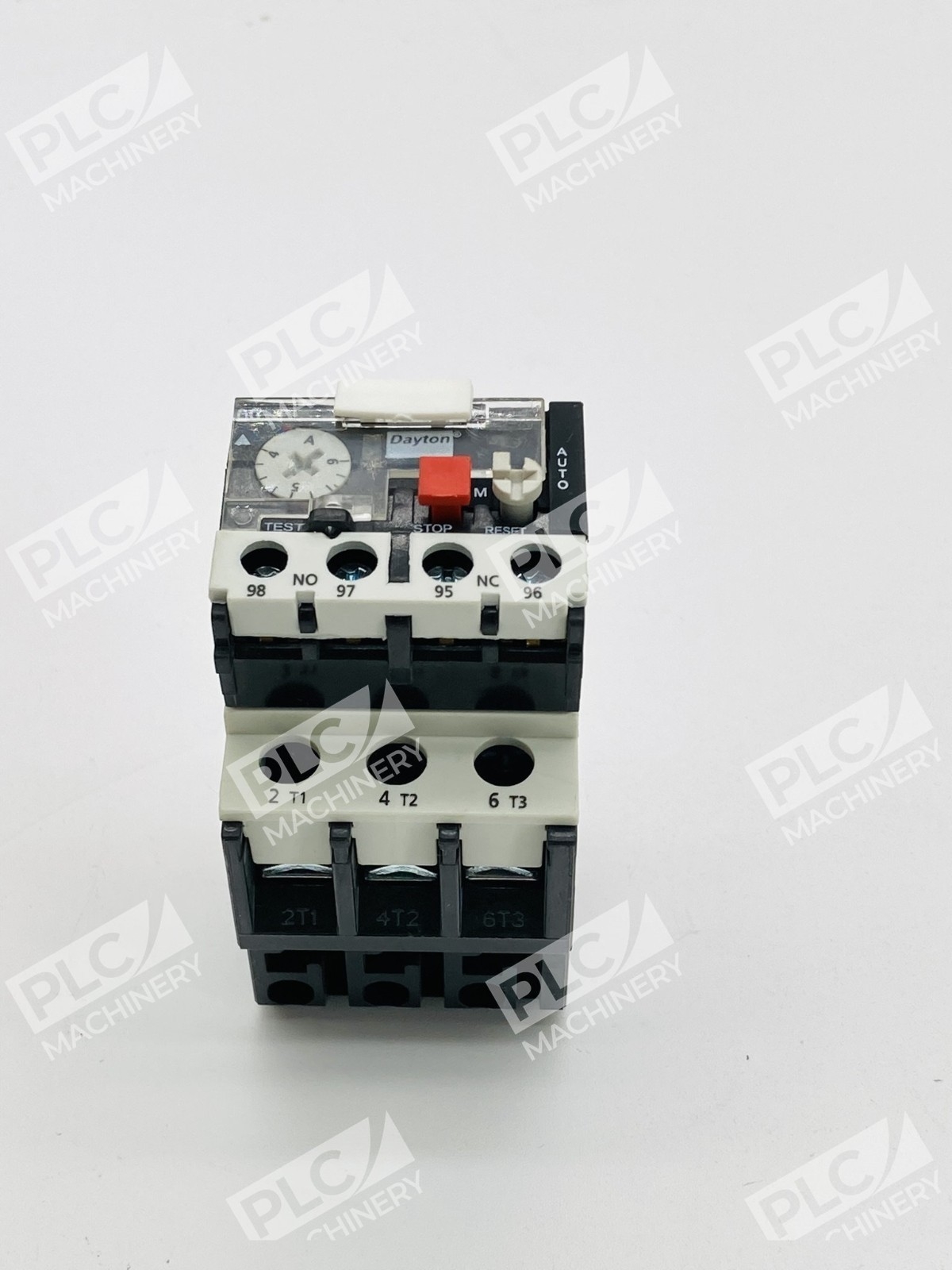

- Safety features — Includes tripped indicator, test button, stop button, and finger-safe terminals
- Certifications — UL and CSA listed

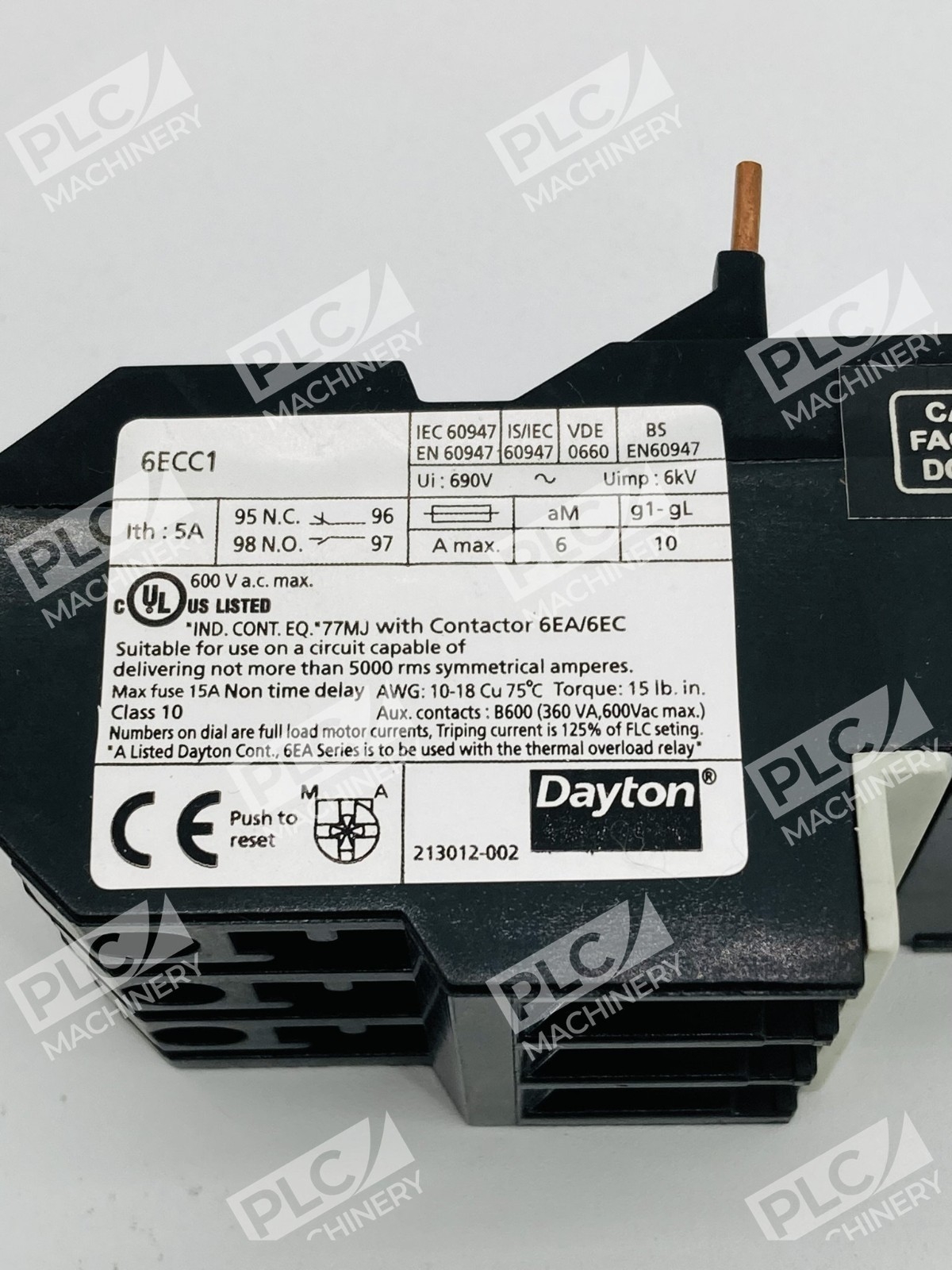

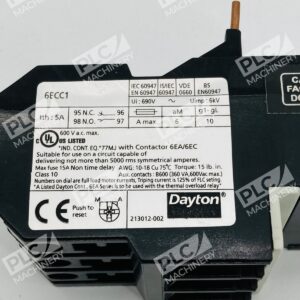

Technical Specifications
Key parameters for the Dayton 6ECC1 thermal overload relay:
- Current range: 4.0–6.0A
- Number of poles: 3
- Trip class: 10
- Reset type: Auto and Manual
- Body dimensions: 1.85″ H × 1.73″ W × 3.62″ D
- Overall height: 2.50″
- Sensing method: Bimetallic
- Continuously readjustable current settings
- 1NO/1NC auxiliary contacts
Typical Applications
The Dayton 6ECC1 is ideal for:
- Three-phase motor protection in industrial and commercial equipment
- HVAC systems, pump controls, and conveyor drives
- OEM machine tool and automation systems requiring IEC-compatible overload protection
- Retrofit installations where drop-in replacement is needed
Compatibility & Replacements
Compatible With
- Dayton IEC contactors rated 9 to 18 Amps
- IEC 60947-4-1 compliant motor starters and contactors
- Three-phase AC motor systems
- DIN rail and panel-mount configurations
Replaces / Drop-In Replacement For
The 6ECC1 directly replaces other Dayton thermal overload relays in the same current range and mounting class. Verify compatibility with your system integrator before ordering if replacing units from other manufacturers.
Works With
- IEC contactors (9–18A range)
- Manual and automatic reset circuits
- Three-phase control systems per IEC 60947-4-1
- Standard industrial push-button and selector-switch control stations
