Overview

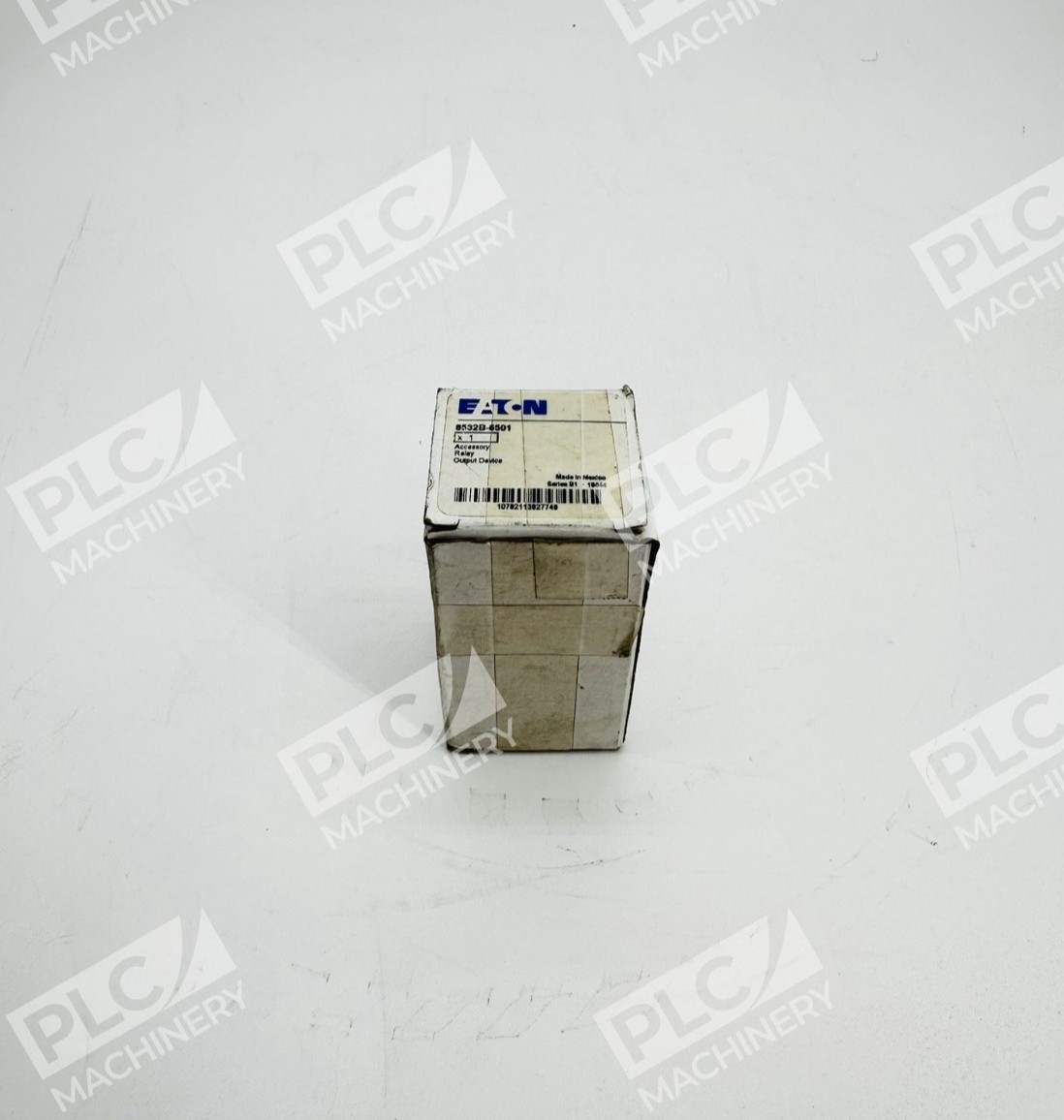

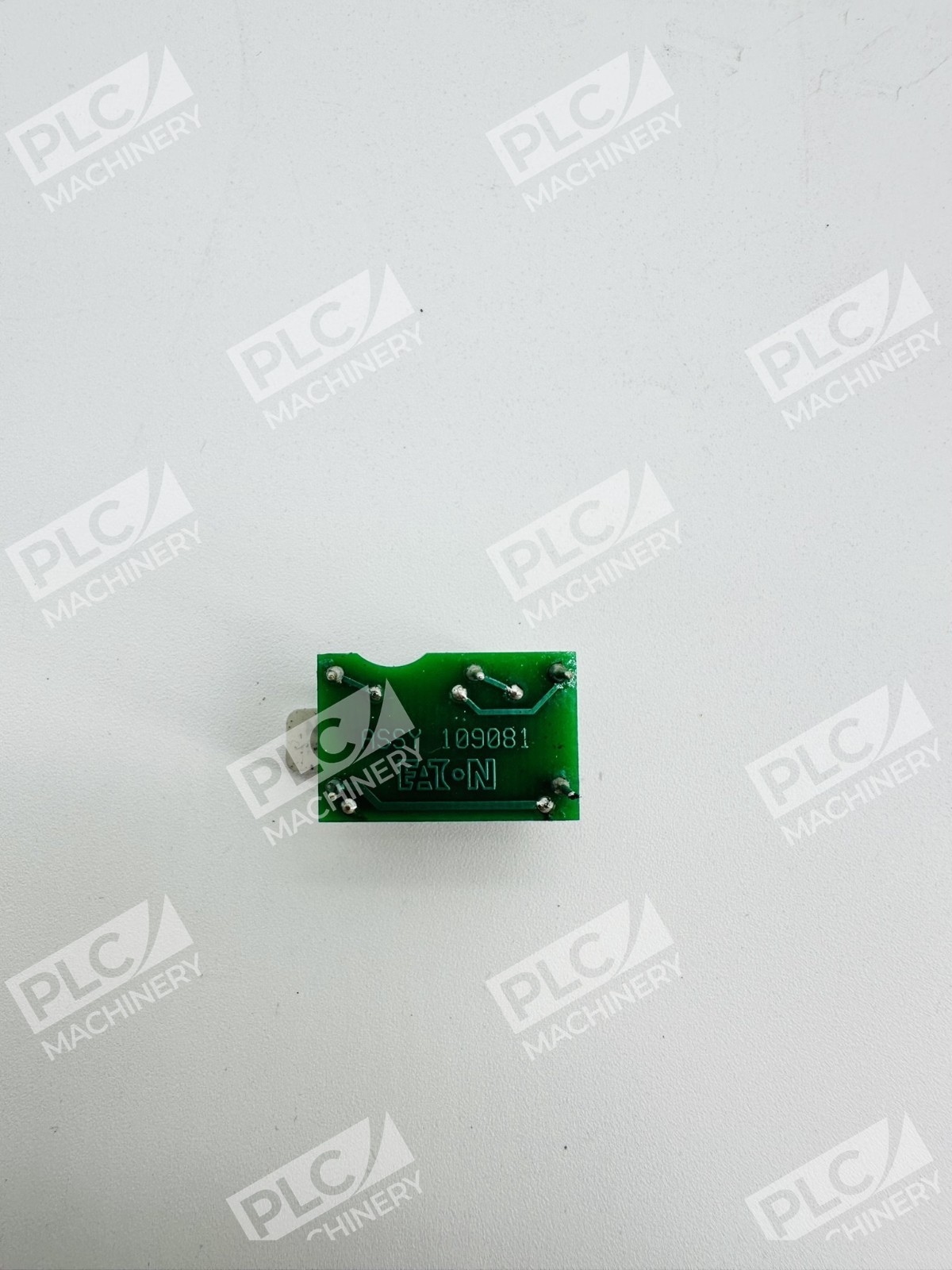

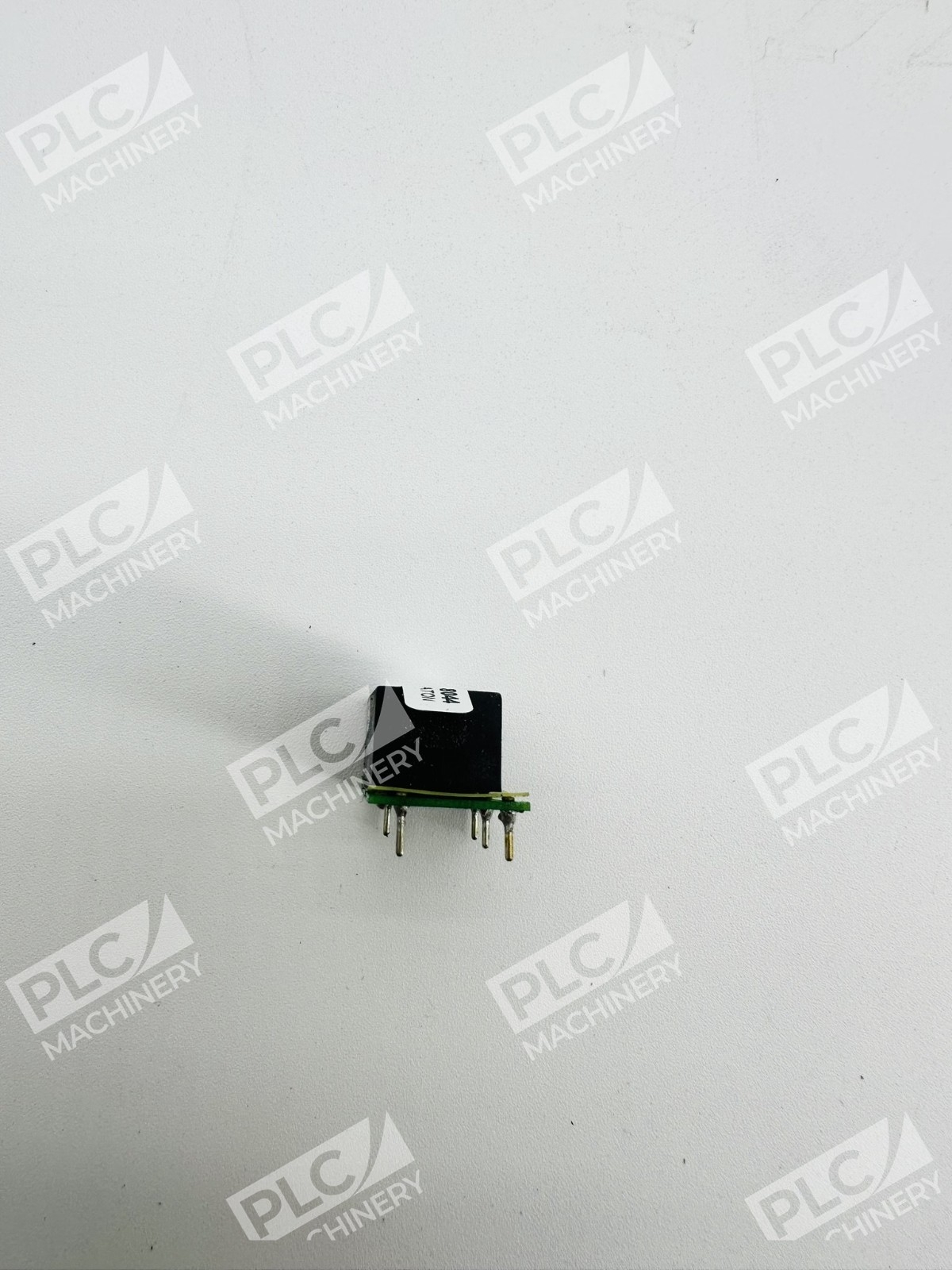

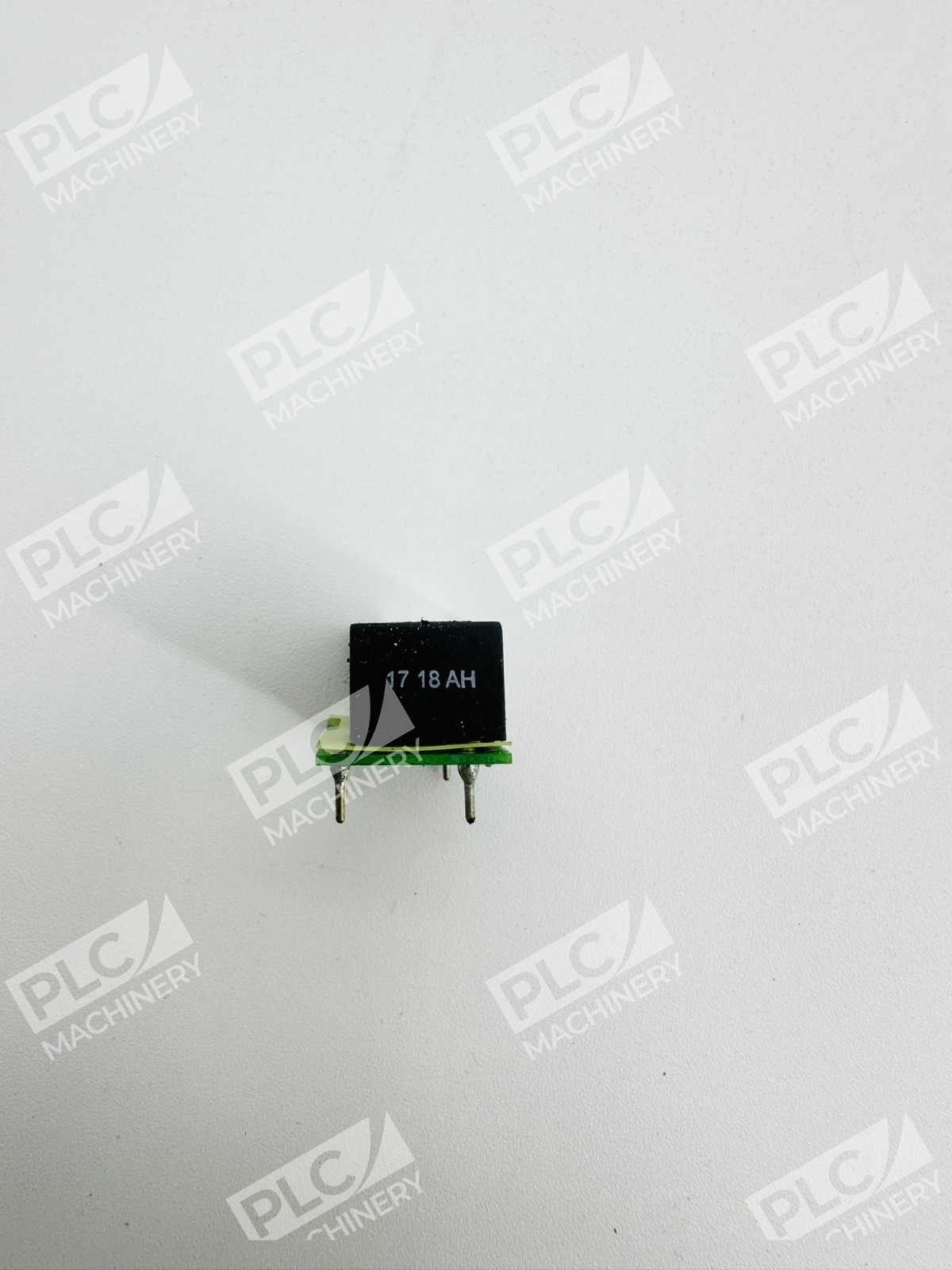

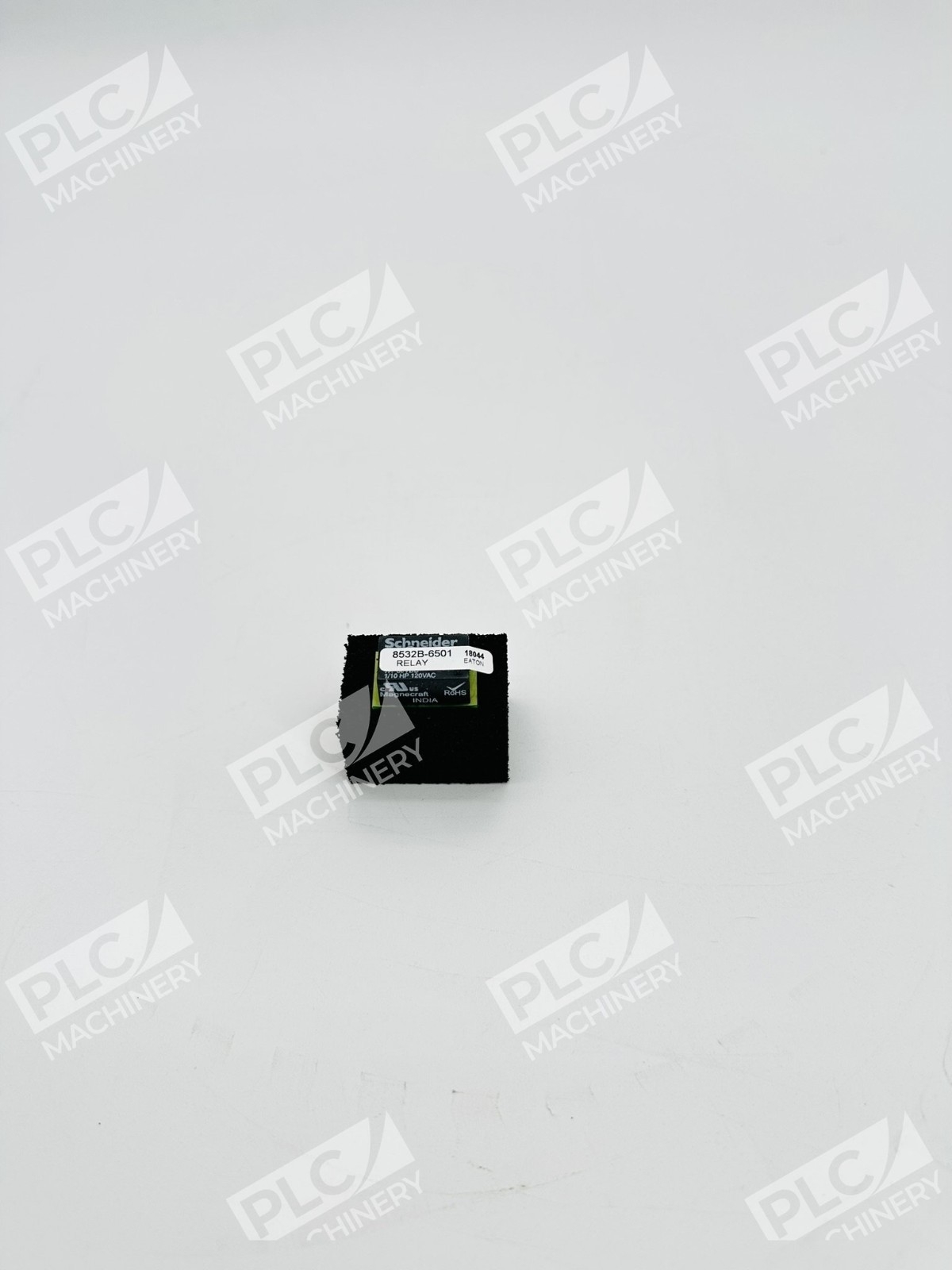

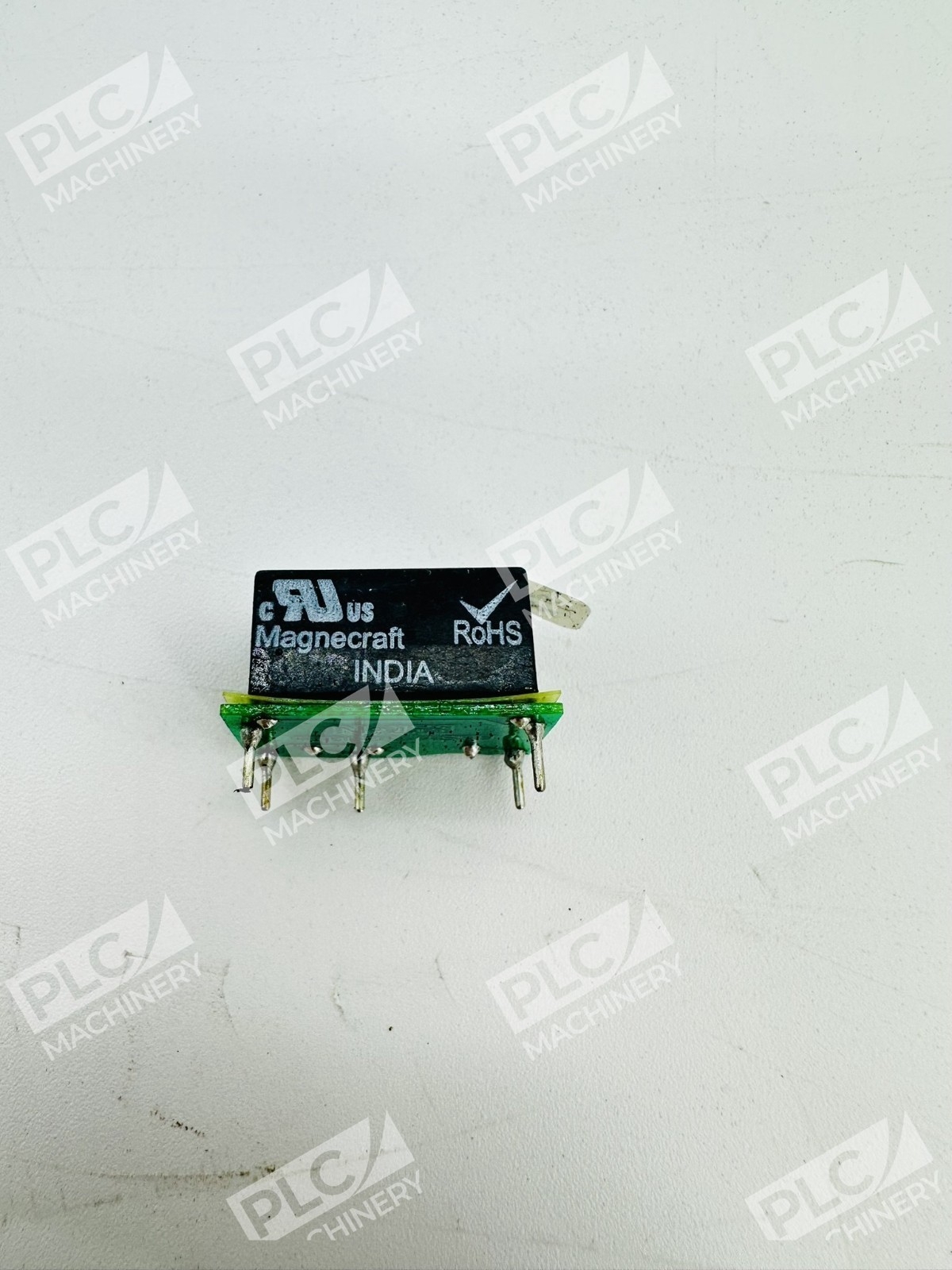

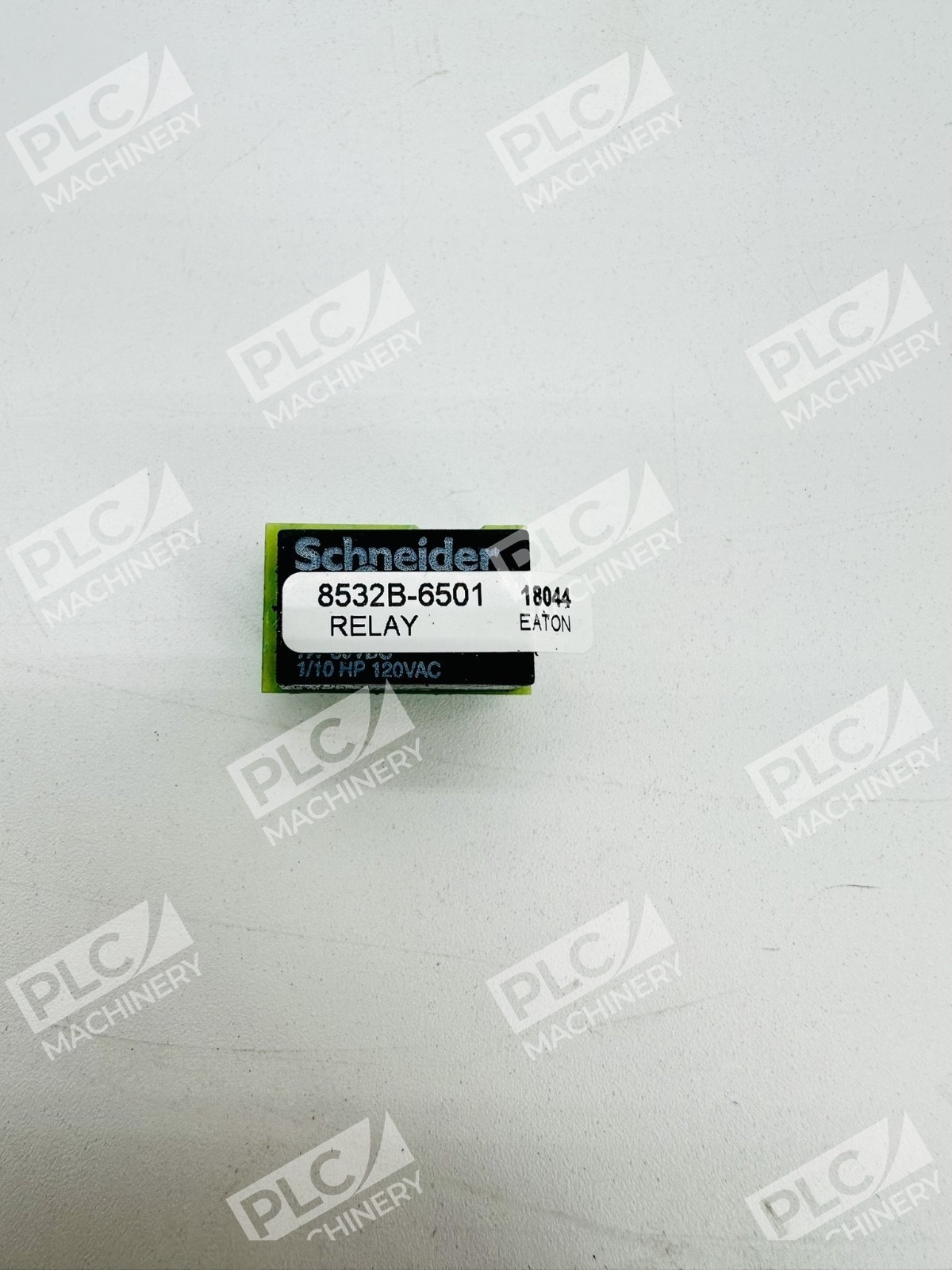

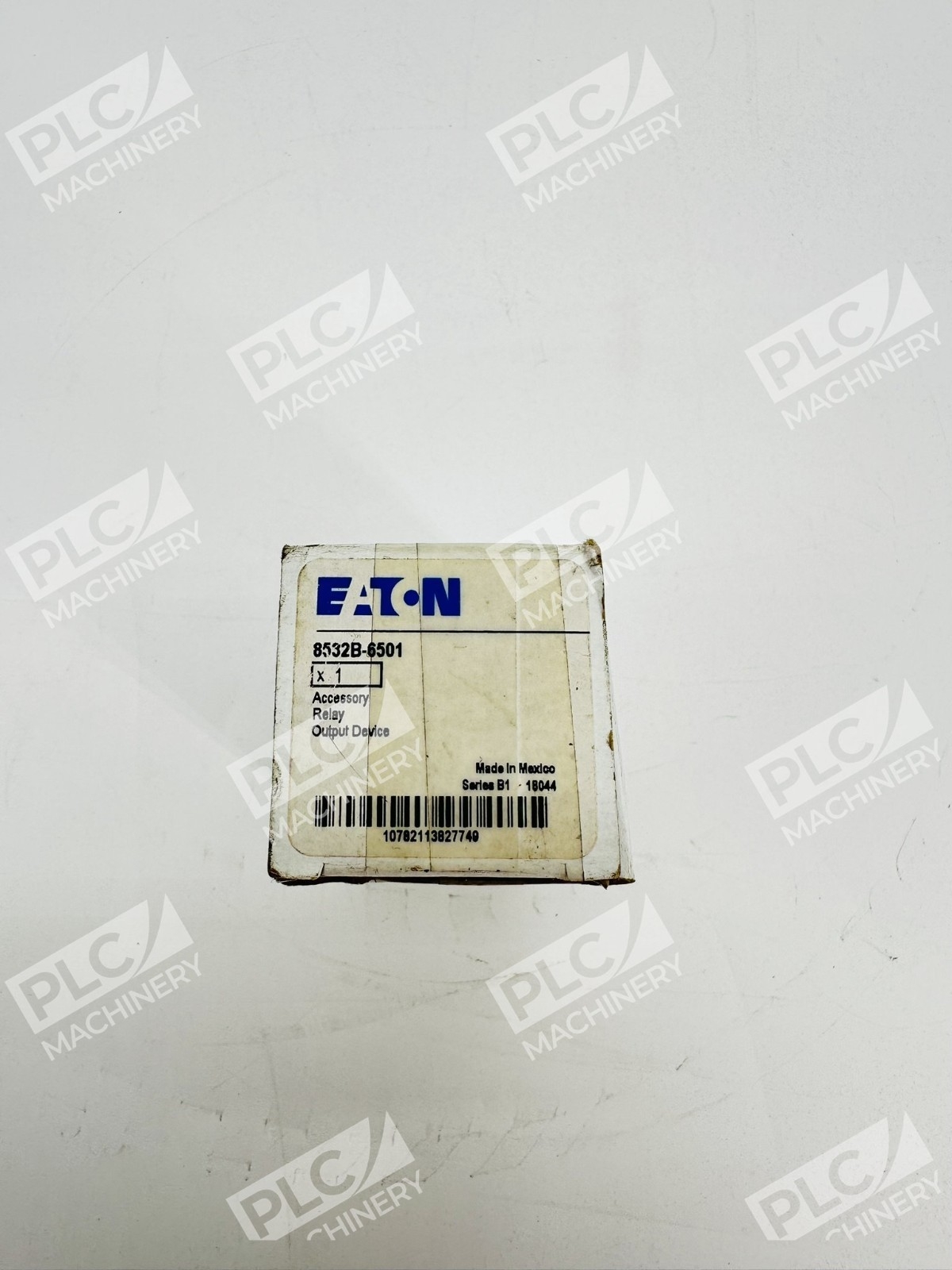

The Eaton 8532B-6501 is a high-reliability relay output device from the 50 Series line. This Eaton 8532B-6501 unit functions as a plug-in relay accessory for industrial control panels, sensor systems, and automation applications where low-frequency switching of control power loads is required. With its SPDT (Single Pole Double Throw) Form C contact configuration, the relay provides proven performance in demanding industrial environments.
Key Features
- SPDT (Form C) relay contact configuration for flexible switching control
- Rated for 2A at 115V—suitable for standard industrial control voltages
- Plug-in design using industry-standard 50 Series socket, enabling quick installation and replacement
- Compact footprint reduces panel space requirements
- Reliable mechanical operation for repetitive duty cycles
Technical Specifications
- Part Number: 8532B-6501
- Manufacturer: Eaton Cutler-Hammer
- Series: 50 Series
- Contact Configuration: SPDT (Form C)
- Current Rating: 2A
- Voltage Rating: 115V
- Type: Plug-In Output Device Relay
- Mounting: Standard socket mount (50 Series)
Typical Applications
- Photoelectric sensor output devices in industrial automation systems
- Control relay circuits requiring switching of low-power loads
- Machine tool control panels and equipment interconnects
- General-purpose industrial control and monitoring systems
Compatibility & Replacements
Compatible With
- Eaton 50 Series socket-mounted relay systems
- Eaton Cutler-Hammer control relays and timer bases
- Industrial control panels using standard relay mounting configurations
- Photoelectric sensors designed for 50 Series output devices
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator or reference original equipment documentation before ordering as a direct replacement.
Works With
- Standard industrial electrical control systems
- DIN rail and panel-mount relay socket installations
- Low-frequency general-purpose load switching applications
- Sensor-based automation and control logic circuits
