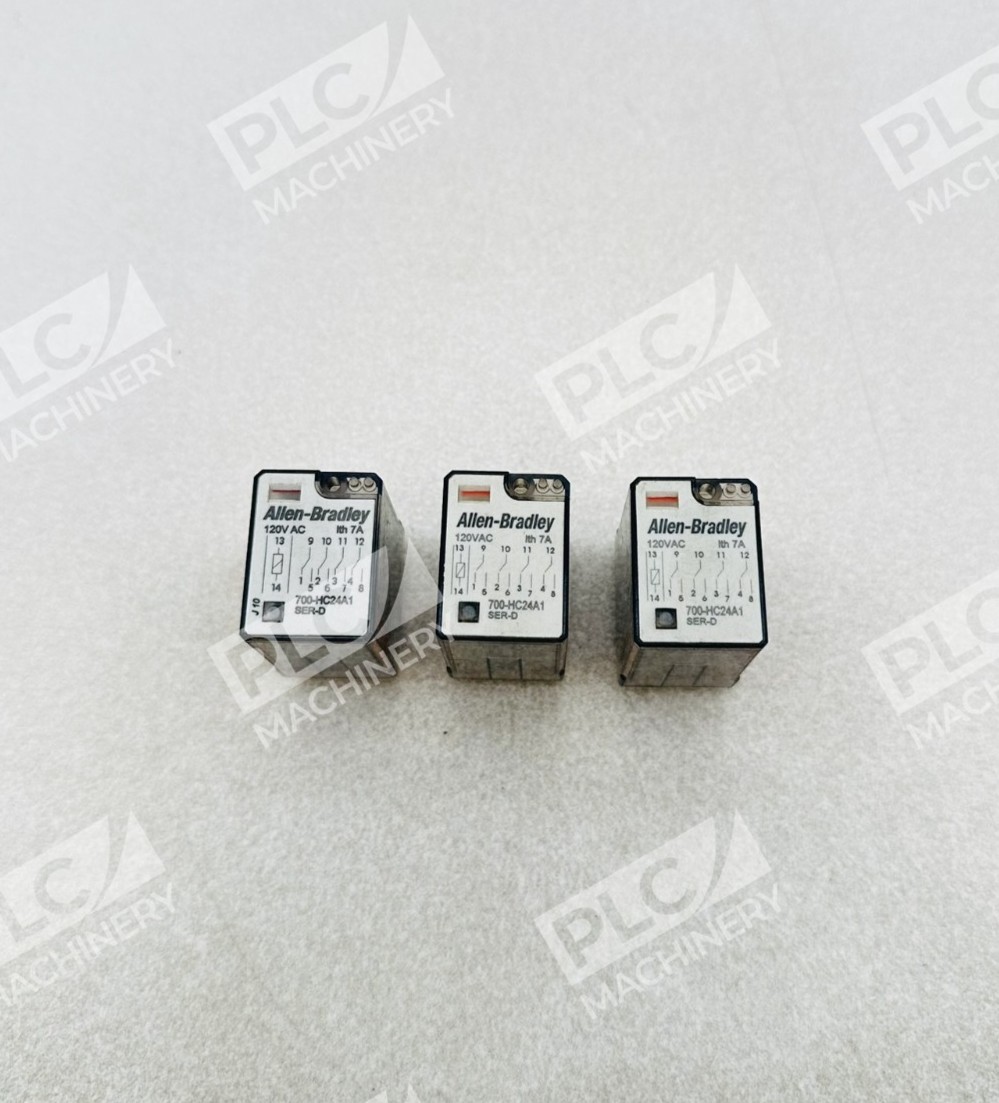

Overview
The Allen-Bradley 700-HC24A1 is a miniature ice cube relay engineered for general-purpose switching applications in industrial control circuits. This 4PDT (4-pole, double-throw) relay operates on 120V AC 50/60Hz control voltage and delivers reliable performance in relay logic, motor control, and automation systems. The compact ice cube form factor fits standard relay sockets for easy installation and replacement in existing control panels.
Key Features
- 4-pole, double-throw (4PDT) contact arrangement providing four independent changeover contact sets
- 7-amp contact rating with silver contacts for dependable electrical continuity
- 120V 50/60Hz coil voltage for standard industrial AC supply
- Low-energy coil design (10V, 10mA minimum pickup)
- On/off flag indicator for visual status confirmation

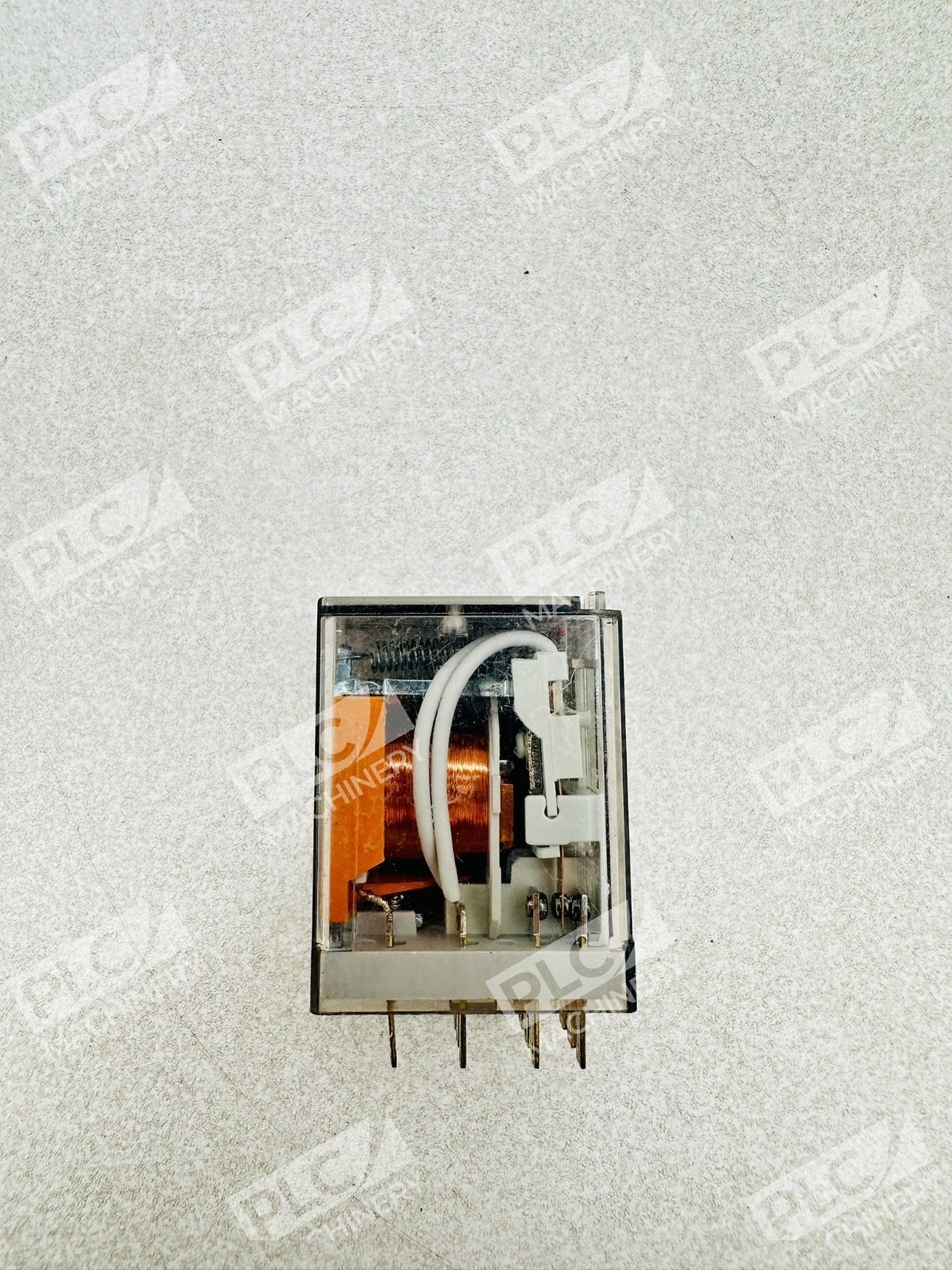

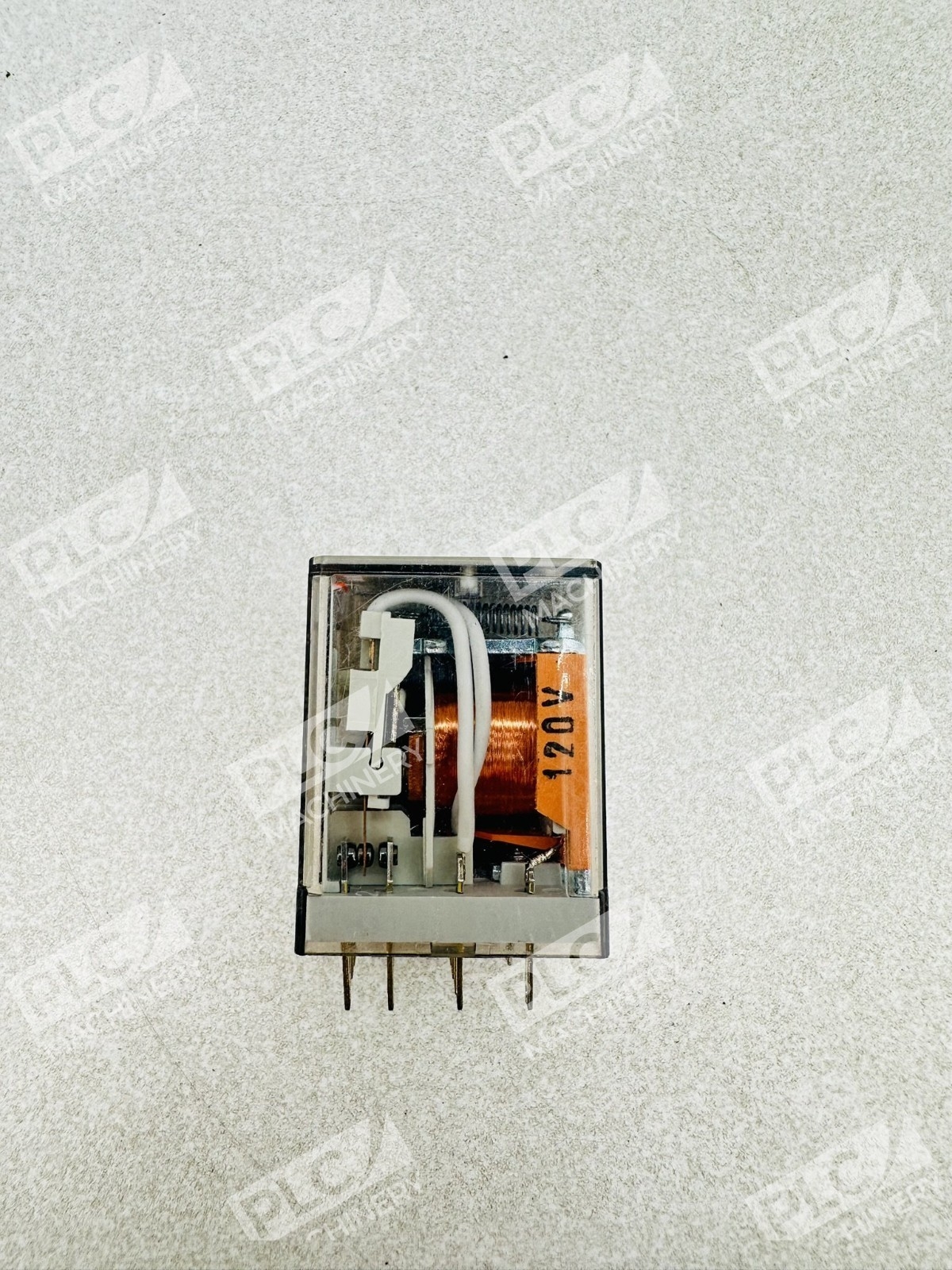

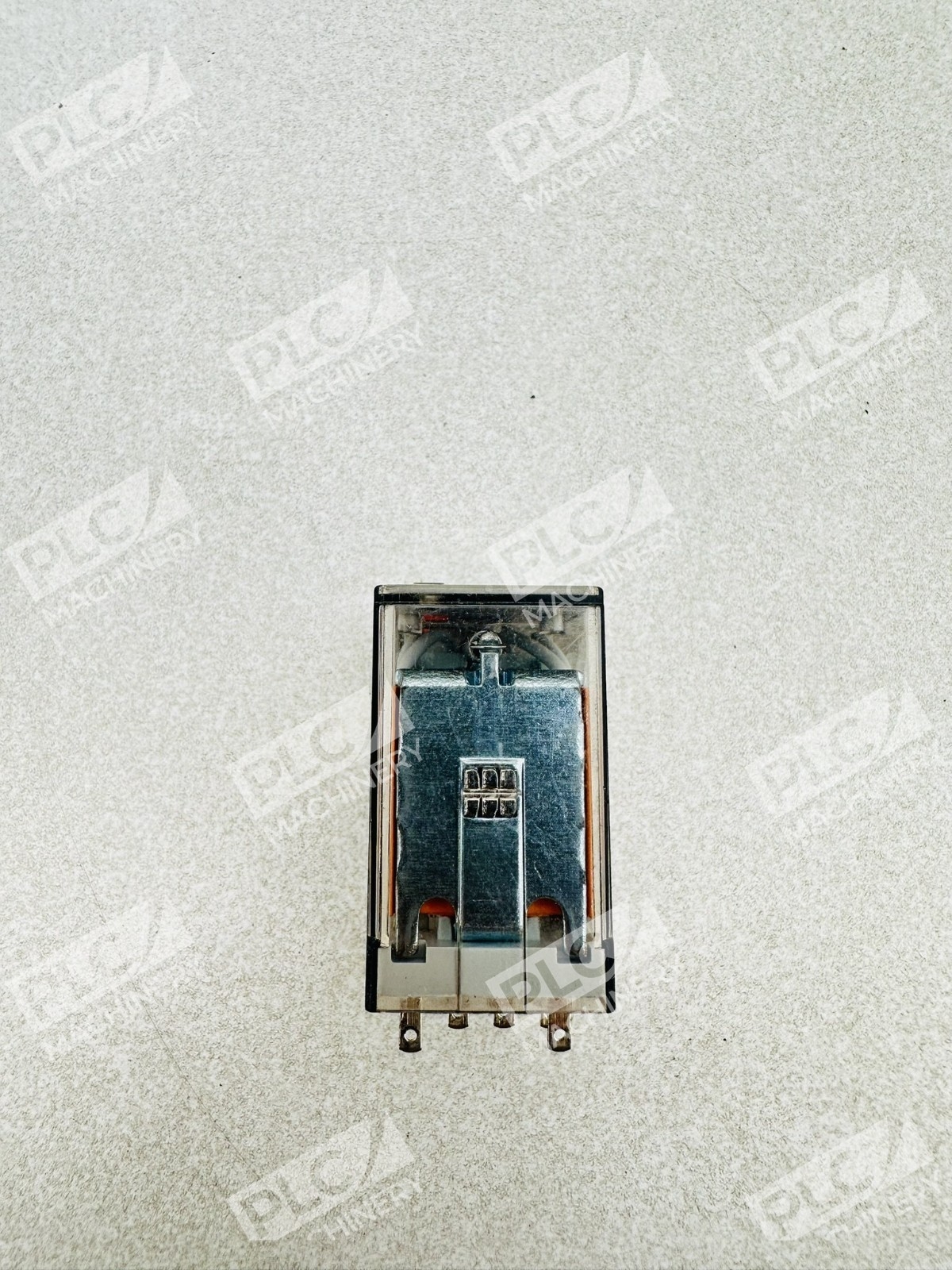

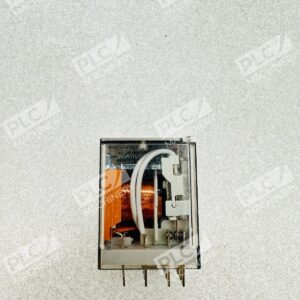

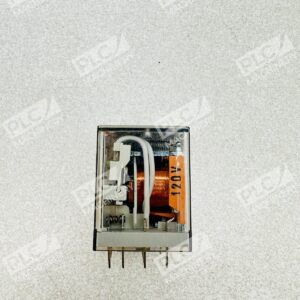

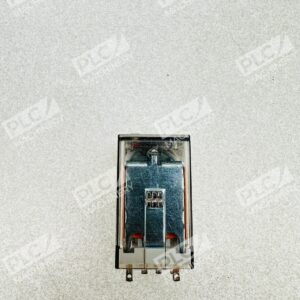

- Clear polycarbonate cover permits visual inspection of contacts and flag mechanism

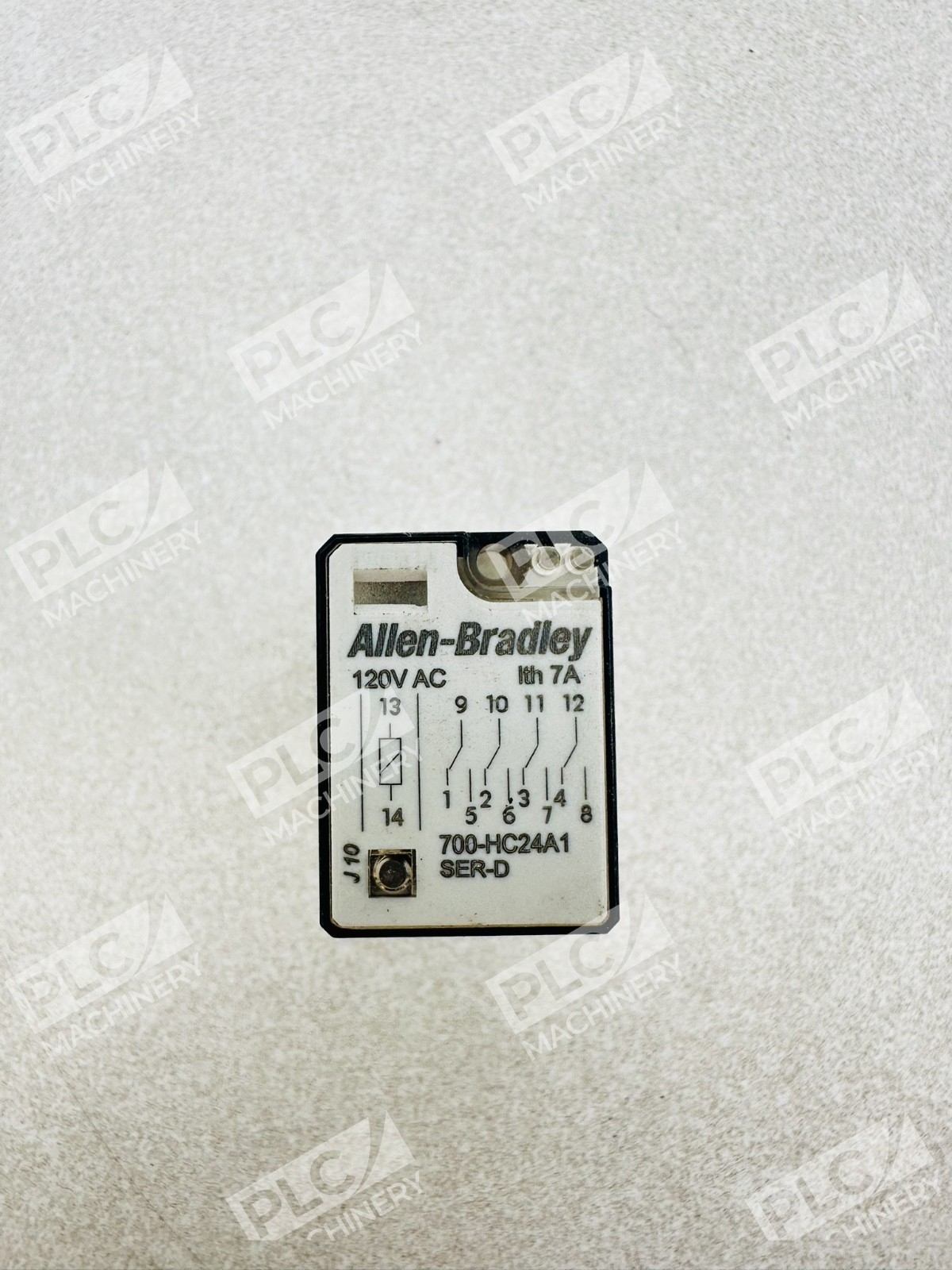

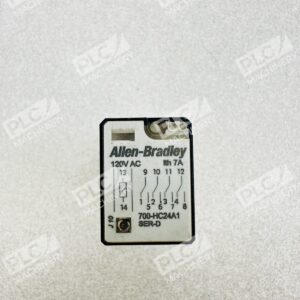

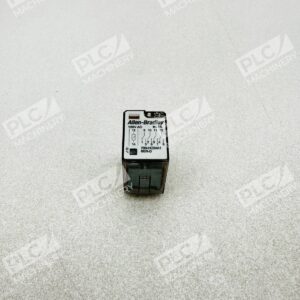

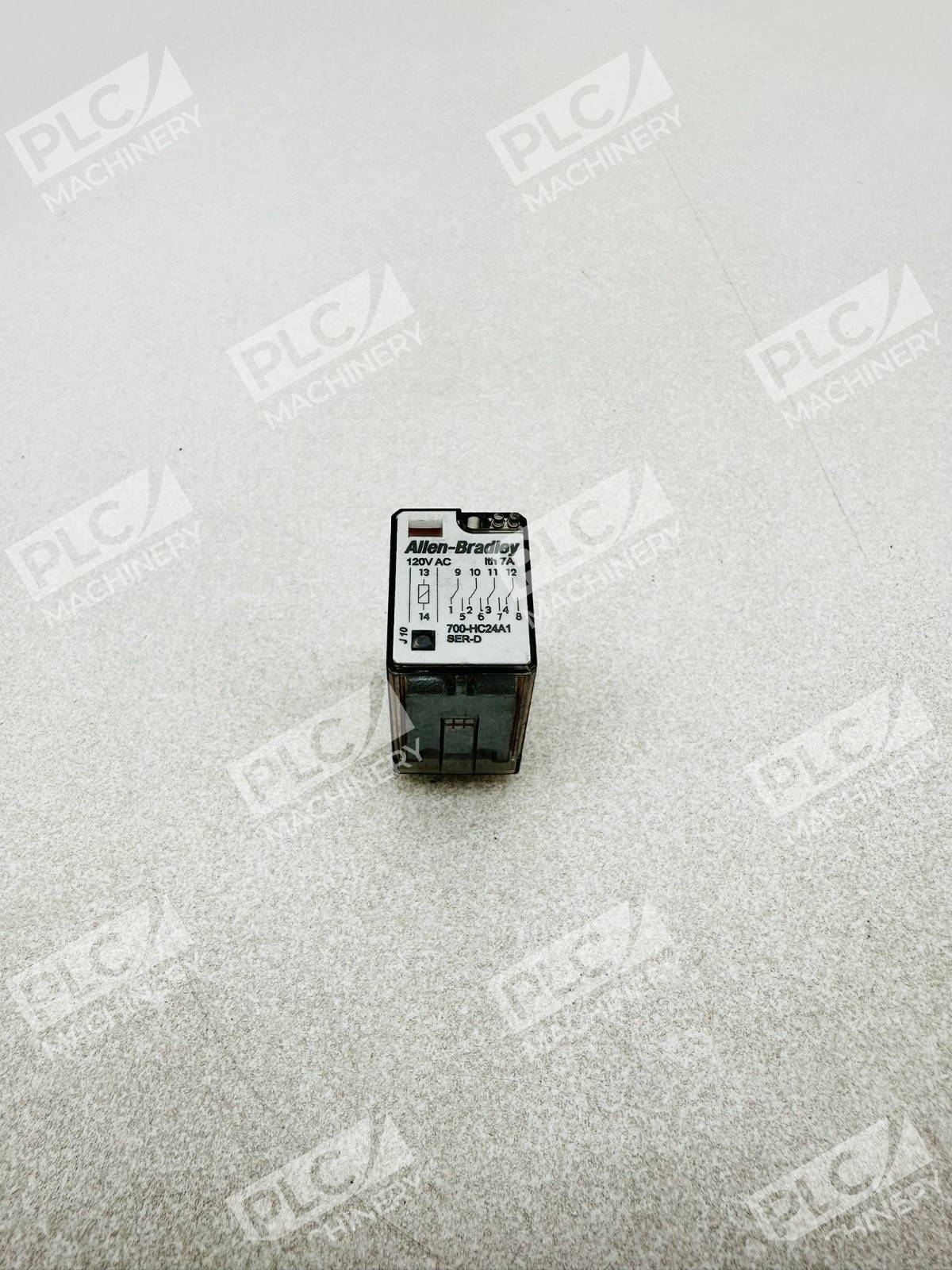

- Electrical schematic printed on faceplate for quick reference during installation and troubleshooting
Technical Specifications
| Part Number | 700-HC24A1 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Relay Type | Ice Cube, General Purpose (GP) |
| Contact Configuration | 4PDT (4 changeover contacts) |
| Coil Voltage | 120V AC 50/60Hz |
| Contact Rating | 7 Amp (silver contacts) |
| Low-Energy Rating | 10V, 10mA minimum pickup |

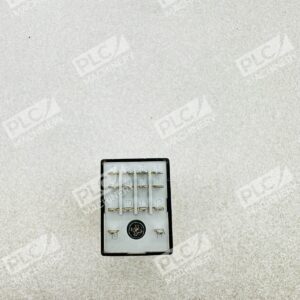

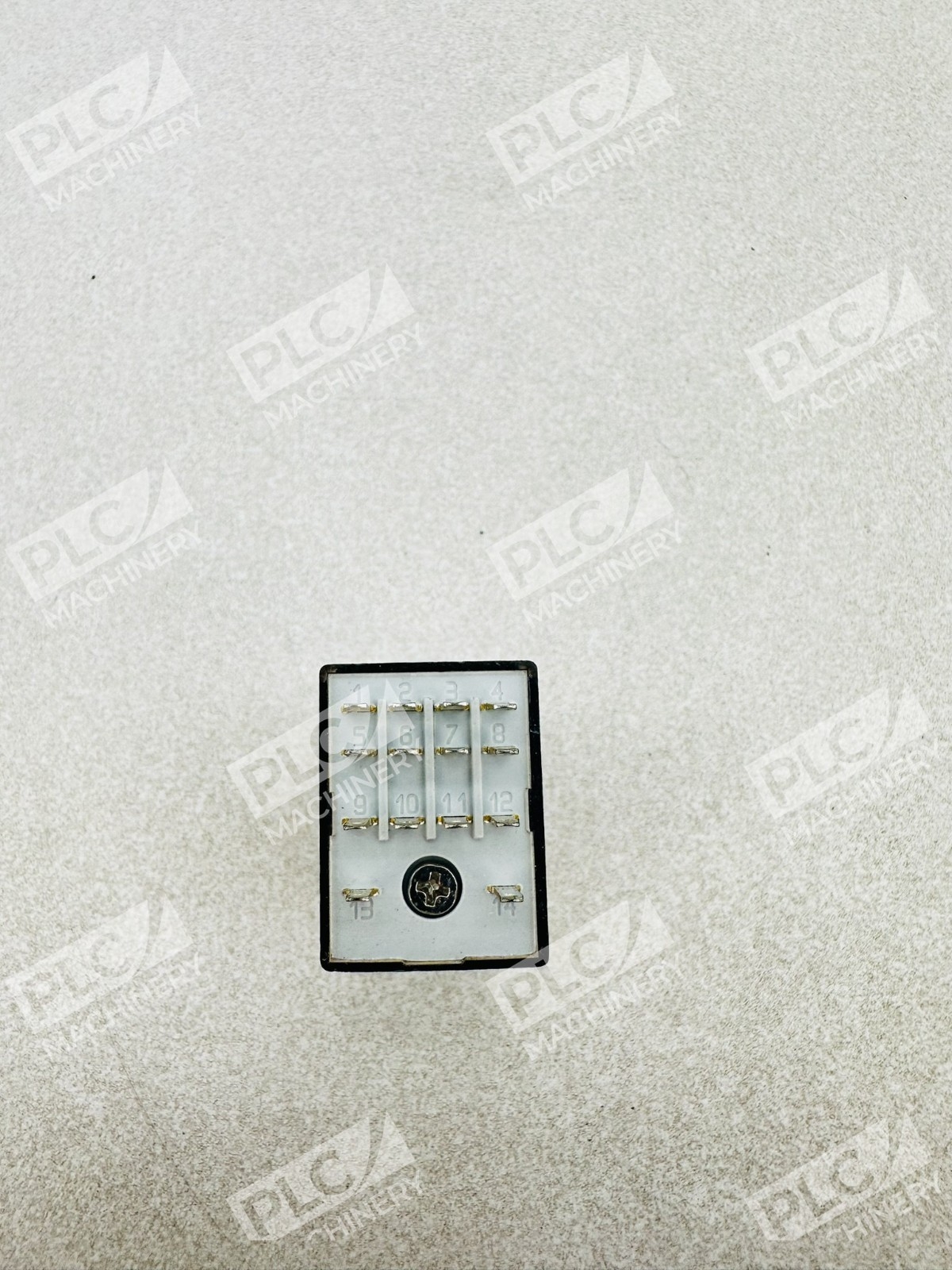

| Mounting | 14-pin blade terminal socket mount |

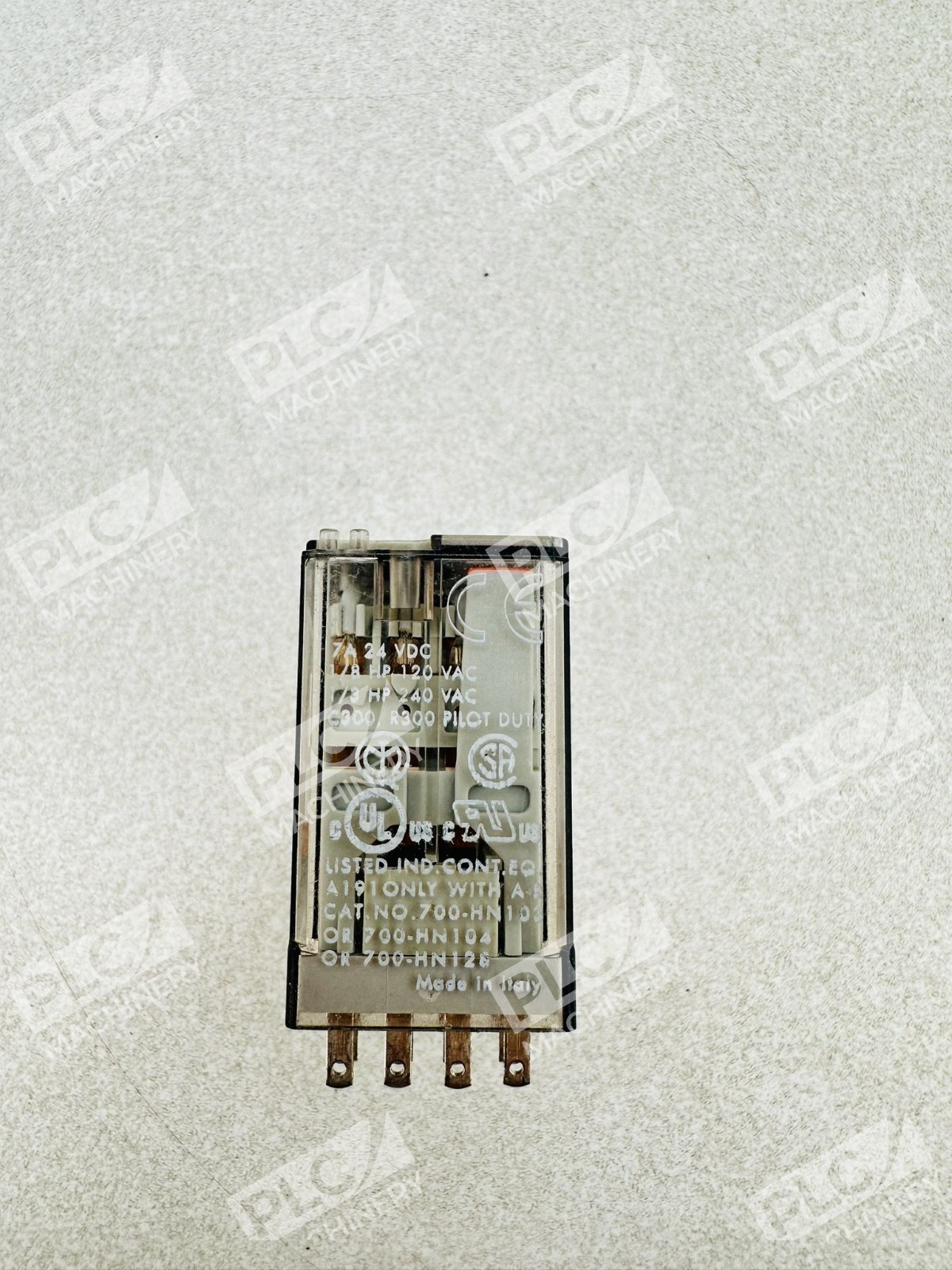

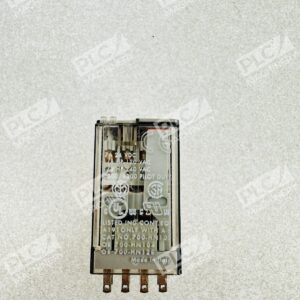

| Certifications | UL Listed, CSA Listed, CE, CUL, CCC, KC |
| Form Factor | Miniature ice cube plug-in relay |
| Contact Composition | Silver contacts |
Typical Applications
- Motor start/stop control circuits and reverse-duty applications
- Interposing and interface relay functions in control cabinets
- Industrial automation and machinery control systems
- HVAC and building automation systems requiring general-purpose relay switching
- Process control and monitoring circuits in manufacturing environments
- Backup and standby system switchover logic
Compatibility & Replacements
Compatible With
- Standard 14-pin ice cube relay sockets (octal and equivalent pin configurations)
- 24V DC and 120V AC coil voltage relay circuits requiring switching flexibility
- Allen-Bradley 700-series control systems and relay logic panels
- Legacy industrial control systems utilizing plug-in relay modules
- General-purpose relay panels and control enclosures
Replaces / Drop-In Replacement For
- Other 700-HC series ice cube relays with identical 4PDT configuration and 120V coil rating
- Verify compatibility with your specific circuit before ordering replacement units
Works With
- Standard relay socket carriers and DIN-rail mounted relay bases
- Allen-Bradley PLC and control modules requiring relay interfacing
- Manual and automated control circuits utilizing relay logic
- Electrical interlocking and safety circuit applications
