Overview

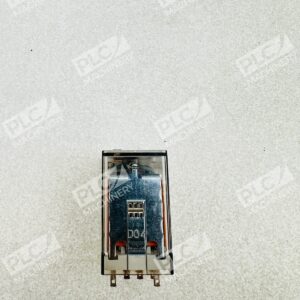

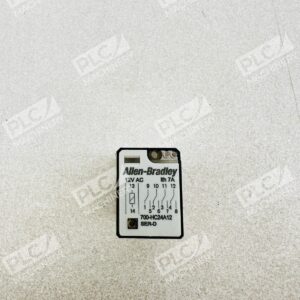

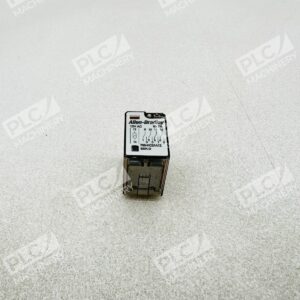

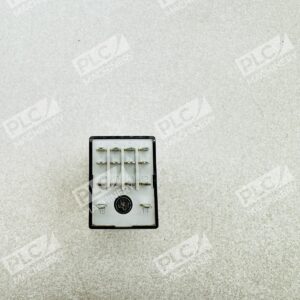

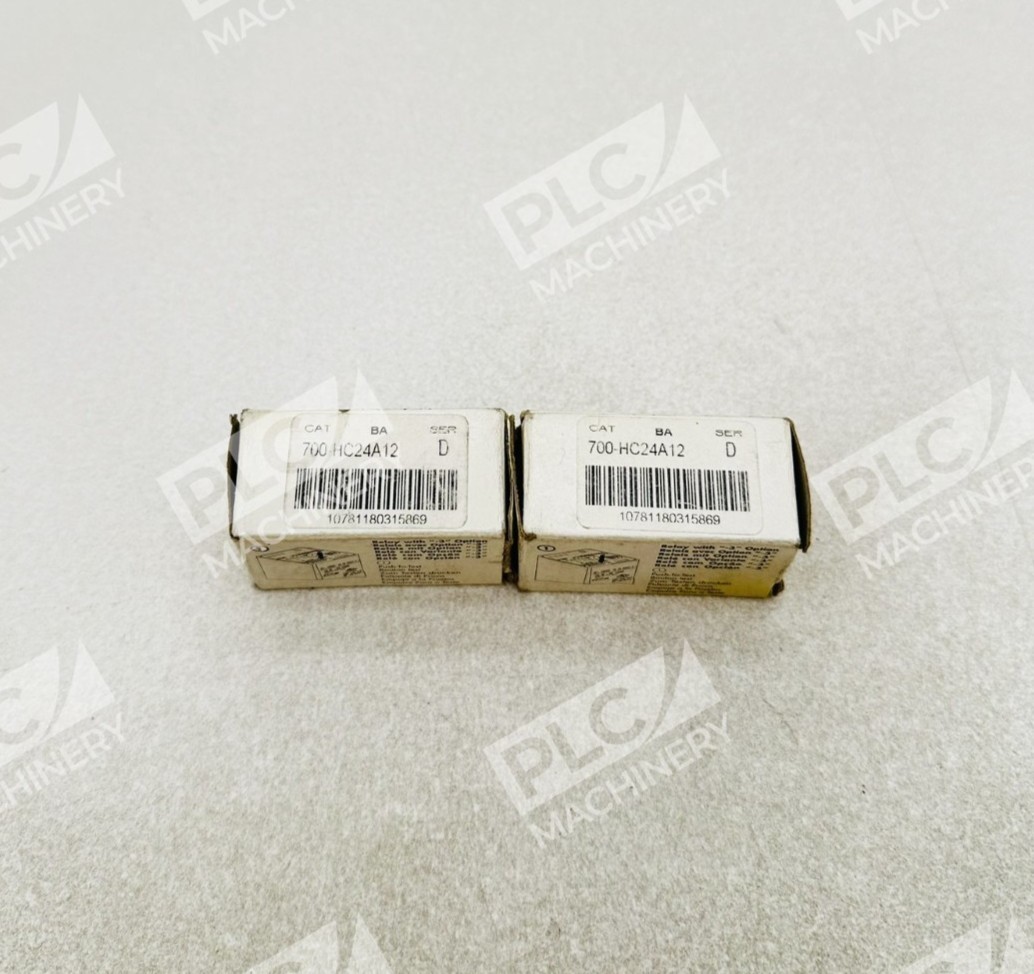

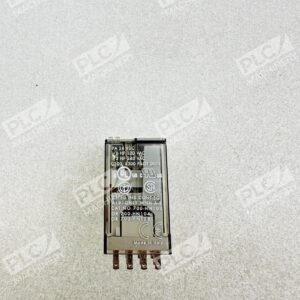

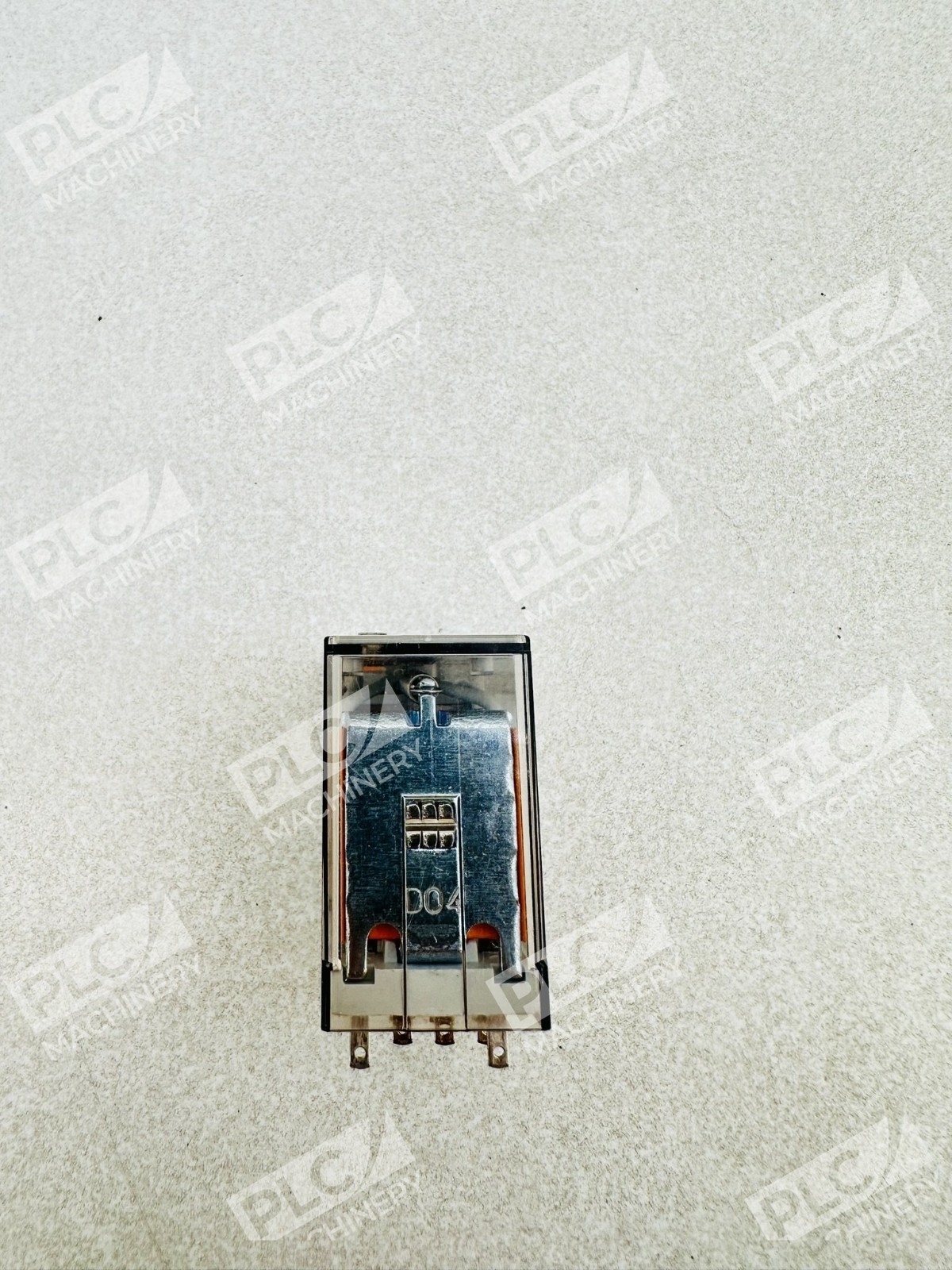

The Allen-Bradley 700-HC24A12 is a general-purpose miniature ice cube relay designed for reliable switching in industrial control applications. This 700-HC24A12 model combines compact form factor with proven switching performance, making it ideal for panel-mount and embedded control systems requiring precise circuit switching.
Key Features
- 4PDT Configuration: 4 Changeover Contact design enables simultaneous switching of multiple circuits
- Extended Operating Cycles: 20000000 Operating Cycles for long service life
- Silver-Nickel Contacts: Silver Nickel Contact Material provides reliable low-arcing performance
- Standard Status Indicator: Includes standard ON/OFF flag indicator
- Wide Temperature Range: Temperature Rating -22 to 131 degrees F
- Industry Certifications: CCC,CE,CSA,CUL,KC,UL approvals
Technical Specifications
Coil Voltage: 12 V, 50/60Hz; Contact Rating: 7 A; Power Rating: 2.2/1.3 V Inrush, 1.6/1.1 VA Sealed
Typical Applications
- General-purpose switching in machine control circuits
- Signal conditioning and logic gate isolation
- Panel-mount relay systems and control cabinets
- Industrial plant automation and HVAC controls
- Motor starter auxiliary circuits
- Safety interlock and pilot circuits
Compatibility & Replacements
Compatible With
- Standard 11-pin ice cube relay sockets
- General industrial control panels and enclosures
- DIN-rail mounted terminal blocks
- Manual and automatic switching circuits
Replaces / Drop-In Replacement For
- 700-HC24A12-3 (standard configuration)
- 700-HC24A12-4 (enhanced feature variant)
Works With
- All standard ice cube relay sockets and plug-in bases
- Industrial control platforms using general-purpose relay logic

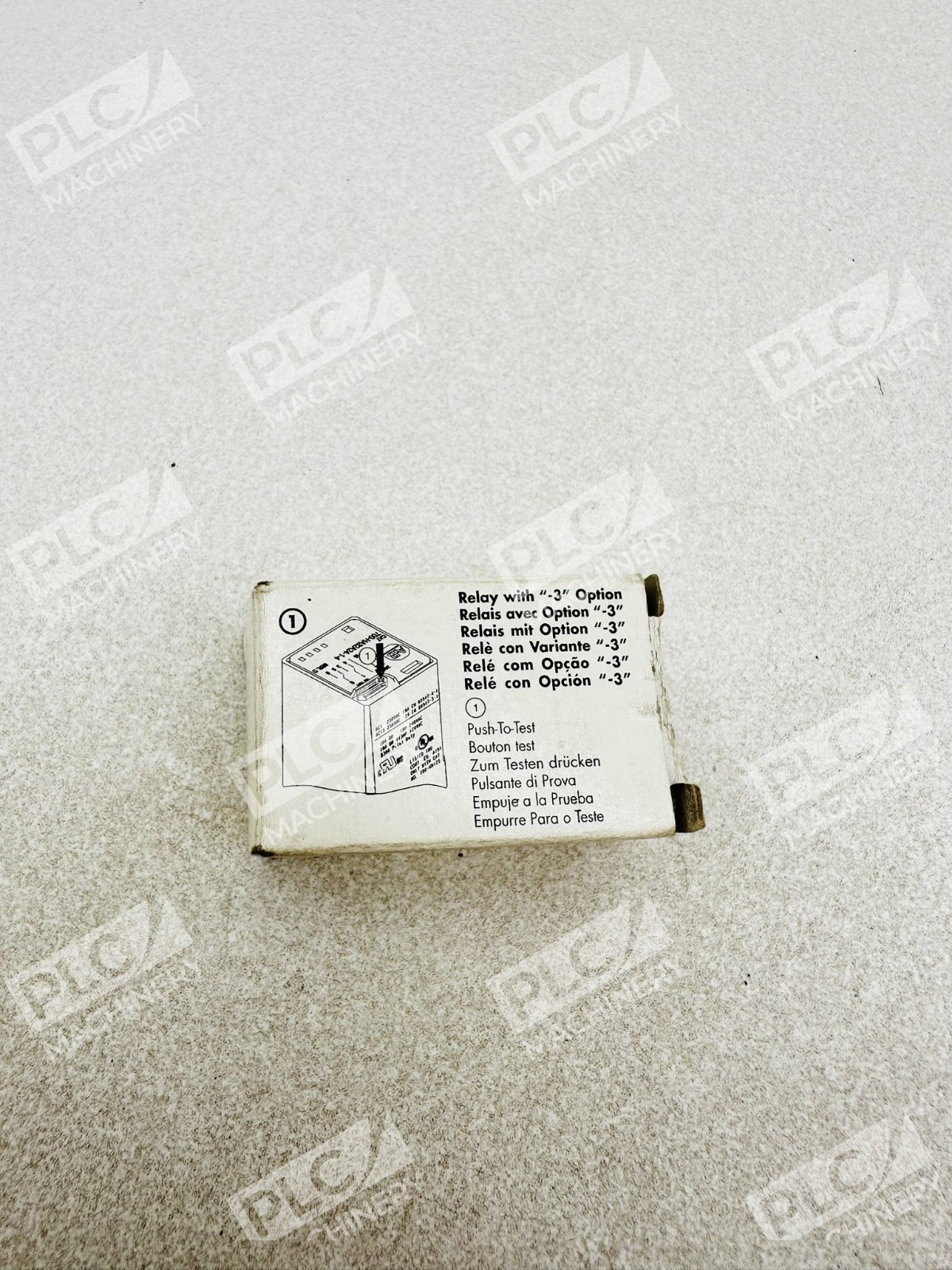

- Manual override and push-to-test relay modules
