Overview

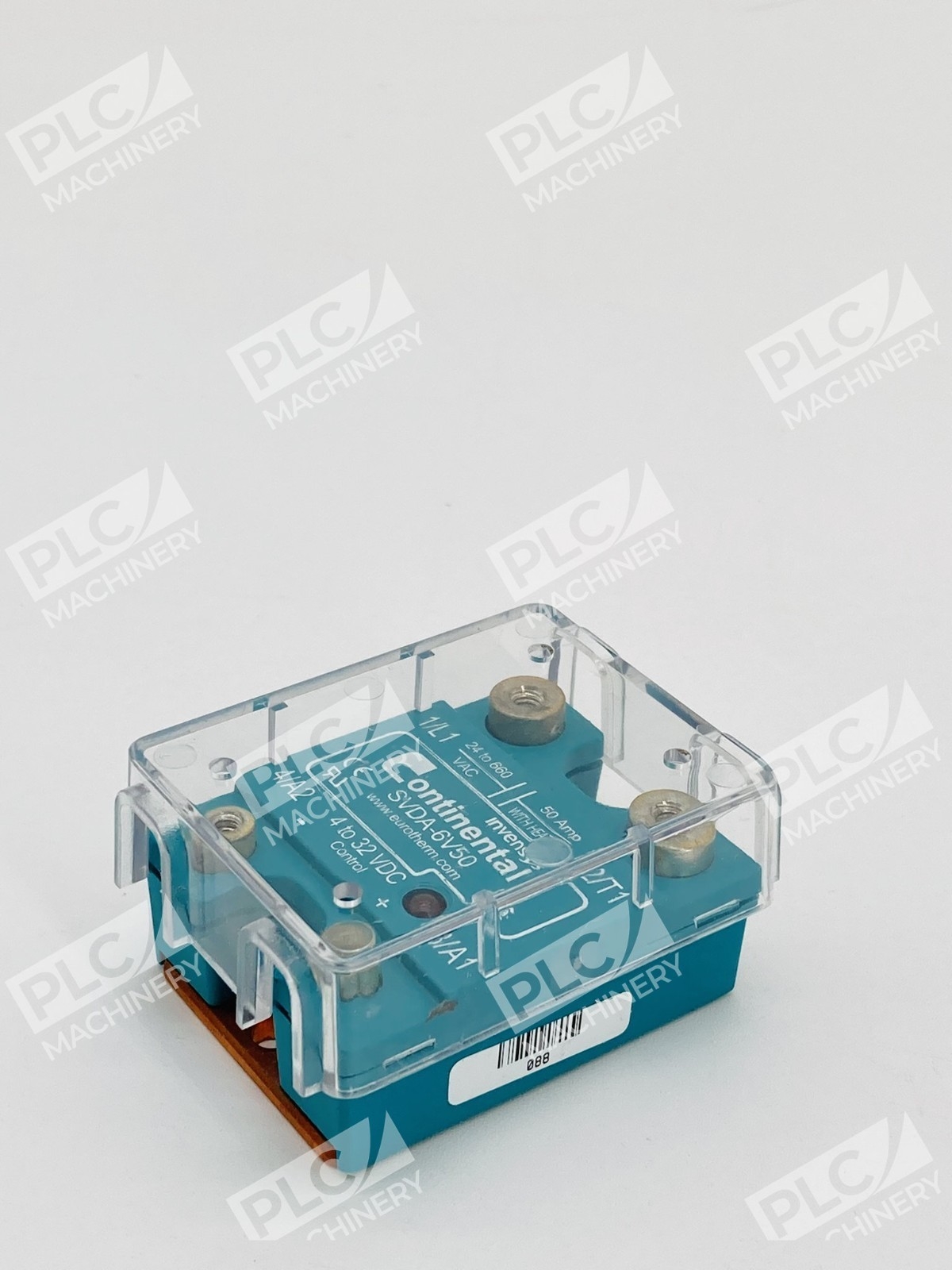

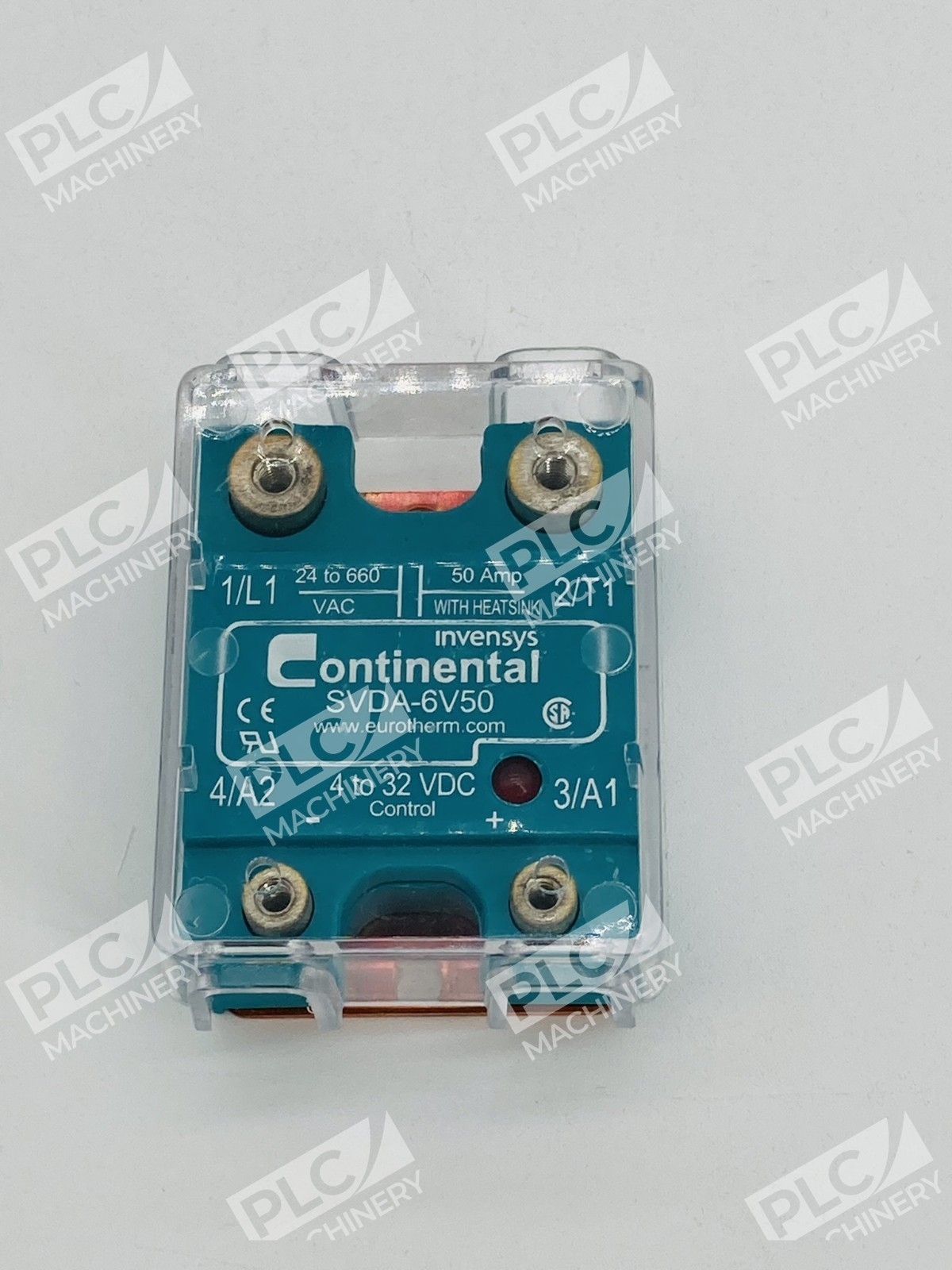

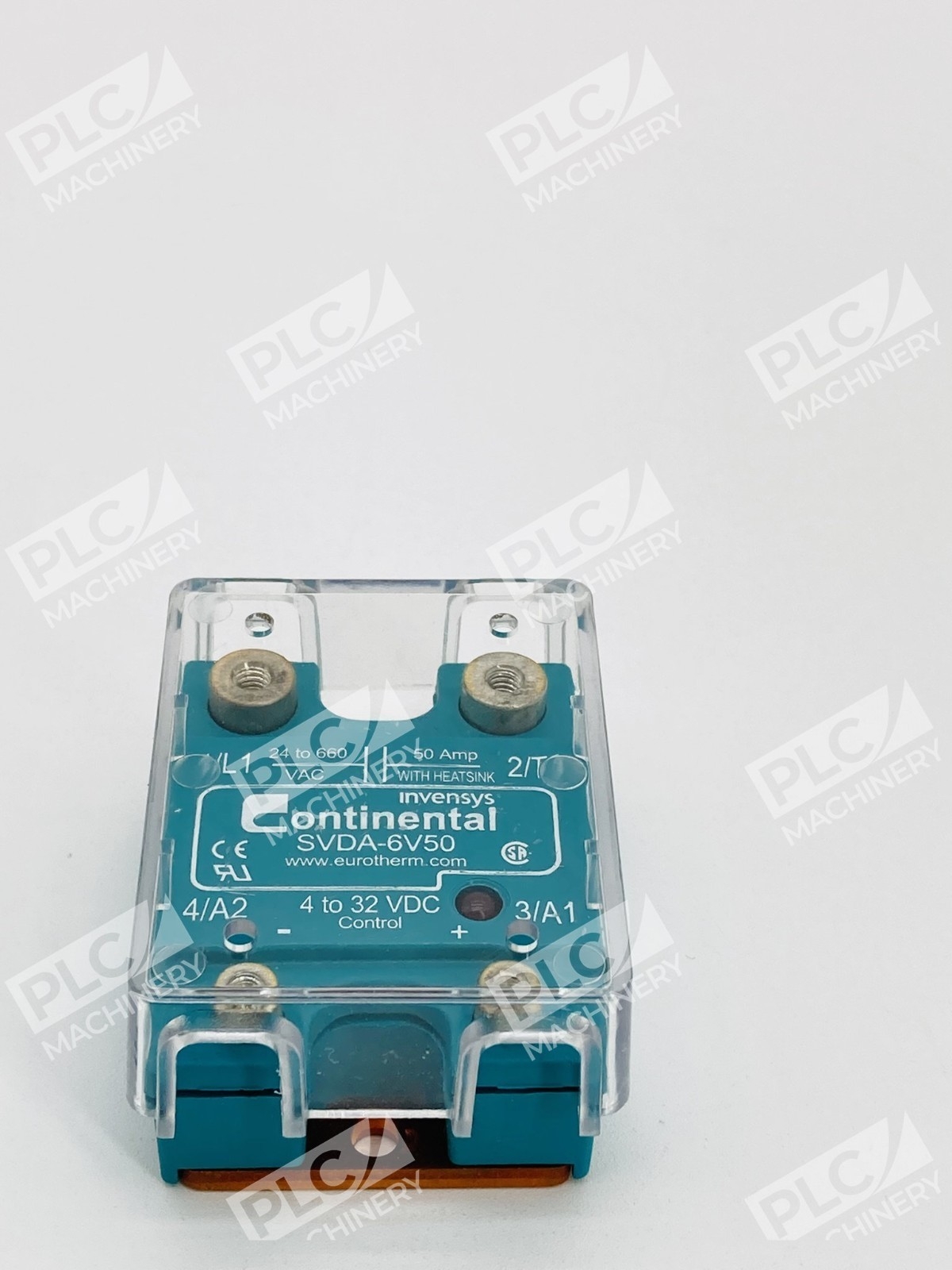

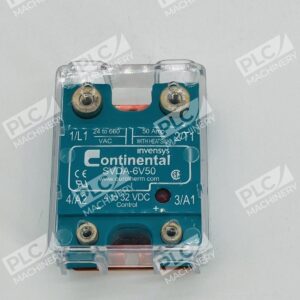

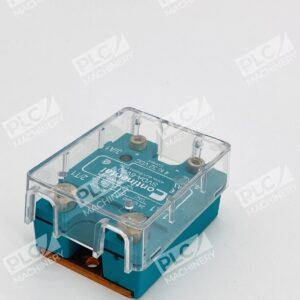

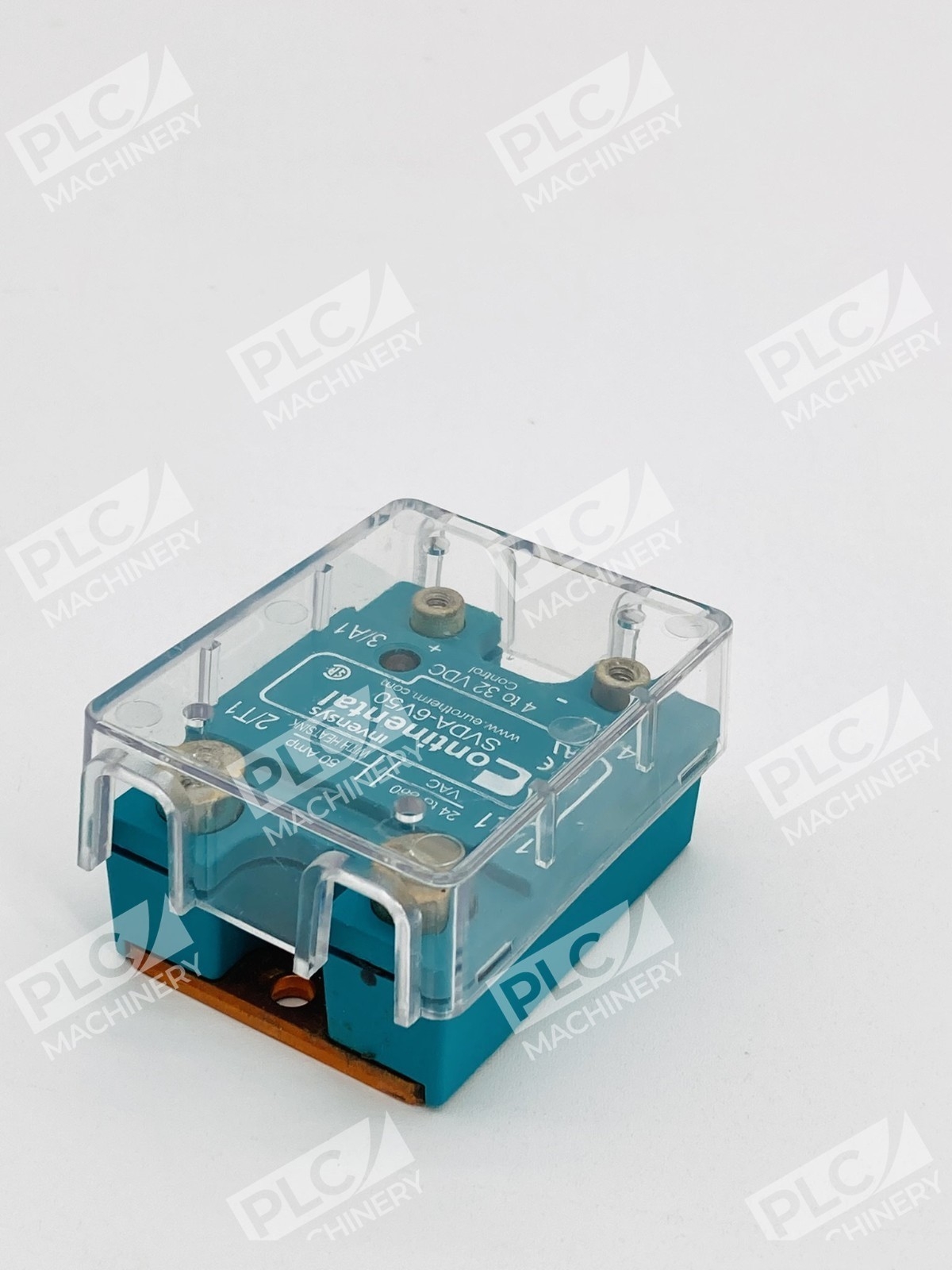

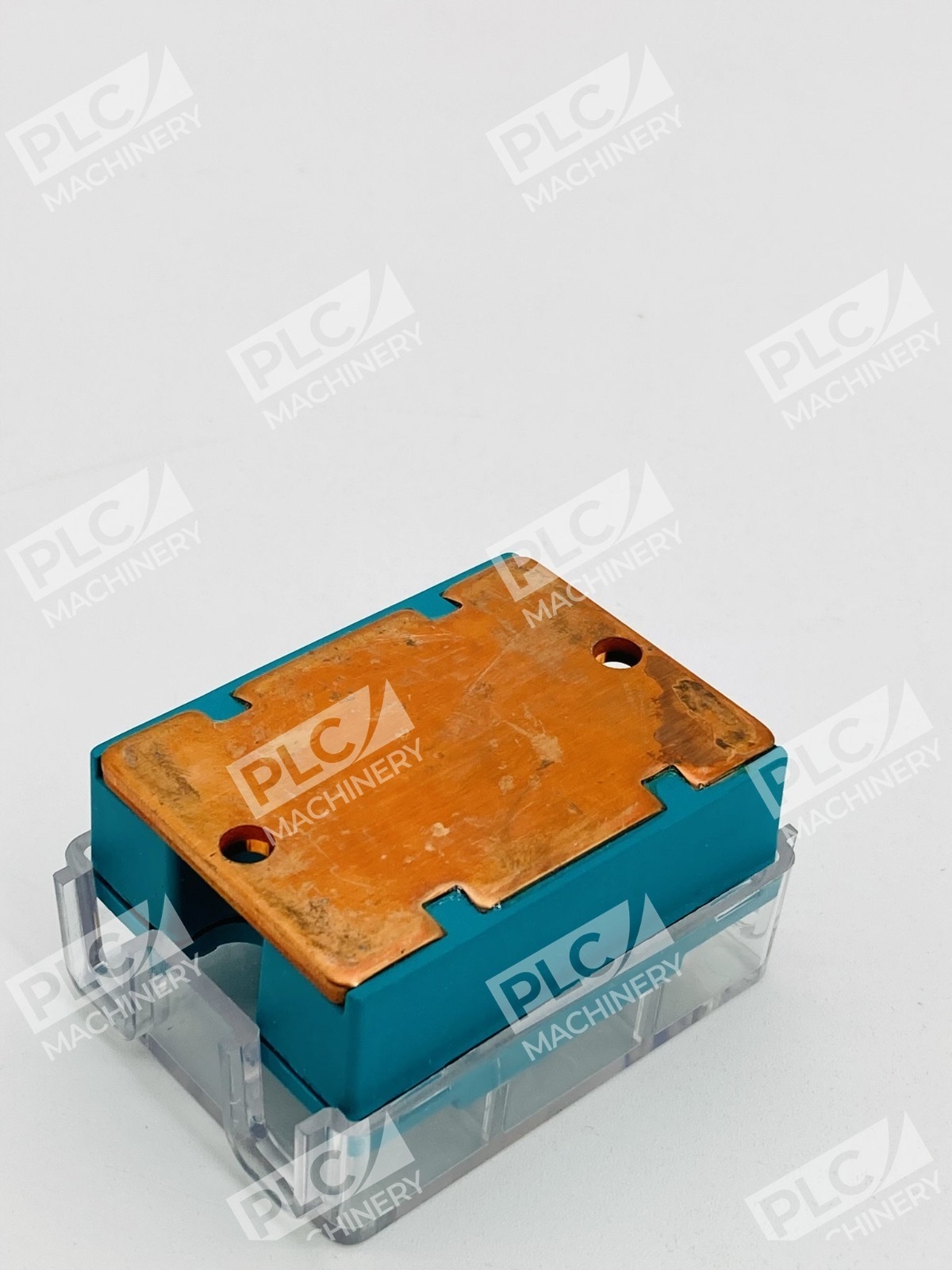

The Continental SVDA-6V50 is a single-phase, panel-mount solid state relay designed for high-current switching applications. Rated for 50 amperes at 600VAC, it accepts DC control logic (4–32Vdc input) and uses zero-crossing switching technology to minimize electromagnetic interference and extend component life. Its rugged construction, transient protection, and fast switching response make it suitable for controlling resistive, inductive, and capacitive loads in industrial machinery, temperature control systems, and power distribution panels.
Key Features
- High current rating: 50A at 600VAC output for demanding industrial loads
- Zero-crossing switching: Reduces EMI and mechanical stress compared to mechanical relays
- 4–32VDC control: Industry-standard low-voltage logic input compatible with PLC and controller outputs
- Built-in transient protection: MOV-based surge suppression rated at 800V peak blocking voltage
- Panel-mount design: Compact footprint with high touch-protection (IP 20 with optional cover)
- No moving parts: Eliminates arcing contacts and mechanical wear for extended service life
Technical Specifications
- Output Rating: 50A, 600VAC (single-phase AC)
- Control Input: 4–32VDC, maximum 10mA at 32Vdc
- Switching Logic: Zero-crossing (ON at sinusoidal zero, OFF at current zero)
- Peak Blocking Voltage: 800V DC, 1200V impulse (600Vac)
- Off-State dV/dT: 1000V/μsec at 50A
- Operating Temperature: 0°C to 40°C (derating available up to 80°C)
- I²t Rating: 1620 A²/sec at 50A

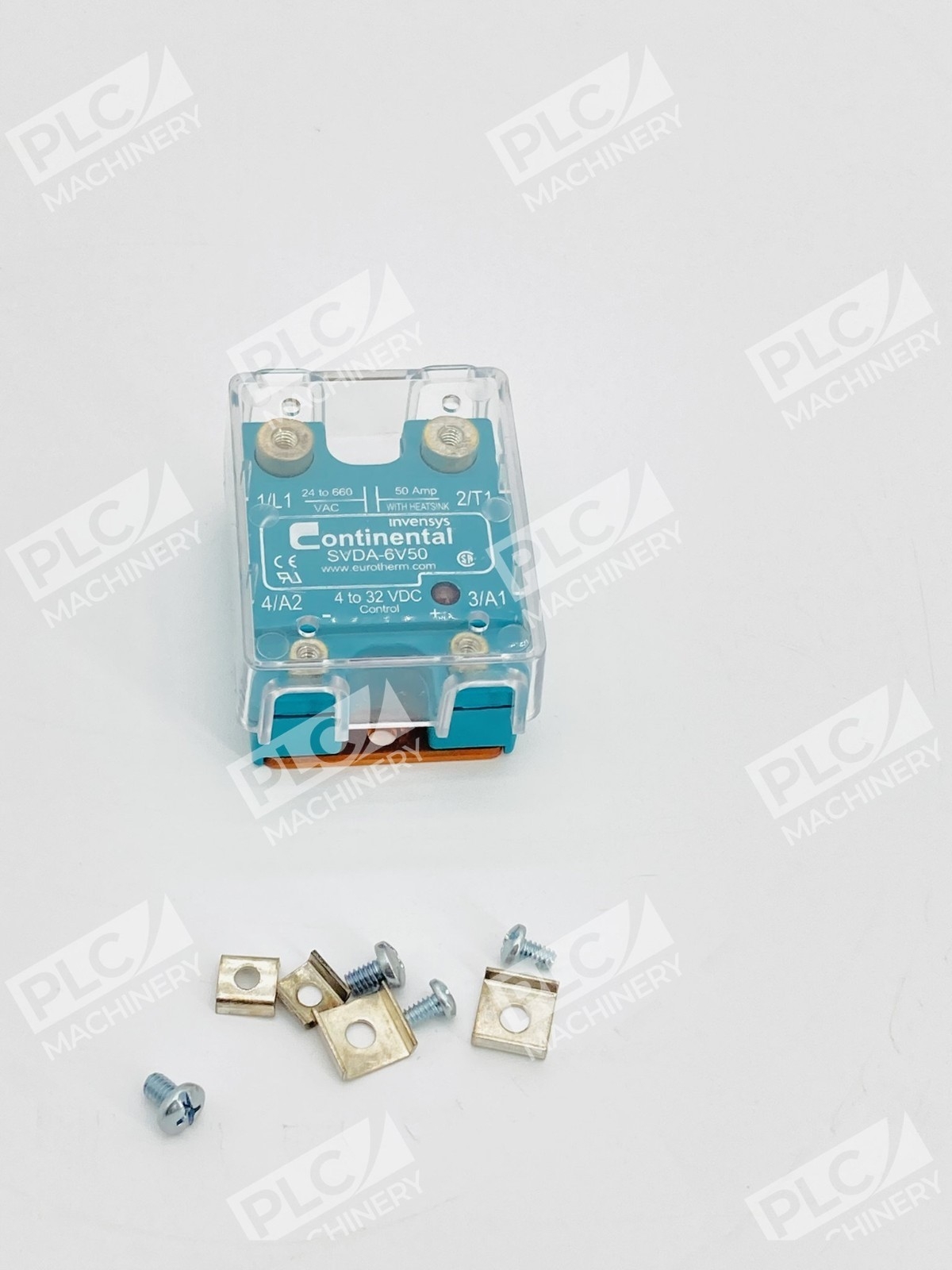

- Mounting: Panel mount (screw or DIN-rail with optional accessories)
- Output Protection: Protected terminals accommodate up to 16mm² conductors
- Status Indicator: LED indicates control input state
- Certification: CE compliant; built-in varistor for transient suppression
- Series: Continental SV Series
Typical Applications
- Industrial heating and temperature control systems
- Motor speed control and soft-start circuits
- Lighting control and dimming applications
- Pump and blower motor control
- Power supply load switching and redundancy systems
- Induction cooking and industrial process automation
Compatibility & Replacements
Compatible With
- PLC analog/digital outputs (4–32VDC logic)
- Industrial controllers and automation systems with DC control signals
- Any AC 600VAC three-phase or single-phase load up to 50A
- Resistive, inductive, and capacitive loads (verify load type and phase angle)
Replaces / Drop-In Replacement For
- D4850, D2450, D2440, D4840 (legacy relay models)
- 380D45, 240D45 (phase-controlled versions)
- SSR660DC50 (equivalent SSR models)
- Any comparable 50A, 600VAC single-phase solid state relay with DC control input
Works With
- Studio 5000 (Rockwell Allen-Bradley) — as controlled device via analog or discrete outputs
- TIA Portal (Siemens) — with appropriate I/O modules
- Mitsubishi GX Works, Omron CX-Programmer, Schneider EcoStruxure — standard DC control compatible
- EtherNet/IP and PROFINET gateways — when paired with compatible PLC I/O
- Modbus RTU/TCP systems — via relay controller modules
- Temperature control instruments and analog controllers with DC relay output
