Overview

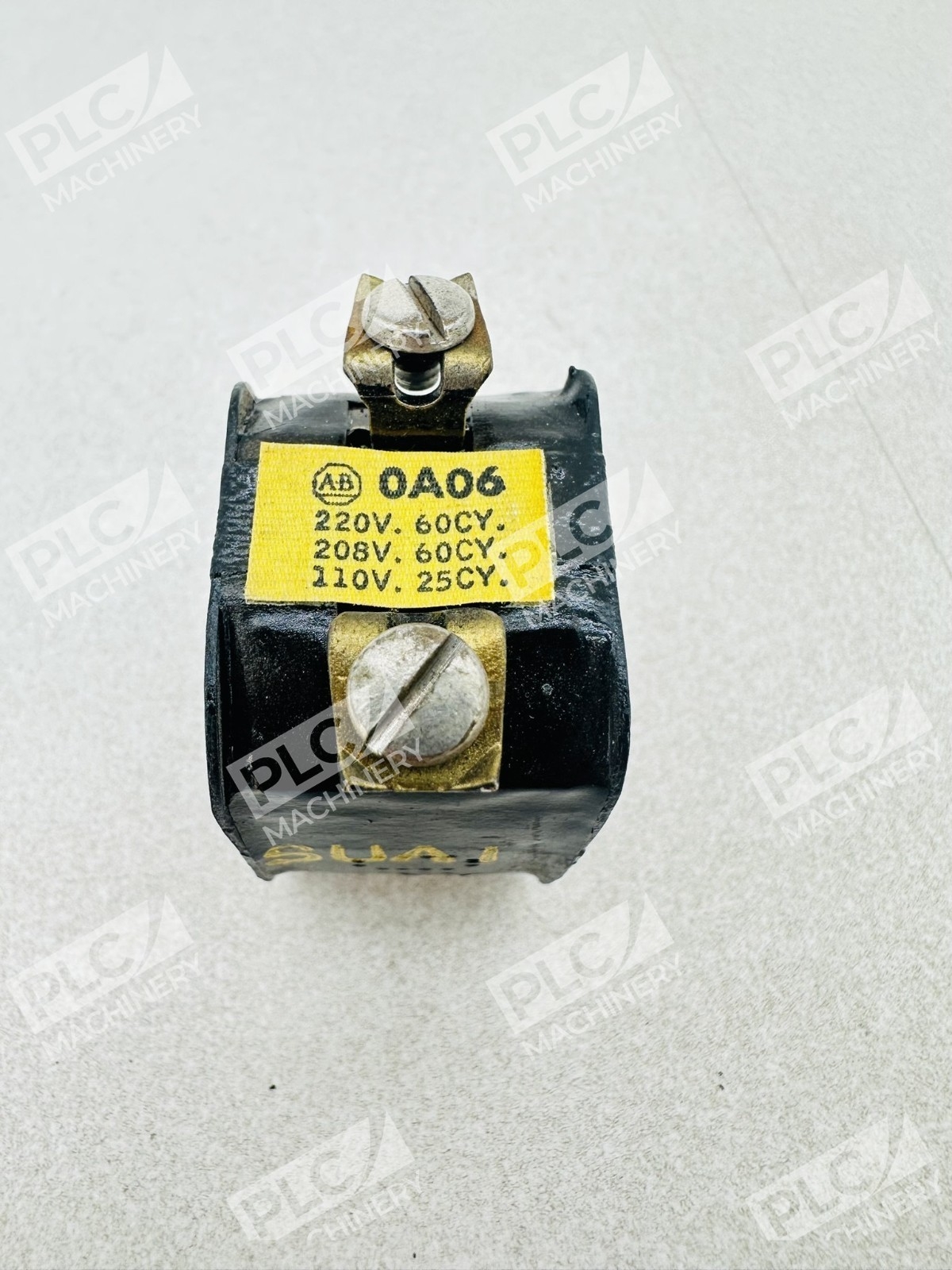

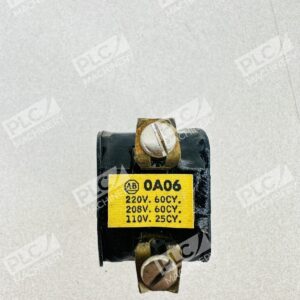

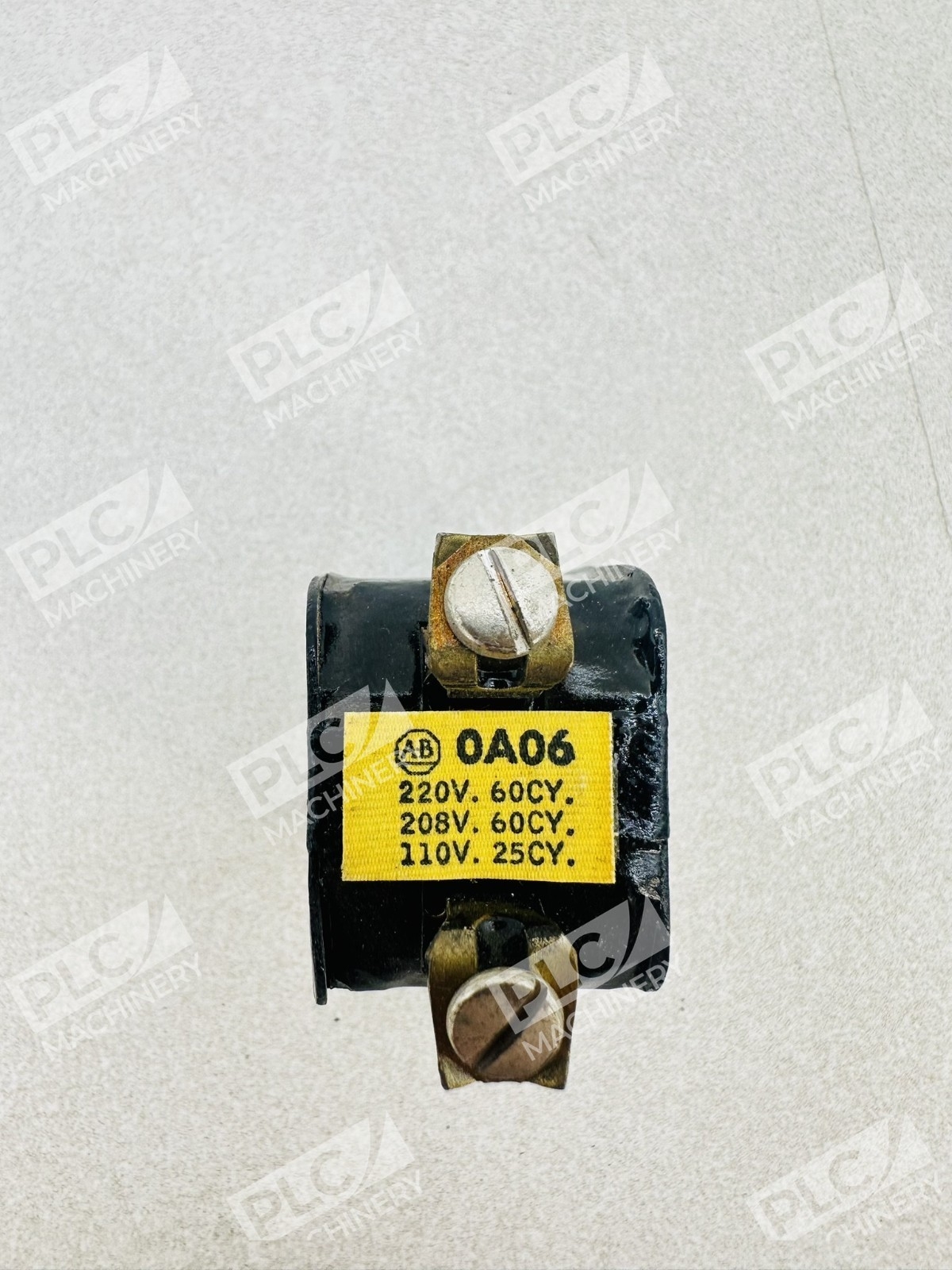

The Allen-Bradley OA06 magnetic coil is a control relay replacement coil designed for Size 0 Series 700-A motor starters and magnetic motor control equipment. This coil provides the electromagnetic activation for starter contactors and control relays in industrial motion control and motor protection applications. Available in dual-voltage configurations, the OA06 is commonly used as a replacement component in legacy and modernized motor control panels.
Key Features
- Designed for Size 0 Series 700-A motor starter applications
- Dual-voltage operation: 220/208V at 60Hz or 110V at 25Hz
- Provides reliable electromagnetic coil activation for relay and contactor control
- Compatible with standard industrial control panel installations
- New condition part, tested and ready for deployment
Technical Specifications
The OA06 magnetic coil meets standard industrial specifications for AC motor starter coils. Review the following key parameters for system integration:
- Part Number: OA06
- Manufacturer: Allen-Bradley

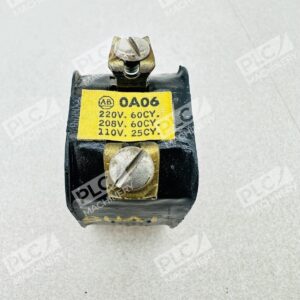

- Voltage (Primary): 220V / 208V AC 60 Hz
- Voltage (Secondary): 110V AC 25 Hz
- Coil Type: Magnetic relay coil
- Series: 700-A
- Size Category: Size 0
- Application: Motor starter and control relay coil
- Condition: New, No Original Box
- Terminals: 2-terminal connection
Typical Applications
The OA06 coil is installed in motor control centers (MCCs) and standalone motor starters where AC relay switching is required. Common applications include:
- Three-phase motor starter control circuits
- Industrial process automation and machinery control
- HVAC and mechanical drive systems
- Plant facility electrical distribution and motor protection
- Legacy and retrofit installations requiring Size 0 Series 700-A coils
Compatibility & Replacements
Compatible With
- Allen-Bradley Series 700-A Size 0 motor starters
- Allen-Bradley Series 700-A Size 0 control relays
- Industrial AC motor control circuits
- Standard 220/208V 60Hz or 110V 25Hz power distribution
Replaces / Drop-In Replacement For
- Allen-Bradley OA83 (legacy equivalent)
- Original OA06 coils in Size 0 Series 700-A starters
Works With
- Allen-Bradley motor starter frame sizes matching Series 700-A Size 0
- Standard industrial AC contactor and relay designs
- Motor overload relay protection circuits
- Facility-level motor control and distribution systems
