Overview

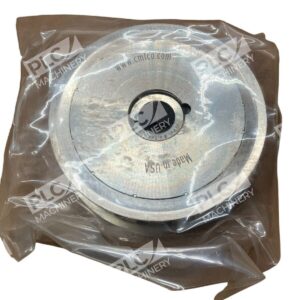

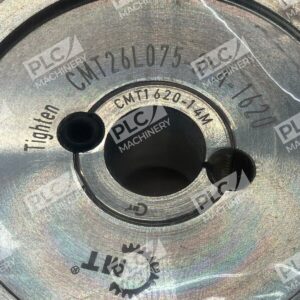

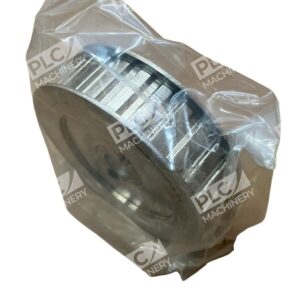

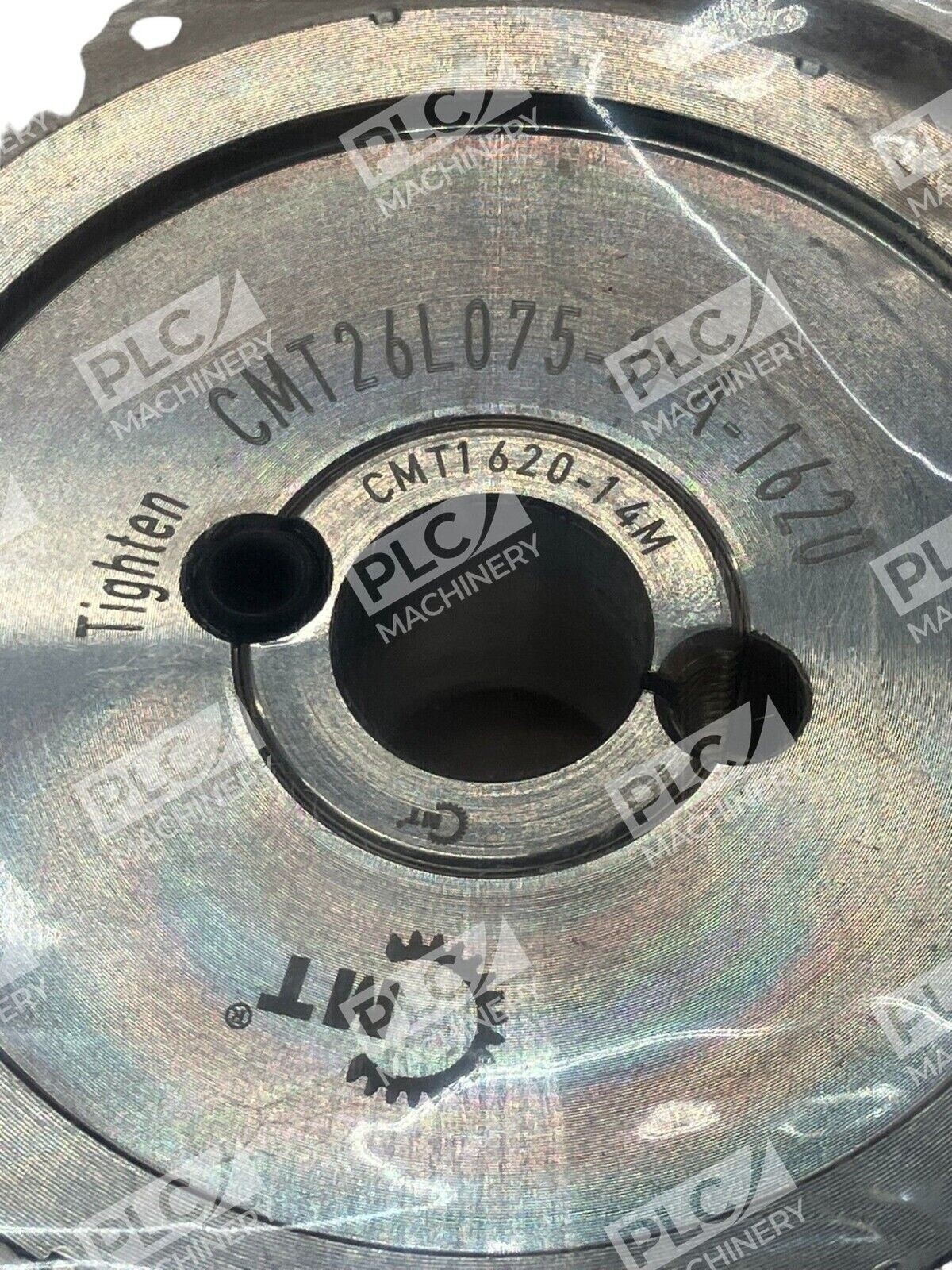

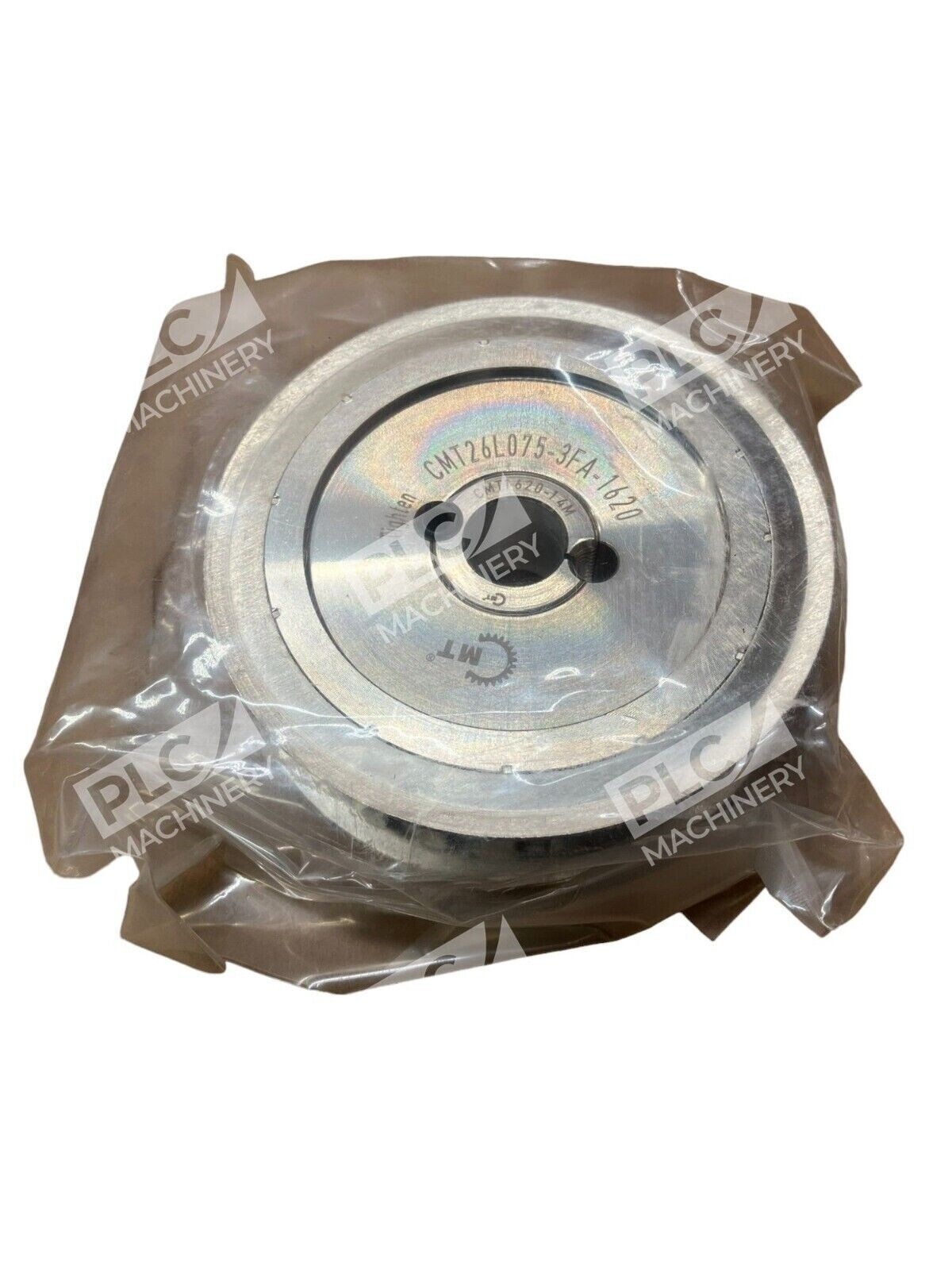

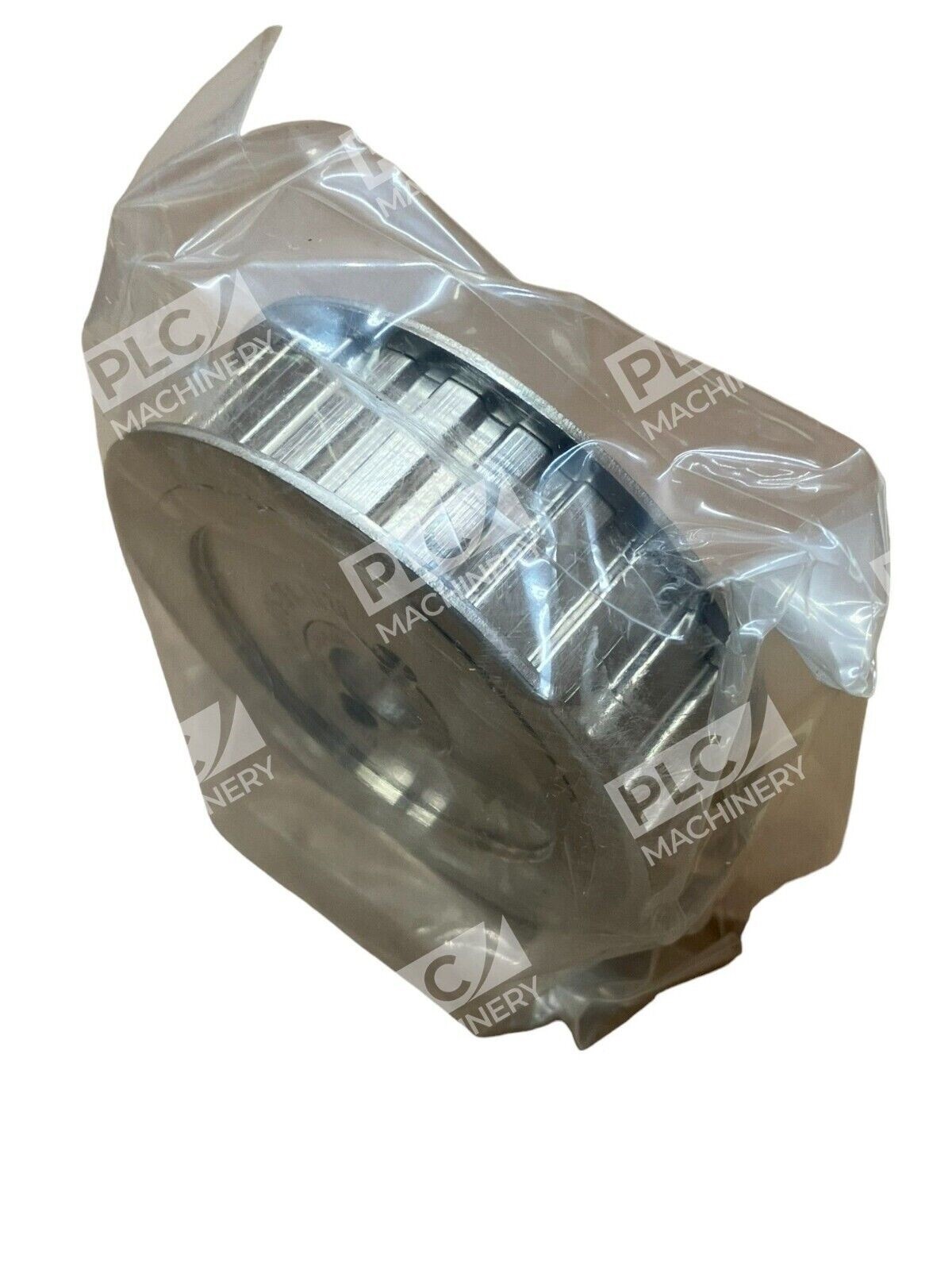

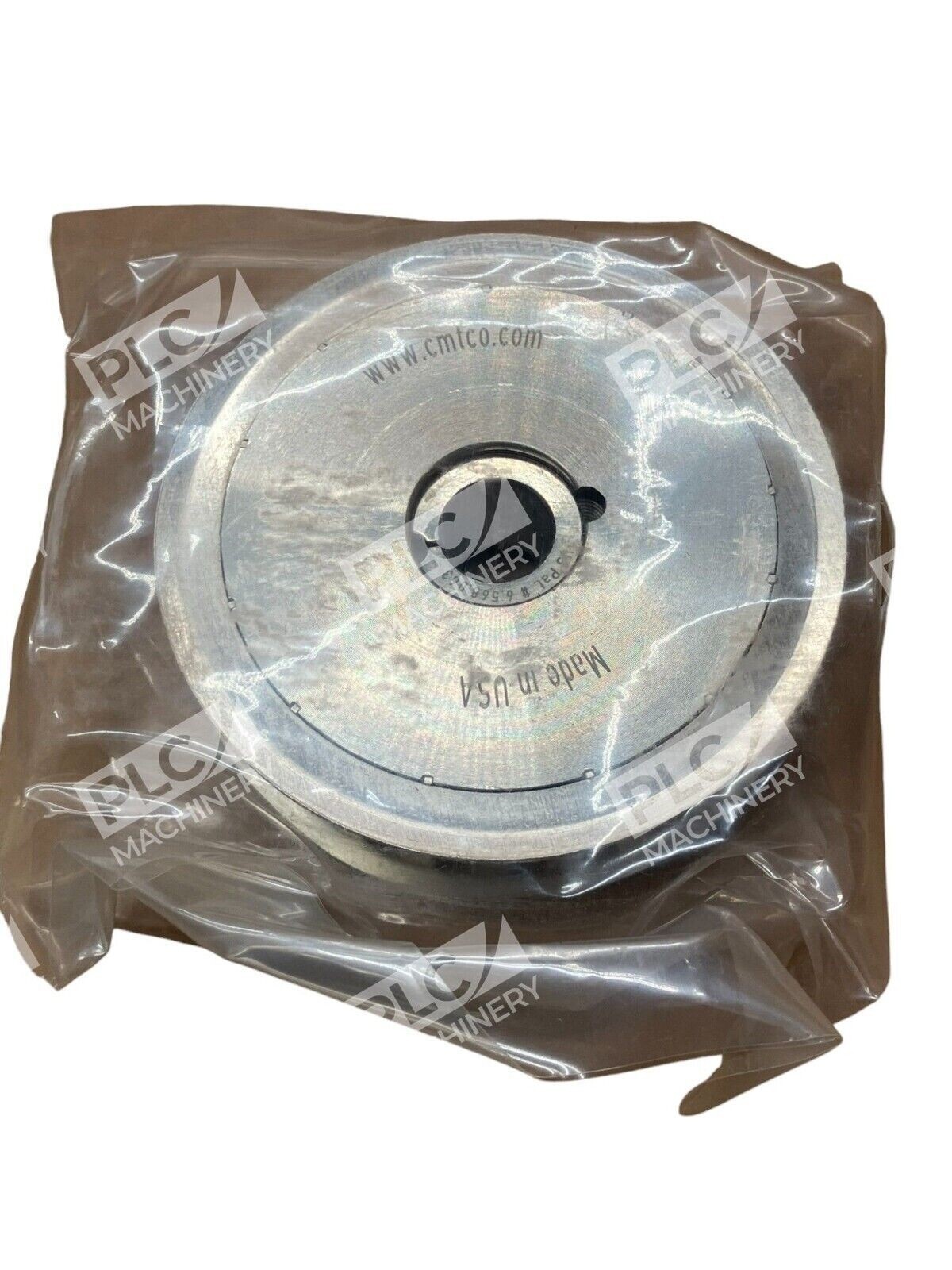

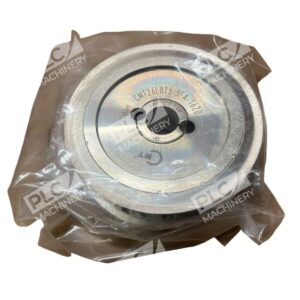

The Custom Machine & Tool CMT26L075-3FA1620.14 timing pulley is a precision-engineered component for HTD-profile timing belt systems. Custom Machine & Tool Co., Inc. is a USA manufacturer of precision timing pulleys and drive systems for motion control and power transmission markets since 1964. This pulley conforms to industry standards and is designed for accurate synchronous power transmission in machinery and automation equipment.
Key Features
- Precision-manufactured timing pulley for HTD belt profiles
- Designed for motion control and power transmission applications
- Industry-standard bore and flange configuration
- Durable construction suitable for OEM and retrofit applications
- Available with optional Concentric Maxi Torque keyless locking device for enhanced shaft engagement
Technical Specifications
While detailed specifications for this specific variant should be verified with the manufacturer, standard CMT26L075 pulleys feature:
- Timing profile: HTD 26mm pitch
- Material options: Aluminum, steel, stainless steel, or engineered plastic
- Belt width compatibility: All industry standard belt widths
- Bore type: Customizable per application requirements
- Zero-backlash option: Available upon request
Typical Applications
The CMT26L075-3FA1620.14 is suitable for:
- Precision machinery and automation equipment
- Motion control systems requiring synchronous power transmission
- OEM drive system assemblies
- Industrial equipment retrofits and replacements
- Custom motion control and conveyor systems
Compatibility & Replacements
Compatible With
- HTD 26mm pitch timing belt systems
- Industry-standard timing belt widths (all standard widths supported)
- Motion control and power transmission systems requiring precision synchronous operation
- Machinery and automation equipment utilizing HTD belt drive standards
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The CMT26L075-3FA1620.14 designation indicates a specific bore and flange variant; confirm the exact configuration matches your current pulley before substitution.
Works With
- HTD 26mm pitch synchronous timing belts
- Industry-standard pulley flanges and bore adapters
- Concentric Maxi Torque keyless locking devices (optional)
- Custom and standard shaft coupling configurations
