Overview

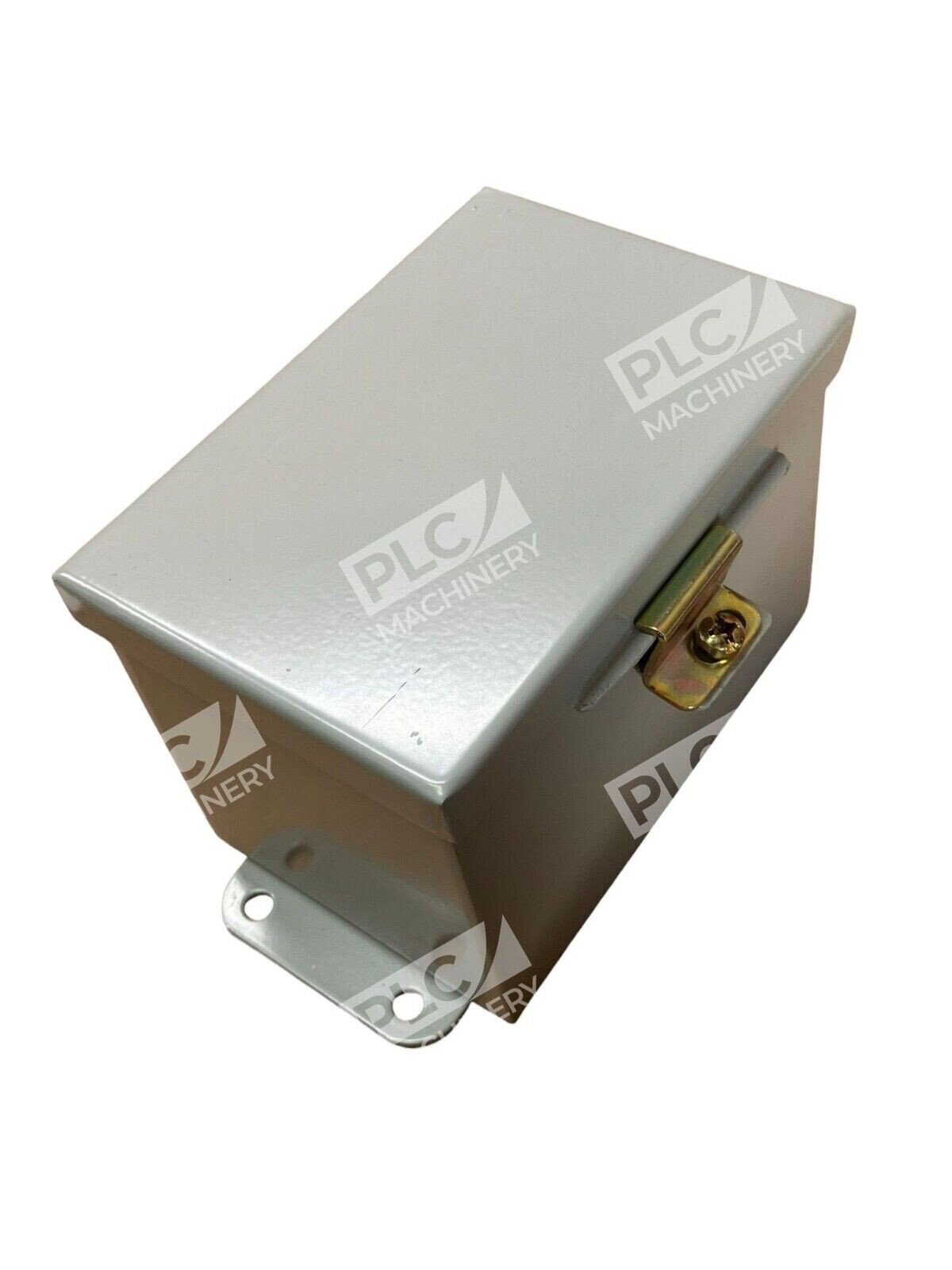

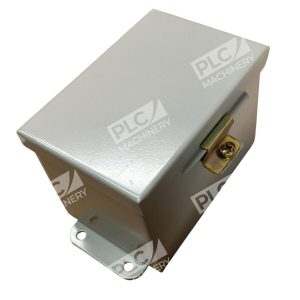

The Cooper B-Line 644-12CHC is a Type 12 JIC panel enclosure engineered for electrical equipment protection in industrial and commercial settings. This NEMA 12 rated enclosure features a hinged cover, wall-mount design, small single door, external mounting feet, carbon steel construction, and seamless poured in-place gasket. The 6″×4″×4″ form factor provides compact protection for junction boxes and control equipment in space-constrained installations.
Key Features
- Continuous Piano Hinge: Continuous hinge door is secured to the body on one side with easy-to-operate screw clamps mounted on the opposite side
- NEMA 12/13 Rated: Enclosure and cover fabricated from 16 gauge steel and conform to NEMA standard for Type 12 and Type 13

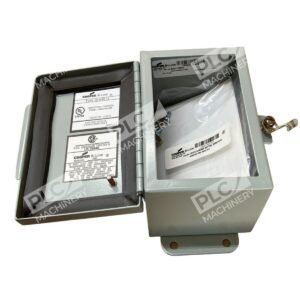

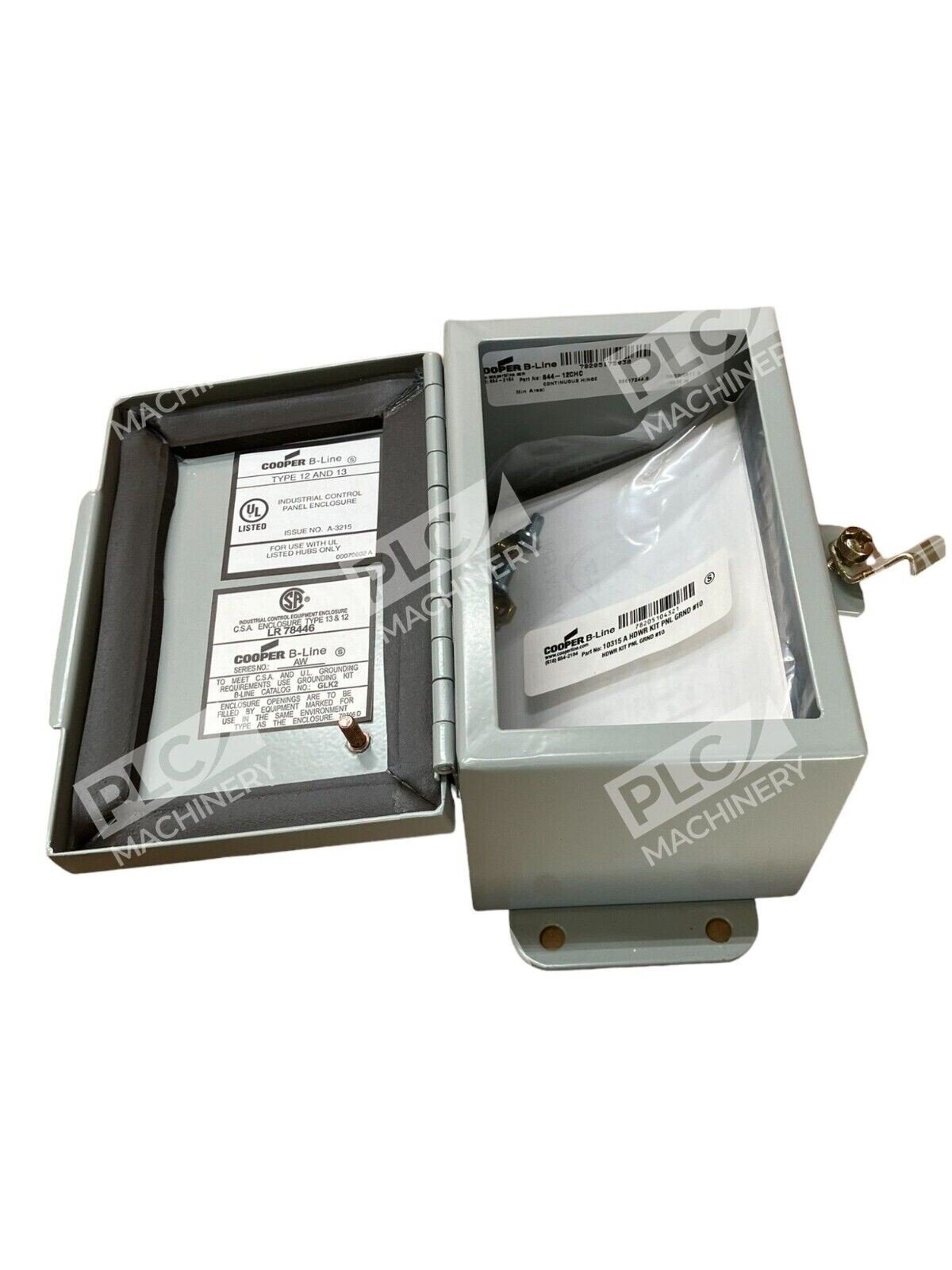

- Seamless Gasket: Poured in-place gasket provides IP65-equivalent protection against dust and moisture ingress
- Carbon Steel Construction: Durable welded steel body with external mounting feet for secure wall installation
- JIC Compatible: Designed to industry standards for junction box mounting and component integration
Technical Specifications
- Height: 6 inches
- Width: 4 inches
- Depth: 4 inches
- Material: Carbon steel (16 gauge)
- Door Type: Continuous piano hinge with screw clamps
- NEMA Rating: Type 12, Type 13
- Mounting: Wall-mount with external feet

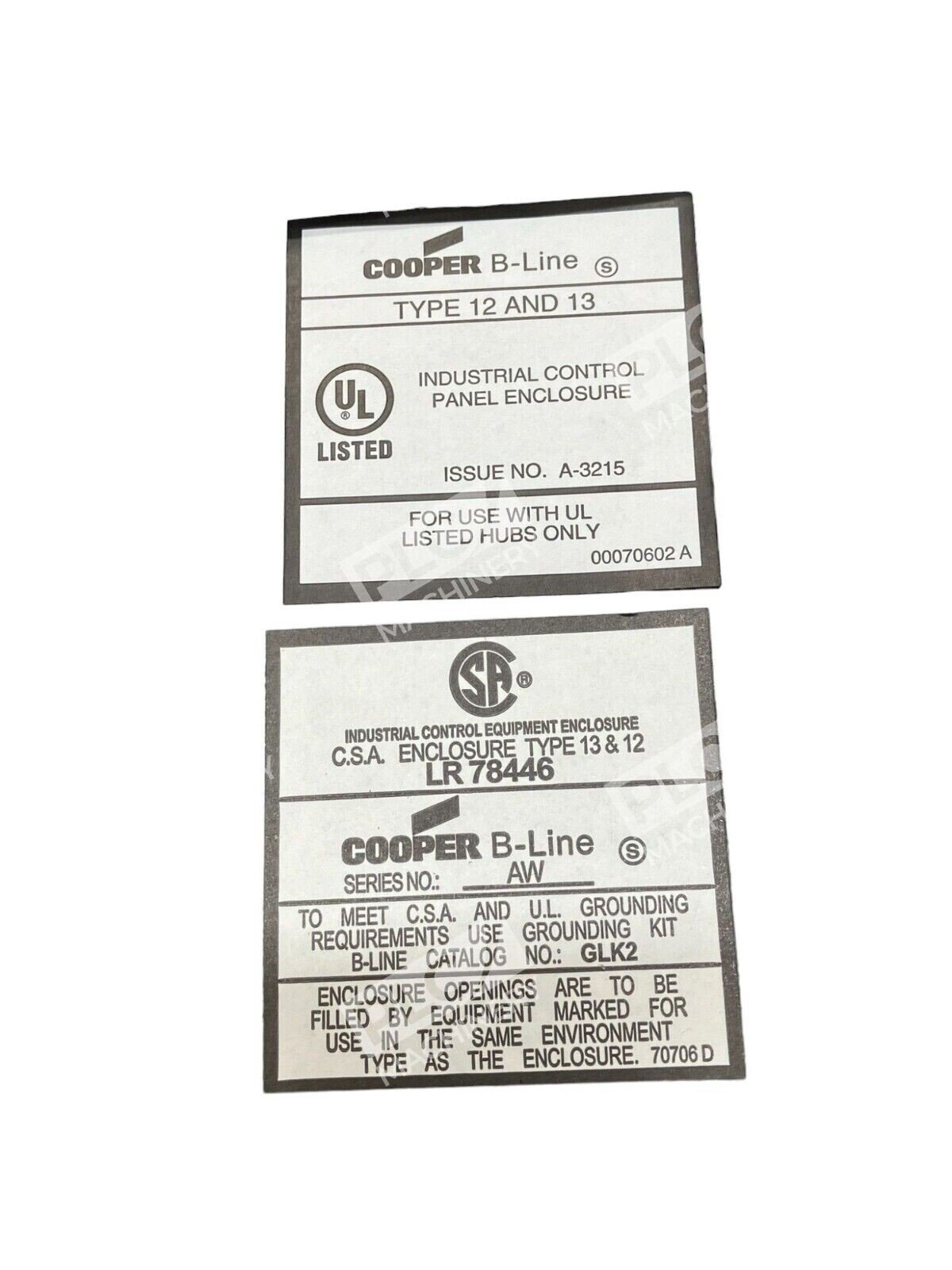

- Certifications: UL 508A, CSA C22.2
- UPC: 782051750300
Typical Applications
The Cooper B-Line 644-12CHC enclosure is ideal for:
- Junction box protection in manufacturing and industrial plants
- Electrical component housing in dry indoor environments
- Control equipment protection requiring NEMA 12/13 rating
- Space-constrained wall-mount installations
- Equipment requiring tool-free or easy screw-clamp access
Compatibility & Replacements
Compatible With
- Standard electrical components and junction devices
- Industrial control systems requiring NEMA 12 enclosures
- Equipment rated for wall-mount installations
- DIN rail and component mounting brackets (interior)
Replaces / Drop-In Replacement For
The Cooper B-Line 644-12CHC is a direct replacement for legacy continuous-hinge JIC enclosures of the same 6″×4″×4″ dimensions. Verify compatibility with your original equipment specifications before ordering.
Works With
- Standard UL 508A listed electrical components
- Industrial control panels and junction box installations
- Powder-coated or painted interior finishes
- External conduit and wiring systems
