<h2>Overview</h2>

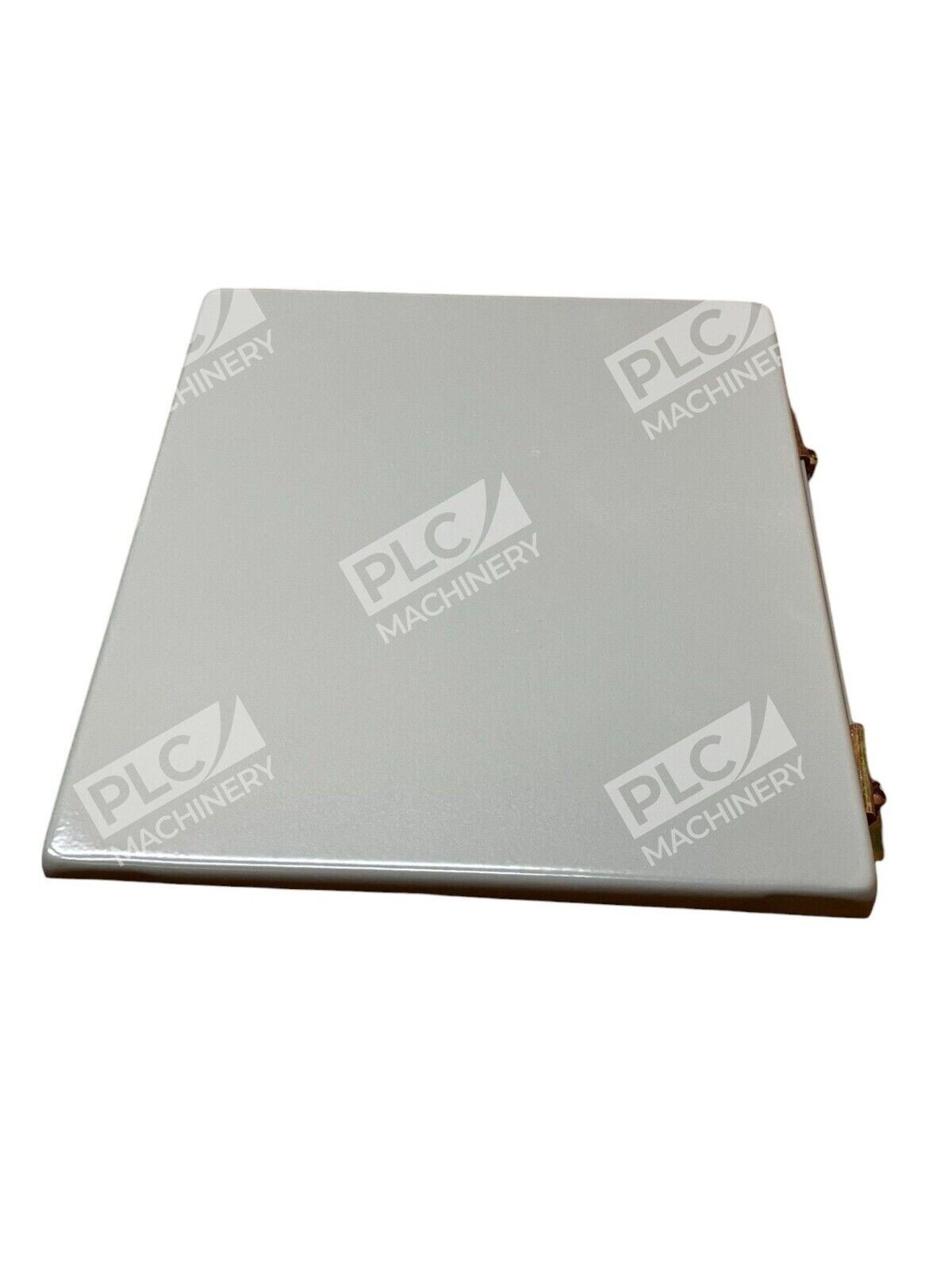

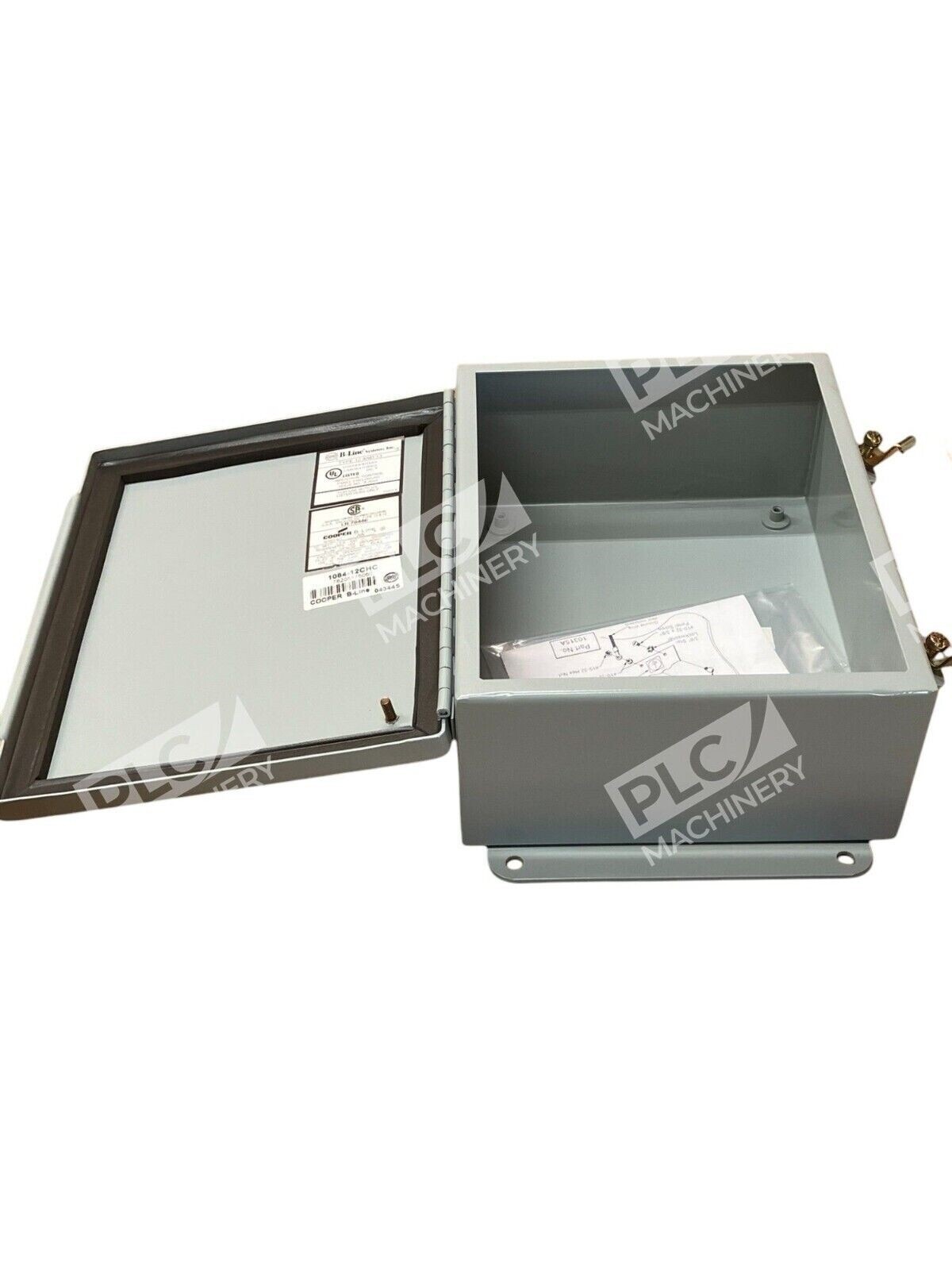

<p>The <strong>1084-12CHC</strong> is an Eaton B-Line series JIC panel enclosure designed for industrial electrical equipment protection. Measuring 10 inches height × 8 inches width × 4 inches depth, this Type 12 enclosure features a continuous hinge cover for convenient access and durability in demanding environments.</p>
<h2>Key Features</h2>
<ul>
<li>Continuous hinge cover enables easy, reliable access to internal components</li>
<li>Type 12 and Type 13 rated: protects against circulating dust, falling dirt, and dripping non-corrosive liquids</li>
<li>UL 508 listed and CSA C22.2 No. 94 certified</li>
<li>Zinc-plated hardware and clamps for corrosion resistance</li>
<li>Single small door with external mounting feet for flexible installation</li>
<li>Seamless poured in-place gasket for environmental protection</li>
</ul>
<h2>Technical Specifications</h2>
<p>This enclosure is constructed from carbon steel with a wash and phosphate undercoat and ANSI 61 gray polyester powder finish. It conforms to NEMA standards for Type 12 and Type 13 operation and to JIC standard EGP-1-1967.</p>
<h2>Typical Applications</h2>
<ul>
<li>Houses electrical controls and instruments in industrial facilities</li>
<li>Protects PLC and control system components from environmental contamination</li>
<li>Used in manufacturing, food processing, and chemical handling environments</li>
<li>Ideal for wall-mounted installations requiring frequent access to panel components</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>B-Line JIC terminal strap kits and terminal strip kits</li>
<li>Standard #8-32 self-tapping screws (part 10168)</li>
<li>Compatible solid and perforated panel options (AW108P solid, AW108PP perforated)</li>
<li>Standard electrical terminal blocks and power distribution components</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The 1084-12CHC is a direct replacement for the same part number across all B-Line installations. Similar enclosures in the series include 1084-12CHCS (wall-mount variant) and 1086-12CHC (slightly larger configuration). Verify compatibility with your specific panel configuration before ordering.</p>
<h3>Works With</h3>
<ul>
<li>Standard JIC panel design and layout standards</li>
<li>Eaton and third-party electrical control components</li>
<li>Conventional DIN rail-mounted terminal strips and blocks</li>
</ul>
