Overview

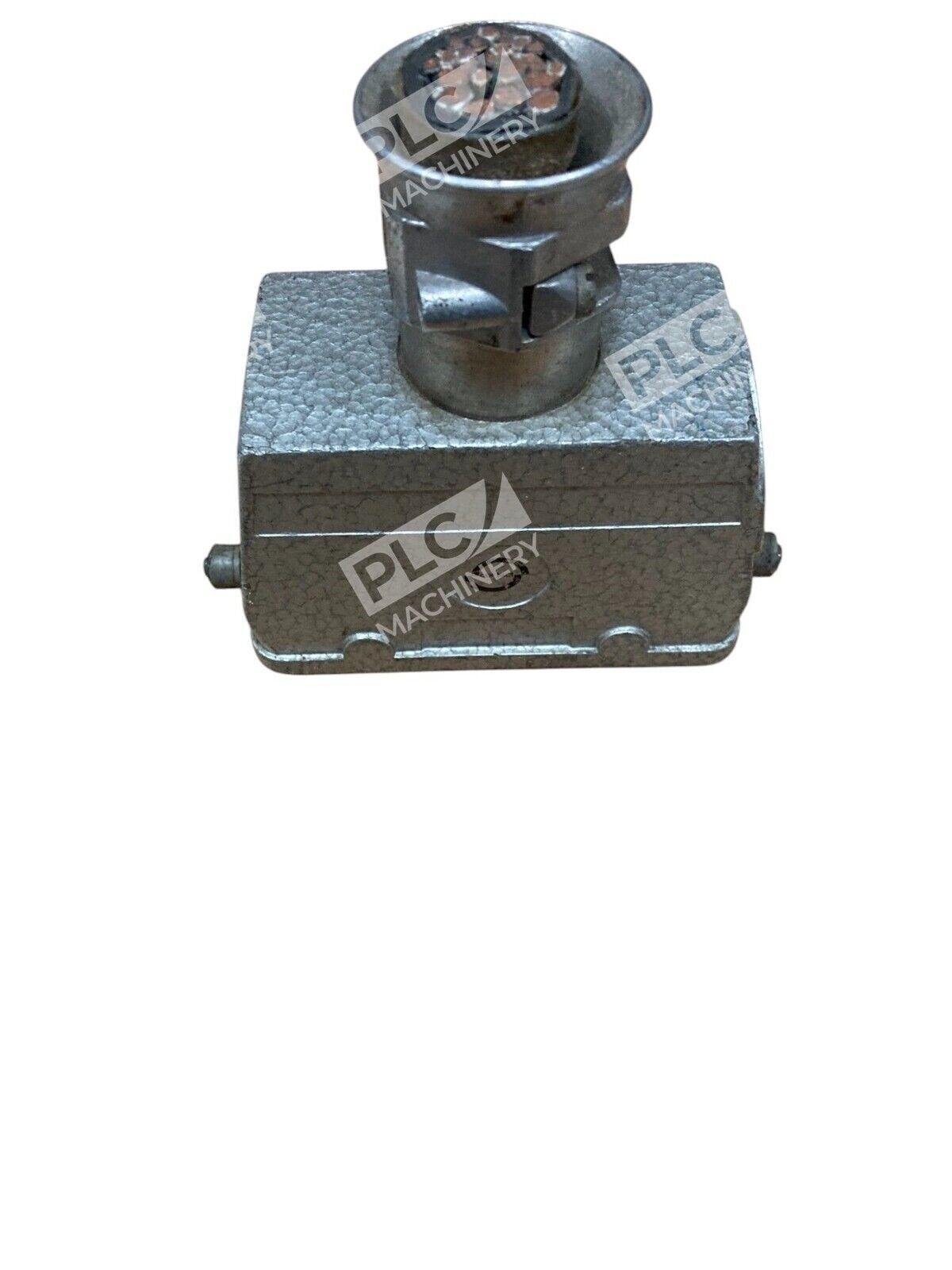

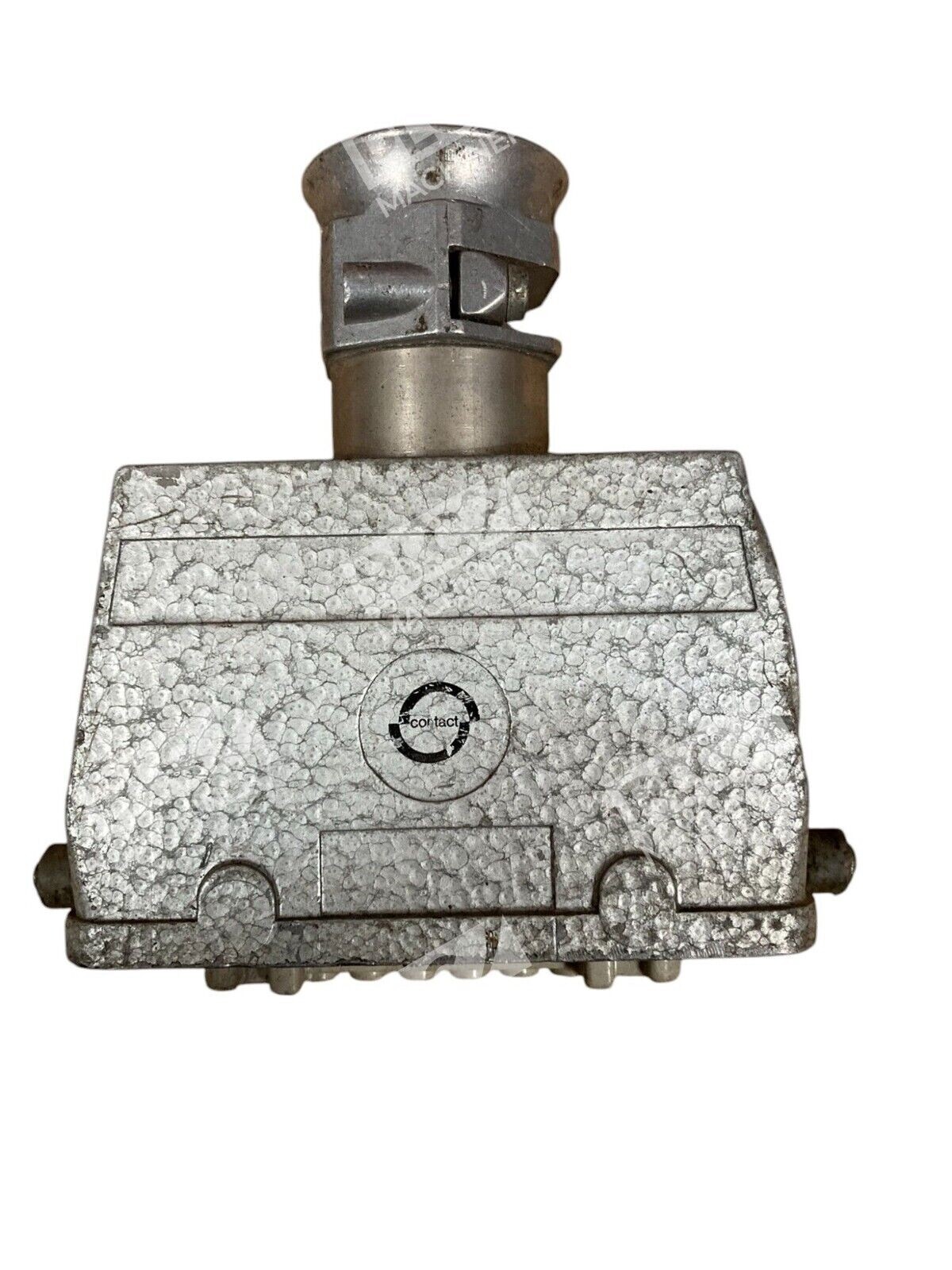

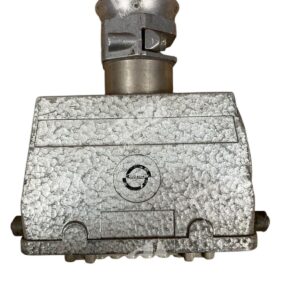

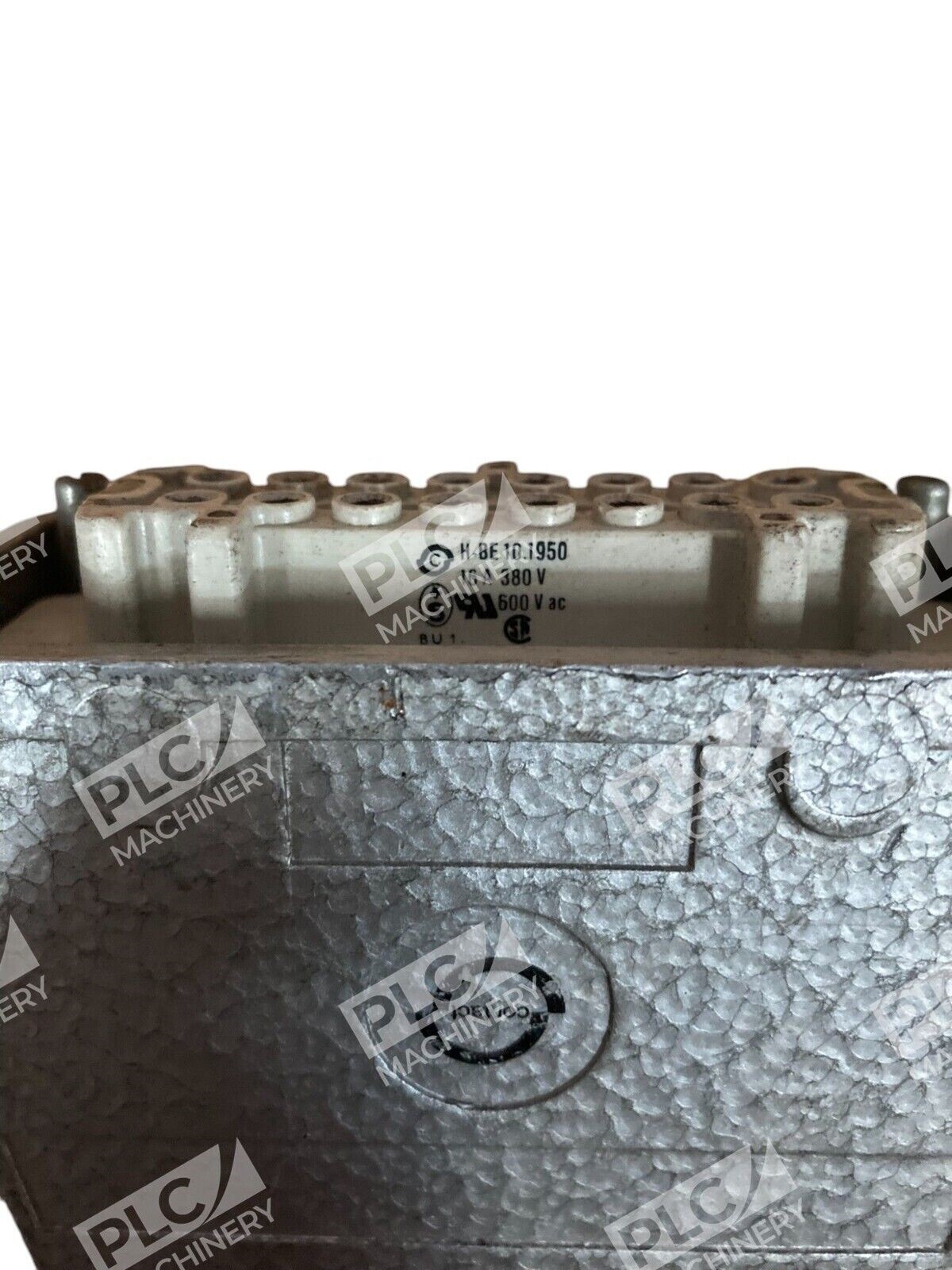

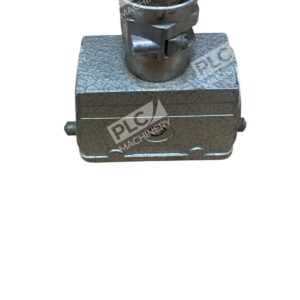

The Contact H-BE10.1950 16A 380V connector is a 16-contact rectangular insert designed for demanding industrial environments. Part of the EPIC H-BE series, this connector features screw termination and female hard silver-plated copper alloy contacts built to withstand high-voltage AC applications. The H-B16T receptacle housing provides robust mechanical protection and ensures secure mating with standard plug assemblies.
Key Features
- 16-contact Standard Insert with screw termination
- Female hard silver-plated copper alloy contacts for corrosion resistance
- Rated for 16A continuous current at 380V AC (600V AC rated)
- Heavy-duty rectangular design for industrial machinery and panel-mount applications
- Receptacle housing H-B16T included with secure connector lever engagement
- IP65-rated hoods available for panel cutout installations
Technical Specifications
- Manufacturer: Contact Connectors (EPIC H-BE Series)

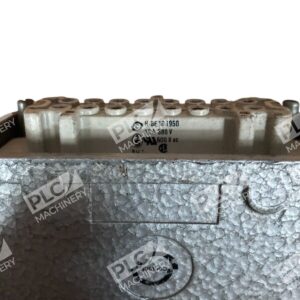

- Part Number: H-BE10.1950

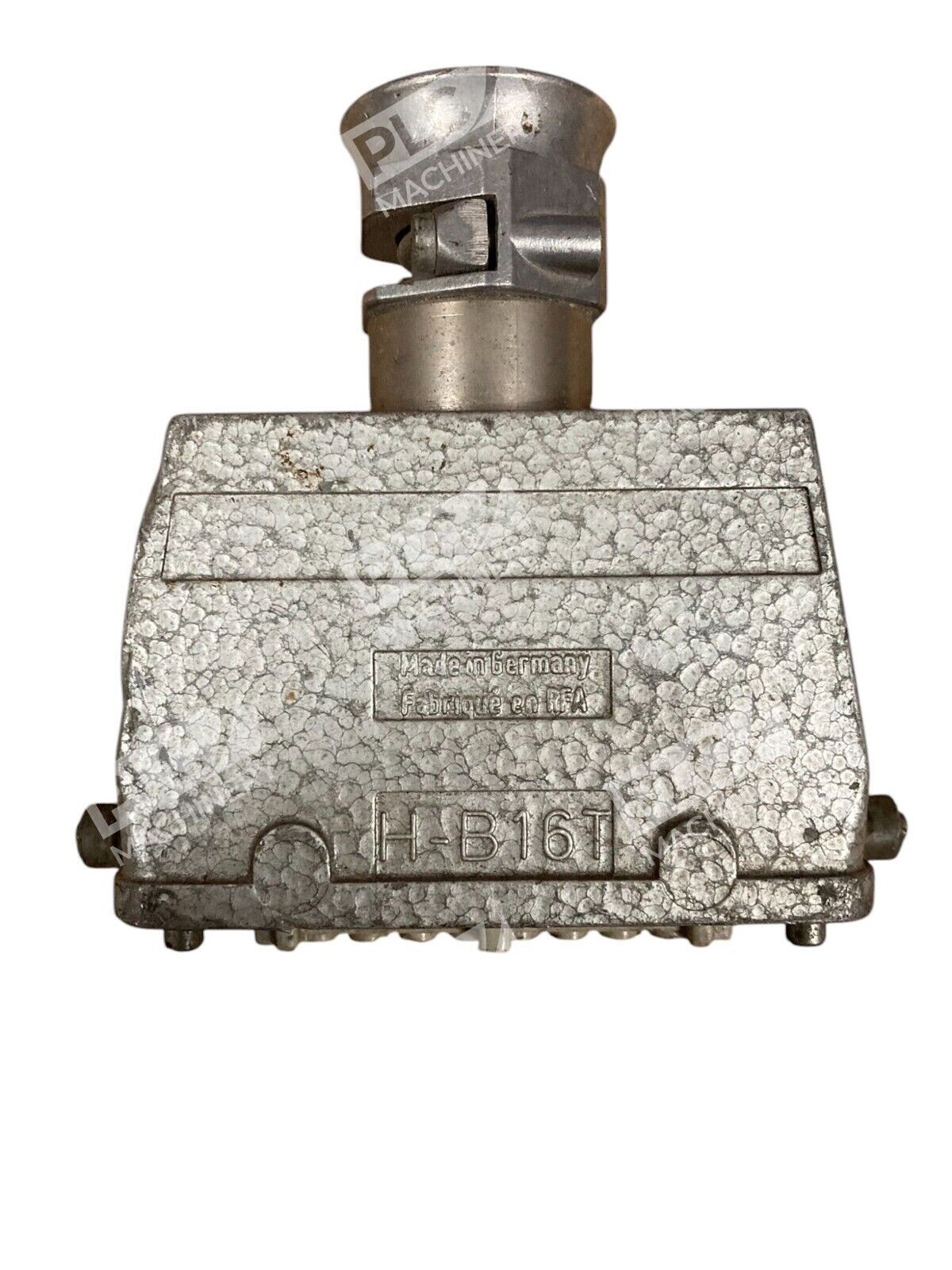

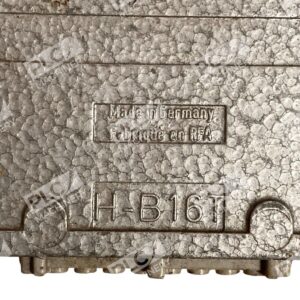

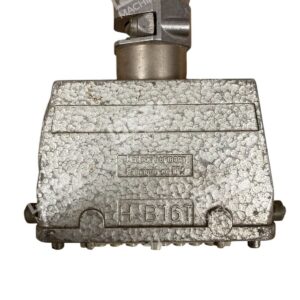

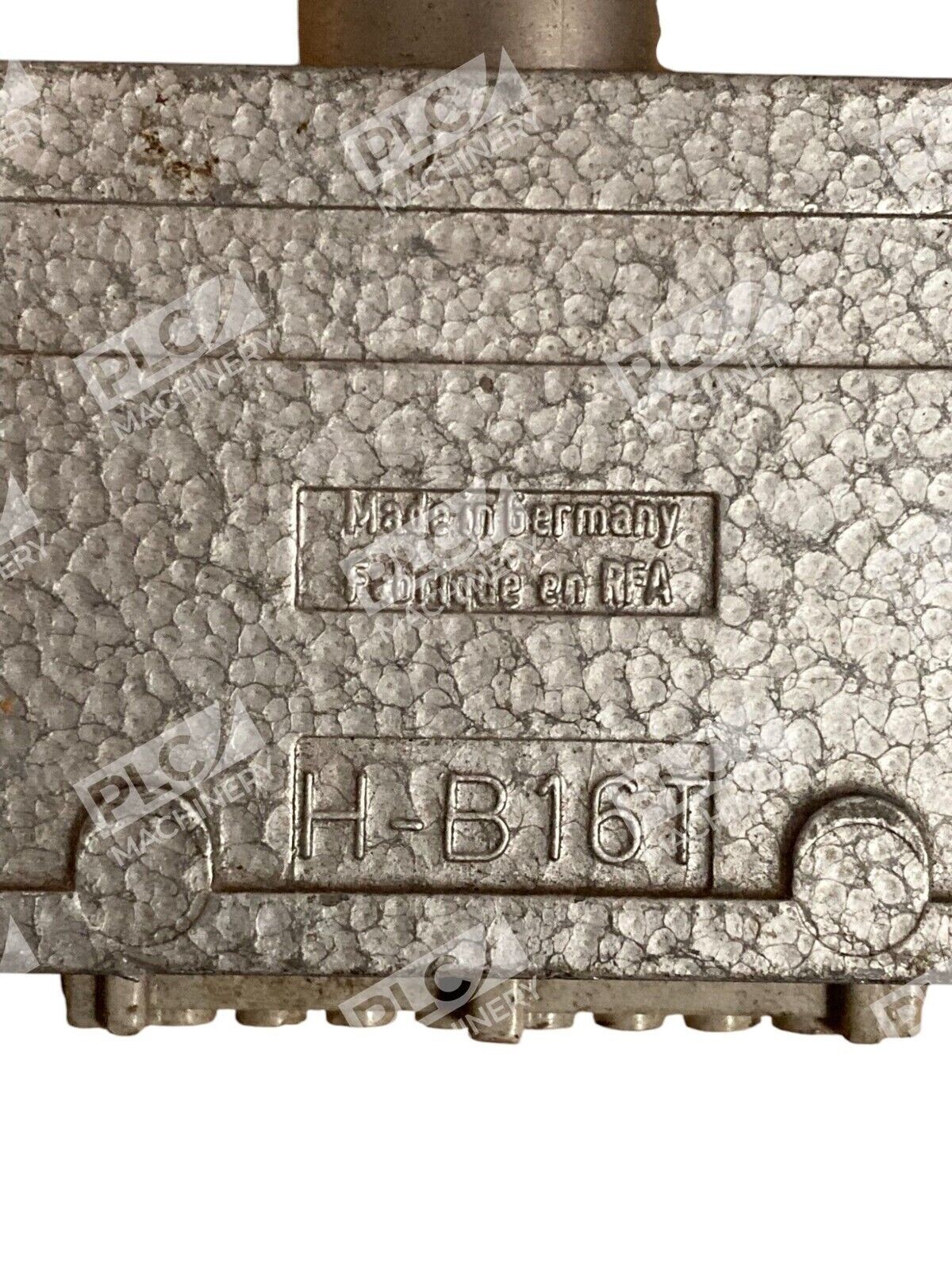

- Receptacle Housing: H-B16T
- Contact Count: 16 (16P)
- Current Rating: 16A continuous
- Voltage Rating: 380V AC; 600V AC rated
- Contact Material: Hard silver-plated copper alloy
- Termination: Screw terminal
- Contact Gender: Female (receptacle)
- Series: H-BE (Heavy-Duty)
Typical Applications
- Industrial machine tool electrical power distribution
- Manufacturing equipment panel connections
- High-voltage AC control circuits
- Motor and drive power interconnections
- Industrial automation equipment cabinet wiring
- Phase converter and transformer connections
Compatibility & Replacements
Compatible With
- Standard H-BE series plug inserts (H-BE10 and H-B series)
- H-B16T receptacle housings and cable glands
- Industrial control panel cutouts rated for PG thread sizes (M20–M40 cable glands)
- EPIC connector system components
Replaces / Drop-In Replacement For
- Contact H-BE10.1940 (16-position variant)
- Harting equivalent H-BE10.1940 and H-B16T housings
- Other 16-contact 16A 380V industrial rectangular connectors
Works With
- Standard DIN 43650 connector systems
- EPIC H-BE hoods and cable glands (PG thread sizes)
- Screw-terminal wire gauges: 0.5–2.5 mm² (per industrial connector standards)
- General industrial electrical control architectures
