Overview

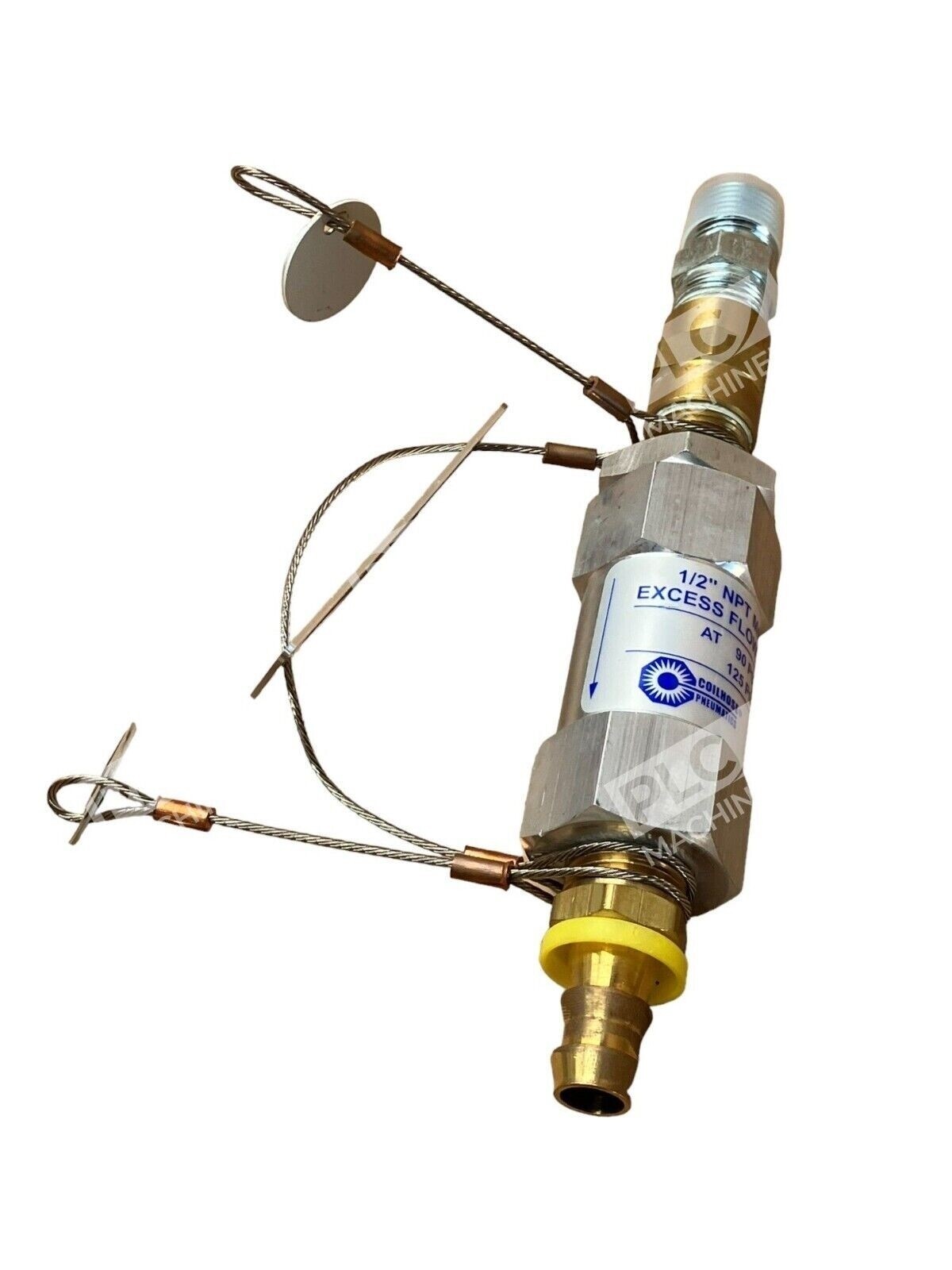

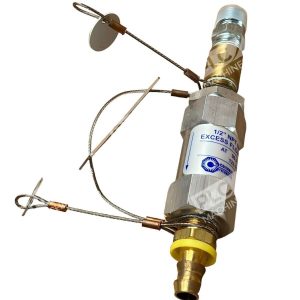

The Coilhose SV804 excess flow check valve is a safety accessory designed for compressed air lines serving pneumatic tools and equipment. This valve is designed to automatically shut off air flow upon a sudden break in the air line, thereby protecting personnel and property from “whipping” air hoses. The SV804 maintains full unrestricted airflow during normal operation while providing critical safety protection in emergency conditions.
Key Features
- Allows full restriction flow of air while in normal (open) position
- Entire unit is corrosion free
- It automatically re-sets itself after repair is made
- Unit is tamper-proof
- Meets OSHA safety regulations
- Compact aluminum body construction for durability
Technical Specifications

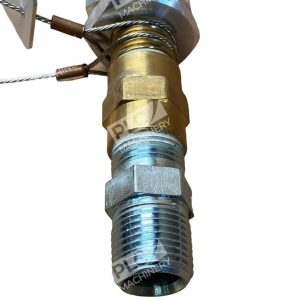

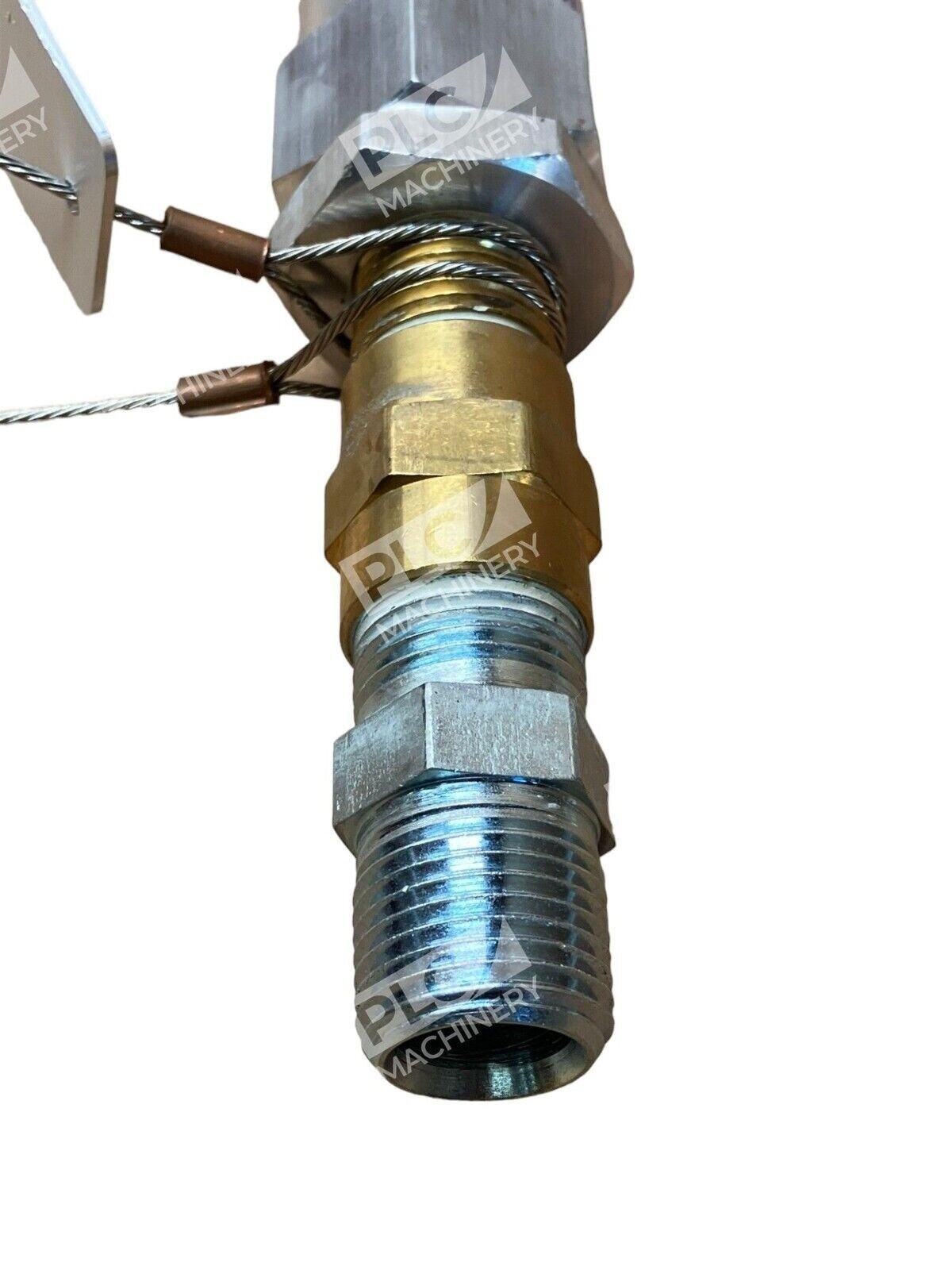

- Port Connection: 1/2″ Female NPT (FPT)
- Valve Type: Safety Excess Flow Check Valve
- Function: Automatic shutoff on line break
- Material: Aluminum body, corrosion-resistant
- Compliance: OSHA-compliant
- Reset: Automatic after air line repair
- Application: Compressed air lines for pneumatic tools
Typical Applications
The unit is to be installed on compressed air lines leading to pneumatic tools. Common installations include:
- Pneumatic impact wrenches and ratchets
- Air nail guns and fastening tools
- Compressed air hose assemblies
- Industrial pneumatic tool stations
- Maintenance and repair shop air lines
Compatibility & Replacements
Compatible With
- 1/2″ NPT compressed air line systems
- Standard pneumatic tool couplers and fittings
- Industrial and commercial air compressor systems
- OSHA-regulated work environments
Replaces / Drop-In Replacement For
- Other 1/2″ FPT safety excess flow check valves in the same class
- Verify specific model compatibility with your system integrator before ordering
Works With
- Standard pneumatic hose and fitting assemblies
- 1/2″ NPT female-threaded ports
- Compressed air distribution systems
