Overview

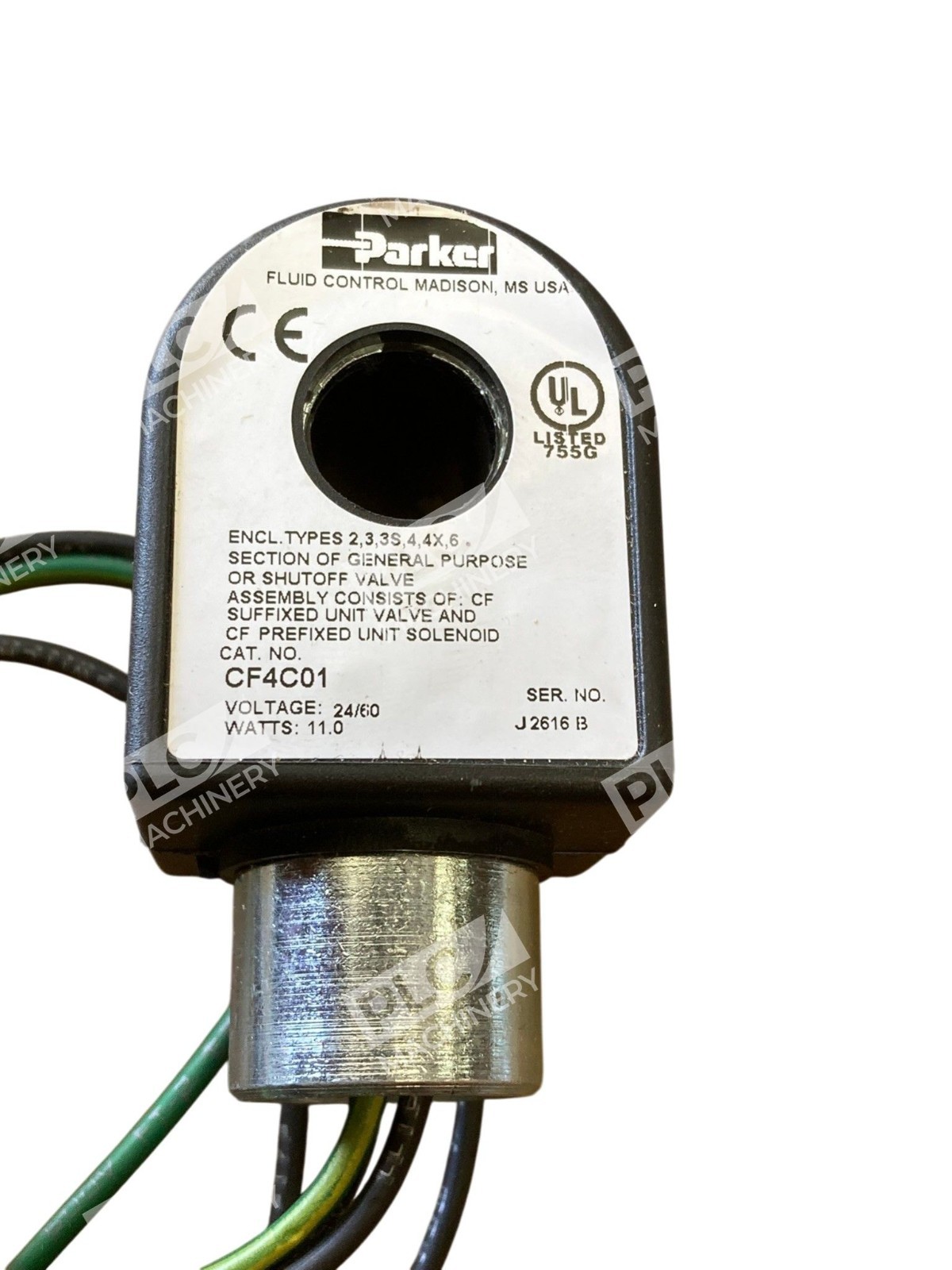

The Parker CF4C01 is an OEM replacement conduit coil engineered for Gold Ring series solenoid valves. Rated at 24VAC, 60Hz with an 11-watt power consumption, this Class F solenoid coil provides reliable actuation for fluid control systems across industrial and carwash applications. The compact conduit design with 18-inch lead wires enables straightforward field installation.
Key Features
- OEM original equipment manufacturer part from Parker Hannifin
- Rated 24VAC at 60Hz, 11-watt power consumption
- 1/2-inch NPT threaded conduit electrical connection
- 18-inch lead wires for flexible installation routing
- NEMA 1, 2, 3, 4, and 4X enclosure rated for indoor and outdoor environments
- Class F insulation for reliable long-term performance
- UL and CSA certified for safety compliance
Technical Specifications
- Voltage: 24VAC at 60Hz
- Power Rating: 11W
- Coil Class: Class F
- Electrical Connection: 1/2 in. NPT conduit
- Lead Length: 18 inches
- NEMA Rating: 1, 2, 3, 4, 4X
- Certifications: UL, CSA
- Application: Gold Ring series solenoid valves
Typical Applications
The Parker CF4C01 is commonly used in:
- Carwash systems for fluid control and sequencing
- Industrial water and coolant valve automation
- Secondary coolant system solenoid valves
- General-purpose fluid control systems requiring manual or automated actuation
- Equipment requiring NEMA 4X corrosion resistance in wet or washdown environments
Compatibility & Replacements
Compatible With
- Parker Gold Ring series solenoid valves (all sizes and configurations)
- Systems requiring 24VAC, 60Hz solenoid coil actuation
- Standard industrial control panels rated for Class F insulation coils
- NEMA enclosures rated 1, 2, 3, 4, and 4X
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The CF4C01 is designed as a direct replacement for OEM Gold Ring series coils; original equipment part numbers should be confirmed against your valve documentation.
Works With
- Standard 24VAC power supplies and transformers
- Conventional solenoid valve control circuits and timers
- Industrial PLC and automation controller outputs rated for AC solenoid loads
- Manual and automatic valve actuation schemes
