Overview

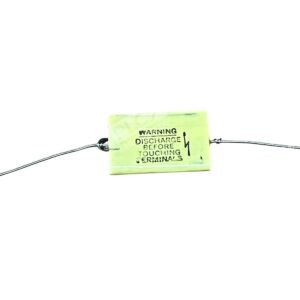

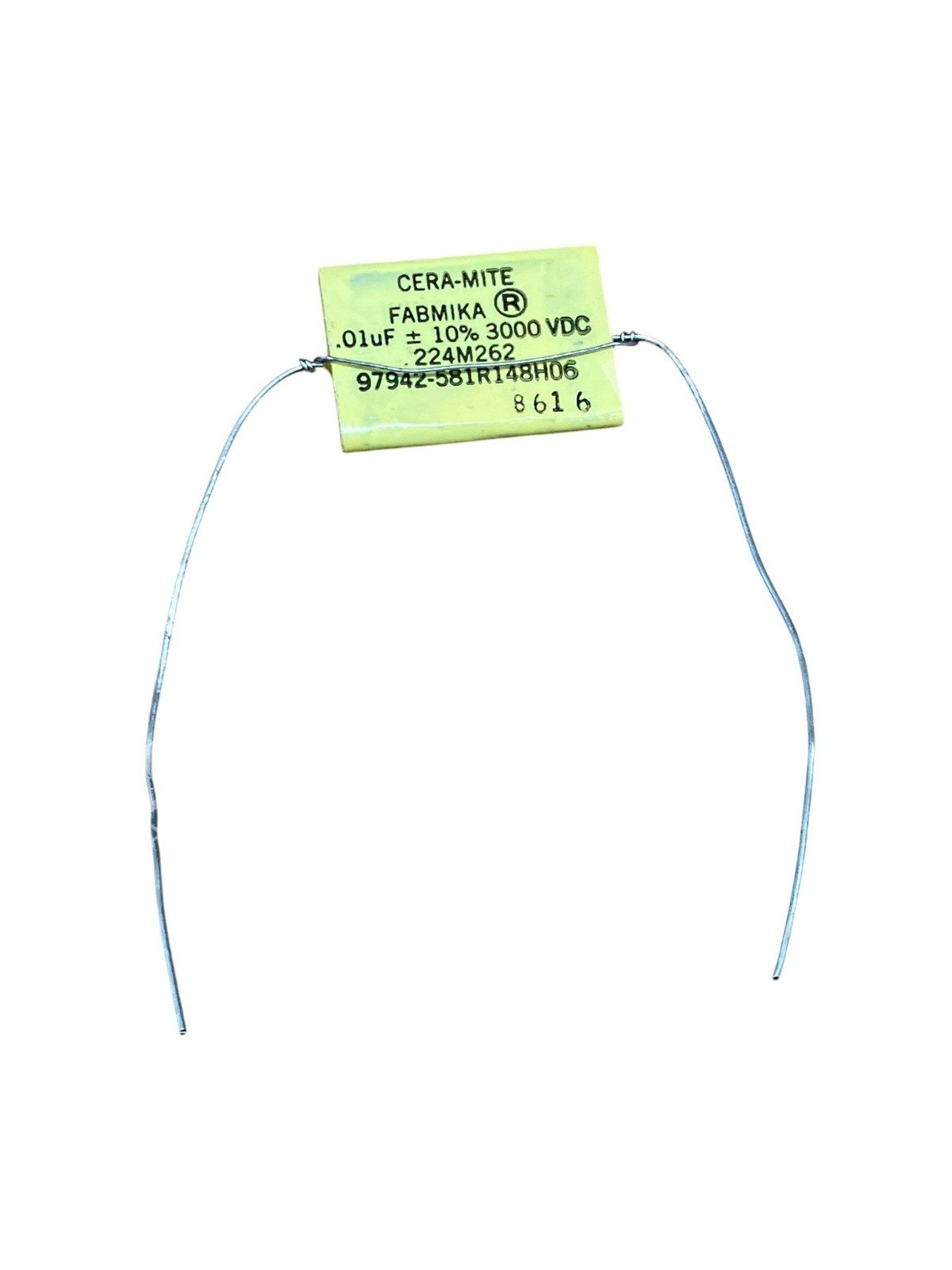

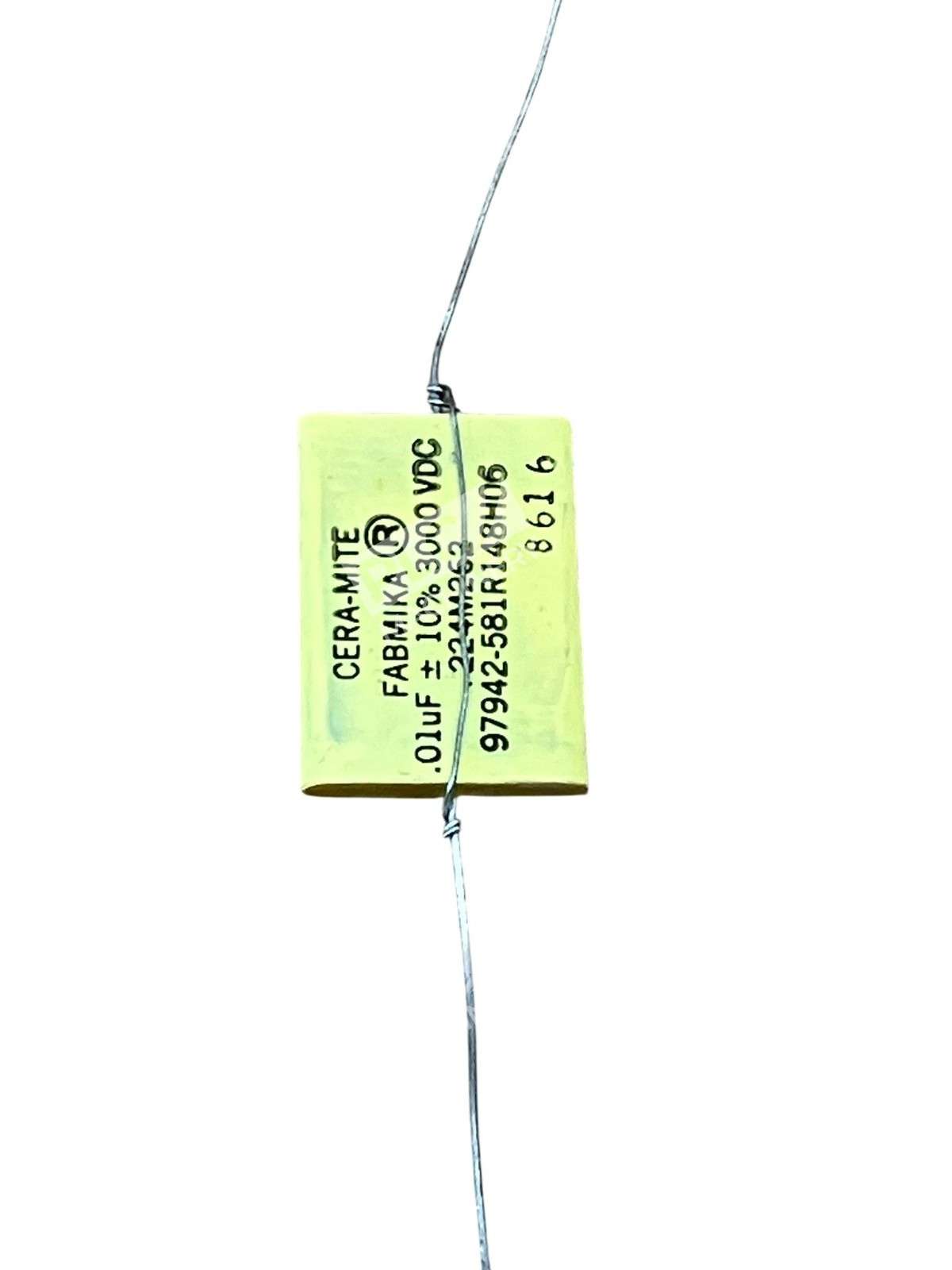

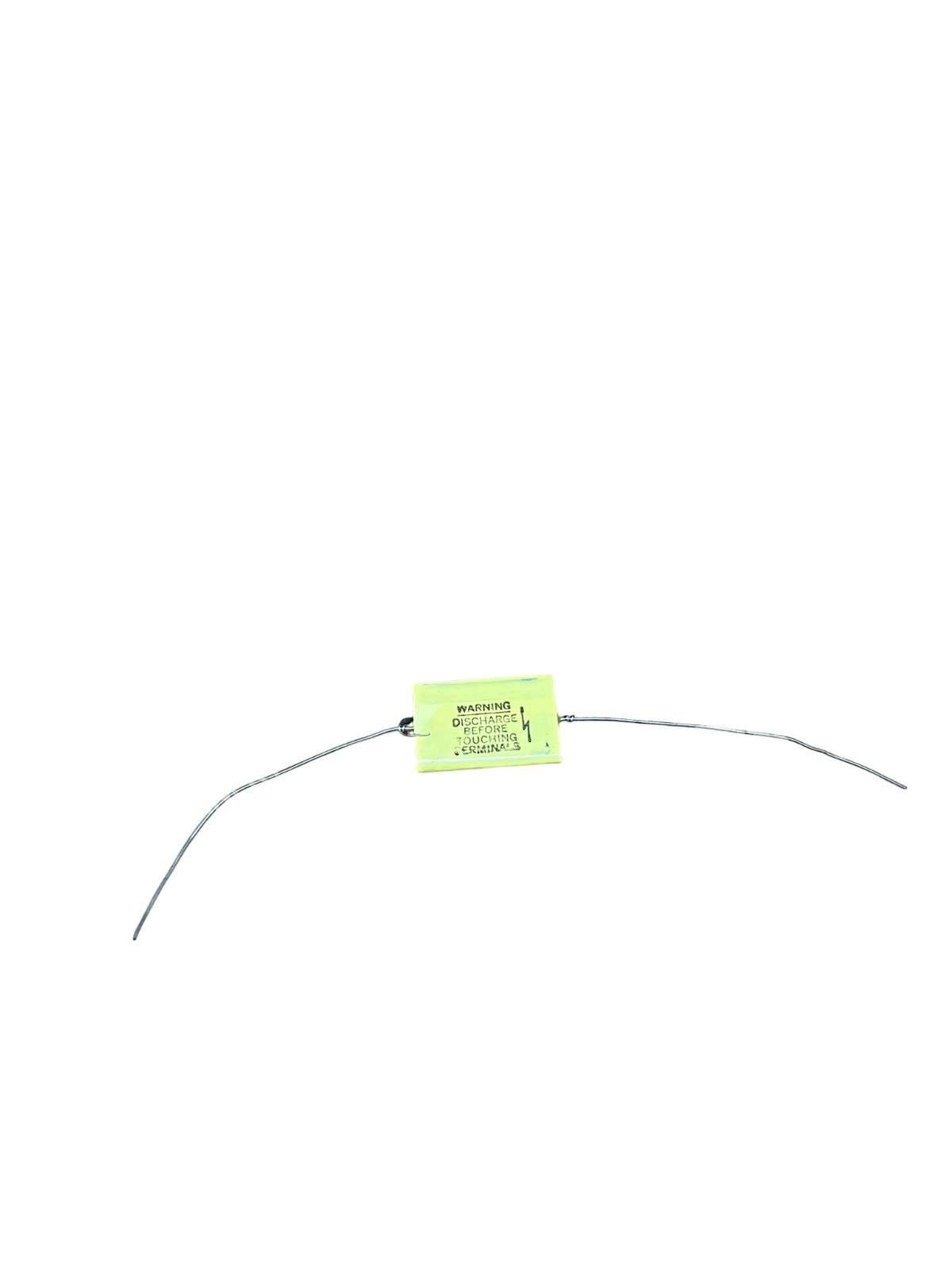

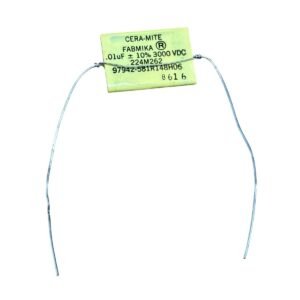

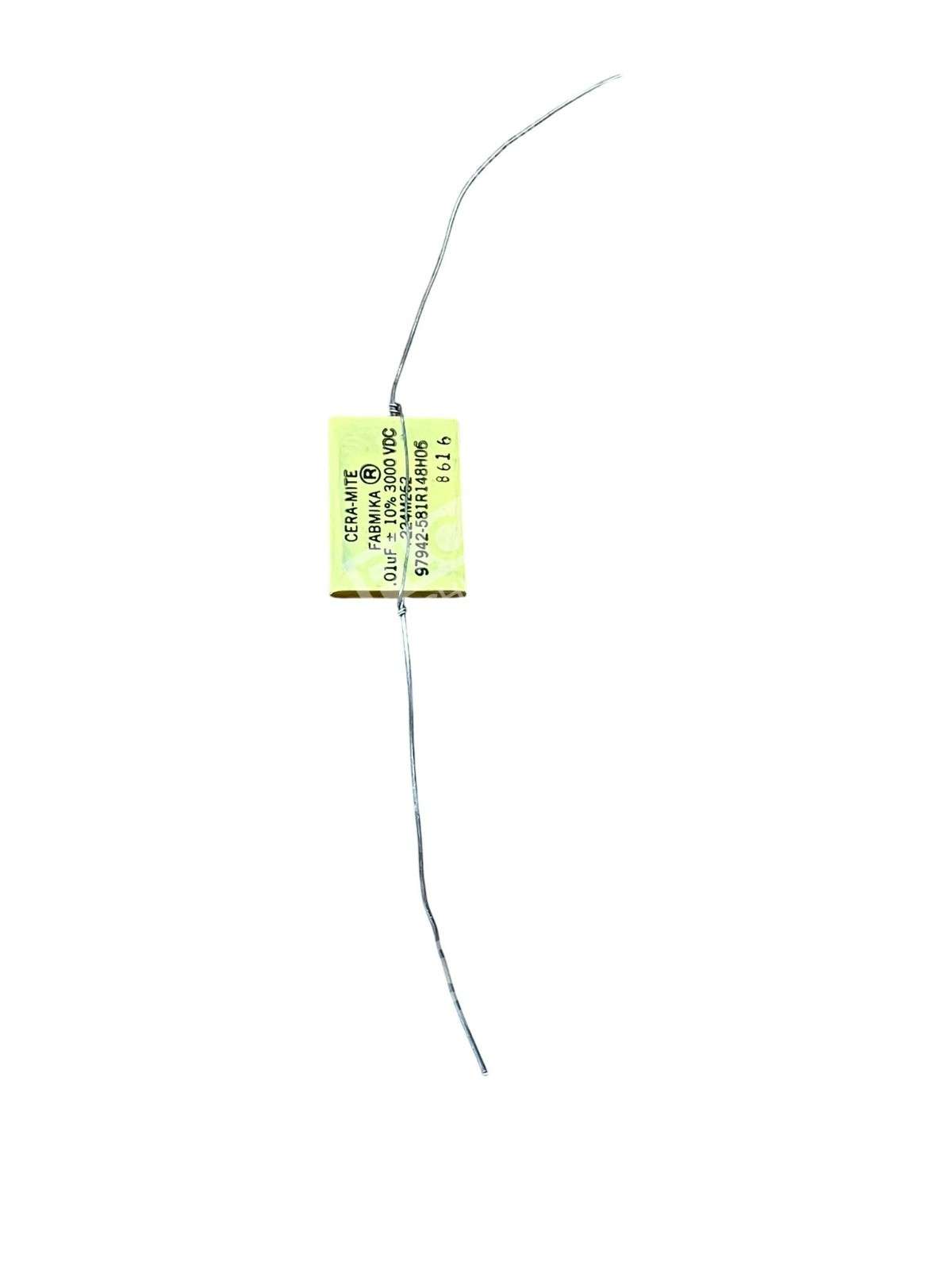

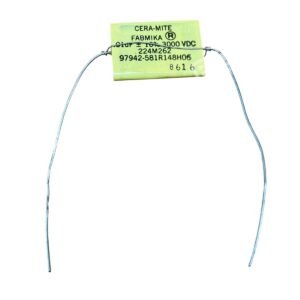

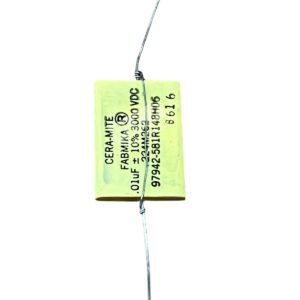

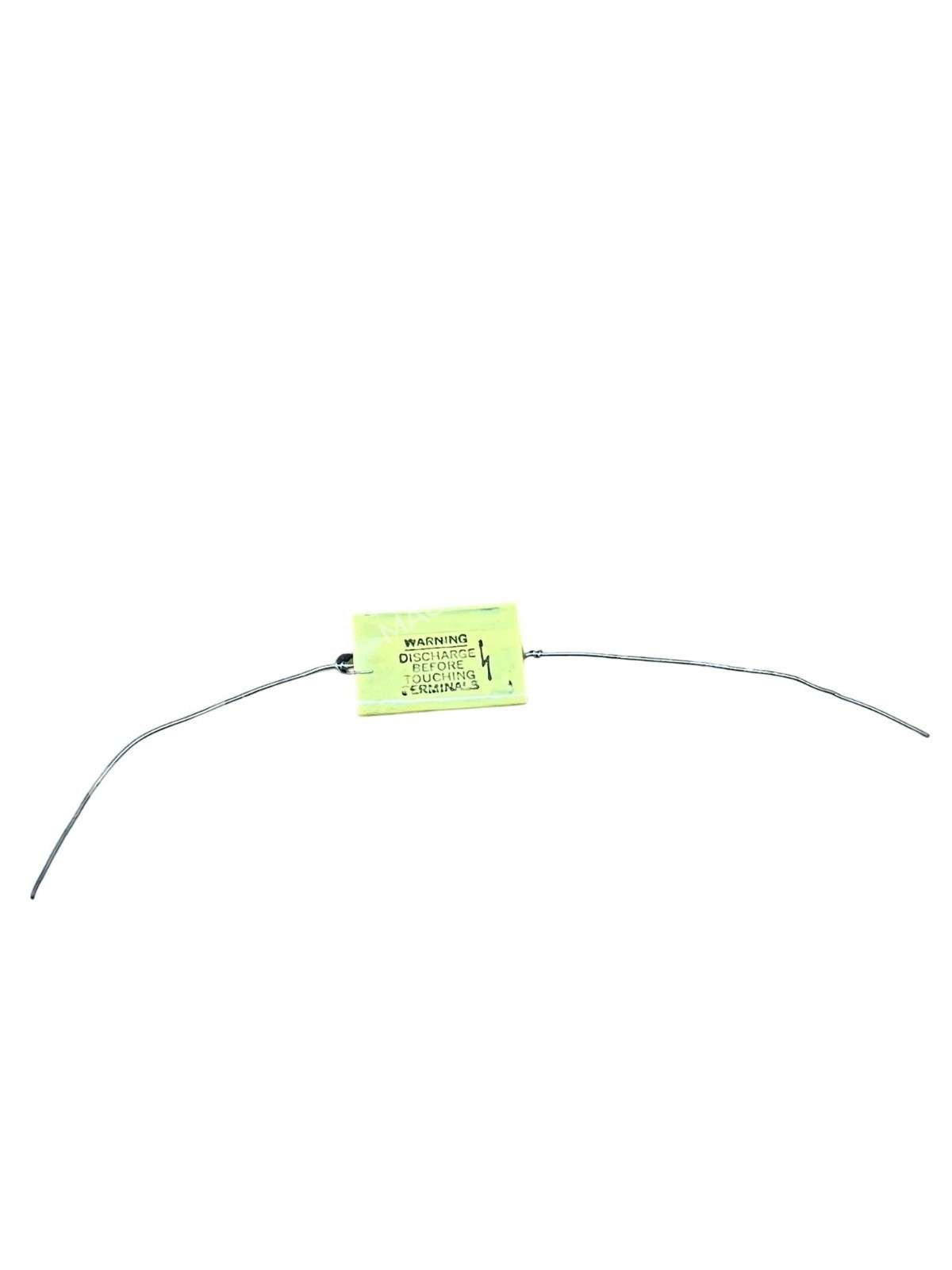

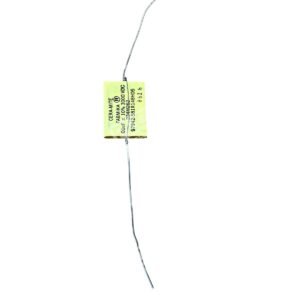

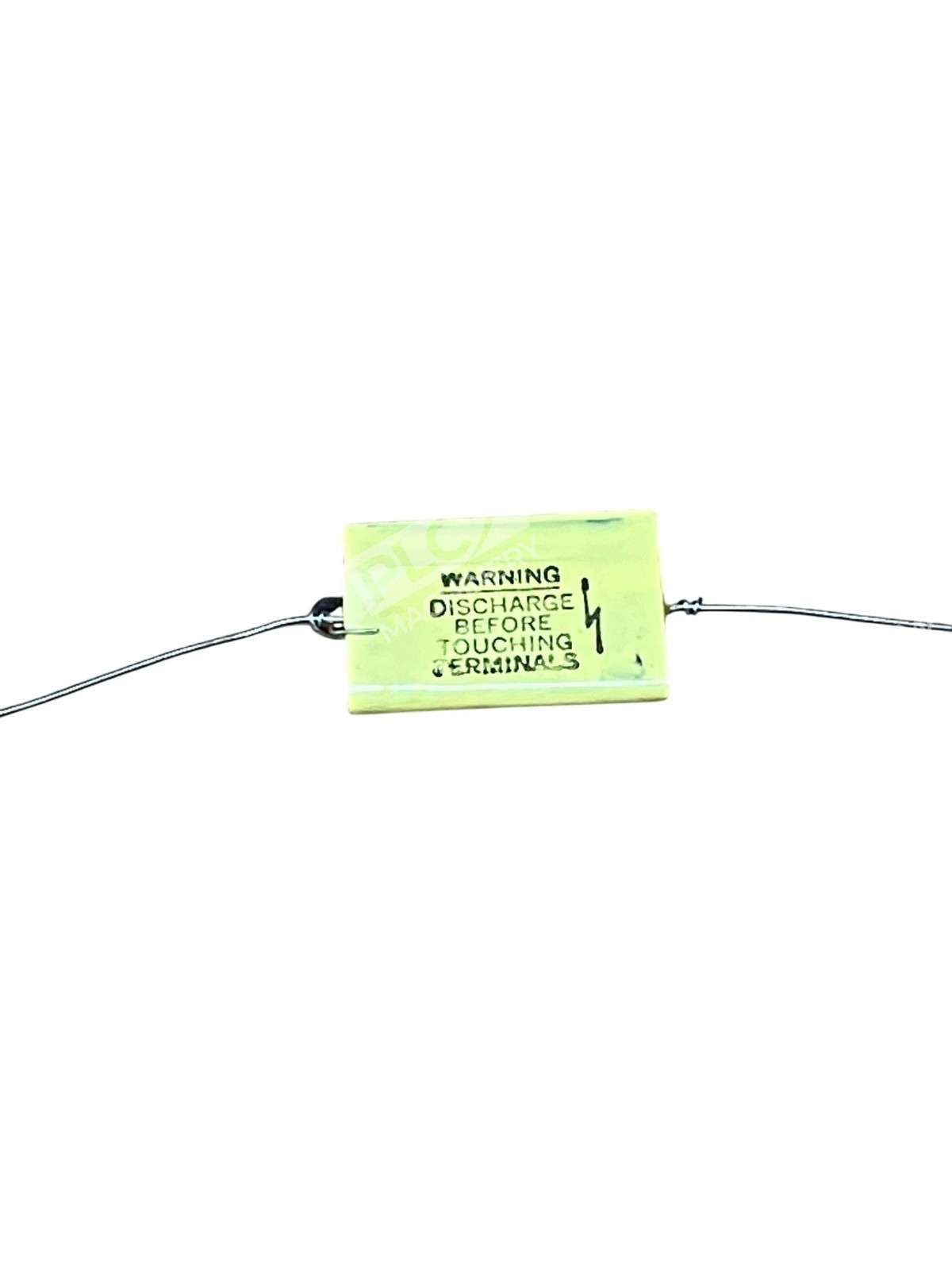

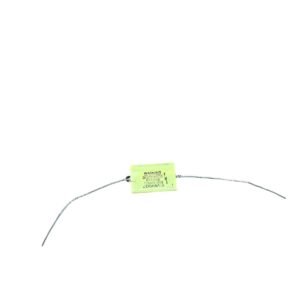

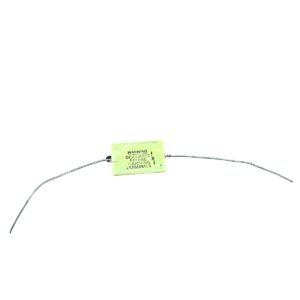

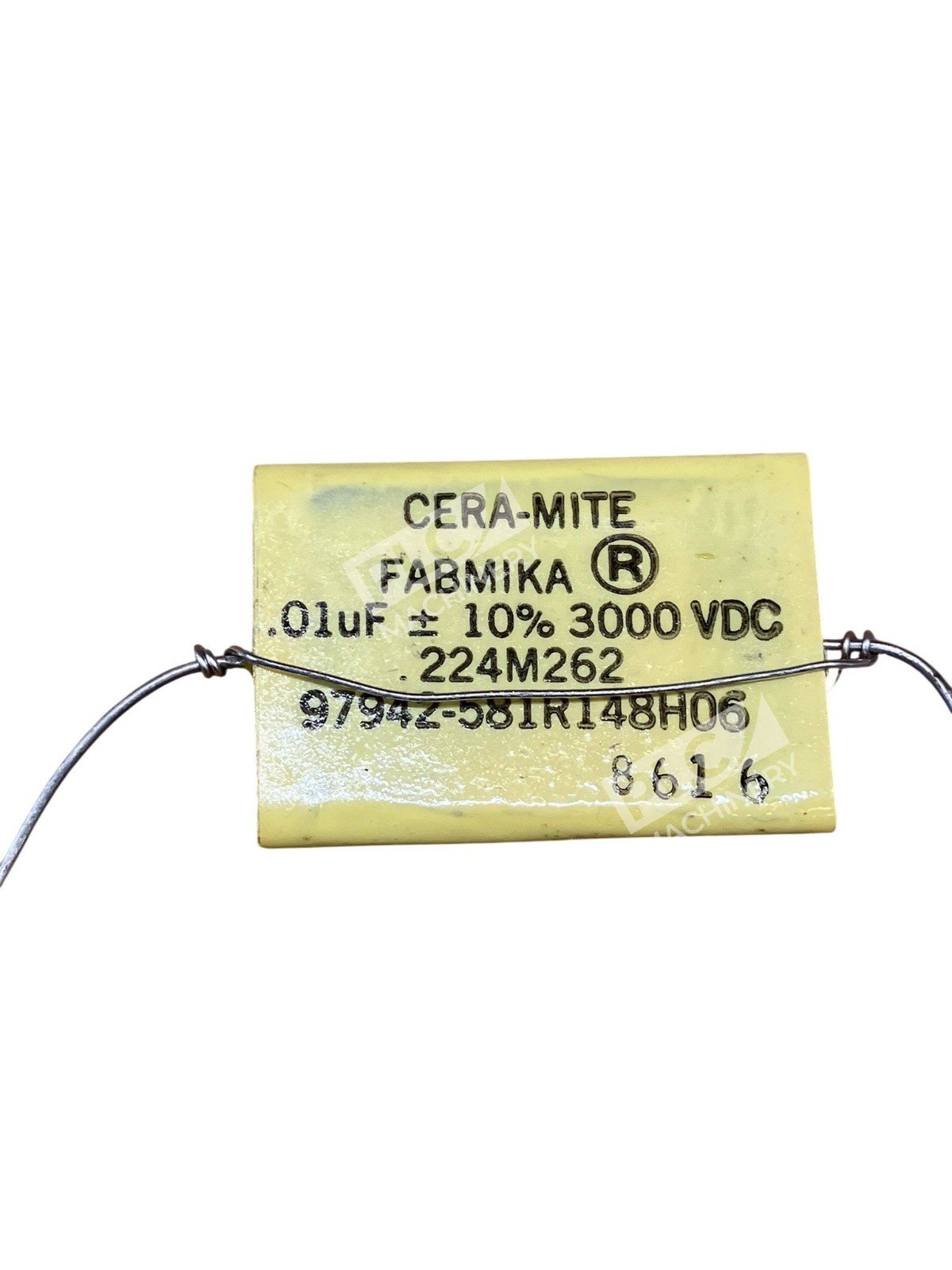

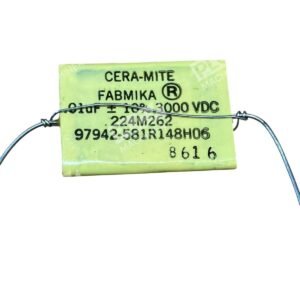

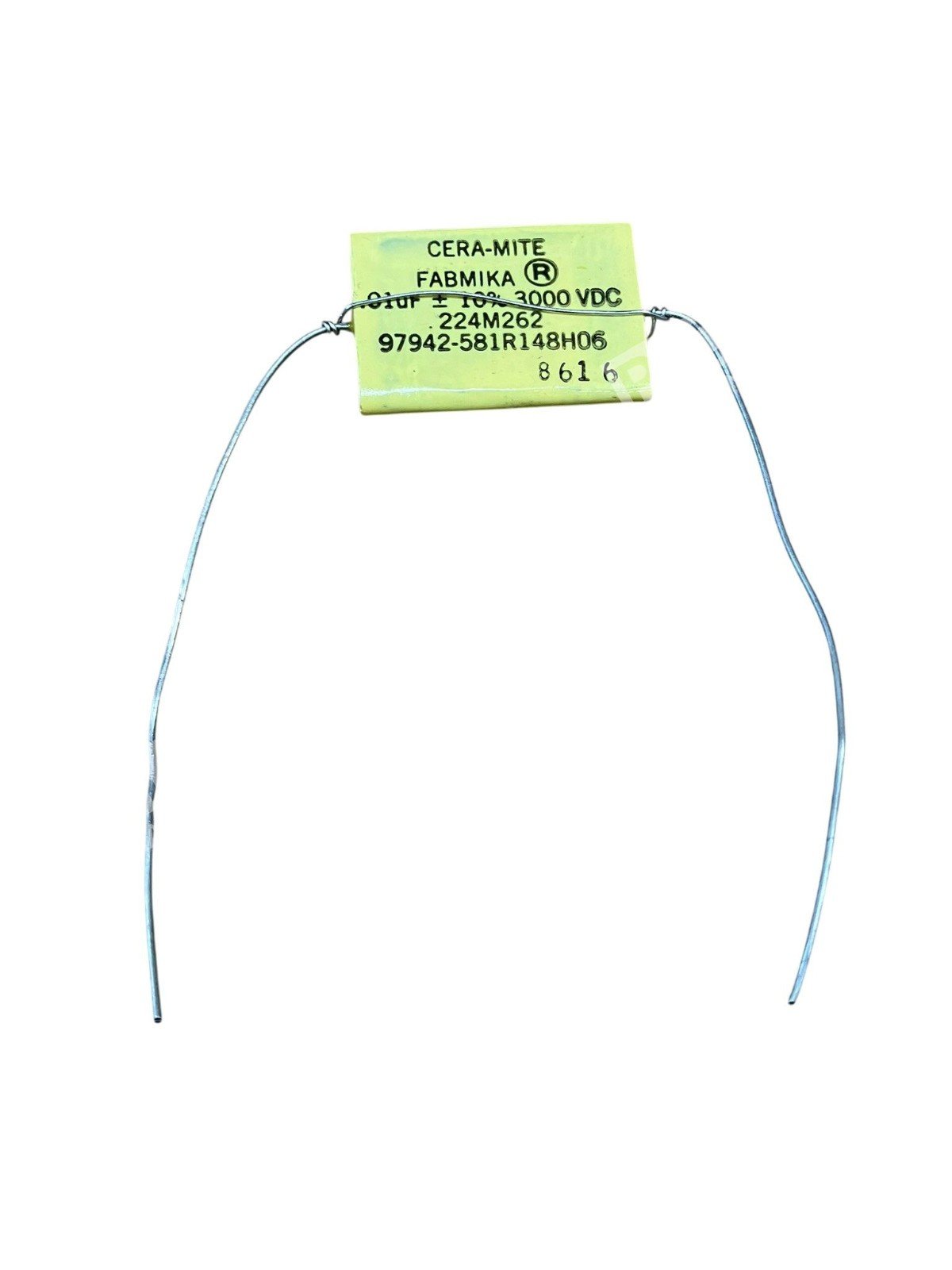

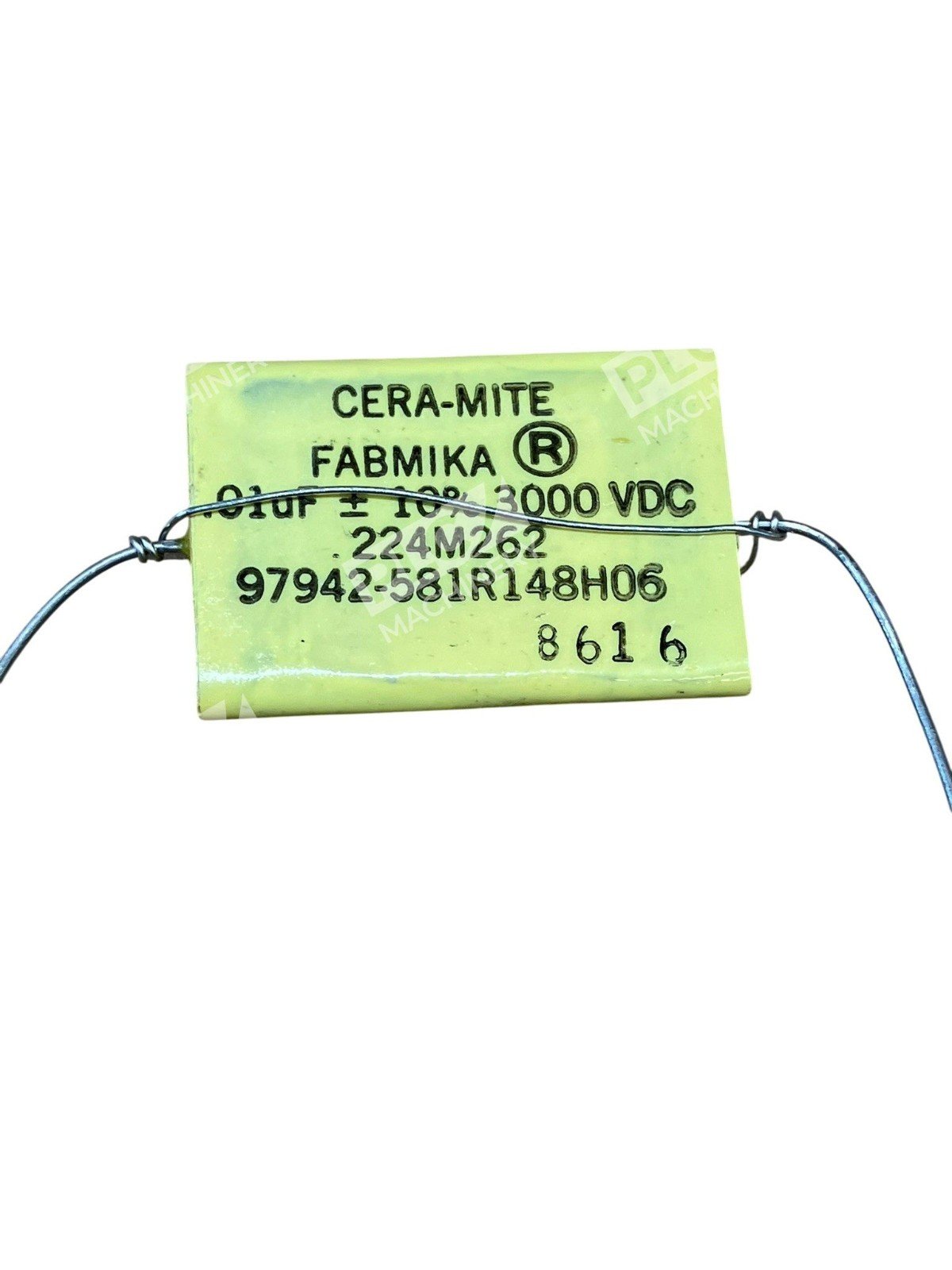

The Cera-Mite Fabmika 224M262 is a premium high-voltage mica capacitor designed for demanding industrial and RF applications requiring exceptional reliability and stability. Rated at 3000VDC, this capacitor combines the inherent advantages of mica dielectric technology—including low loss, high Q factor, and excellent temperature stability—with robust construction for long service life. Supplied as a lot of 25 units with 10% tolerance, this product is ideal for RF circuits, high-voltage filtering, coupling, and decoupling applications where precision and durability are critical.
Key Features
- 3000VDC rated voltage for high-voltage applications
- Mica dielectric technology ensures low loss and stable performance across temperature range
- 10% tolerance specification for consistent, predictable performance
- Supplied in bulk lot of 25 units—ideal for production runs and system builds
- Compact, reliable form factor suitable for PCB and component-level integration
- Industry-standard Fabmika design for drop-in compatibility in legacy and modern circuits
Technical Specifications
- Manufacturer: Vishay (Cera-Mite brand)
- Part Number: 224M262
- Rated Voltage: 3000 VDC
- Tolerance: ±10%
- Dielectric: Mica (silvered)
- Quantity per Lot: 25 units
- Condition: New, open box
- Application Category: High-voltage RF, industrial, and power supply circuits
Typical Applications
- RF transmitters and amplifiers requiring stable, low-loss capacitance
- High-voltage power supply filtering and energy storage
- Coupling and decoupling circuits in industrial control systems
- Precision tuning circuits where close tolerance and temperature stability are essential
- Test and measurement equipment requiring reliable reference capacitance
- Legacy equipment replacement and retrofit applications
Compatibility & Replacements
Compatible With
- High-voltage PCB and component-level designs rated 3000VDC or higher
- RF circuit assemblies and filter networks requiring mica dielectric stability
- Industrial control systems and power electronics requiring precision capacitance
- Vintage and legacy equipment using Fabmika-series components
- Military and aerospace-grade applications leveraging mica reliability
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment documentation before ordering. The Fabmika 224M262 is typically cross-compatible with other Cera-Mite high-voltage mica capacitors of the same voltage and tolerance ratings, but specific model-to-model replacement should be confirmed against your schematic or bill of materials.
Works With
- High-voltage PCB assembly and soldering processes (recommend temperature-controlled soldering iron below 180°C with short dwell time)
- Standard through-hole and component-level mounting configurations
- RF and power measurement instruments for performance validation
- Industrial test and burn-in procedures for quality assurance
