Overview

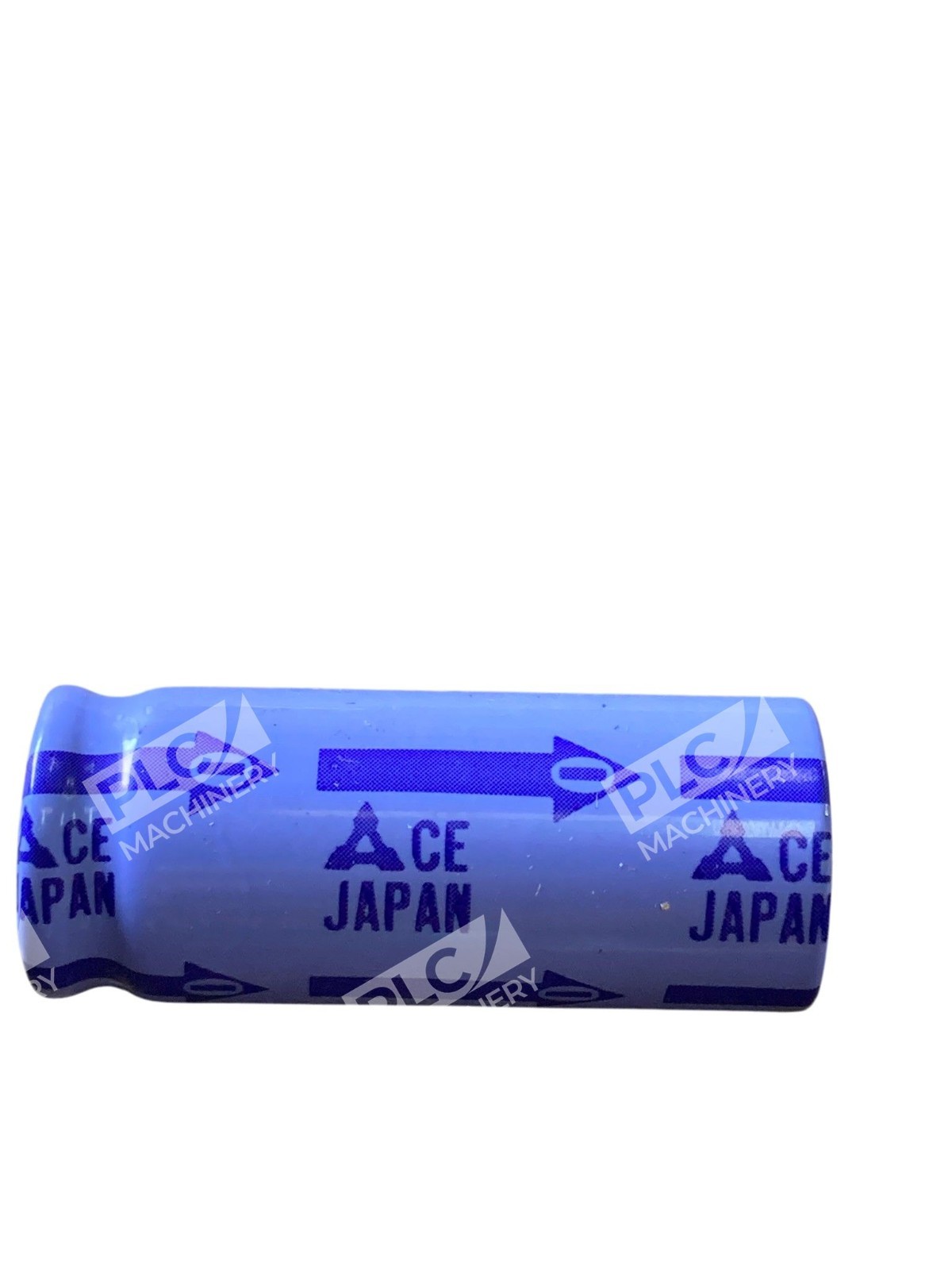

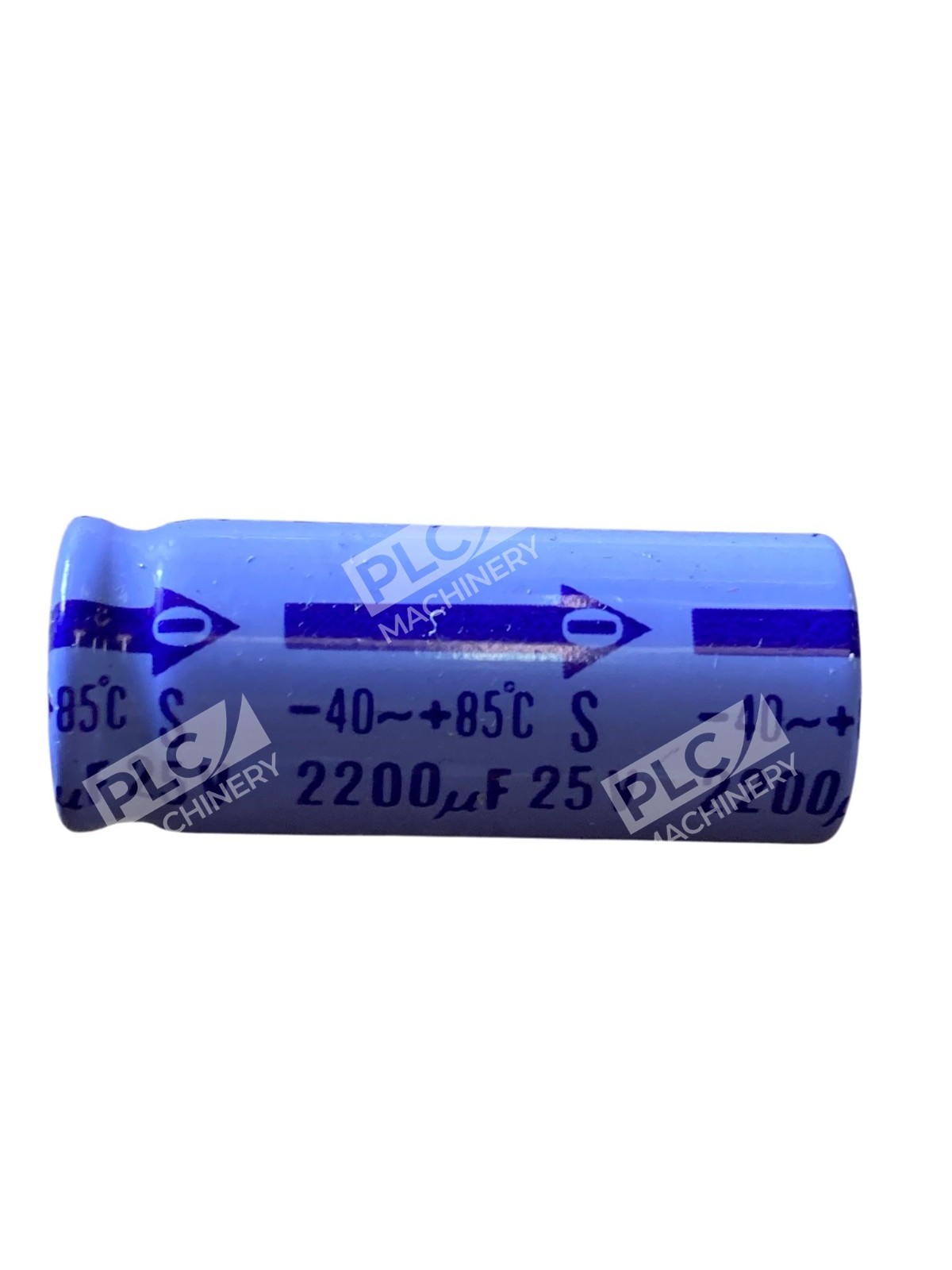

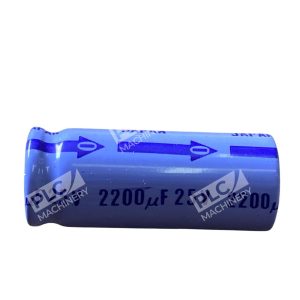

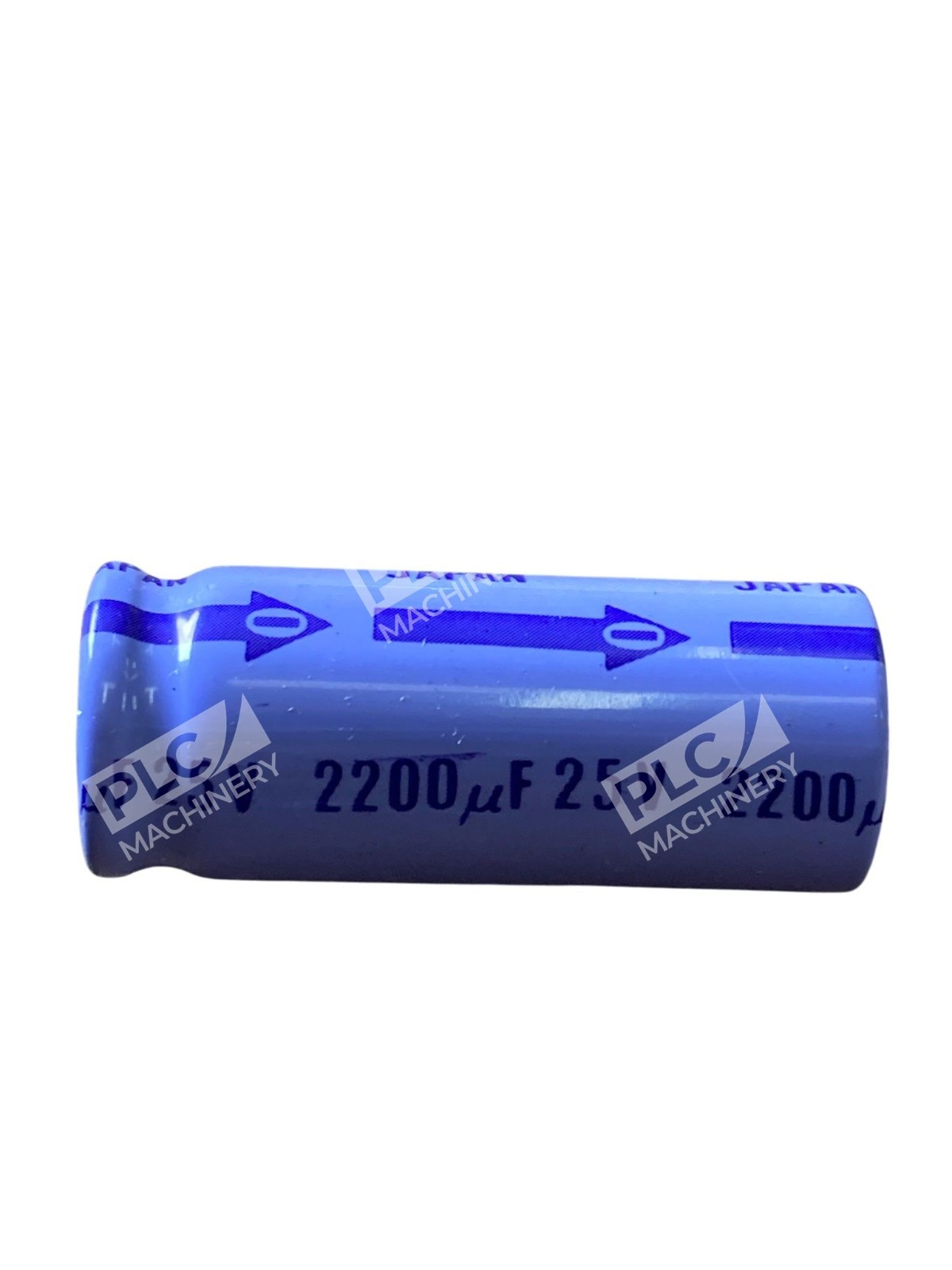

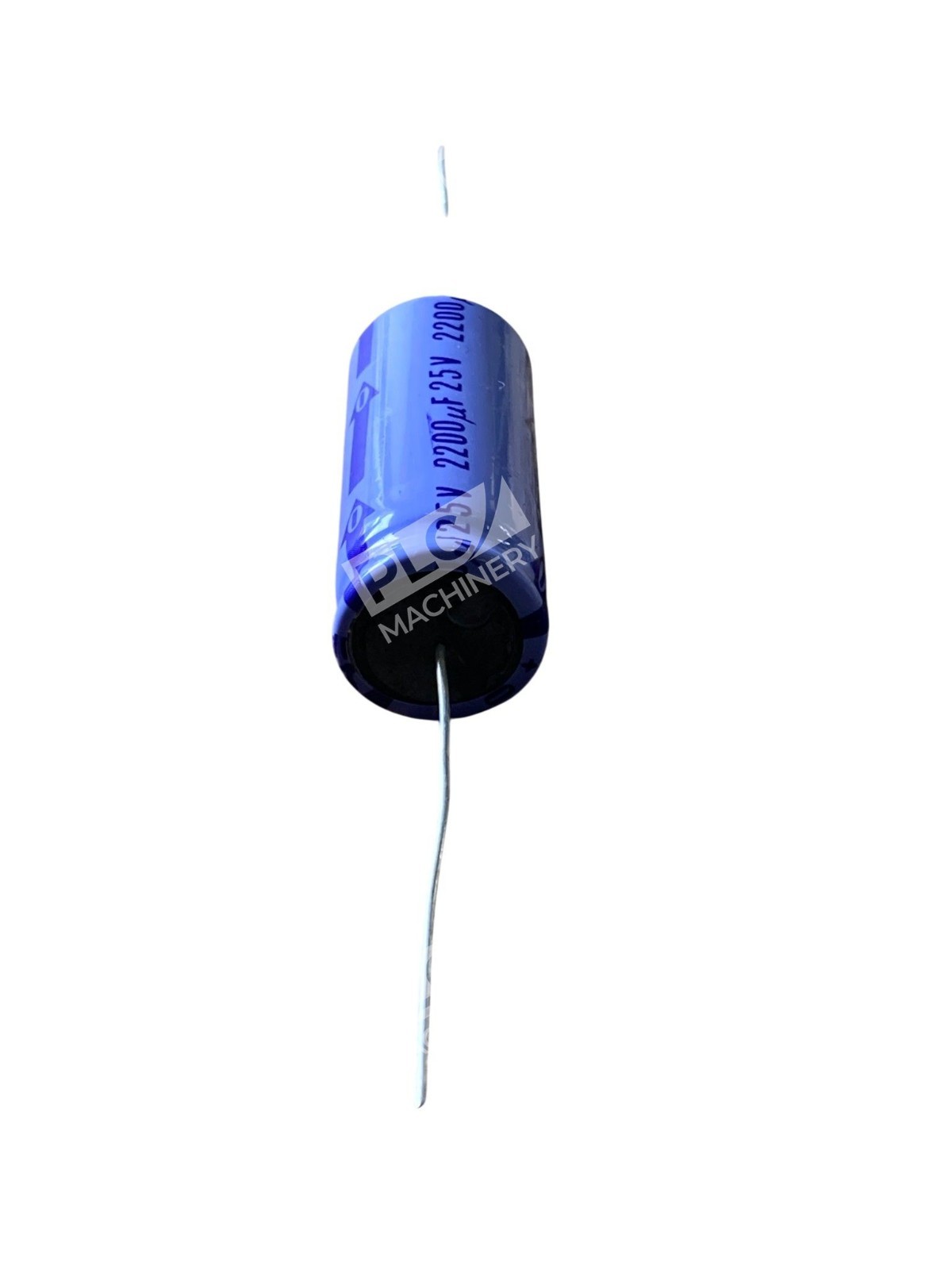

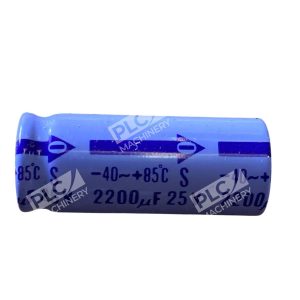

The Nichicon 2200uF 25V aluminum electrolytic capacitor delivers stable performance in audio equipment, power supplies, and general-purpose electronic circuits. This radial-leaded component operates across a wide temperature range and provides the capacitance and voltage handling required for filtering, coupling, and energy storage applications.
Key Features
- Aluminum electrolytic construction for reliable long-term performance
- 20% capacitance tolerance at 120 Hz, 20°C
- Radial lead termination style for standard PCB mounting
- Wide operating temperature range: -40°C to +85°C
- Endurance rated for 2000 hours at maximum temperature
- RoHS compliant
Technical Specifications
Capacitance: 2200 µF
Rated Voltage: 25V DC
Tolerance: ±20%
Ripple Current: 1550 mA
Diameter: 12.5 mm
Height: 25 mm
Lead Spacing: 5 mm
Operating Temperature Range: -40°C to +85°C
Life Rating: 2000 hours at 85°C
Termination Style: Radial
RoHS Compliance: Yes
Typical Applications
- Audio amplifier power supplies and output filtering
- DC power supply smoothing and ripple reduction
- Coupling and decoupling in analog circuits
- Energy storage in switched-mode power supplies
- General-purpose industrial and consumer electronics
Compatibility & Replacements
Compatible With
- Standard 5 mm lead spacing PCB layouts
- Through-hole PCB assembly processes
- Audio equipment and amplifier circuits
- Power supply modules and controllers
Replaces / Drop-In Replacement For
- Nichicon UFW series 2200uF 25V
- Nichicon KW series 2200uF 25V
- Nichicon FW series 2200uF 25V
- Panasonic and other 2200uF 25V 12.5mm radial capacitors with same lead spacing
Works With
- Standard through-hole soldering equipment
- Wave solder and manual assembly processes
- Audio-grade circuit designs and hi-fi applications
- Industrial power supply and filtering applications
