Overview

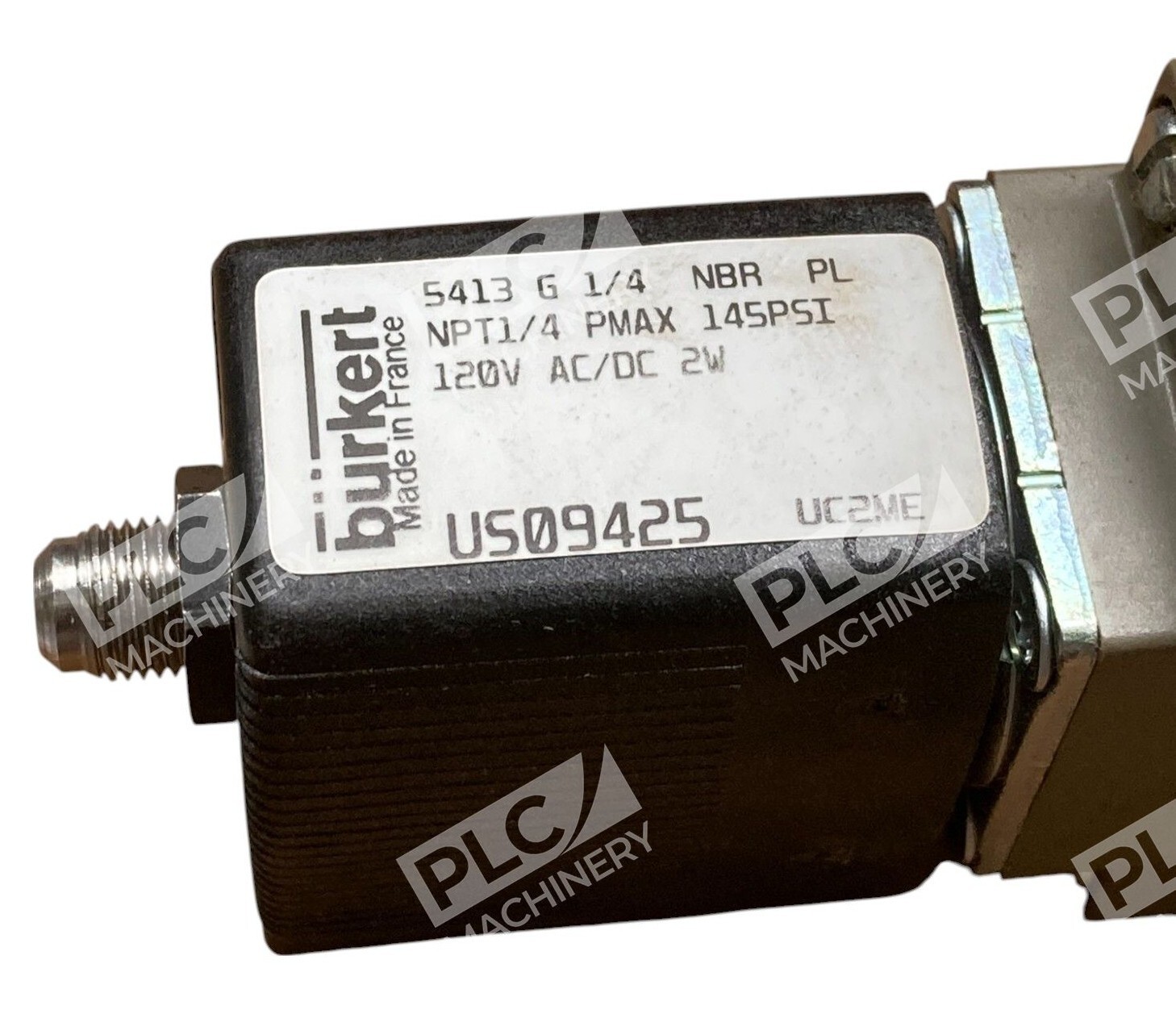

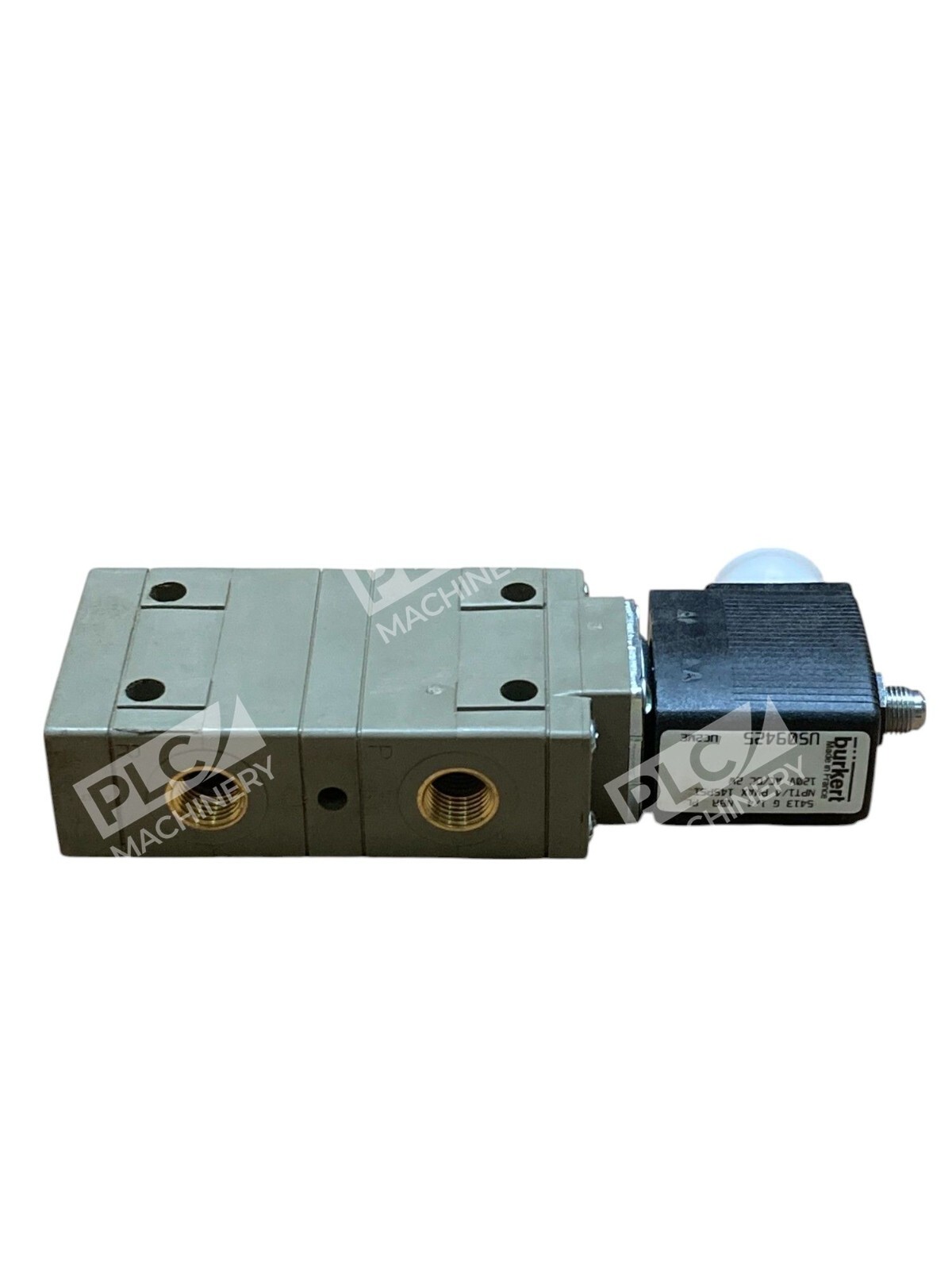

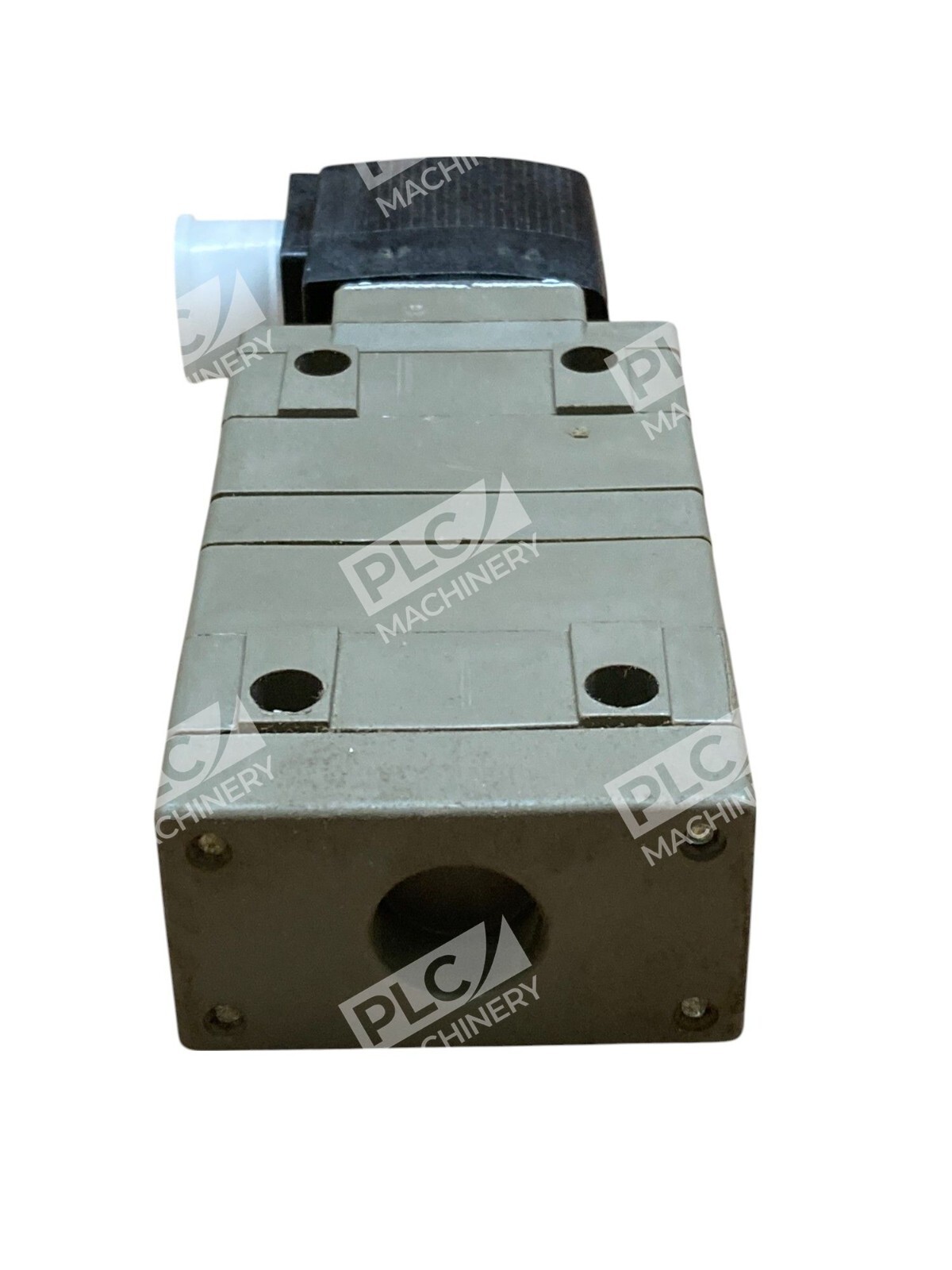

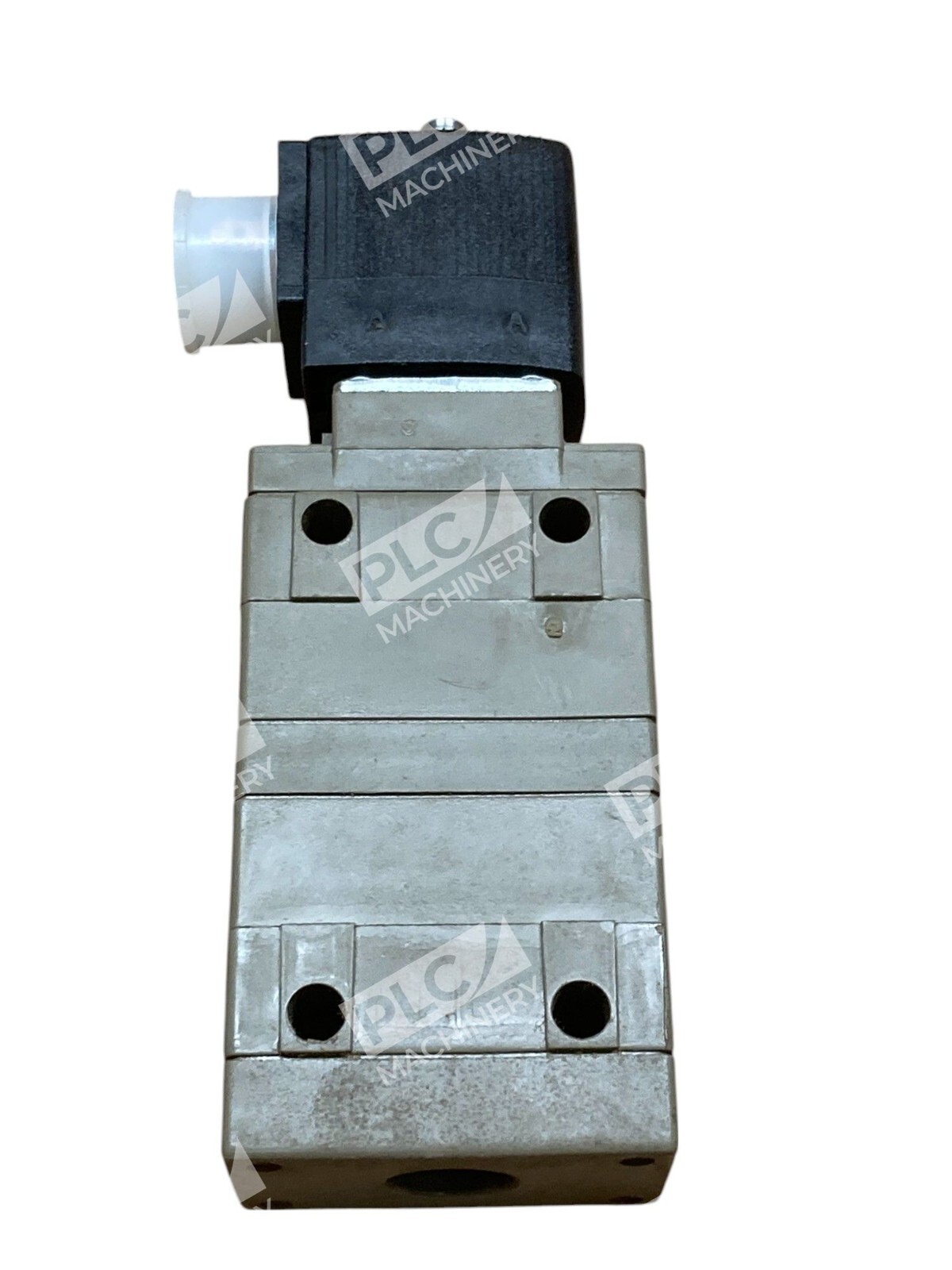

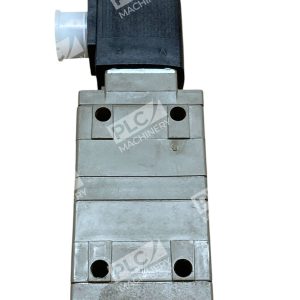

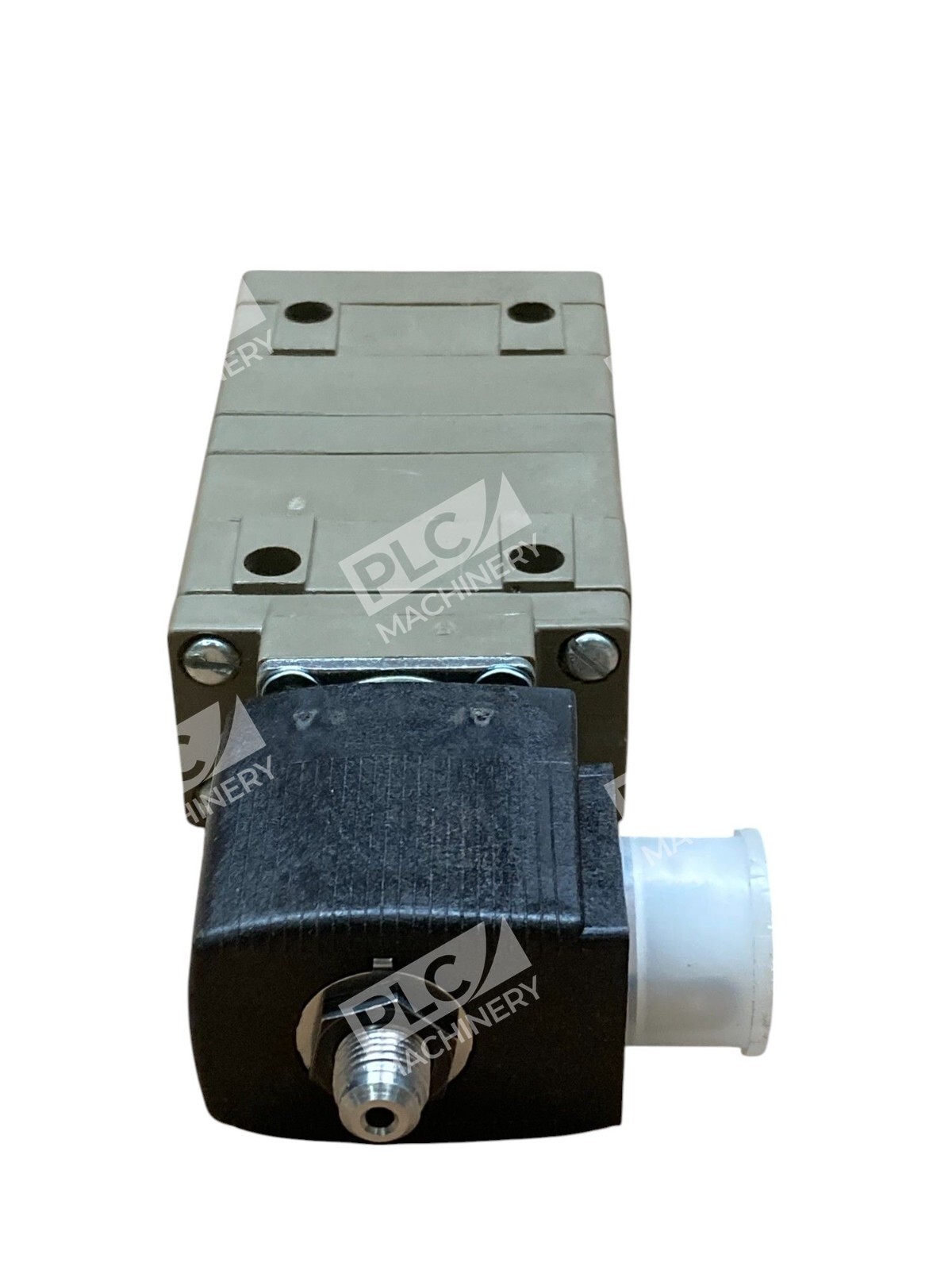

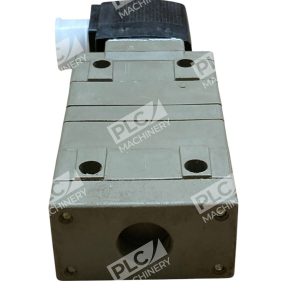

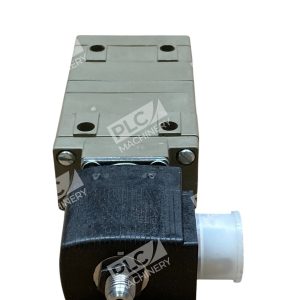

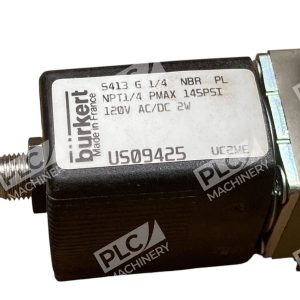

The Burkert 5413 G 1/4 NBR PL is a pilot-operated 4/2-way solenoid valve designed for pneumatic control applications in industrial automation. This valve features manual override as standard, making it suitable for both automatic operation and emergency manual control. With a maximum pressure rating of 145 PSI and 1/4″ NPT port connections, the Burkert 5413 G 1/4 NBR PL serves demanding fluid-control applications across manufacturing, packaging, and process automation industries.
Key Features
- 4/2-Way Pilot Operation: Two assembled 3/2-way valves with a counter built-in servo piston; the servo piston is operated at input pressure and pushed either apart or towards the valve center
- Manual Override: Emergency manual control capability for safe system shutdown
- NBR Seal Poppet: Nitrile rubber seals deliver long service life and resistance to industrial fluids
- Polyamide Body (PL): Lightweight, corrosion-resistant housing suitable for varied industrial environments
- Compact Design: Mounting via four M4 × 8 mm tapped holes on valve underside for easy panel or manifold integration
- Low Switching Pressure Drop: Requires minimum pressure difference of 1 bar for switching, reducing energy consumption
Technical Specifications
- Valve Type: 4/2-way pilot-operated solenoid valve
- Maximum Pressure: 145 PSI (10 bar)
- Port Size: 1/4″ NPT (G 1/4)
- Seal Material: NBR (nitrile rubber)
- Body Material: Polyamide (PL)
- Minimum Switching Pressure: 1 bar (14.5 PSI)
- Mounting: Four M4 × 8 mm tapped holes
- Operating Temperature Range: –10°C to +60°C (14°F to 140°F)
- Certifications: UL-listed, CSA-approved, FM-approved for Hazardous Locations
- Status: Discontinued as of August 1, 2023
Typical Applications
The Burkert 5413 G 1/4 NBR PL is commonly used in:
- Pneumatic actuator control (cylinders, rotary actuators)
- Manufacturing equipment and assembly automation
- Packaging machinery fluid routing
- Blow-off and air ejection systems
- Process automation pilot operations
- Hazardous location installations (Class I, II, III rated)
Compatibility & Replacements
Compatible With
- Standard pneumatic systems (plant air at 1–10 bar / 14.5–145 PSI)
- ISO 4401 (CETOP) cavity designs for direct manifold integration
- 24VDC, 110VAC, and 230VAC solenoid coils (coil options vary by configuration)
- Manual control stations for emergency override operation
Replaces / Drop-In Replacement For
- Other Burkert Type 5413 variants with different seal or body materials
- Legacy industrial pneumatic valve systems requiring 4/2-way pilot control
- Note: The Type 5413 is no longer available as of August 1, 2023; successor types are 6518 and 6519. Consult Burkert technical support for drop-in replacement recommendations for new installations.
Works With
- Burkert Type 2513 and 2518 cable plugs (sold separately)
- Industrial PLC and automation controller outputs (24VDC or 110/230VAC)
- Pneumatic control systems and proportional valve networks
- ISO 4401 manifold systems and cavity mounts
[
{“label”: “Valve Type”, “value”: “4/2-way pilot-operated solenoid valve”},
{“label”: “Maximum Pressure (Pmax)”, “value”: “145 PSI (10 bar)”},
{“label”: “Port Size”, “value”: “1/4″ NPT (G 1/4)”},
{“label”: “Port Configuration”, “value”: “2(B), 4(A), 1(P), 3(R)”},
{“label”: “Seal Material”, “value”: “NBR (nitrile rubber)”},
{“label”: “Body Material”, “value”: “Polyamide (PL)”},
{“label”: “Nominal Diameter”, “value”: “14 mm (12 inch)”},
{“label”: “Flow Rate (QNn)”, “value”: “900 l/min (at 6 bar, 1 bar differential)”},
{“label”: “Minimum Switching Pressure”, “value”: “1 bar (14.5 PSI)”},
{“label”: “Operating Temperature”, “value”: “–10°C to +60°C (14°F to 140°F)”},
{“label”: “Mounting”, “value”: “Four M4 × 8 mm tapped holes on valve base”},
{“label”: “Certifications”, “value”: “UL-listed, CSA-approved, FM-approved (Hazardous Locations)”},
{“label”: “Manual Override”, “value”: “Yes, standard”},
{“label”: “Discontinuation Date”, “value”: “August 1, 2023”}
]
