Overview
The Bourns 3323S-001-502 potentiometer is a variable resistor designed for reliable, repeatable adjustment in electronic circuits. This lot includes 50 units of the 3323S series with a nominal resistance value of 50 ohms, making them suitable for a wide range of industrial and consumer electronics applications. As a leading manufacturer of potentiometers and trim pots for over 70 years, Bourns components are trusted in aerospace, audio, telecommunications, and instrumentation industries.
Key Features
- Nominal resistance: 50 ohms (5-1 multiplier in Bourns coding)
- Bourns trimming potentiometer design — reliable, durable construction
- High-precision variable resistance for circuit tuning and calibration
- Compact form factor suitable for PCB mount and through-hole assembly
- Wide operating temperature range for industrial and consumer use
- 50-unit lot quantity — economical for production assembly and prototyping
Technical Specifications
- Manufacturer: Bourns Inc.

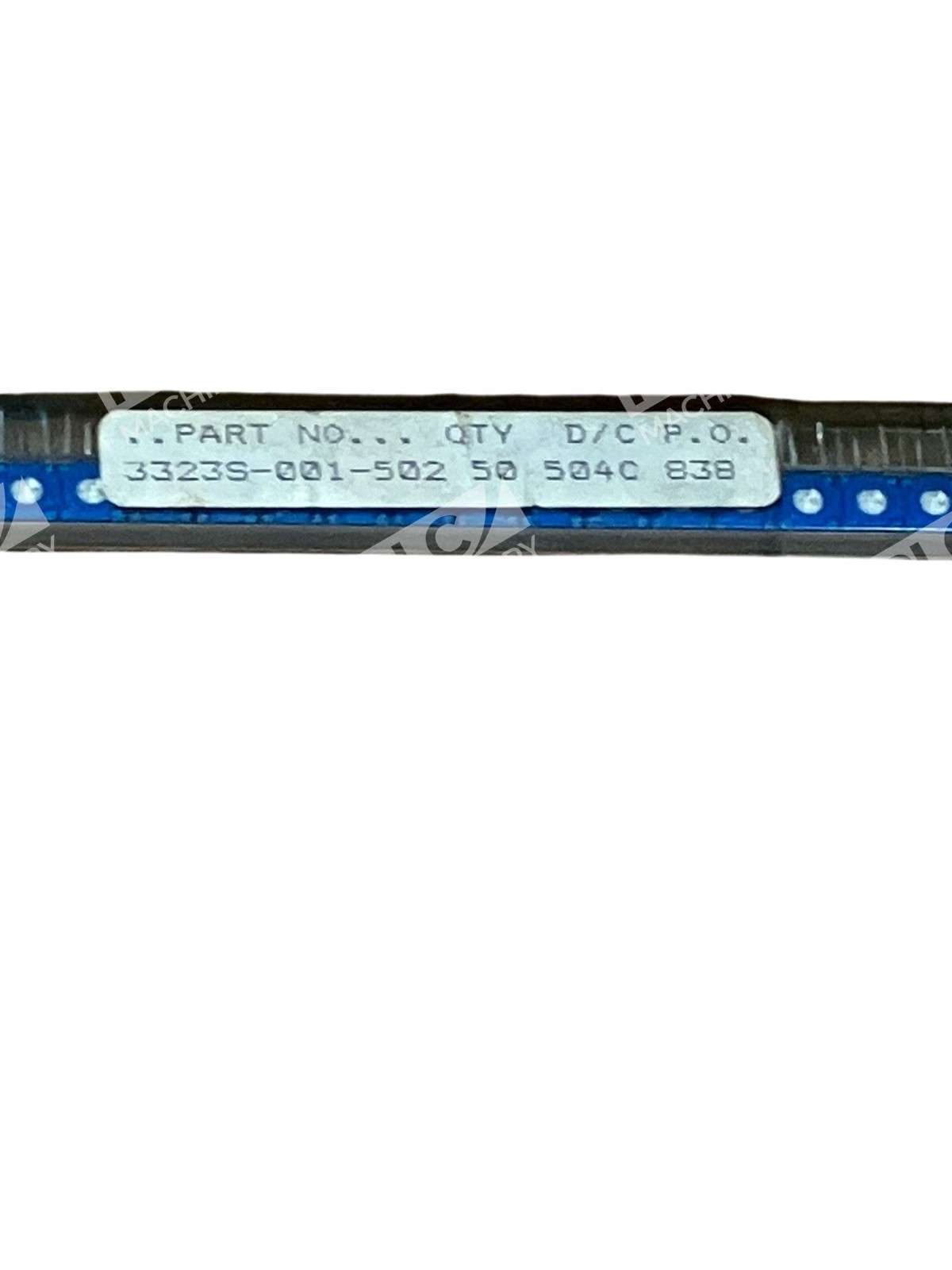

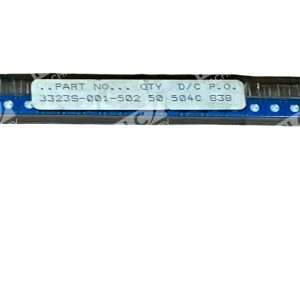

- Part Number: 3323S-001-502
- Series: 3323S Trimming Potentiometer
- Resistance Value: 50 Ohms (±10% standard tolerance)
- Resistance Code: 502 (50 × 10^1)

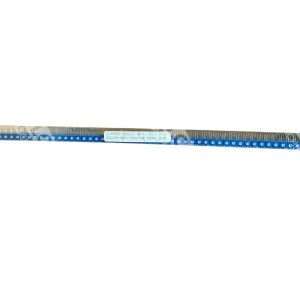

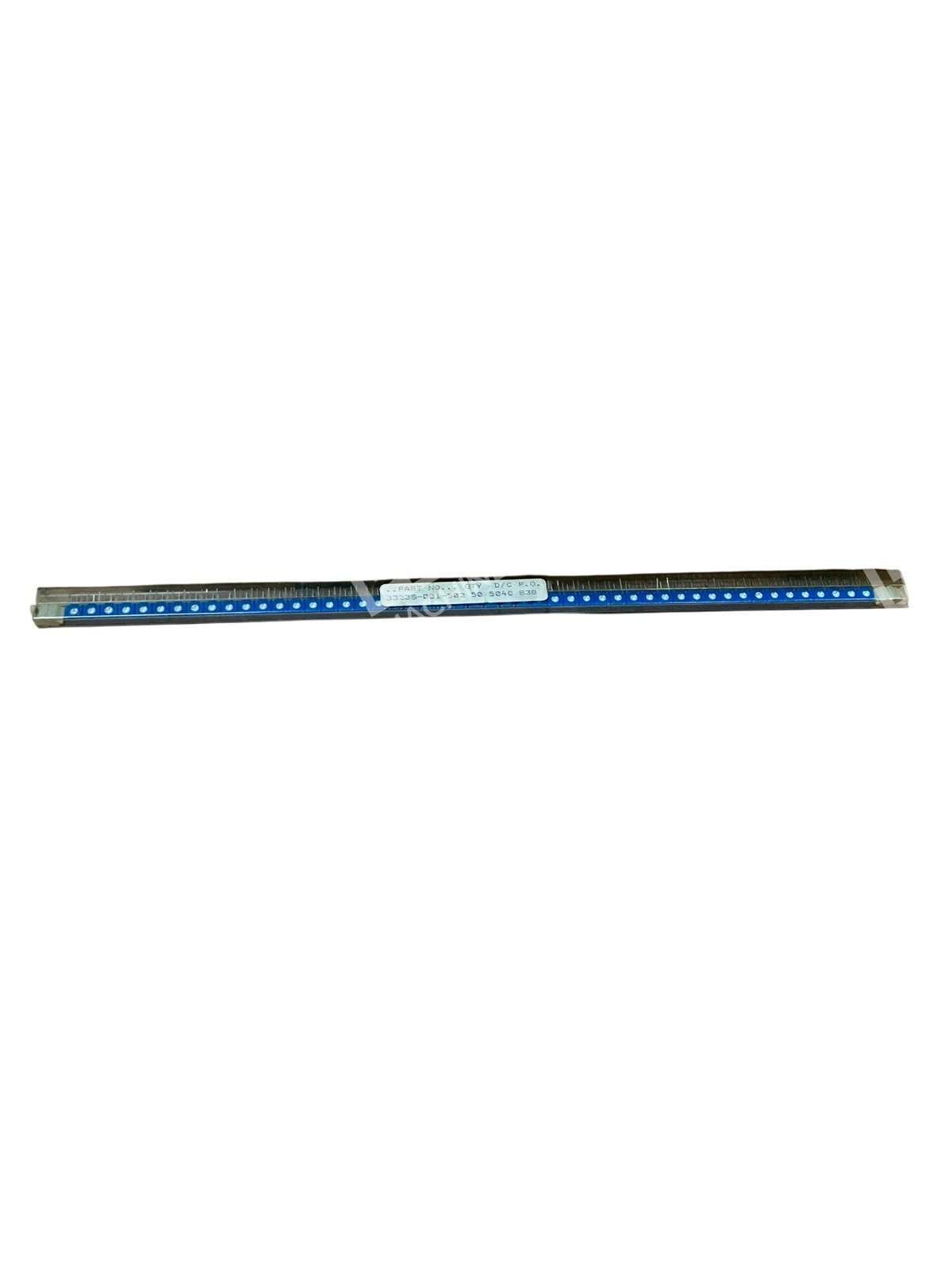

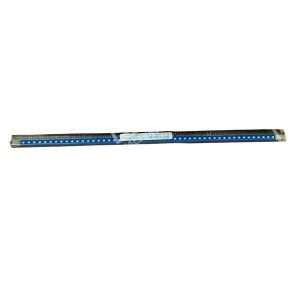

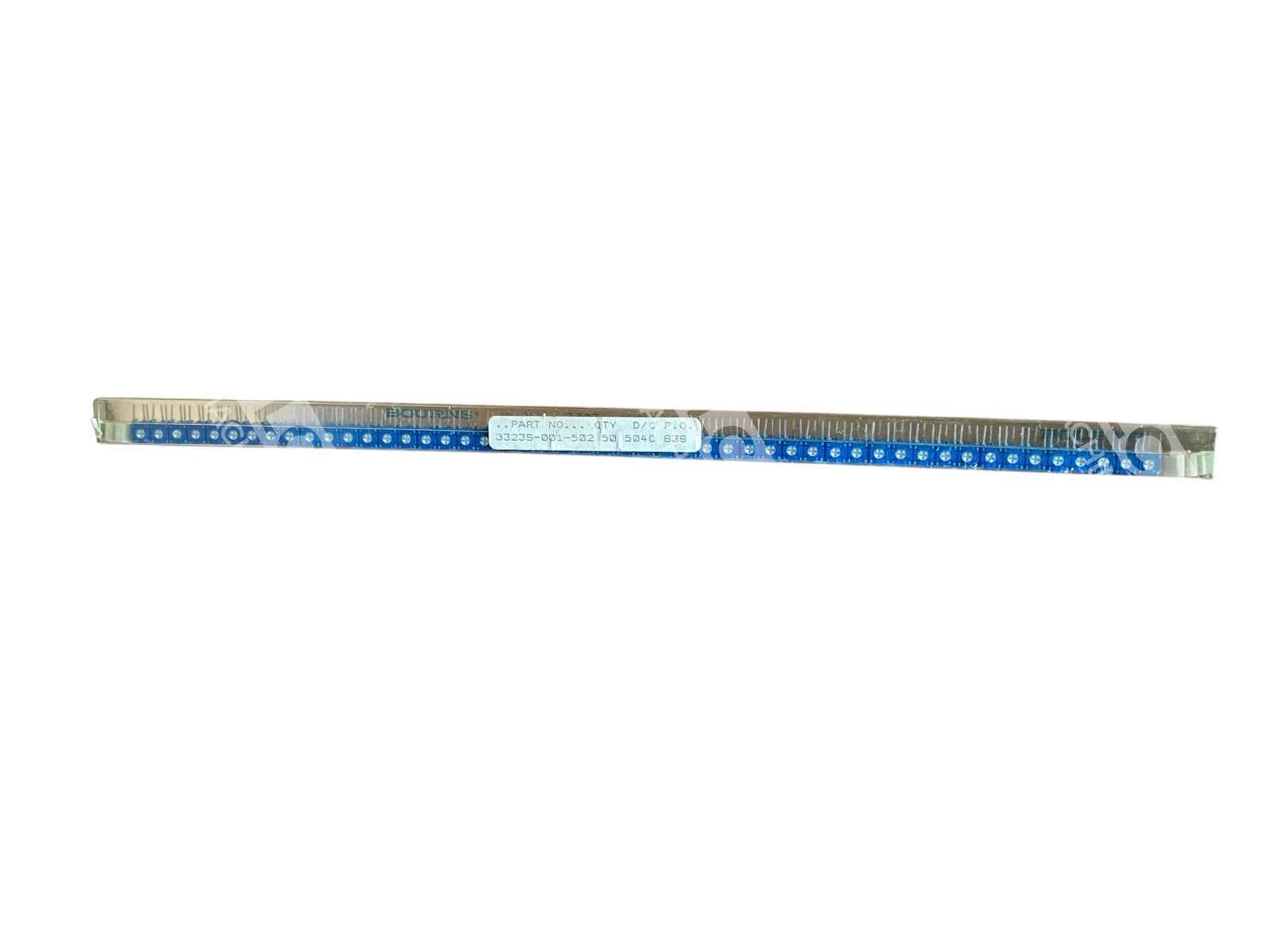

- Quantity: 50 units per lot
- Condition: New, Open Box
Typical Applications
- Audio equipment and amplifier calibration
- Industrial control circuit tuning and offset adjustment
- Instrumentation and measurement device calibration
- Consumer electronics assembly and prototype development
- PCB-mounted trimmer adjustment for voltage divider networks
- General electronic component inventory for repair and manufacturing
Compatibility & Replacements
Compatible With
- Standard PCB through-hole assembly processes
- Electronic circuit boards requiring precision variable resistance
- Any application requiring 50-ohm trimming potentiometers
- Educational and prototyping platforms (Arduino, hobby electronics)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or application engineer before ordering. Bourns trimming potentiometers in the 3300 series are generally interchangeable within resistance families, but confirm mechanical fit and adjustment method with your original specification.
Works With
- Standard PCB soldering equipment and reflow processes
- Through-hole component insertion machines
- Manual and automated circuit assembly workflows
- Potentiometer adjustment tools (Bourns H-90 compatible)
