Overview

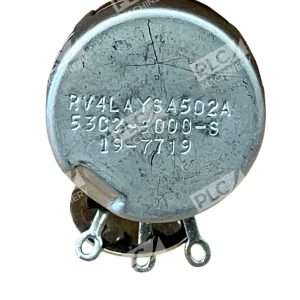

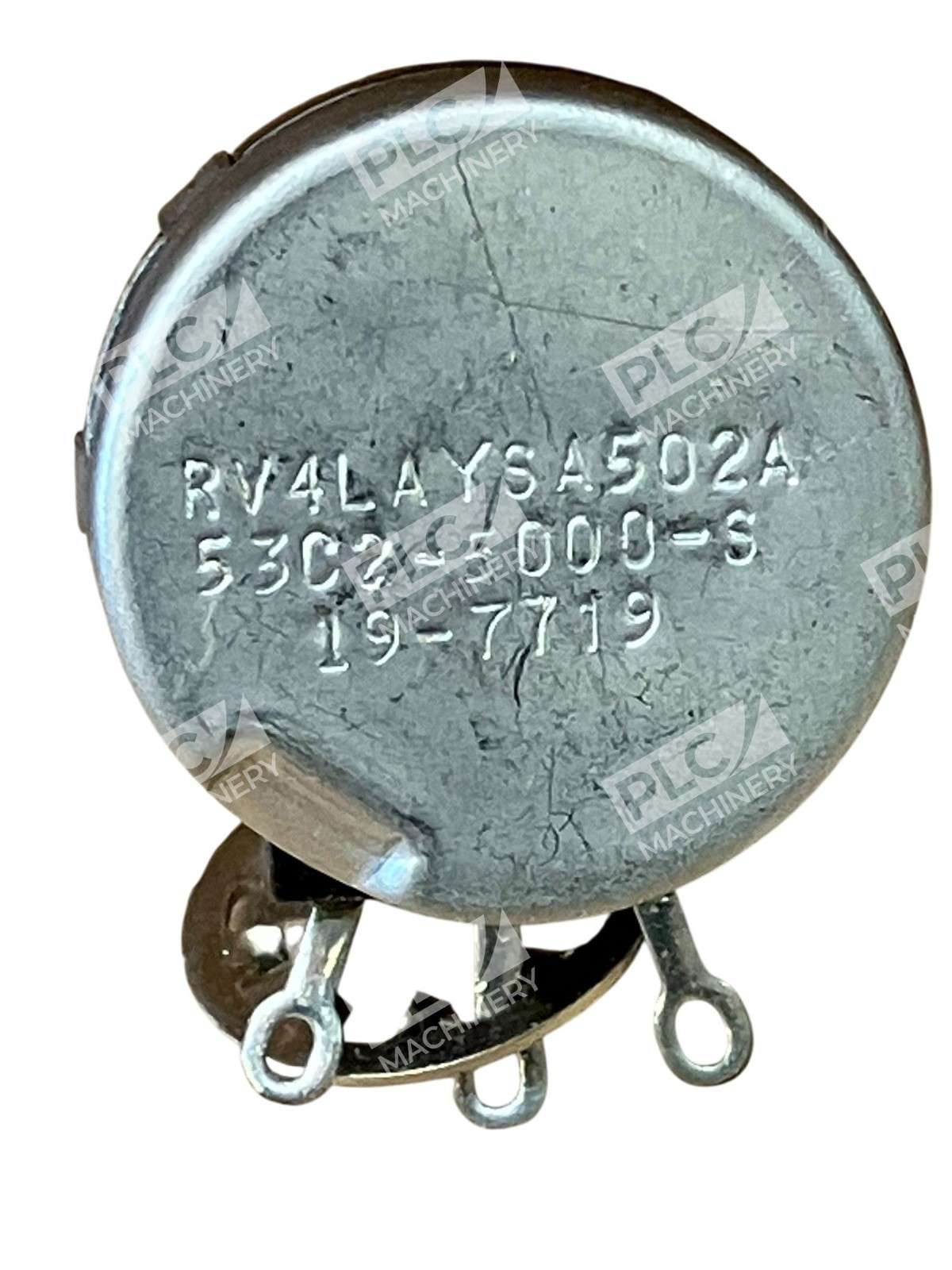

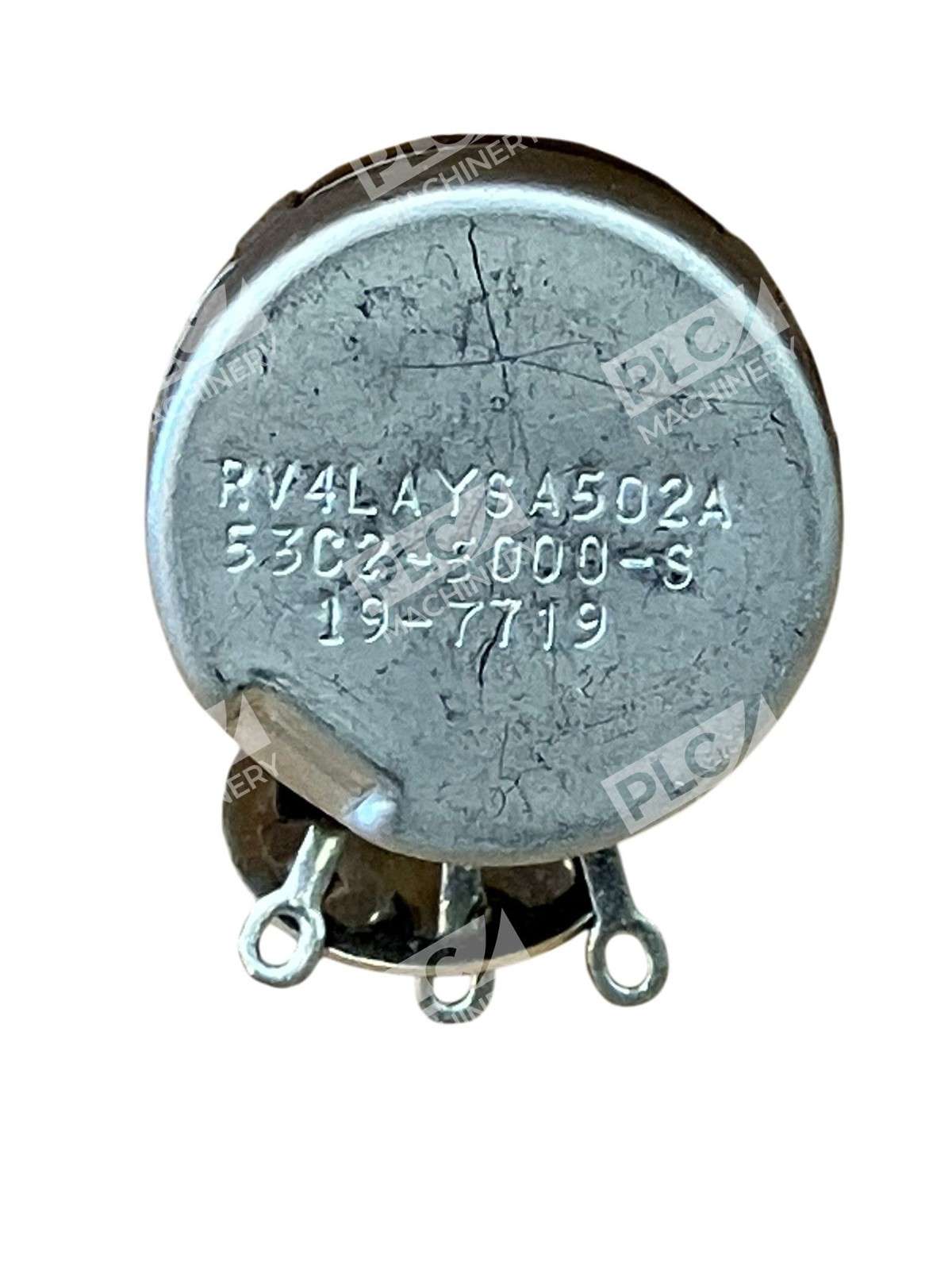

The Clarostat RV4LAYSA502A is a high-quality single-turn rotary potentiometer rated at 5kΩ resistance with a 2W power rating. This panel mount potentiometer features conductive plastic element construction and is designed for industrial control, test equipment, and measurement applications. The RV4 series delivers reliable, durable performance in environments ranging from -55°C to 120°C, making it suitable for harsh industrial conditions.
Key Features
- 5kΩ (5000 ohms) resistance with linear electrical taper
- 2W maximum power rating
- Conductive plastic element for smooth operation and long life

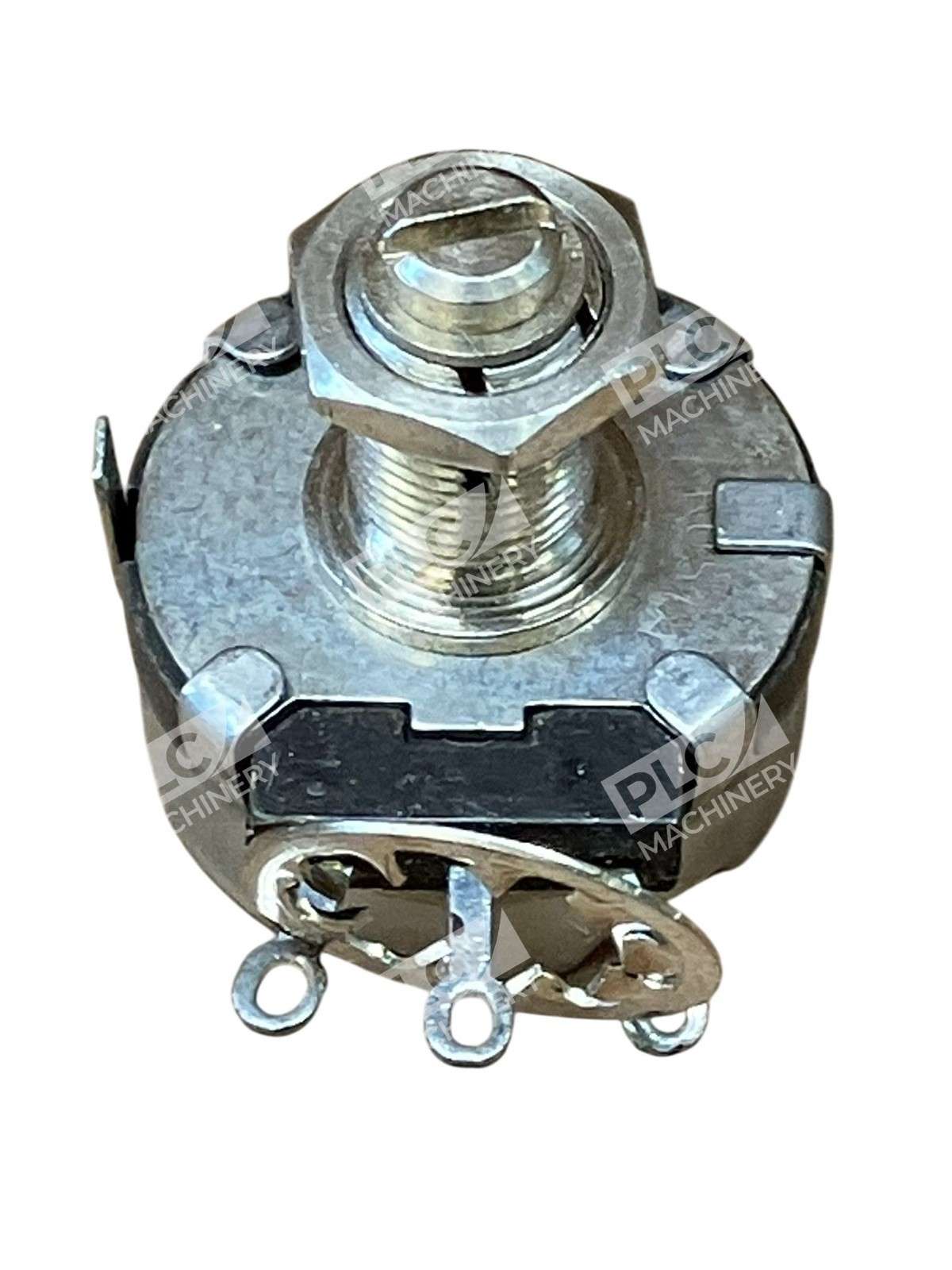

- Single-turn design with slotted 2.0-inch shaft for easy adjustment

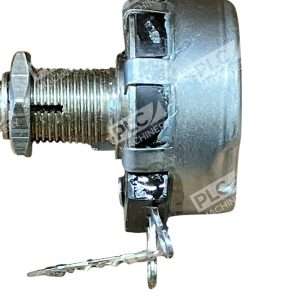

- Solder lug terminals for reliable, secure mounting
- 1.094-inch (27.79 mm) round panel mount body
- Wide operating temperature range: -55°C to 120°C
Technical Specifications
| Resistance | 5,000 Ω (5 kΩ) |
| Power Rating | 2.0 W maximum |
| Voltage Rating | 500 V |
| Element Type | Conductive plastic |
| Taper | Linear |
| Terminal Type | Solder lug |
| Shaft | Slotted, 50.8 mm (2.0 in) length |
| Body Diameter | 27.79 mm (1.094 in) |
| Operating Temperature | -55°C to 120°C (-67°F to 248°F) |
| Mounting Style | Panel mount, round |
| Part Number | RV4LAYSA502A |
| Manufacturer | Clarostat (Honeywell) |
Typical Applications
- Industrial control systems and analog adjustment
- Test and measurement equipment
- Voltage regulation and current limiting circuits
- Audio and level control in professional equipment
- Temperature and pressure compensation networks
- Equipment calibration and tuning
Compatibility & Replacements
Compatible With
- Standard 2-wire and 3-wire potentiometer circuits
- Industrial control panels and enclosures
- 500V or lower analog control systems
- DC and AC circuits within rated power limits
Replaces / Drop-In Replacement For
The RV4LAYSA502A is part of the RV4 series family. For exact cross-reference to other 5kΩ potentiometer models, verify compatibility with your system integrator before ordering, as similar 5kΩ single-turn potentiometers may require terminal configuration changes.
Works With
- Standard potentiometer mounting brackets and panels
- Any circuit design specifying 5kΩ single-turn linear taper potentiometers
- Conductive plastic-element replacement applications
- Industrial PLC analog input modules (with appropriate signal conditioning)
