Overview

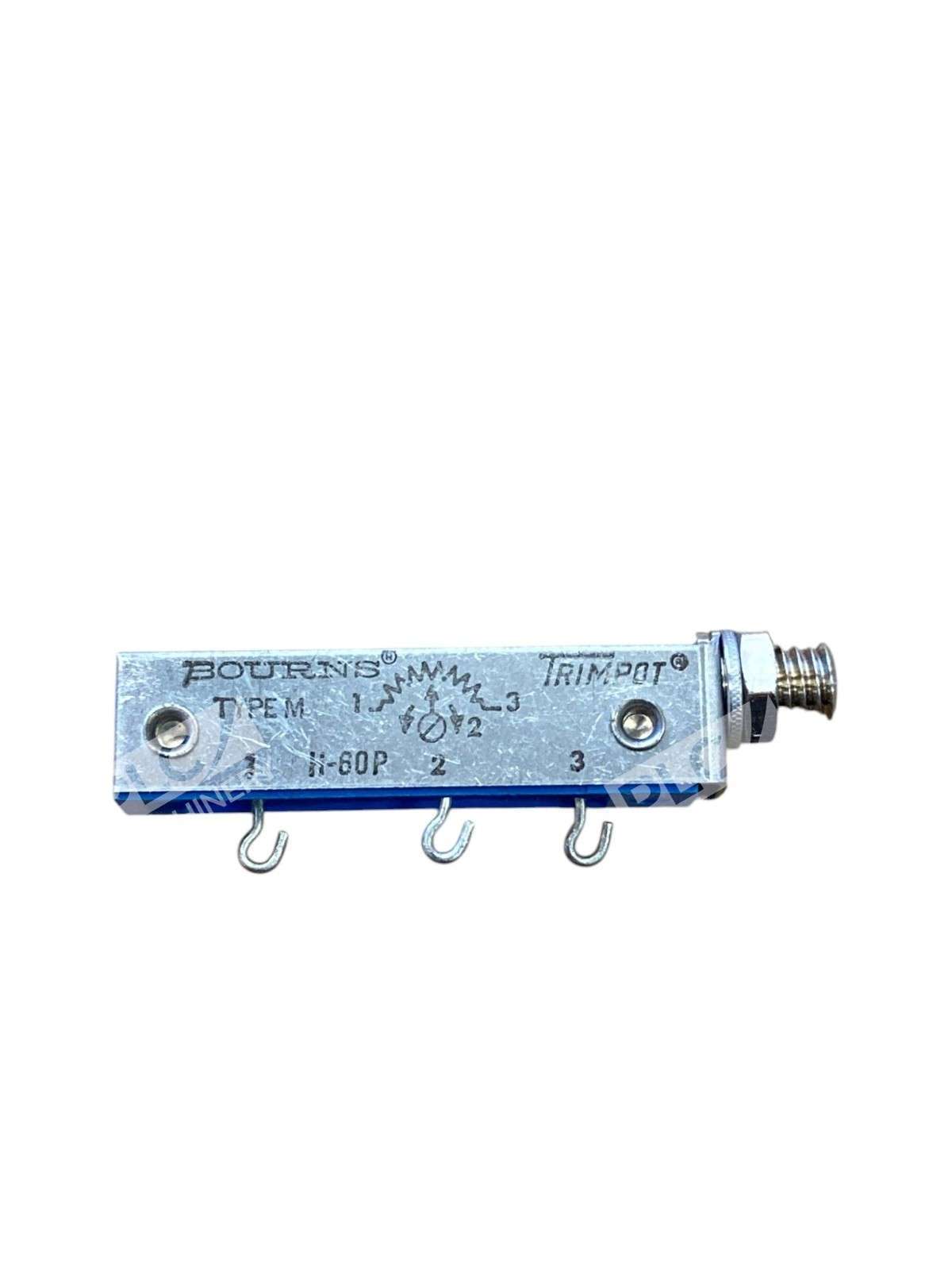

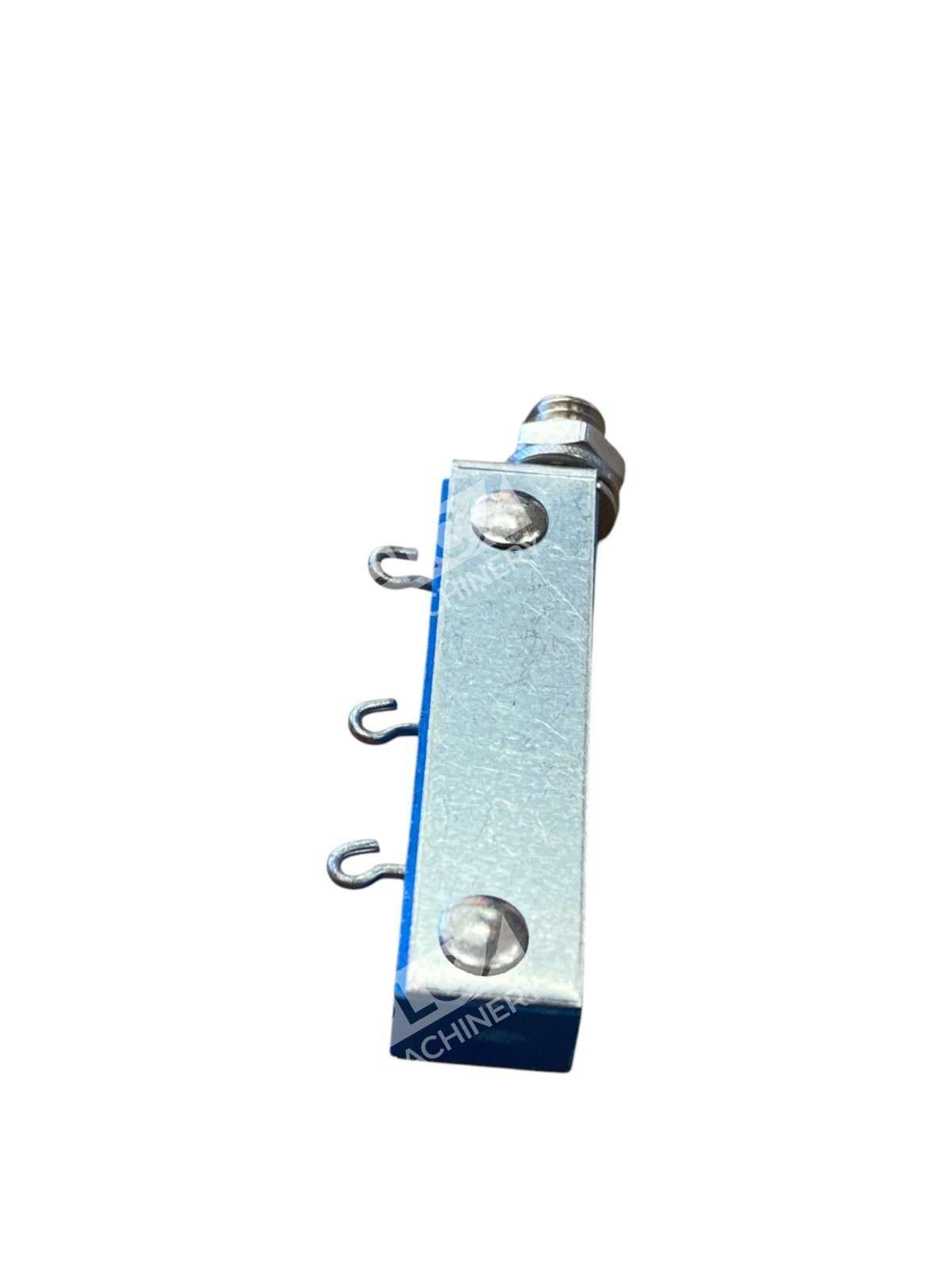

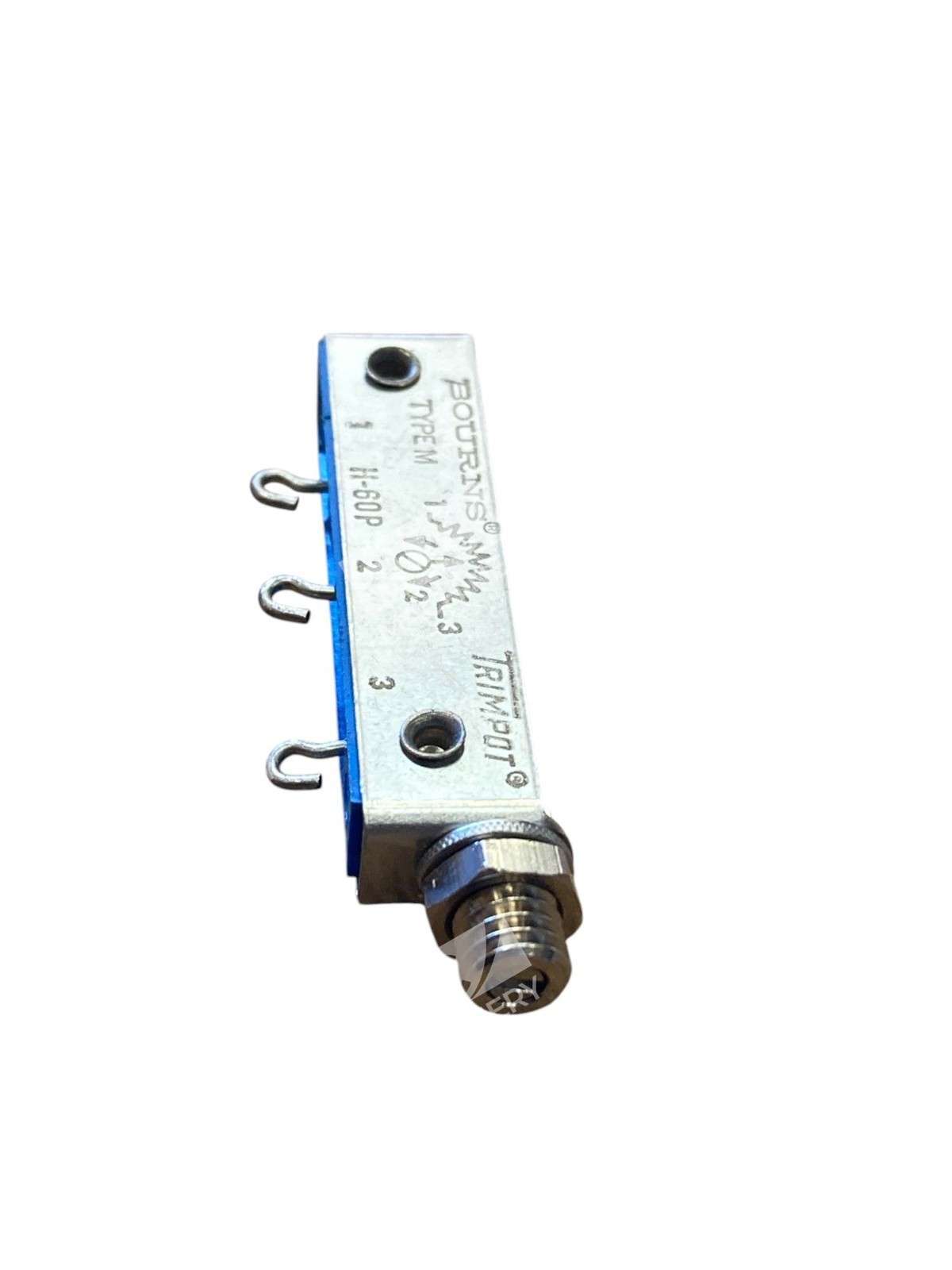

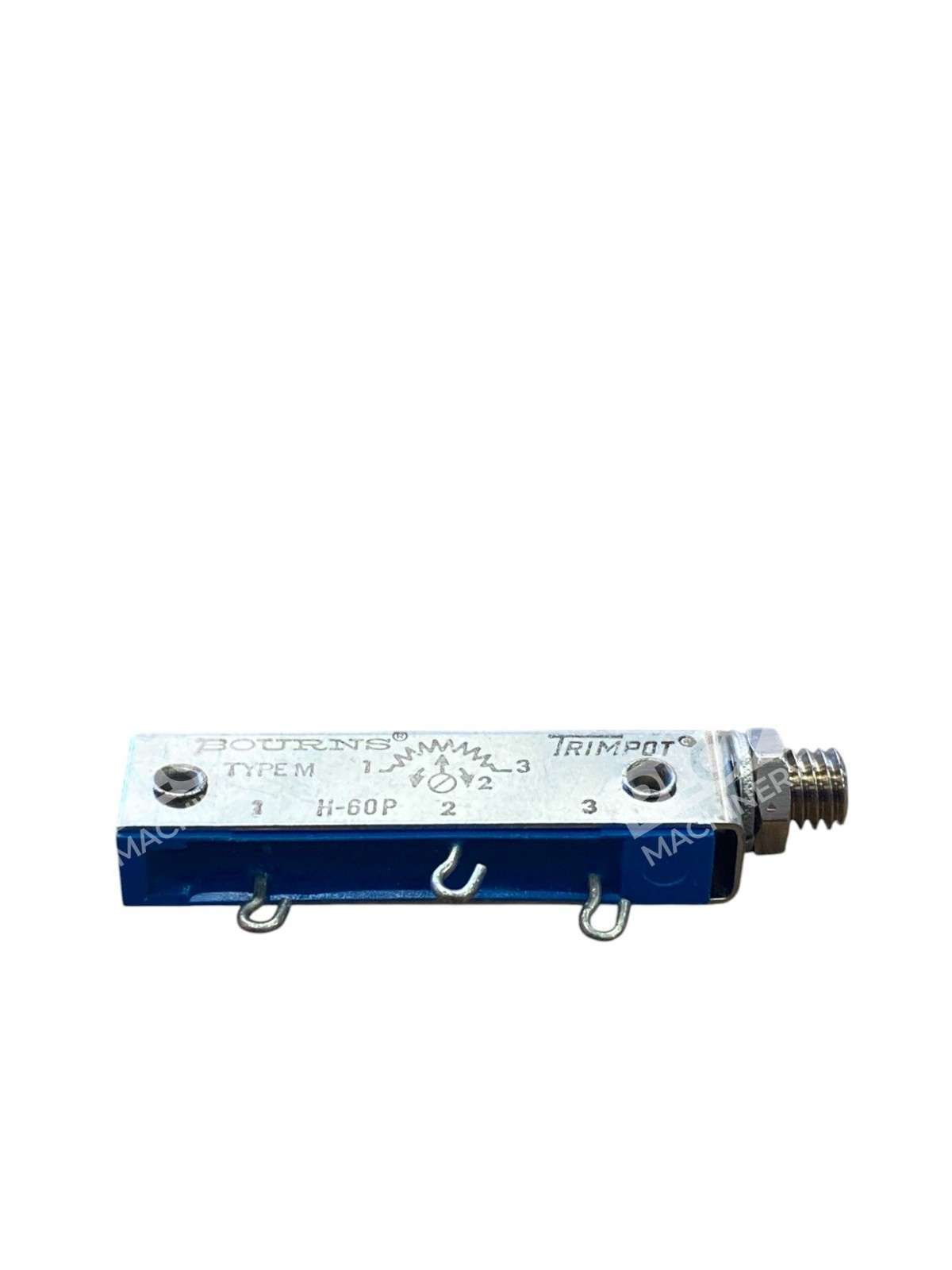

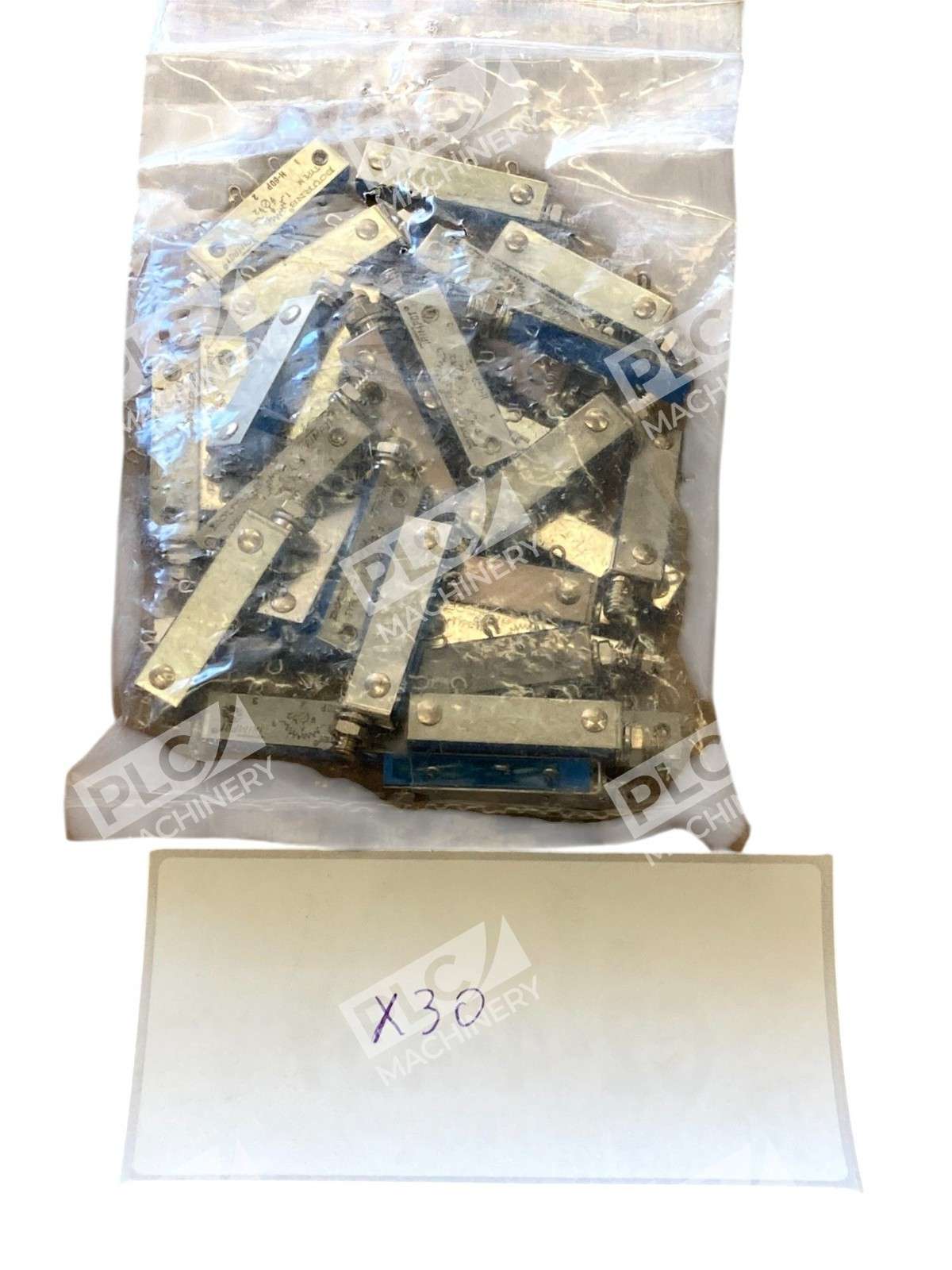

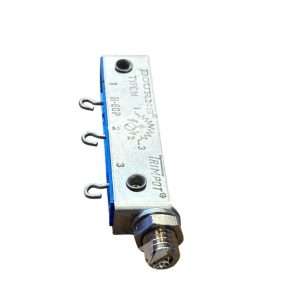

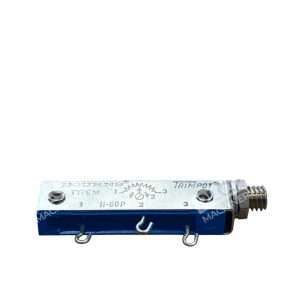

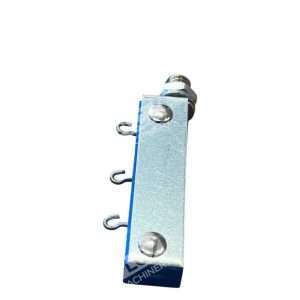

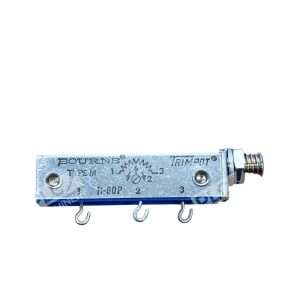

The Bourns H60P Type M trimmer potentiometer is a precision cermet trimming potentiometer engineered for reliable circuit adjustment in a wide range of electronic applications. Bourns trimming potentiometers perform a variety of circuit adjustments in all types of electronic equipment. This lot includes 30 units, each featuring a square form factor and cermet element technology proven in industrial controls, power supplies, instrumentation, and consumer electronics.
Key Features
- Cermet resistive element for stable, repeatable adjustments
- Square-shaped body for compact PCB mounting
- Single-turn design for straightforward tuning
- Consistent resistance tolerance and long mechanical life
- Suitable for temperature-compensated circuits and precision calibration
- RoHS-compliant construction
Technical Specifications
Due to the specialized nature of this lot purchase, we recommend verifying exact resistance values, power ratings, and adjustment angle specifications with the datasheet or contacting your sales representative. Common Bourns trimmer specifications generally include:
- Operating temperature range: -55°C to +125°C (typical for cermet trimmers)
- Resistance tolerance: ±10% standard
- Load life: 1,000 hours at rated power
- Adjustment tool: Compatible with standard Bourns trimmer adjustment tools
- Mounting: Through-hole PCB
Typical Applications
- Power supply voltage regulation and current limiting
- Instrumentation and measurement equipment calibration
- Audio equipment tone and level controls
- Industrial control systems and feedback tuning
- RF and microwave circuit tuning
- Medical device electronics
Compatibility & Replacements
Compatible With
- Standard PCB through-hole assembly equipment
- Wave and reflow soldering processes
- Industrial control circuit boards requiring adjustable resistance elements
Replaces / Drop-In Replacement For
The H60P is a specific Bourns model designation. For drop-in compatibility with other Bourns trimmer models, verify the resistance range, power rating, and form factor with your system integrator or original equipment documentation before ordering.
Works With
- Standard adjustment tools (H-90 or equivalent)
- PCB assembly workflows and manufacturing processes
- Both AC and DC circuit applications
