Overview

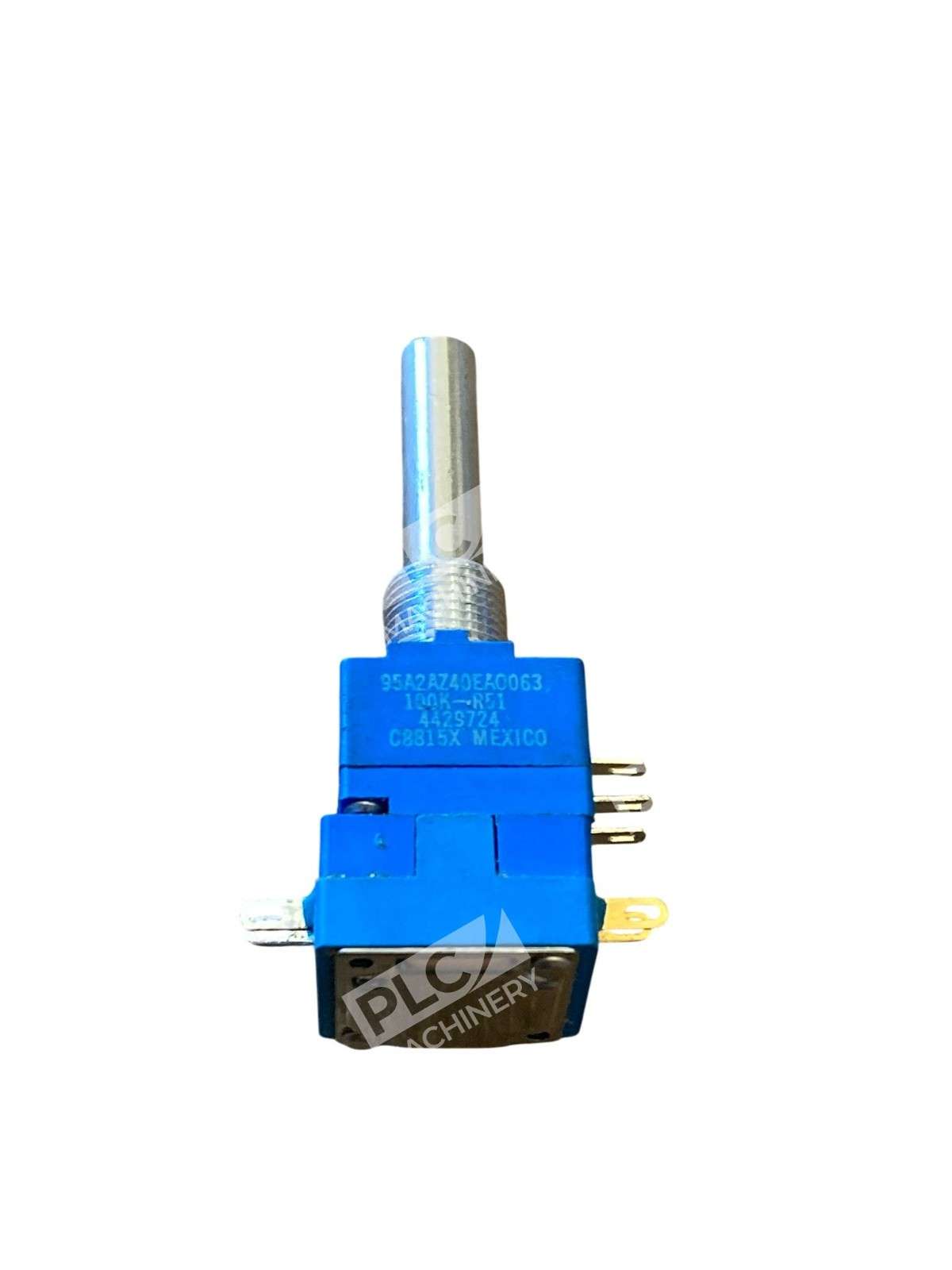

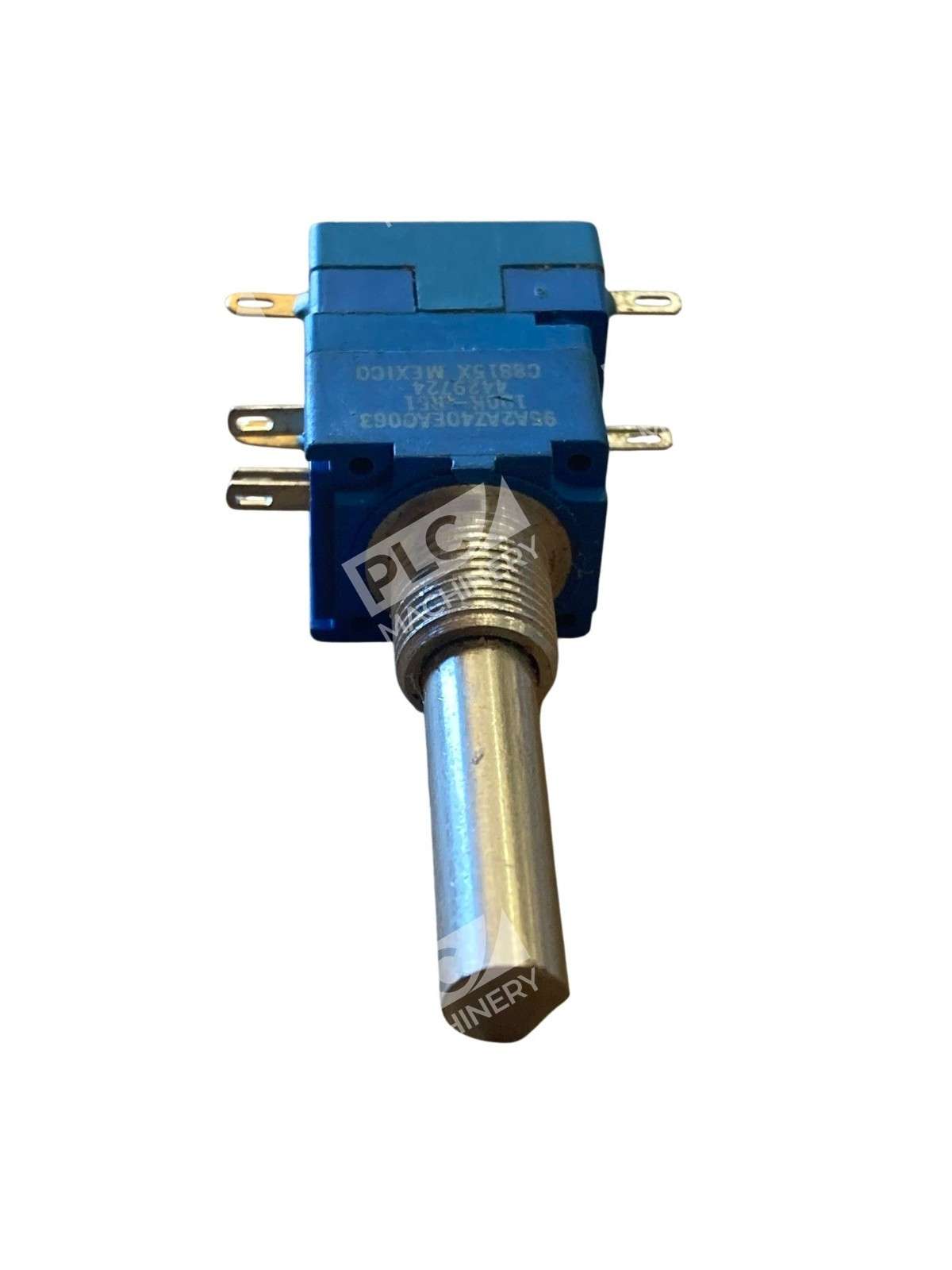

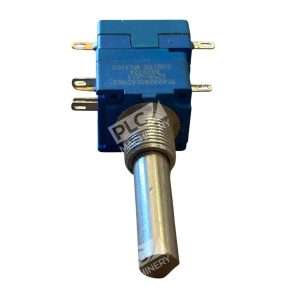

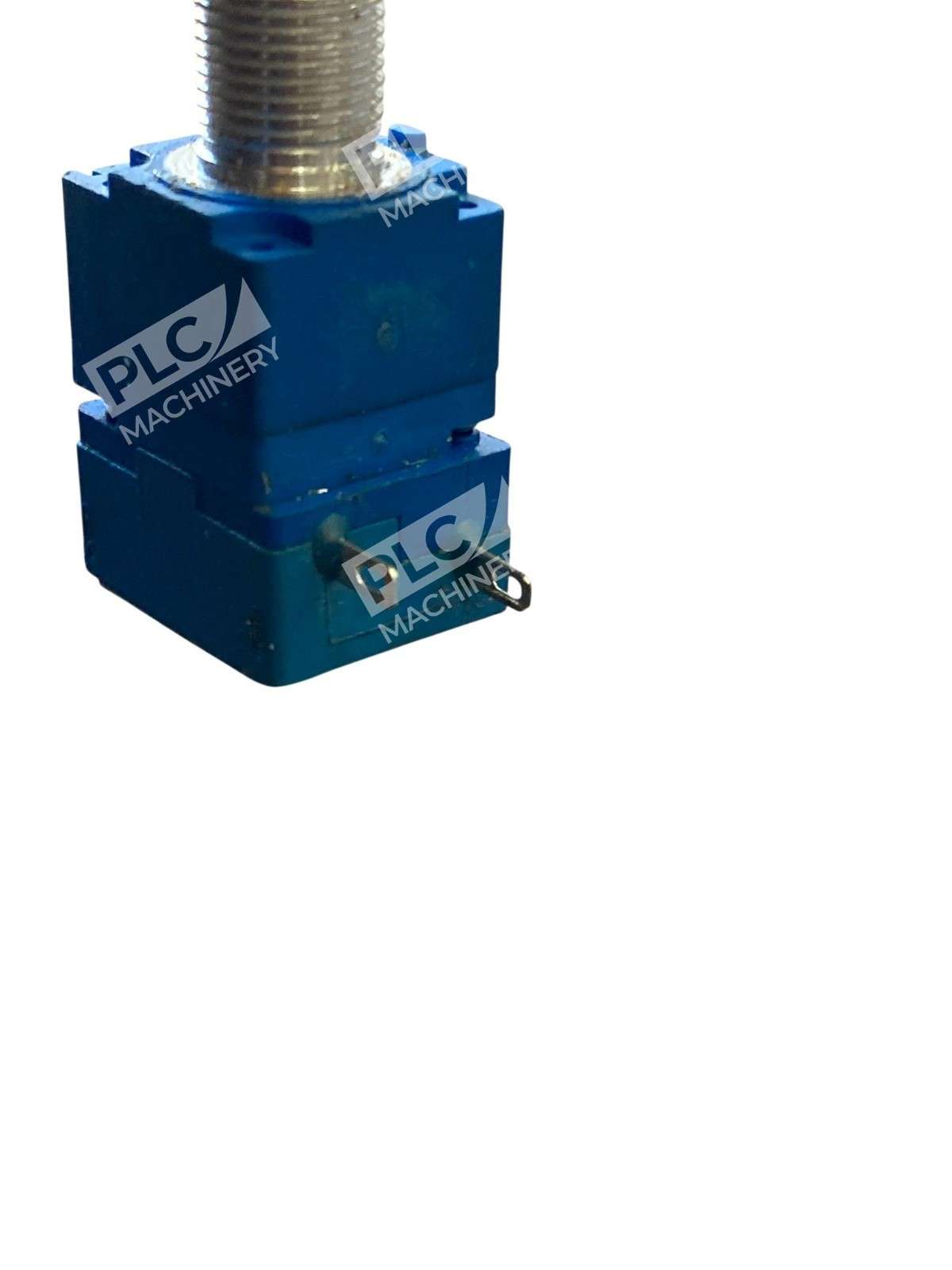

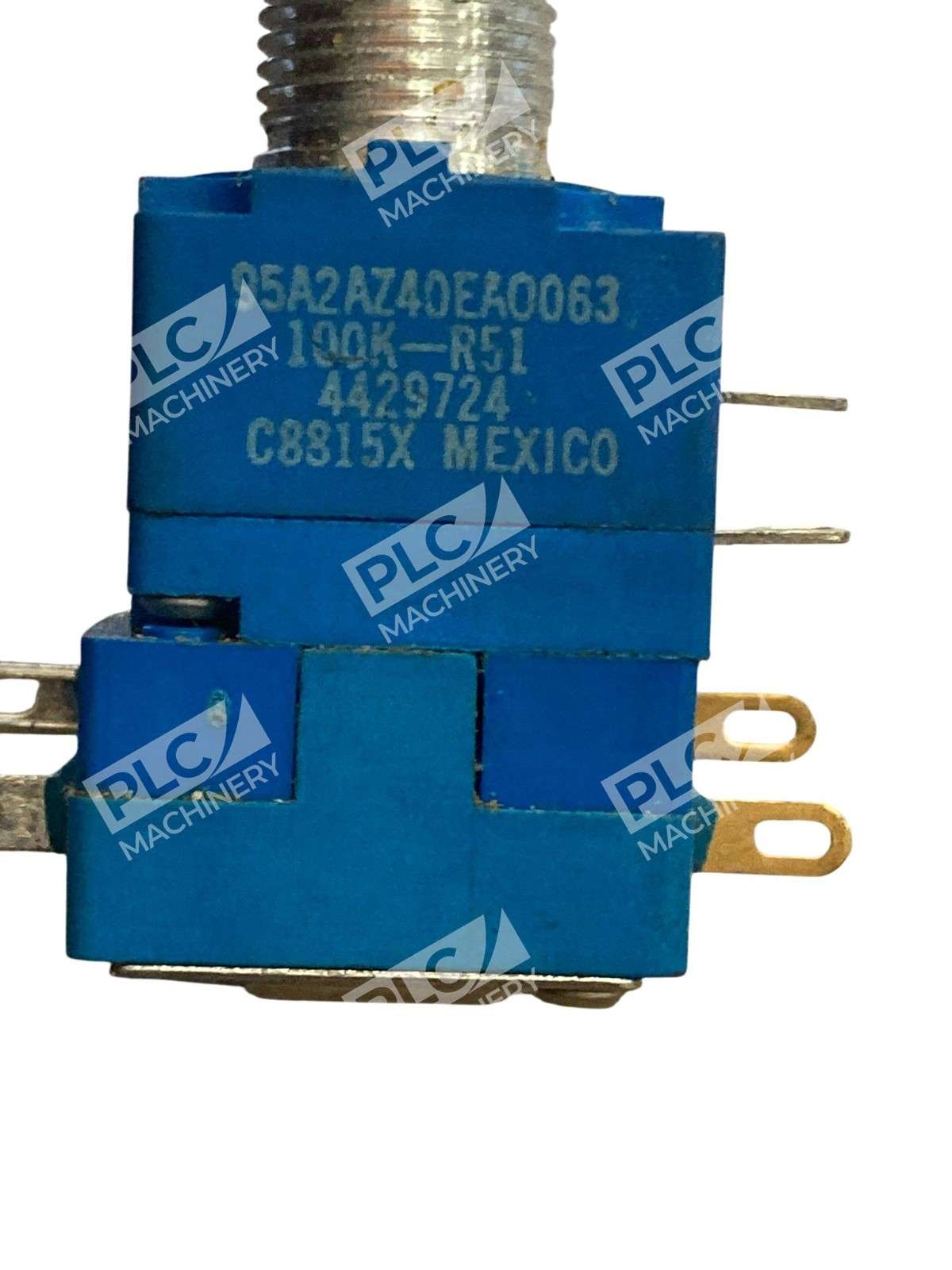

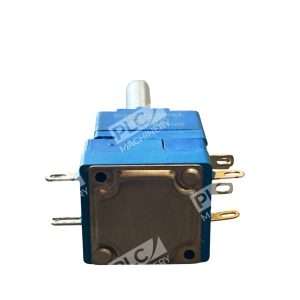

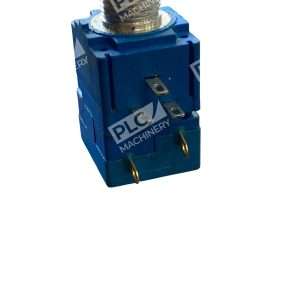

The 95A2AZ40EA0063 100K-R51 is a multi-turn potentiometer with panel mount construction, providing stable resistance adjustment across a range of 10+ turns for precise control applications. The 100kΩ resistance value makes it suitable for signal conditioning, measurement instrumentation, and manual tuning circuits where fine-grain adjustment is critical.
Key Features
- Multi-turn design allows 10+ complete rotations for precise resistance setting
- Panel mount configuration for direct control panel installation
- 100kΩ nominal resistance value (R51 designation)
- Adjustable with slotted actuator for screwdriver control
- Compact rectangular housing suitable for standard panel cutouts
Technical Specifications
Verify the following specifications with manufacturer documentation or your system integrator, as exact datasheet was not available:
- Resistance Value: 100kΩ (100,000Ω)
- Part Number: 95A2AZ40EA0063
- Configuration: Multi-turn (10+ turns typical)
- Mounting: Panel mount with bushing
- Actuator Type: Slotted (screwdriver adjustable)
- Resistance Material: Cermet or carbon film (typical for this class)
- Adjustment Range: Full rotation to resistance endpoints
Typical Applications
- Test and measurement equipment calibration
- Audio equipment level control and tone shaping
- Industrial instrumentation tuning
- Signal attenuation in analog circuits
- Frequency or timing adjustment in oscillators and timers
- Precision voltage divider networks
Compatibility & Replacements
Compatible With
- Standard 3/8-32 panel bushing installations
- DC and low-frequency AC signal conditioning circuits
- Analog control input circuits rated for 100kΩ input impedance
- General-purpose measurement and tuning applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Direct replacement models depend on your specific mechanical and electrical requirements. Other 100kΩ multi-turn potentiometers with identical bushing and mounting may be compatible.
Works With
- Analog signal conditioning circuits
- Manual tuning and calibration systems
- DC power supplies and voltage dividers
- Instrumentation and test equipment
- Audio and frequency control circuits
