Overview

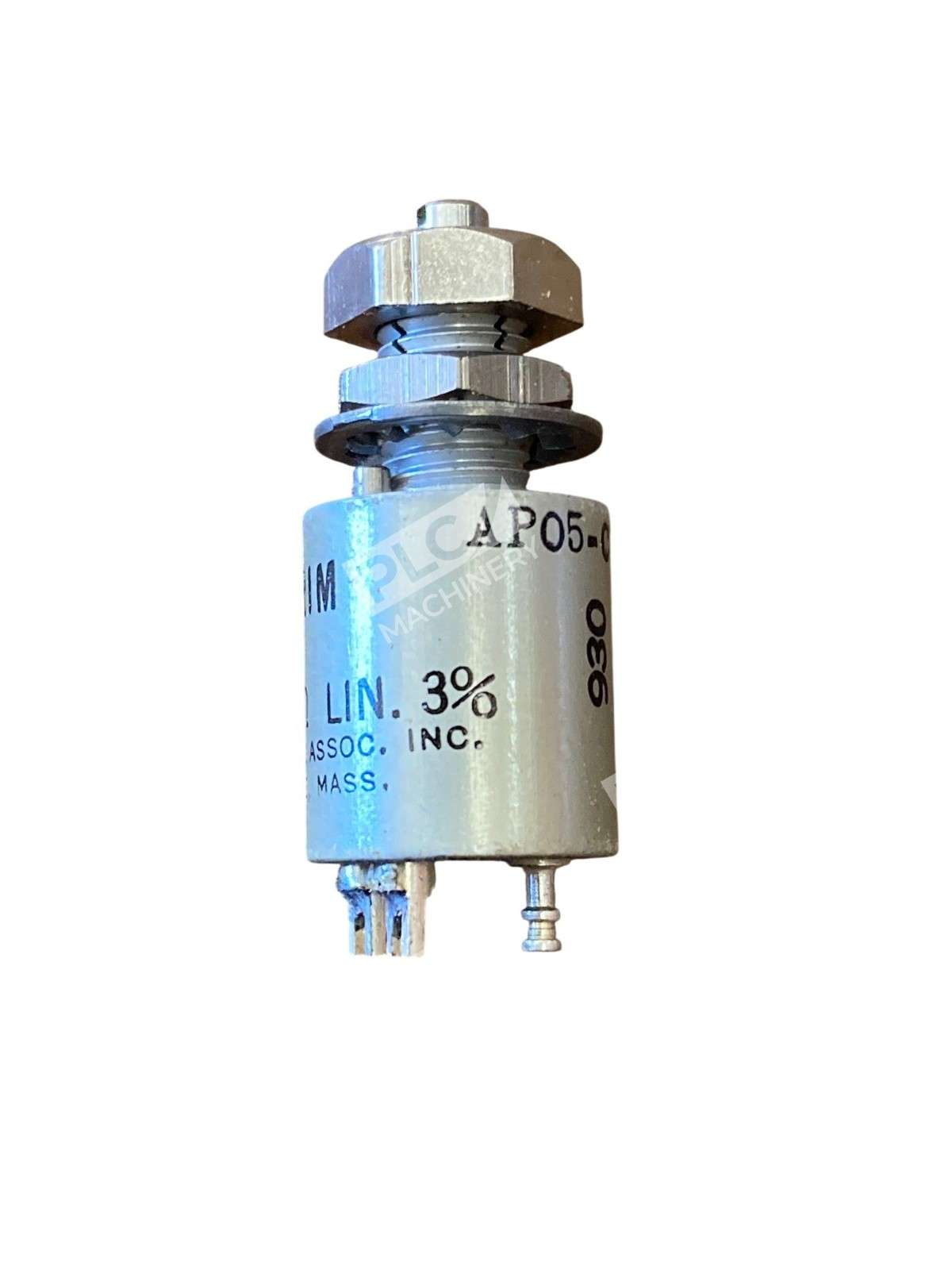

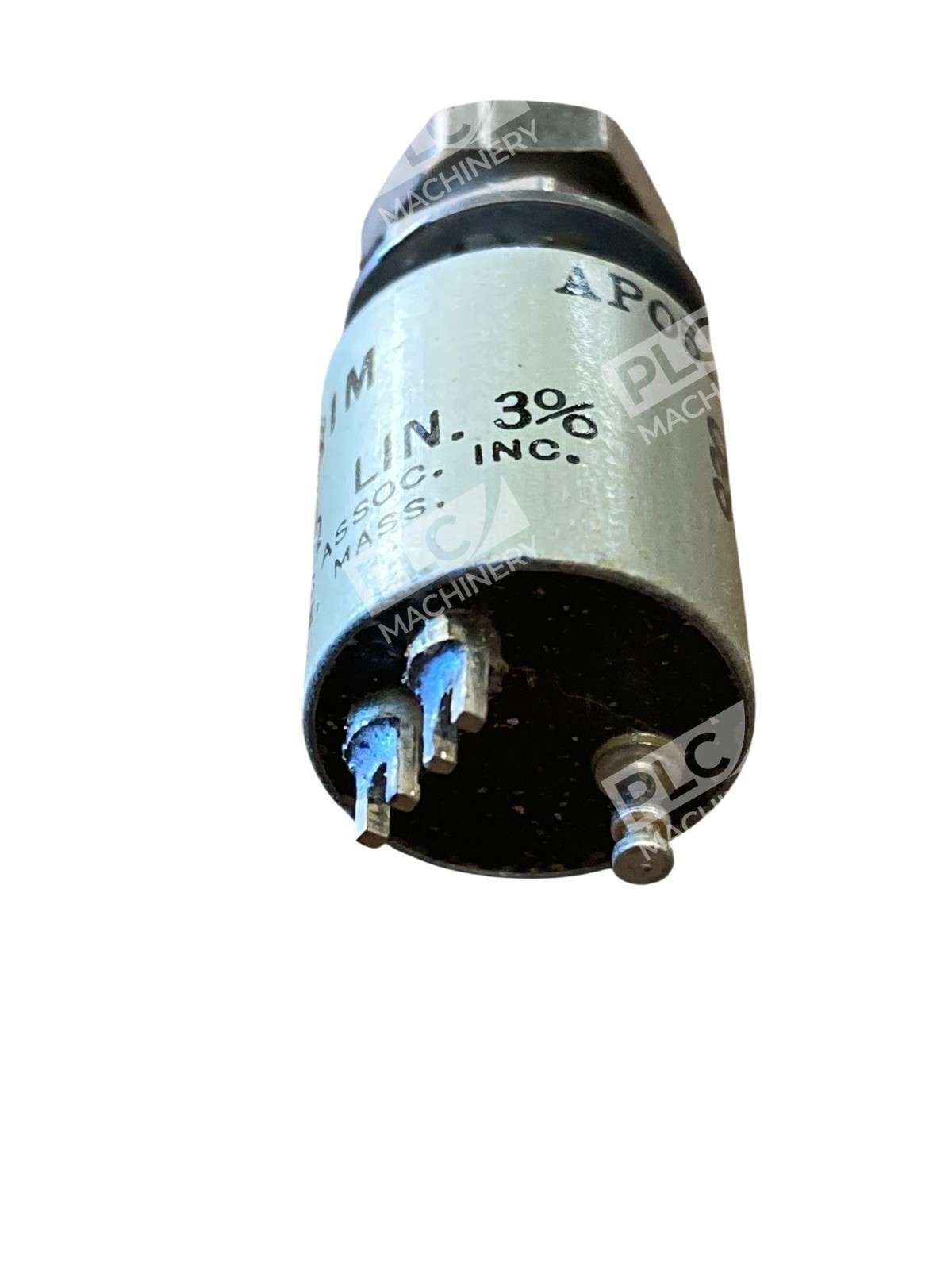

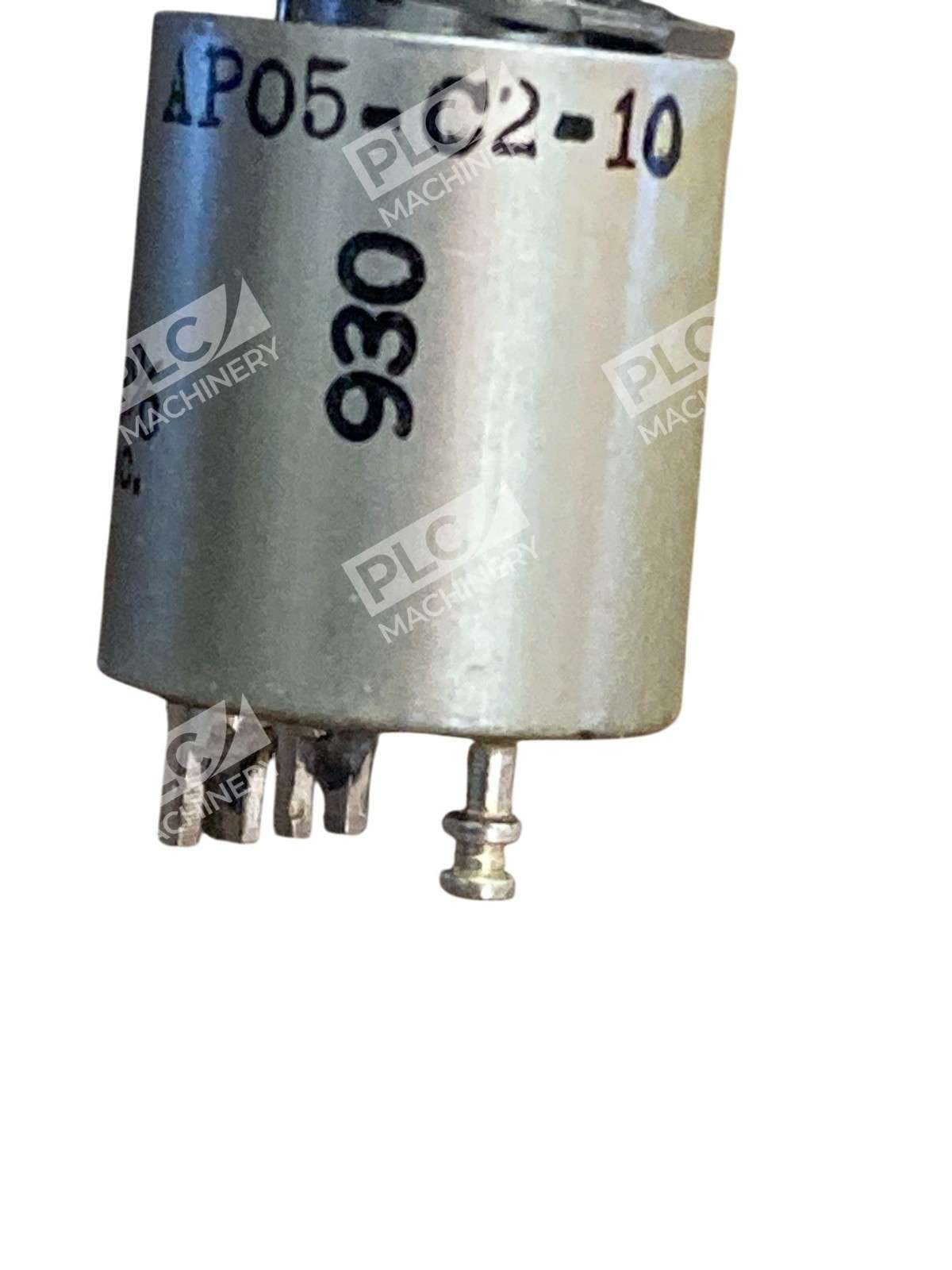

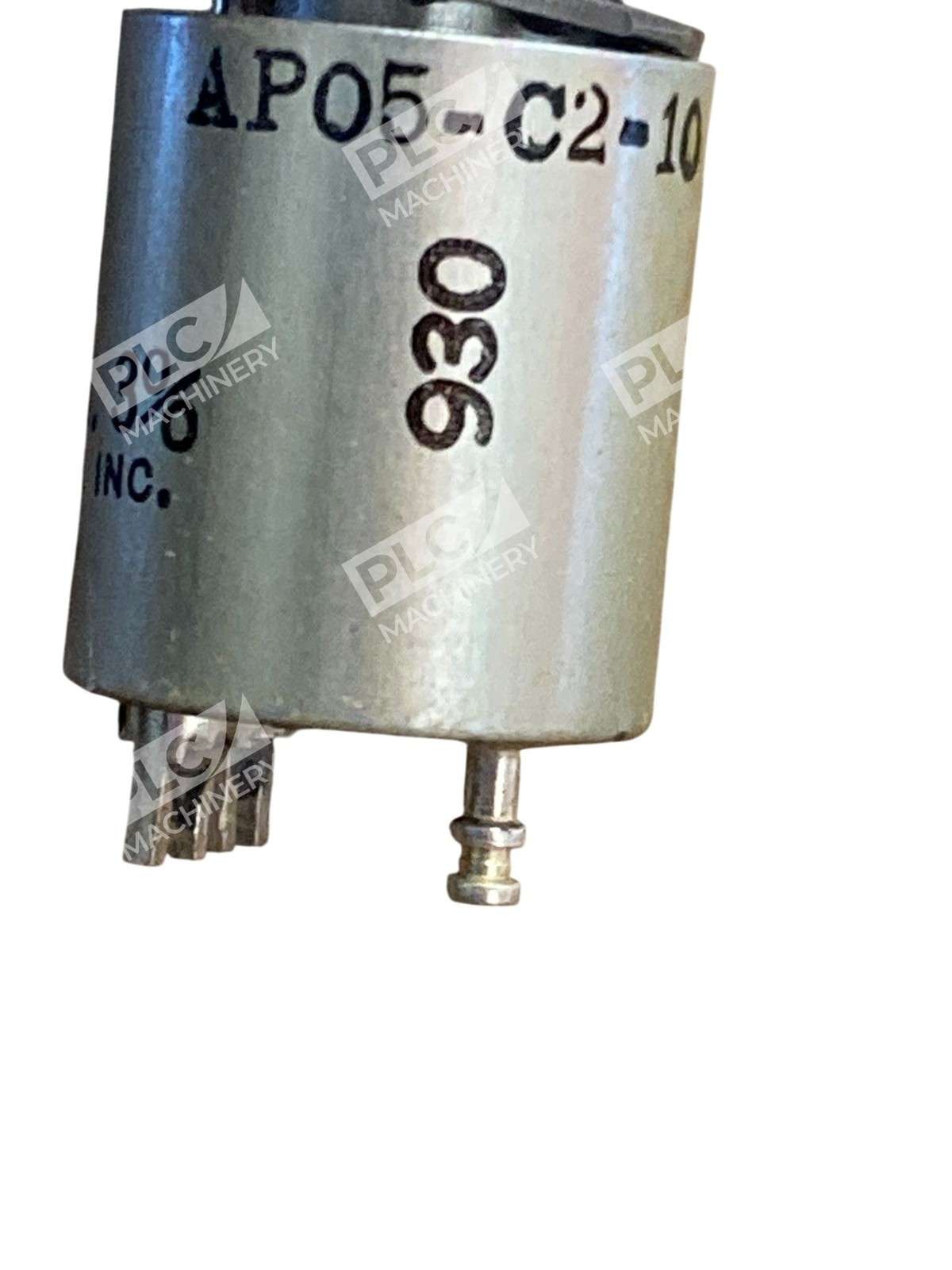

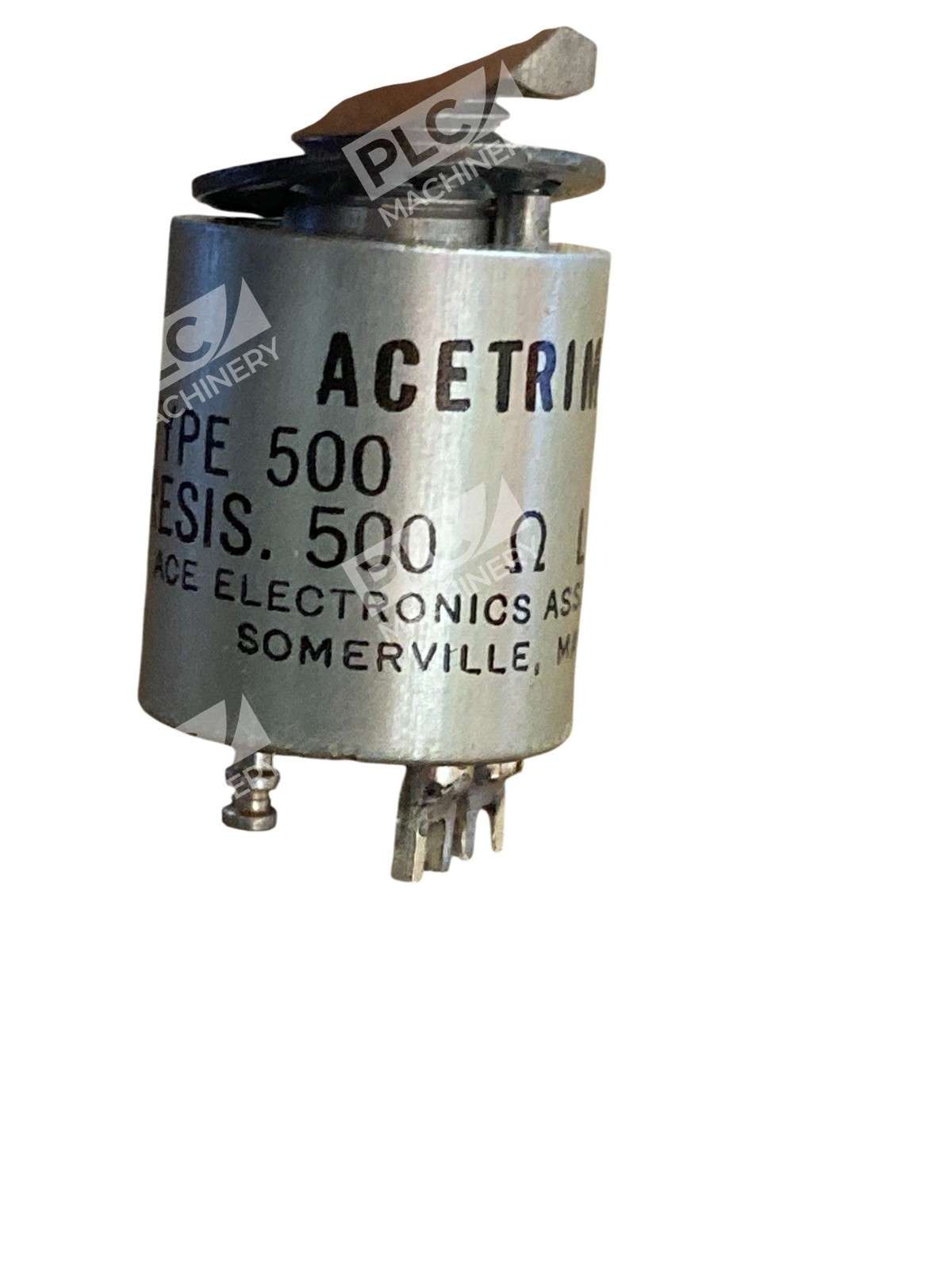

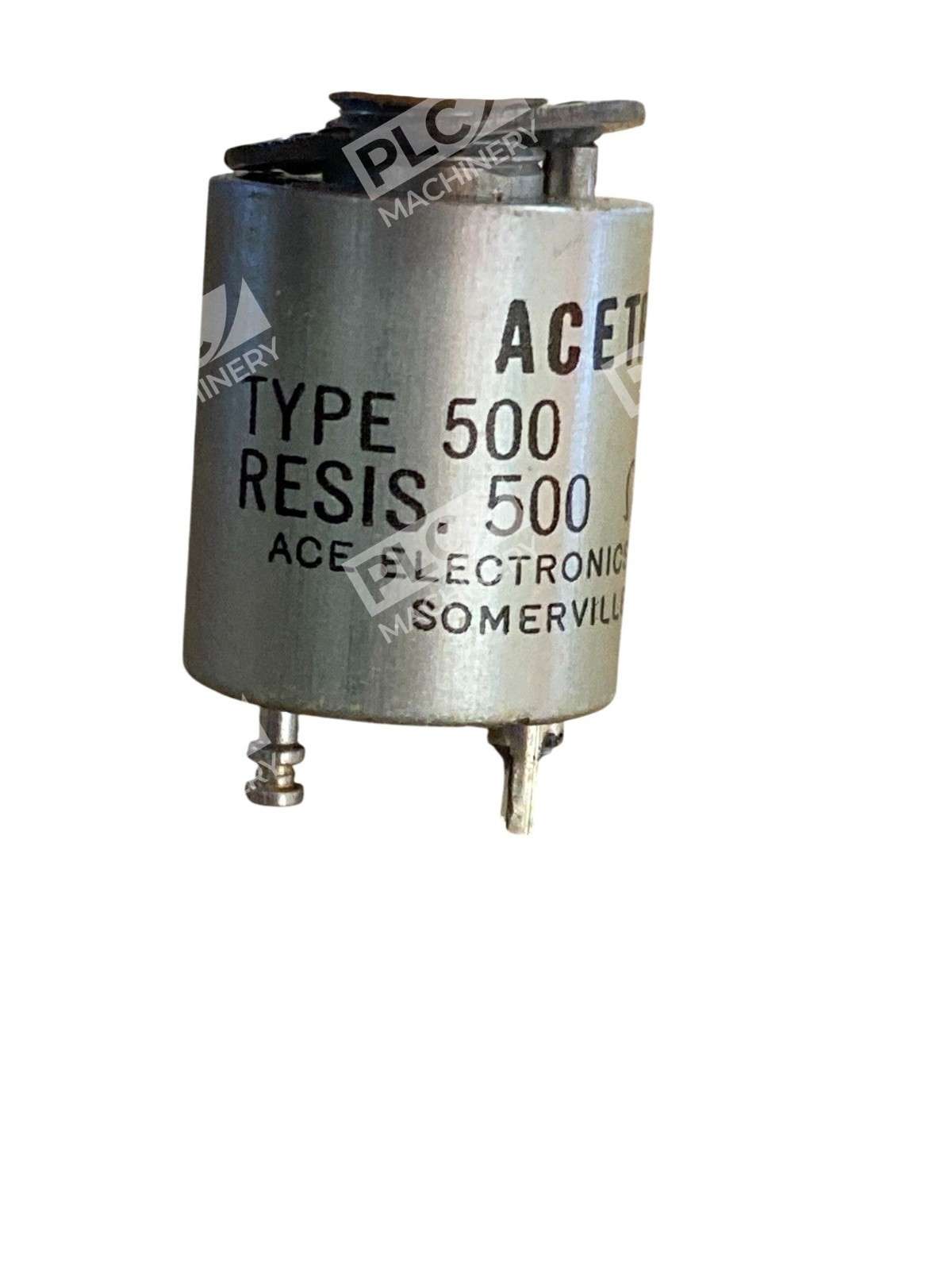

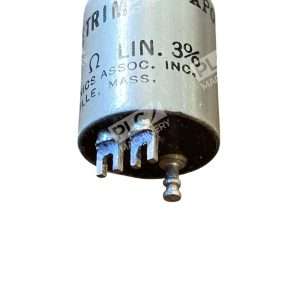

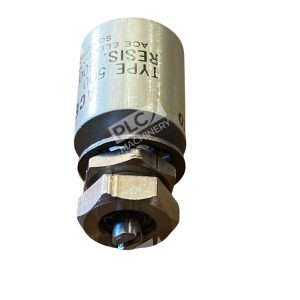

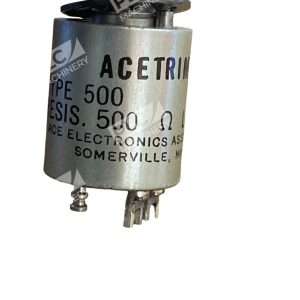

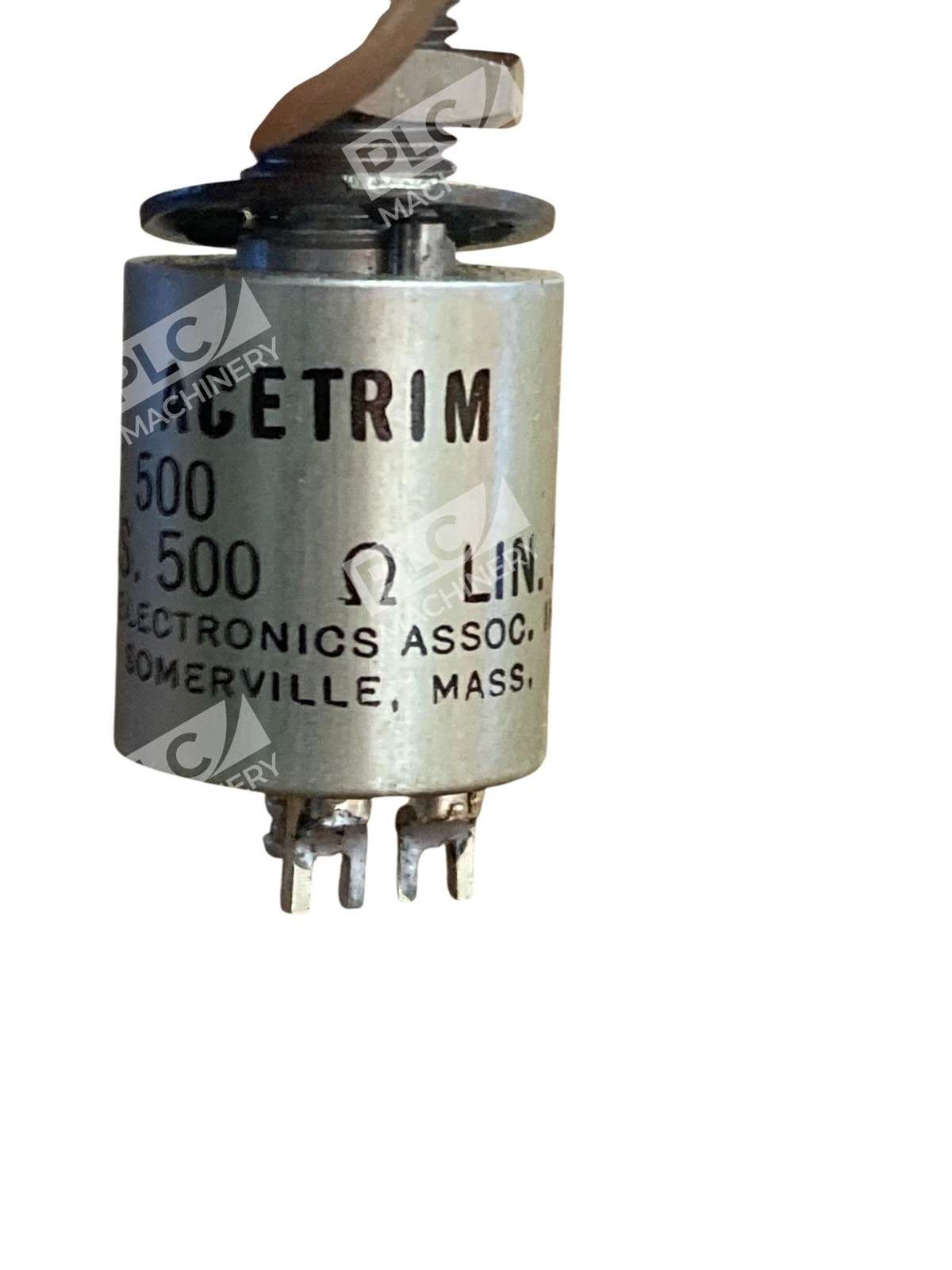

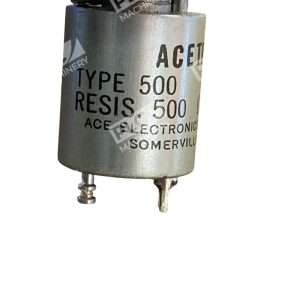

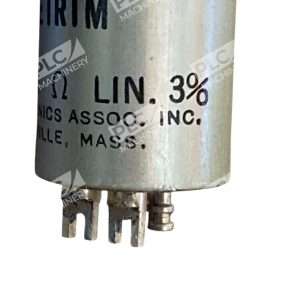

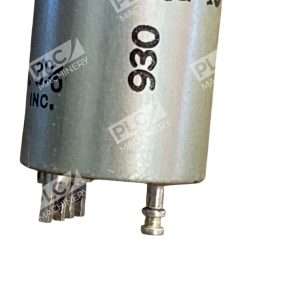

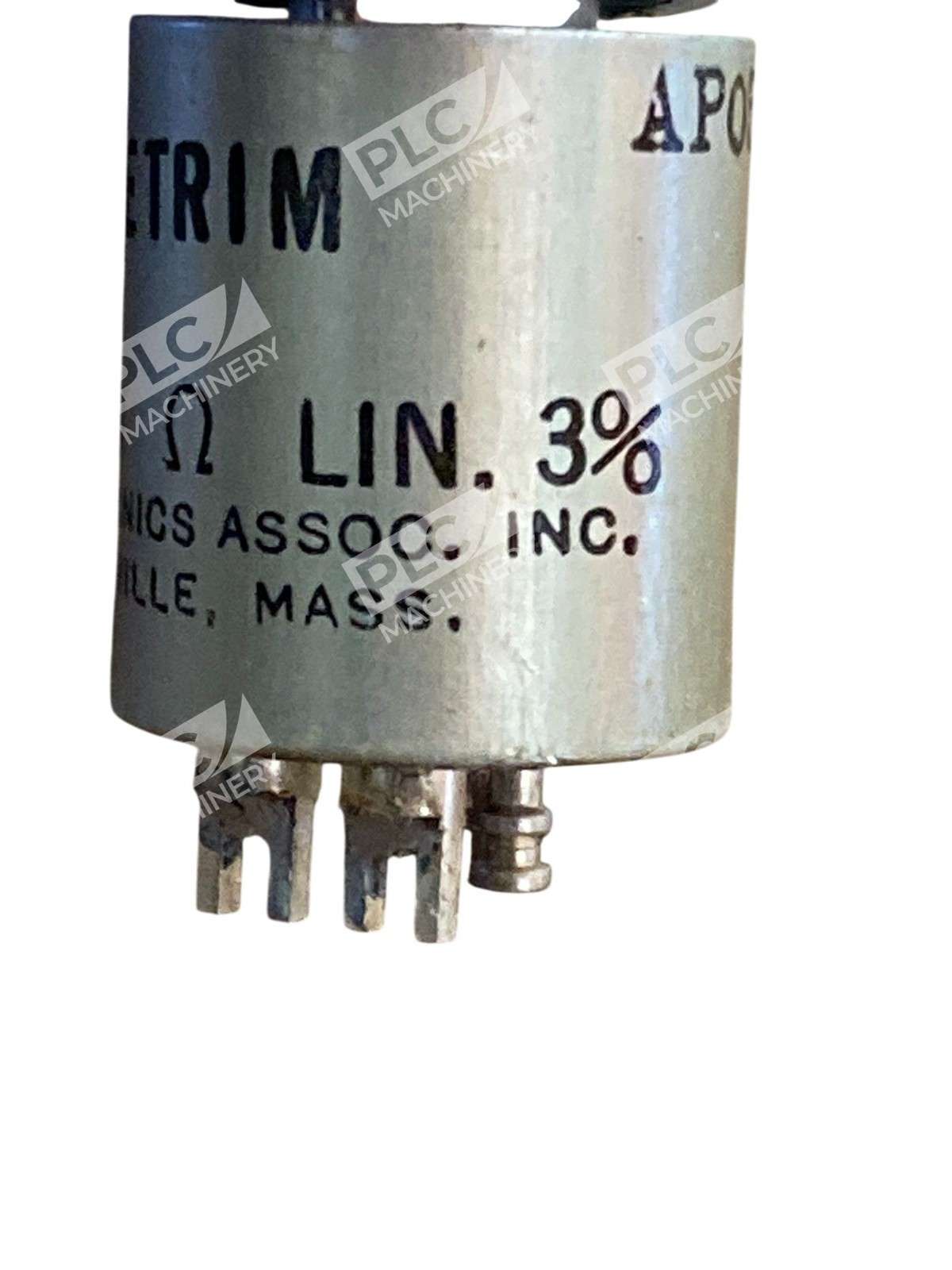

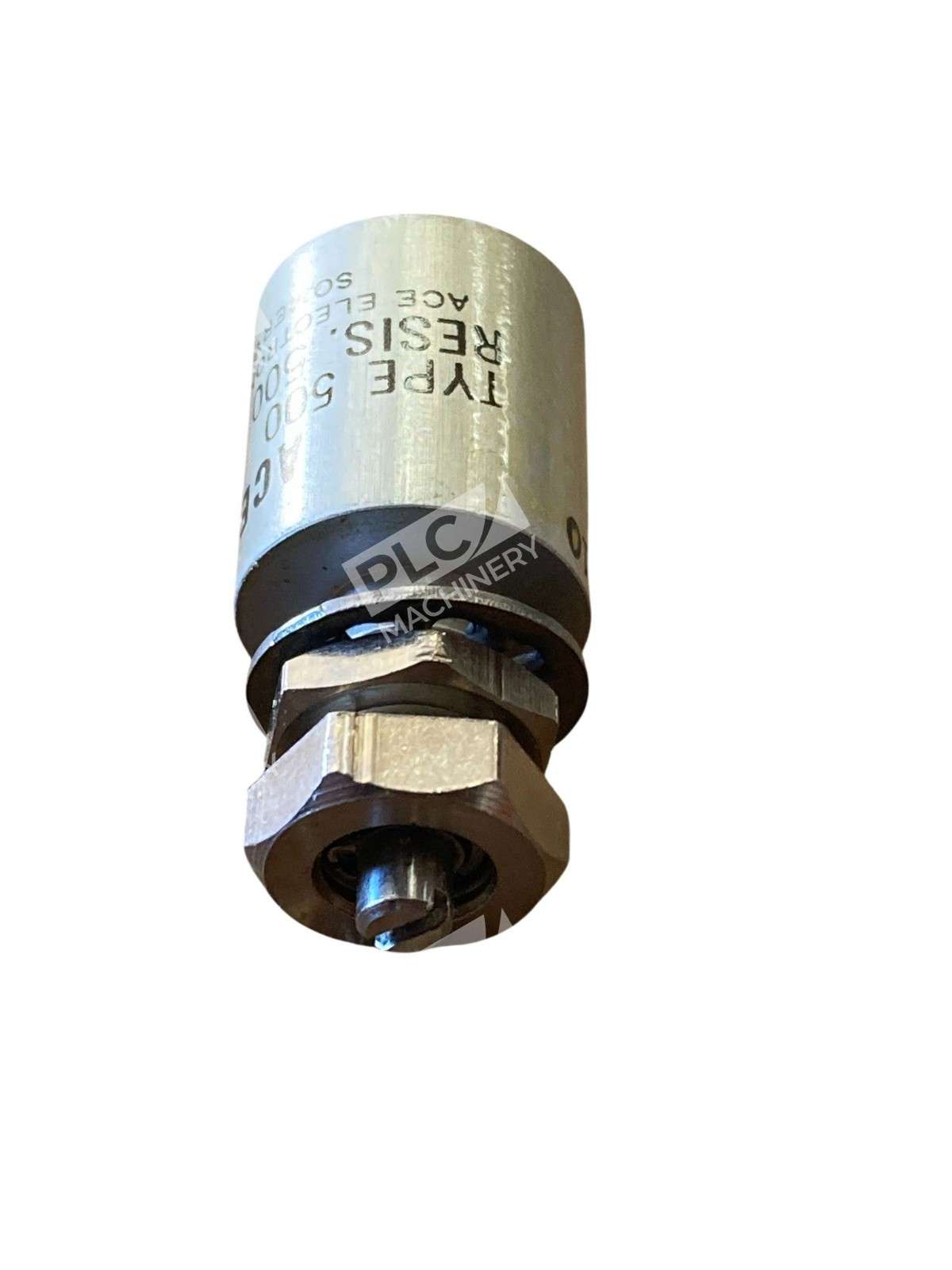

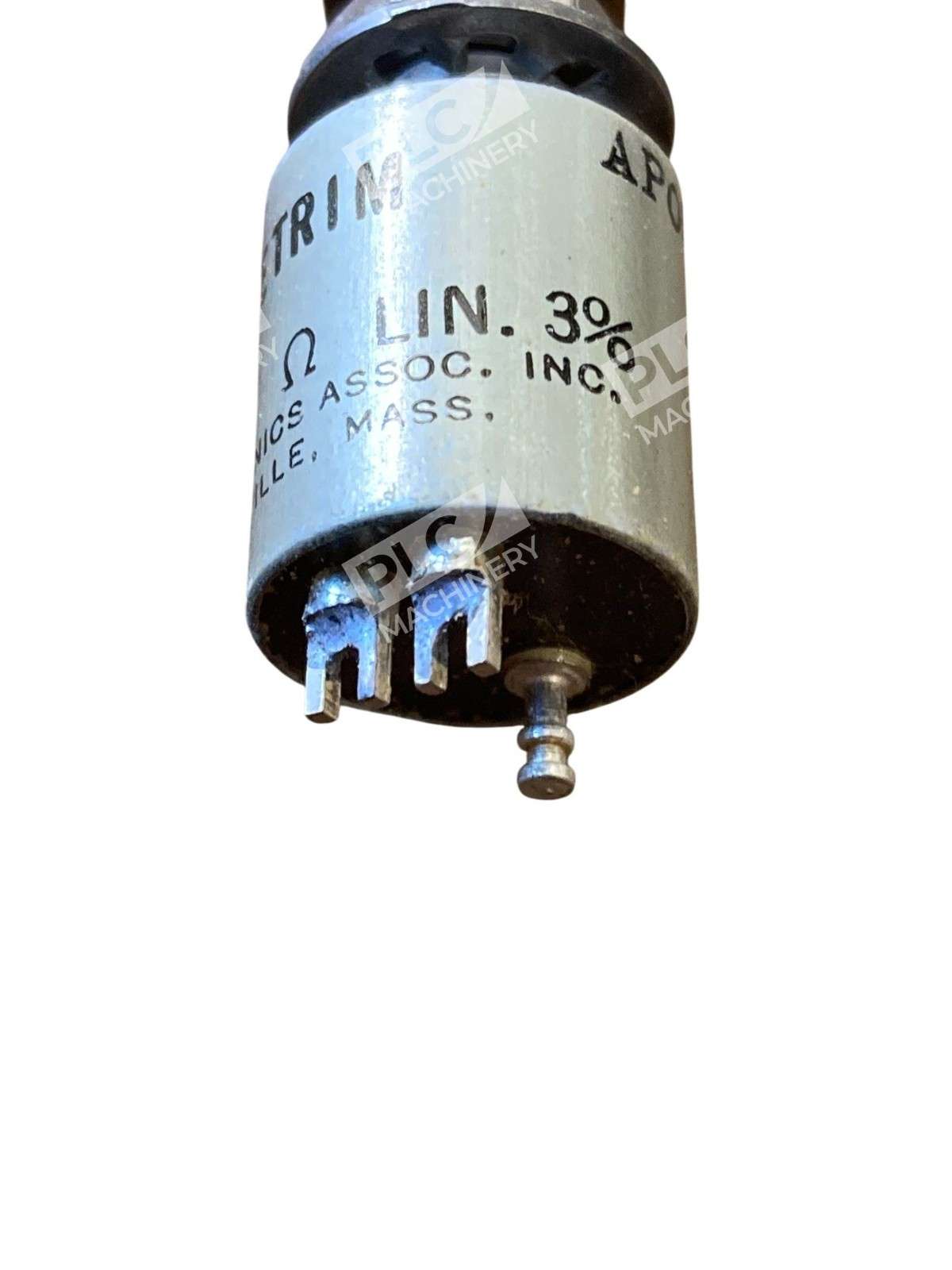

The ACETRIM AP05-C2-10 Type 500 potentiometer is a single-turn variable resistor rated at 500Ω. This precision component is engineered for applications requiring stable, repeatable resistance adjustment across a full rotation. The ACETRIM AP05-C2-10 is suitable for calibration circuits, signal conditioning, and tuning applications in industrial control systems and electronic instrumentation.
Key Features
- Single-turn design for straightforward calibration and adjustment
- 500Ω nominal resistance rating
- Type 500 construction for industrial-grade reliability
- Compact potentiometer suitable for panel mount and circuit board integration
- Low noise operation in signal path applications
Technical Specifications
The following specifications define the operational parameters and physical characteristics of this unit:
Typical Applications
- Process control and analog signal adjustment
- Equipment calibration and trimming circuits
- Instrumentation feedback loops
- Industrial automation systems
- Test and measurement equipment
Compatibility & Replacements
Compatible With
- Standard analog control circuits requiring 500Ω potentiometer functionality
- Industrial automation systems with variable resistor inputs
- Equipment designed for Type 500 potentiometer packages
- Control panels utilizing single-turn adjustment mechanisms
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Ensure the AP05-C2-10 part number matches your equipment’s specification sheet.
Works With
- Analog control interfaces
- PLC input modules (analog resistive inputs)
- Data acquisition systems
- Industrial measurement instruments
