Overview

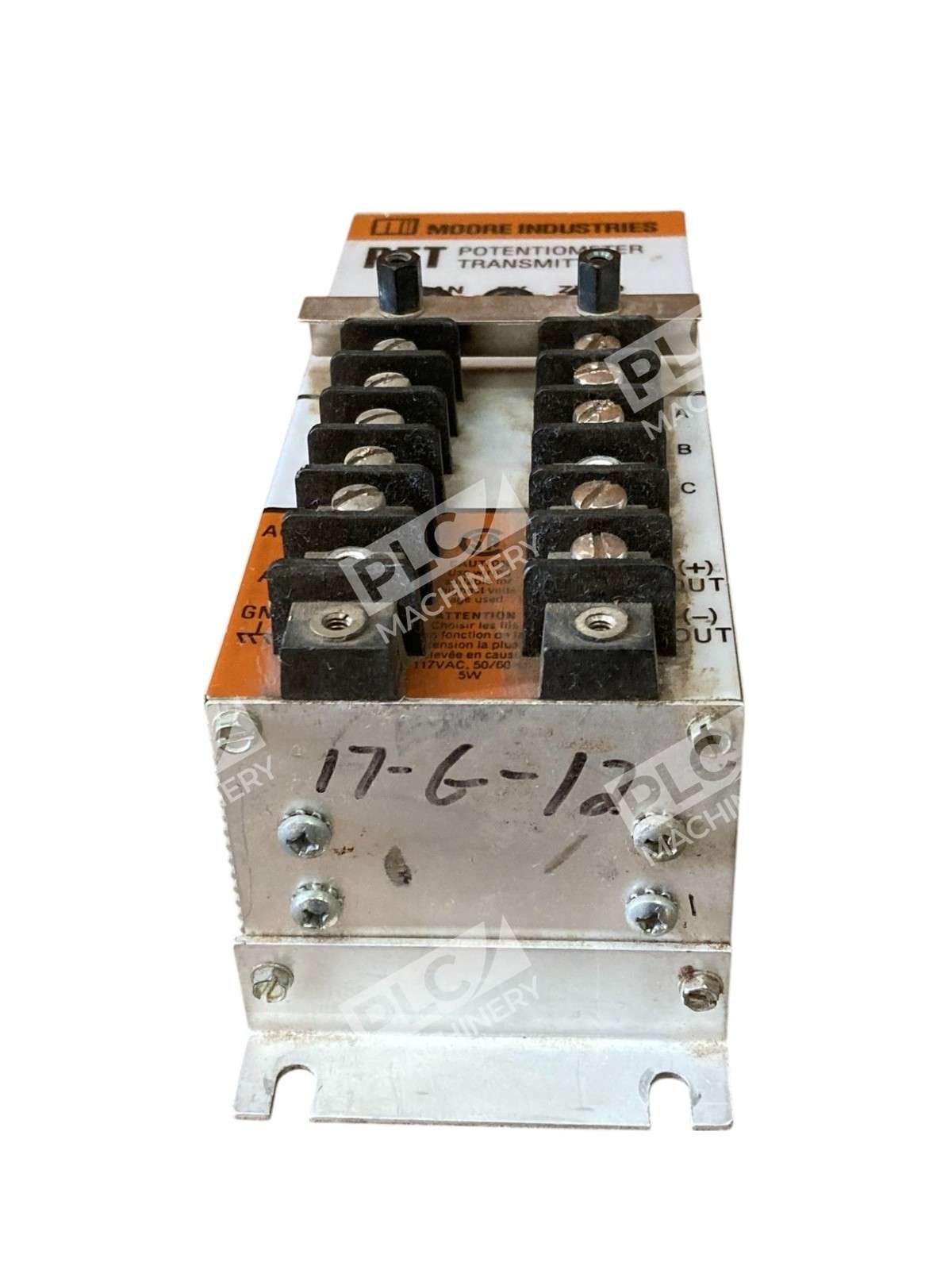

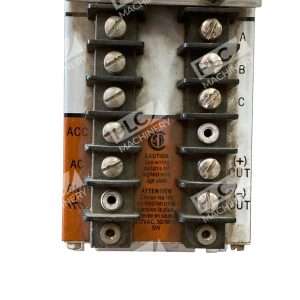

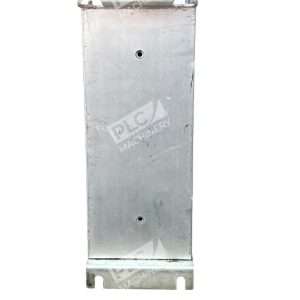

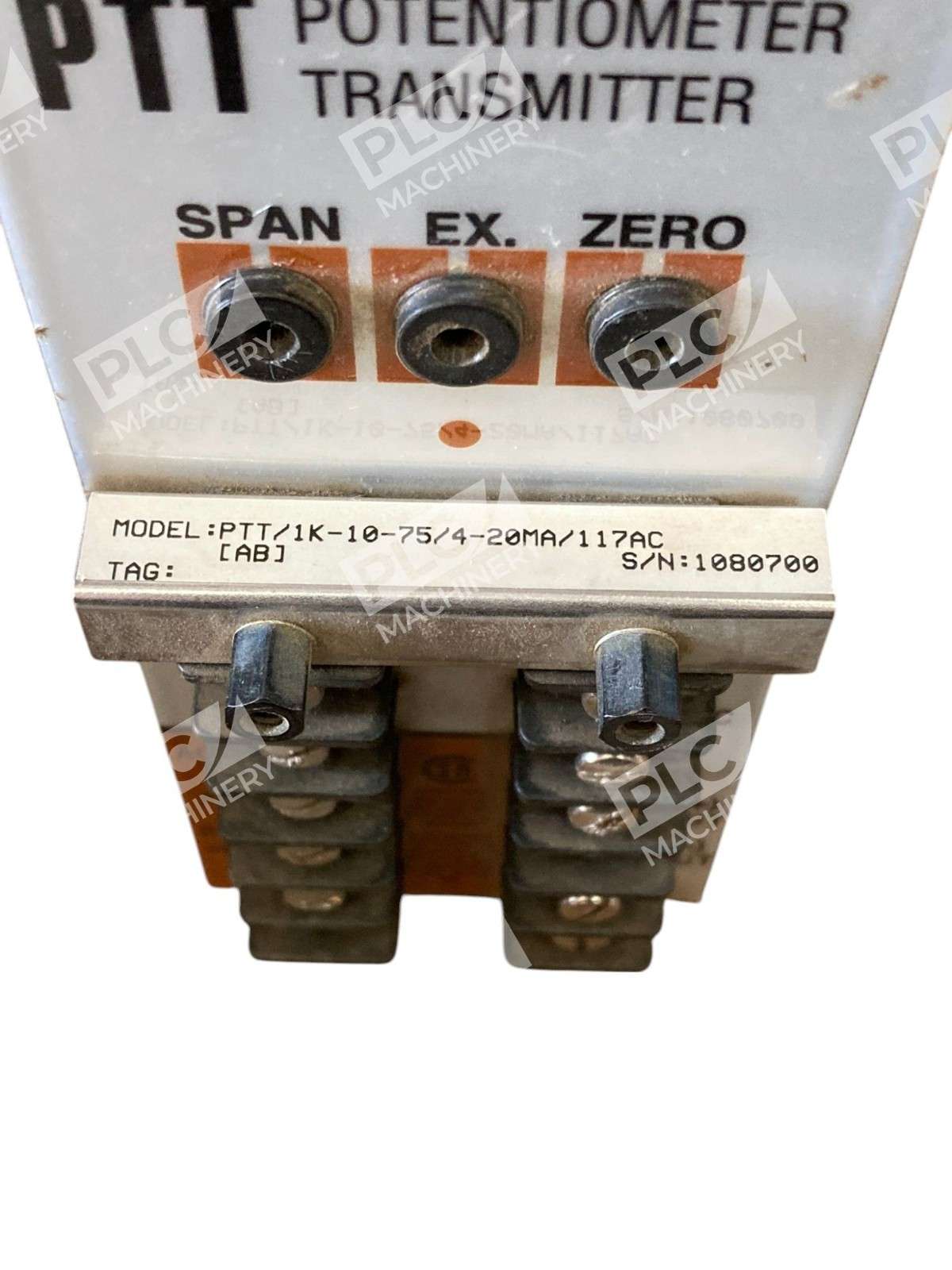

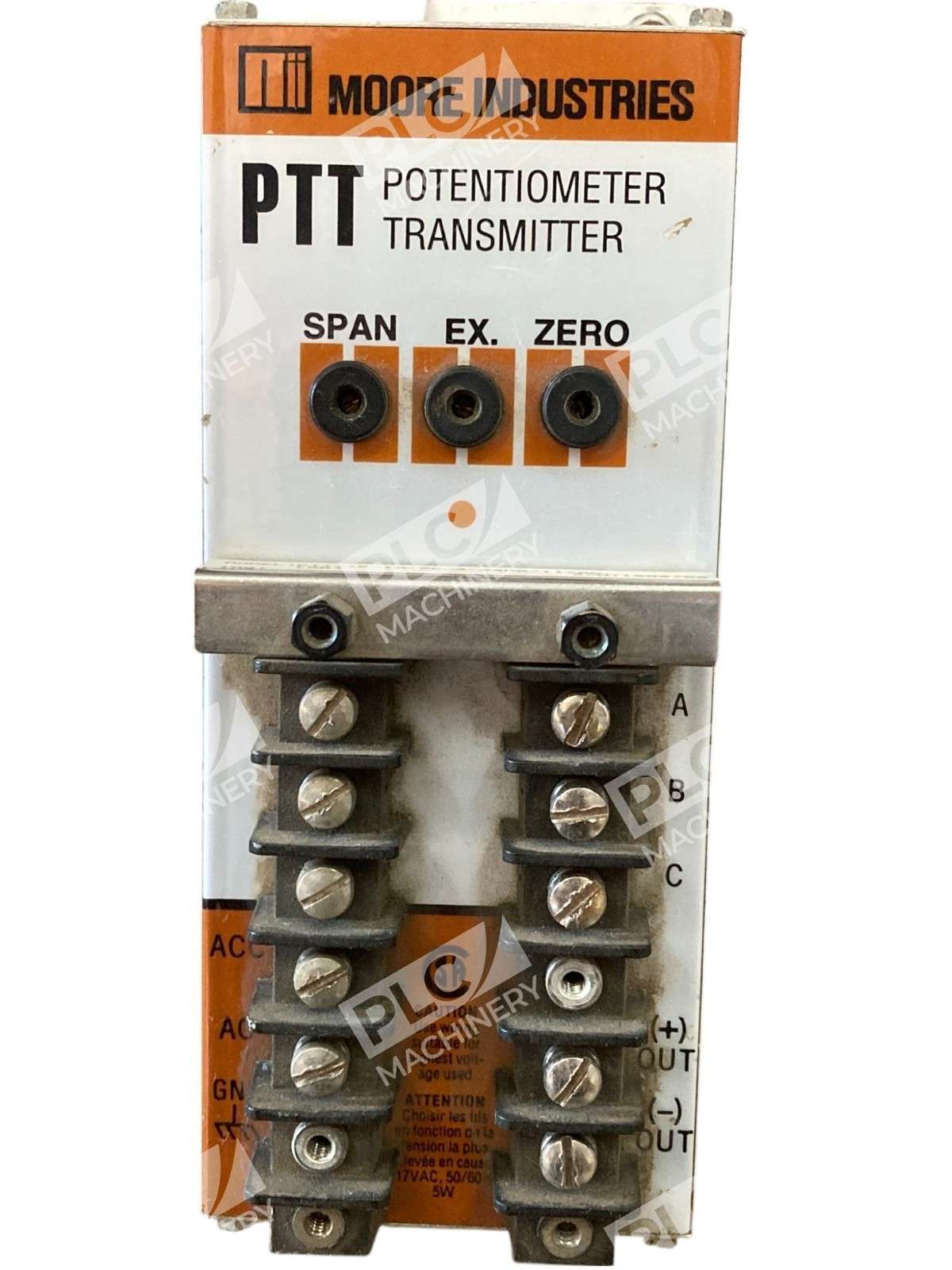

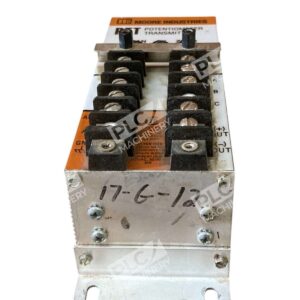

The Moore Industries PTT/1K-10-75/4-20MA/117AC potentiometer transmitter is a precision signal conditioning device designed for industrial process control. This unit converts variable resistance inputs from potentiometer sensors into standardized 4-20 milliamp analog output signals, making it ideal for remote position indication and feedback control systems. The 117 VAC power input and robust construction make it suitable for factory floor and process automation environments.
Key Features
- Converts 1K ohm potentiometer input to 4-20 mA output
- Input range: 10 to 75 ohms
- 4-20 mA isolated output signal
- 117 VAC power supply
- Rugged industrial-grade construction
- Field-adjustable range settings
Technical Specifications
- Potentiometer Input: 1K ohm
- Input Range: 10–75 ohms
- Output Signal: 4–20 mA DC
- Power Supply: 117 VAC
- Product Series: PTT (Potentiometer Transmitter)
- Configuration: 4-wire
- Manufacturer: Moore Industries
Typical Applications
- Position feedback and indication systems
- Actuator stroke measurement and monitoring
- Valve position sensing and control
- Process automation and control loops
- Industrial machinery position monitoring
- HVAC damper and louver control
Compatibility & Replacements
Compatible With
- Standard industrial PLCs and controllers accepting 4-20 mA analog inputs
- Data acquisition systems with 4-20 mA input modules
- Industrial signal conditioning networks
- SCADA and process control systems
- Any process control system with standard 4-20 mA analog inputs
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Common Moore Industries PTT series variants include PTT/500, PTT/10K, and PTT/1550HM models with different potentiometer values and input ranges.
Works With
- Industrial analog input modules
- PLC analog-to-digital converters
- Standard 4-20 mA instrumentation and gauges
- Industrial process control software
- DCS (Distributed Control Systems) platforms
