Overview

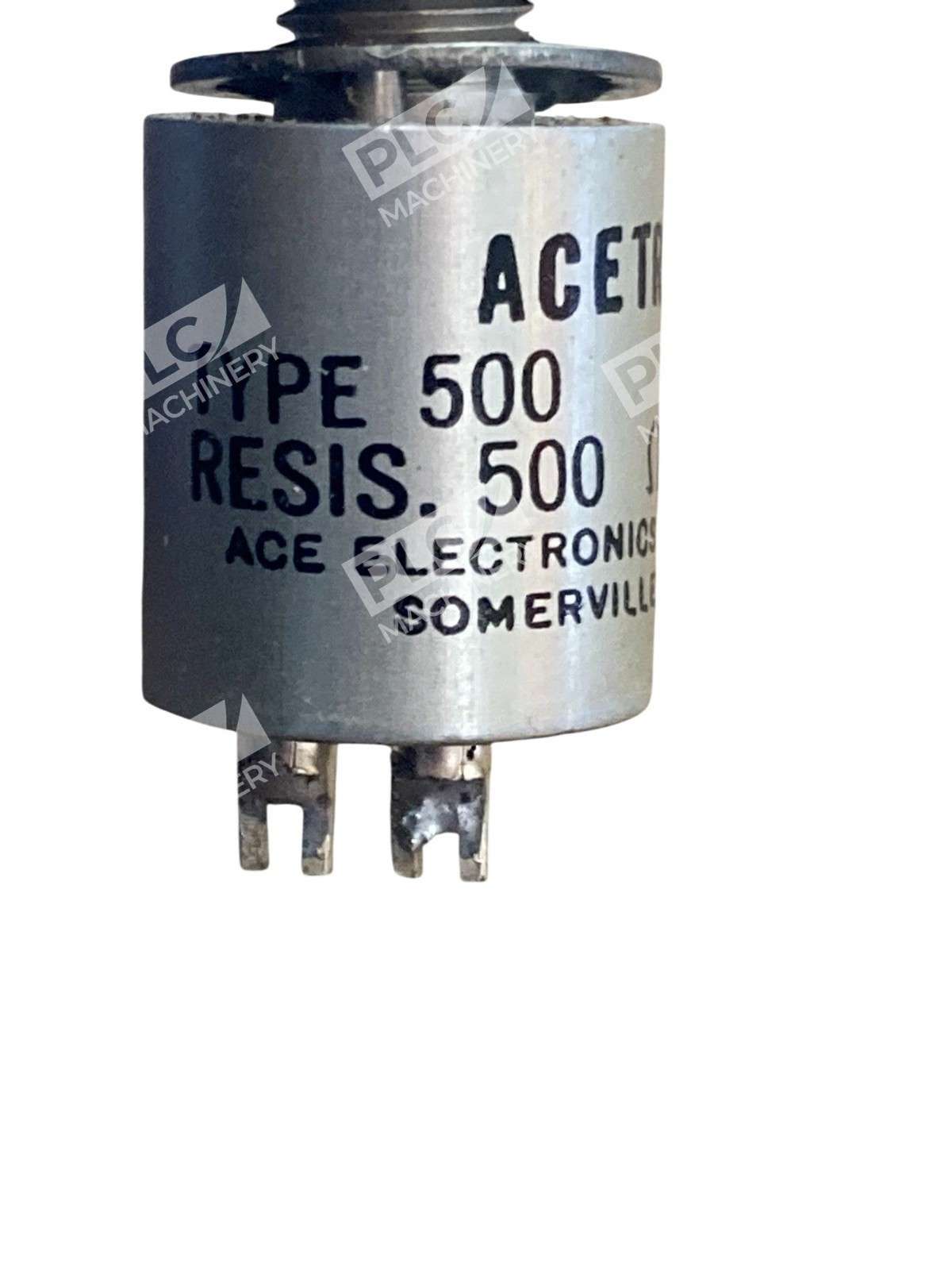

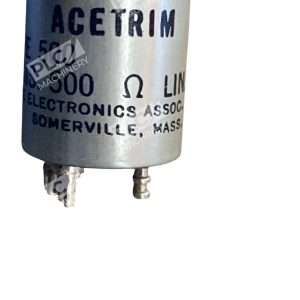

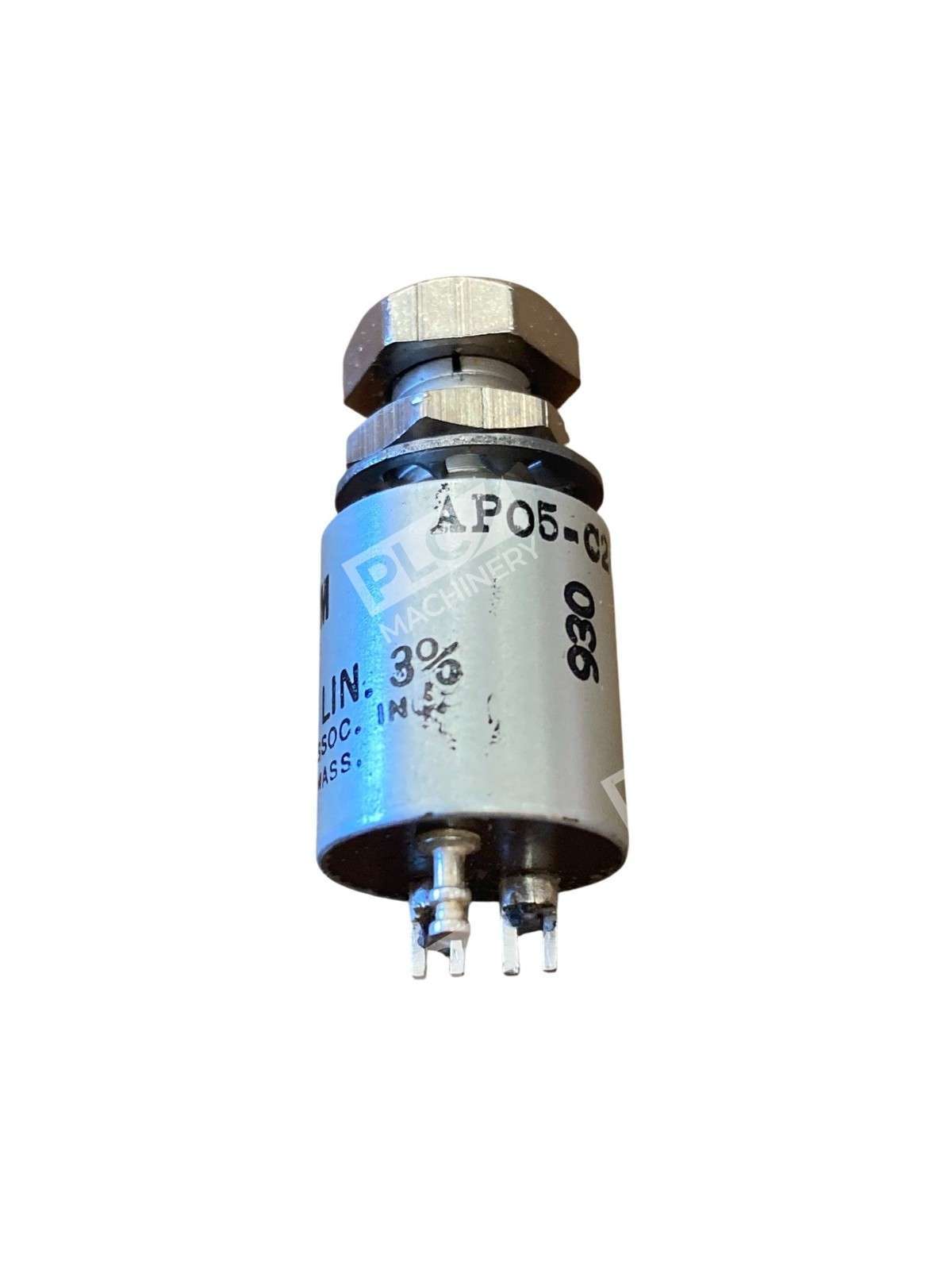

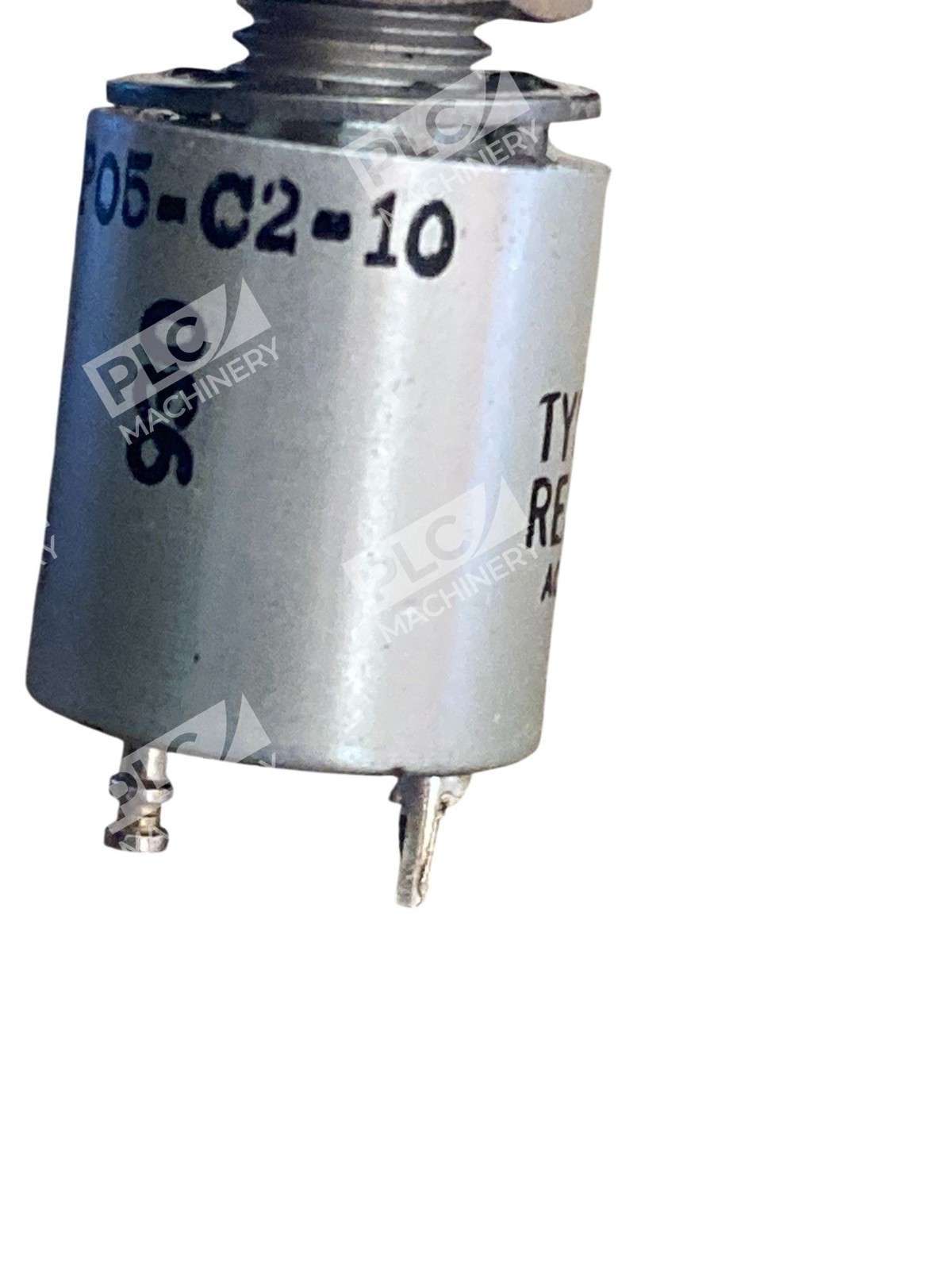

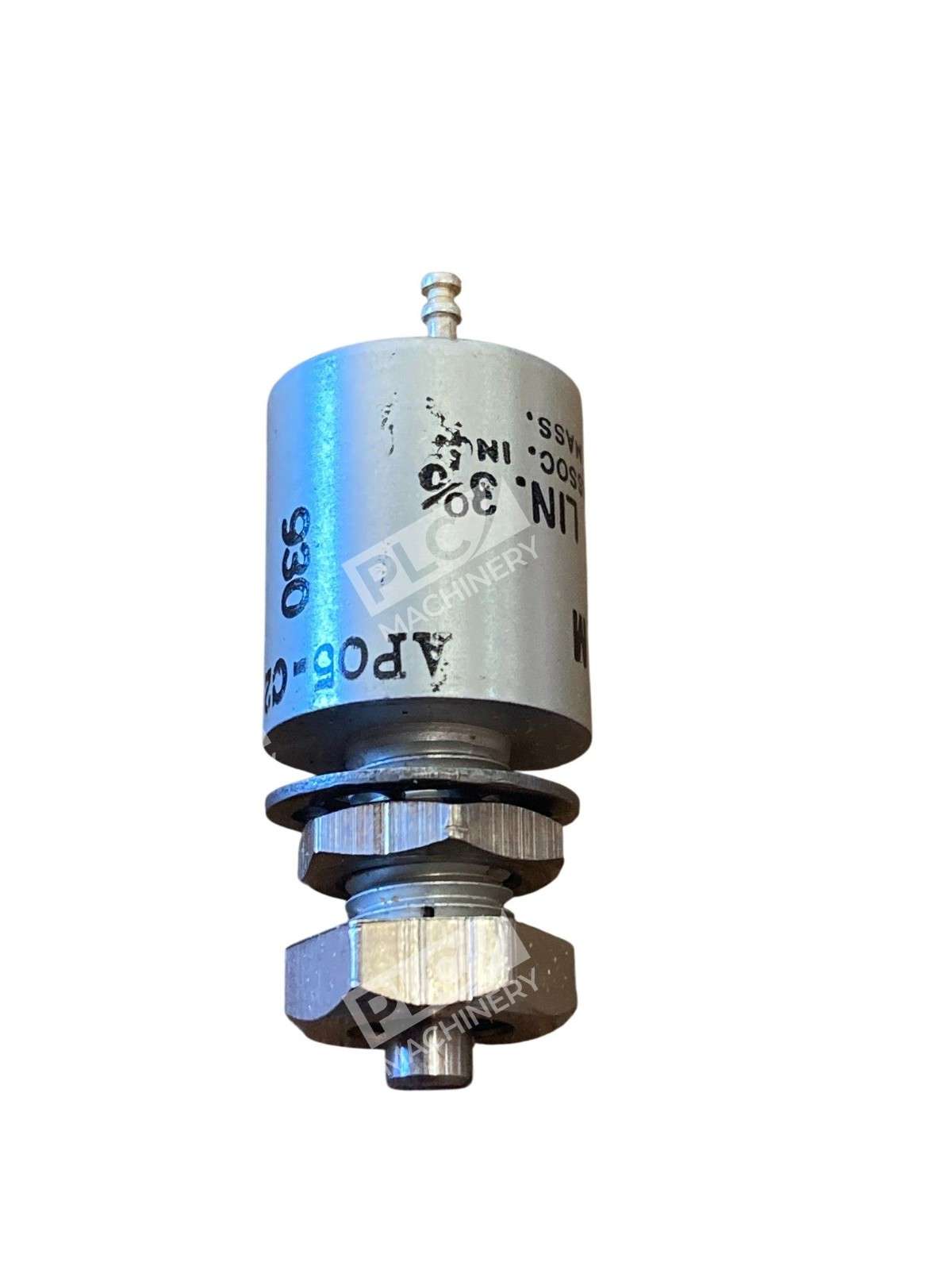

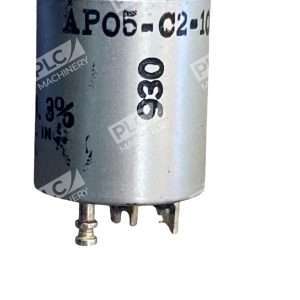

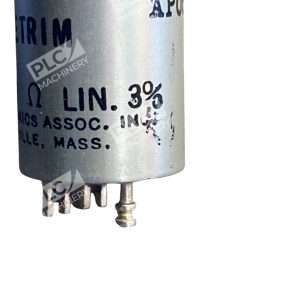

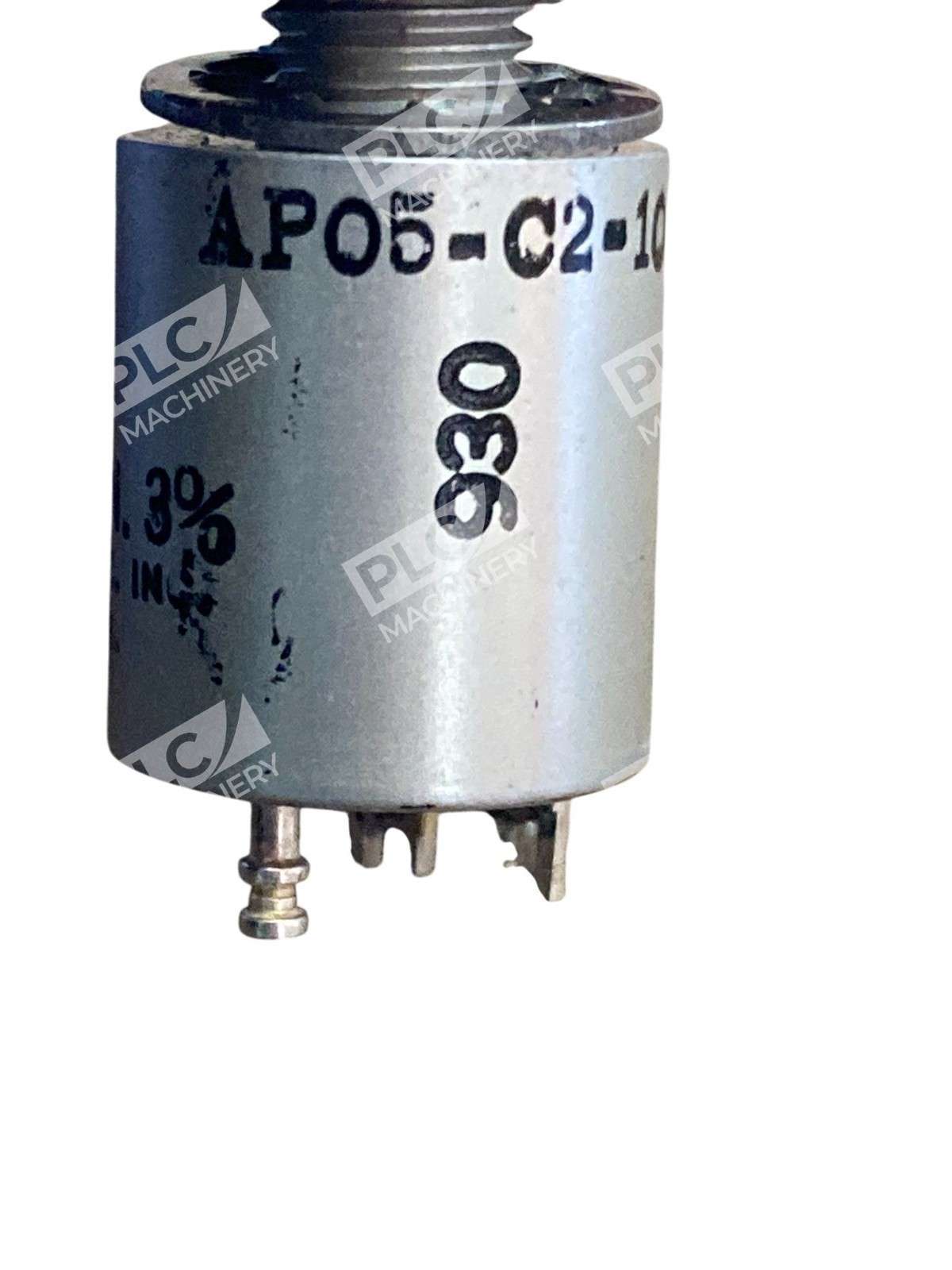

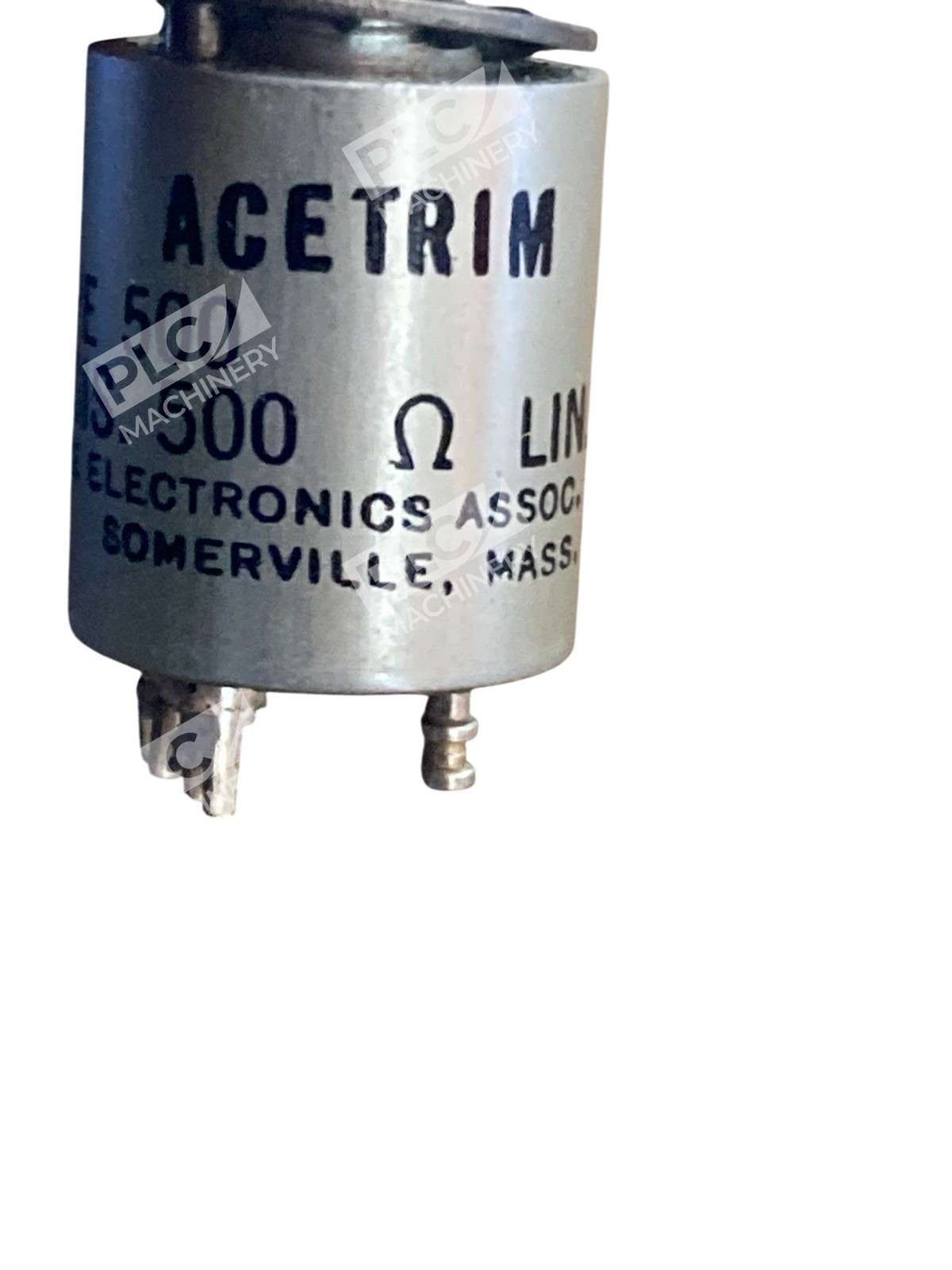

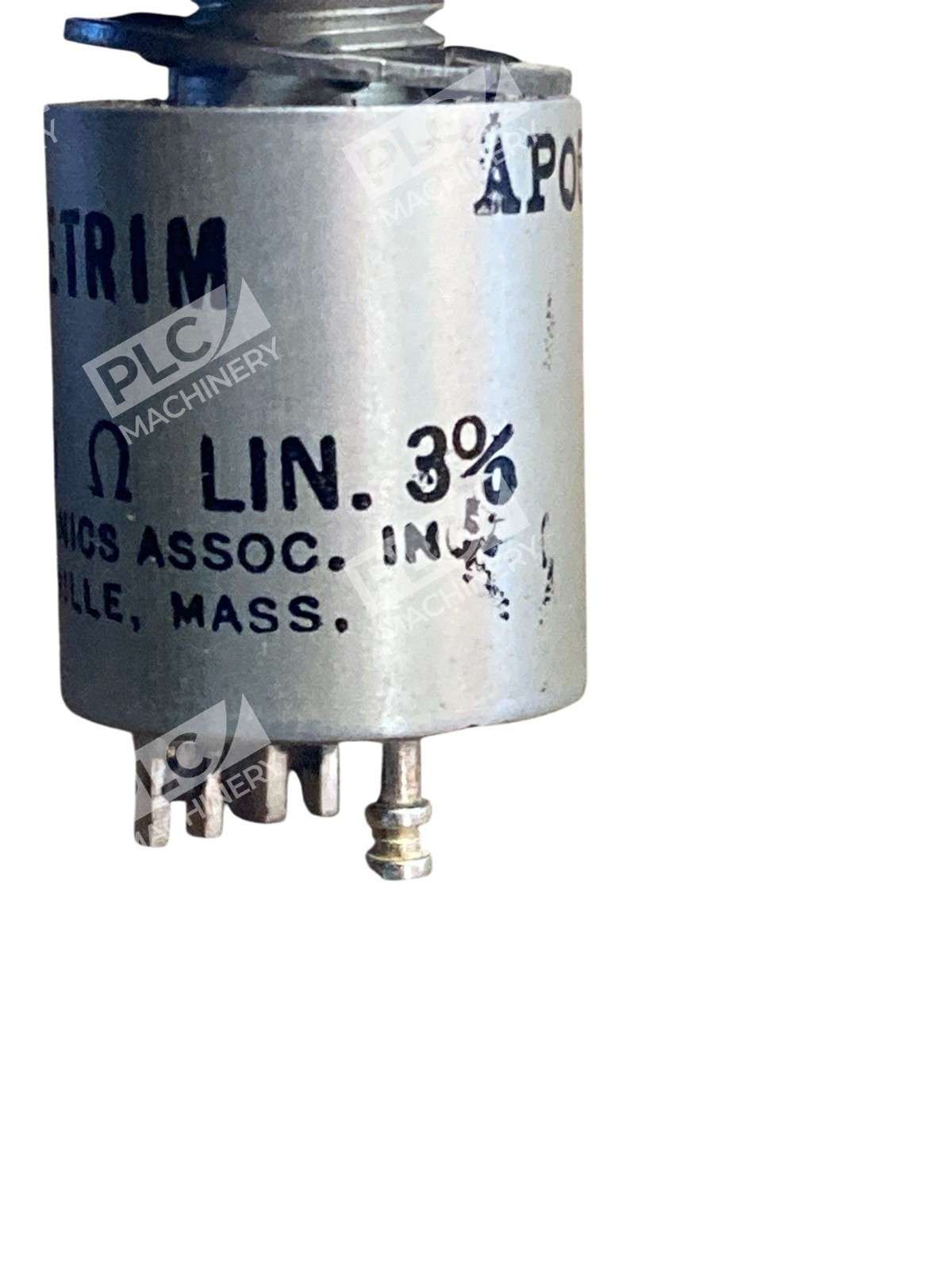

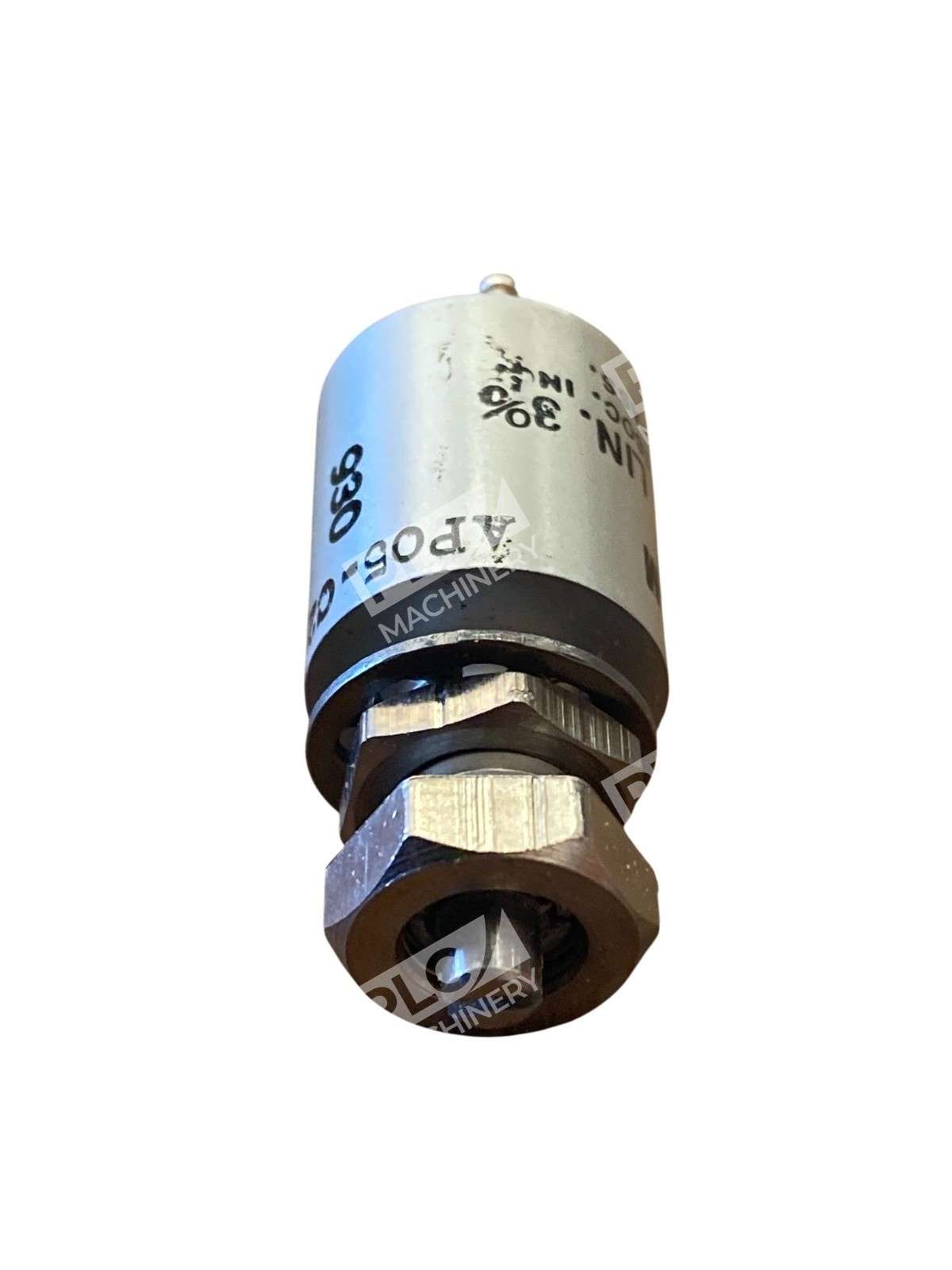

The ACETRIM AP05-C2-10 linear trimmer potentiometer provides precise resistance adjustment for circuit calibration and tuning applications. With a nominal resistance of 500Ω and a 3% tolerance specification, this component delivers the accuracy needed for electronic equipment fine-tuning and performance optimization.
Key Features
- Linear taper design for consistent, predictable resistance variation
- 500Ω nominal resistance rating
- 3% tolerance for tight resistance specifications
- Compact trimmer format suitable for PCB mounting and confined spaces
- Designed for occasional adjustment applications including initial calibration and system tuning
Technical Specifications
The AP05-C2-10 delivers reliable performance in precision adjustment applications where controlled resistance change is essential:
- Resistance: 500Ω nominal
- Tolerance: ±3%
- Taper Type: Linear
- Configuration: Single-turn trimmer
- Package Type: Preset potentiometer (trimpot)
Typical Applications
Linear trimmer potentiometers are essential in applications requiring occasional resistance adjustment:
- Circuit calibration and gain adjustment during equipment setup
- Voltage divider networks for signal conditioning
- Sensor output offset and scaling adjustments
- Audio equipment tone and response tuning
- Test and measurement equipment fine-tuning
Compatibility & Replacements
Compatible With
- PCB-mounted electronic circuits requiring trim potentiometer components
- Low-power signal conditioning applications
- Audio and instrumentation equipment
- General-purpose electronic assembly and testing
Replaces / Drop-In Replacement For
Verify compatibility with your specific equipment or system integrator before ordering, as trimmer potentiometer mounting and terminal configurations vary by application.
Works With
- Standard PCB assembly and soldering processes
- Through-hole and surface-mount circuit boards
- General electronic design and prototyping platforms
