Overview

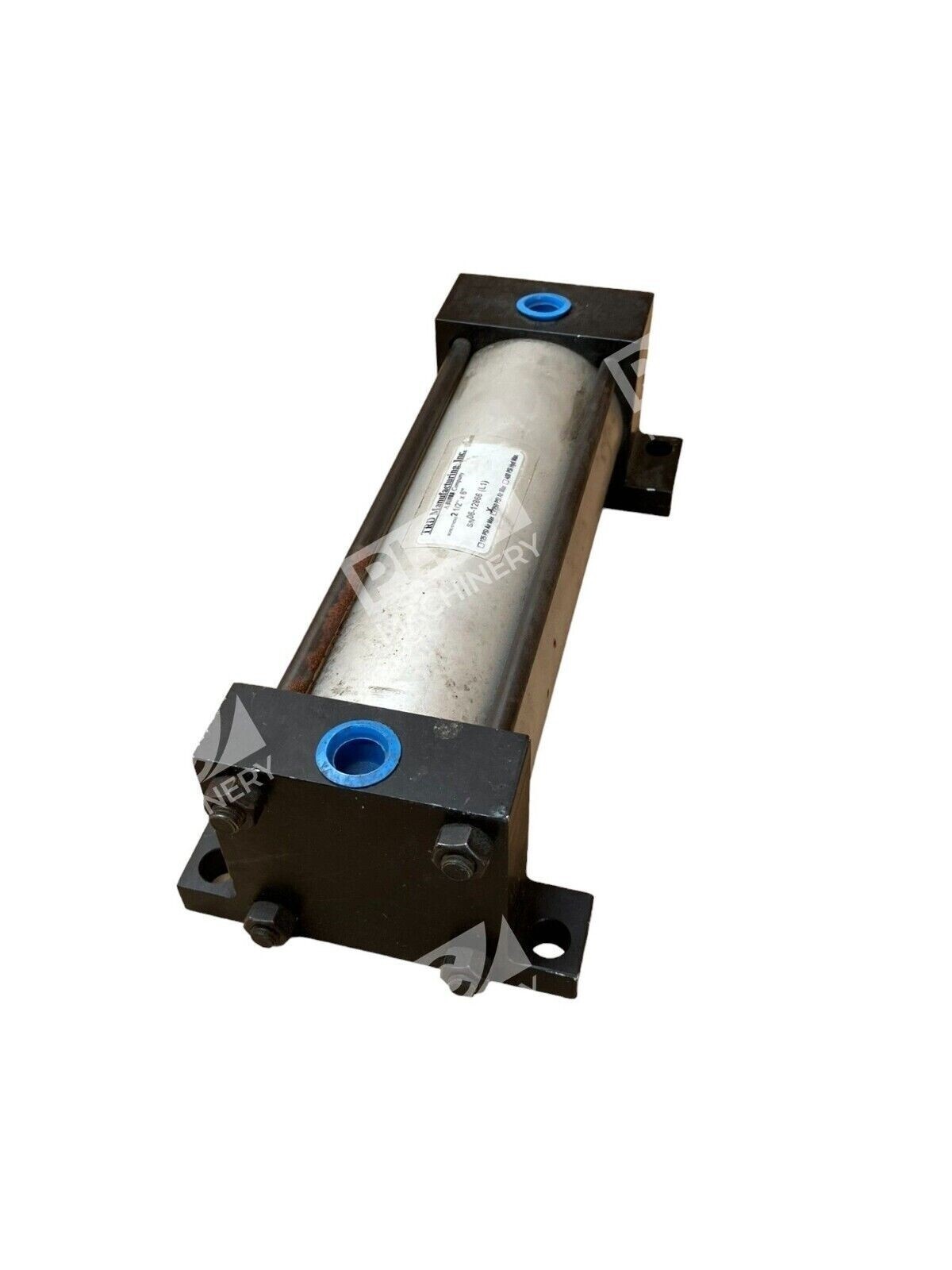

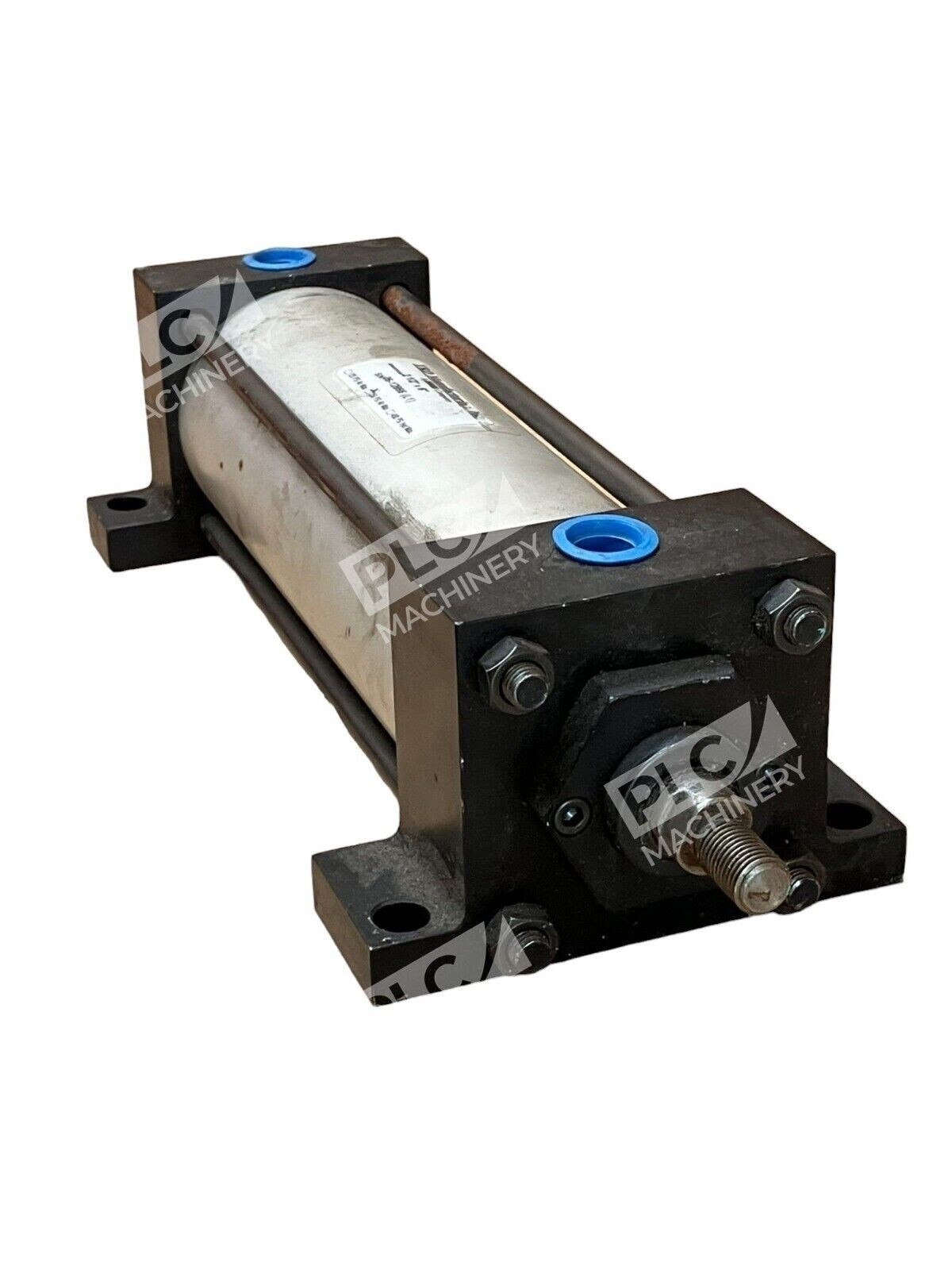

The Bimba TRD 2-1/2″ x 6″ 250 PSI pneumatic cylinder is a tie-rod single-rod actuator engineered for reliable compressed air actuation in industrial automation, packaging machinery, and material handling systems. With a 2-1/2″ bore and 6″ stroke, this cylinder delivers consistent force output across the full range of motion while maintaining structural integrity under repeated cycling. Manufactured in the United States, it operates at a maximum pressure of 250 PSI and is compatible with standard pneumatic control systems.
Key Features
- Tie-rod construction for robust side-load capacity and extended service life
- Single-rod design simplifies port configuration and integration
- 250 PSI maximum working pressure with cushioning capabilities
- 2-1/2″ bore diameter and 6″ stroke length for medium-duty applications
- Hard-chrome plated piston rod resists corrosion and wear
- Aluminum body with grease-lubricated rod bushings
Technical Specifications
- Bore Diameter: 2-1/2″
- Stroke Length: 6″
- Cylinder Type: Tie-rod, single-rod
- Maximum Pressure: 250 PSI
- Medium: Compressed air
- Rod Material: Hard-chrome plated steel
- Body Material: Aluminum
- Operating Temperature Range: -20°F to +180°F
- Mounting Style: Standard tie-rod NFPA mounts
Typical Applications
- Packaging and labeling machinery
- Material handling conveyor systems
- Fixture clamping and workholding
- Press and forming equipment
- Industrial automation and assembly lines
- Pneumatic press applications requiring moderate force
Compatibility & Replacements
Compatible With
- Standard compressed air supply systems (2 to 250 PSI)
- Pneumatic directional control valves (NG6 and NG10)
- Solenoid and manual pilot control systems
- Industrial PLC and automation control platforms
- ISO/NFPA standard mounting interfaces
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering for specific model replacements
Works With
- Pneumatic cushioning cartridges and flow controls
- Standard SAE port configurations (1/4″, 3/8″ NPT and ISO 4401)
- NFPA tie-rod cylinder mounting plates and adapters
- Proximity sensors and position feedback devices
- Industrial pneumatic circuit design standards (ISO 1219)
