Overview

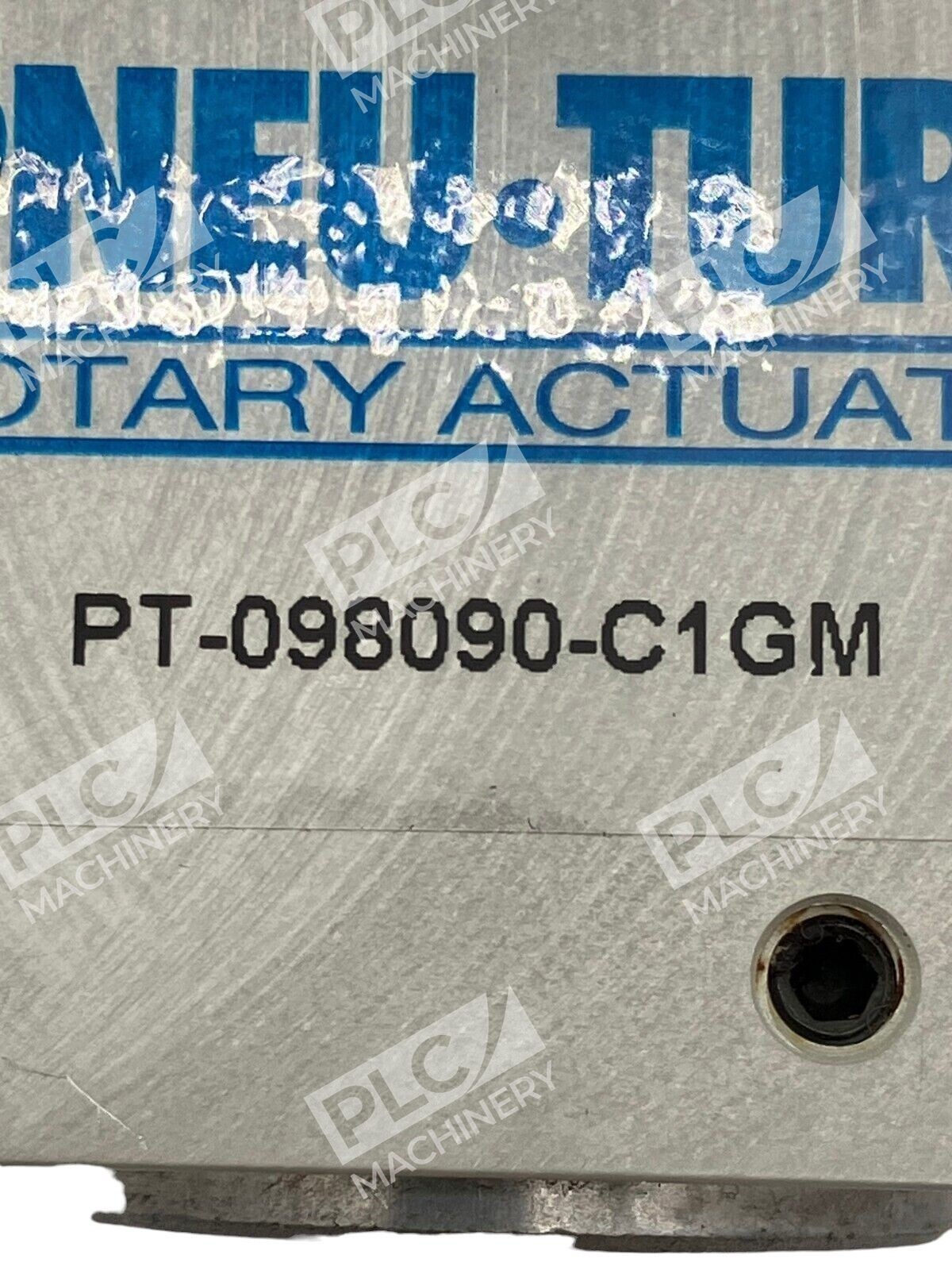

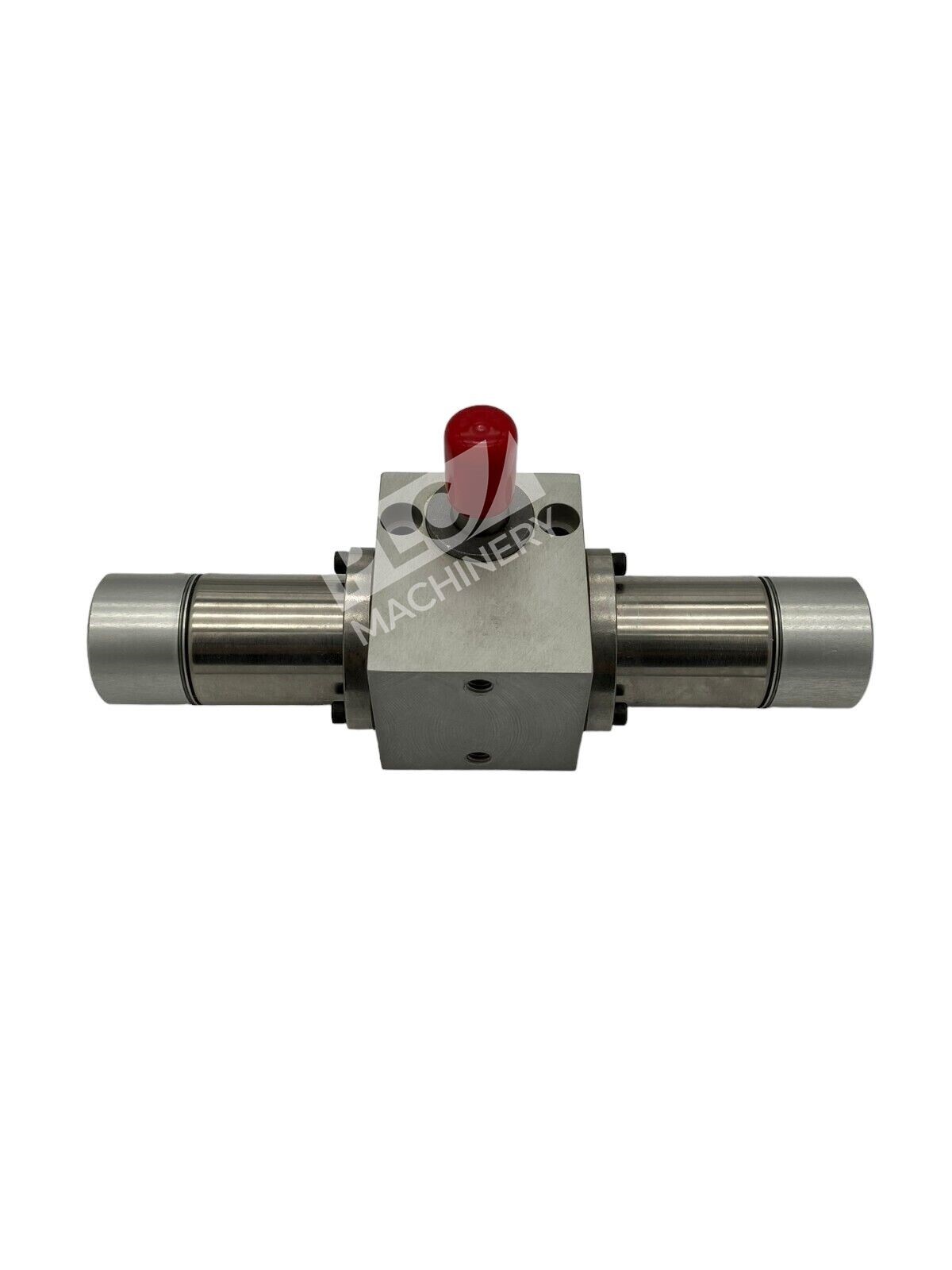

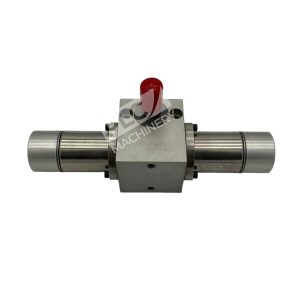

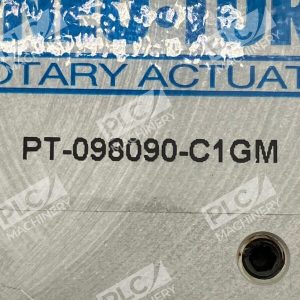

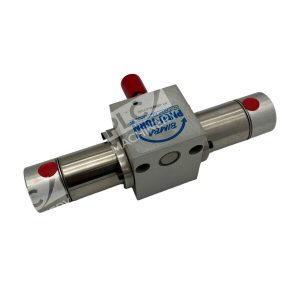

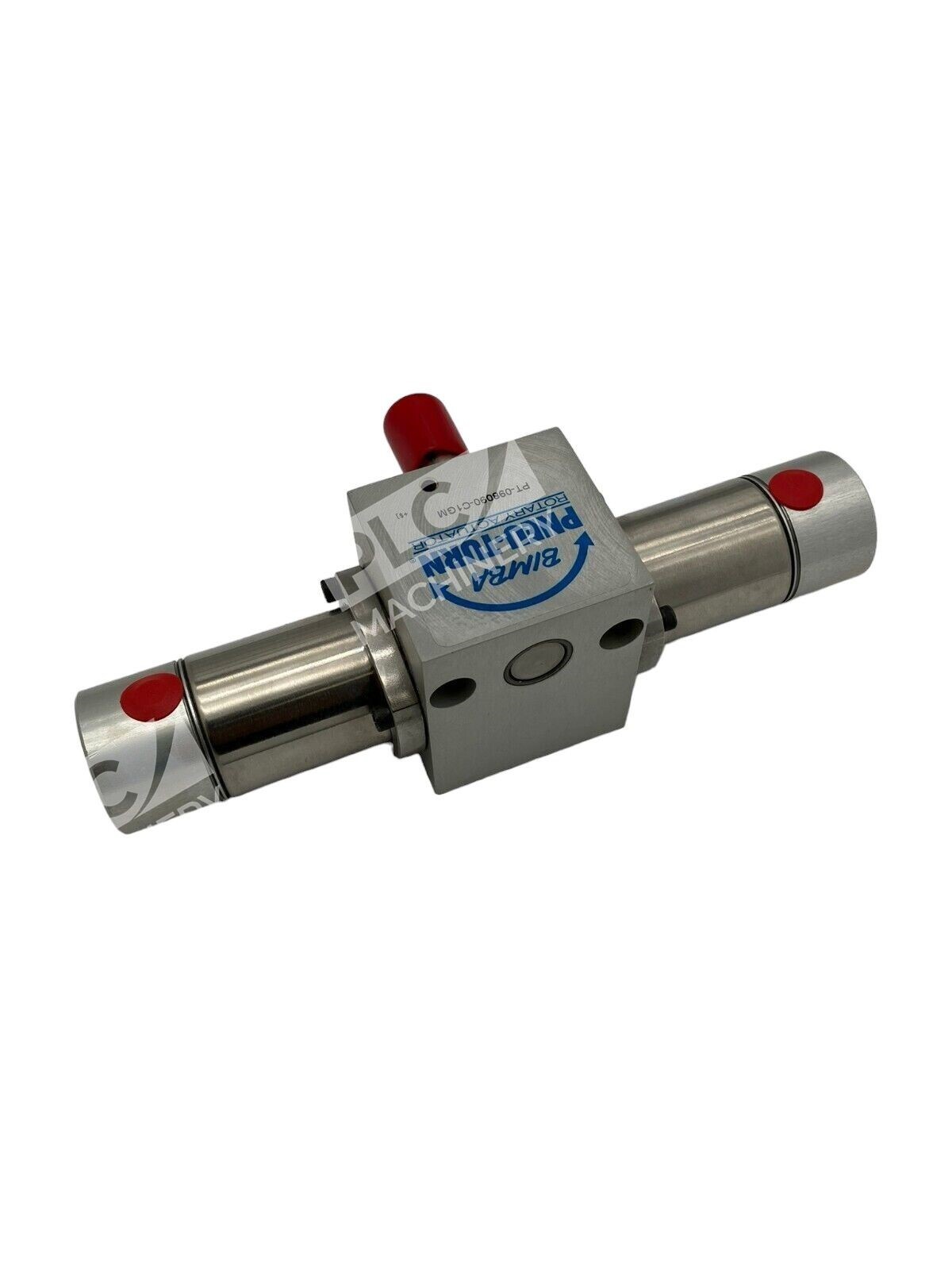

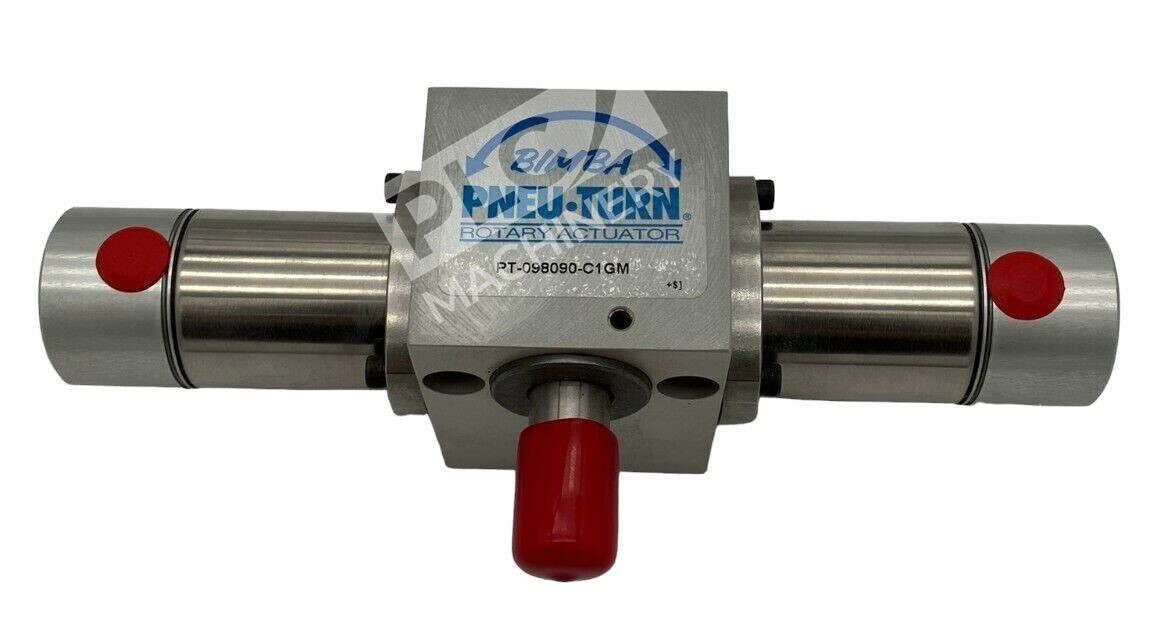

The Bimba PT-098090-C1GM is a double-acting pneumatic rotary actuator part of the proven Pneu-Turn series. This compact rack-and-pinion design delivers consistent torque output and is widely used in valve control, damper drives, and automated positioning applications across food, beverage, packaging, and industrial automation systems.
Key Features
- Double-acting construction with single-shaft design for reliable bidirectional rotation
- Rack-and-pinion mechanism delivers smooth, repeatable 90° rotation
- Cushion ports (both sides) reduce shock and extend component life
- Anti-backlash rack minimizes positioning error and hysteresis
- Magnetic position sensing option available for feedback integration
- Stainless steel construction (304 cylinder body, 303 shaft) resists corrosion in washdown environments
Technical Specifications
- Torque Rating: 147.75 in-lbs at 150 psi (16.7 Nm at 10 bar)
- Rotation Angle: 90° standard
- Bore Size: 1-1/2″ (B1-1/2″)
- Pneumatic Ports: 2 × 1/8″ NPT threaded (both ends)
- Actuator Type: Double-acting, rack-and-pinion
- Cylinder Body Material: Stainless steel 304
- Shaft Material: Stainless steel 303
- Seals: Buna-N
- Housing: Anodized aluminum with porting ends
- Bearings: Sintered iron-copper shaft bearings
- Rack: Carbon steel with anti-backlash design
- Pinion: Alloy steel
- Piston: Aluminum alloy
Typical Applications
- Valve positioners and ball valve actuation
- Damper and louver control in HVAC systems
- Guillotine gate operation in conveyance systems
- Hopper discharge and diverter control
- Process equipment positioners requiring 90° rotation
- Low-pressure pneumatic automation (40–150 psi operating range)
Compatibility & Replacements
Compatible With
- Standard 1/8″ NPT pneumatic line fittings and tubing
- General industrial pneumatic control systems operating 40–150 psi
- Pneumatic solenoid valve manifolds (2/2, 4/2, 4/3 spool valves)
- Pneumatic pressure regulators and hand valves
- Magnetic position switch and sensor accessories
Replaces / Drop-In Replacement For
- Other PT-098090 series variants with identical bore, stroke, and porting geometry
- Similar 1-1/2″ bore 90° rotary actuators from competing manufacturers (verify torque and mounting)
Works With
- Pneumatic control systems with standard 40–150 psi air supply
- Hardwired limit switches and position sensing for closed-loop feedback
- Optional Bimba magnetic position sensors for electronic feedback
- Custom or OEM pneumatic logic circuits
