Overview

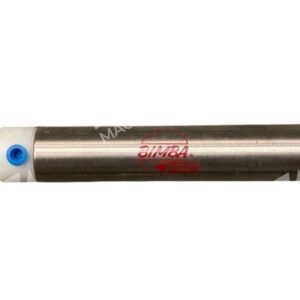

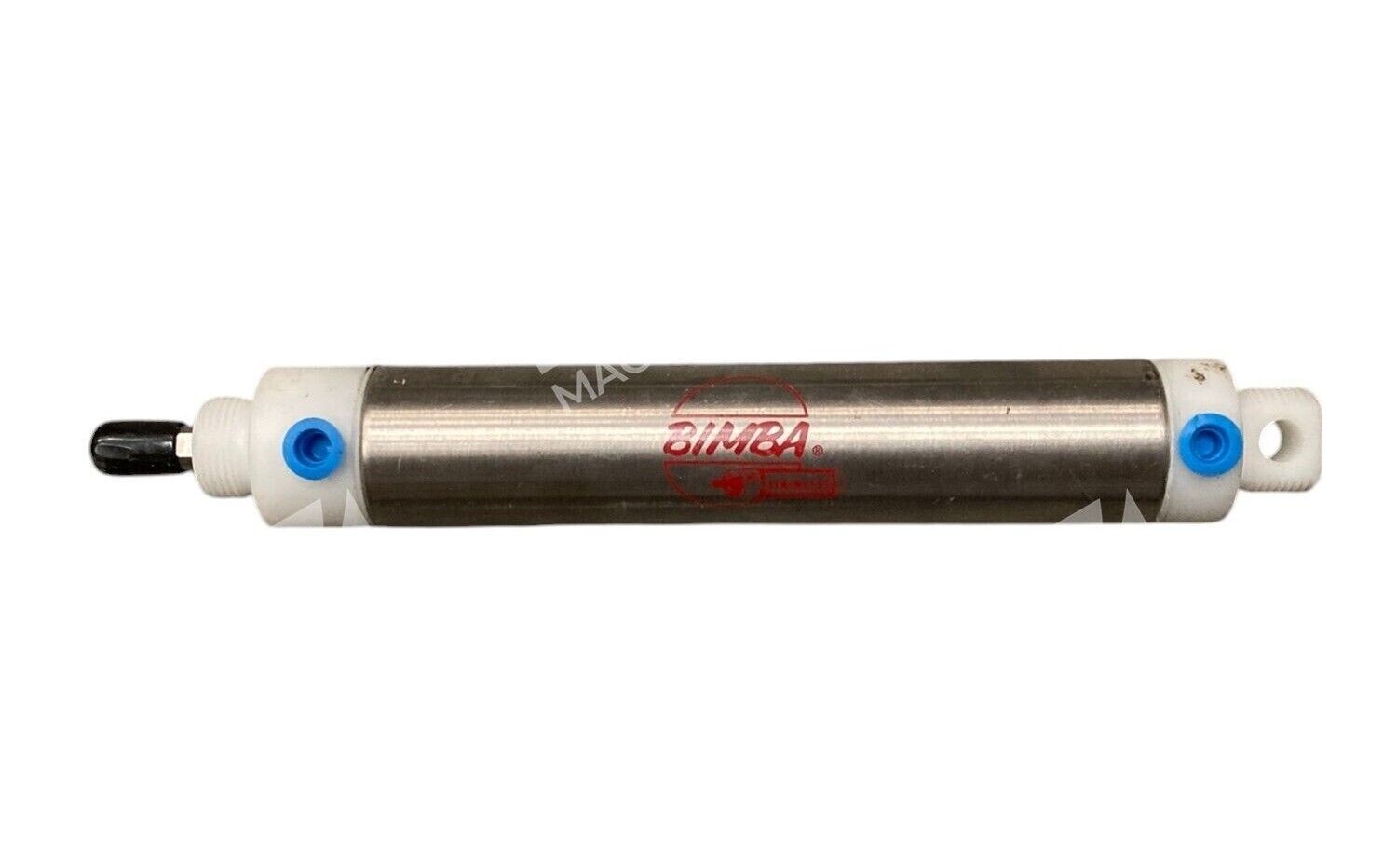

The Bimba PC-176-DXP is a double-acting single-rod pneumatic cylinder designed for standard industrial automation and manufacturing applications. Built with durable construction and proven reliability, this unit provides smooth, repeatable motion control in compressed air systems operating up to 100 PSI. The PC-176-DXP belongs to Bimba’s Original line with plastic end cap series (PC-17 series) and is widely used in packaging, assembly, material handling, and factory automation environments.
Key Features
- Double-acting design: Provides powered extension and retraction for bidirectional control
- Plastic end caps: Lightweight Delrin construction reduces overall weight while maintaining durability
- Stainless steel construction: Rod and body materials resist corrosion for extended service life
- Universal mounting: Supports double-end or rear pivot installation for flexible system integration
- Permanent grease lubrication: Pre-lubricated for convenient operation with minimal maintenance
- Proven design: Improved geometry delivers extended cylinder life compared to earlier models
Technical Specifications
- Bore diameter: 1-1/2 inches
- Stroke length: 6 inches
- Type: Double-acting, single-rod
- Maximum pressure: 100 PSI
- Rod diameter: 7/16 inch (7/16-20 UNF male threaded)
- Port type: 1/8 inch NPT (two ports)
- Rod material: Stainless steel 303
- Body material: Stainless steel 304
- End cap material: Delrin (acetal resin)
- Seals: Fluoroelastomer (FKM)
- Mounting style: Universal (double-end or rear pivot)
- Cushioning: None
- Rod wiper: Not included
- Magnetic piston: Not included
Typical Applications
The Bimba PC-176-DXP is suited for a broad range of pneumatic actuation tasks:
- Packaging machinery and case erectors
- Assembly line automation and robotic systems
- Material handling and conveyor controls
- Press and stamping machine operation
- Test fixtures and gauging equipment
- Food and beverage processing automation
Compatibility & Replacements
Compatible With
- Standard compressed air systems (0–100 PSI rated)
- Industrial pneumatic control circuits and valve banks
- 3/2 and 4/3 directional control valves with 1/8″ NPT ports
- OSHA-compliant pneumatic automation systems
- FRL (filter-regulator-lubricator) assemblies
- PLC and relay-based pneumatic control systems
Replaces / Drop-In Replacement For
The Bimba PC-176-DXP is a direct replacement for other Bimba Original line cylinders with identical bore (1-1/2″) and stroke (6″) specifications. Related models in the same series include the PC-174-DXP (4″ stroke) and various 3-position configurations. Verify compatibility with your system integrator before ordering to ensure port location and mounting orientation match your application.
Works With
- Boyle Associates or equivalent pneumatic design software
- Standard compressed air distribution networks (ISO 4401 valve patterns)
- Proportional and solenoid directional control valves
- Pneumatic timers, counters, and logic systems
- Industrial PLC environments (any brand)
- Pneumatic position sensing switches and proximity sensors
