Overview

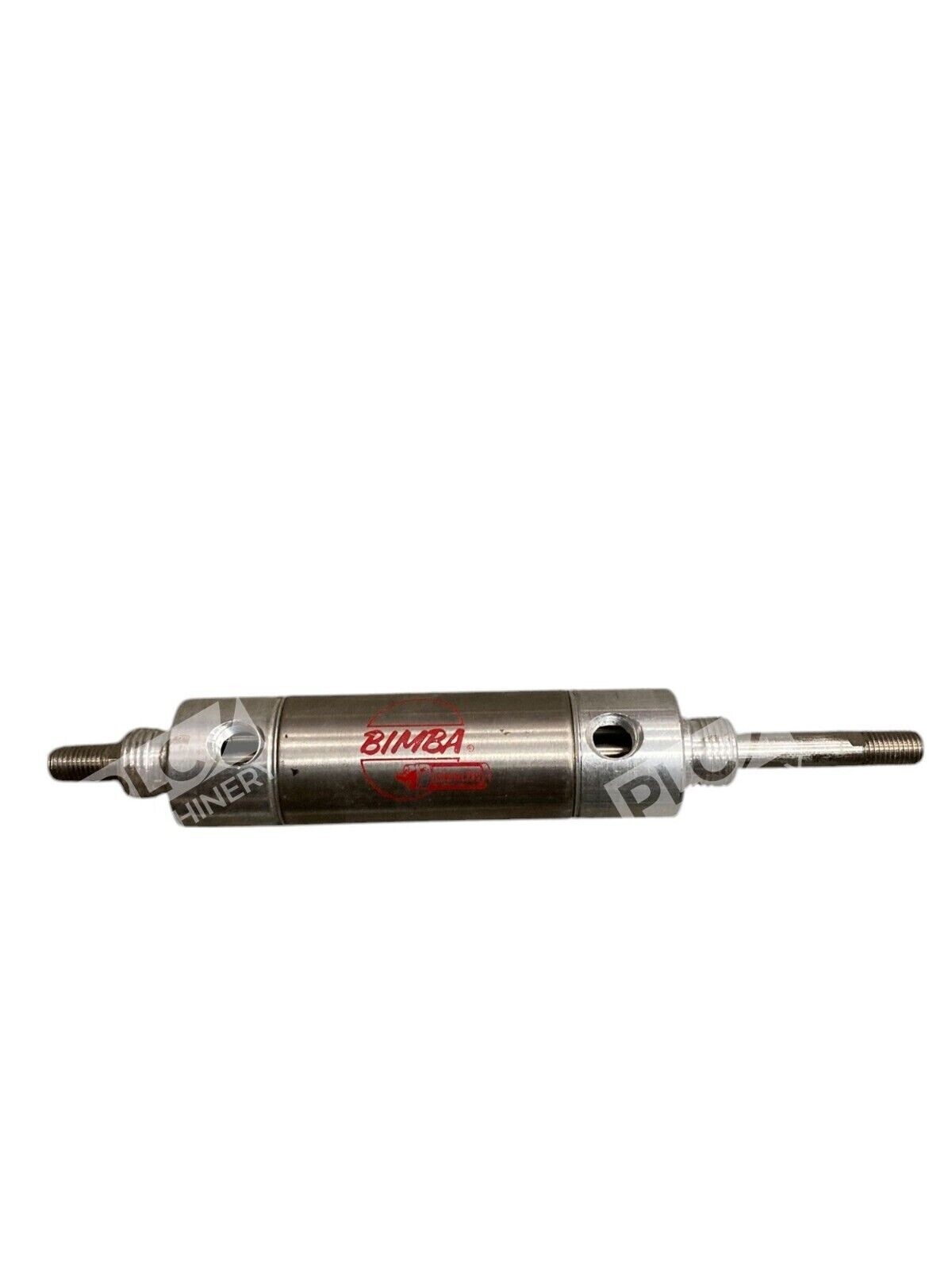

The Bimba 091-DXDEHB is part of Bimba’s proven Original Line pneumatic cylinder series. This double-acting cylinder with hollow rod design delivers reliable performance in industrial automation and motion control applications. The unit features double-end rod configuration with threaded mounting options, making it suitable for compact applications requiring bidirectional actuation.
Key Features
- Double-acting design—extends and retracts under pneumatic pressure
- Hollow rod configuration—ideal for rod-end porting and compact routing
- Double-end threaded rod mounting—versatile installation options
- Permanent grease lubrication—no ongoing maintenance required
- Original Line proven design—3,000-mile life rating and field-tested reliability
Technical Specifications
- Bore Size: 1-1/16 inch
- Cylinder Type: Double-acting, double-end rod
- Rod Configuration: Hollow rod (5/16-24 UNF-2A threaded)
- Pneumatic Ports: 1/8″ NPT (both ends)
- Mounting Style: Double-end threaded with 5/8-18 mounting nuts
- Operating Pressure: 250 psi (Original Line standard)
- Lubrication: Permanent grease—no additional lubrication required
- Life Rating: 3,000 miles
- Series: Original Line
- Condition: Used, fully functional
Typical Applications
The 091-DXDEHB is well-suited for:
- Automated clamping and positioning systems
- Material handling and transfer equipment
- Compact automation where rod-end porting is required
- Industrial machinery with space constraints
- OEM and retrofit pneumatic motion control
Compatibility & Replacements
Compatible With
- Standard pneumatic systems rated for 250 psi
- Industrial pneumatic control circuits and manifolds
- Pneumatic solenoid valve banks with 1/8″ NPT porting
- Bimba Original Line mounting blocks and brackets
- Standard 5/16-24 UNF rod-end actuators and linkages
Replaces / Drop-In Replacement For
- Other Bimba 091-series cylinders with matching stroke and mounting configuration
- Original Line double-acting cylinders with 1-1/16″ bore and hollow rod
- Legacy pneumatic cylinders requiring compact double-end rod design
Works With
- Standard pneumatic valves (2/2, 3/2, 4/2 configurations)
- Pneumatic logic circuits and flow control valves
- Industrial automation controllers with solenoid valve outputs
- Pneumatic pressure regulators (up to 250 psi)
- Standard pneumatic tubing and fittings (1/8″ NPT)
