Overview

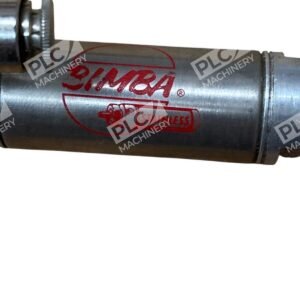

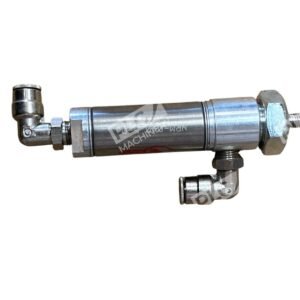

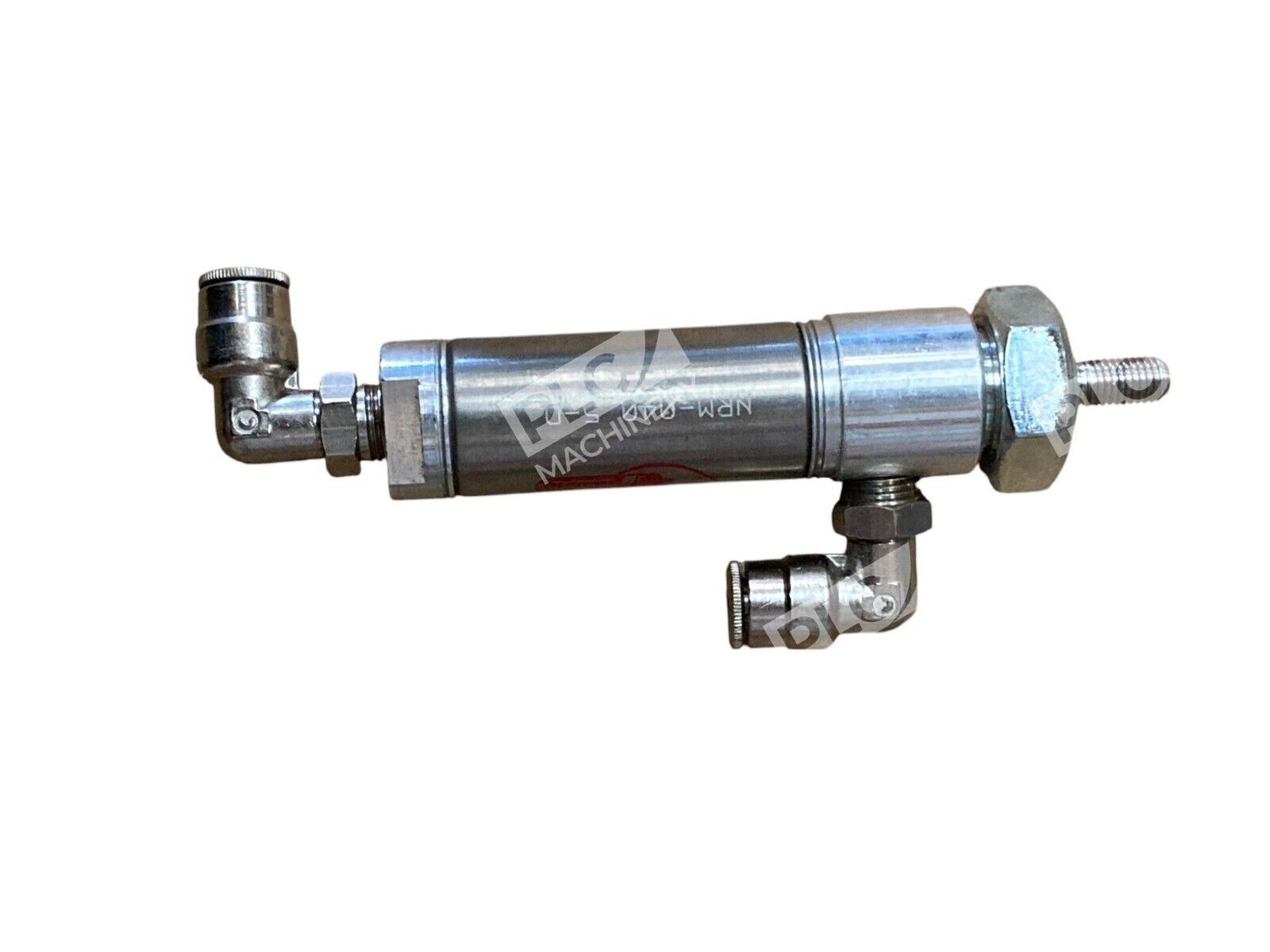

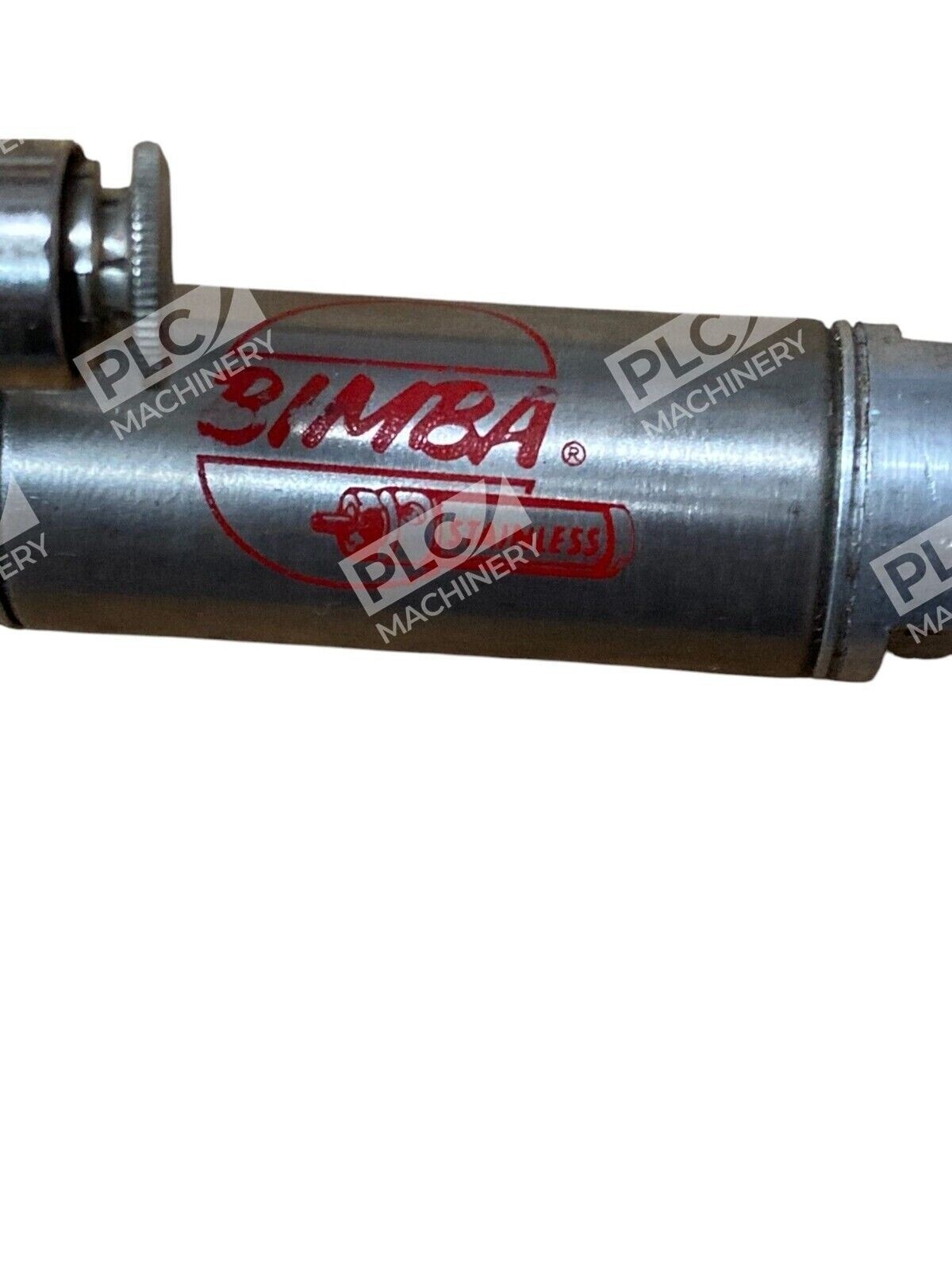

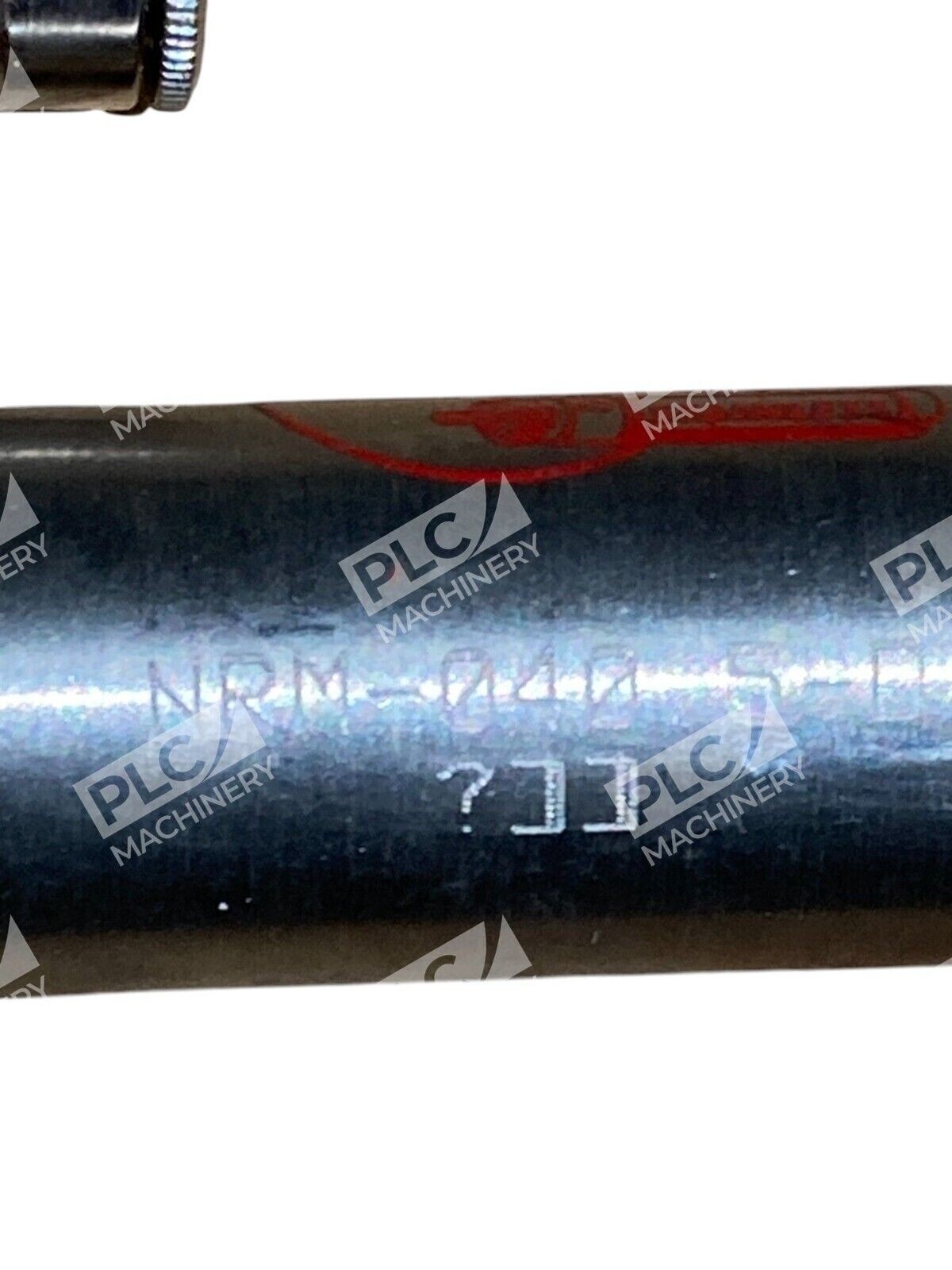

The Bimba NRM-040.5-D is a compact, double-acting non-rotating pneumatic cylinder engineered for precision motion control in manufacturing and industrial automation applications. As part of Bimba’s Original Line non-rotating series, this cylinder combines proven design with enhanced durability and minimal maintenance requirements.
Key Features
- Non-rotating design: Square piston rod prevents rotation with superior rotational control via unique geometry with rounded corners
- Double-acting operation: Pressurized air drives both extend and retract strokes
- Permanent grease lubrication: Features permanent grease lubrication for extended service life without additional maintenance
- Proven reliability: Design enhancements more than double the anticipated service life
- Front nose mounting for flexible installation options
- Stainless steel piston rod standard for corrosion resistance
Technical Specifications
- Bore diameter: 3/4″
- Stroke length: 0.5″
- Action type: Double-acting
- Piston rod style: Square (non-rotating)
- Mounting: Front nose
- Port type: 1/8″ NPT
- Piston rod thread: 1/4-28 UNF-2A (male)
- Rod material: Stainless steel
- Rod seal: Urethane
- Rotational control: +/-3°
- Lubrication: Permanent grease (sealed)
- Series: Original Line Non-Rotating (NRM-04)
Typical Applications
The Bimba NRM-040.5-D is ideal for applications requiring precise linear motion without rotational torque. Common uses include:
- Precision positioning in assembly machinery
- Clamping and holding fixtures
- Automated part handling and transfer systems
- Food processing and packaging equipment
- Medical device manufacturing
- Laboratory automation equipment
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems operating 0-100 psi
- PLC-controlled automation systems with pneumatic interfaces
- Industrial compressed air networks (ISO 4401 standard porting)
- Universal double-end and rear pivot mounting systems
- Proximity sensors and limit switches via built-in magnetic piston option
Replaces / Drop-In Replacement For
The NRM-040.5-D can serve as a direct replacement for other Bimba Original Line non-rotating cylinders with matching bore, stroke, and port configurations. Verify mounting style and port thread size with your original equipment specifications before ordering to ensure proper fitment.
Works With
- Pneumatic control valves (4/2, 4/3 spool and poppet types)
- Flow control and pressure regulation components
- Pneumatic tubing: 1/8″ NPT threaded connections
- Solenoid-operated pneumatic directional control valves
- Manual and pilot-operated directional control systems
- Proximity and limit switch sensors compatible with magnetic piston detection
